1994 CADILLAC SEVILLE Owners Manual

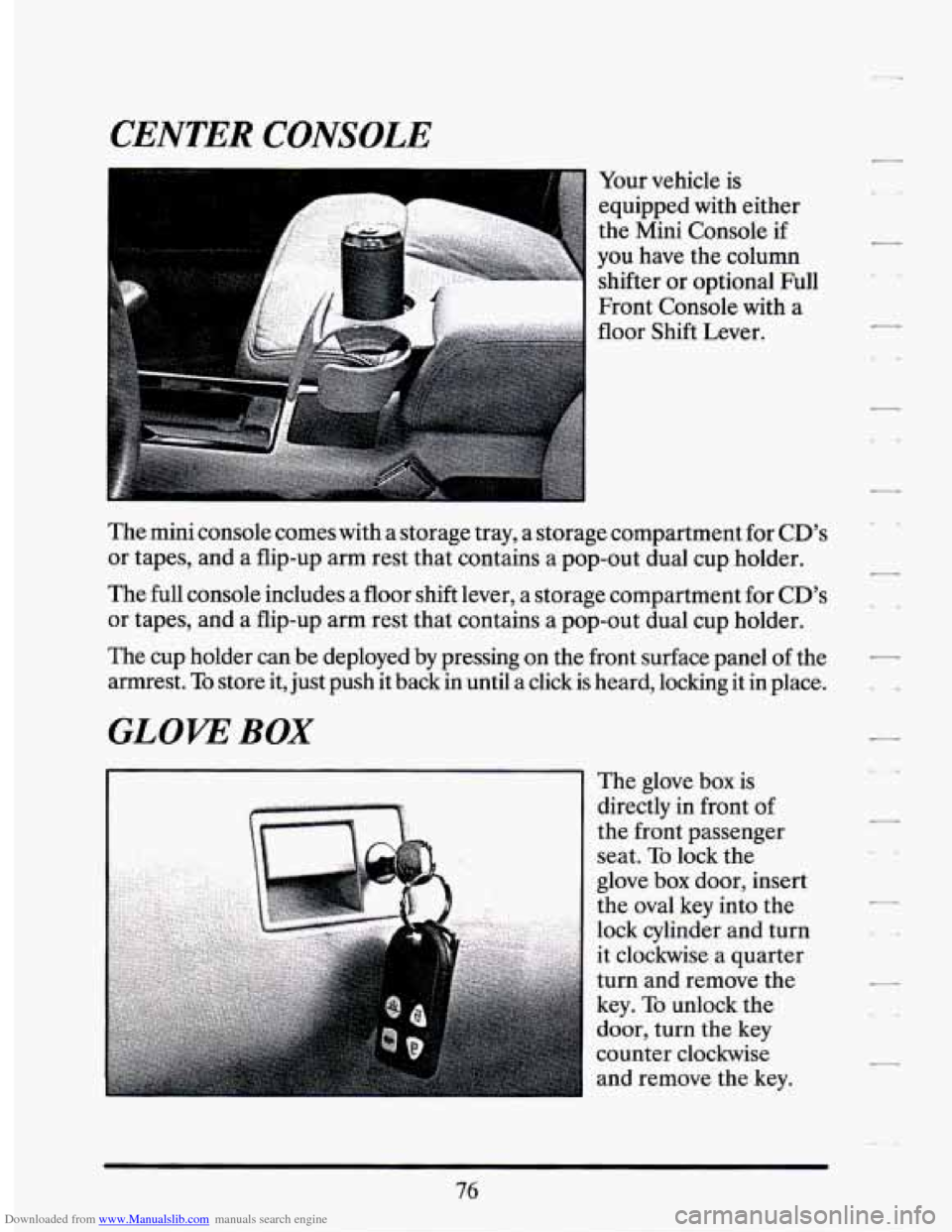

Downloaded from www.Manualslib.com manuals search engine CENTER CONSOLE
The mini console comes with a storage tray, a storage compartment for CD's
or tapes, and a flip-up arm rest that contains a pop-out dual cup holder.
The full console includes a floor shift lever, a storage compartment for
CD's
or tapes, and a flip-up arm rest that contains a pop-out dual cup holder.
The cup holder can be deployed by pressing on the front surface panel of the
armrest.
To store it, just push it back in until a click is heard, locking it in place.
GLOn BOX
The glove box is
directly in front of
the front passenger
seat. To lock the
glove
box door, insert
the oval key into the
lock cylinder and turn
it clockwise a quarter
turn and remove the
key.
To unlock the
door, turn
the key
counter clockwise
and remove
the key.
76

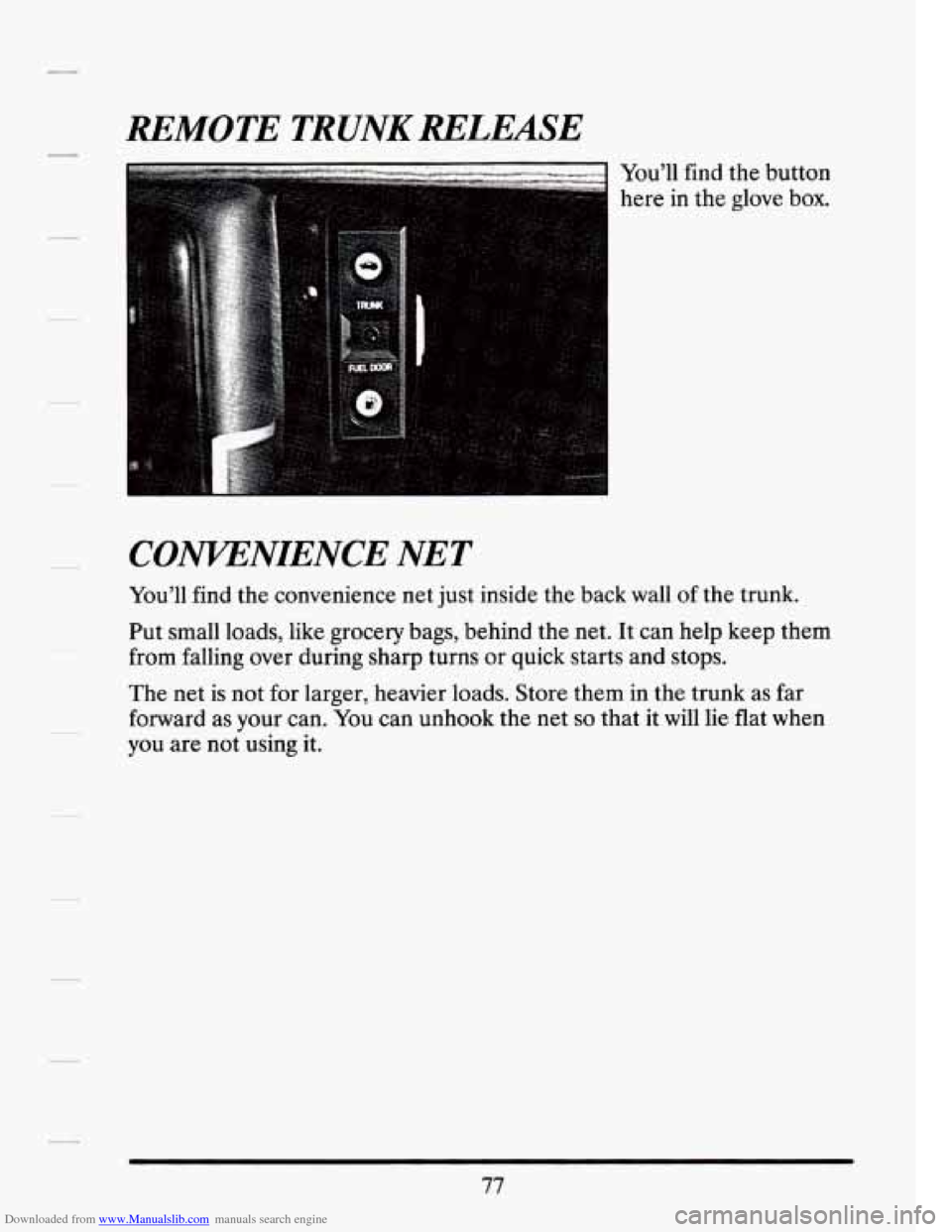

Downloaded from www.Manualslib.com manuals search engine REMOTE TRUNK RELEASE
You’ll find the button
here in the glove
box.
CONVENIENCE NET
You’ll find the convenience net just inside the back wall of the trunk.
Put small loads, like grocery bags, behind the net. It can help keep them
from falling over during sharp turns
or quick starts and stops.
The net is not
for larger, heavier loads. Store them in the trunk as far
forward as your can. You can unhook the net
so that it will lie flat when
you are not using it.
77

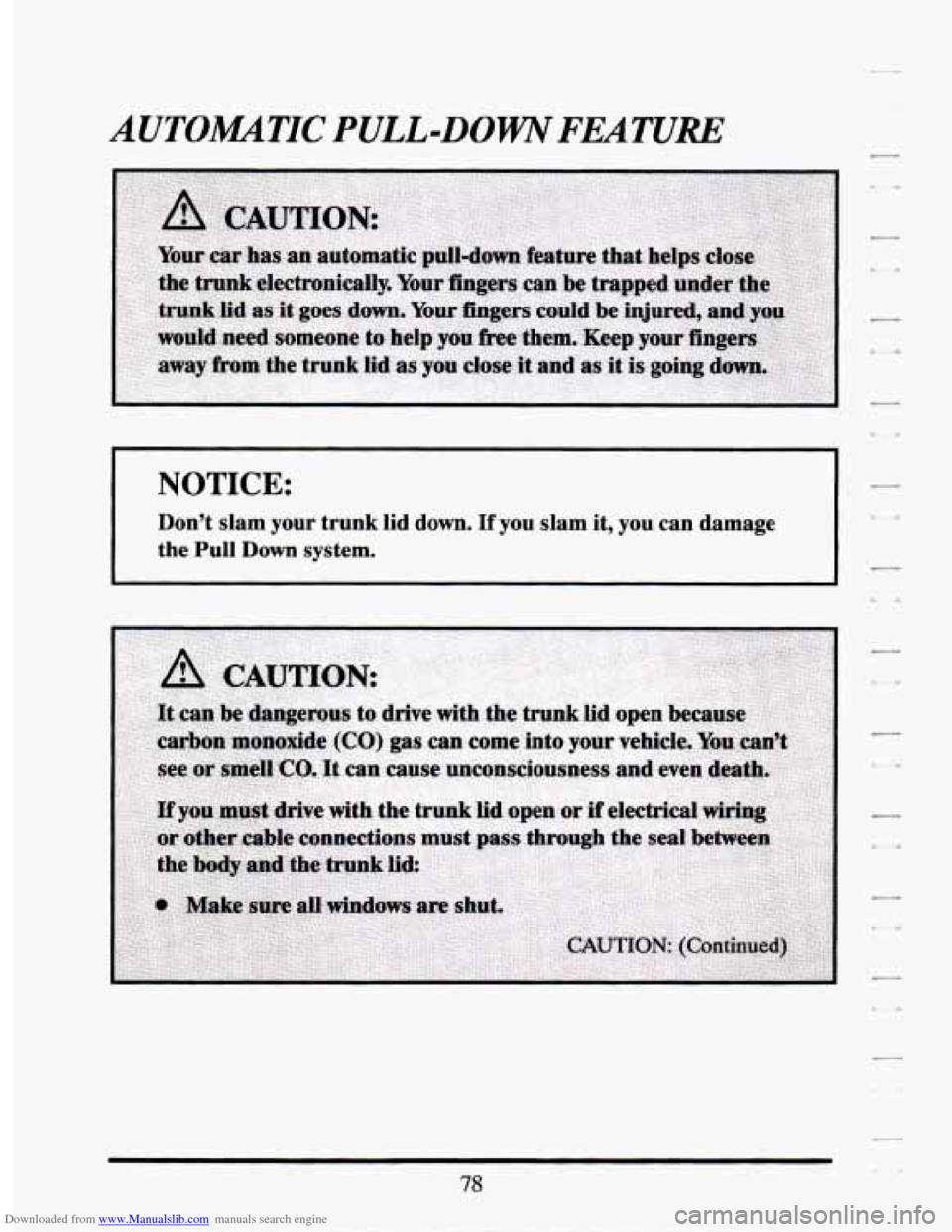

Downloaded from www.Manualslib.com manuals search engine AUTOMUTIC PULL-DOW FEATURE
NOTICE:
Don’t slam your trunk lid down. If you slam it, you can damage
the Pull Down system.

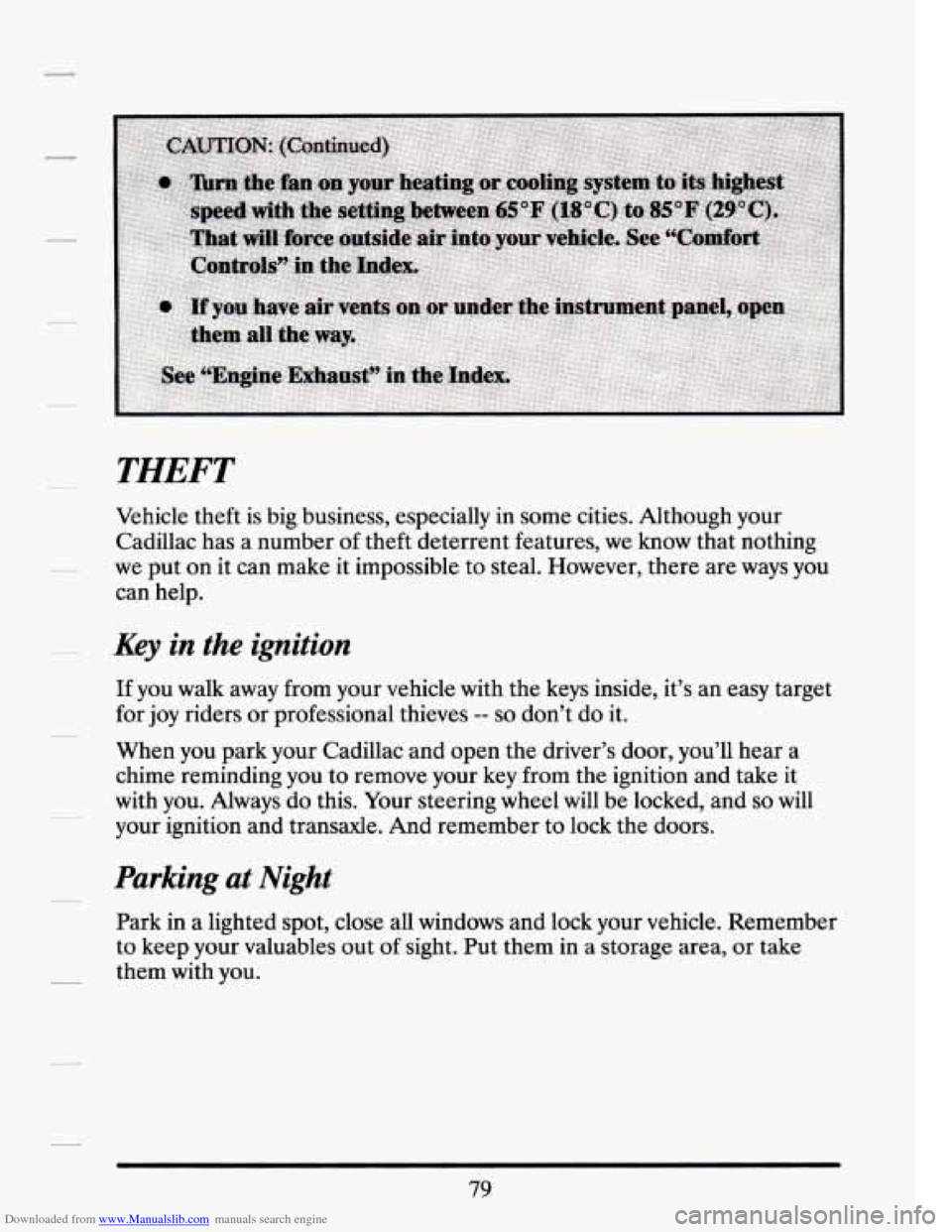

Downloaded from www.Manualslib.com manuals search engine THEFT
Vehicle theft is big business, especially in some cities. Although your
Cadillac has a number
of theft deterrent features, we know that nothing
we put on it can make it impossible to steal. However, there are ways you
can help.
Key in the ignition
If you walk away from your vehicle with the keys inside, it’s an easy target
for
joy riders or professional thieves -- so don’t do it.
When you park your Cadillac and open the driver’s door, you’ll hear a
chime reminding you to remove your key from the ignition and take it
with you. Always do this. Your steering wheel will be locked, and
so will
your ignition and transaxle. And remember to lock the
doors.
Parking at Night
Park in a lighted spot, close all windows and lock your vehicle. Remember
to keep your valuables out
of sight. Put them in a storage area, or take
them with
you.
79

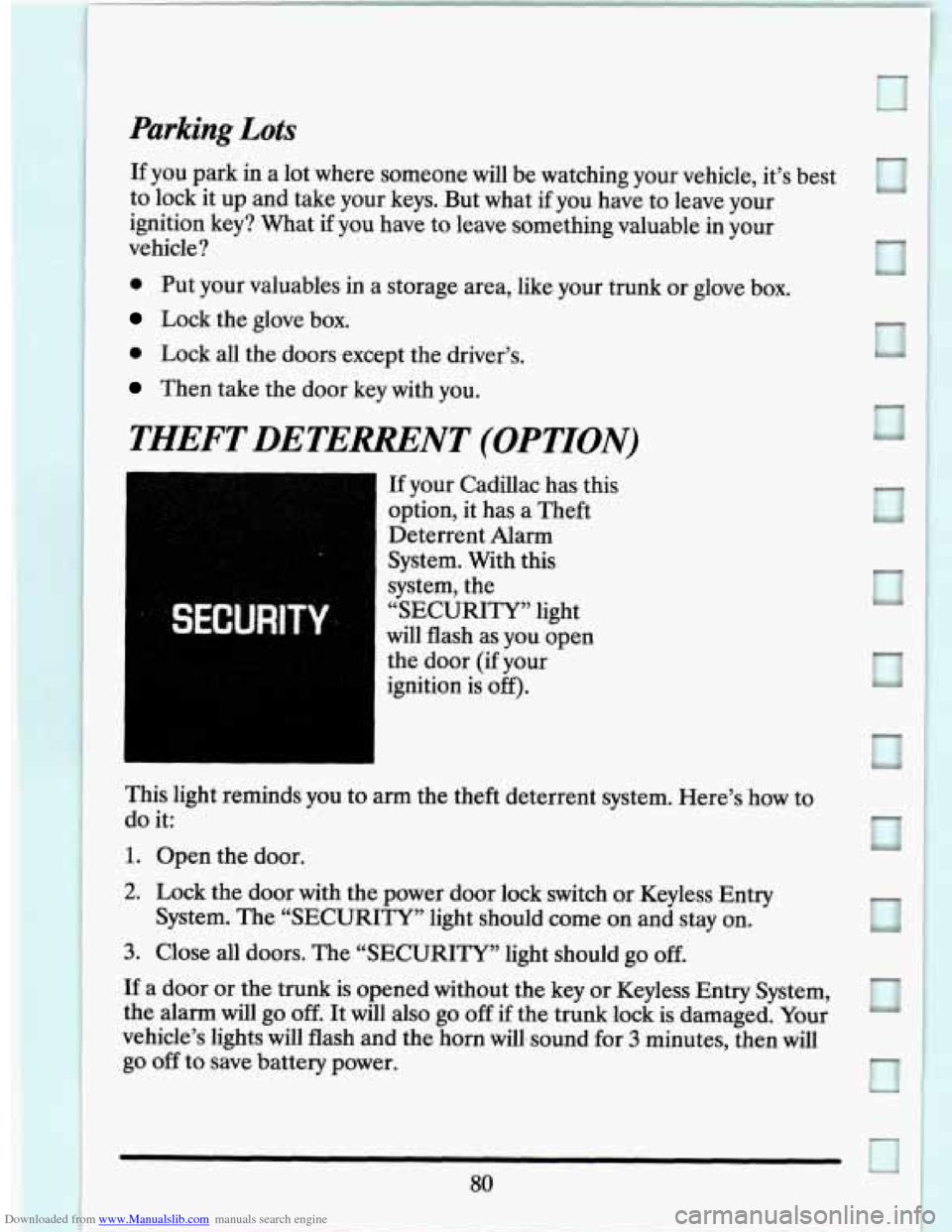

Downloaded from www.Manualslib.com manuals search engine Parking Lots
If you park in a lot where someone will be watching your vehicle, it’s best
to lock it up
and take your keys. But what if you have to leave your
ignition key? What if you have to leave something valuable in your
vehicle?
0 Put your valuables in a storage area, like your trunk or glove box.
Lock the glove box.
0 Lock all the doors except the driver’s.
Then take the door key with you.
THEFT DETEWNT (OPTION)
If your Cadillac has this
option, it has a Theft
Deterrent Alarm
System. With this
system, the
“SECURITY” light
will flash as you open
the door (if your
ignition is
off).
This light reminds you to arm the theft deterrent system. Here’s how to
do it:
1. Open the door.
2. Lock the door with the- power door lock switch or Keyless Entry
System. The “SECURITY” light should come
on and stay on.
3. Close all doors. The “SECURITY” light should go off.
If a door or the trunk is opened without the key or Keyless Entry System,
the alarm will go
off. It will also go off if the trunk lock is damaged. Your
vehicle’s lights will flash and the
horn willsound for 3 minutes, then will
go off to save battery power.
nl
L!
80

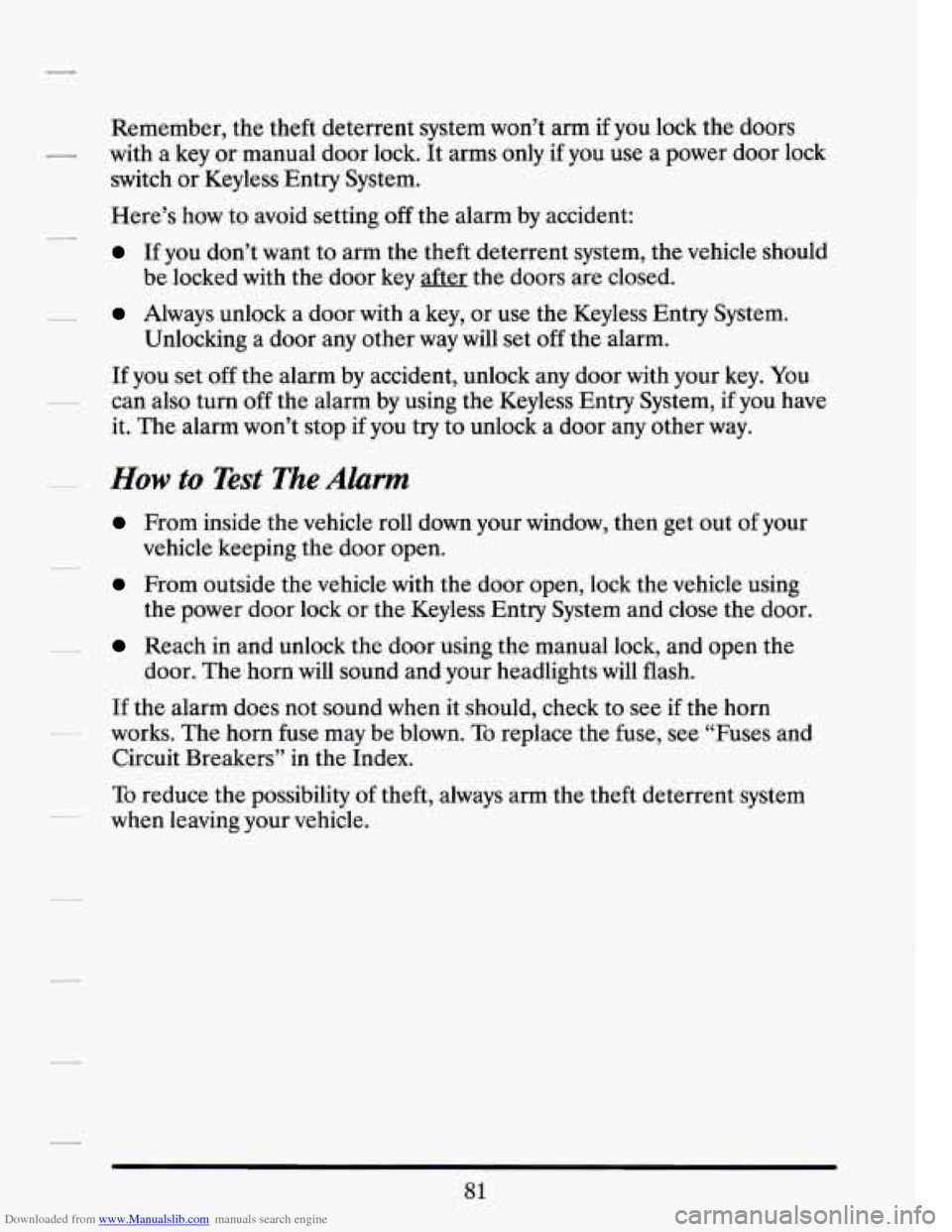

Downloaded from www.Manualslib.com manuals search engine Remember, the theft deterrent system won’t arm if you lock the doors
switch or Keyless Entry System.
- with a key or manual door lock. It arms only if you use a power door lock
Here’s how to avoid setting
off the alarm by accident:
If you don’t want to arm the theft deterrent system, the vehicle should
-
be locked with the door key after the doors are closed.
Always unlock a door with a key, or use the Keyless Entry System.
If you set
off the alarm by accident, unlock any door with your key. You
can also turn off the alarm by using the Keyless Entry System, if you have
it. The alarm won’t stop if you try to unlock a door any other way.
Unlocking a
door any other way will set
off the alarm.
__ How to Test The Alarm
From inside the vehicle roll down your window, then get out of your
From outside the vehicle with the door open, lock the vehicle using
Reach in and unlock the door using the manual lock, and open the
vehicle
keeping the door open.
the power door lock or the Keyless Entry System and close the door.
door. The horn will sound and your headlights will flash.
If the alarm does not sound when it should, check to see if the horn
works. The horn fuse may be blown.
To replace the fuse, see “Fuses and
Circuit Breakers” in the Index.
To reduce the possibility of theft, always arm the theft deterrent system
when leaving your vehicle.
81

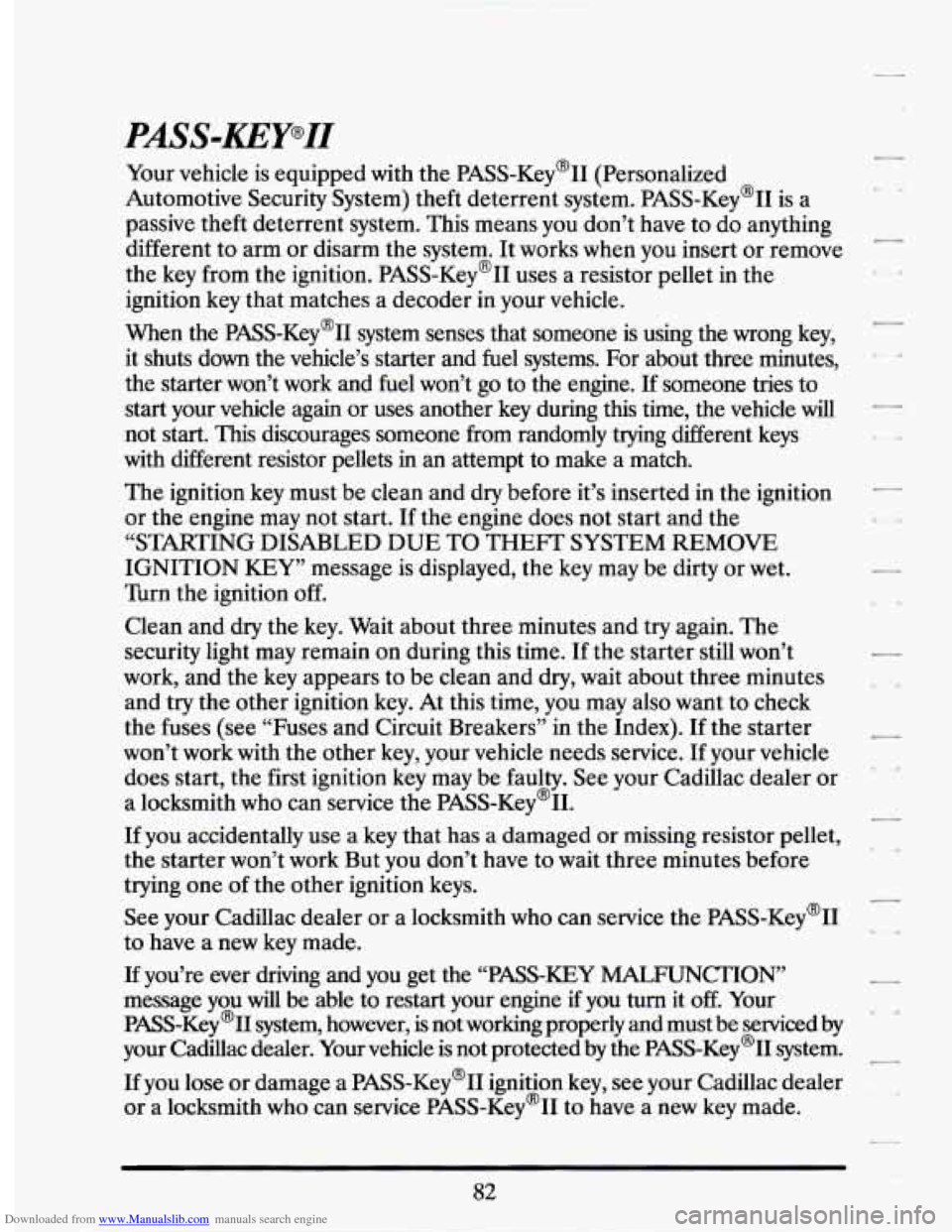

Downloaded from www.Manualslib.com manuals search engine PASS-KEY’II
Your vehicle is equipped with the PASS-Key’II (Personalized
Automotive Security System) theft deterrent system. PASS-Key’II is a
passive theft deterrent system. This means you don’t have to do anything
different to arm or disarm the system. It works when you insert or remove
the key from the ignition. PASS-Key@II uses a resistor pellet in the
I*
ignition key that matches a decoder in your vehicle.
-
When the PASS-Key’II system senses that someone is using the wrong key,
it shuts down the vehicle’s starter and fuel systems. For about three minutes,
the starter won’t work and fuel won’t
go to the engine. If someone tries to
start your vehicle again or uses another key during this time, the vehicle
will
not start. This discourages someone from randomly trying differe\
nt keys
with different resistor pellets
in an attempt to make a match.
The ignition key must be clean and dry before it’s inserted in the ignition
or the engine may not start. If the engine does not start and the
“STARTING DISABLED DUE TO THEFT SYSTEM REMOVE
IGNITION
KEY” message is displayed, the key may be dirty or wet.
Turn the ignition off.
Clean and dry the key. Wait about three minutes and try again. The
security light may remain on during this time.
If the starter still won’t
work, and the
key appears to be clean and dry, wait about three minutes
and
try the other ignition key. At this time, you may also want to check
the fuses (see “Fuses and Circuit Breakers” in the Index).
If the starter
won’t work with the other key, your vehicle needs service. If your vehicle
does start, the first ignition
key may be faulty. See your Cadillac dealer or
a locksmith who can service the PASS-Key’II.
If you accidentally use a key that has a damaged or missing resistor pellet,
the starter won’t work But you don’t have to wait three minutes before
trying one of the other ignition keys.
See your Cadillac dealer or a locksmith who can service the PASS-Key’II
to have a new key made.
If you’re ever driving and you get the “PASS-KEY MALFUNCTION’ -
message you will be able to restart your engine if you turn it off. Your
PASS-Key’II system, however,
is not working properly and must be serviced by
your Cadillac dealer. Your vehicle is not protected by the PASS-Key’II system.
-
If you lose or damage a PASS-Key@II ignition key, see your Cadillac dealer -
or a locksmith who can service PASS-Key’II to have a new key made.
82

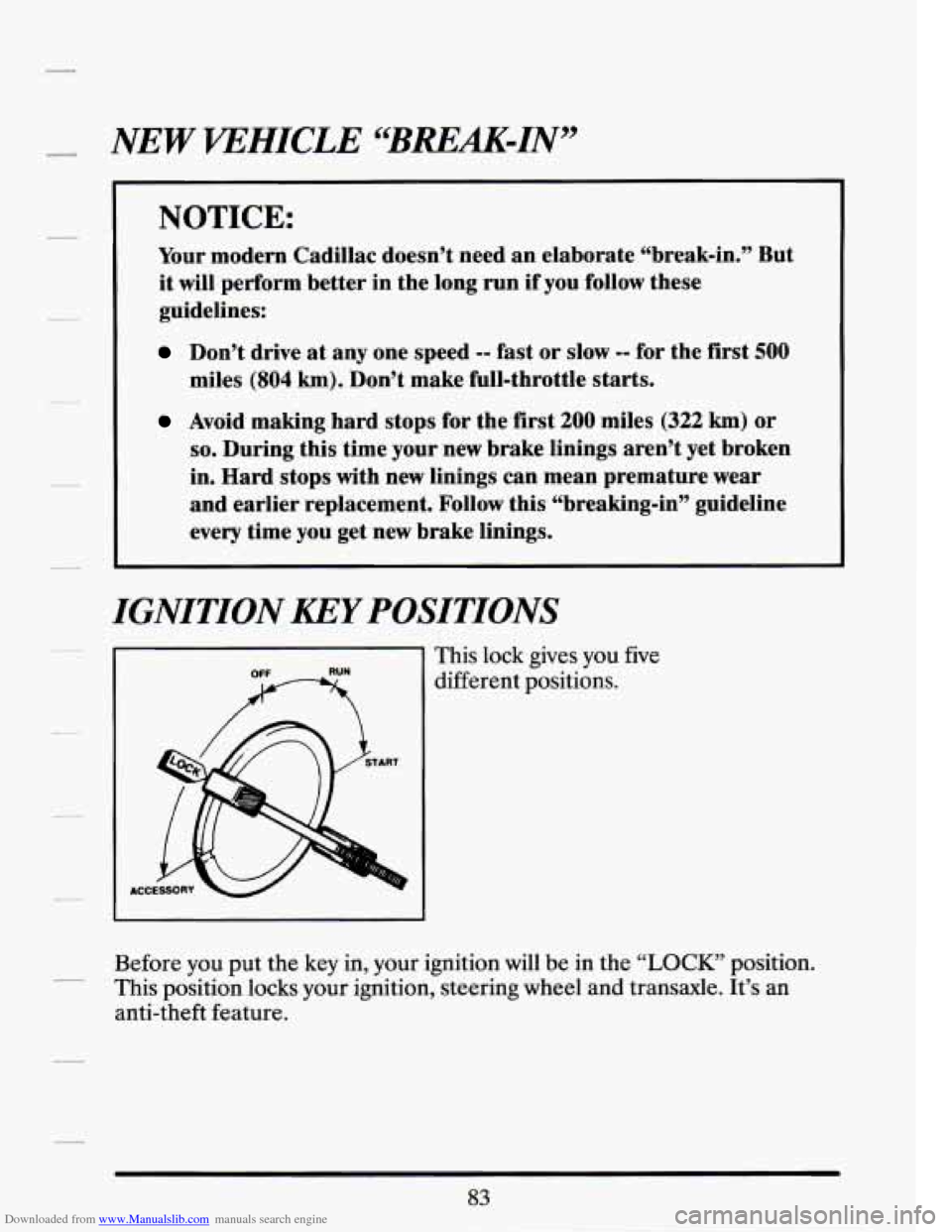

Downloaded from www.Manualslib.com manuals search engine - NEW VEHICLE “BREAK-IN”
NOTICE:
Your modern Cadillac doesn’t need an elaborate “break-in.” But
it will perform better in the long run if you follow these
guidelines:
Don’t drive at any one speed -- fast or slow -- for the first 500
miles (804 km). Don’t make full-throttle starts.
Avoid making hard stops for the first 200 miles (322 km) or
so. During this time your new brake linings aren’t yet broken
in. Hard stops with new linings can mean premature wear
and earlier replacement. Follow this “breaking-in” guideline
every time
you get new brake linings.
IGNITION KEY POSITIONS
-
This lock gives you five
different positions.
Before you put the key in,
your ignition will be in the “LOCK’ position.
This position locks your ignition, steering wheel and transaxle. It’s an
anti-theft feature. -
83
