1994 CADILLAC SEVILLE Owners Manual

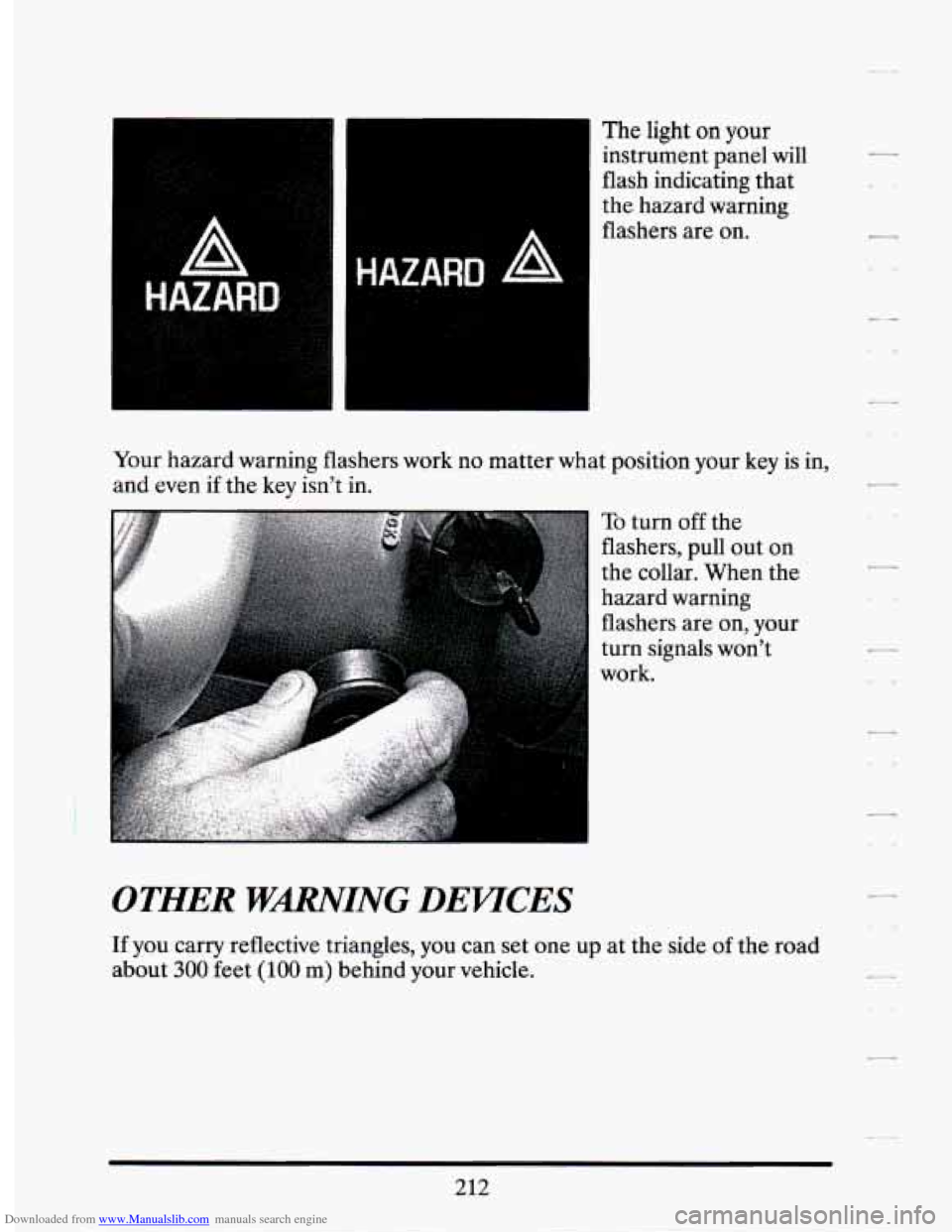

Downloaded from www.Manualslib.com manuals search engine --m The light on your - .-
~ instrument panel will
flash indicating that
the hazard warning
flashers are
on.
OTHER WmING DEWCES
If you carry reflective triangles, you can set one up at the side of the road
about
300 feet (100 m) behind your vehicle.
212

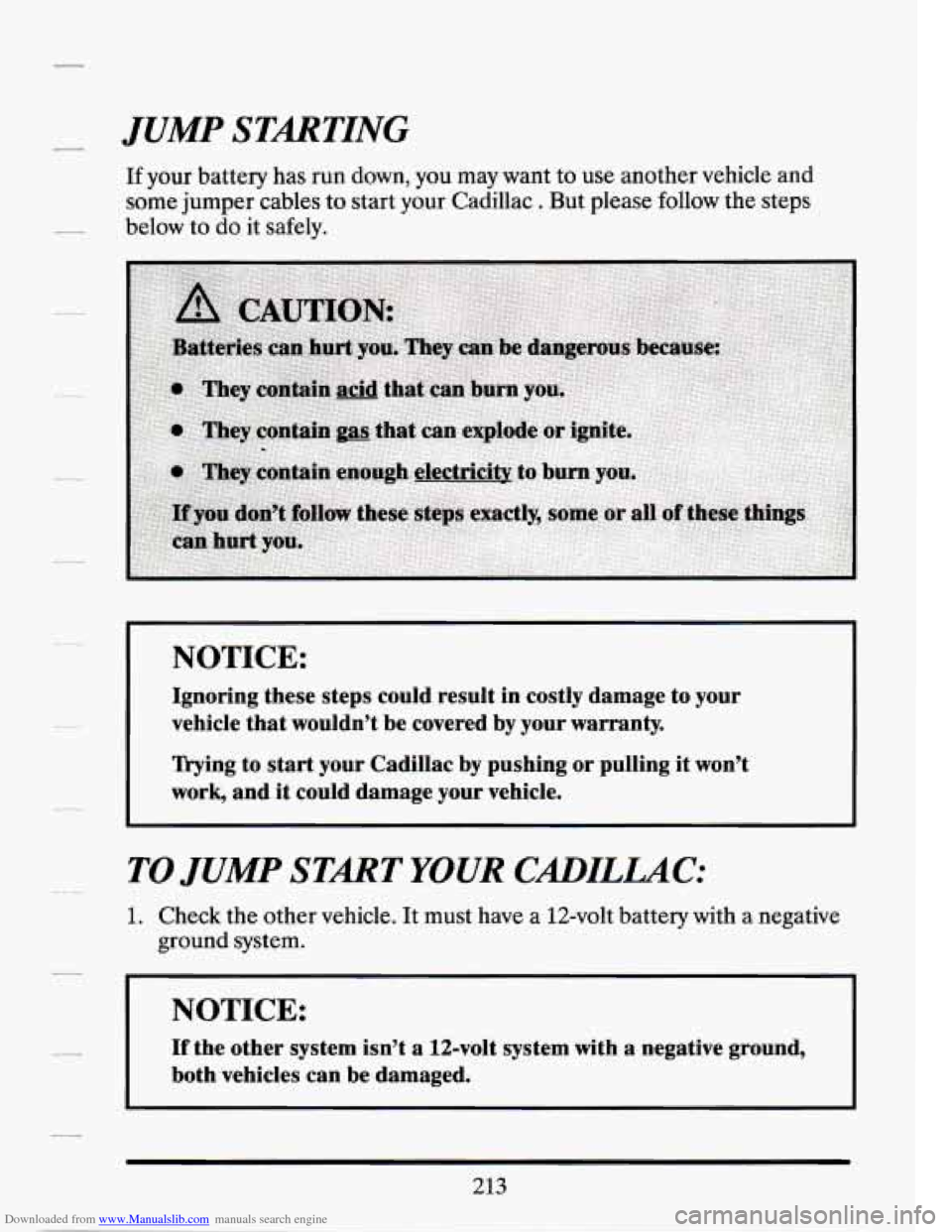

Downloaded from www.Manualslib.com manuals search engine JUMP STARTING
If your battery has run down, you may want to use another vehicle and
some jumper cables to start your Cadillac . But please follow the steps
below to
do it safely.
-
NOTICE:
Ignoring these steps could result in costly damage to your
vehicle that wouldn’t be covered by your warranty.
nying to start your Cadillac by pushing
or pulling it won’t
work, and
it could damage your vehicle.
TO JUMP START YOUR CADILLAC:
1. Check the other vehicle. It must have a 12-volt battery with a negative
ground system.
NOTICE:
If the other system isn’t a 12-volt system with a negative ground,
both vehicles can be damaged.
213

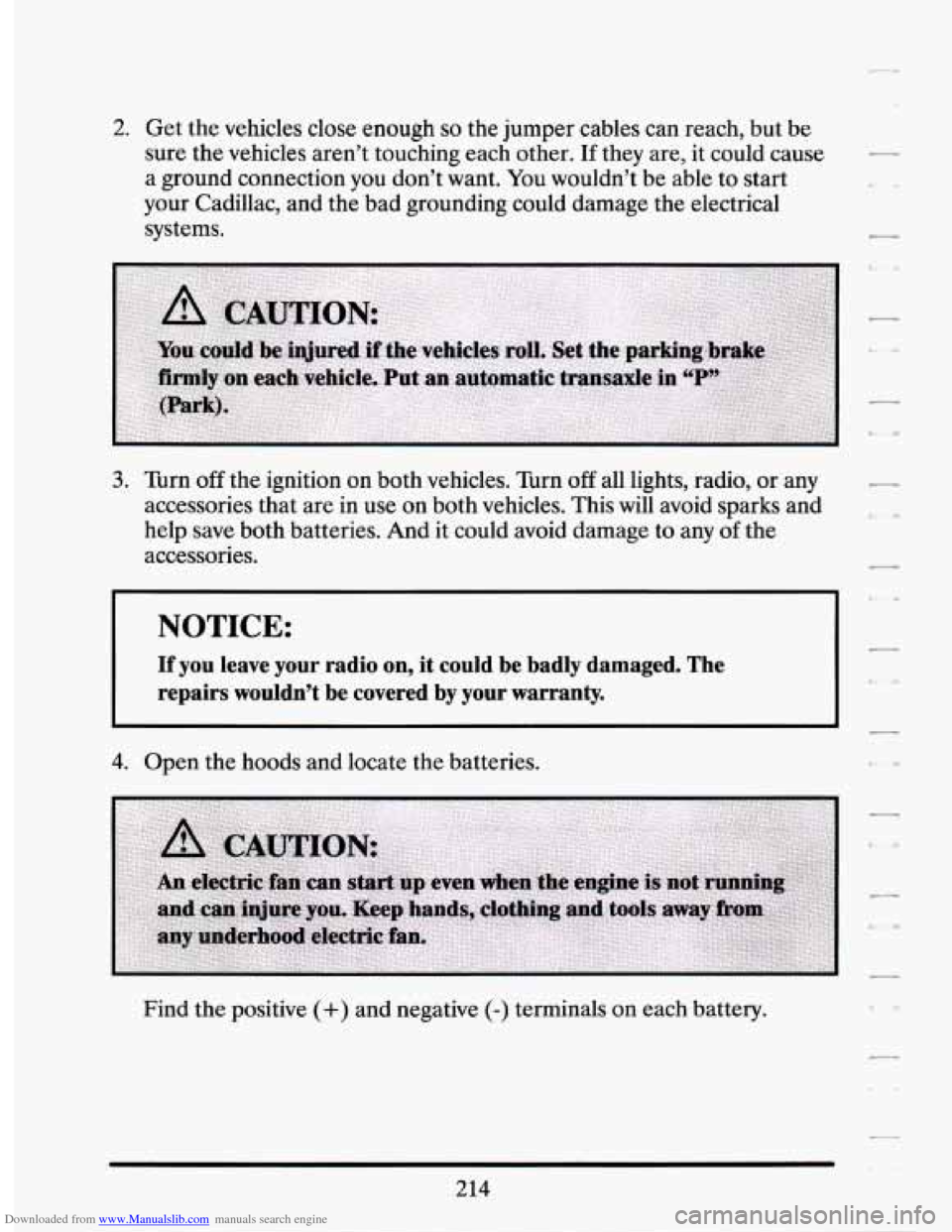

Downloaded from www.Manualslib.com manuals search engine 2. Get the vehicles close enough so the jumper cables can reach, but be
sure the vehicles aren’t touching each other.
If they are, it could cause
a ground connection you don’t want.
You wouldn’t be able to start
your Cadillac, and the bad grounding could damage the electrical
systems.
3. Turn off the ignition on both vehicles. Turn off all lights, radio, or any
accessories that are in use on both vehicles. This will avoid sparks and
help save both batteries. And it could avoid damage to any
of the
accessories.
NOTICE:
If you leave your radio on, it could be badly damaged. The
repairs wouldn’t be covered by your warranty.
4. Open the hoods and locate the batteries.
Find the positive
(+) and negative (-) terminals on each battery.
214

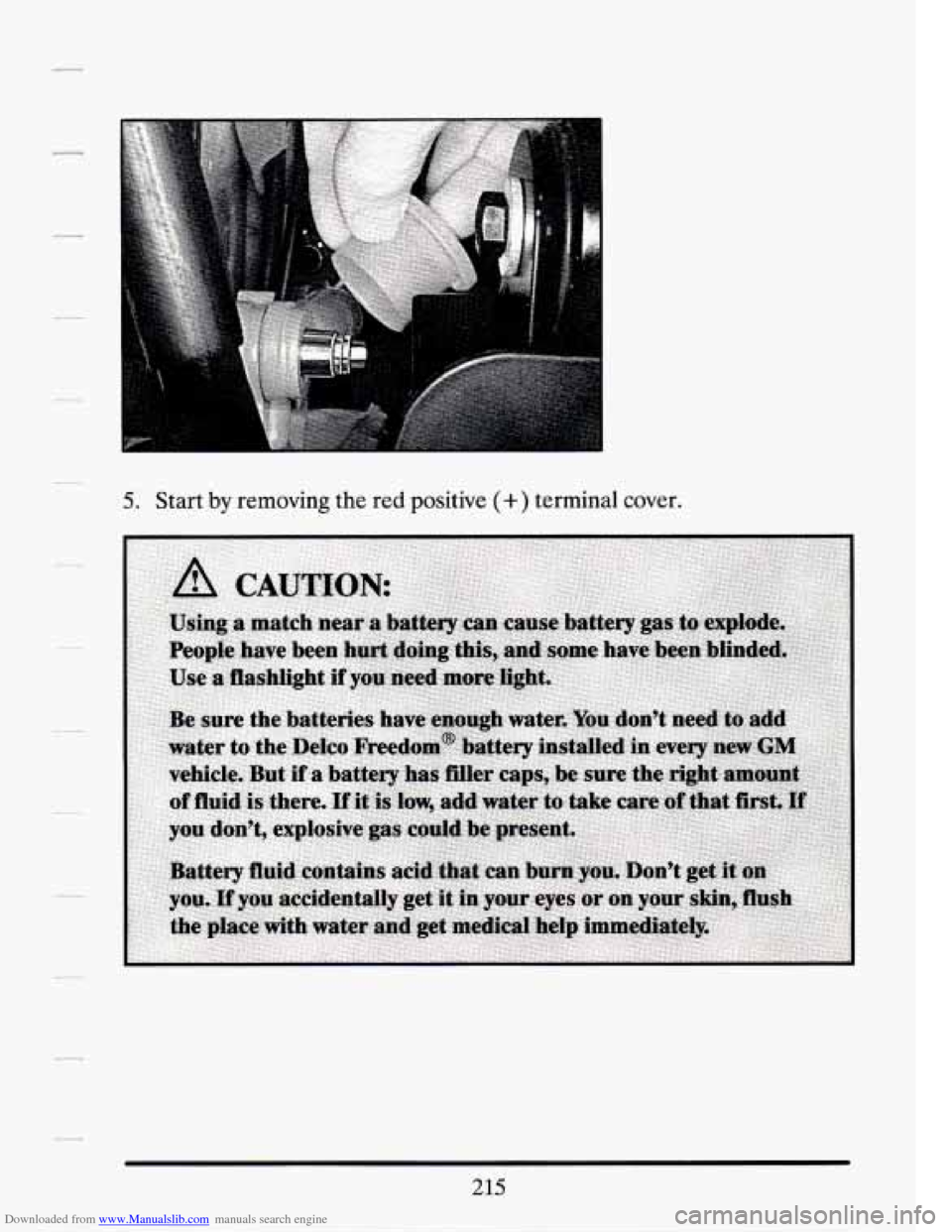

Downloaded from www.Manualslib.com manuals search engine 5. Start by removing the red positive (+) terminal cover.
215

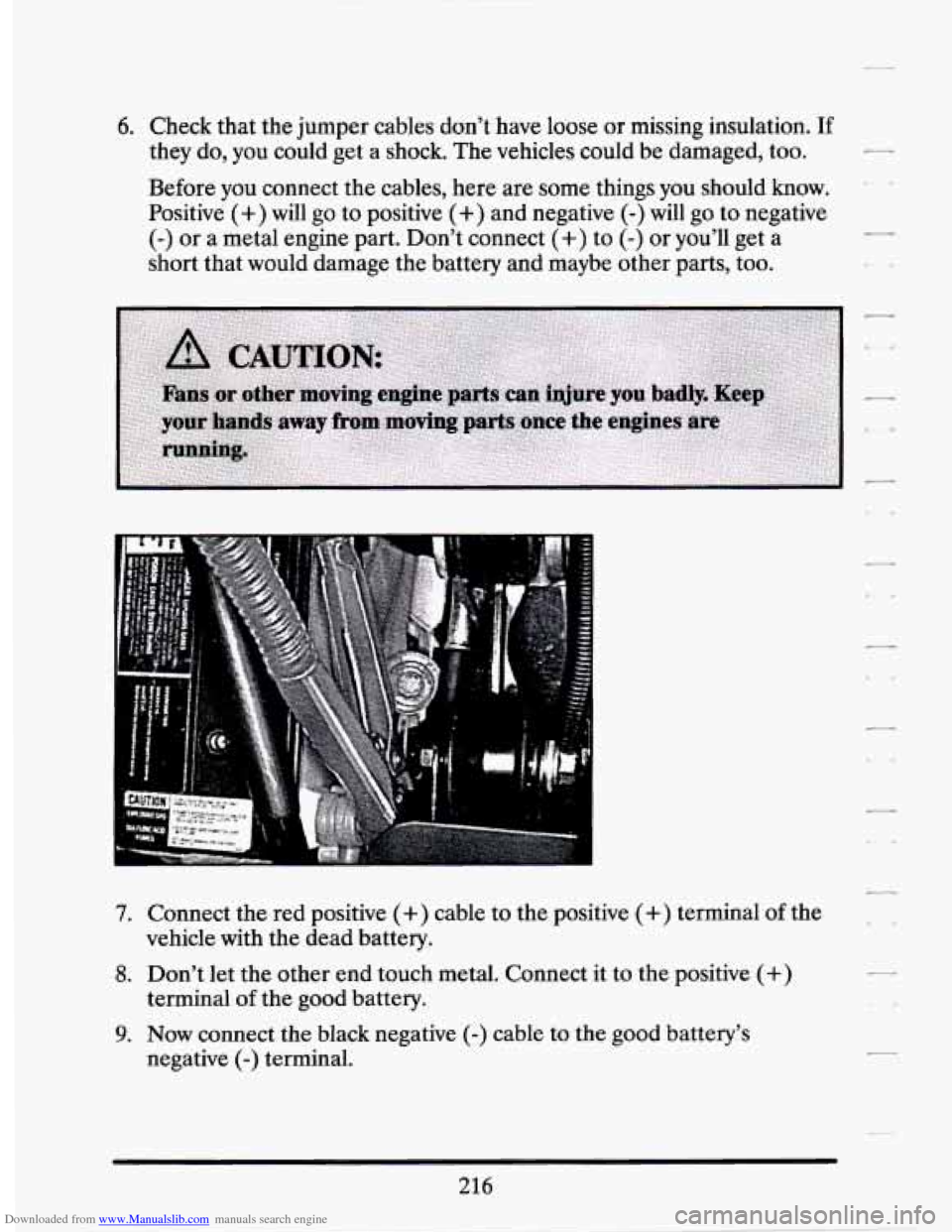

Downloaded from www.Manualslib.com manuals search engine 6. Check that the jumper cables don’t have loose or missing insulation. If
they do, you could get a shock. The vehicles could be damaged, too.
Before you connect the cables, here are some things you should know.
Positive
(+) will go to positive (+) and negative (-) will go to negative
(-) or a metal engine part. Don’t connect (+) to (-) or you’ll get a
short that would damage the battery and maybe other parts, too.
7. Connect the red positive (+) cable to the positive (+) terminal of the
8. Don’t let the other end touch metal. Connect it to the positive (+)
vehicle with the dead battery.
terminal
of the good battery.
9. Now connect the black negative (-) cable to the good battery’s
negative
(-) terminal.
216

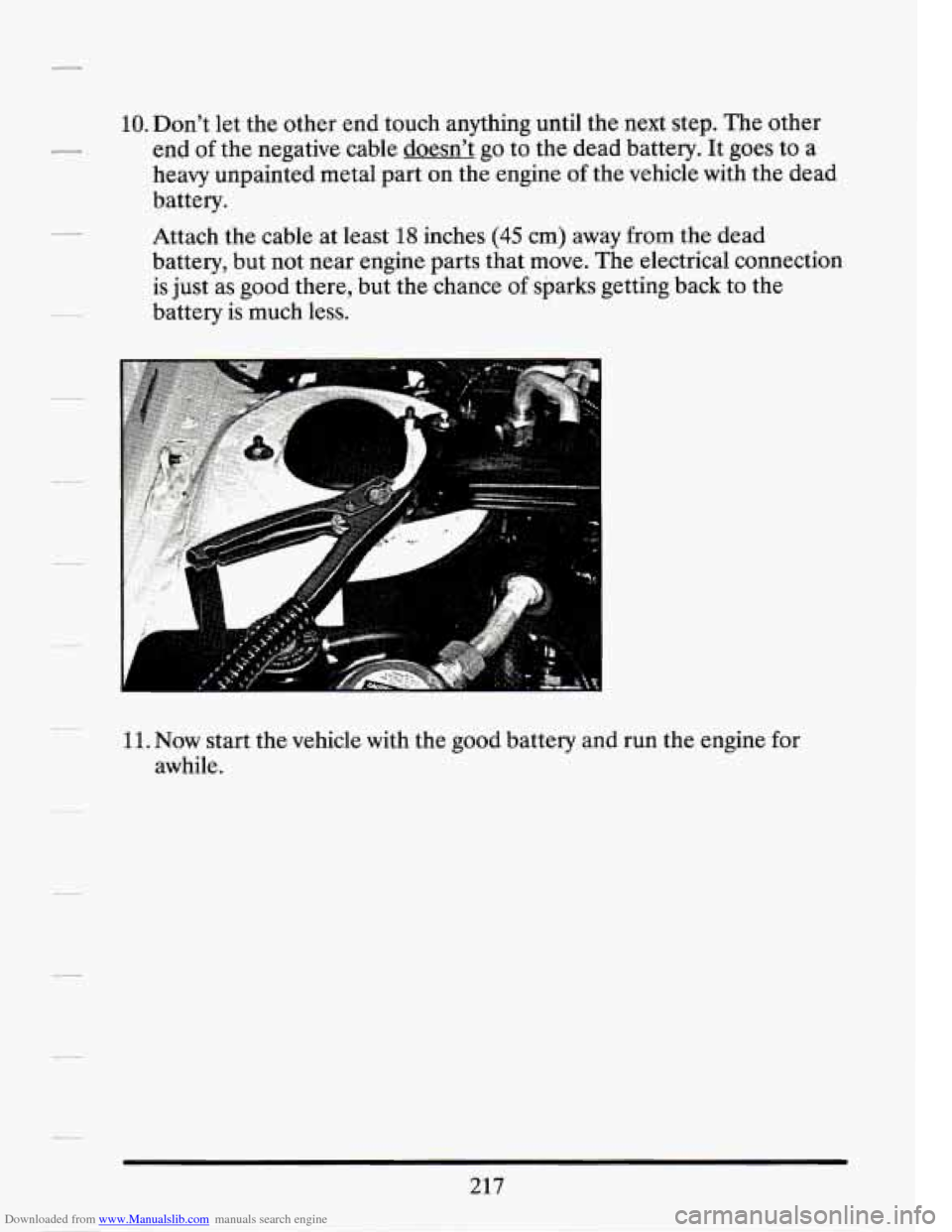

Downloaded from www.Manualslib.com manuals search engine 10. Don’t let the other end touch anything until the next step. The other
end of the negative cable doesn’t go to the dead battery. It goes to a
heavy unpainted metal part on the engine of the vehicle with the dead
battery.
Attach the cable at least
18 inches (45 cm) away from the dead
battery, but not near engine parts that move. The electrical connection
is just as good there, but the chance of sparks getting back to the
battery is much less.
11. Now start the vehicle with the good battery and run the engine for
awhile.
217

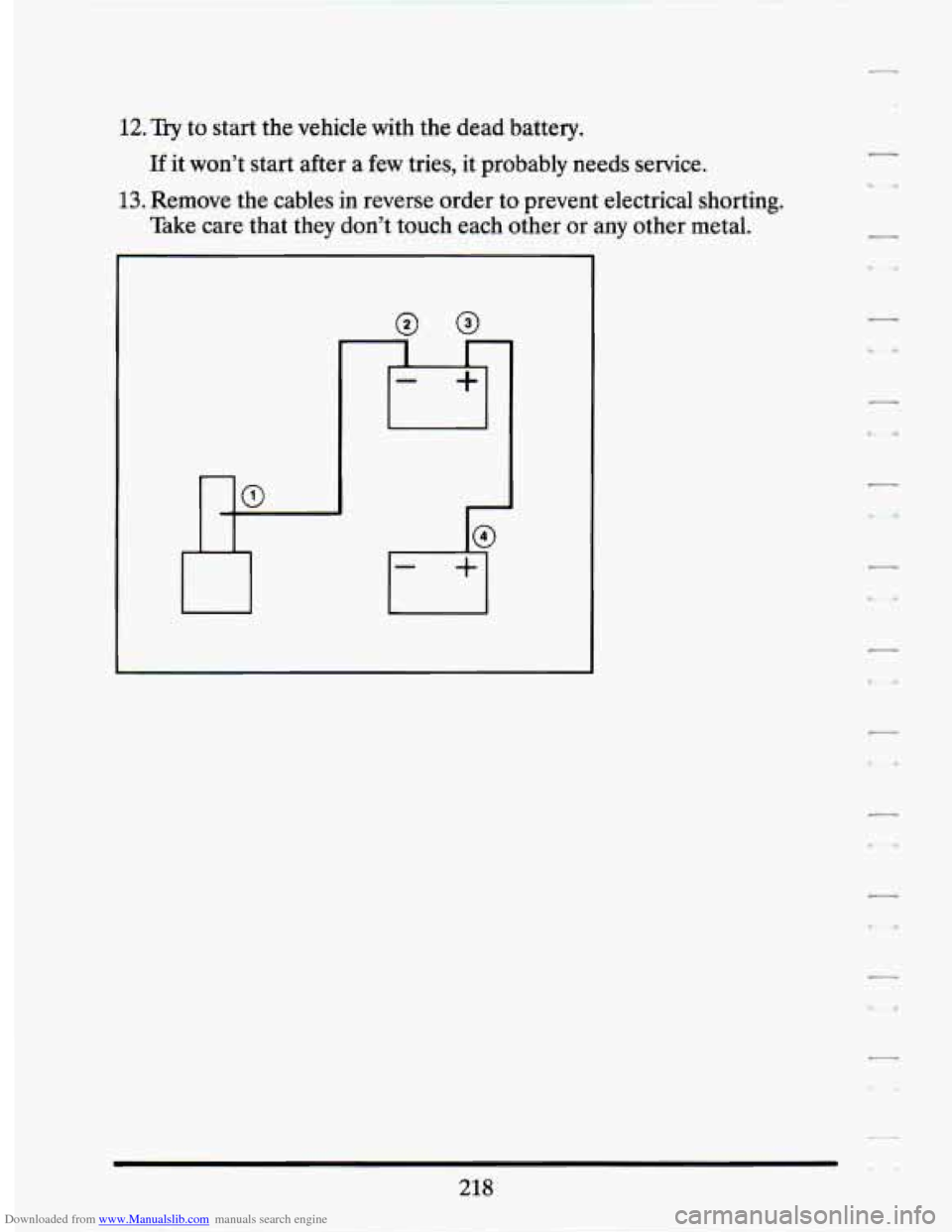

Downloaded from www.Manualslib.com manuals search engine 12. Try to start the vehicle with the dead battery.
If it won’t start after a few tries, it probably needs service.
13. Remove the cables in reverse order to prevent electrical shorting.
Take care that they don’t touch each other or any other metal.
218
c

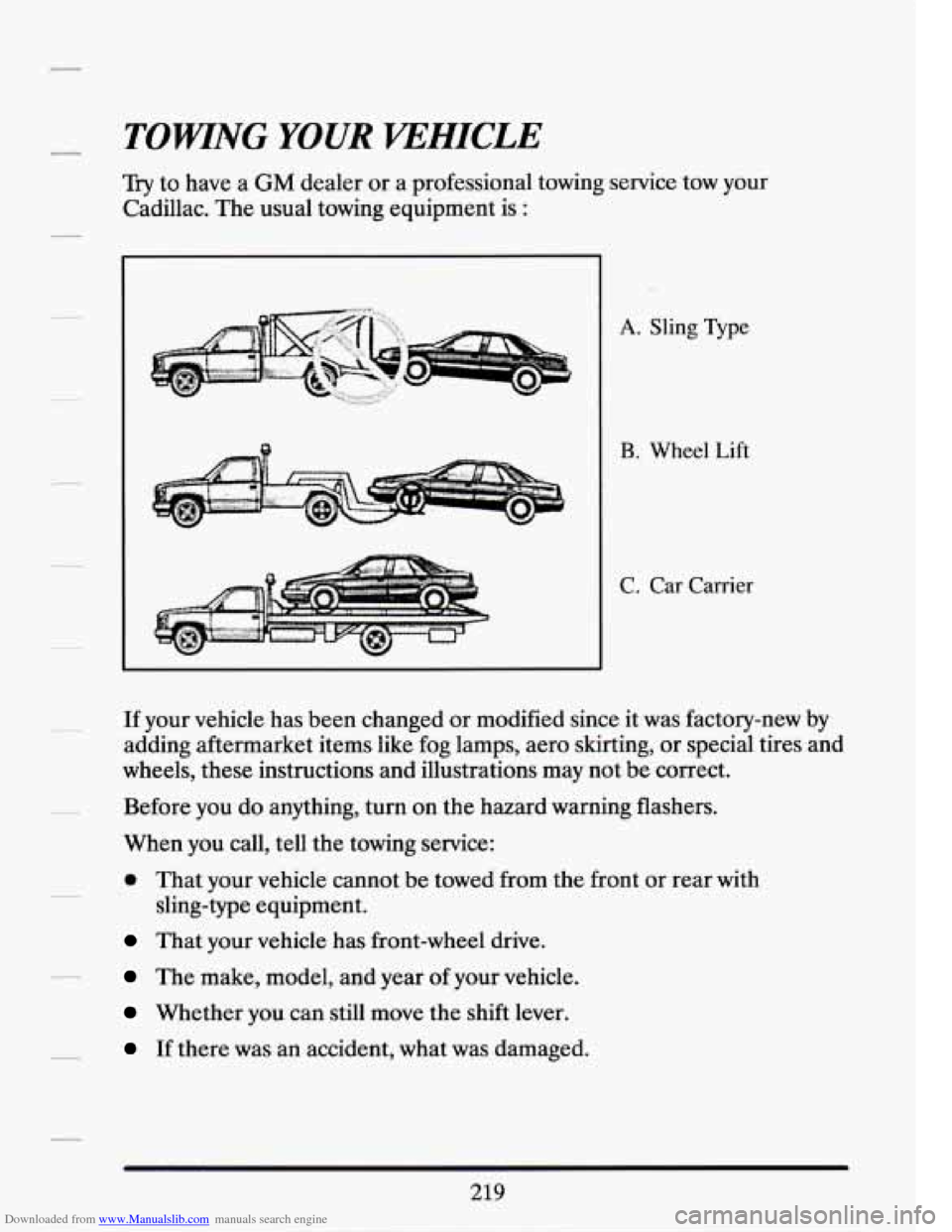

Downloaded from www.Manualslib.com manuals search engine TOWING YOUR -VEHICLE
Try to have a GM dealer or a professional towing service tow your
Cadillac. The usual towing equipment is
:
A. Sling Type
B. Wheel Lift
C. Car Carrier
If your vehicle has been changed or modified since it was factory-new by
adding aftermarket items like fog lamps, aero skirting, or special tires and
wheels, these instructions and illustrations may not be correct.
Before you do anything, turn on the hazard warning flashers.
When you call, tell the towing service:
0 That your vehicle cannot be towed from the front or rear with
That your vehicle has front-wheel drive.
The make, model, and year of your vehicle.
Whether you can still move the shift lever.
If there was an accident, what was damaged.
sling-type
equipment.
219
