1994 CADILLAC SEVILLE Owners Manual

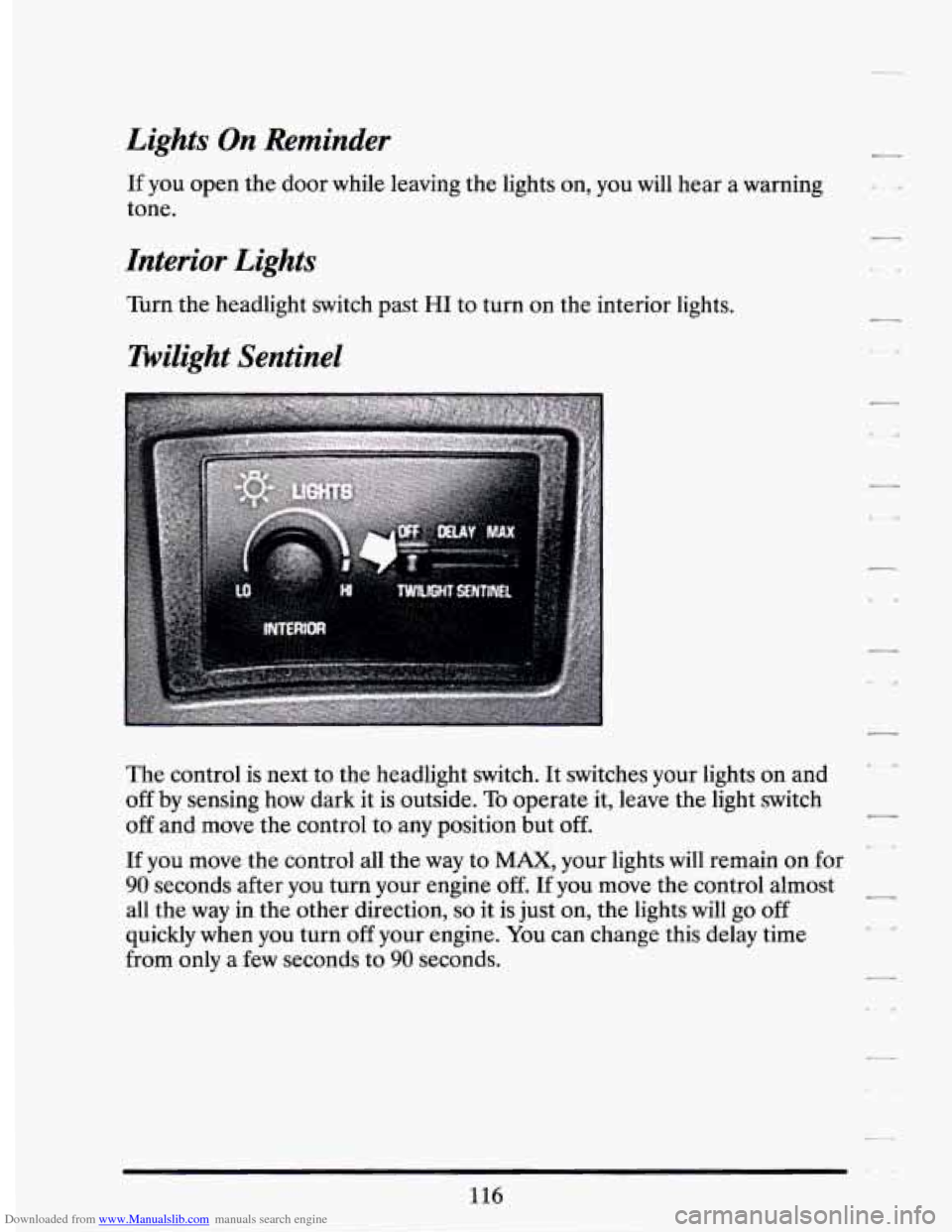

Downloaded from www.Manualslib.com manuals search engine Lights On Reminder
If YOU open the door while leaving the lights on, you will hear a warning
tone.
Interior Lights
Turn the headlight switch past HI to turn on the interior lights.
Twilight Sentinel
The control is next to the headlight switch. It switches your lights on and
off by sensing how dark it is outside. To operate it, leave the light switch
off and move the control to any position but off.
If you move the control all the way to MAX, your lights will remain on for
90 seconds after you turn your engine off. If you move the control almost
all the way in the other direction,
so it is just on, the lights will go off
quickly when you turn off your engine. You can change this delay time
from only a few seconds to
90 seconds.

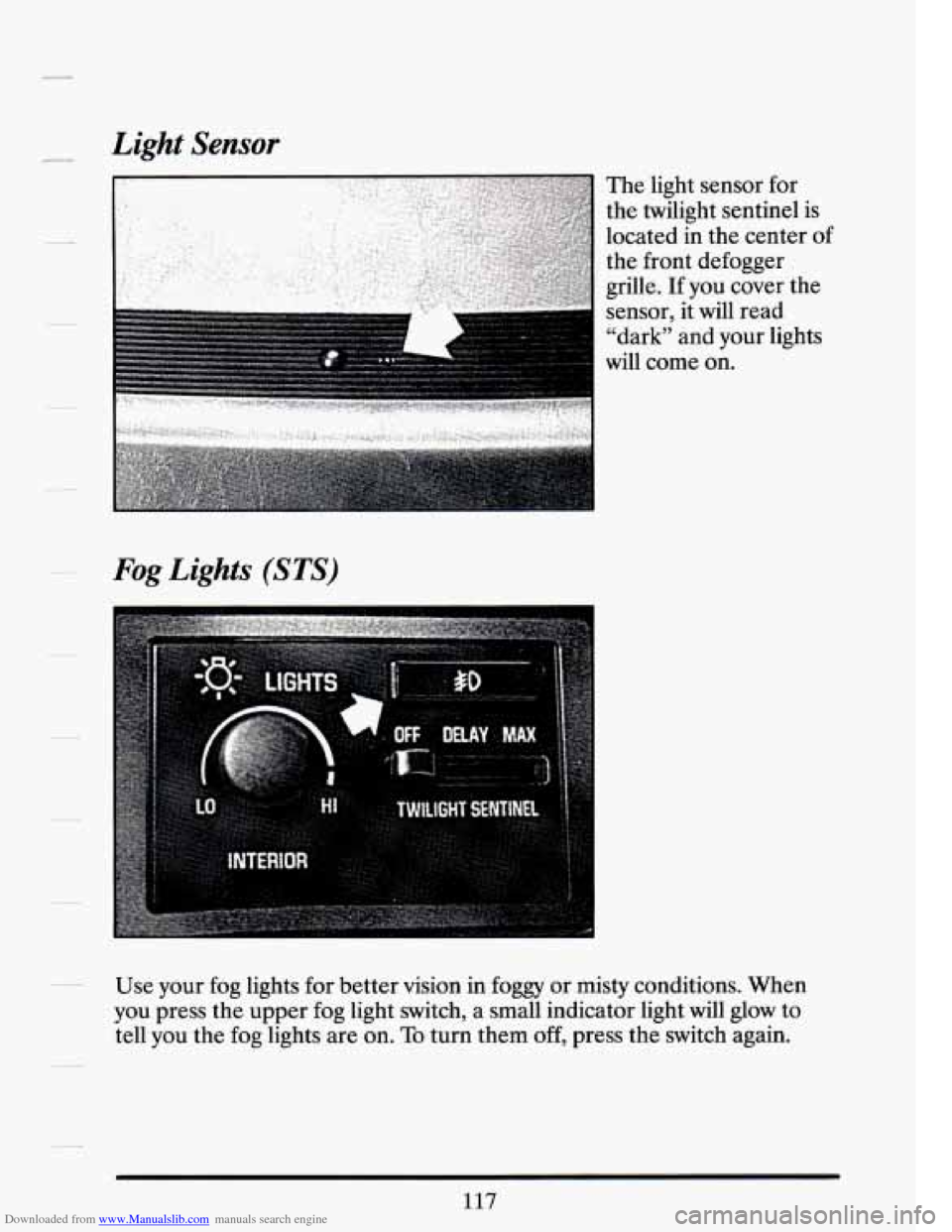

Downloaded from www.Manualslib.com manuals search engine Light Sensor
Fog Lights (STS)
Use your fog lights for better vision in foggy or misty conditions. When
you press the upper fog light switch, a small indicator light will glow to
tell you the fog lights are
on. To turn them off, press the switch again.
117

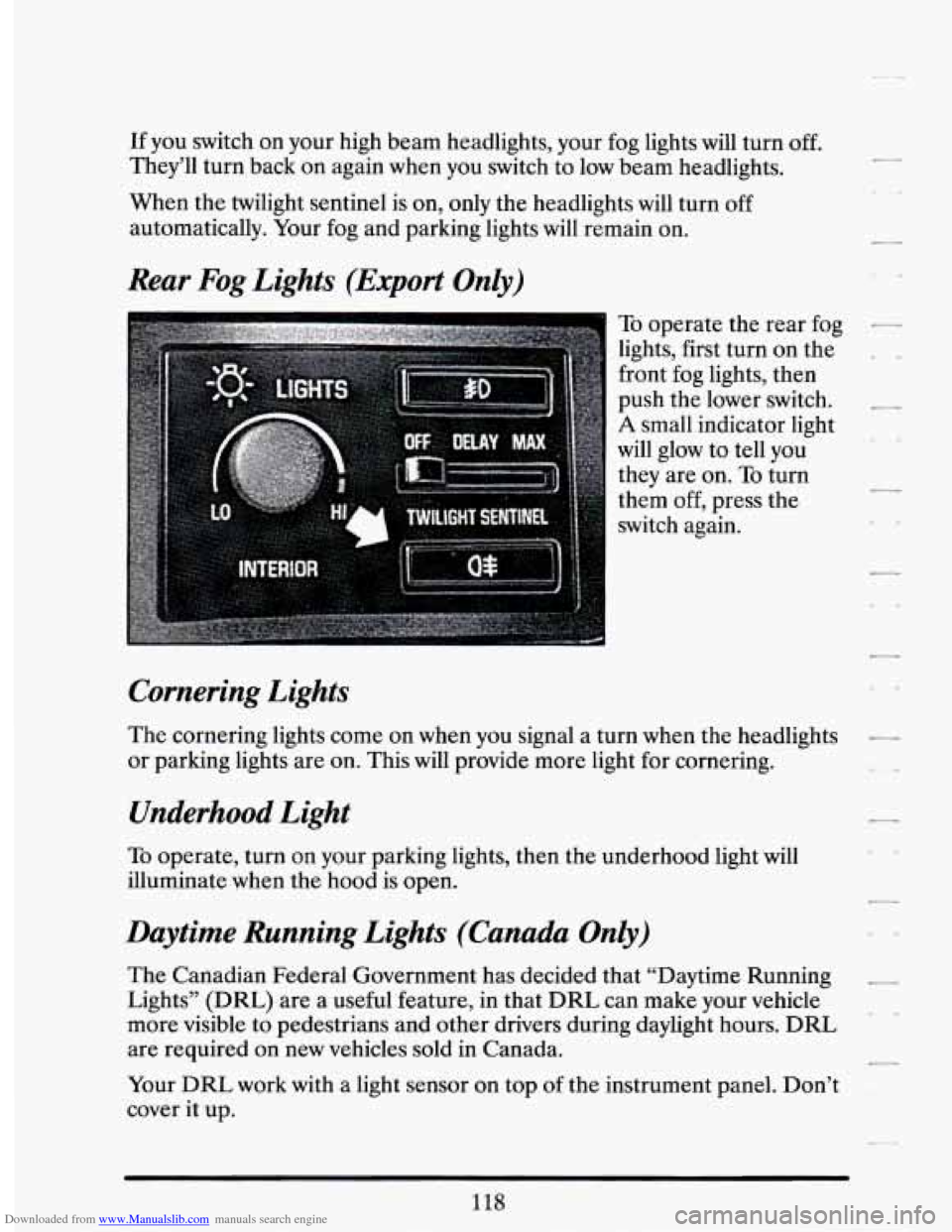

Downloaded from www.Manualslib.com manuals search engine If you switch on your high beam headlights, your fog lights will \
turn off.
They’ll turn back on again when you switch to low beam headlights.
When the twilight sentinel is on, only the headlights will turn
off
automatically. Your fog and parking lights will remain on.
Rear Fog Lights (E~port Only)
To operate the rear fog
lights, first turn on the
front fog lights, then
push the lower switch.
A small indicator light
will glow to tell you
they are on.
To turn
them
off, press the
switch again.
Cornering Lights
The cornering lights come on when you signal a turn when the headlights
or parking lights are on. This will provide more light for cornering.
Underhood Light
To operate, turn on your parking lights, then the underhood light will
illuminate when the hood is open.
Daytime Running Lights (Canada Only)
The Canadian Federal Government has decided that “Daytime Running
Lights” (DRL) are a useful feature, in that DRL can make your vehicle
more visible
to pedestrians and other drivers during daylight hours. DRL
are required on new vehicles sold in Canada.
Your DRL work with a light sensor on top
of the instrument panel. Don’t
cover it up.

Downloaded from www.Manualslib.com manuals search engine -L

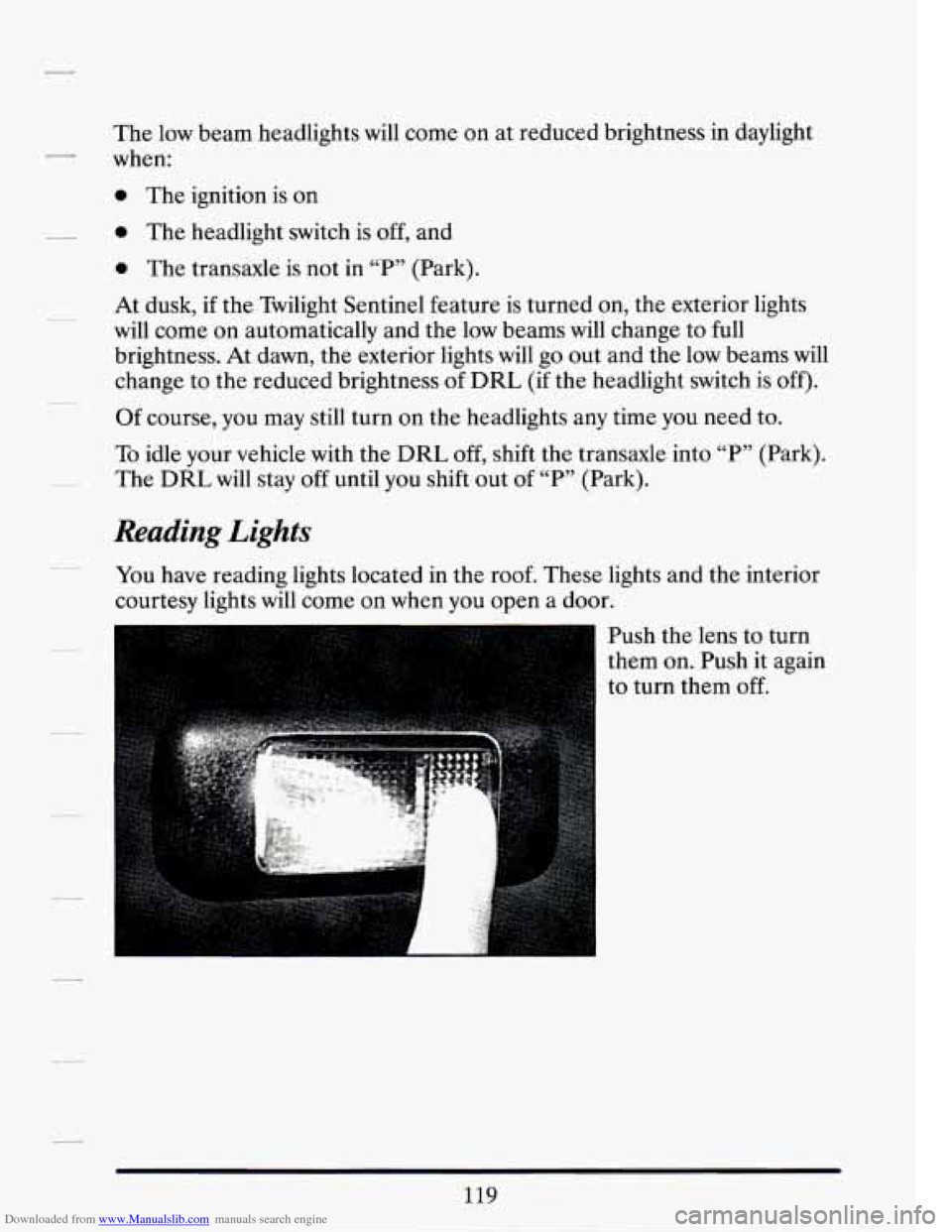

The low beam headlights will come on at reduced brightness in daylight
when:
0 The ignition is on
0 The headlight switch is off, and
0 The transaxle is not in “P7, (Park).
At dusk, if the Twilight Sentinel feature is turned on, the exterior lights
will come on automatically and the low beams will change to full
brightness. At dawn, the exterior lights will go out and the low beams will
change
to the reduced brightness of DRL (if the headlight switch is off).
Of course, you may still turn on the headlights any time you need to.
To idle your vehicle with the DRL off, shift the transaxle into “P7, (Park).
The DRL will stay off until you shift out
of “P7’ (Park).
Reading Lights
You have reading lights located in the roof. These lights and the interior
courtesy lights will come on when you open a door.
Push the lens to turn
them on. Push it again
to turn them
off.
119

Downloaded from www.Manualslib.com manuals search engine Assist Handles
A folding handle over each rear passenger door can be used when getting
out of the vehicle.
MIRRORS
Automatic Inside And Outside Rearview Mirrors
L
Your Cadillac is
equipped with
an automatic
electrochromic
inside rearview
mirror.
This mirror automatically changes
to reduce glare from headlights behind
you.
A photocell on the back of the mirror senses when it is becoming
120

Downloaded from www.Manualslib.com manuals search engine dark outside. Another photocell built into the mirror surface senses the
headlights behind you.
The mirror will darken gradually to reduce glare. This change may take a
few seconds.
ONIOff Switch
Reverse Gear Day Mode
_- The reverse mode is another important feature of the automatic mirror.
When the shift lever is placed in
“R (Reverse), the mirror changes to the
daytime mode for a bright image in the mirror as you back up.
-
Optional Driver Outside Electrochromic
~. Rearview Mirror
This mirror automatically dims to minimize glare for maximum rear
visibility. It operates in conjunction with the inside rearview mirror.
As
the mirror returns to its clear daytime state.
- glare increases the mirror darkens accordingly. When the glare subsides
121

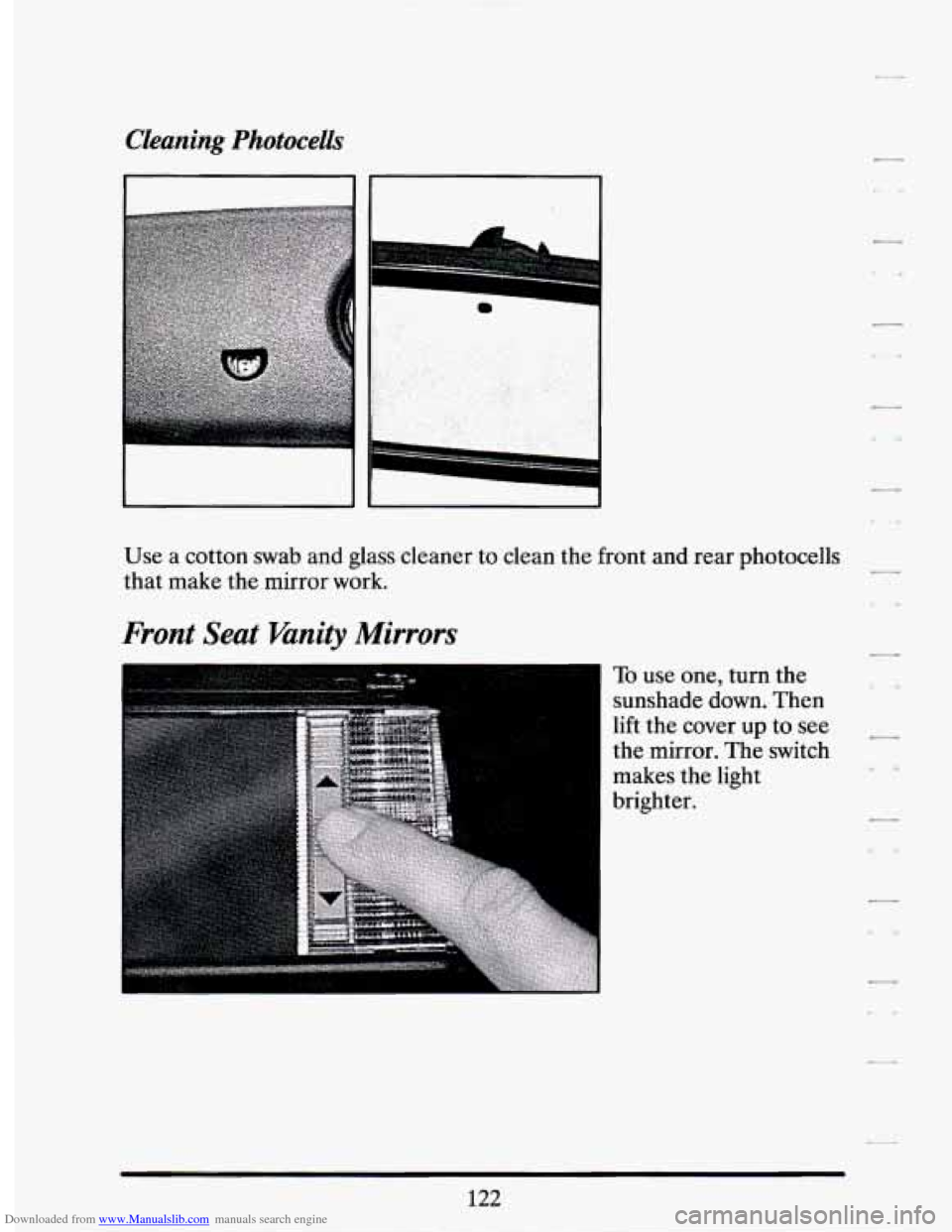

Downloaded from www.Manualslib.com manuals search engine Cleaning Photocells
Use a cotton swab and glass cleaner to clean the front and rear photocells
that make the mirror work.
Front Seat Vanity Mirrors
To use one, turn the
sunshade down. Then
lift the cover up to see
the mirror.
The switch
makes the light
brighter.
122

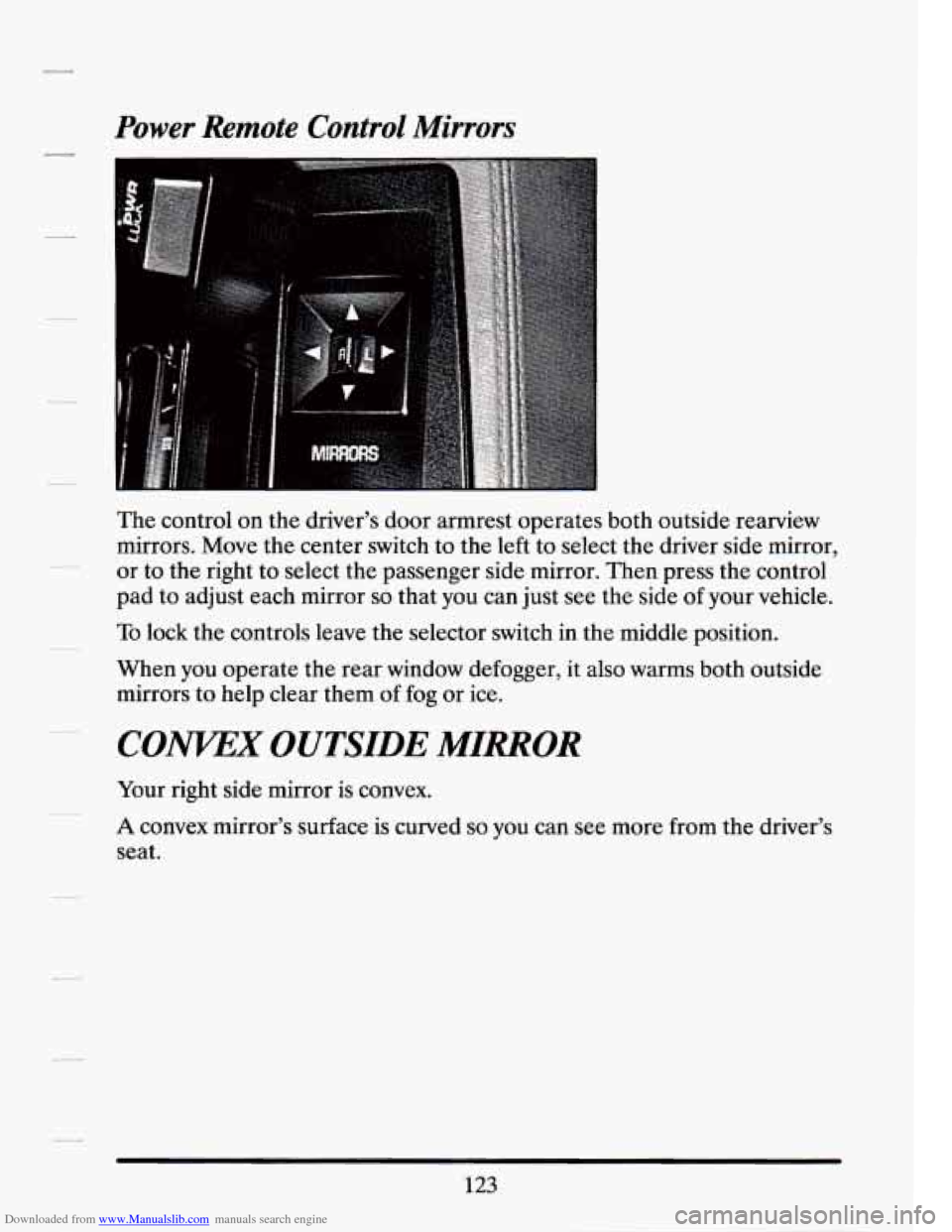

Downloaded from www.Manualslib.com manuals search engine Power Remote Control Mirrors
The control on the driver’s door armrest operates both outside rearview
mirrors. Move the center switch to the left to select the driver side mirror,
or to the right to select the passenger side mirror. Then press the control
pad to adjust each mirror
so that you can just see the side of your vehicle.
To lock the controls leave the selector switch in the middle position.
When you operate the rear window defogger, it also warms both outside
mirrors to help clear them
of fog or ice.
CONKEX OUTSIDE MIRROR
Your right side mirror is convex.
A convex mirror’s surface is curved so you can see more from the driver’s
seat.
123
