1993 PONTIAC GRAND-PRIX Owners Manual

Features & Controls

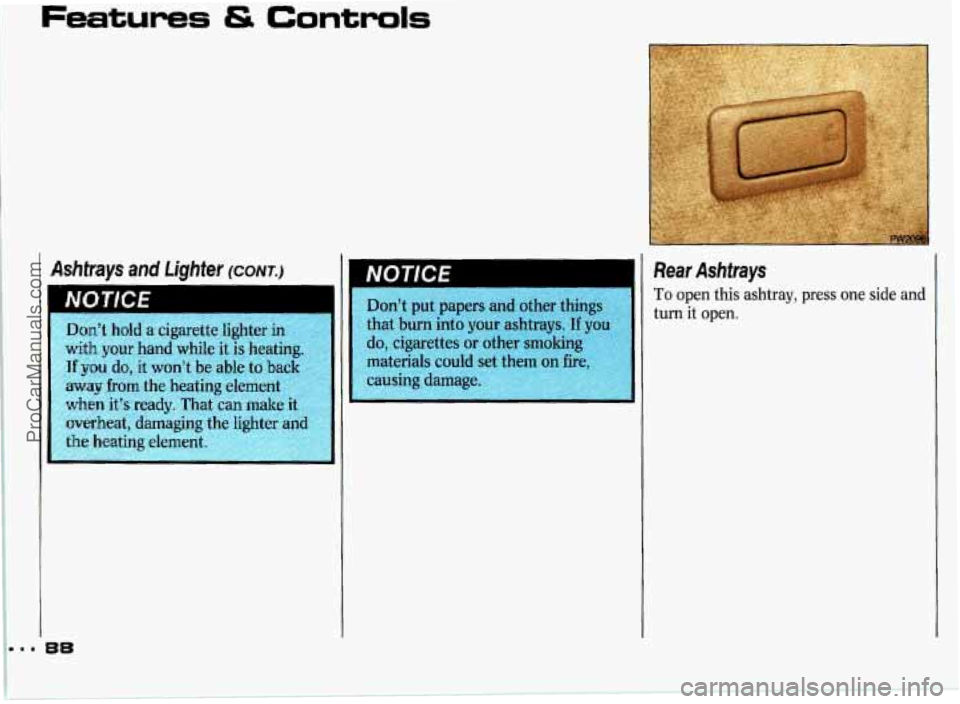

Ashfrays and Lighter (CONT.)
Don’t hold a cigarette lighter in
with your hand while it is heating.
If you do, it won’t be able to back
away from the heating element
when it’s readv. That can make it Don’t
put papers
and other things
that burn into your ashtrays.
If you
do, cigarettes or other smoking -1
Rear Ashirays
To open this ashtray, press one side and
turn it open.
ProCarManuals.com

To remove the ashtray for cleaning,
press
the snuffer as you lift up the
bottom of the ashtray.
To remove this ashtray for cleaning,
open the door and pull up sn the
ashtray door.
r
Passenger Assist Strap
Your Pontiac may have assist straps.
Passengers can use the straps to help
keep their balance over rough mads or
during sharp turns.
ProCarManuals.com

...
Features & Controls
I

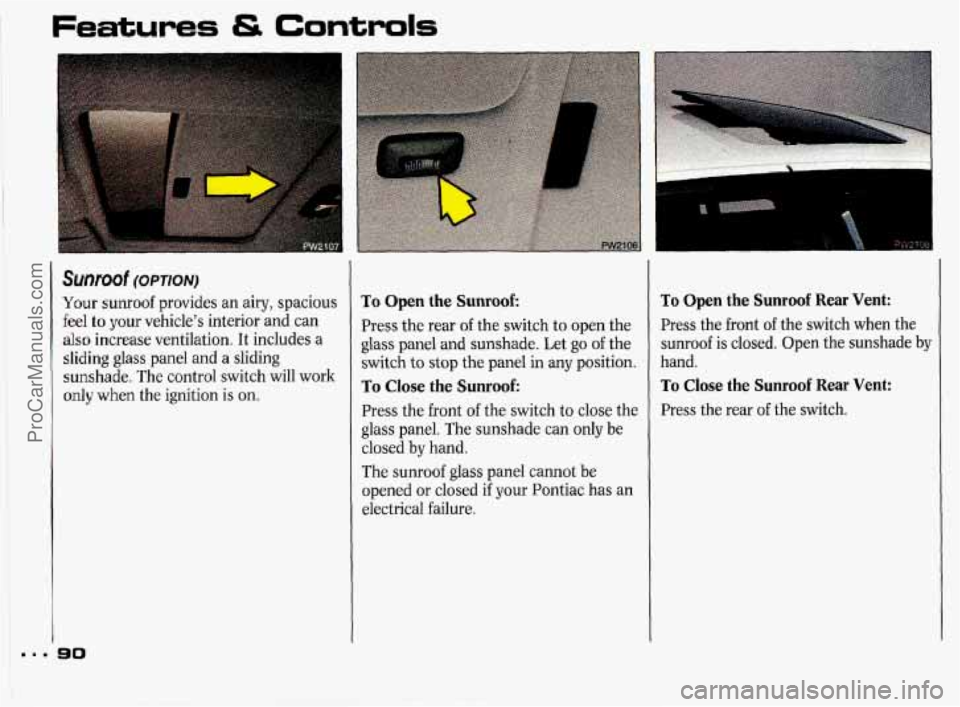

Sunroof (OPTION)
Your sunroof provides an airy, spacious
feel
to your vehicle’s interior and can
also increase ventilation. It includes a
sliding glass panel and a sliding
sunshade. The control switch will work
only when the ignition is
on.
30
To Open the Sunroof:
Press the rear of the switch to open the
glass panel and sunshade. Let
go of the
switch to stop the panel in any position.
To Close the Sunroof:
Press the front of the switch to close the
glass panel. The sunshade can only be
closed by hand.
The sunroof glass panel cannot
be
opened or closed if your Pontiac has an
electrical failure.
To Open the Sunroof Rear Vent:
Press the front of the switch when the
sunroof
is closed. Open the sunshade by
hand.
To Close the Sunroof Rear Vent:
Press the rear of the switch.
ProCarManuals.com

Luggage Carrier (OPTION)
If you have the optional luggage carrier,
you can load things on the deck lid
of
your vehicle.
The luggage carrier has slats attached to
the deck lid, a rear rail, and tiedowns. Don’t exceed
the maximum vehicle
capacity when loading your
Pontiac.
For more information on vehicle
capacity
and loading, see the Index
under Loading Your Vehicle.
To prevent damage or loss of cargo as
you’re driving, check now and
then to
make sure the luggage carrier and
cargo
are still securely fastened.
91
n
...
ProCarManuals.com

Features & Controls
m.. 32
PW2063
ProCarManuals.com

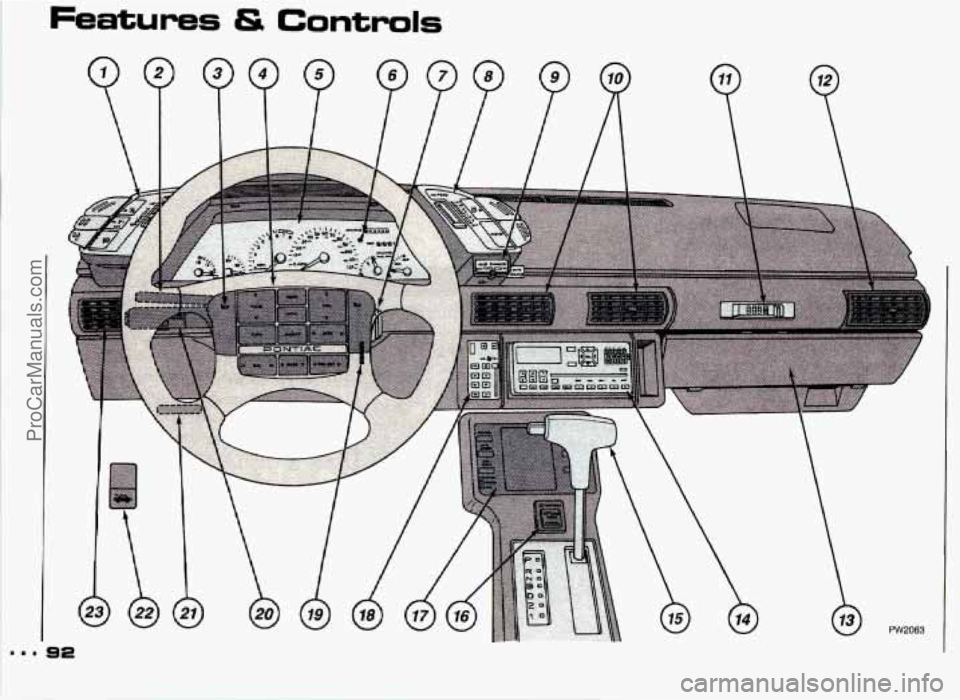

The Instrument Panel-
Your Information System
Your instrument panel is designed to let
you know at
a glance how your vehicle
is running. You’ll how how fast you’re
going, how much fuel you’re using, and
many other things you’ll need to drive
safely and economically.
The main components of your
instrument panel are:
1. Light Controls
2. Tilt Steering Wheel Lever (Option)
3. Horn
4. Steering Wheel Controls (Option)
5. Instrument Cluster
6. Trip Odometer Reset
7. Ignition Switch
8. Windshield Wiper Controls
9. HUD Controls (Option)
IO. Vents
1 1. Glove Box Combination Lock
12. Vents
13. Glove Box/Fuse PaneVRemote
Trunk Release (Option)
14. Audio System
15. Gearshift Lever
16. Second-Gear Start Switch (Option)
17. Driver Information Center (Option)
18. Climate Controls/Rear Window
19. Hazard Warning Flashers Switch
20. Turn SignaVHeadlight Beam Lever
21. Brake Release
22. Hood Release (on floor by driver’s
door)
23. Vents Defogger
ProCarManuals.com

Features & Controls

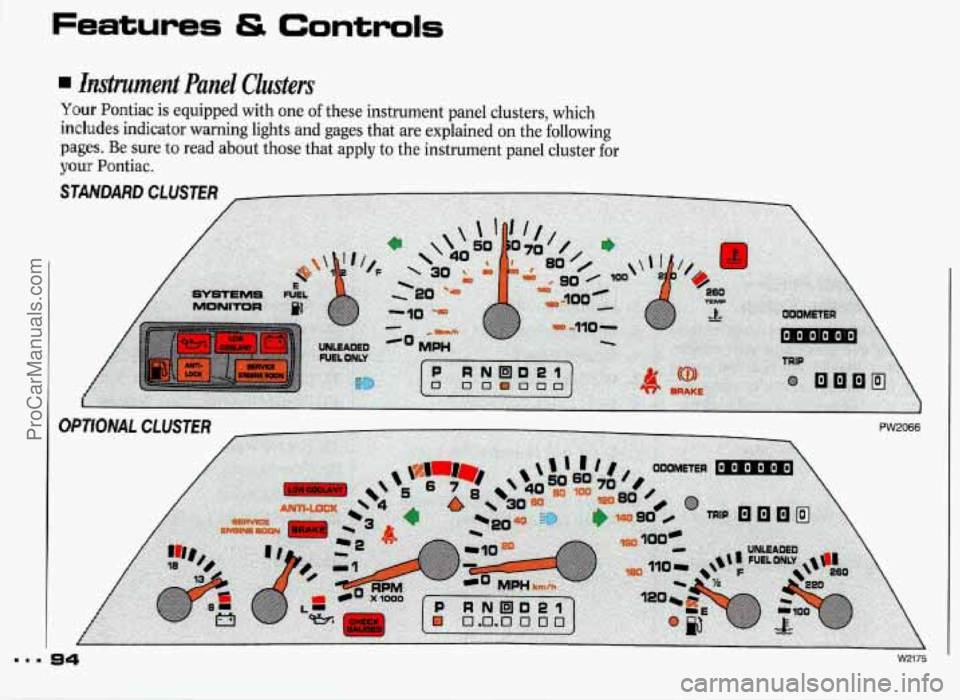

Zmhment Panel Clusters
Your Pontiac is equipped with one of these instrument panel clusters, which
includes indicator warning lights and gages that are explained on the following
pages. Be
sure to read about those that apply to the instrument panel cluster for
your Pontiac.
94 W2175
ProCarManuals.com

Warning Lights, Gages and
Indicators
This section describes the warning lights
and gages that may be on your vehicle.
The pictures will help you locate them.
Warning lights and gages can signal that
something is wrong before it becomes
serious enough to cause an expensive
r’epair or replacement. Paying attention
to your warning lights and gages could
also save you or others from injury.
Warning lights go on when there may
be or
is a problem with one of your
vehicle’s functions.
As you will see in
the details on the next few pages, some
warning lights come on briefly when
you turn the ignition key just to let you
know they’re working.
If you are familiar
with this section, you should
not be alarmed when this happens.
Gages can indicate when there may be
or is a problem with one of your
vehicle’s functions. Often gages and
warning lights work together to let you
lmow when there’s a problem with your
vehicle.
When one of the warning lights comes
on and stays on when you are driving,
or when one of the gages shows there
may be a problem, check the section
that tells you what to
do about it. Please
follow the manual’s advice. Waiting to
do repairs can be costly-and even
dangerous.
So please get to know your
warning lights and gages. They’re a big
help. Your vehicle may also
have
a driver
information system that worlrs along
with the warning lights and gages. See
the Index under Driver Information
Center.
