1993 PONTIAC GRAND-PRIX Owners Manual

i
Maintenance Schedule
Introduction
A Word About Maintenance
We at General Motors want to help you keep your vehicle in
good working condition. But we don’t lmow exactly how
you’ll drive it.
You may drive very short distances only a few
times a week. Or you may drive long distances all the time
in very hot, dusty weather. You may use your vehicle in
making deliveries. Or you may drive it to work, to do
errands or in many other ways.
Because of all the different ways people use their
GM
vehicles, ,maintenance needs vary. You may even need more
frequent checks and replacements than you will find in the
schedules in this part.
So please read this part and note how
you drive. If you have any questions on how to keep your
vehicle in good condition, see your Pontiac dealer, the place
many
GM owners choose to have their maintenance work
done. Your dealer can be relied upon to use proper parts and
practices.
288
Your Vehicle and the Environment
Proper vehicle maintenance not only helps to keep your
vehicle in good working condition, but
also helps the
environment.
All recommended maintenance procedures are
important. Improper vehicle maintenance or the removal
of
important components can significantly affect the quality of
the air we breathe. Improper fluid levels or even the wrong
tire inflation can increase the level of emissions from your
vehicle.
To help protect our environment, and to help keep
your vehicle in good condition, please maintain your vehicle
properly.
ProCarManuals.com

How This Part is Organized
The remainder of this part is divided into five sections:
Section
A: Scheduled Maintenance Services shows what to
have done and how often. Some of these services can be
complex,
so unless you are technically qualified and have
the necessary equipment, you should let your dealer’s
service department or another qualified service center do
these jobs.
CAUTION
A
Performing maintenance work on a vehicle can be
dangerous. In trying
to do some jobs, you can be
seriously injured.
Do your own maintenance work only
if you have the required know-how and the proper tools
and equipment for the job. If you have any doubt, have
a qualified technician do the work.
-
If you are skilk- xough to do some work on your vehicle,
you will probably want to get the service information GM
publishes. You will find a list of publications and how to get
them in this manual. See the
Index under Service
Publications.
Section B: Owner Checks & Services tells you what should
be checked whenever you stop for fuel. It also explains what
you can easily do to help keep your vehicle in good
condition.
Section C: Periodic Maintenance Inspections explains
important inspections that your Pontiac dealer’s service
department or another qualified service center should
perform.
Section
D: Recommended Fluids & Lubricants lists some
products GM recommends to help keep your vehicle
properly maintained. These products, or their equivalents,
should be used whether you do the work yourself or have it
done.
Section
E: Maintenance Record provides a place for you to
record the maintenance performed on your vehicle.
Whenever any maintenance is performed, be sure to write it
down in this section. This will help you determine when
your next maintenance should be done. In addition, it is
a
good idea to keep your maintenance receipts. They may be
needed to qualify your vehicle for warranty repairs.
ProCarManuals.com

Maintenance Schedule
Section A: Scheduled Maintenance Services
Using Your Maintenance Schedules
This section tells you the maintenance services you should
have done and when you should schedule them. Your
Pontiac dealer knows your vehicle best and wants you to be
happy with it.
If you go to your dealer for your service
needs, you’ll know that GM-trained and supported service
people will perform the work using genuine GM parts.
These schedules are for vehicles that:
carry passengers and cargo within recommended limits.
You will find these limits
on your vehicle’s Tire-Loading
Information label. See the
Index under Loading Your
Vehicle.
limits .
are driven on reasonable road surfaces within legal driving
use the recommended unleaded fuel. See the Index under
Fuel.
1 as0

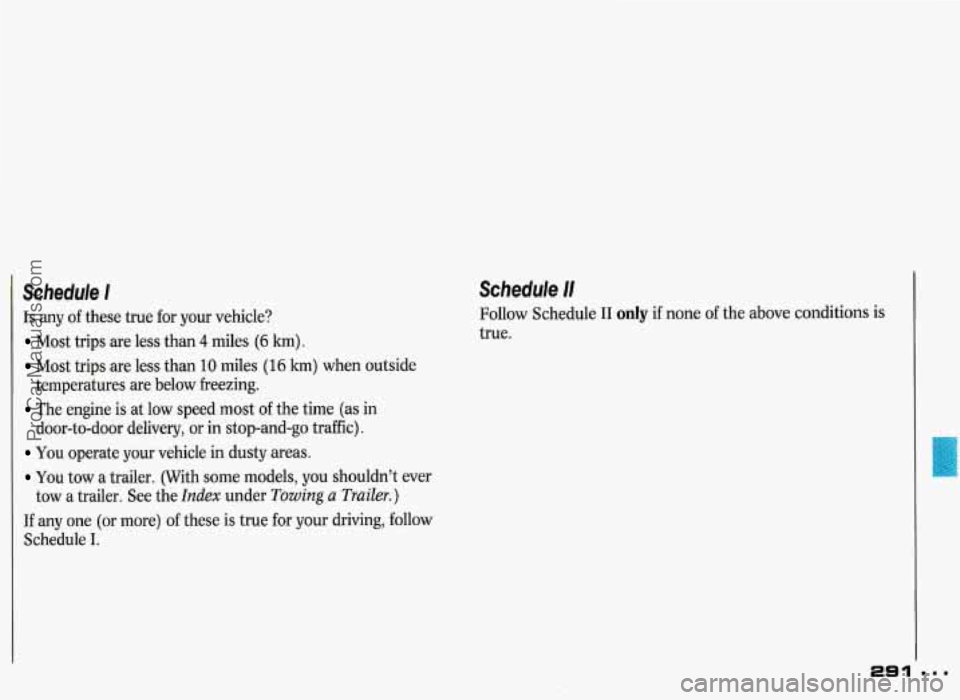

Selecting the Right Schedule
First you’ll need to decide which of the two schedules is
right for your vehicle. Here’s how to decide which schedule
to follow:
ProCarManuals.com

Schedule I
Is any of these true for your vehicle?
Most trips are less than 4 miles (6 km).
Most trips are less than 10 miles (16 km) when outside
temperatures are below freezing.
The engine is at low speed most of the time (as in
door-to-door delivery, or in stop-and-go traffic).
You operate your vehicle in dusty areas.
You tow a trailer. (With some models, you shouldn’t ever
If any one (or more) of these is true for your driving, follow
Schedule
I.
tow a trailer. See the Index under Towing a Trailer.)
Schedule I1
Follow Schedule I1 only if none of the above conditions is
true.
ProCarManuals.com

Maintenance Schedule
.
Section A: Scheduled Maintenance Services ~ont.3
Schedule I
Follow Schedule I if your vehicle is
MAINLY driven under one or more of
the following conditions:
When most trips are less than 4 miles
When most trips are less than 10 miles
(6 km).
(16 lun) and outside temperatures
remain below freezing.
When most trips include extended
idling and/or frequent low-speed
operation, as in stop-and-go traffic.
When towing a trailer.*+
When operating in dusty areas.
Schedule I should also be followed if
the vehicle is used for delivery service,
police, taxi
or other commercial
applications.
An Emission Control Service.
~2 The US. Environmental Protection Agency has
determined that the failure to perform this
maintenance item will not nullify the emission
warranty
or limit recall liability prior to the
completion of vehicle useful life. General
Motors, however, urges that all recommended
maintenance services be performed at the
indicated intervals and the maintenance be
recorded in Section
E: Maintenance Record.
292
TO BE SERVICED
See Euplnrzatior~ of Scheduled Maintennitce
Sercices following Schedules I and II.
ITEM
NO.
2 I Chassis Lubrication
3 Throttle Body Mounting Bolt Torque
(3.E Engine, VIN Code T)*
41
Tire and Wheel Rotation and Inspection
Camshaft Timing Belt Inspection (3.4L Engine,
VIN Code X)*
81
Transaxle Service
10 I Spark Plug Wire Inspection*+
Exhaust Gas Recirculation
(EGR) System
Inspection
(3.4L Code X engine only)**
14 Fuel Tank, Cap & Lines Inspection**
T
WHEN TO PERFORM
Miles (kilometers) or Months
(whichever occurs first).
Every other oil change.
At
6,000 Miles (10 000 km) and then every
15,000 Miles (25 000 !an) or as necessary.
At
60,000 Miles (100 000 km) and then every
l5,000 Miles (25 000 km).
See Explmution of Scheduled Muinterzance Services
following Schedules I and II.
Every 30,000 Miles (50 000 km).
Every 30:000 Miles (50 000 km).
Every 30,000 Miles (50 000 km).
ProCarManuals.com

~ The services shown in this schedule up to
48,000 miles (80 000 km) are to be
performed after 48,000 miles at the same intervals.
MILES (000)
3 16 19 112115118121 (24127130133136139142145148
:dk* With some models, you shouldn't ever tow a
trailer. See the
Index under Towing a Trailer.
ProCarManuals.com

Maintenance Schedule
Section A: Scheduled Maintenance Services t~ont.3
Schedule I1
Follow Schedule I1 ONLY if none of
the driving conditions specified in Schedule
I apply.
'' An Emission Control Service.
A The U.S. Environmental Protection Agency has
determined that the failure to perform this
maintenance item will not
nullify the emission
warranty
or limit recall liability prior to the
completion of vehicle useful life. General
Motors, however, urges that all recommended
maintenance services be performed at the
indicated intervals and the maintenance be
recorded in Section
E: Maintenance Record.
294
TO BE SERVICED ITEM
No' See Explanation of Scheduled Maintenance
Senices
following Schedules I and II.
WHEN TO PERFORM
Miles (kilometers) or Months
(whichever occurs first).
1
Camshaft Timing Belt Inspection At 60,000 Miles (100 000 km) and then every
(3.4L Engine, VIN Code X)* l5,000 Miles (25 OOO km). I
14 Fuel Tank, Cap and Lines Inspection** Every 30,000 Miles (50 OOO km).
ProCarManuals.com

The services shown in this schedule up to 45,000 miles (75 000 km) are to be
performed after
45,000 miles at the same intervals.
MILES (000)
KILOMETERS (000)
7.5 I 15 I 22.5 45 37.5 30
ProCarManuals.com
