1993 CHEVROLET CAMARO Owners Manual

Main Light Control
The main light control is a knob that
works these lights:
0 Headlights
0 Taillights
Parking lights
0 License lights
0 Sidemarker lights
Instrument panel lights
Turn the knob
to SF- to turn on your
headlights and other operating lights.
Turn
the knob to pf to turn on your
parking lights without your headlights,
Turn the knob to
OFF to turn off the
lights.
. .....
Brightness Control
This switch controls the brightness of
your instrument panel lights. Turn the switch to brighten or dim the lights.
If you
turn the switch all the way up to
dv ,
your courtesy lights will come on.
Lights On Reminder
If you turn the ignition Off and leave the
lights on, you
will hear a tone when you
open the driver’s door.
Daytime Running Lights (Canada)
The Canadian Federal Government has
decided that “Daytime Running Lights”
(DRL) are a useful feature,
in that DRL
can make your vehicle more visible to
pedestrians and other drivers during
daylight hours.
DRL are required on new
vehicles sold
in Canada.
Your DRL work
with a light sensor on top
of the instrument panel. Don’t cover
it up.
The front
turn signal lights will come on
in daylight when:
0 The ignition is on
The headlight switch is off, and
The parking brake is released.
ProCarManuals.com

Features & Controls

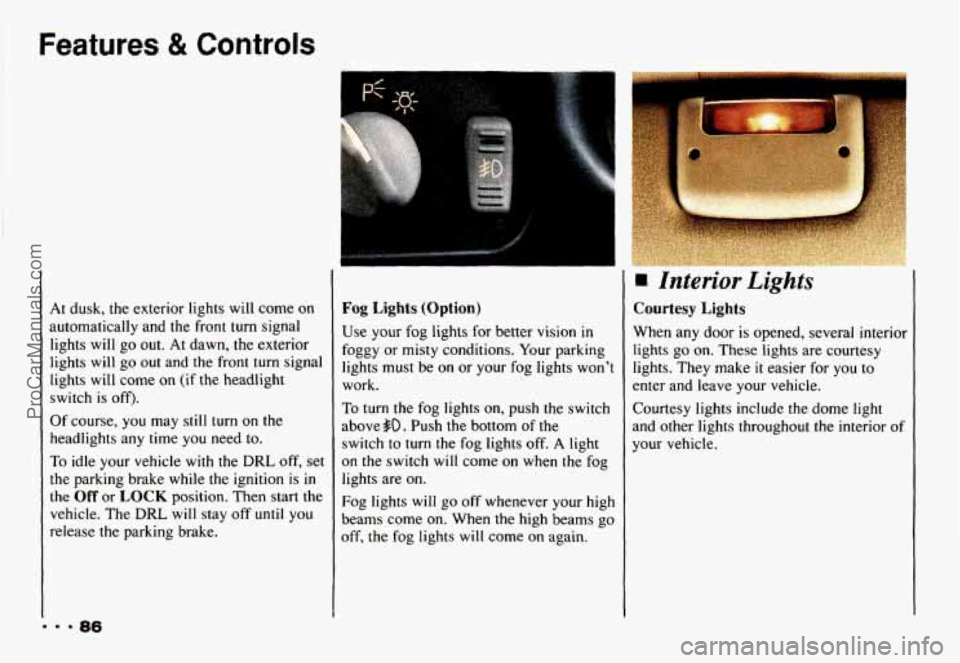

At dusk, the exterior lights will come on
automatically and the front turn signal
lights will go out.
At dawn, the exterior
lights will
go out and the front turn signal
lights will come on (if the headlight
switch is
off).
Of course, you may still turn on the
headlights any time you need to.
To idle your vehicle with the
DRL off, set
the parking brake while the ignition is
in
the Off or LOCK position. Then start the
vehicle. The
DRL will stay off until you
release the parking brake.
I
Fog Lights (Option)
Use your fog lights for better vision in
foggy or misty conditions. Your parking
lights must be on or your fog lights won't
work.
To turn the fog lights on, push the switch
abovego. Push the bottom of the
switch to
turn the fog lights off. A light
on the switch will come on when the fog
lights are on.
Fog lights will go off whenever your high
beams come on. When the high beams
go
off, the fog lights will come on again.
Interior Lights
Courtesy Lights
When any door is opened, several interior
lights
go on. These lights are courtesy
lights. They make
it easier for you to
mter and leave your vehicle.
Courtesy lights include the dome light
md other lights throughout the interior of
your vehicle.
ProCarManuals.com

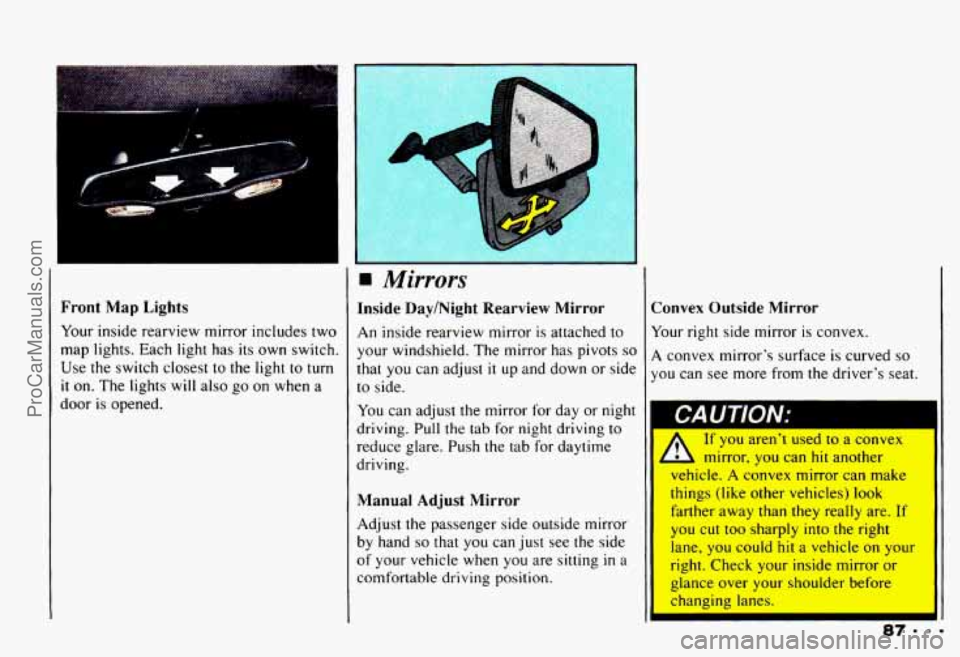

Front Map Lights
Your inside rearview mirror includes two
map lights. Each light has its own switch.
Use the switch closest to the light to
turn
it on. The lights will also go on when a
door is opened.
I
1
I'
. . . .. . .. . , . . .
Mirrors
Inside Day/Night Rearview Mirror
An inside rearview mirror is attached to
your windshield, The mirror has pivots
so
that you can adjust it up and down or side
to side.
You can adjust the mirror for day or night
driving. Pull the tab for
night driving to
reduce glare. Push the tab for daytime
driving.
Convex Outside Mirror
Your right side mirror is convex.
A convex mirror's surface is curvec so
you can see more from the driver's seat,
If you aren't used to a convex
L mirror, you can hit another
vehicle.
A convex mirror can make
things (like other vehicles) look
Manual Adjust Mirror
Adjust the passenger side outside mirror you cut too sharply into the right
by hand
so that you can just see the side lane, you could hit a vehicle on your
of your vehicle when you are sitting
in a right. Check your inside mirror or
comfortable driving position. glance over your shoulder before
farther
away than they really are.
If
changing lanes.
I
87.9-
ProCarManuals.com

Features & Controls
t

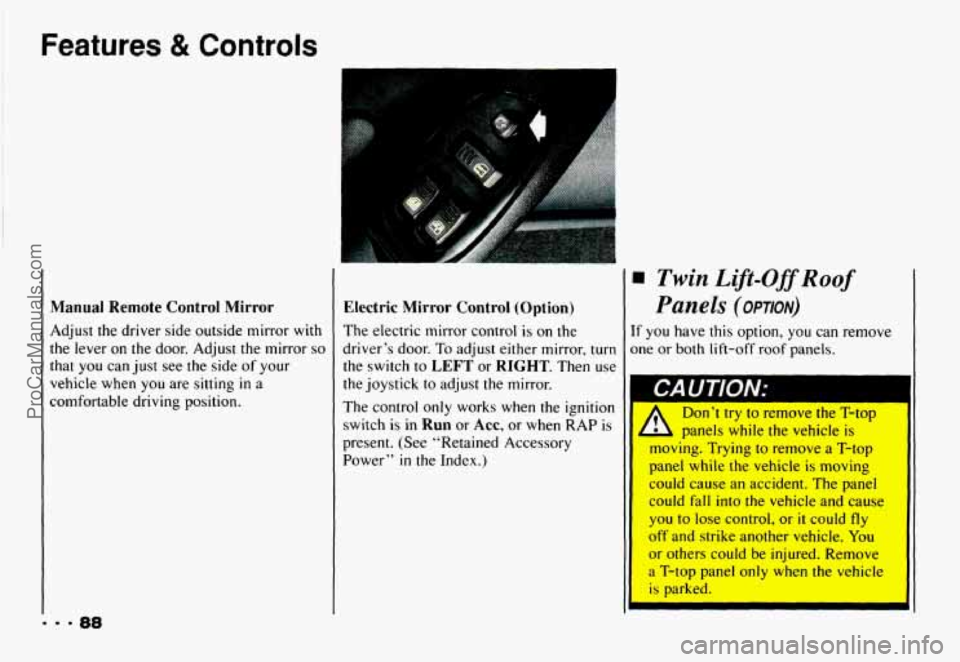

Manual Remote Control Mirror
Adjust the driver side outside mirror with
the lever
on the door. Adjust the mirror so
that you can just see the side of your
vehicle when
you are sitting in a
comfortable driving position.
Electric Mirror Control (Option)
The electric mirror control is on the
driver’s door.
To adjust either mirror, turn
the switch to LEFT or RIGHT. Then use
the joystick to adjust the mirror.
The control only works when the ignition
switch is
in Run or Acc, or when RAP is
present. (See “Retained Accessory
Power”
in the Index.)
Twin Lift-OffRoof
Panels (oPnoN)
f you have this option, you can remove
me or both lift-off roof
panels.
CAUTION: 1
Don’t try to remove the T-top
panels while the vehicle
is
moving. Trying to remove a T-top
panel
while the vehicle is moving
could cause an accident. The panel
could
fall into the vehicle and cause
you to lose control, or
it could fly
off and strike another vehicle. You
or others could be injured. Remove
a T-top panel only when the vehicle
I is parked.
ProCarManuals.com

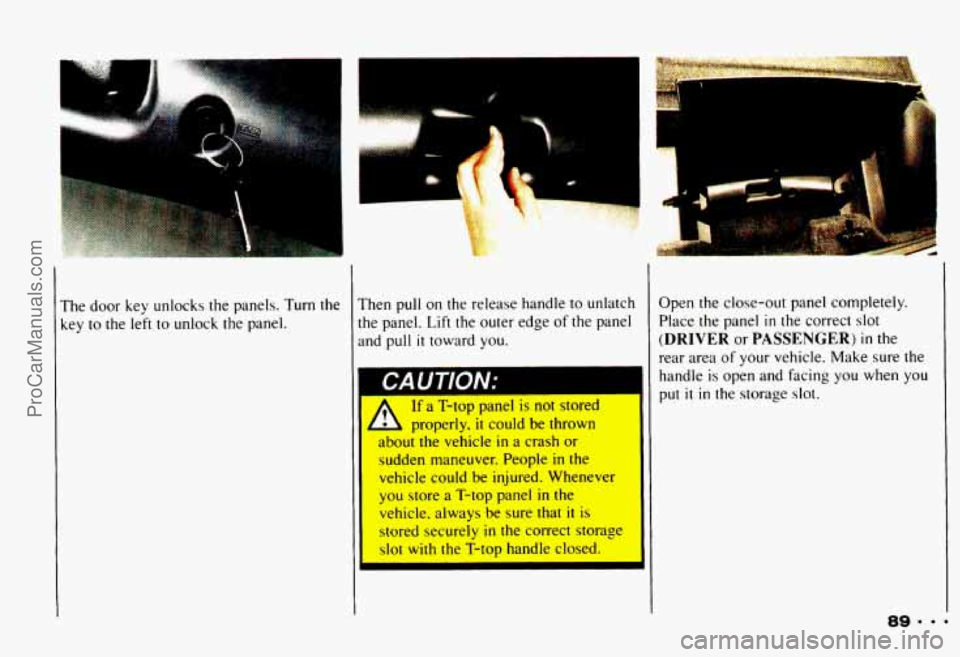

The door key unlocks the panels. Turn the
key
to the left to unlock the panel.
. .-
Then pull on the release handle to unlatch
the panel. Lift the outer edge of the panel
and pull
it toward you.
If a '1-top panel is not stored
properly,
it could be thrown
sudden maneuver. People
in the
vehicle could be injured. Whenever
you store
a T-top panel in the
vehicle. always be sure that
it is
stored securely in the correct storage
slot with the T-top handle closed. Open the
close-out panel completely.
Place the panel
in the correct slot
(DRIVER or PASSENGER) in the
rear area of
your vehicle. Make sure the
handle
is open and facing you when you
put it in the storage slot.
ProCarManuals.com

Features & Controls
I

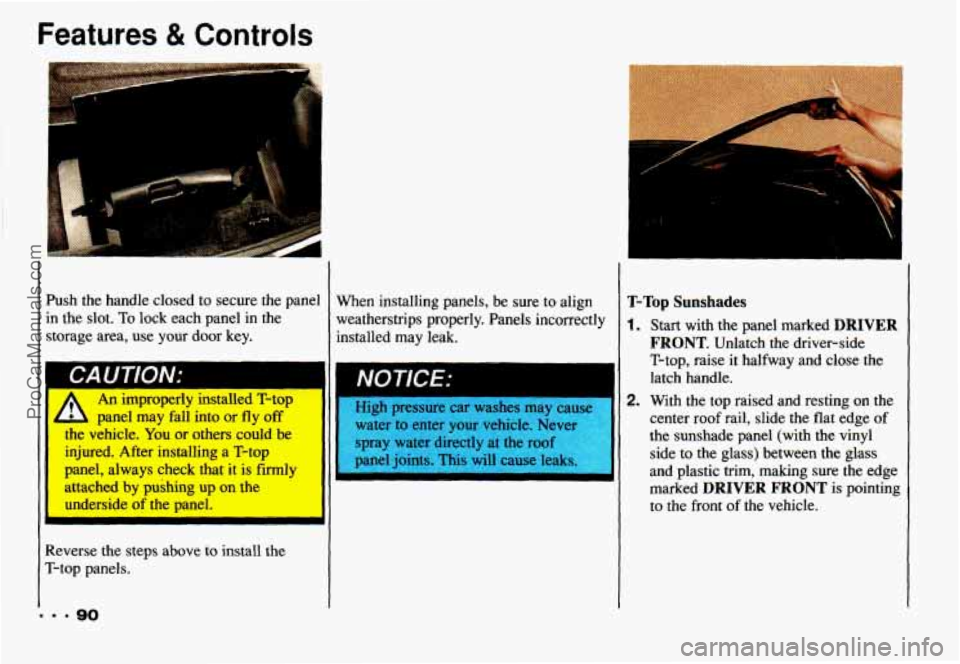

Push the handle closed to secure the panel in the slot.
To lock each panel in the
storage area, use your door key.
An improperly 111sw1ea l-rop
me vehicle. You
or others could be
injured. After installing a T-top
panel, always
check that it is firmly
attached by pushing up on the
L panel may fall into or fly off High pressure car washes may cause 1
water to enter your vehicle. Neve]
spray water directly at the roof
panel joints. This will cause leaks
underside of
the panel.
I
Reverse the steps above to install the
T-top panels.
... 90
When installing panels, be sure to align
weatherstrips properly. Panels incorrectly
installed may leak. T-Top Sunshades
1. Start with the panel marked DRIVER
FRONT. Unlatch the driver-side
T-top, raise it halfway and close the
latch handle.
2. With the top raised and resting on the
center
roof rail, slide the flat edge of
the sunshade panel (with the vinyl
side
to the glass) between the glass
and plastic trim, making sure the edge
marked
DRIVER FRONT is pointing
to the front of the vehicle.
ProCarManuals.com

3. Open the latch and close the T-top.
Check to see
if there are any gaps
showing. Unlatch the T-top and adjust
the sunshade as required.
4. Once the sunshade is installed
properly, you can stick the Velcro@
buttons on the glass for
a proper fit
every time you install the sunshades.
To do this, first remove the T-top with
the sunshade installed and place
it
upside down on a table or bench. Take
care not to scratch the glass.
remove the backing paper
from the
Velcro@ buttons. Push the sunshade
back into place sticking the Velcro@
to the glass,
6. Install the T-top, close the latch and
lock
the T-top, Repeat the above steps
for the passenger-side sunshade.
5. Pull the sunshade back a little and You
can store the sunshades in their
storage
area in the rear of your vehicle.
You can also leave them attached to the
T-tops. The
T-tops can still be removed
and placed in their storage slots when the
sunshades are attached.
91 =-.
ProCarManuals.com

Features & Controls

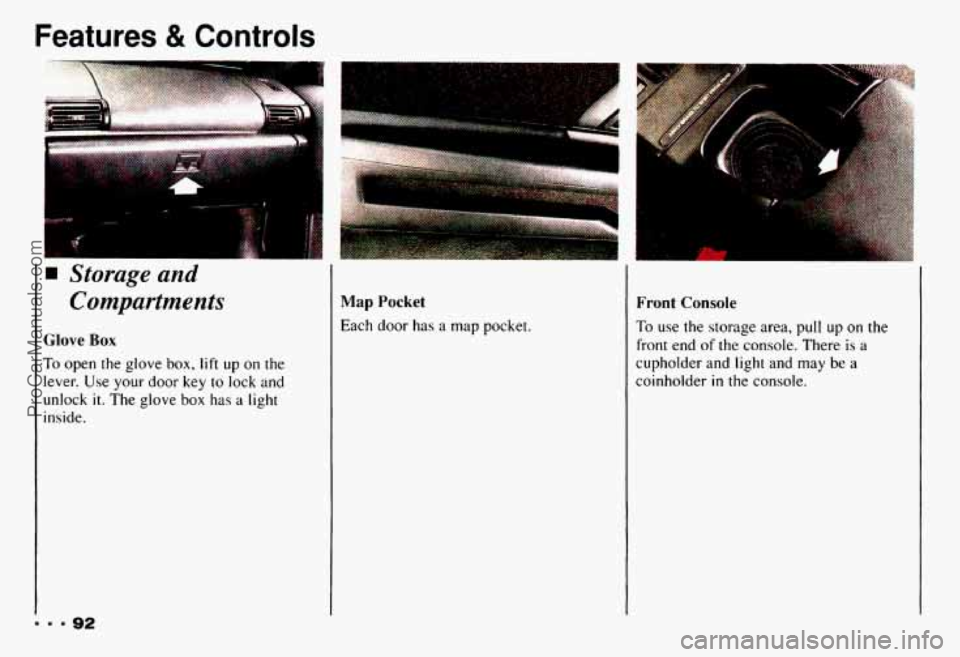

Storage and
Compartments
Glove Box
To open the glove box, lift up on the
lever.
Use your door key to lock and
unlock it. The glove box has a light
inside.
Map Pocket
Each door has a map pocket.
Front Console
To use the storage area, pull up on the
front end of the console. There is a
cupholder and light and may be a
coinholder
in the console,
