1993 CHEVROLET CAMARO Owners Manual

You can lose control of the
h vehicle if you try to adjust a
manual driver's seat while the
vehicle is moving. The sudden
movement could startle and confuse
you, or make you push
a pedal when
you don't want to. Adjust the
driver's seat only when the vehicle
is not moving.
Six- Way Power Seat (opmv)
The driver's seat has three controls on
the left side.
The front control makes the front of the
seat
go up and down.
The back control makes the back
of the
seal
go up and down.
The center control makes the whole seat
go
up and down or forward and
backward.
... ..
Reclining Front Seatbacks
To adjust the seatback, lift the lever on the
outer side of the seat. Release the lever to
lock the seatback where
you want it. Pull
up on the lever, and the seat will go to its
original upright position. But don't have
the seatback reclined
if your vehicle is
moving.
ProCarManuals.com

Seats 8t Safety Belts
II
A

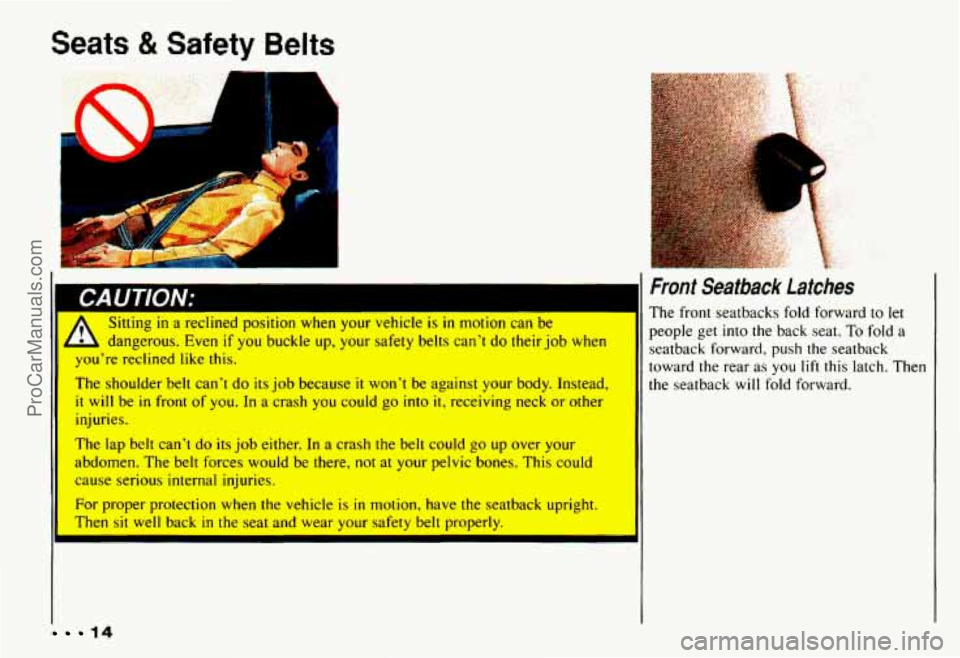

Sitting in a reclined position when your vehicle is in motion can be
- dangerous. Even if you buckle up, your safety belts can’t do their job when
you’re reclined like this.
The shoulder belt can’t
do its job because it won’t be against your body. Instead,
it will be in front of you. In a crash you could go into it, receiving neck or other
injuries.
The lap belt can’t
do its job either. In a crash the belt could go up over your
abdomen. The belt forces would be there, not at your pelvic bones. This could
cause serious internal injuries.
For proper protection when the vehicle is
in motion, have the seatback upright.
Then sit
well back in the seat and wear your safety belt properly.
Front Seatback latches
The front seatbacks fold forward to let
people get into the back seat. To fold a
seatback forward, push
the seatback
toward the rear as
you lift this latch. Then
the seatback will fold forward.
14
ProCarManuals.com

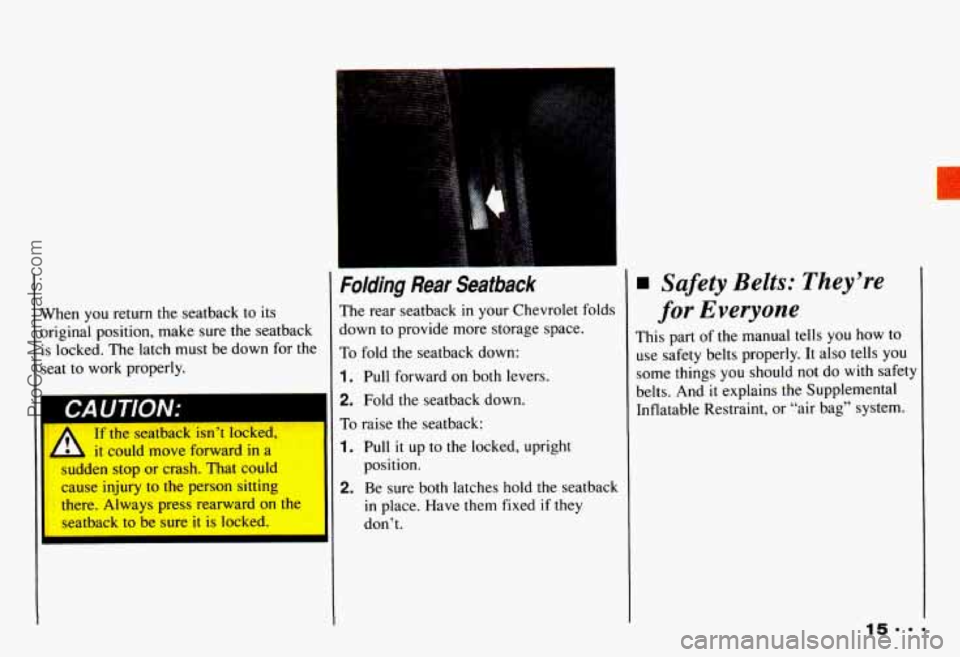

When you return the seatback to its original position, make sure the seatback
is locked. The latch must be down for the
seat to work properly.
I CAUTlON:
If the seatback isn’t locked,
Fh it could move forward in a
sudden stop or crash. That could
cause injury
to the person sitting
there. Always press rearward on the
seatback to be sure
it is locked.
Folding Rear Seatback
The rear seatback in your Chevrolet folds
down to provide more storage space.
To fold the seatback down:
1. Pull forward on both levers.
2. Fold the seatback down.
To raise the seatback:
1. Pull it up to the locked, upright
position.
2. Be sure both latches hold the seatback
in place. Have them fixed if they
don’t.
Safety Belts: They’re
for Everyone
This part of the manual tells you how to
use safety belts properly. It also tells you
some things you should not do
with safety
belts. And it explains the Supplemental
Inflatable Restraint, or “air bag” system.
15.9.
ProCarManuals.com

Seats & Safety Belts
I bU u I IUIV.’
n
Don’t let anyone rid6 where
h they can? wear a safety belt
properIy. If YOU are in a crash and
you’re not wearing a safety belt,
your injuries can be much worse.
You can hit things inside the vehicle
or be ejected from it. You can be
seriously injured or killed. In the
same crash, you might not k if you
are buckled up. Always fasten your
safety belt, and check that your
passengers” belts are fastened
properly too.
This figure lights up when you turn the
key
to Run or Start when your safety belt
isn‘t buckled, and you’ll hear a chime,
too.
It’s the reminder to buckle up.
In many states and Canadian provinces,
the law says
to wear safety belts. Mere’s
why:
They work.
You never know if you’ll be in a crash. If
you do have a crash, you don’t know if it
will be a bad one.
A few crashes are very mild. In them, you
won‘t get hurt even if you’re not buckled
up. And some crashes can be
so serious,
like being hit by a train, that even buckled
up
a person wouldn’t survive. But most
crashes are in between. In many
of them,
people
who buckle up can survive and
sometimes walk away. Without belts they
could be badly hurt
or killed.
After
25 years of safety belts in vehicles,
the fxts are clear. In most crashes
buckling
up does matter ... a lot!
ProCarManuals.com

~.
Why Safety Belts Work
When you ride in or on anything, you go
as fast as it goes.
For example, if the bike is going IO mph
(16 km/h), so is the child. When the bike hits the
block,
it stops. But
the child keeps going! Take the simplest
"car." Suppose it's just
a seat on wheels.
ProCarManuals.com

Seats 8t Safety Belts

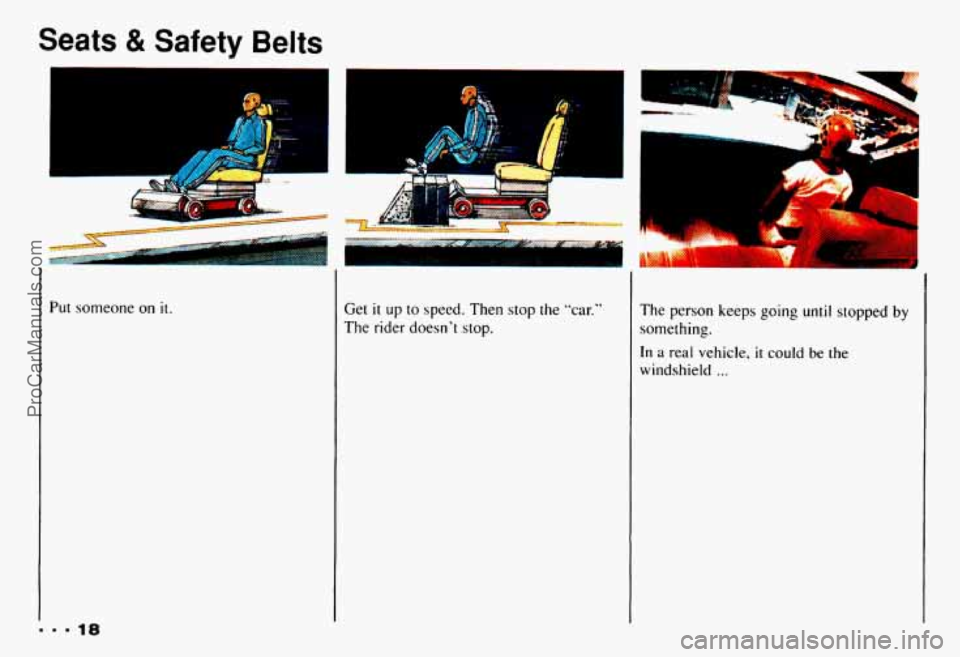

Put someone on it.
9 9 9 18
Get it up to speed. Then stop the "car."
The rider doesn't stop. The person keeps going until stopped by
something.
In a real vehicle, it could be the
windshield ...
ProCarManuals.com

1
1

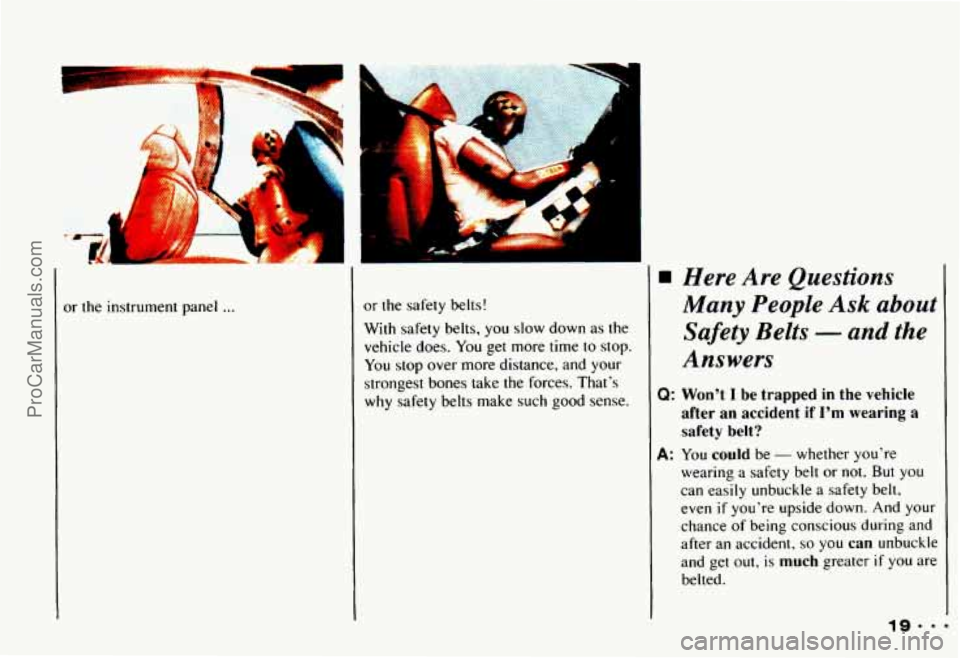

or the instrument panel ... or the safety belts!
With safety belts, you
slow down as the
vehicle does. You get more
time to stop.
You stop over more distance, and your
strongest bones take the forces. That’s
why safety
belts make such good sense.
Here Are Questions
Many People
Ask about
Safety Belts
- and the
Answers
Q: Won’t I be trapped in the vehicle
after an accident
if I’m wearing a
safety
belt?
A: You could be - whether you’re
wearing
a safety belt or not. But you
can easily unbuckle a safety belt,
even
if you’re upside down. And your
chance of being conscious during and
after an accident,
so you can unbuckle
and get out, is
much greater if you are
belted.
ProCarManuals.com

Seats & Safety Belts
Q: Why don’t they just put in air bags
so people won’t have to wear safety
belts?
Restraint systems, are in some
vehicles today and
will be in more of
them
in the future. But they are
supplemental systems only
- so they
work
with safety belts, not instead of
them. Every “air bag” system ever
offered for sale has required the use of
safety belts. Even
if you’re in a
vehicle that has “air bags,” you still
have to buckle up to get the
most
protection. That’s true not only in
frontal collisions, but especially in
side and other collisions.
A: “Air bags,” or Supplemental Intlatable
---2o
Q: If I’m a good driver, and I never
drive far from home, why should
I
wear safety belts?
A: You may be an excellent driver, but if
you’re in an accident - even one that
isn’t your fault
- you and your
passengers can be hurt. Being
a good
driver doesn’t protect you from things
beyond your control, such
as bad
drivers.
Most accidents occur
within 25 miles
(40 km) of home. And the greatest
number
of serious injuries and deaths
occur at speeds
of less than 40 mph
(65 km/h).
Safety belts are for everyone.
Safety Belt Reminder
Light
When the key is turned to Run or Start,
a light will come on for about eight
seconds to remind people
to fasten their
safety belts. Unless the driver’s safety belt
is buckled, a chime will also sound.
