1993 CHEVROLET CAMARO Owners Manual

Power Windows and Other Power
Options
Circuit breakers protect the power
windows and other power accessories.
When the current load is
too heavy, the
circuit breaker opens and closes,
protecting the circuit
until the problem is
fixed or goes away.
Main Fuse Block
(15 Amp.)
Lights Module (Canada); Turn Flasher
(20 Amp.)
3 - HVAC Selector Switch (Heater/Air
Conditioner); Rear Defogger
(25 Amp.)
4 - Engine Control Module; Instrument Cluster; PASS-Key IP Decoder
Module
( 10 Amp.)
1 - Air Bag: SIR Components
2 - Backup Lights; Daytime Running
I
5 - Engine Control Module; PASS-Key
II@ Decoder Module;
Fuel Pump Relay
(1 5 Amp.)
6 - Brake LighVCruise Release
Switch; Hazard Flasher
(20 Amp.)
7 - Power Door Locks; Power Mirrors; Hatch Release (15 Amp.)
8 - Audio Alarm Module; Base@
Relay; Courtesy Lights: Console
Compartment, Glove Box, Dome,
Rearview Mirror and Radio
(15 Amp.)
9 - Audio Alarm Module; Daytime
Running Lights Module (Canada); Diagnostic Energy Reserve
Module; Instrument Cluster
(10 Amp.)
10 - Exterior Lighting (20 Amp.)
11 - Cigarette Lighter; Horn Relay
12 - Power Seats; Rear Defogger
13 - Brightness Control (5 Amp.)
14 - Windshield Wipermasher
15 - Power Windows (35 Amp. Circuit
(25 Amp.)
(35 Amp. Circuit Breaker)
(25 Amp.)
Breaker)
16 - Diagnostic Energy Reserve Module
(3 Amp.)
17 - Radio (15 Amp.)
ProCarManuals.com

Service & Appearance Care
278
Underhood Electrical Center
Fuses
1 - Electronic Brake Control Module
(5 Amp.)
2 - Fog Lamps (20 Amp.)
3 - Not Used
4 - Not Used
5 - Anti-Lock Brake System (5 Amp.)
6 - Coolant Fan Relays; EVAP
Canister Purge Solenoid; Exhaust
Gas Recirculation; Low Coolant
Relay; Reverse Lockout Solenoid
(10 Amp.)
7 - Air Injection Pump Assembly;
8 - Not Used
9 - Fuel Injectors (7.5 Amp.)
10 - Fuel Injectors (7.5 Amp.)
11 - VIN Engine Code S: Camshaft
Air
Pump Relay
(20 Amp.)
Position Sensor; Crankshaft
Position Sensor; Electronic
Ignition Module
(10 Amp.)
VIN Engine Code P: Ignition
Coil; Ignition Coil Driver
(10 Amp.)
12 - Air Conditioning Compressor
Relay; Cruise Control Switches
and Module
(20 Amp.)
Relays
B - Air Conditioning Compressor
C - Anti-Lock Brake System
D - Primary Coolant Fan (Driver Side)
E - Air Pump
F - Secondary Coolant Fan
(Passenger Side)
G - Low Coolant
H - Fog Lamps
J - High Blower
ProCarManuals.com

Replacement Bulbs
Ashtray* ......................................................... 194
Automatic Transmission Indicator
...................................... 73
Backup
......................................................... 1141
Center High-Mounted Stoplight
....................................... 921
Cluster
.......................................................... 161
Console
......................................................... 194
Dome
........................................................... 561
DoorCourtesy
..................................................... 70
Fog
............................................................. 885
GloveBox ....................................................... 194
Front Parking and Turn Signal
....................................... 2397
Headlight
(Low Beam) ........................................... H-4351
Headlight (High Beam)
.......................................... H-4352
Heater and
A/C Control .............................................. 37
High Beam Indicator
............................................... 161
Indicator Lights
................................................... 161
License
.......................................................... 194
Reading
....................................................... 212-2
Sidemarker
....................................................... 194
TailOnly
........................................................ 194
Tail/Stop/Turn
................................................... 2057
"Manual transmission only
.
Turn Signal Indicators .............................................. 161
279 =
ProCarManuals.com

I Service & Appearance Care
I
. = 280

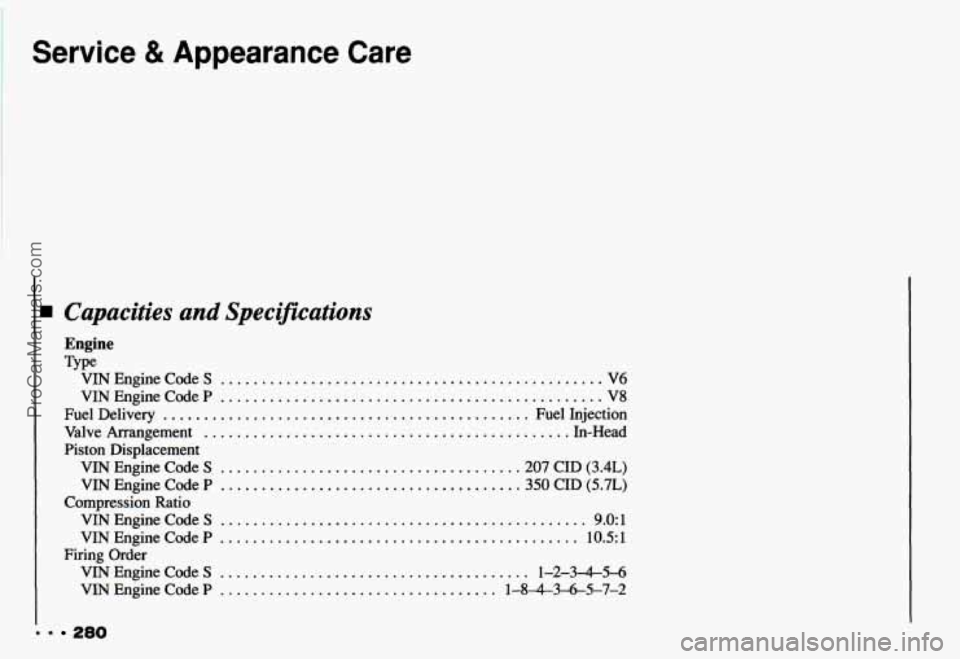

I Capacities and Specifications
Engine
Type
VINEnnineCodeS ............................................... V6 1
VINEngineCodeP ............................................... V8
Fuel Delivery
............................................. Fuel Injection
Valve Arrangement
............................................. In-Head
Piston Displacement VIN Engine Code
S .................................... .207 CID (3.4L)
VIN Engine Code
P ..................................... 350 CID (5.7L)
VIN Engine Code S ............................................. 9.0: 1
VIN Engine Code P ............................................ 10.5: 1
VINEngineCodeS ...................................... 1-2-3-4-5-6
VINEngineCodeP
.................................. 1-8434G5-7-2
Compression Ratio
Firing Order
ProCarManuals.com

Replacement Parts
Air Cleaner Filter . . . . . . . . . . . . . . . . . . . . . . . , . . . . . . . . . . . . . . . . . . . . . . A1 163C
Battery
........................................................ 75-60
Engine Oil Filter VINEngineCodeS
............................................. PF47
VINEngineCodeP
............................................. PF25
FuelFilter
...................................................... GF578
PCV Valve
VINEndingeCodeS
......................................... CV789C
VIN Engine Code
P . . . . . . . . . . . . . , , . . . . . . . . . . . . . . . . . . . . . . . . . . . CV895C
Radiatorcap
................................................... RC24
Spark Plug VIN Engine Code
S . . . . . . . . . . , . . . . . . . . . . . . . . . . . . . oR43TSK (0.045 ” Gap)
VIN Engine
Code P . . . . . . . , . . , . . . . . . . . . . . . . , . . . . oR45LTSP (0.050” Gap)
Thermostat Temperature Specification
. . . . . . . . . . . . . . . . . . . . . . . . . 180°F (82°C)
Wheel Nuts
Wheel Nut Torque . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . , . . 100 lb. ft. (140 Nom)
281 =
ProCarManuals.com

Service & Appearance Care
Capacities (Approximate)
The following approximate capacities are given in U.S. and metric conversions.
Air Conditioningt
...... See the refrigerant information label under the hood.
Automatic Transmission
Drain and Refill
....................................... 10 pt. (4.7 L)*
Overhaul VIN Engine Code
S ................................. 16.7 pt. (7.9 L)*
VIN Engine Code P ................................ 22.4 pt. (10.6 L)*
Cooling System
VIN Engine Code
S
With Manual Transmission ............................ 12.5 qt. (11.8 L)
With Automatic Transmission .......................... 12.3 qt. ( 11.6 L)
With Manual Transmission ............................ 15.3 qt. ( 14.5 L)
With Automatic Transmission .......................... 15.1 qt. (14.3 L)
VIN Engine Code P
tNot all air conditioning refrigerants are the same. If the air conditioning system in your
vehicle needs refrigerant, be sure the proper refrigerant is us\
ed. If you’re not sure, ask
your Chevrolet dealer.
Transmission Fluid” in the Index.
*Recheck fluid level
after filling. See “Automatic Transmission Fluid” or “Manual
. 282
ProCarManuals.com

Crankcase VIN Engine Code
S .................................... 4.0 qt. (3.8 L)**
VIN Engine Code
P
Without Filter Change ................................ 4.0 qt. (3.8 L)**
With Filter Change
................................... 4.5 qt. (4.3 L)**
Fuel Tank
........................................... 15.5 gal. (58.7 L)
Manual Transmission Five-Speed
........................................... 5.9 pt. (2.8 L)*
Six-Speed ........................................... 8.0 pt. (3.8 L)*
Rear Axle Lubricant .................................... 4 fl. 02. (1 18 ml)
Vehicle Dimensions
Wheelbase ........................................... 101.1 “ (2 566 mm)
Tread Front
.............................................. .60.7“ (1 542 mmj
Rear
.............................................. .60.6” (1 540 mm)
Length
.............................................. 193.2” (4 908 mm)
Width
............................................... 74.1 “ (1 883 mm)
Height
............................................... 5 1.3“ (1 303 mm)
*Recheck fluid level after filling. See “Automatic Transmissio\
n Fluid”
or “Manual
Transmission Fluid” in the Index.
**Recheck the oil level after filling. See “Engine Oil” in the Index.
I
283
ProCarManuals.com

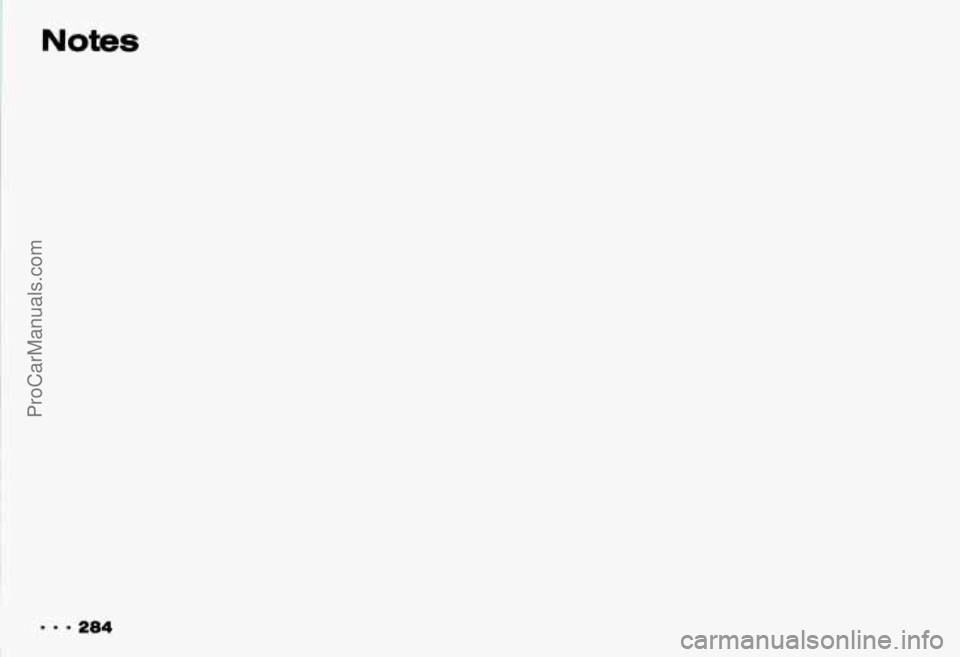

Notes
