1993 CHEVROLET CAMARO Owners Manual

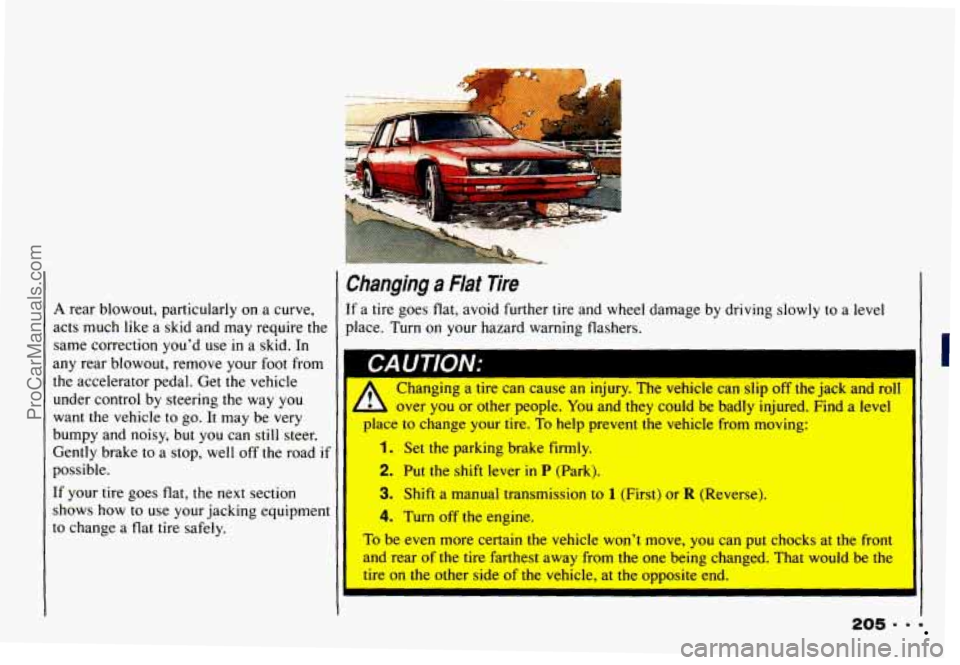

I Changing a Flat lire
’ A rear blowout, particularly on a curve, If a tire goes flat, avoid further tire and wheel damage by driving slowly to a level
acts much like a skid and may require the place. Turn on your hazard warning flashers.
If your tire goes flat, the next section
shows how to use your jacking equipment
to change a flat tire safely.
1 CAUTION:
same correction you’d use in-a skid. In I -
any rear blowout, remove your foot from
the accelerator pedal. Get the vehicle
under control by steering
the way you
want
the vehicle to go. It may be very
bumpy and noisy, but you can still steer.
Gently brake to a stop, well off the road
if
possible. (I
A Changing a tire can cause an injury. The vehicle can slip off the jack and roll
over you or other people. You and
they could be badly injured. Find a level
I place to ccange your tire. To help prevent the vehicle from moving:
1. Set the parking brake firmly.
2. Put the shift lever in P (Park).
3. Shift a manual transmission to 1 (First) or R (Reverse). I
4. Turn off the engine.
To be even more certain the vehicle won’t move, you can put chocks at the front
and rear of the tire farthest away from the one being changed. That would be
tht
tire on the other side of the vehicle, at the opposite end.
L
I
205 - =
I
ProCarManuals.com

Problems on the Road
The following steps will tell you how to
use the jack and change a tire.
The equipment you'll need
is in the rear
area.
... 206
Find the plastic screw heads in the trim
panel over the spare tire. Use a coin or a
key to turn the screw heads until the slots
point front and back. Lift the trim panel
and move it
out of the way,
If you have speakers in the trim panel,
the speaker wire should be long enough
to remove
the trim panel without
disconnecting the wire.
To remove the jack and wheel wrench,
loosen and remove the bolt
and remove the
plastic cover.
ProCarManuals.com

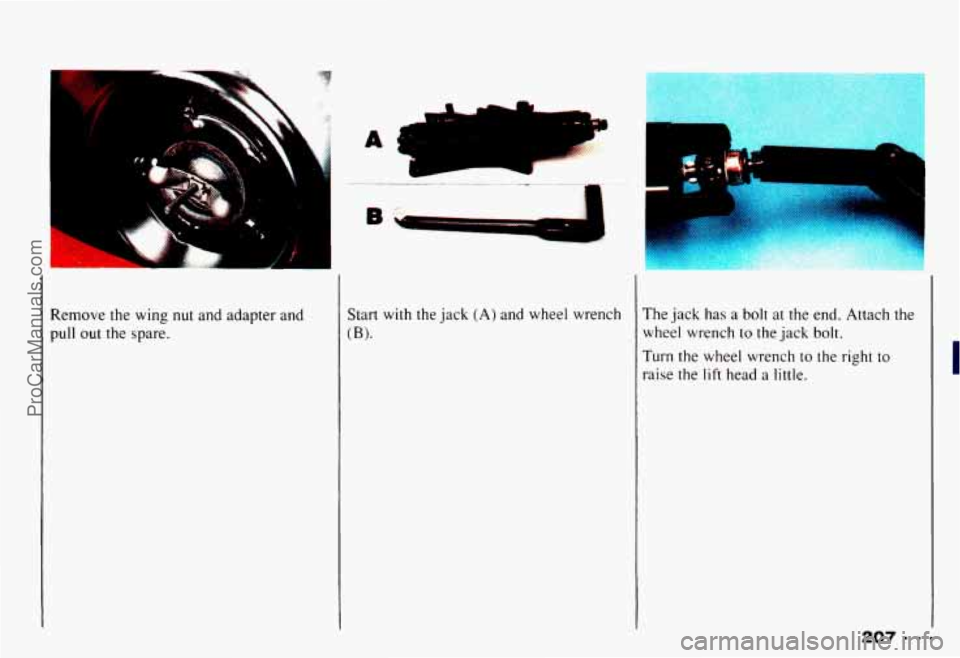

Remove the wing nut and adapter and
pull out the spare.
A.
Start with the jack (A) and wheel wrench
(B).
The jack has a bolt at the end. Attach the
wheel wrench to the jack bolt.
Turn the wheel wrench to the right to
raise the lift head
a little. I
ProCarManuals.com

Problems on the Road
H

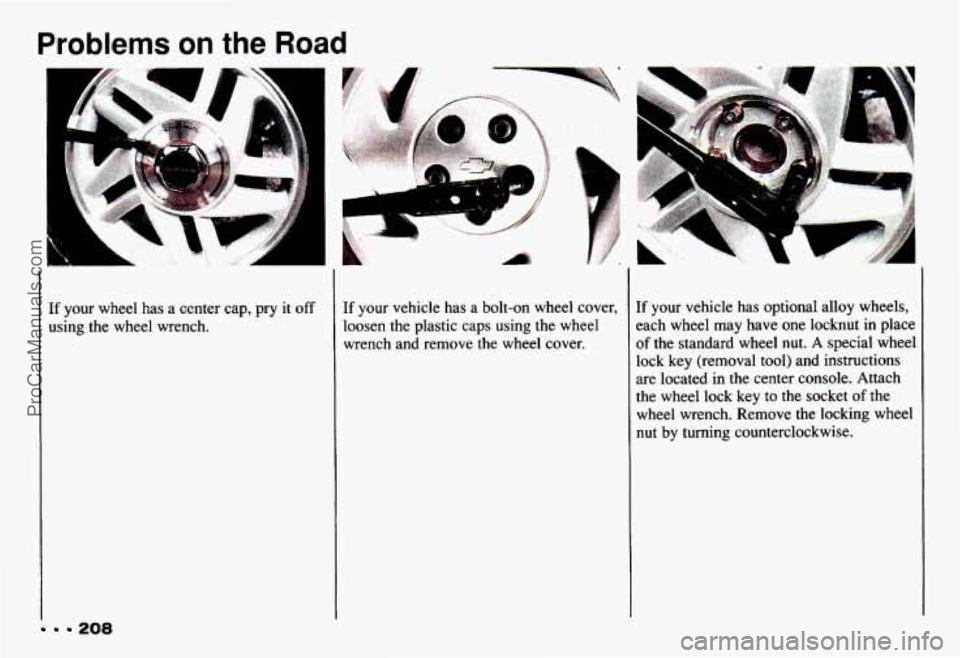

If your wheel has a center cap, pry it off
using the wheel wrench.
208
If your vehicle has a bolt-on wheel cover,
loosen the plastic caps using the wheel
wrench and remove the wheel cover. If your vehicle has optional alloy wheels,
each wheel may have one locknut in place
of the standard wheel nut. A special wheel
lock key (removal tool) and instructions
are located in the center console. Attach
the wheel lock key to the socket
of the
wheel wrench. Remove the locking wheel
nut by turning counterclockwise.
ProCarManuals.com

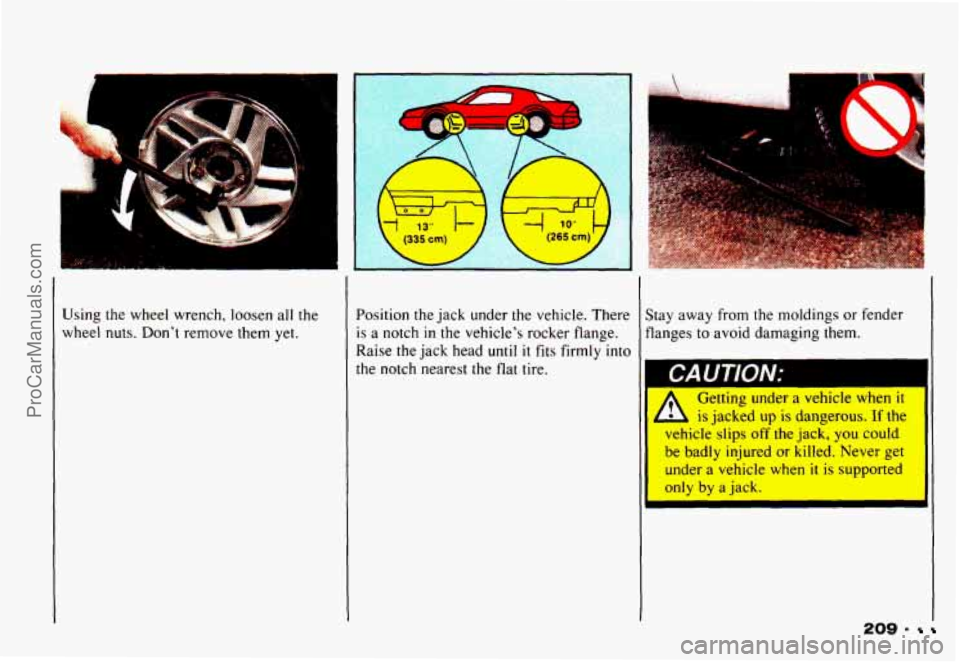

Using the wheel wrench, loosen all the
wheel nuts. Don't remove them yet. Position
the jack under the vehicle. There
is a notch in the vehicle's rocker flange.
Raise
the jack head until it fits firmly into
the notch nearest the flat tire. Stay away
from the moldings or fender
flanges
to avoid damaging them.
' Getting under a vtmicle when IL
- is jacked up is dangerous. If the
vehicle
slips off the jack, you could
be badly injured
or killed. Never get
under a vehicle when
it is supported
onlv bv a iack.
209 .
ProCarManuals.com

Problems on the Road

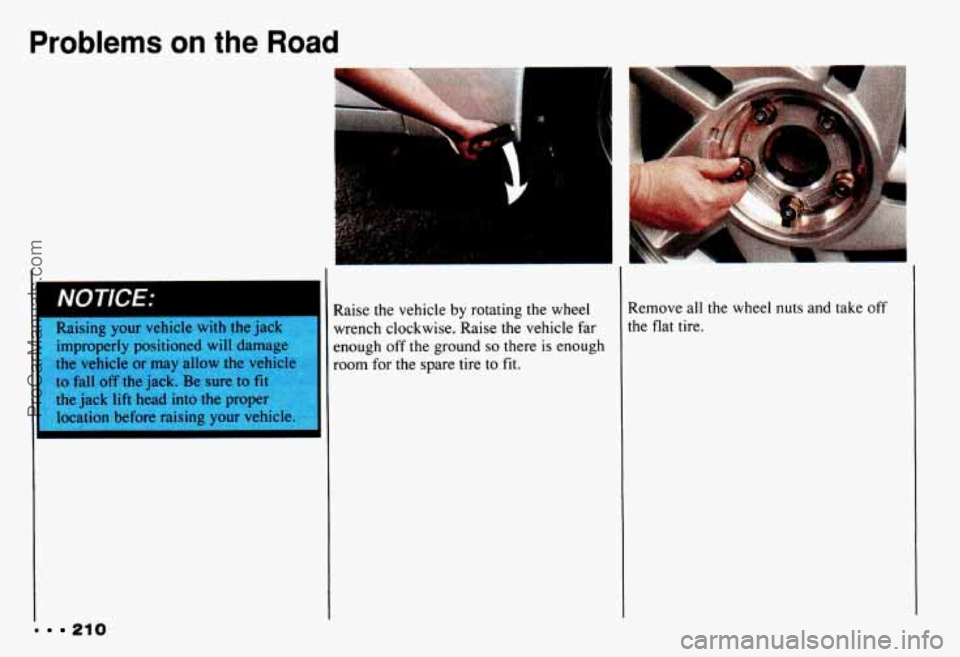

Raising your vehicle with the jack improperly positioned
will damage
the
vehicle or may allow the vehicIe
to fall
off the jack. Be sure to fit
the jack lift head into the proper
location before raising your vehicle.
I
- 210
Raise the vehicle by rotating the wheel
wrench clockwise. Raise the vehicle far
mough off the ground
so there is enough
room for the spare tire to
fit.
Remove all the wheel nuts and take off
the flat tire.
ProCarManuals.com

I

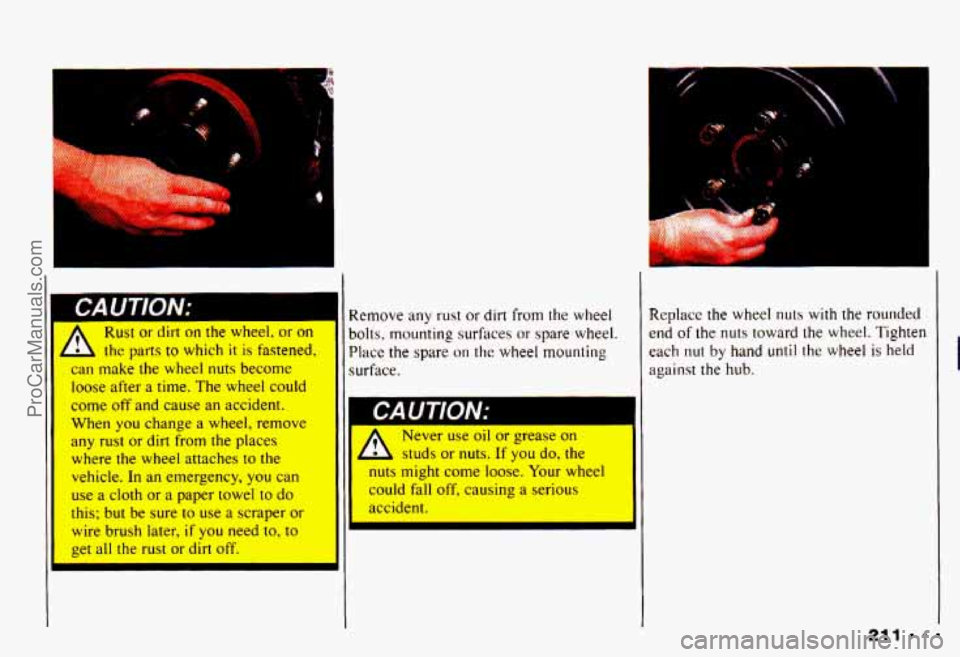

A Rust or dirt on the wheel, or on
the parts to which it is fastened,
can make the wheel nuts become
loose after a time. The wheel could
come off and cause an accident.
When you change a wheel, remove
any rust or dirt from the places
where the wheel attaches to the
vehicle. In an emergency, you can
use a cloth or a paper towel to do
this; but be sure to use a scraper or
wire brush later, if you need to, to
get all the rust or dirt off.
I
I
1
1
!
I
I
Remove any rust or dirt from the wheel
3olts, mounting surfaces or spare wheel.
Place the spare on the wheel mounting
surfxe.
A
Never use oil or grease on
studs or nuts. If you do, the
nuts might come loose. Your wheel
could
fall off, causing a serious
accident.
i
Replace the wheel nuts with the roundec-1
end of the nuts toward the wheel. Tighten
each nut by hand until the wheel is held
against the hub.
211
ProCarManuals.com

Problems on the Road
Lower the vehicle by rotating the wheel
wrench counterclockwise. Lower the jack
completely.
, .:
il
Tighten the wheel nuts firmly in a
criss-cross sequence as shown.
CAUTION:
,A improperly tightened wheel
nuts can cause the wheel to become
loose and even come off. This could
lead to an accident. Be sure to use
the correct wheel nuts. If you have
to replace them, be sure to get the
right kind.
Stop somewhere as soon as you can
and have the nuts tightened with a
torque wrench to 100 pound-feet
( 140 Nmm).
I I Ill
Don't try to put a wheel cover on your
compact spare tire.
It won't fit. Store the
wheel cover
in the rear area until you
have the flat tire repaired or replaced.
NOTICE:
-elcovers won't fit on your
:ompact spare.
If you try to put a
wheel cover on your compact si re,
you
could damage the wer the
spare.
