Page 217 of 392
Fig. 8: View of Front Disc Brake Assembly, Miata Shown; MPV Similar.
1991 Mazda MX-5 Miata
BRAKE SYSTEM 1991 BRAKES Mazda Brake System
Microsoft
Sunday, July 05, 2009 2:18:08 PMPage 14 © 2005 Mitchell Repair Information Company, LLC.
Page 218 of 392
Fig. 9: View of Front Brake Disc Assembly Navajo.
1991 Mazda MX-5 Miata
BRAKE SYSTEM 1991 BRAKES Mazda Brake System
Microsoft
Sunday, July 05, 2009 2:18:08 PMPage 15 © 2005 Mitchell Repair Information Company, LLC.
Page 219 of 392
Fig. 10: View of Front Brake Disc Assembly MX-6 & 626.
1991 Mazda MX-5 Miata
BRAKE SYSTEM 1991 BRAKES Mazda Brake System
Microsoft
Sunday, July 05, 2009 2:18:08 PMPage 16 © 2005 Mitchell Repair Information Company, LLC.
Page 220 of 392
Fig. 11: View of RX7 Single-Piston Caliper Front Brake Assembly
1991 Mazda MX-5 Miata
BRAKE SYSTEM 1991 BRAKES Mazda Brake System
Microsoft
Sunday, July 05, 2009 2:18:08 PMPage 17 © 2005 Mitchell Repair Information Company, LLC.
Page 221 of 392

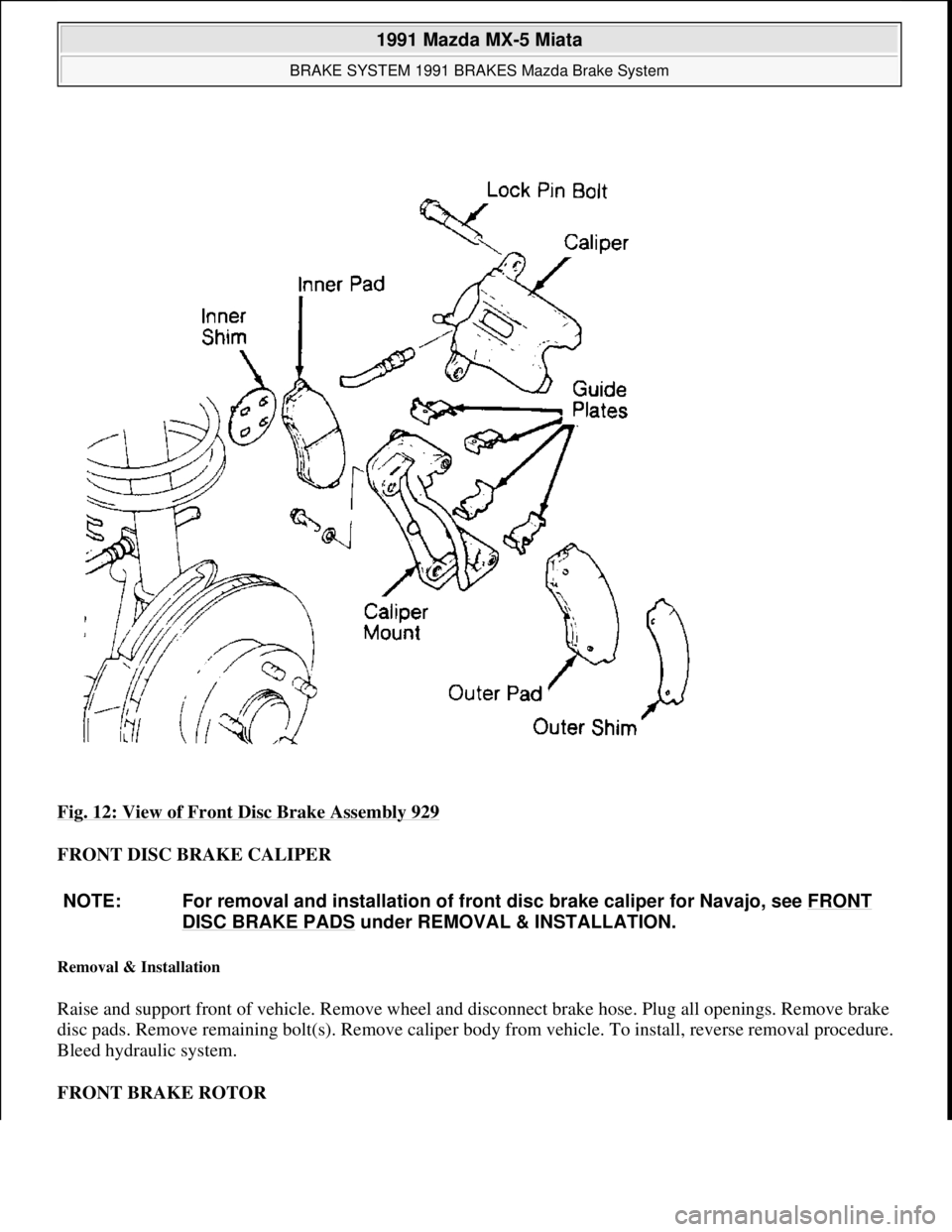

Fig. 12: View of Front Disc Brake Assembly 929
FRONT DISC BRAKE CALIPER
Removal & Installation
Raise and support front of vehicle. Remove wheel and disconnect brake hose. Plug all openings. Remove brake
disc pads. Remove remaining bolt(s). Remove caliper body from vehicle. To install, reverse removal procedure.
Bleed hydraulic system.
FRONT BRAKE ROTOR
NOTE: For removal and installation of front disc brake caliper for Navajo, see FRONT
DISC BRAKE PADS under REMOVAL & INSTALLATION.
1991 Mazda MX-5 Miata
BRAKE SYSTEM 1991 BRAKES Mazda Brake System
Microsoft
Sunday, July 05, 2009 2:18:08 PMPage 18 © 2005 Mitchell Repair Information Company, LLC.
Page 222 of 392

Removal & Installation (B2200 & B2600i 2WD)
1. With caliper assembly removed, remove wheel hub grease cap, cotter pin, lock plate and ring adjusting
lock nut. Remove thrust washer and outer bearing from hub. Slide hub and rotor assembly from spindle.
2. Mark rotor-to-hub position. Separate rotor from hub. Machine rotor if lateral runout exceeds
specification. Replace rotor if measured thickness is less than specified minimum thickness. See DISC
BRAKE SPECIFICATIONS at end of article.
3. To install, reverse removal procedure and evenly tighten rotor-to-hub bolts. Adjust wheel bearings.
Removal & Installation (B2600i 4WD) 1) Remove front caliper. Set hub to FREE position. Remove hub
bolts. Remove hub as an assembly. Install 2 bolts and nuts to retain hub assembly together. Remove snap
ring and spacer.
4. Remove set bolt and plate. Remove nut. Remove rotor and hub assembly. Mark rotor-to-hub position.
Remove rotor from hub. Machine rotor if lateral runout exceeds specification. Replace rotor if measured
thickness is less than specified minimum thickness. See DISC BRAKE SPECIFICATIONS
at end of
article. To install, reverse removal procedure.
Removal & Installation (Miata, MPV, MX-6, Protege, RX7, 323 & 626)
1. Raise and support front of vehicle. Remove wheel. Remove caliper with brake hose connected. Support
caliper using rope. Remove 2 rotor-to-hub screws. Remove rotor.
2. Machine rotor if lateral runout exceeds specification. Replace rotor if measured thickness is less than
specified minimum thickness. See DISC BRAKE SPECIFICATIONS
at end of article. To install,
reverse removal procedure.
Removal & Installation (Navajo 2WD)
1. Raise vehicle, and support using safety stands. Remove wheel and caliper assemblies. Remove dust cap,
cotter pin, nut, washer and outer bearing. Carefully remove hub and rotor assembly. Remove inner
bearing and seal.
2. To install, reverse removal procedure. Adjust front wheel bearings. While rotating rotor, tighten adjusting
nut to 17-25 ft. lbs. (23-34 N.m). Back off adjusting nut 120-180 degrees. Install bearing retainer and new
cotter pin.
Removal (Navajo 4WD With Automatic Locking Hubs)
1. Raise vehicle, and support using safety stands. Remove wheel assembly and caliper. See FRONT DISC
BRAKE PADS under REMOVAL & INSTALLATION. Remove retainer washers from lug nut studs.
Remove automatic locking hub housing from spindle.
2. Remove snap ring from end of spindle shaft. Remove axle spacer. See Fig. 13
. Carefully pull plastic
moving cam off wheel bearing adjusting nut. Remove 2 plastic thrust spacers from adjusting nut. Using a
magnet, remove locking key.
CAUTION: DO NOT pry on plastic cam or spacers during removal as damage
may result. To prevent damaging spindle threads, remove locking
key before removing adjusting nut.
1991 Mazda MX-5 Miata
BRAKE SYSTEM 1991 BRAKES Mazda Brake System
Microsoft
Sunday, July 05, 2009 2:18:08 PMPage 19 © 2005 Mitchell Repair Information Company, LLC.
Page 223 of 392
Fig. 13: Removing Front Rotor (Navajo with Automatic Locking Hubs)
Courtesy of FORD MOTOR CO.
3. If necessar
y, rotate adjusting nut slightly to relieve pressure on locking key. Using Hex Lock Nut Wrench
1991 Mazda MX-5 Miata
BRAKE SYSTEM 1991 BRAKES Mazda Brake System
Microsoft
Sunday, July 05, 2009 2:18:08 PMPage 20 © 2005 Mitchell Repair Information Company, LLC.
Page 224 of 392

(T70T-4252-B), remove wheel bearing adjusting nut. Remove outer wheel bearing, and then remove
rotor.
Installation
When installing rotor, outer bearing and adjusting nut, tighten adjusting nut to 35 ft. lbs (47 N.m) to seat
bearings. Spin rotor, and back off adjusting nut 1/4 turn. Tighten adjusting nut to 16 INCH lbs. (1.8 N.m). To
install remaining components, reverse removal procedure. See Fig. 13
. After assembly is complete, wheel to
spindle end play should be .001-.003" (.02-.08 mm).
Removal (Navajo 4WD With Manual Locking Hubs)
1. Raise and support vehicle. Remove wheel assembly and caliper. See FRONT DISC BRAKE PADS
under REMOVAL & INSTALLATION. Remove retainer washers from lug nut studs. Remove manual
locking hub housing from spindle.
2. Remove snap ring from end of spindle shaft. Remove axle spacer. See Fig. 14
. Using Lock Nut Wrench
(T86T-1197-A), remove outer wheel bearing lock-nut. Remove lock washer. Using Lock Nut Wrench
(T86T-1197-A), remove inner wheel bearing lock nut, outer wheel bearing and rotor. CAUTION: Extreme caution must be used when aligning adjusting nut lug with
spindle locking key slot to prevent damage to locking key. Extreme
caution must be used when aligning fixed cam key with spindle key slot to
prevent damage to fixed cam.
1991 Mazda MX-5 Miata
BRAKE SYSTEM 1991 BRAKES Mazda Brake System
Microsoft
Sunday, July 05, 2009 2:18:08 PMPage 21 © 2005 Mitchell Repair Information Company, LLC.
