3. INSTALL BRAKE CALIPERInstall the brake caliper to the steering cnuckle with the 2
bolts.
Torque: 118 N Vm (1,200 kgf Vcm, 87 ft Vlbf)
4. STABILIZE SUSPENSION
(a) Install the front wheel and jack down the vehicle.
Torque: 103 N Vm (1,050 kgf Vcm, 76 ft Vlbf)
(b) Bounce the vehicle up and down several times to stabilize the
suspension.
5. TORQUE ADJUSTING CAMS AND NUTS
(a) Jack up the vehicle and remove the front wheel.
(b) Support the lower arm with jack.
(c) Align the matchmarks and torque the adjusting cams and nuts with the vehicle weight on the suspension.
Torque: 226 N Vm (2,300 kgf Vcm, 166 ft Vlbf)
6. INSTALL ENGINE UNDER COVER
7. INSTALL FRONT WHEEL
Torque: 103 N Vm (1,050 kgf Vcm, 76 ft Vlbf)
8. CHECK FRONT WHEEL ALIGNMENT
(See page SA±5)
SA±44
±
SUSPENSION AND AXLE FRONT SUSPENSION
WhereEverybodyKnowsYourName

DIAGNOSTIC CHART
DIAGNOSTIC
CHART
Check for short in all the harness and
components connected to IGN fuse.
Check voltage of terminal M±REL.
Check for open in harness and connector
between battery and ECU.
Check and replace ECU.
Replace ignition switch.
Repair or replace harness or
connector.
Repair or replace harness or
connector.
Check for open and short in harness and
connector between terminal M REL and body
ground.
Replace EFT main relay.
Check voltage of terminal IGSW.
Check IGN fuse.
Check continuity between terminals E1 and
body ground.
Check voltage of ECU power source.
Proceed to next circuit inspection
shown on matrix chart (See page
TR±35
).
Check ignition switch.
Check EFT fuse.
Check EFT main relay.
Check and repair or harness or connector
between EFI fuse and battery.
Check for short in all the harness and
components connected to EFI fuse.
±
ENGINE TROUBLESHOOTING Circuit InspectionTR±125
WhereEverybodyKnowsYourName

NGOK
OKNG
NGOK

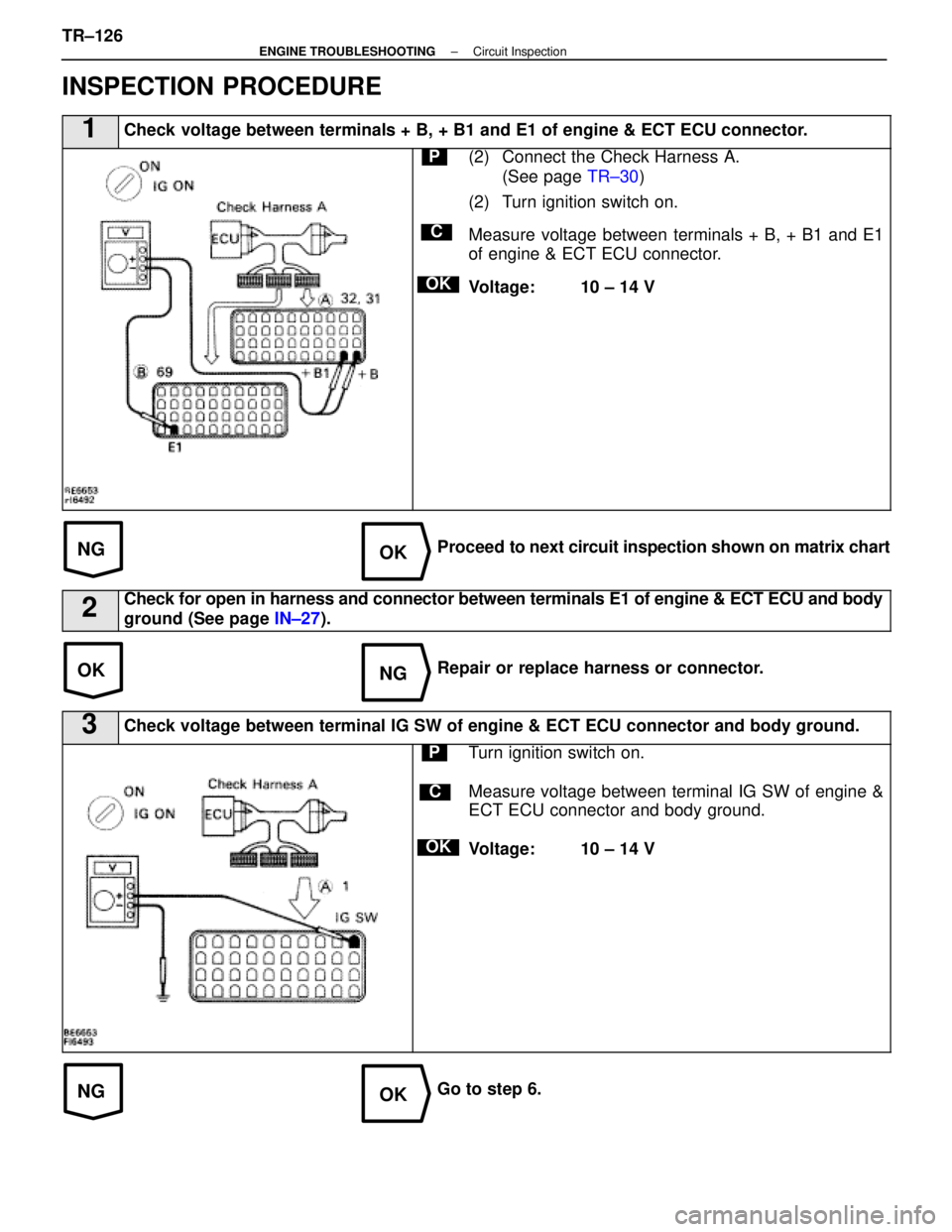

INSPECTION PROCEDURE
1Check voltage between terminals + B, + B1 and E1 of engine & ECT ECU connecto\
r.
C
OK
P(2) Connect the Check Harness A.(See page TR±30)
(2) Turn ignition switch on.
Measure voltage between terminals + B, + B1 and E1
of engine & ECT ECU connector.
Voltage: 10 ± 14 V
Proceed to next circuit inspection shown on matrix chart
2Check for open in harness and connector between terminals E1 of engine &\
ECT ECU and body
ground (See page IN±27).
Repair or replace harness or connector.
3Check voltage between terminal IG SW of engine & ECT ECU connector and b\
ody ground.
C
OK
PTurn ignition switch on.
Measure voltage between terminal IG SW of engine &
ECT ECU connector and body ground.
Voltage: 10 ± 14 V
Go to step 6.
TR±126
±
ENGINE TROUBLESHOOTING Circuit Inspection
WhereEverybodyKnowsYourName

OKNG
OKNG

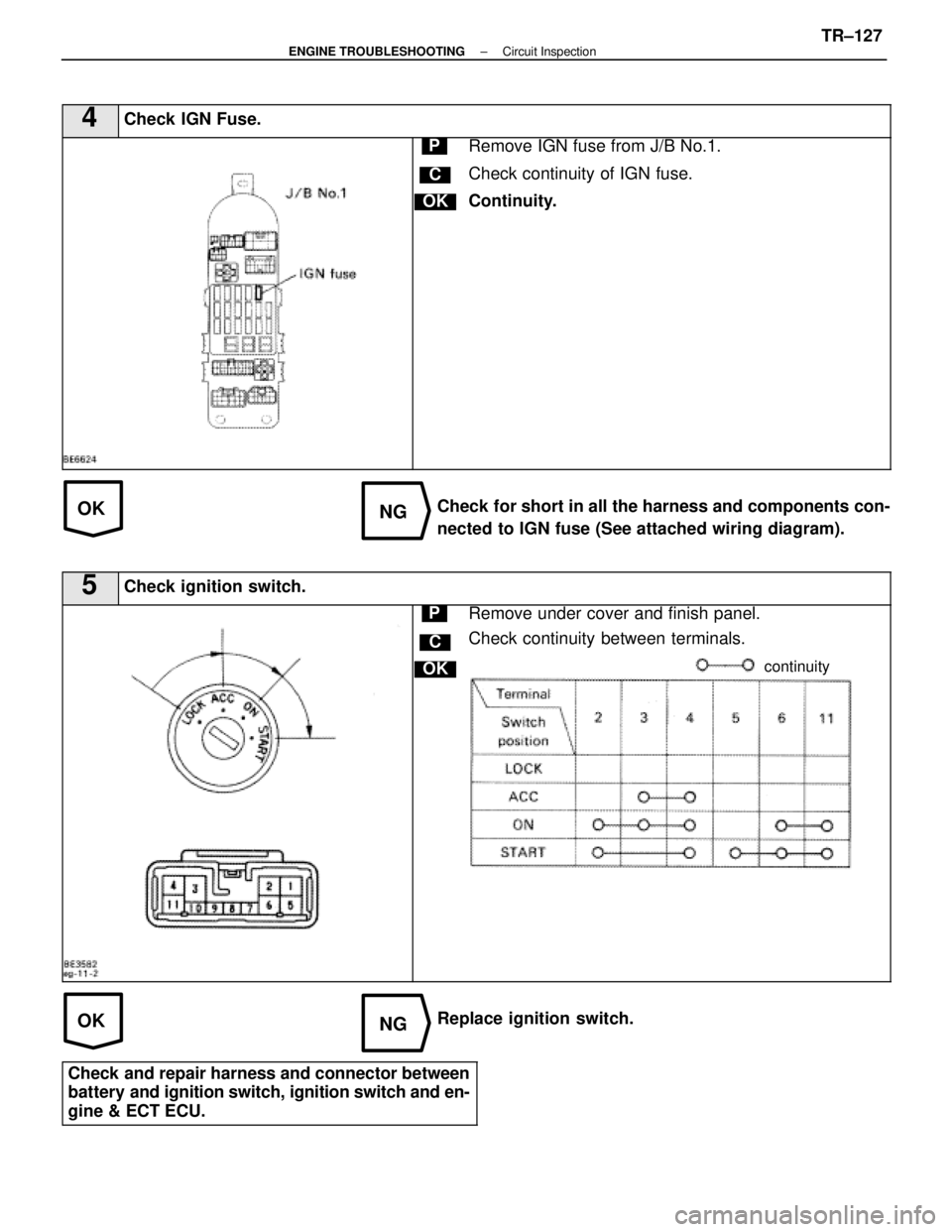

4Check IGN Fuse.
C
OK
PRemove IGN fuse from J/B No.1.
Check continuity of IGN fuse.
Continuity.
Check for short in all the harness and components con-
nected to IGN fuse (See attached wiring diagram).
5Check ignition switch.
C
OK
PRemove under cover and finish panel.
Check continuity between terminals.
continuity
Replace ignition switch.
Check and repair harness and connector between
battery and ignition switch, ignition switch and en-
gine & ECT ECU.
±
ENGINE TROUBLESHOOTING Circuit InspectionTR±127
WhereEverybodyKnowsYourName

OKNG
OKNG
6Check voltage between terminal M±REL of engine & ECT ECU connector and bod\
y ground.
C
OK
PTurn ignition switch on.
Measure voltage between terminal M±REL of engine &
ECT ECU connection and body ground.
Voltage: 10 ± 14 V
Check and replace engine & ECT ECU.
7Check EFI
C
OK
PRemove EFI fuse R/B No.2.
Check continuity of EFI fuse.
Continuity
Rep
TR±128
±
ENGINE TROUBLESHOOTING Circuit Inspection
WhereEverybodyKnowsYourName

OKNG
OKNG
8Check EFI main relay.
C
OK
P
C
OK
Remove EFI main relay.
Check continuity between terminals of EFI main relay
shown below.
(2) Apply battery voltage between terminals 1 and 3.
(2) Check continuity between terminals 2 and 4.
Replace EFI main relay.
9Check for open and short in harness and connector between terminal M±REL o\
f engine & ECT
ECU and body ground (See page IN±27).
Repair or replace harness or connector.
Check and repair harness or connector between
EFI fuse and battery.
±
ENGINE TROUBLESHOOTING Circuit InspectionTR±129
WhereEverybodyKnowsYourName

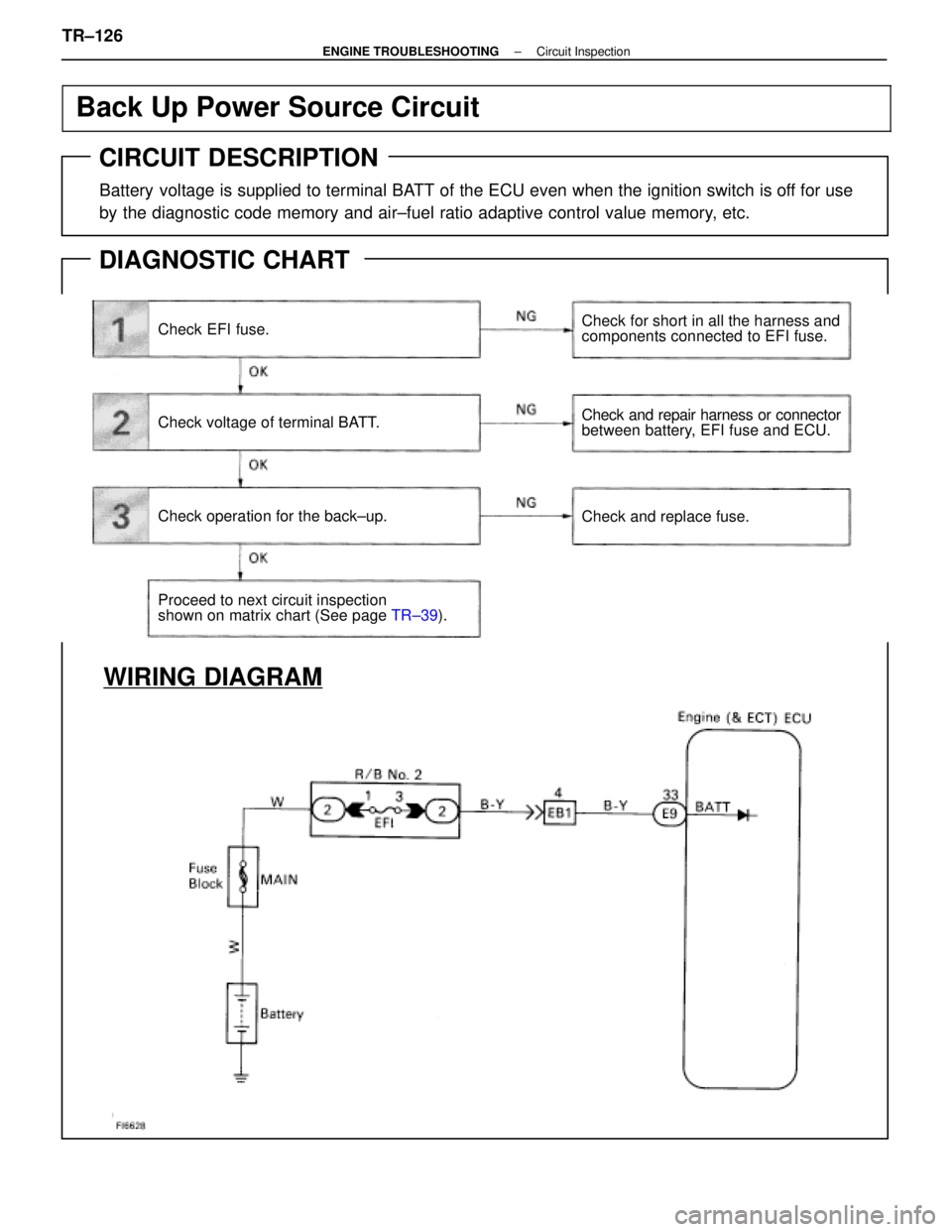

Check EFI fuse.
Check voltage of terminal BATT.
Check operation for the back±up.
Proceed to next circuit inspection
shown on matrix chart (See page TR±39).
Check for short in all the harness and
components connected to EFI fuse.
Check and repair harness or connector
between battery, EFI fuse and ECU.
Check and replace fuse.
WIRING DIAGRAM
Back Up Power Source Circuit
CIRCUIT DESCRIPTION
Battery voltage is supplied to terminal BATT of the ECU even when the ignition switch is off for use
by the diagnostic code memory and air±fuel ratio adaptive control val\
ue memory, etc.
DIAGNOSTIC CHART
TR±126±
ENGINE TROUBLESHOOTING Circuit Inspection
WhereEverybodyKnowsYourName

OKNG
OKNG
YESNO

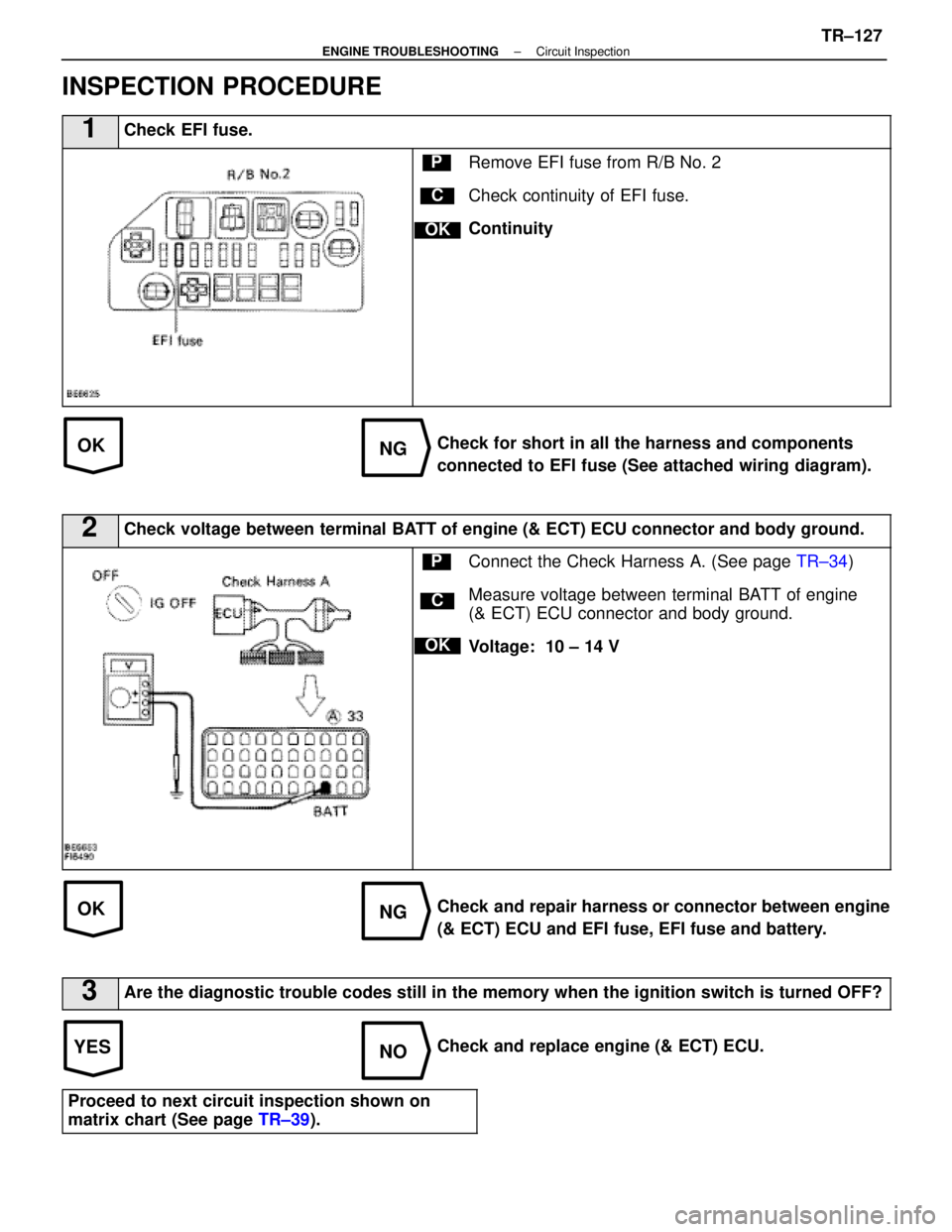

INSPECTION PROCEDURE
1Check EFI fuse.
C
OK
PRemove EFI fuse from R/B No. 2
Check continuity of EFI fuse.
Continuity
Check for short in all the harness and components
connected to EFI fuse (See attached wiring diagram).
2Check voltage between terminal BATT of engine (& ECT) ECU connector and body ground.
C
OK
PConnect the Check Harness A. (See page TR±34)
Measure voltage between terminal BATT of engine
(& ECT) ECU connector and body ground.
Voltage: 10 ± 14 V
Check and repair harness or connector between engine
(& ECT) ECU and EFI fuse, EFI fuse and battery.
3Are the diagnostic trouble codes still in the memory when the ignition s\
witch is turned OFF?
Check and replace engine (& ECT) ECU.
Proceed to next circuit inspection shown on
matrix chart (See page TR±39).
±
