1991 FORD FESTIVA Service Manual

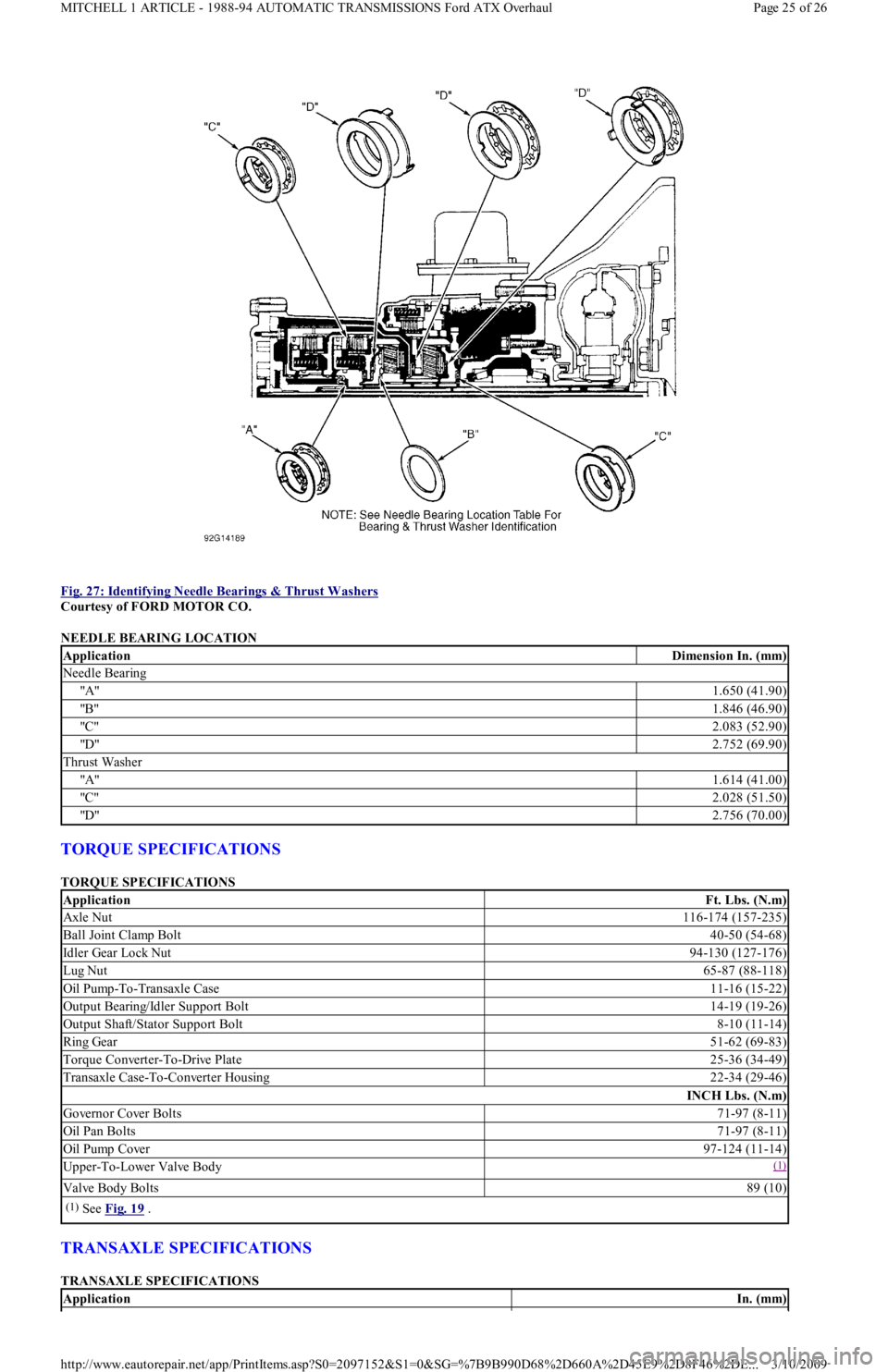

Fig. 27: Identifying Needle Bearings & Thrust Washers

Courtesy of FORD MOTOR CO.
NEEDLE BEARING LOCATION
TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS
TRANSAXLE SPECIFICATIONS
TRANSAXLE SPECIFICATIONS
ApplicationDimension In. (mm)
Needle Bearing
"A"1.650 (41.90)
"B"1.846 (46.90)
"C"2.083 (52.90)
"D"2.752 (69.90)
Thrust Washer
"A"1.614 (41.00)
"C"2.028 (51.50)
"D"2.756 (70.00)
ApplicationFt. Lbs. (N.m)
Axle Nut116-174 (157-235)
Ball Joint Clamp Bolt40-50 (54-68)
Idler Gear Lock Nut94-130 (127-176)
Lug Nut65-87 (88-118)
Oil Pump-To-Transaxle Case11-16 (15-22)
Output Bearing/Idler Support Bolt14-19 (19-26)
Output Shaft/Stator Support Bolt8-10 (11-14)
Ring Gear51-62 (69-83)
Torque Converter-To-Drive Plate25-36 (34-49)
Transaxle Case-To-Converter Housing22-34 (29-46)
INCH Lbs. (N.m)
Go ve r n o r C o ve r B o l t s71-97 (8-11)
Oil Pan Bolts71-97 (8-11)
Oil Pump Cover97-124 (11-14)
Upper-To-Lower Valve Body(1)
Valve Body Bolts89 (10)
(1)See Fig. 19 .
ApplicationIn. (mm)
Page 25 of 26 MITCHELL 1 ARTICLE - 1988-94 AUTOMATIC TRANSMISSIONS Ford ATX Overhaul
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

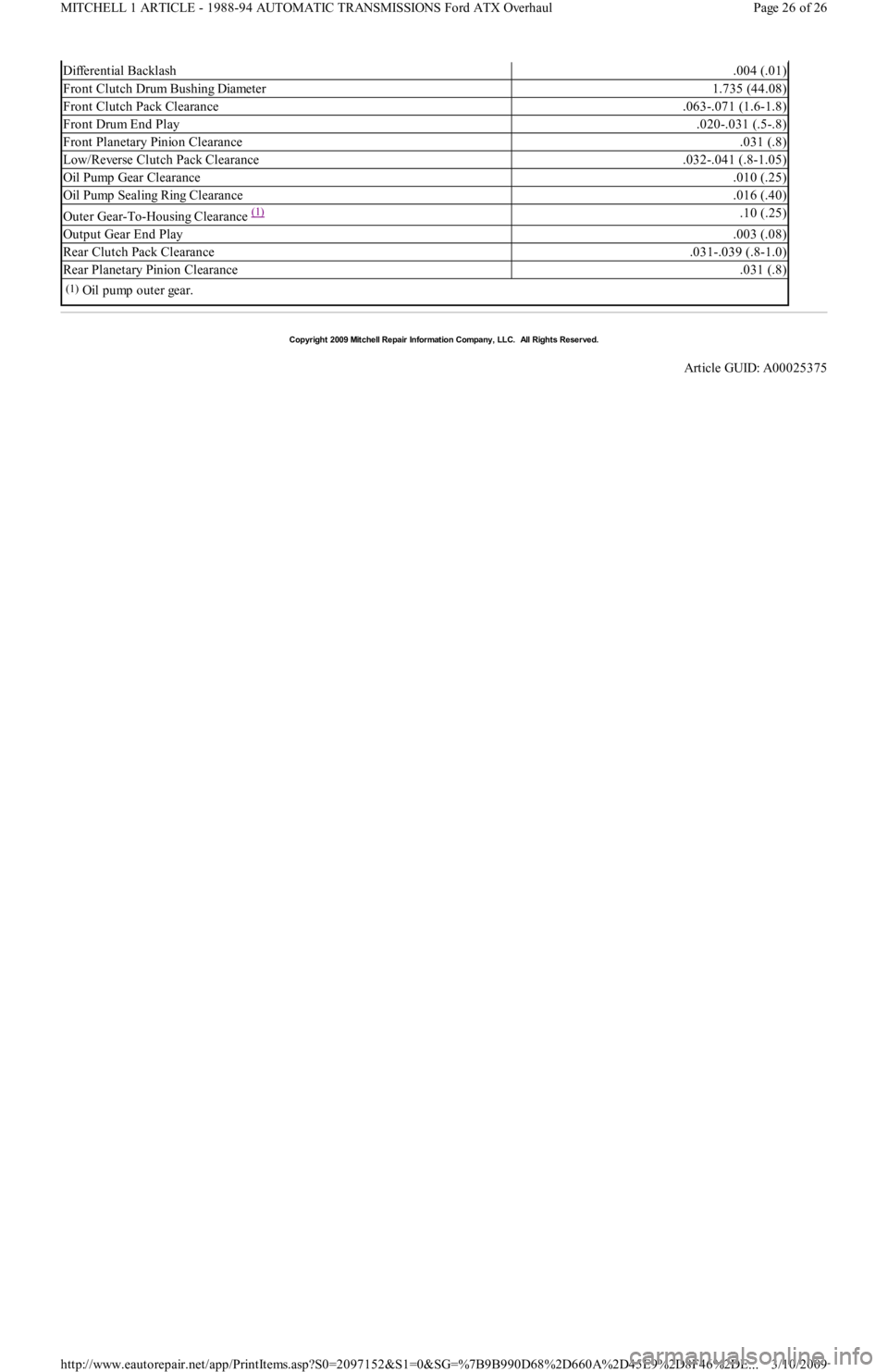

Differential Backlash.004 (.01)
Front Clutch Drum Bushing Diameter1.735 (44.08)
Front Clutch Pack Clearance.063-.071 (1.6-1.8)
Front Drum End Play.020-.031 (.5-.8)
Front Planetary Pinion Clearance.031 (.8)
Low/Reverse Clutch Pack Clearance.032-.041 (.8-1.05)
Oil Pump Gear Clearance.010 (.25)
Oil Pump Sealing Ring Clearance.016 (.40)
Outer Gear-To-Housing Clearance (1) .10 (.25)
Output Gear End Play.003 (.08)
Rear Clutch Pack Clearance.031-.039 (.8-1.0)
Rear Planetary Pinion Clearance.031 (.8)
(1)Oil pump outer gear.
Copyr ight 2009 Mitchell Repair Information Company, LLC. All Rights Reserved.
Article GUID: A00025375
Page 26 of 26 MITCHELL 1 ARTICLE - 1988-94 AUTOMATIC TRANSMISSIONS Ford ATX Overhaul
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

Back To Article
T RANSMISSION REMOVAL & INST ALLAT ION - A/T
1988-93 T RANSMISSION SERVICING Ford Motor Co. T ransm ission Rem oval & Installation

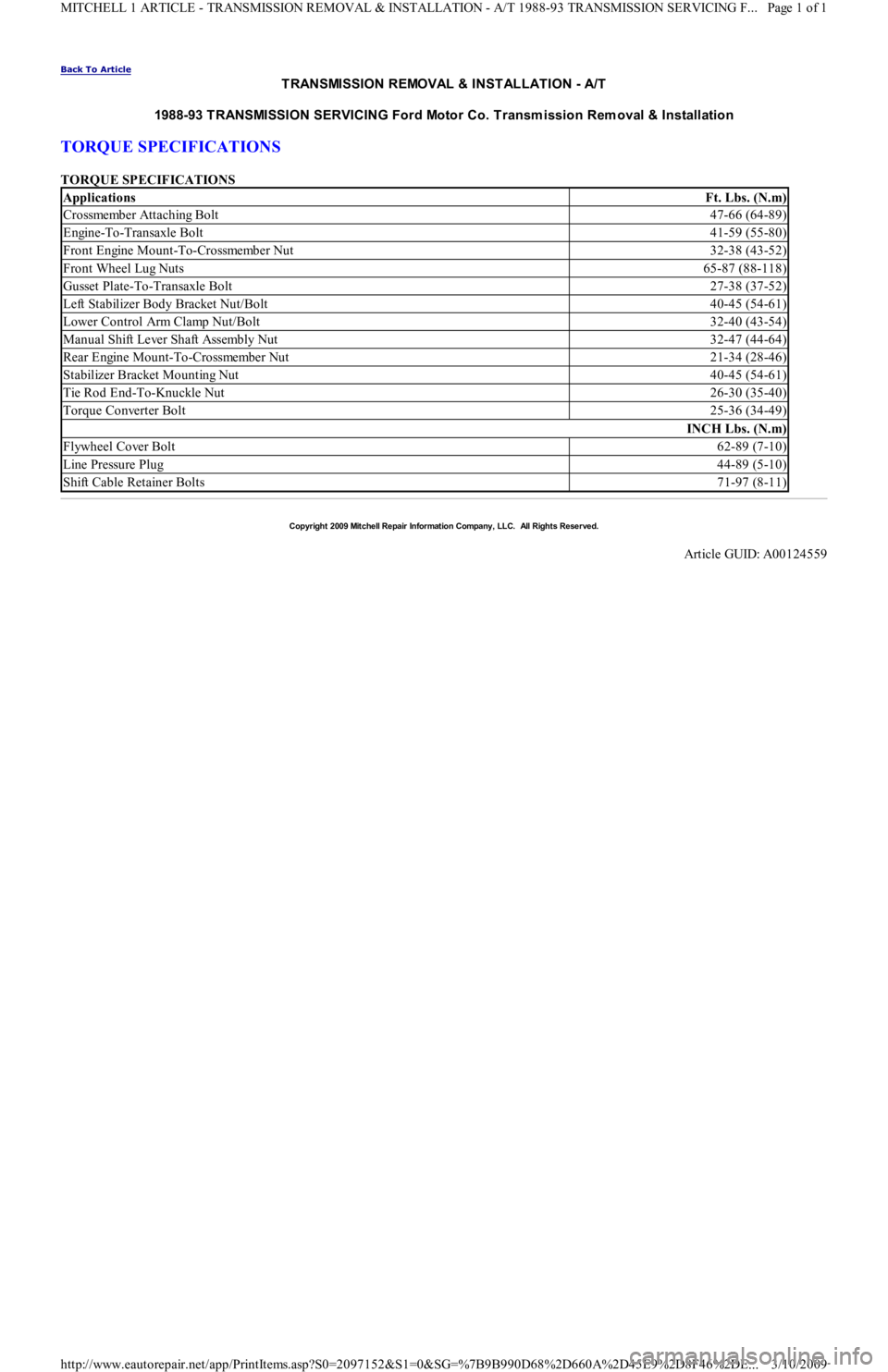

TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS
ApplicationsFt. Lbs. (N.m)
Crossmember Attaching Bolt47-66 (64-89)
Engine-To-Transaxle Bolt41-59 (55-80)
Front Engine Mount-To-Crossmember Nut32-38 (43-52)
Front Wheel Lug Nuts65-87 (88-118)
Gusset Plate-To-Transaxle Bolt27-38 (37-52)
Left Stabilizer Body Bracket Nut/Bolt40-45 (54-61)
Lower Control Arm Clamp Nut/Bolt32-40 (43-54)
Manual Shift Lever Shaft Assembly Nut32-47 (44-64)
Rear Engine Mount-To-Crossmember Nut21-34 (28-46)
Stabilizer Bracket Mounting Nut40-45 (54-61)
Tie Rod End-To-Knuckle Nut26-30 (35-40)
Torque Converter Bolt25-36 (34-49)
INCH Lbs. (N.m)
Flywheel Cover Bolt62-89 (7-10)
Line Pressure Plug44-89 (5-10)
Shift Cable Retainer Bolts71-97 (8-11)
Copyr ight 2009 Mitchell Repair Information Company, LLC. All Rights Reserved.
Article GUID: A00124559
Page 1 of 1 MITCHELL 1 ARTICLE - TRANSMISSION REMOVAL & INSTALLATION - A/T 1988-93 TRANSMISSION SERVICING F
...
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

Back To Article

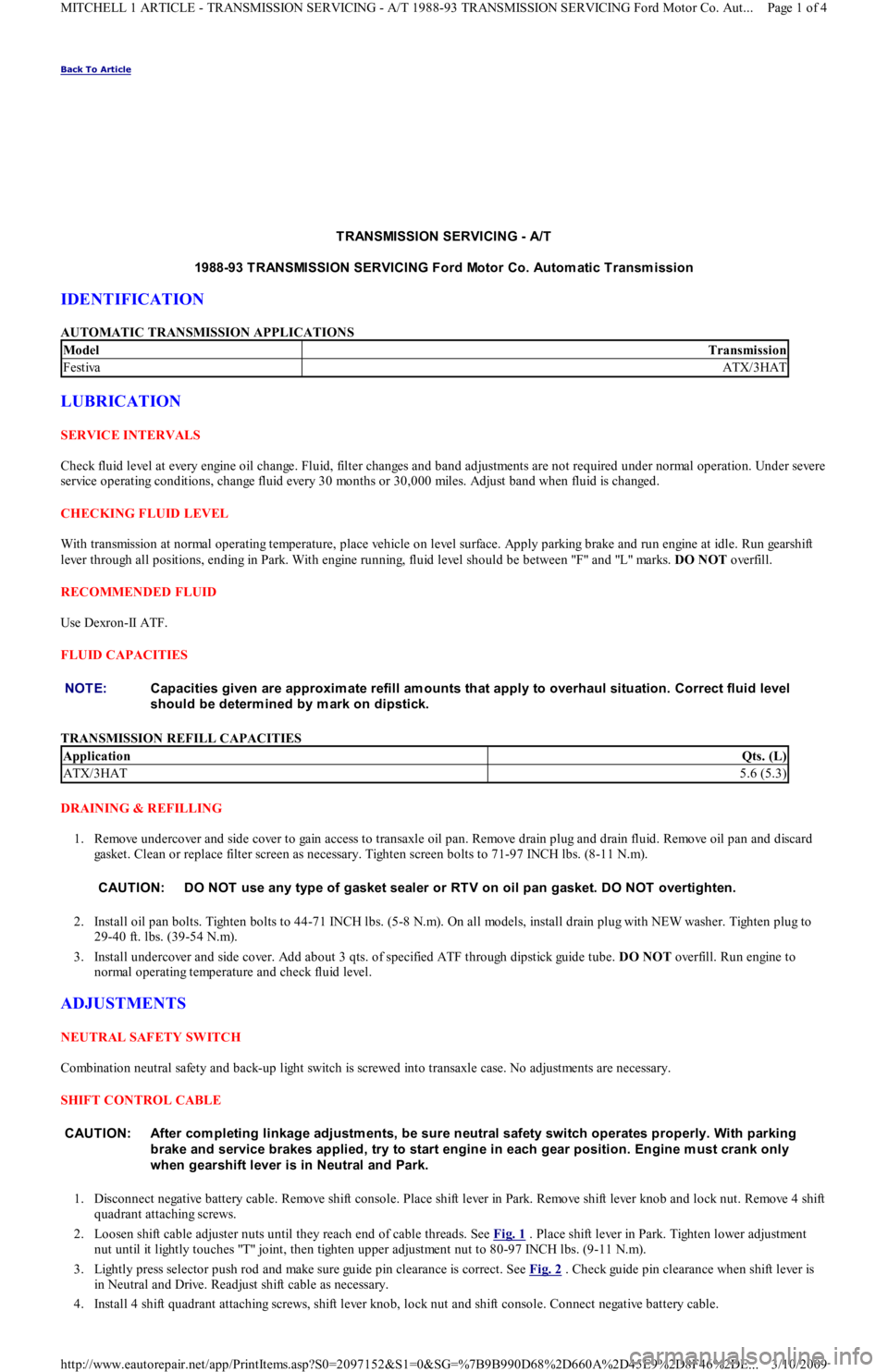

T RANSMISSION SERVICING - A/T
1988-93 T RANSMISSION SERVICING Ford Motor Co. Autom atic T ransm ission
IDENTIFICATION
AUTOMATIC TRANSMISSION APPLICATIONS
LUBRICATION
SERVICE INTERVALS
Check fluid level at every engine oil change. Fluid, filter changes and band adjustments are not required under normal operation. Under severe
service operating conditions, change fluid every 30 months or 30,000 miles. Adjust band when fluid is changed.
CHECKING FLUID LEVEL
With transmission at normal operating temperature, place vehicle on level surface. Apply parking brake and run engine at idle. Run gearshift
lever through all positions, ending in Park. With engine running, fluid level should be between "F" and "L" marks. DO NOT overfill.
RECOMMENDED FLUID
Use Dexron-II ATF.
FLUID CAPACITIES
TRANSMISSION REFILL CAPACITIES
DRAINING & REFILLING
1. Remove undercover and side cover to gain access to transaxle oil pan. Remove drain plug and drain fluid. Remove oil pan and discard
gasket. Clean or replace filter screen as necessary. Tighten screen bolts to 71-97 INCH lbs. (8-11 N.m).
2. Install oil pan bolts. Tighten bolts to 44-71 INCH lbs. (5-8 N.m). On all models, install drain plug with NEW washer. Tighten plug to
29-40 ft. lbs. (39-54 N.m).
3. Install undercover and side cover. Add about 3 qts. of specified ATF through dipstick guide tube. DO NOT overfill. Run engine to
normal operating temperature and check fluid level.
ADJUSTMENTS
NEUTRAL SAFETY SWITCH
Combination neutral safety and back-up light switch is screwed into transaxle case. No adjustments are necessary.
SHIFT CONTROL CABLE
1. Disconnect negative battery cable. Remove shift console. Place shift lever in Park. Remove shift lever knob and lock nut. Remove 4 shift
quadrant attaching screws.
2. Loosen shift cable adjuster nuts until they reach end of cable threads. See Fig. 1
. Place shift lever in Park. Tighten lower adjustment
nut until it lightly touches "T" joint, then tighten upper adjustment nut to 80-97 INCH lbs. (9-11 N.m).
3. Lightly press selector push rod and make sure guide pin clearance is correct. See Fig. 2
. Check guide pin clearance when shift lever is
in Neutral and Drive. Readjust shift cable as necessary.
4. Install 4 shift quadrant attaching screws, shift lever knob, lock nut and shift console. Connect negative battery cable.
ModelTransmission
FestivaATX/3HAT
NOTE:Capacities given are approxim ate refill am ounts that apply to overhaul situation. Correct fluid level
should be determ ined by m ark on dipstick.
ApplicationQts. (L)
ATX/3HAT5.6 (5.3)
CAUT ION: DO NOT use any type of gasket sealer or RT V on oil pan gasket. DO NOT overtighten.
CAUT ION: After com pleting linkage adjustm ents, be sure neutral safety switch operates properly. With parking
brake and service brakes applied, try to start engine in each gear position. Engine m ust crank only
when gearshift lever is in Neutral and Park.
Page 1 of 4 MITCHELL 1 ARTICLE - TRANSMISSION SERVICING - A/T 1988-93 TRANSMISSION SERVICING Ford Motor Co. Aut
...
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

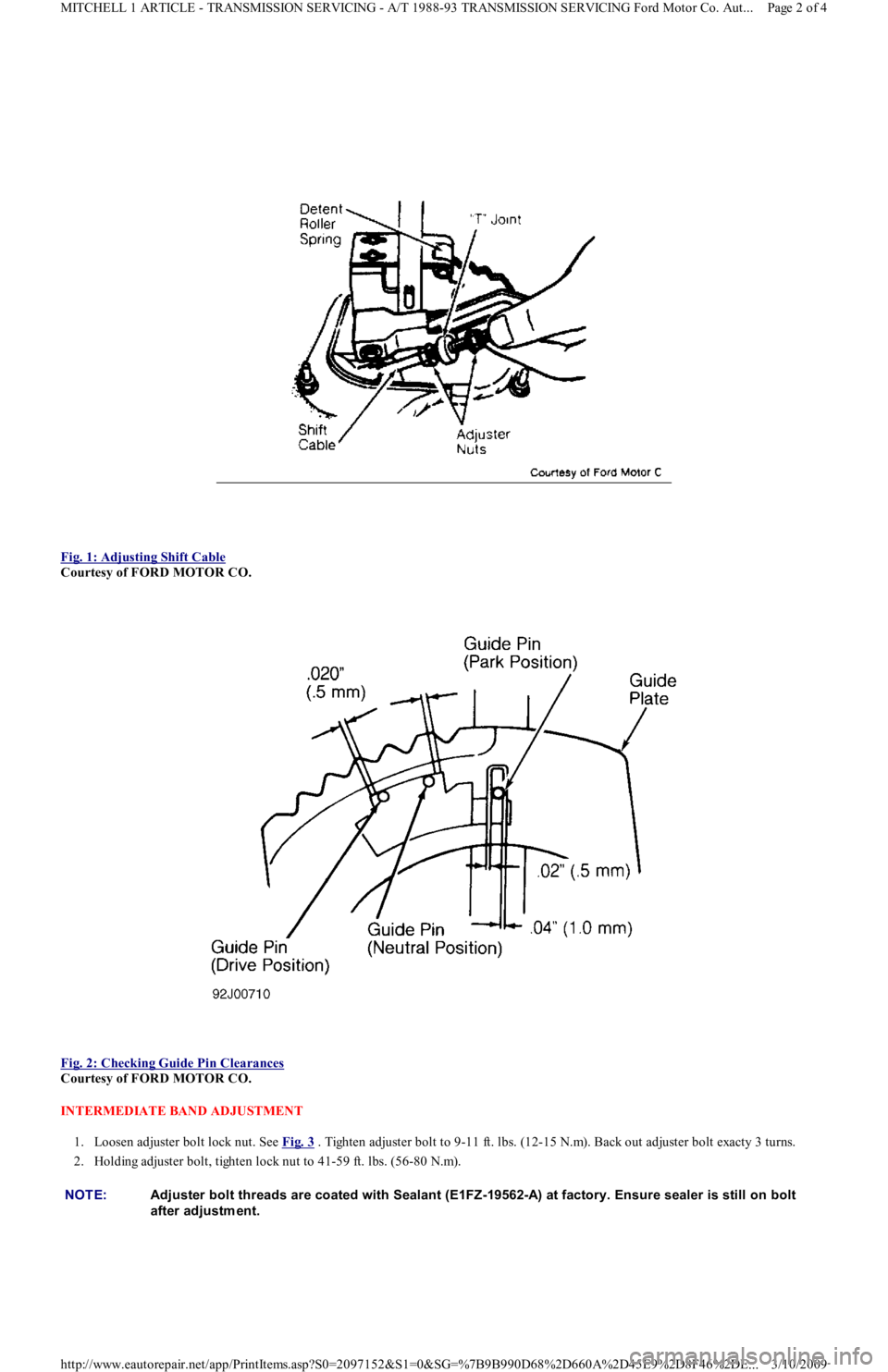

Fig. 1: Adjusting Shift Cable

Courtesy of FORD MOTOR CO.

Fig. 2: Checking Guide Pin Clearances

Courtesy of FORD MOTOR CO.
INTERMEDIATE BAND ADJUSTMENT
1. Loosen adjuster bolt lock nut. See Fig. 3
. Tighten adjuster bolt to 9-11 ft. lbs. (12-15 N.m). Back out adjuster bolt exacty 3 turns.
2. Holding adjuster bolt, tighten lock nut to 41-59 ft. lbs. (56-80 N.m).
NOTE:Adjuster bolt threads are coated with Sealant (E1FZ-19562-A) at factory. Ensure sealer is still on bolt
after adjustm ent.
Page 2 of 4 MITCHELL 1 ARTICLE - TRANSMISSION SERVICING - A/T 1988-93 TRANSMISSION SERVICING Ford Motor Co. Aut
...
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

Fig. 3: Adjusting Intermediate Band

Courtesy of FORD MOTOR CO.
KICKDOWN CONTROL ADJUSTMENT
1. Kickdown is controlled by solenoid on bottom of transaxle case. Solenoid is actuated by a kickdown switch on accelerator pedal
bracket.
2. To adjust switch, attach circuit tester to each terminal of switch. Loosen switch lock nut. Adjust switch so that there is continuity when
accelerator pedal is depressed 7/8 or more of its full travel.
SHIFT QUADRANT
1. Remove shift lever knob. Remove console attaching screws. Place shift lever in Park. Remove shift lever knob and lock nut. Remo ve
shift quadrant. Align holes in slider and shift quadrant. Install an alignment pin to hold slider in position.
2. Install quadrant and remove alignment pin. Ensure clearance between lock lever and emergency override lever is correct. See Fig. 4
.
Install lock nut and shift lever knob. Tighten lock nut to 11-15 ft. lbs. (15-20 N.m). Install console.

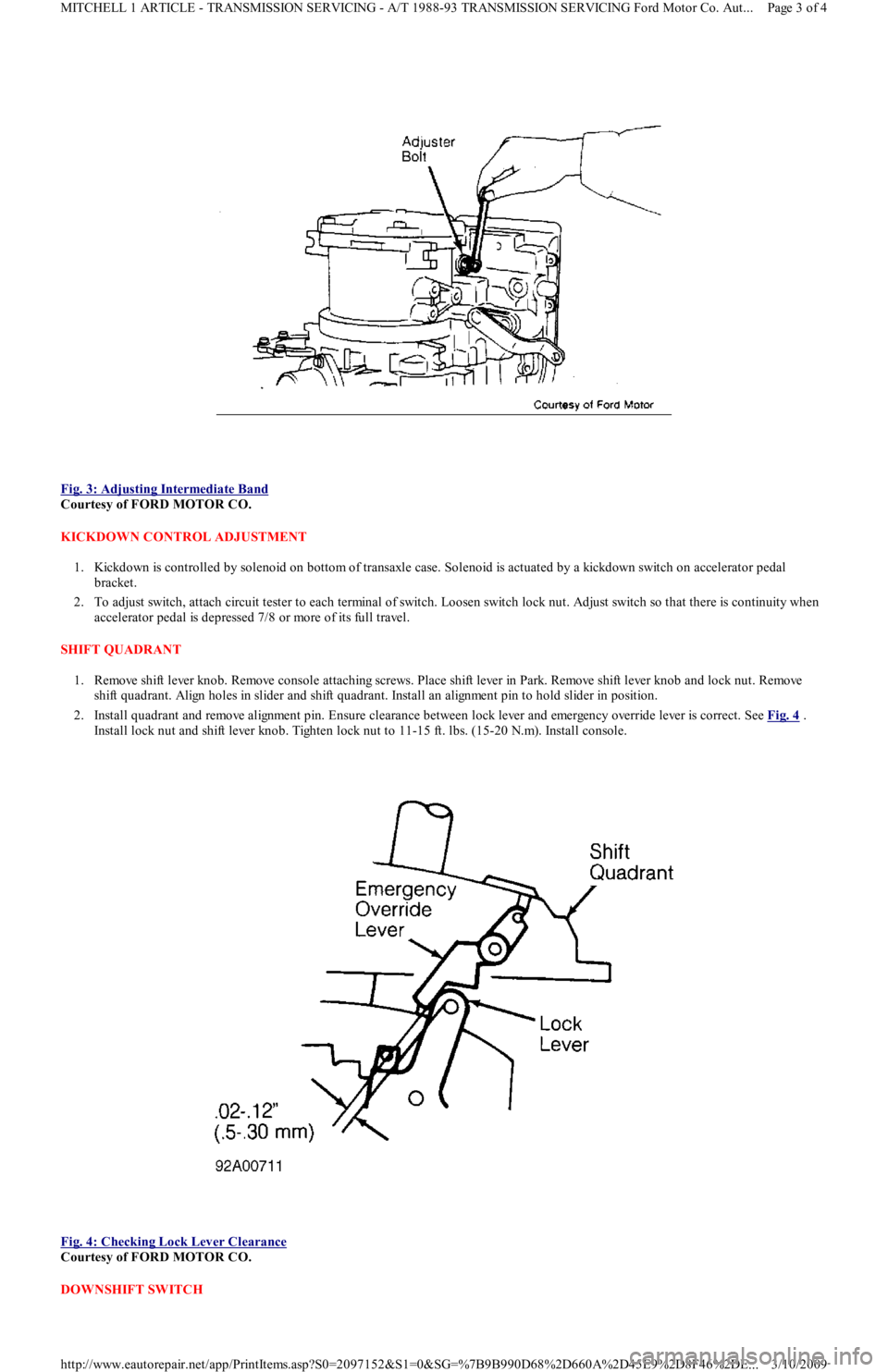

Fig. 4: Checking Lock Lever Clearance

Courtesy of FORD MOTOR CO.
DOWNSHIFT SWITCH
Page 3 of 4 MITCHELL 1 ARTICLE - TRANSMISSION SERVICING - A/T 1988-93 TRANSMISSION SERVICING Ford Motor Co. Aut
...
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

1. Inspect wiring and components for shorts, corrosion, overheating, loose connections, or any other damage. Check 10-amp METER fu se.
Disconnect downshift solenoid.
2. With key off, voltage measured at Black/Blue wire should be zero volts. With key on and accelerator pedal fully depressed, voltage
should be greater than 10 volts. If Black/Blue wire is okay, remove downshift solenoid.
3. Apply battery voltage to downshift solenoid connector and ground case. Control rod should move freely when solenoid case is
grounded. If control rod does not move freely, replace downshift solenoid.
VACUUM DIAPHRAGM ROD
If transaxle shift points are incorrect, check for a defective vacuum diaphragm and replace if necessary. If diaphragm is operating correctly,
check length of diaprhagm rod using Vacuum Diaphragm Rod Gauge (T87C-77000-A). Measure dimension "N." See Fig. 5
. Select proper
length diaphragm rod. See VACUUM DIAPHRAGM ROD SELECTION
table.
VACUUM DIAPHRAGM ROD SELECTION

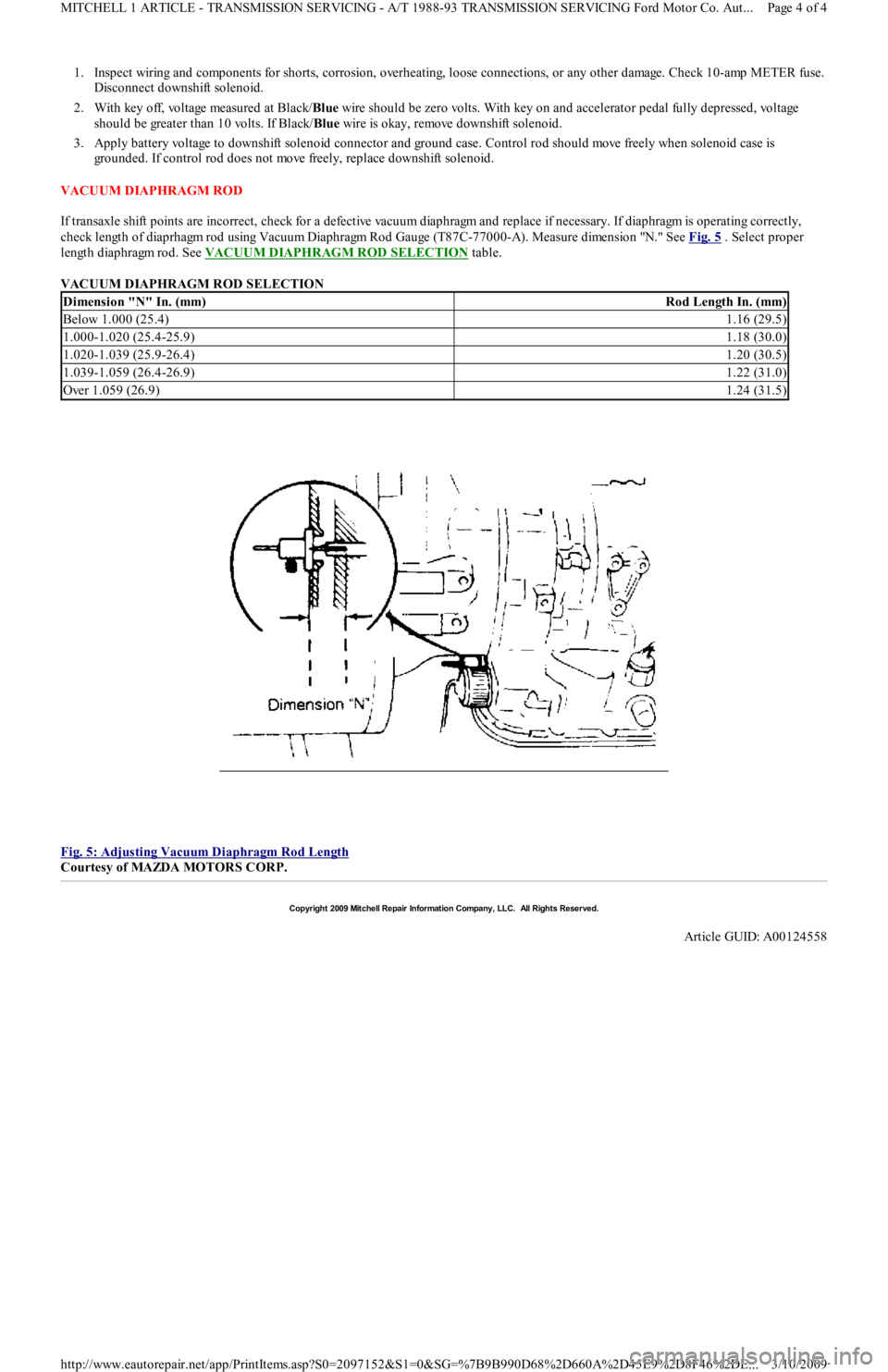

Fig. 5: Adjusting Vacuum Diaphragm Rod Length

Courtesy of MAZDA MOTORS CORP.
Dimension "N" In. (mm)Rod Length In. (mm)
Below 1.000 (25.4)1.16 (29.5)
1.000-1.020 (25.4-25.9)1.18 (30.0)
1.020-1.039 (25.9-26.4)1.20 (30.5)
1.039-1.059 (26.4-26.9)1.22 (31.0)
Over 1.059 (26.9)1.24 (31.5)
Copyr ight 2009 Mitchell Repair Information Company, LLC. All Rights Reserved.
Article GUID: A00124558
Page 4 of 4 MITCHELL 1 ARTICLE - TRANSMISSION SERVICING - A/T 1988-93 TRANSMISSION SERVICING Ford Motor Co. Aut
...
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

Back To Article
CLUTCH
1988-93 Clutch
DESCRIPTION
The clutch is single-disc type, using a diaphragm spring to engage pressure plate. Clutch operation is controlled by a mechanical release
system consisting of clutch pedal, cable, release lever and release bearing.
ADJUSTMENTS
CLUTCH PEDAL FREE PLAY
1. Measure clutch pedal movement from parked position to first indication of clutch application. See Fig. 1
. Free play must be within
specifications. See CLUTCH PEDAL SPECIFICATIONS
.

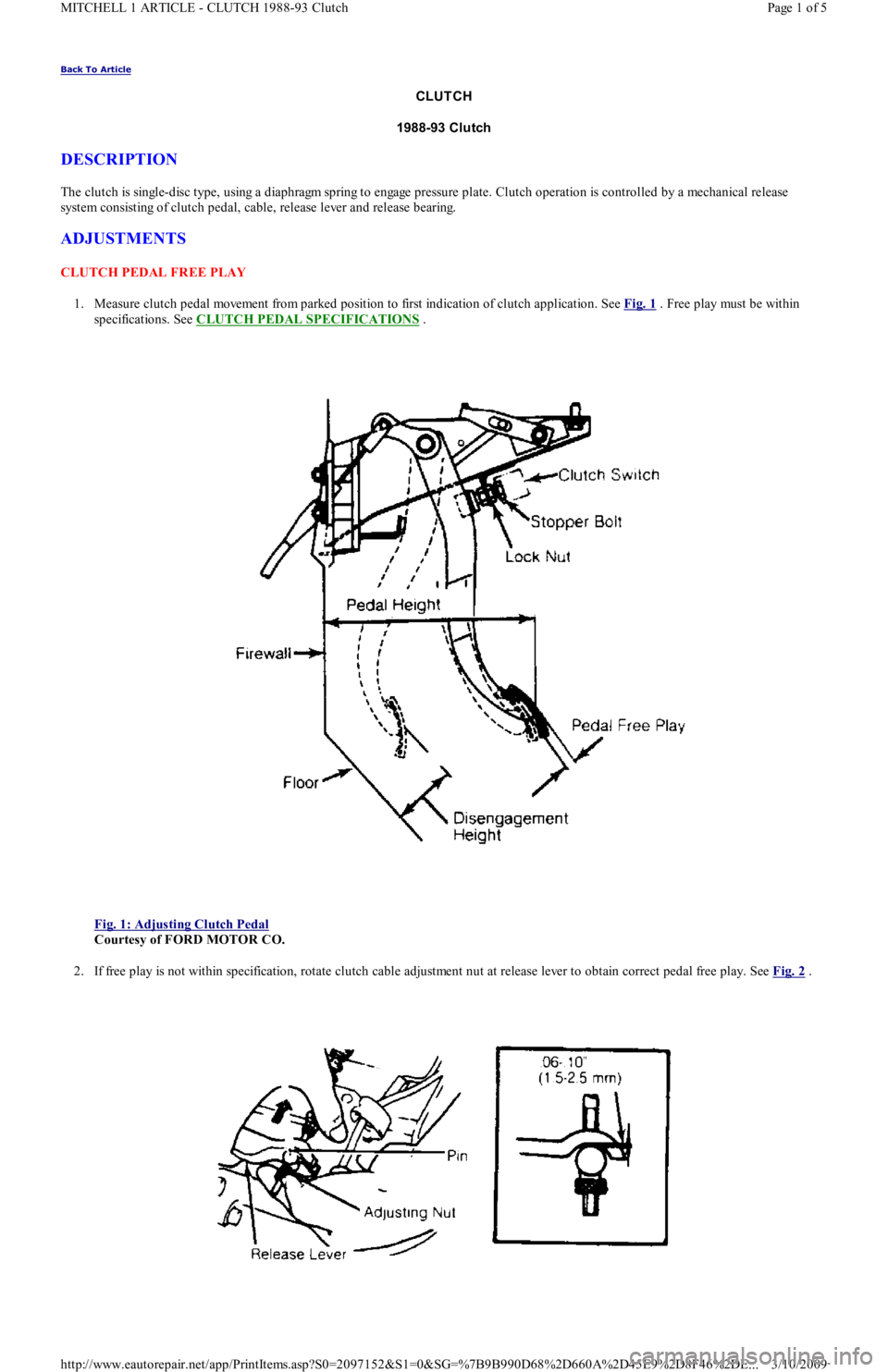

Fig. 1: Adjusting Clutch Pedal

Courtesy of FORD MOTOR CO.
2. If free play is not within specification, rotate clutch cable adjustment nut at release lever to obtain correct pedal free play. See Fig. 2
.
Page 1 of 5 MITCHELL 1 ARTICLE - CLUTCH 1988-93 Clutch
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...
