1990-92 ENGINE COOLING
Cooling System Specifications - Festiva
BELT ADJUSTMENT TABLE
BELT TENSION ADJUSTMENT SPECIFICATIONS (1)
COOLING SYSTEM SPECS TABLE
COOLING SYSTEM SPECIFICATIONS
ApplicationNew Belt Lbs. (Kg)Used Belt Lbs. (Kg)
A/C Belt110-125 (50-57)92-110 (42-50)
Alt. Belt110-130 (50-60)95-110 (43-50)
Power Steering110-130 (50-60)95-110 (43-50)
(1)Measure tension with strand tension gauge.
ApplicationSpecification
Coolant Replacement IntervalEvery 36 Months
Coolant Capacity5.3 Qts. (5.0L)
Pressure Cap11-15 psi
Thermostat Opens (1)
Main Valve188-193°F (86.5-89.5°C)
Sub-Valve182-188°F (83.5-86.5°C)
(1)Dual stage thermostat.
Copyr ight 2009 Mitchell Repair Information Company, LLC. All Rights Reserved.
Article GUID: A00050419
Page 1 of 1 MITCHELL 1 ARTICLE - 1990-92 ENGINE COOLING Cooling System Specifications - Festiva
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B959286D2%2D3A85%2D4BFC%2D9C5C%2D
...

Back To Article

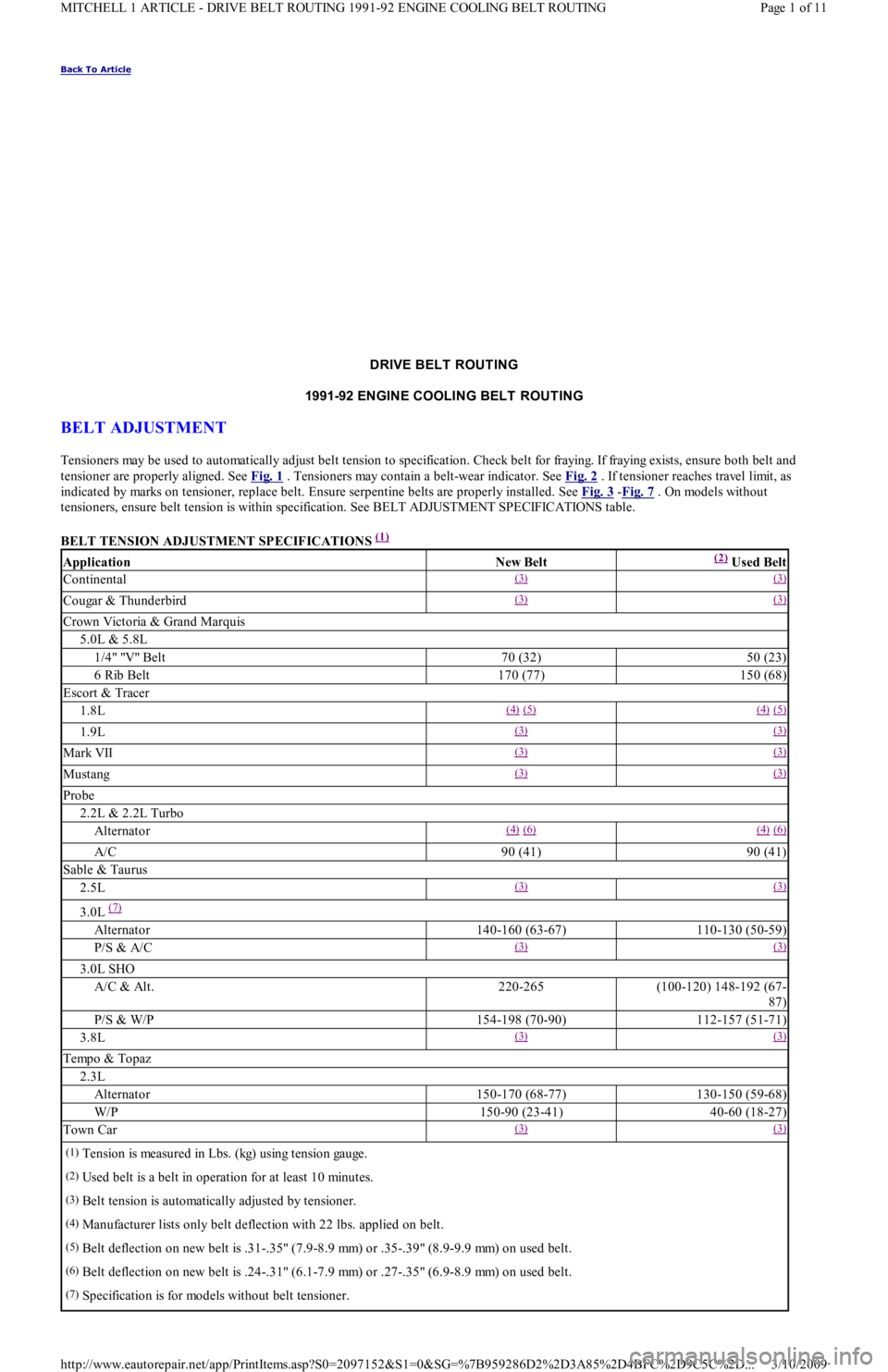

DRIVE BELT ROUTING
1991-92 ENGINE COOLING BELT ROUT ING
BELT ADJUSTMENT
Tensioners may be used to automatically adjust belt tension to specification. Check belt for fraying. If fraying exists, ensure both belt and
tensioner are properly aligned. See Fig. 1
. Tensioners may contain a belt-wear indicator. See Fig. 2 . If tensioner reaches travel limit, as
indicated by marks on tensioner, replace belt. Ensure serpentine belts are properly installed. See Fig. 3
-Fig. 7 . On models without
tensioners, ensure belt tension is within specification. See BELT ADJUSTMENT SPECIFICATIONS table.
BELT TENSION ADJUSTMENT SPECIFICATIONS
(1)
ApplicationNew Belt(2) Used Belt
Continental(3) (3)
Cougar & Thunderbird(3) (3)
Crown Victoria & Grand Marquis
5.0L & 5.8L
1/4" "V" Belt70 (32)50 (23)
6 Rib Belt170 (77)150 (68)
Escort & Tracer
1.8L(4) (5) (4) (5)
1.9L(3) (3)
Mark VII(3) (3)
Mustang(3) (3)
Probe
2.2L & 2.2L Turbo
Alternator(4) (6) (4) (6)
A/C90 (41)90 (41)
Sable & Taurus
2.5L(3) (3)
3.0L (7)
Alternator140-160 (63-67)110-130 (50-59)
P/S & A/C(3) (3)
3.0L SHO
A/C & Alt.220-265(100-120) 148-192 (67-
87)
P/S & W/P154-198 (70-90)112-157 (51-71)
3.8L(3) (3)
Tempo & Topaz
2.3L
Alternator150-170 (68-77)130-150 (59-68)
W/P150-90 (23-41)40-60 (18-27)
Town Car(3) (3)
(1)Tension is measured in Lbs. (kg) using tension gauge.
(2)Used belt is a belt in operation for at least 10 minutes.
(3)Belt tension is automatically adjusted by tensioner.
(4)Manufacturer lists only belt deflection with 22 lbs. applied on belt.
(5)Belt deflection on new belt is .31-.35" (7.9-8.9 mm) or .35-.39" (8.9-9.9 mm) on used belt.
(6)Belt deflection on new belt is .24-.31" (6.1-7.9 mm) or .27-.35" (6.9-8.9 mm) on used belt.
(7)Specification is for models without belt tensioner.
Page 1 of 11 MITCHELL 1 ARTICLE - DRIVE BELT ROUTING 1991-92 ENGINE COOLING BELT ROUTING
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B959286D2%2D3A85%2D4BFC%2D9C5C%2D
...

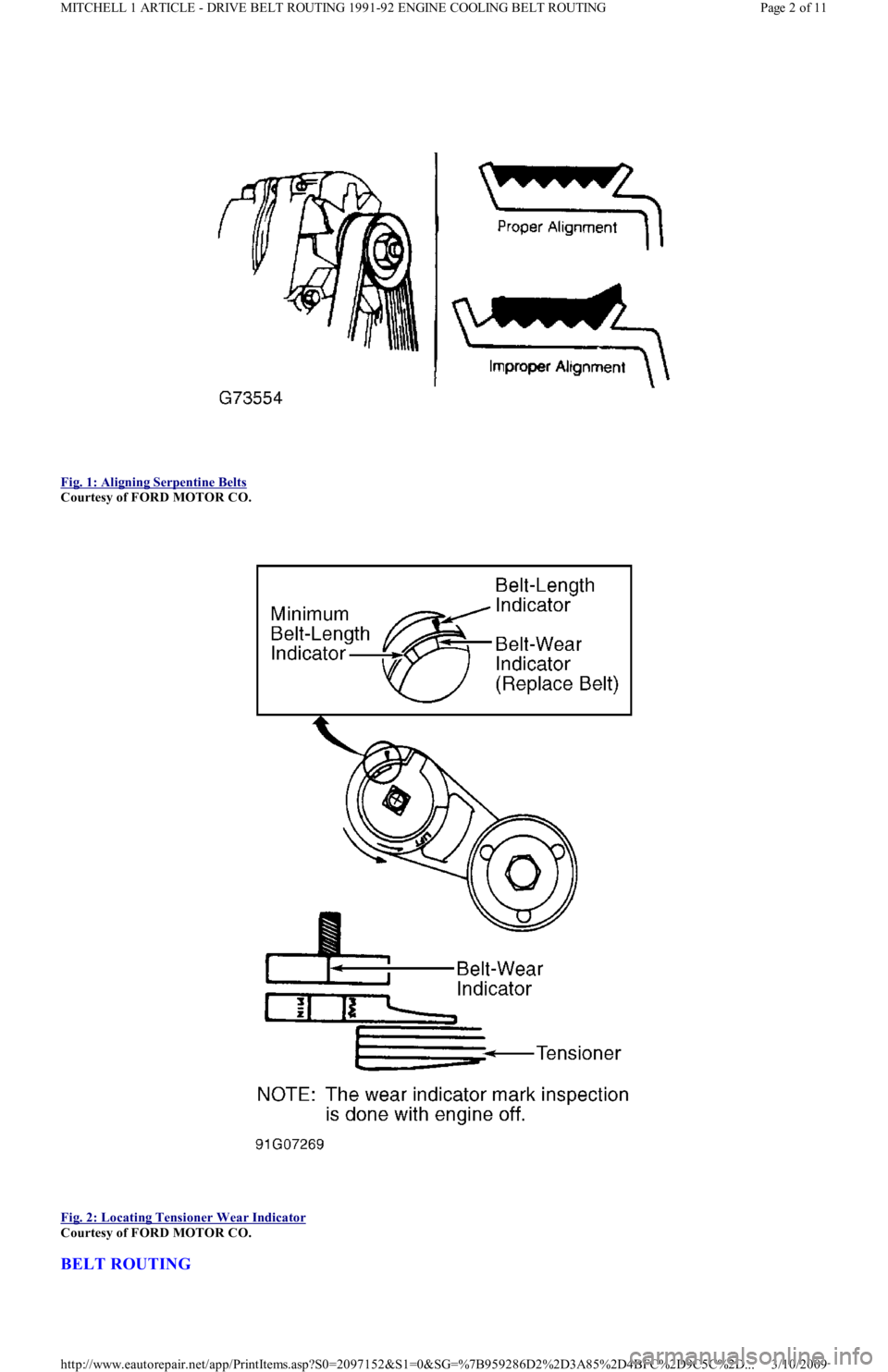

Fig. 1: Aligning Serpentine Belts

Courtesy of FORD MOTOR CO.

Fig. 2: Locating Tensioner Wear Indicator

Courtesy of FORD MOTOR CO.
BELT ROUTING
Page 2 of 11 MITCHELL 1 ARTICLE - DRIVE BELT ROUTING 1991-92 ENGINE COOLING BELT ROUTING
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B959286D2%2D3A85%2D4BFC%2D9C5C%2D
...

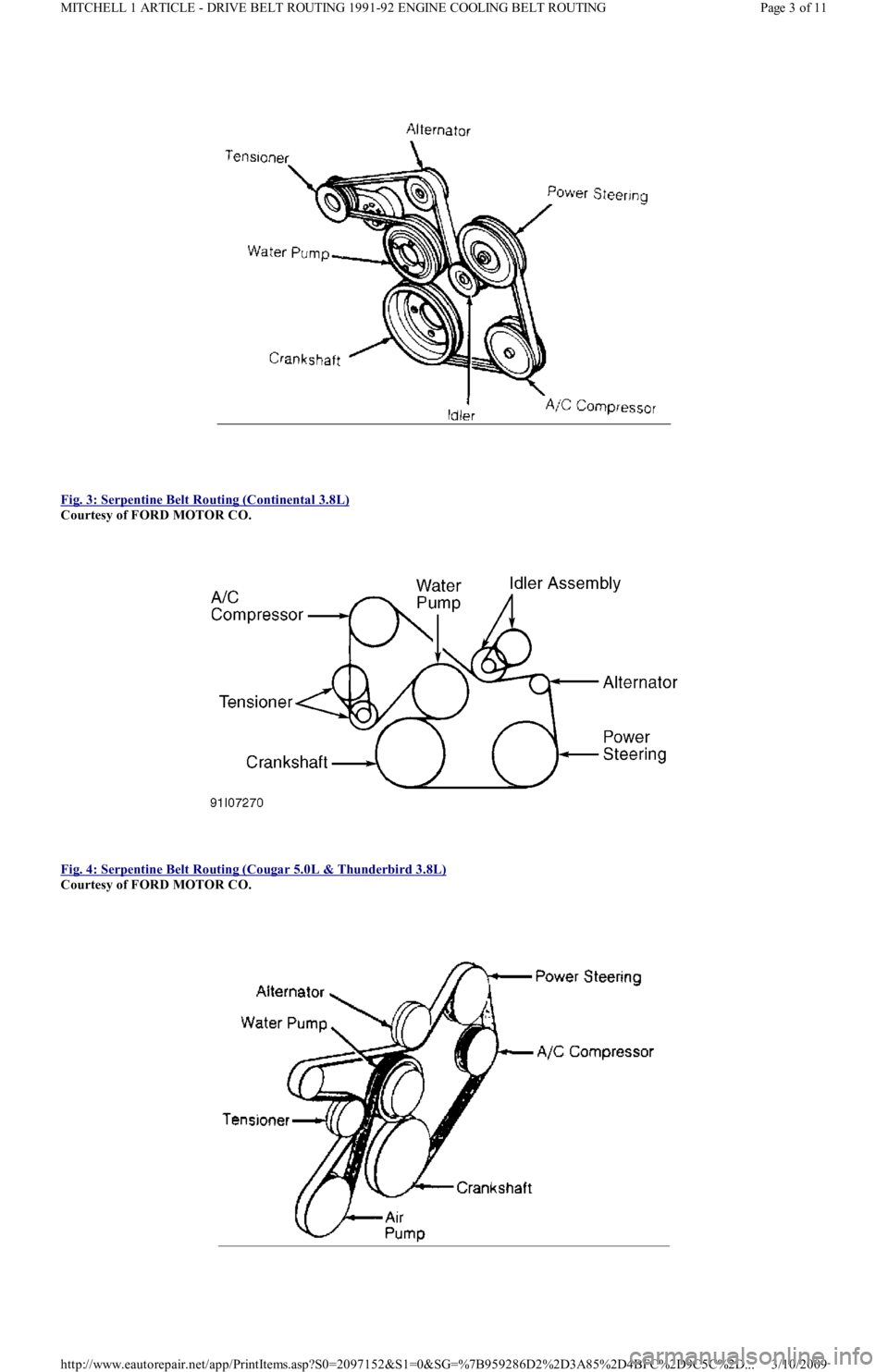

Fig. 3: Serpentine Belt Routing (Continental 3.8L)

Courtesy of FORD MOTOR CO.

Fig. 4: Serpentine Belt Routing (Cougar 5.0L & Thunderbird 3.8L)

Courtesy of FORD MOTOR CO.

Page 3 of 11 MITCHELL 1 ARTICLE - DRIVE BELT ROUTING 1991-92 ENGINE COOLING BELT ROUTING
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B959286D2%2D3A85%2D4BFC%2D9C5C%2D
...

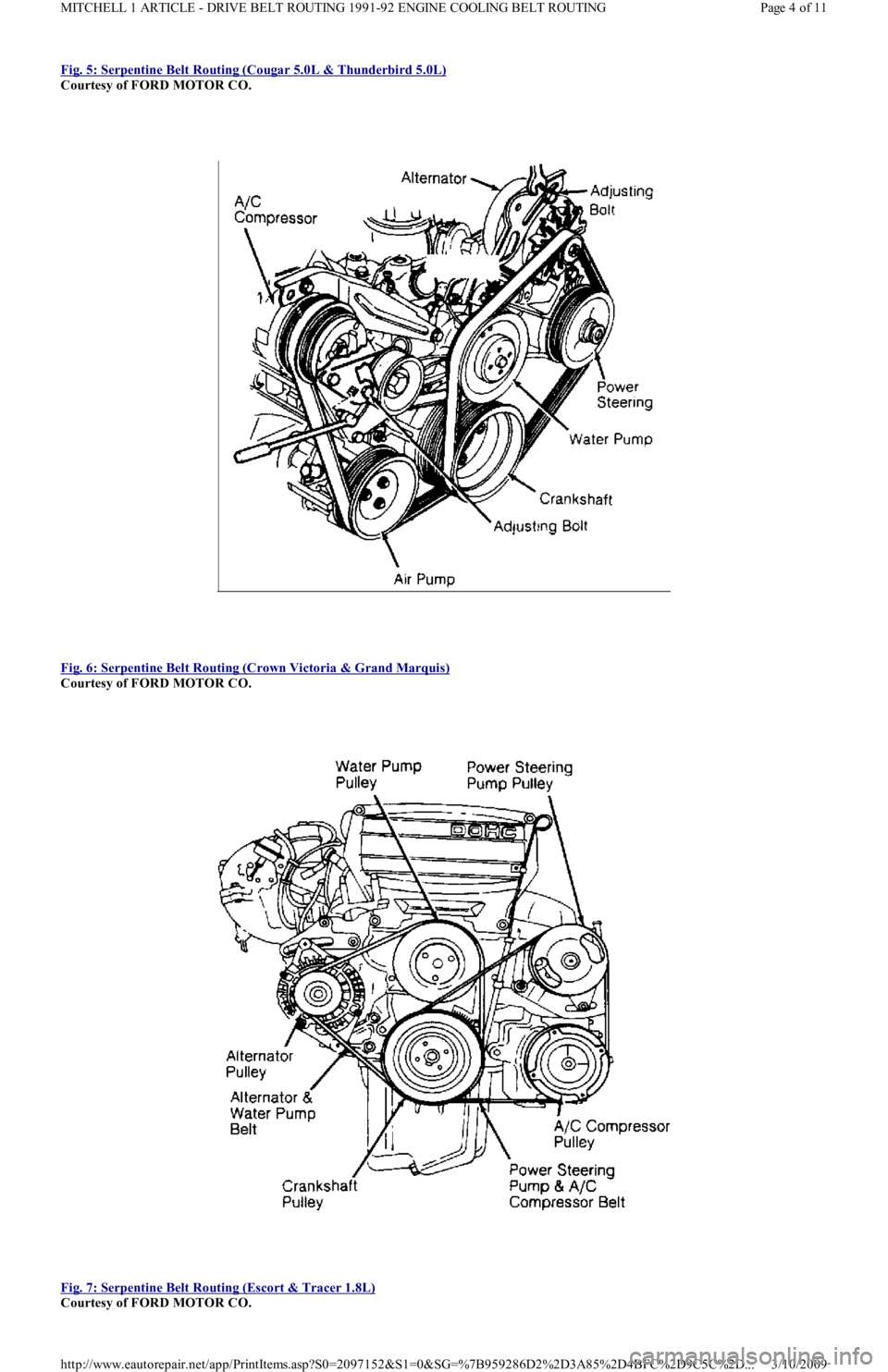

Fig. 5: Serpentine Belt Routing (Cougar 5.0L & Thunderbird 5.0L)
Courtesy of FORD MOTOR CO.

Fig. 6: Serpentine Belt Routing (Crown Victoria & Grand Marquis)

Courtesy of FORD MOTOR CO.

Fig. 7: Serpentine Belt Routing (Escort & Tracer 1.8L)

Courtesy of FORD MOTOR CO.
Page 4 of 11 MITCHELL 1 ARTICLE - DRIVE BELT ROUTING 1991-92 ENGINE COOLING BELT ROUTING
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B959286D2%2D3A85%2D4BFC%2D9C5C%2D
...

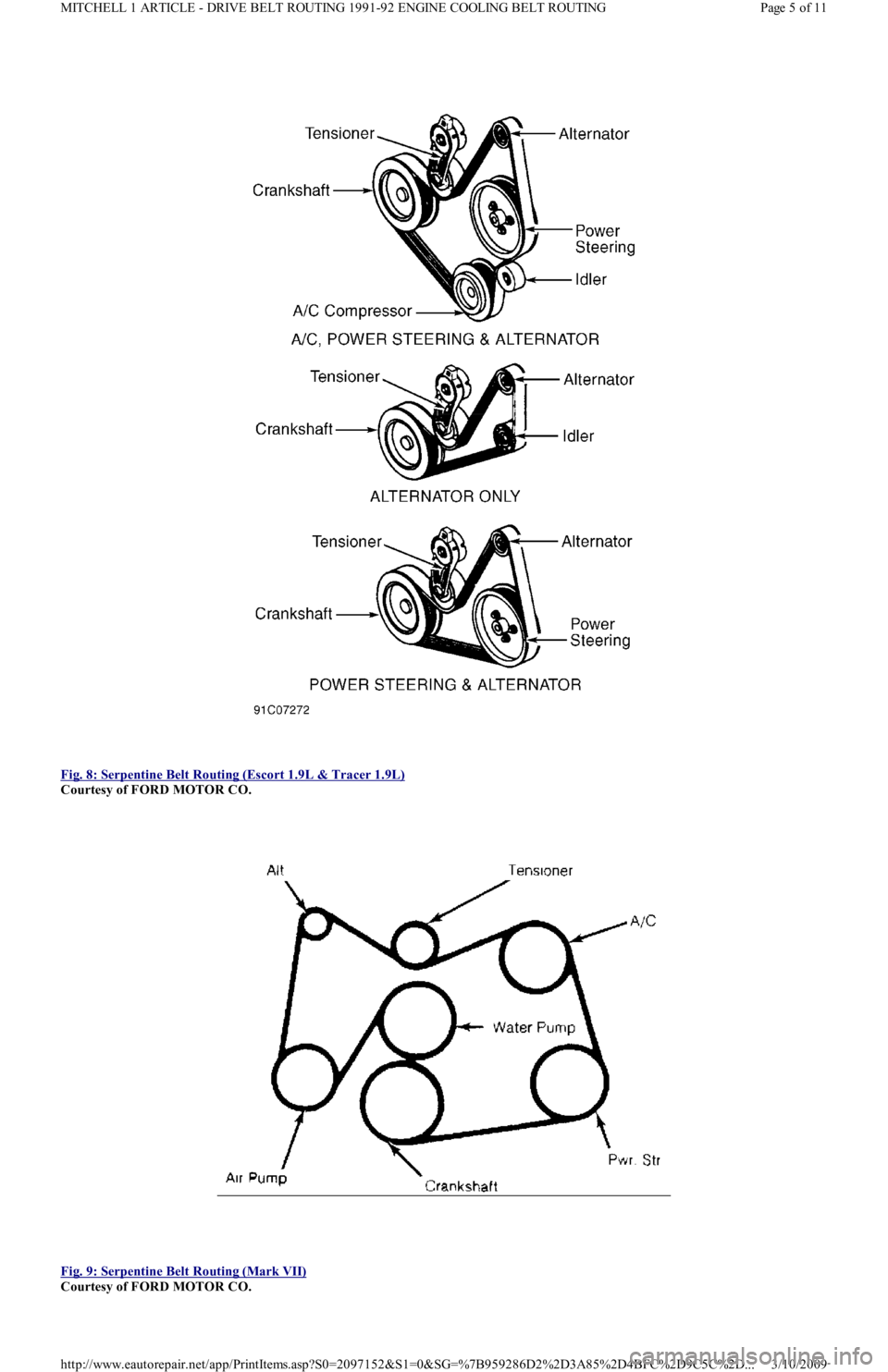

Fig. 8: Serpentine Belt Routing (Escort 1.9L & Tracer 1.9L)

Courtesy of FORD MOTOR CO.

Fig. 9: Serpentine Belt Routing (Mark VII)

Courtesy of FORD MOTOR CO.
Page 5 of 11 MITCHELL 1 ARTICLE - DRIVE BELT ROUTING 1991-92 ENGINE COOLING BELT ROUTING
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B959286D2%2D3A85%2D4BFC%2D9C5C%2D
...

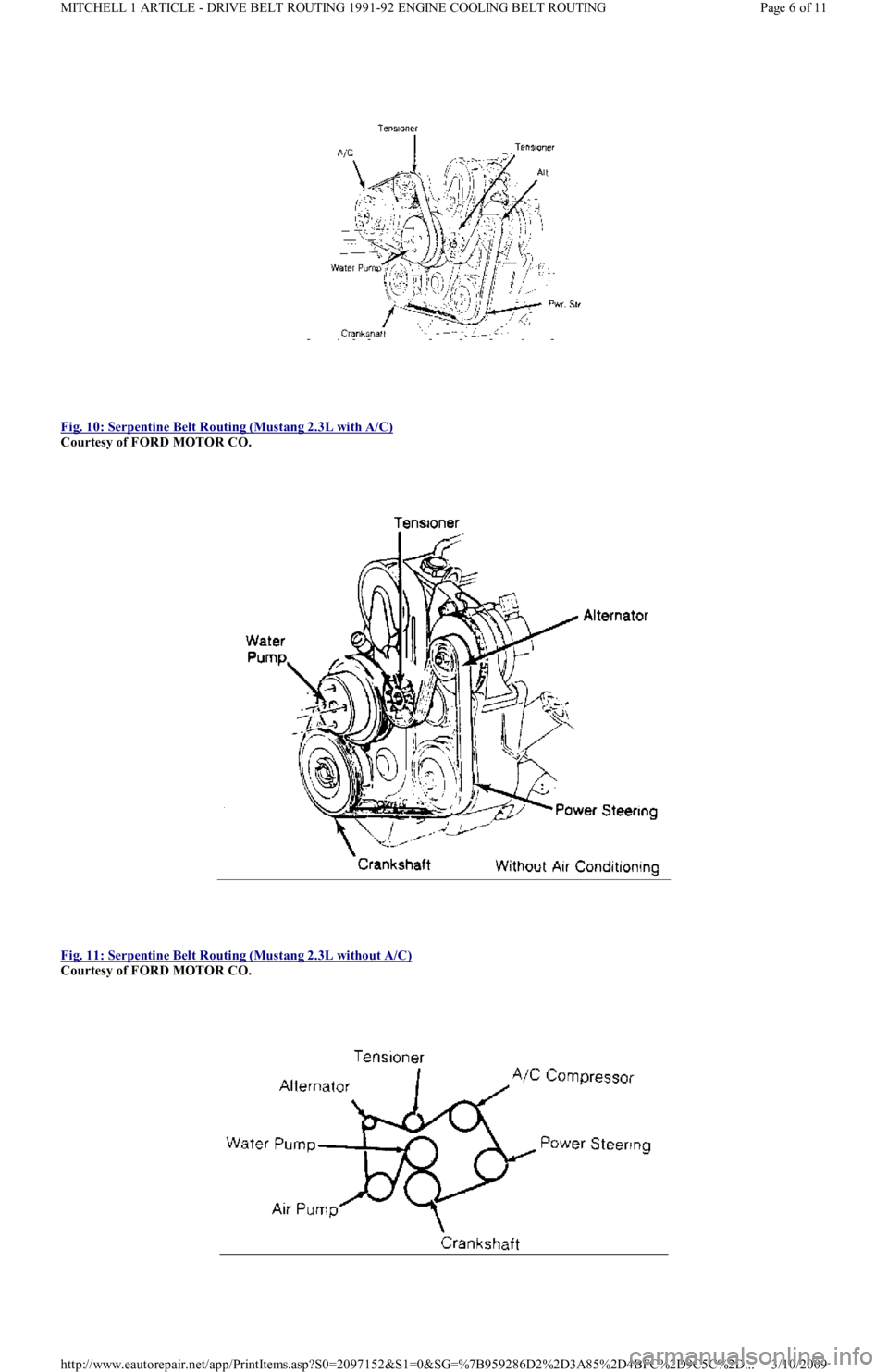

Fig. 10: Serpentine Belt Routing (Mustang 2.3L with A/C)

Courtesy of FORD MOTOR CO.

Fig. 11: Serpentine Belt Routing (Mustang 2.3L without A/C)

Courtesy of FORD MOTOR CO.
Page 6 of 11 MITCHELL 1 ARTICLE - DRIVE BELT ROUTING 1991-92 ENGINE COOLING BELT ROUTING
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B959286D2%2D3A85%2D4BFC%2D9C5C%2D
...

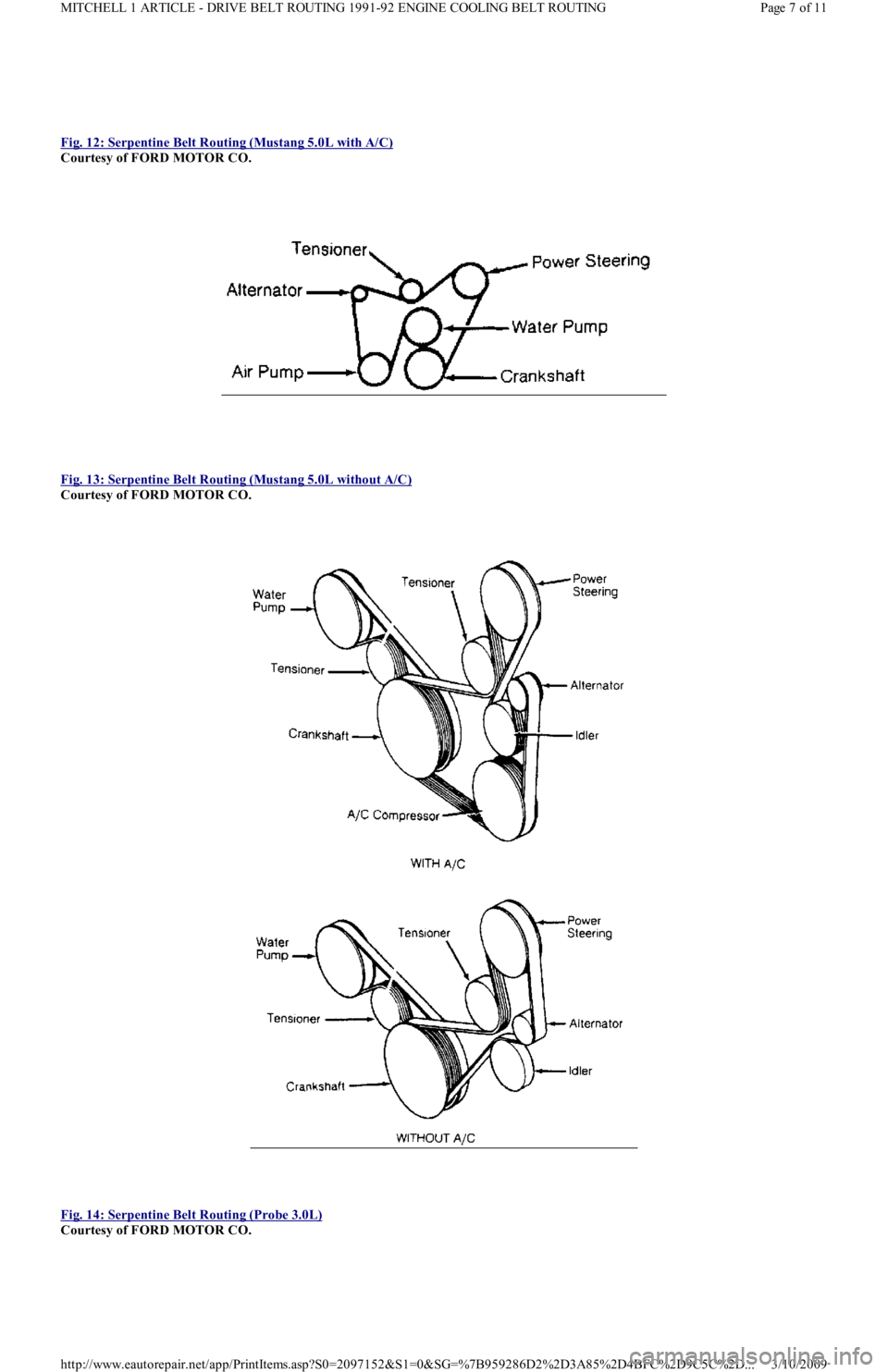

Fig. 12: Serpentine Belt Routing (Mustang 5.0L with A/C)
Courtesy of FORD MOTOR CO.

Fig. 13: Serpentine Belt Routing (Mustang 5.0L without A/C)

Courtesy of FORD MOTOR CO.

Fig. 14: Serpentine Belt Routing (Probe 3.0L)

Courtesy of FORD MOTOR CO.
