1991 FORD FESTIVA Service Manual

AIS-VCV
AIS Vacuum Control Valve
AIS-VSV
AIS Vacuum Switching Valve
AIS-VT
AIS Vacuum Tank
AIS-VCV
AIS Vacuum Control Valve
AIS-VSV
AIS Vacuum Switching Valve
AP
Air Pump Injection System
AP-ACV
AP Air Control Valve
AP-AMV
AP Air Management Valve
AP-BPV
AP By-Pass Valve
AP-CKV
AP Check Valve
AP-CS
AP Control Solenoid
BP/EGR
Backpressure EGR System
BP/EGR-BPS
BP/EGR Backpressure Sensor
BP/EGR-BPT
BP/EGR Backpressure Transducer
BP/EGR-BPV
BP/EGR Backpressure Valve
BP/EGR-BS
BP/EGR Bleed Solenoid
BP/EGR-BVSV
BP/EGR Bimetallic Vacuum Switching Valve
BP/EGR-C
BP/EGR Controller
BP/EGR-CLR
BP/EGR Cooler
BP/EGR-CS
BP/EGR Control Solenoid
Page 5 of 9 MITCHELL 1 ARTICLE - EMISSION CONTROL APPLICATIONS Emission Applications - Ford Motor Co. - Imports (1968-
...
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B7DD6473C%2DB5BB%2D4F20%2D9D70%2D
...

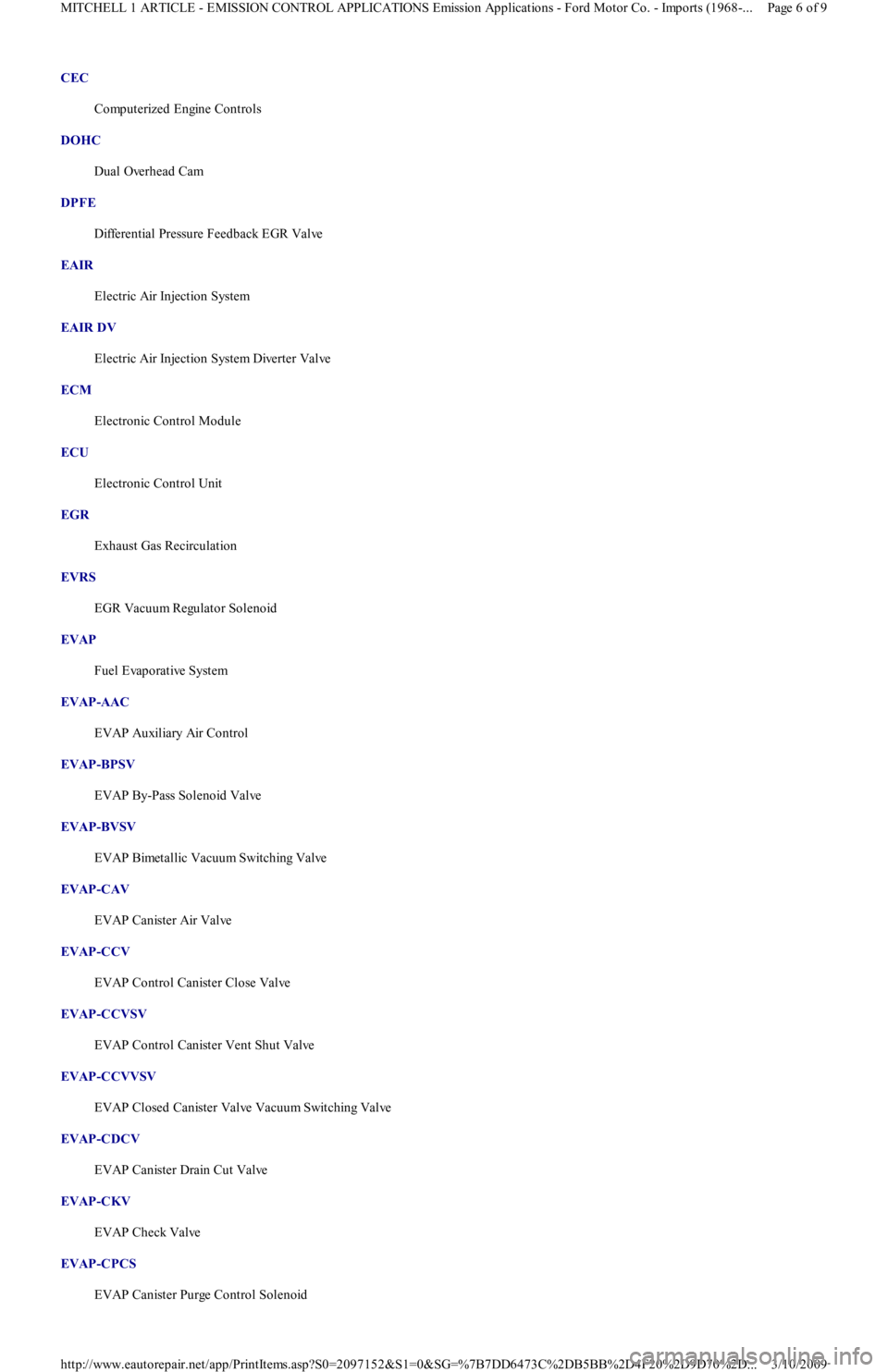

CEC
Computerized Engine Controls
DOHC
Dual Overhead Cam
DPFE
Differential Pressure Feedback EGR Valve
EAIR
Electric Air Injection System
EAIR DV
Electric Air Injection System Diverter Valve
ECM
Electronic Control Module
ECU
Electronic Control Unit
EGR
Exhaust Gas Recirculation
EVRS
EGR Vacuum Regulator Solenoid
EVAP
Fuel Evaporative System
EVAP-AAC
EVAP Auxiliary Air Control
EVAP-BPSV
EVAP By-Pass Solenoid Valve
EVAP-BVSV
EVAP Bimetallic Vacuum Switching Valve
EVAP-CAV
EVAP Canister Air Valve
EVAP-CCV
EVAP Control Canister Close Valve
EVAP-CCVSV
EVAP Control Canister Vent Shut Valve
EVAP-CCVVSV
EVAP Closed Canister Valve Vacuum Switching Valve
EVAP-CDCV
EVAP Canister Drain Cut Valve
EVAP-CKV
EVAP Check Valve
EVAP-CPCS
EVAP Canister Purge Control Solenoid
Page 6 of 9 MITCHELL 1 ARTICLE - EMISSION CONTROL APPLICATIONS Emission Applications - Ford Motor Co. - Imports (1968-
...
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B7DD6473C%2DB5BB%2D4F20%2D9D70%2D
...

EVAP-CPCV
EVAP Canister Purge Control Valve
EVAP-CPRV
EVAP Canister Purge Regulator Valve
EVAP-CPSV
EVAP Canister Vent Shut Valve
EVAP-CPT
EVAP Canister Purge Timer
EVAP-CPTVS
EVAP Canister Purge Thermal Vacuum Switch
EVAP-CPV
EVAP Canister Vent Valve
EVAP-CPVCSV
EVAP Canister Purge Volume Control
EVAP-CPVDV
EVAP Canister Purge Vacuum Delay Valve
EVAP-CS
EVAP Control Solenoid
EVAP-CSPS
EVAP Control System Pressure Sensor
EVAP-ORVR
Evaporative On-Board Refueling Vapor Recovery System
EVAP-ORVRFTVRV
EVAP-ORVR Fuel Tank Vapor Recirculation
EVAP-OVCV
EVAP Outer Vent Control Valve
EVAP-OW V
EVAP One-Way Valve
EVAP-PCSV
EVAP Purge Cut-Off Solenoid Valve
EVAP-PFS
EVAP Purge Flow Sensor
EVAP-PFSVVSV
EVAP Purge Flow Switching Valve Vacuum Switching Valve
EVAP-PRRV
EVAP Pressure Relief Rollover Valve
EVAP-VC
EVAP Vapor Canister
FF
Flexible Fuel
Page 7 of 9 MITCHELL 1 ARTICLE - EMISSION CONTROL APPLICATIONS Emission Applications - Ford Motor Co. - Imports (1968-
...
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B7DD6473C%2DB5BB%2D4F20%2D9D70%2D
...

FLV
Fill Limit Valve
FR
Fill Pipe Restrictor
FVV
Fuel Vapor Valve
HO2S
Heated Oxygen Sensor
MFI
Multiport Fuel Injection
MFI-MAF
MFI Mass Airflow Sensor
MIL
Malfunction Indicator Light
OC
Oxidation Catalytic Converter
OHC
Overhead Cam
ORVR
On-Board Refueling Vapor Recovery
ORVR-COV
ORVR Cut-Off Valve
ORVR-CV
ORVR Control Valve
ORVR-FMV
ORVR Flow Management Valve
ORVR-FTVCV
ORVR Fuel Tank Vapor Control Valve
ORVR-FTVRV
ORVR Fuel Tank Vapor Recirculation Valve
ORVR-LV
ORVR Leveling Valve
ORVR-OCKV
ORVR Overfill Check Valve
ORVR-RCV
ORVR Refueling Control Valve
ORVR-VCV
ORVR Vapor Cut Valve
ORVR-VRV
ORVR Vapor Recirculating Valve
Page 8 of 9 MITCHELL 1 ARTICLE - EMISSION CONTROL APPLICATIONS Emission Applications - Ford Motor Co. - Imports (1968-
...
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B7DD6473C%2DB5BB%2D4F20%2D9D70%2D
...

ORVR-VSV
ORVR Vent Shut Valve
ORVR-VV
ORVR Vent Valve
OVCV
Outer Vent Control Valve
O2S
Oxygen Sensor
PAIR
Pulsed Secondary Air Injection
PCV
Positive Crankcase Ventilation
SFI
Sequential Multiport Fuel Injection
SFI-MAF
SFI Mass Airflow Sensor
SPK
Spark Controls
SPK-AVM
SPK Advance Vacuum Modulator
SPK-BVSV
SPK Bimetal Vacuum Switching Valve
SPK-CC
SPK Computer Controlled
SPK-CKV
SPK Check Valve
TWC
Three-Way Catalytic Converter
Copyr ight 2009 Mitchell Repair Information Company, LLC. All Rights Reserved.
Article GUID: A00157498
Page 9 of 9 MITCHELL 1 ARTICLE - EMISSION CONTROL APPLICATIONS Emission Applications - Ford Motor Co. - Imports (1968-
...
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B7DD6473C%2DB5BB%2D4F20%2D9D70%2D
...

Back To Article
J - PIN VOLT AGE CHART S
1991 ENGINE PERFORMANCE Ford/Mercury Pin Voltage Charts
INTRODUCTION
Pin voltage charts are supplied to reduce diagnostic time. Checking pin voltages at the Electronic Control Assembly (ECA) determin es
whether it is receiving and transmitting proper voltage signals. Charts may also help determine if ECA wiring harness is shorted or opened.

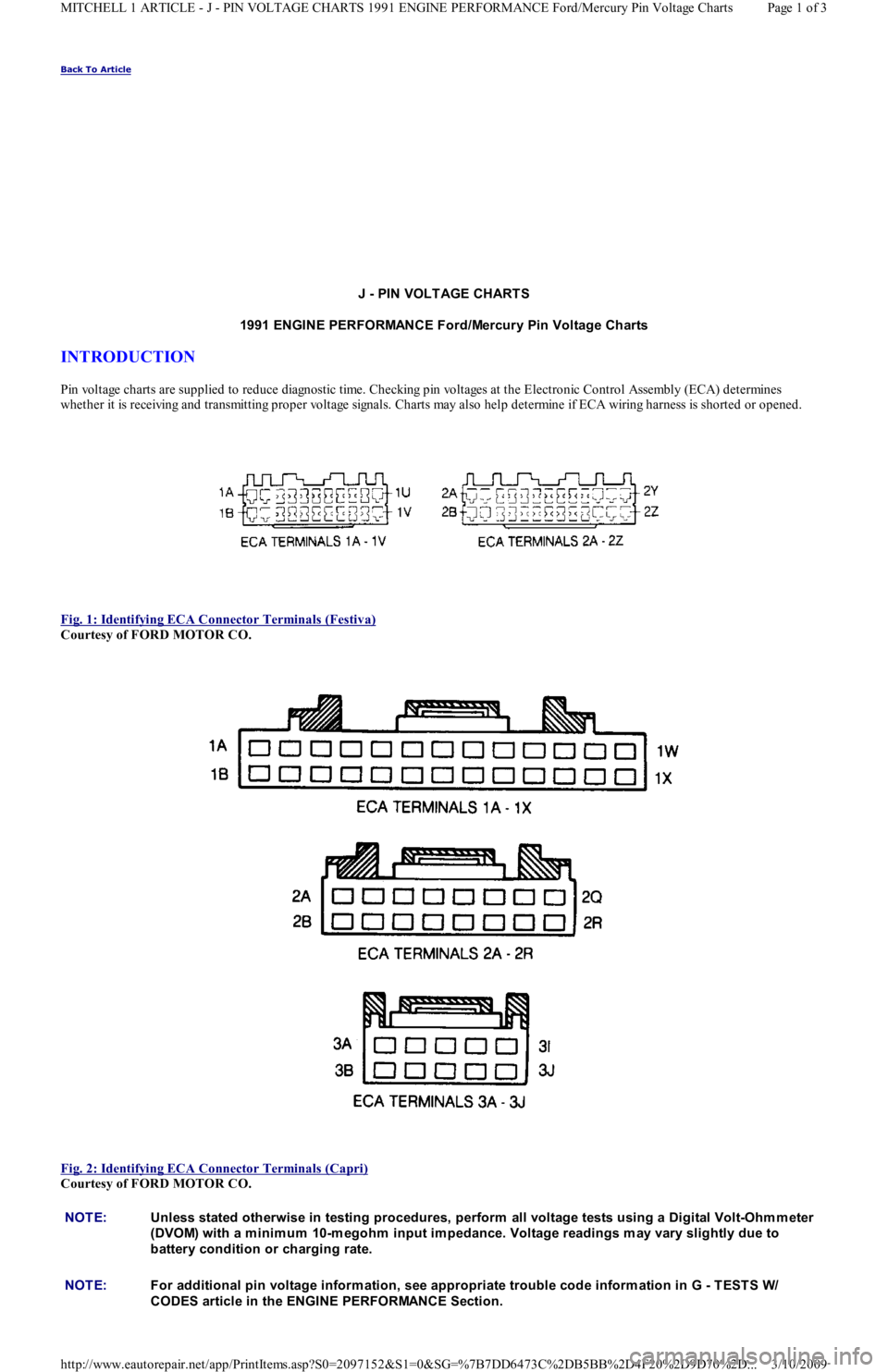

Fig. 1: Identifying ECA Connector Terminals (Festiva)

Courtesy of FORD MOTOR CO.

Fig. 2: Identifying ECA Connector Terminals (Capri)

Courtesy of FORD MOTOR CO.
NOTE:Unless stated otherwise in testing procedures, perform all voltage tests using a Digital Volt-Ohm m eter
(DVOM) with a m inim um 10-m egohm input im pedance. Voltage readings m ay vary slightly due to
battery condition or charging rate.
NOTE:For additional pin voltage inform ation, see appropriate trouble code inform ation in G - T EST S W/
CODES article in the ENGINE PERFORMANCE Section.
Page 1 of 3 MITCHELL 1 ARTICLE - J - PIN VOLTAGE CHARTS 1991 ENGINE PERFORMANCE Ford/Mercury Pin Voltage Charts
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B7DD6473C%2DB5BB%2D4F20%2D9D70%2D
...

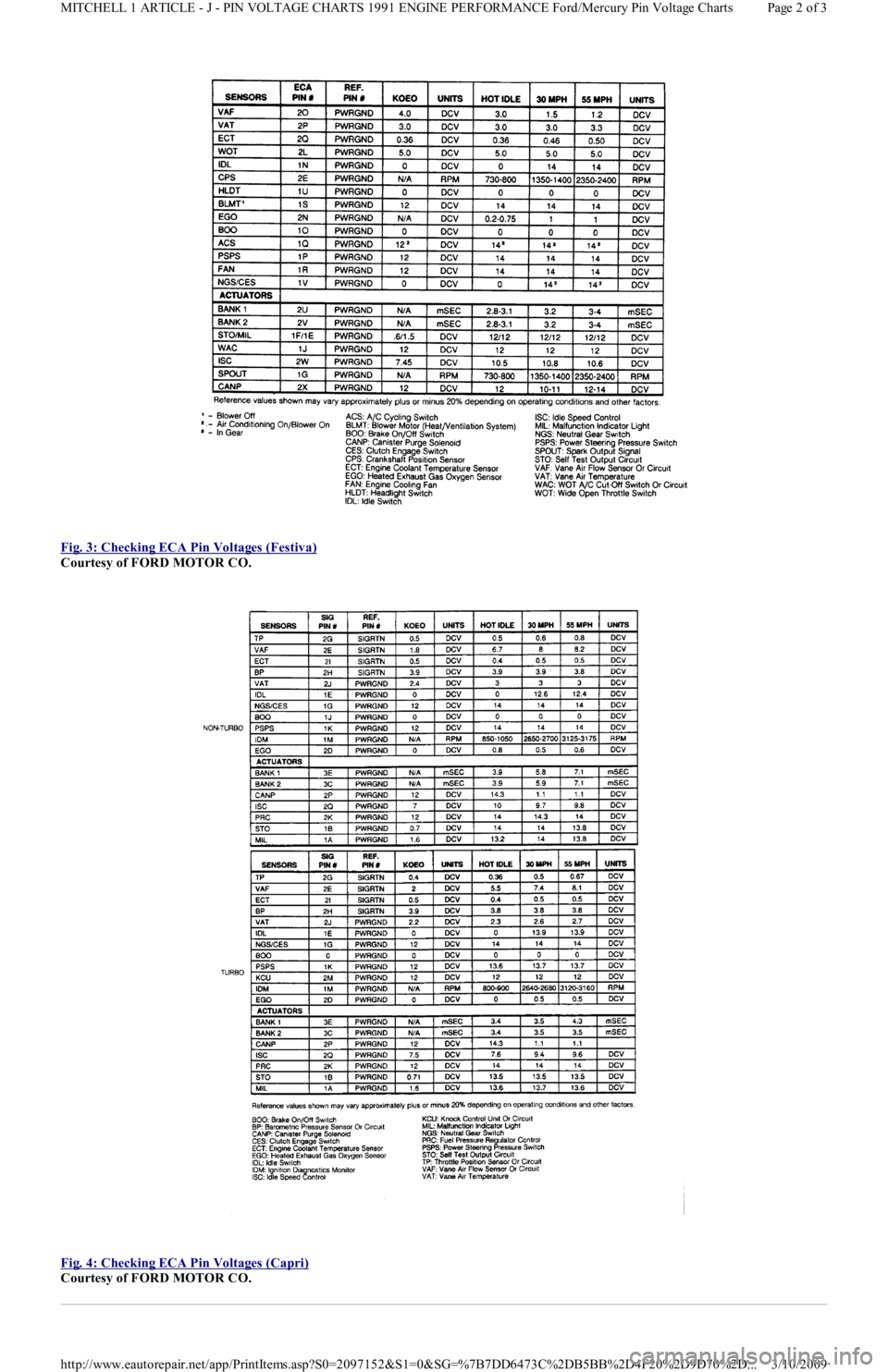

Fig. 3: Checking ECA Pin Voltages (Festiva)
