1991 FORD FESTIVA Service Manual

Black/White and Black wire terminals of relay. Check continuity of relay across 2 Black/Yellow wire terminals of relay. Continuity should
exist when relay is energized. When relay is de-energized, continuity should not exist.

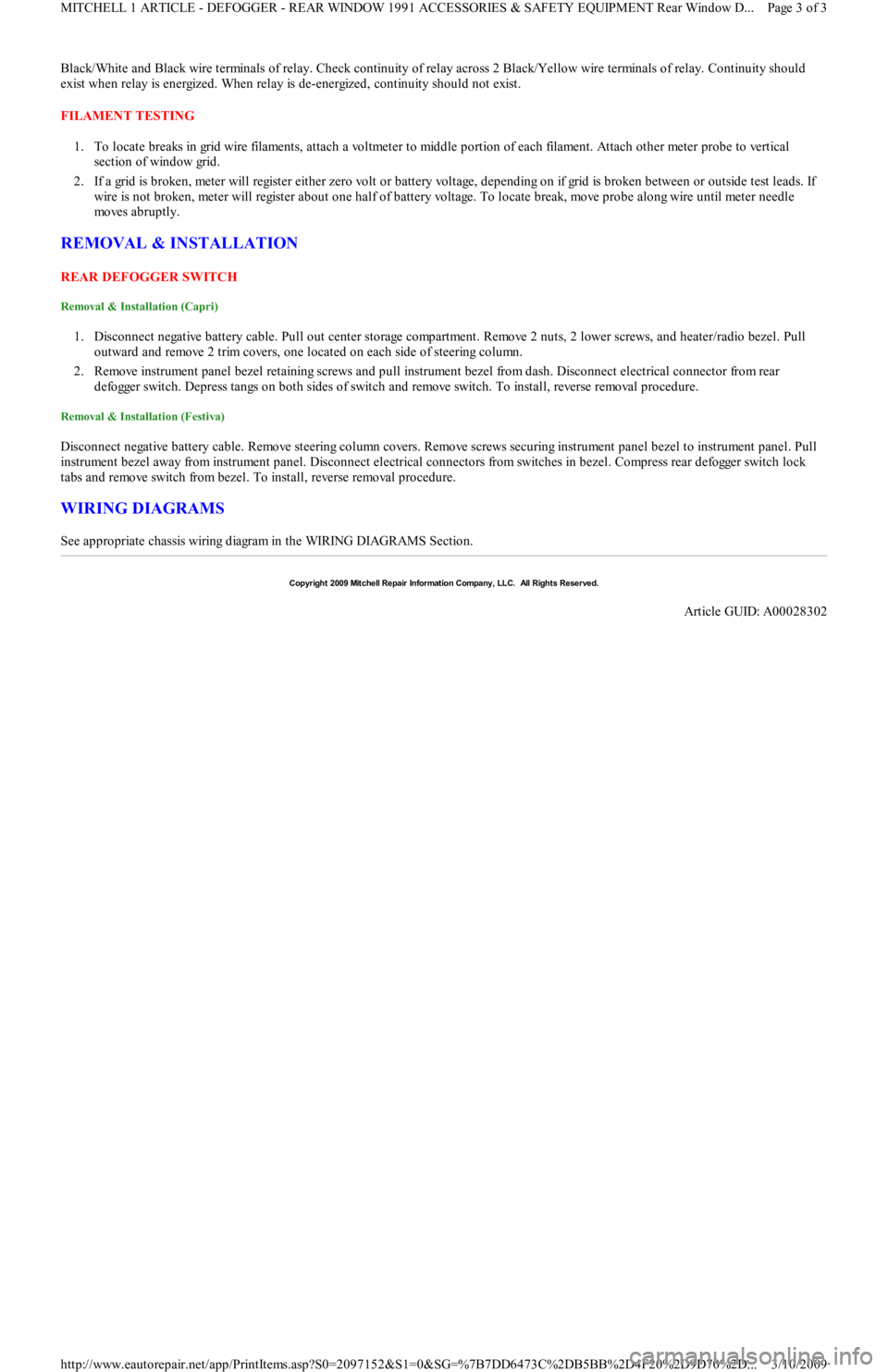

FILAMENT TESTING
1. To locate breaks in grid wire filaments, attach a voltmeter to middle portion of each filament. Attach other meter probe to vertical
section of window grid.
2. If a grid is broken, meter will register either zero volt or battery voltage, depending on if grid is broken between or outside test leads. If
wire is not broken, meter will register about one half of battery voltage. To locate break, move probe along wire until meter needle
mo ves ab ru p t l y.
REMOVAL & INSTALLATION
REAR DEFOGGER SWITCH
Removal & Installation (Capri)
1. Disconnect negative battery cable. Pull out center storage compartment. Remove 2 nuts, 2 lower screws, and heater/radio bezel. Pull
outward and remove 2 trim covers, one located on each side of steering column.
2. Remove instrument panel bezel retaining screws and pull instrument bezel from dash. Disconnect electrical connector from rear
defogger switch. Depress tangs on both sides of switch and remove switch. To install, reverse removal procedure.
Removal & Installation (Festiva)
Disconnect negative battery cable. Remove steering column covers. Remove screws securing instrument panel bezel to instrument panel. Pull
instrument bezel away from instrument panel. Disconnect electrical connectors from switches in bezel. Compress rear defogger switch lock
tabs and remove switch from bezel. To install, reverse removal procedure.
WIRING DIAGRAMS
See appropriate chassis wiring diagram in the WIRING DIAGRAMS Section.
Copyr ight 2009 Mitchell Repair Information Company, LLC. All Rights Reserved.
Article GUID: A00028302
Page 3 of 3 MITCHELL 1 ARTICLE - DEFOGGER - REAR WINDOW 1991 ACCESSORIES & SAFETY EQUIPMENT Rear Window D
...
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B7DD6473C%2DB5BB%2D4F20%2D9D70%2D
...

Back To Article
1990-92 ACCESSORIES & EQUIPMENT
Power Mirrors - Festiva
DESCRIPTION & OPERATION
The power outside rearview mirrors are an aerodynamic sail-mount design. See Fig. 1 . The mirror base is secured to the lower front corner of
the window frame. The screws attaching the base to the door and the wiring connector are concealed behind a trim cover which is also
attached to the window frame.
The power outside rearview mirrors are operated by a switch located to the left of the steering column just below the air discharge register. See
Fig. 1
. The switch housing actually contains two separate switch assemblies. The outer perimeter switch controls the up/down and the
inboard/outboard position of the mirrors. The center toggle switch determines which mirror is connected to the perimeter switch. When the
toggle is positioned to the left mirror, the left mirror will respond to the perimeter switch. The right mirror responds when the toggle is
positioned to the right.
Each mirror contains two electric motors -- one for tilting the mirror up or down and another for moving the mirror inboard or outboard. See
Fig. 1
. Each motor drives a gear train that includes a worm gear, a reduction gearset, and a threaded attaching lug. Rotation of the gear train
threads the attaching lug in or out of the final gear in the train. As the lug moves in the gear, it pushes or pulls the mirror into a new position.
A spring clip installed over the lug allows it to ratchet when it reaches the end of its travel.

Fig. 1: Identifying Power Rear View Mirror Components

Courtesy of FORD MOTOR CO.
COMPONENT LOCATIONS
COMPONENT LOCATIONS
ComponentLocation
Fuse PanelLeft Side Of Instrument Panel, Left Of Steering Column. See .
Ground G201Far Left Side Of Instrument Panel, Above Kick Panel. See .
Page 1 of 8 MITCHELL 1 ARTICLE - 1990-92 ACCESSORIES & EQUIPMENT Power Mirrors - Festiva
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B7DD6473C%2DB5BB%2D4F20%2D9D70%2D
...

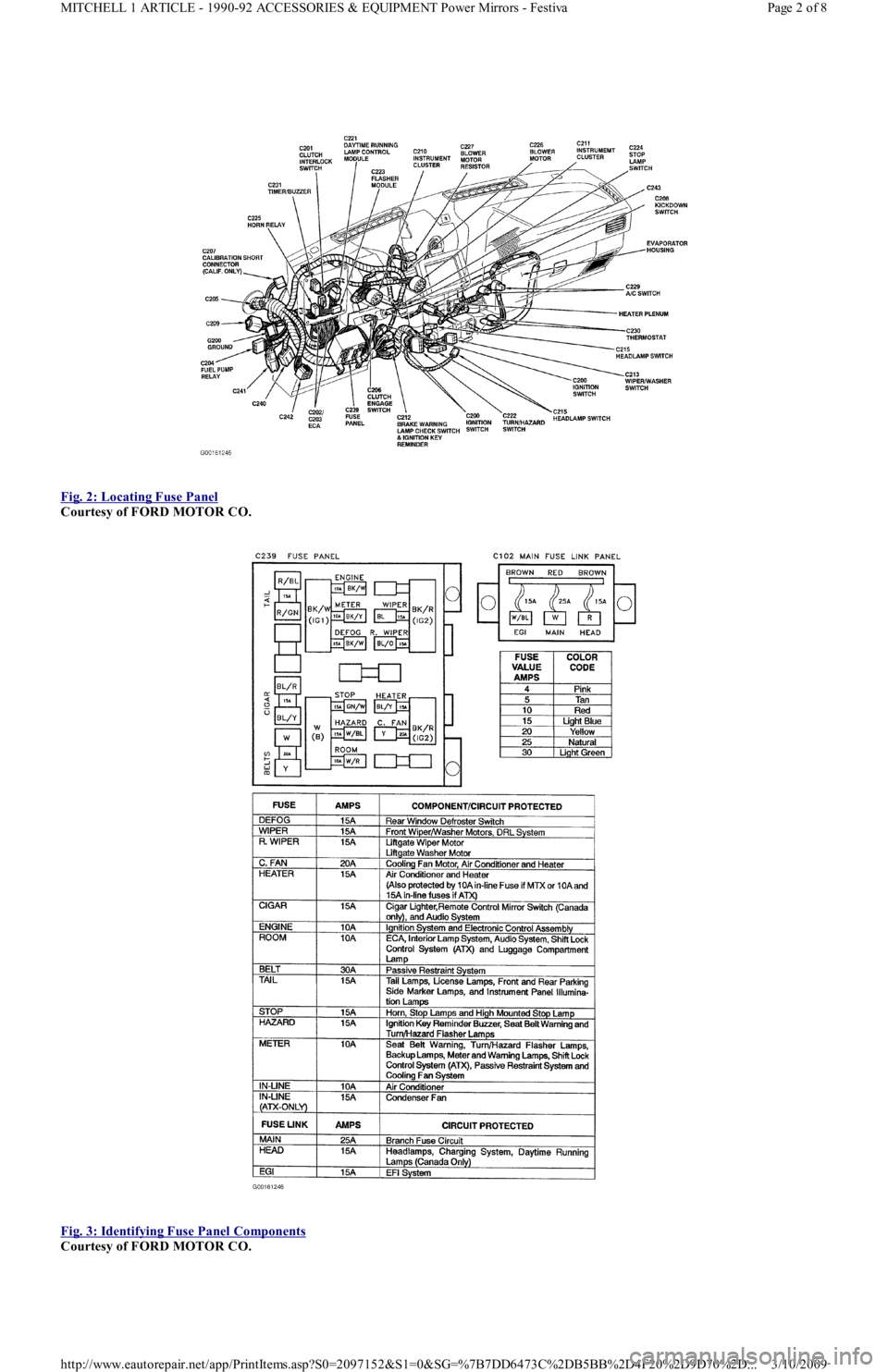

Fig. 2: Locating Fuse Panel

Courtesy of FORD MOTOR CO.

Fig. 3: Identifying Fuse Panel Components

Courtesy of FORD MOTOR CO.
Page 2 of 8 MITCHELL 1 ARTICLE - 1990-92 ACCESSORIES & EQUIPMENT Power Mirrors - Festiva
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B7DD6473C%2DB5BB%2D4F20%2D9D70%2D
...

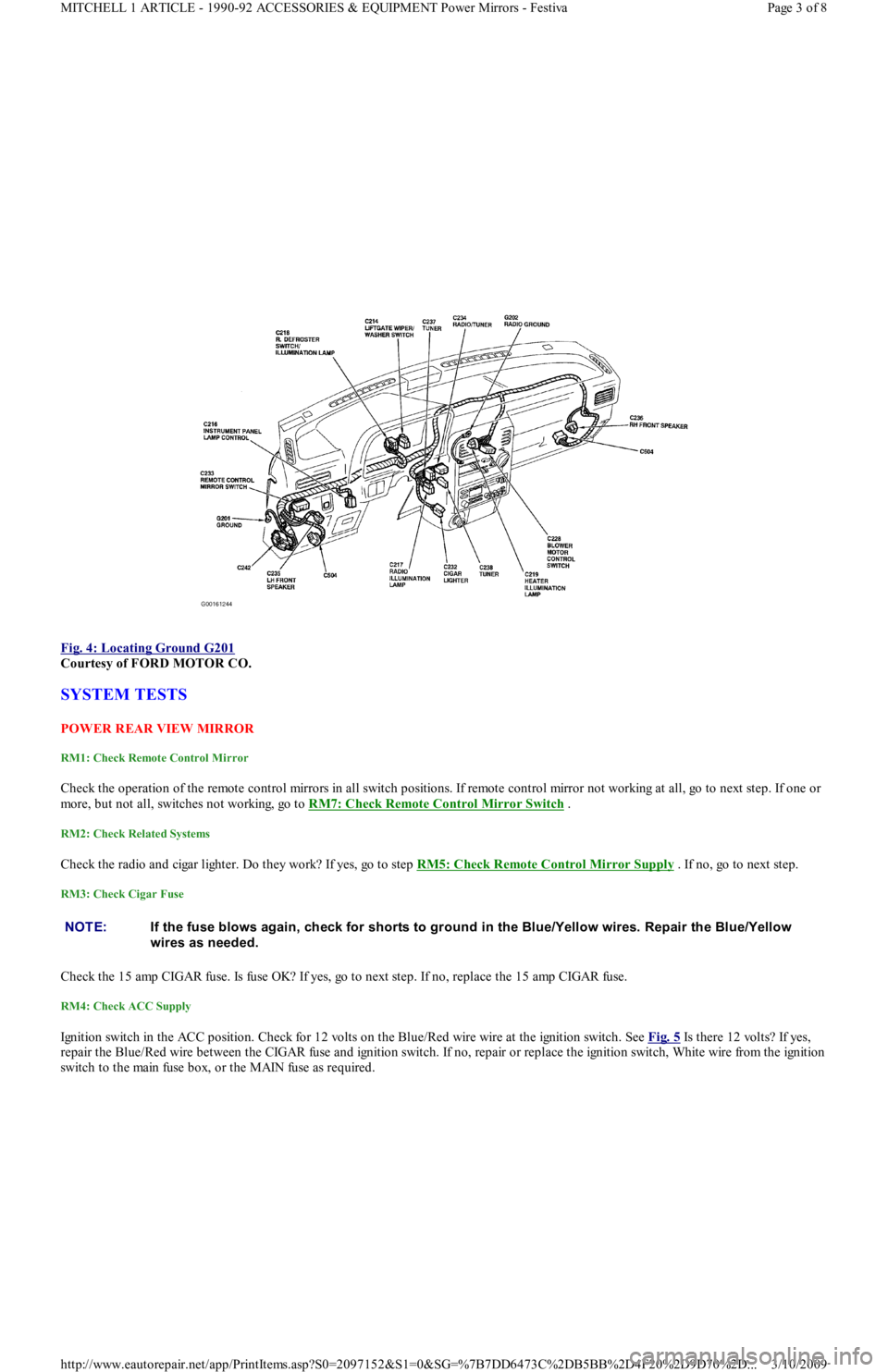

Fig. 4: Locating Ground G201

Courtesy of FORD MOTOR CO.
SYSTEM TESTS
POW ER REAR VIEW MIRROR
RM1: Check Remote Control Mirror
Check the operation of the remote control mirrors in all switch positions. If remote control mirror not working at all, go to next step. If one or
more, but not all, switches not working, go to RM7: Check Remote Control Mirror Switch
.
RM2: Check Related Systems
Check the radio and cigar lighter. Do they work? If yes, go to step RM5: Check Remote Control Mirror Supply . If no, go to next step.
RM3: Check Cigar Fuse
Check the 15 amp CIGAR fuse. Is fuse OK? If yes, go to next step. If no, replace the 15 amp CIGAR fuse.
RM4: Check ACC Supply
Ignition switch in the ACC position. Check for 12 volts on the Blue/Red wire wire at the ignition switch. See Fig. 5 Is there 12 volts? If yes,
repair the Blue/Red wire between the CIGAR fuse and ignition switch. If no, repair or replace the ignition switch, White wire from the ignition
switch to the main fuse box, or the MAIN fuse as required.
NOTE:If the fuse blows again, check for shorts to ground in the Blue/Yellow wires. Repair the Blue/Yellow
wires as needed.
Page 3 of 8 MITCHELL 1 ARTICLE - 1990-92 ACCESSORIES & EQUIPMENT Power Mirrors - Festiva
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B7DD6473C%2DB5BB%2D4F20%2D9D70%2D
...

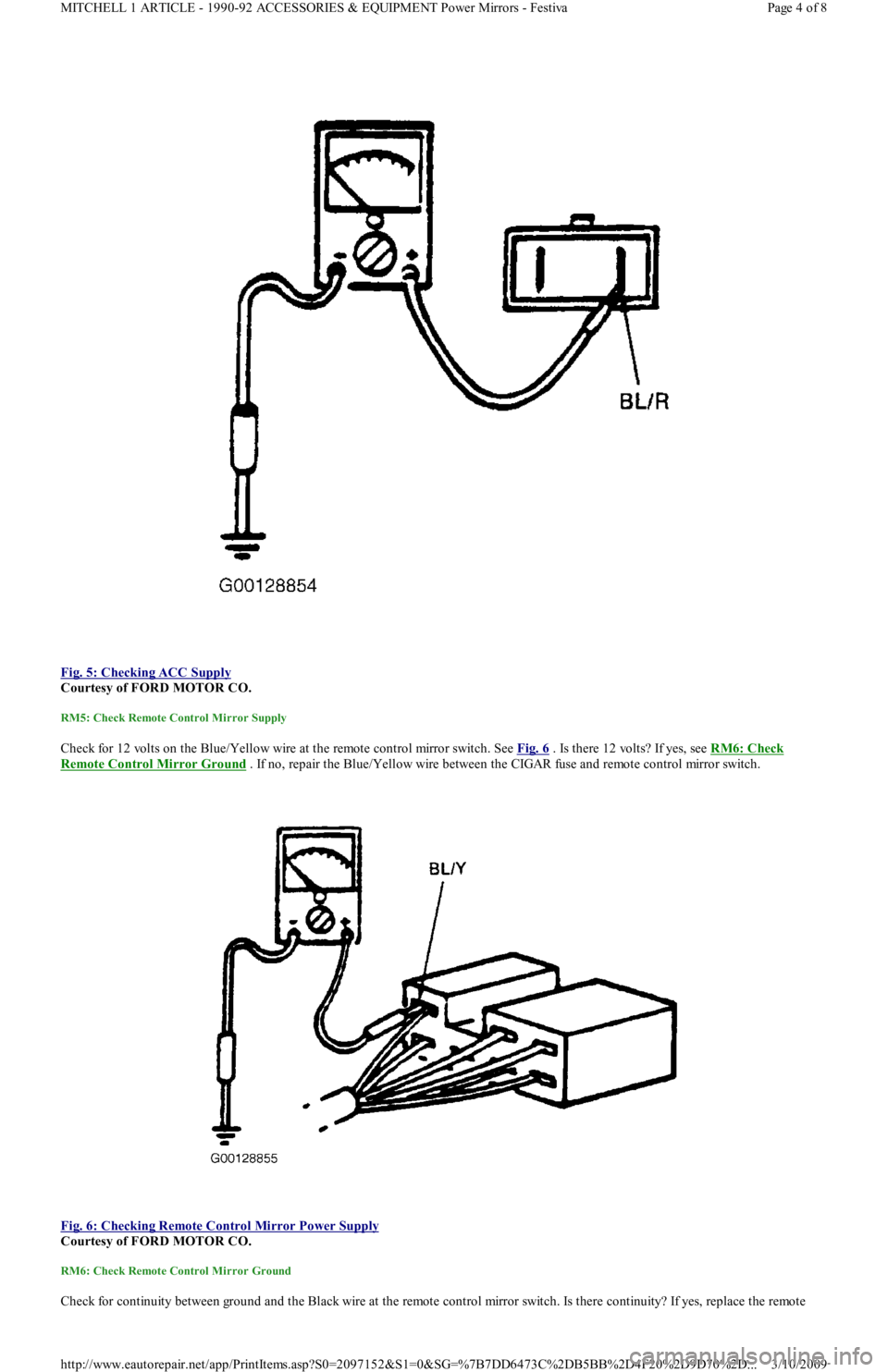

Fig. 5: Checking ACC Supply

Courtesy of FORD MOTOR CO.
RM5: Check Remote Control Mirror Supply
Check for 12 volts on the Blue/Yellow wire at the remote control mirror switch. See Fig. 6 . Is there 12 volts? If yes, see RM6: Check
Remote Control Mirror Ground . If no, repair the Blue/Yellow wire between the CIGAR fuse and remote control mirror switch.

Fig. 6: Checking Remote Control Mirror Power Supply

Courtesy of FORD MOTOR CO.
RM6: Check Remote Control Mirror Ground
Check for continuity between ground and the Black wire at the remote control mirror switch. Is there continuity? If yes, replace the remote
Page 4 of 8 MITCHELL 1 ARTICLE - 1990-92 ACCESSORIES & EQUIPMENT Power Mirrors - Festiva
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B7DD6473C%2DB5BB%2D4F20%2D9D70%2D
...

control mirror switch. See REMOTE MIRROR SW ITCH under REMOVAL & INSTALLATION. If no, repair the Black wire between the
remote control mirror switch and ground.
RM7: Check Remote Control Mirror Switch
Access the remote control mirror switch. Check for voltages at the remote control mirror switch as shown. See Fig. 7 . Do all the switch
positions check out OK? If yes, see RM8: Check Wire Power . If no, replace the remote control mirror switch. See REMOTE MIRROR
SWITCH under REMOVAL & INSTALLATION.

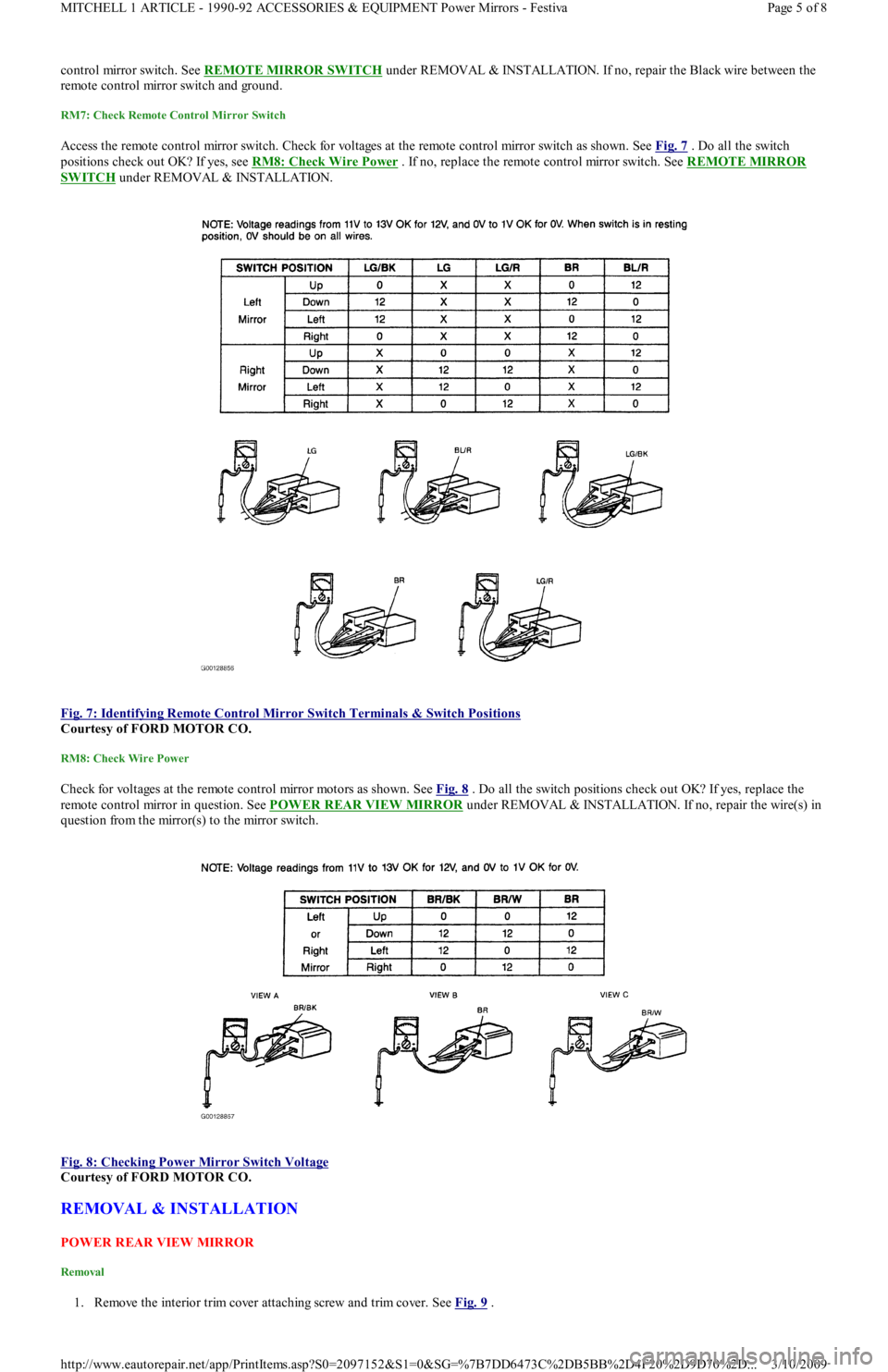

Fig. 7: Identifying Remote Control Mirror Switch Terminals & Switch Positions

Courtesy of FORD MOTOR CO.
RM8: Check Wire Power
Check for voltages at the remote control mirror motors as shown. See Fig. 8 . Do all the switch positions check out OK? If yes, replace the
remote control mirror in question. See POW ER REAR VIEW MIRROR
under REMOVAL & INSTALLATION. If no, repair the wire(s) in
question from the mirror(s) to the mirror switch.

Fig. 8: Checking Power Mirror Switch Voltage

Courtesy of FORD MOTOR CO.
REMOVAL & INSTALLATION
POW ER REAR VIEW MIRROR
Removal
1. Remove the interior trim cover attaching screw and trim cover. See Fig. 9 .
Page 5 of 8 MITCHELL 1 ARTICLE - 1990-92 ACCESSORIES & EQUIPMENT Power Mirrors - Festiva
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B7DD6473C%2DB5BB%2D4F20%2D9D70%2D
...

2. Disconnect the wiring at the mirror.
3. Remove the attaching screws and the mirror.
4. Remove the seal from the mirror. See Fig. 9
.
Installation
To install, reverse the removal procedure.

Fig. 9: Removing & Installing Power Rear View Mirror

Courtesy of FORD MOTOR CO.
REMOTE MIRROR SWITCH
Removal
1. Remove the left radio speaker grille by carefully prying it up with a screwdriver.
2. Remove the four speaker attaching screws and the radio speaker. See Fig. 10
.
3. Using a screwdriver, pry at the bottom of the switch casing to loosen the remote mirror switch. See Fig. 11
. To prevent marring the
instrument panel, place a pad or clean rag between the blade and the instrument panel.
4. Reach through the speaker opening and disconnect the electrical connector.
5. Remove the remote mirror switch.
Installation
To install, reverse the removal procedure.
Page 6 of 8 MITCHELL 1 ARTICLE - 1990-92 ACCESSORIES & EQUIPMENT Power Mirrors - Festiva
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B7DD6473C%2DB5BB%2D4F20%2D9D70%2D
...

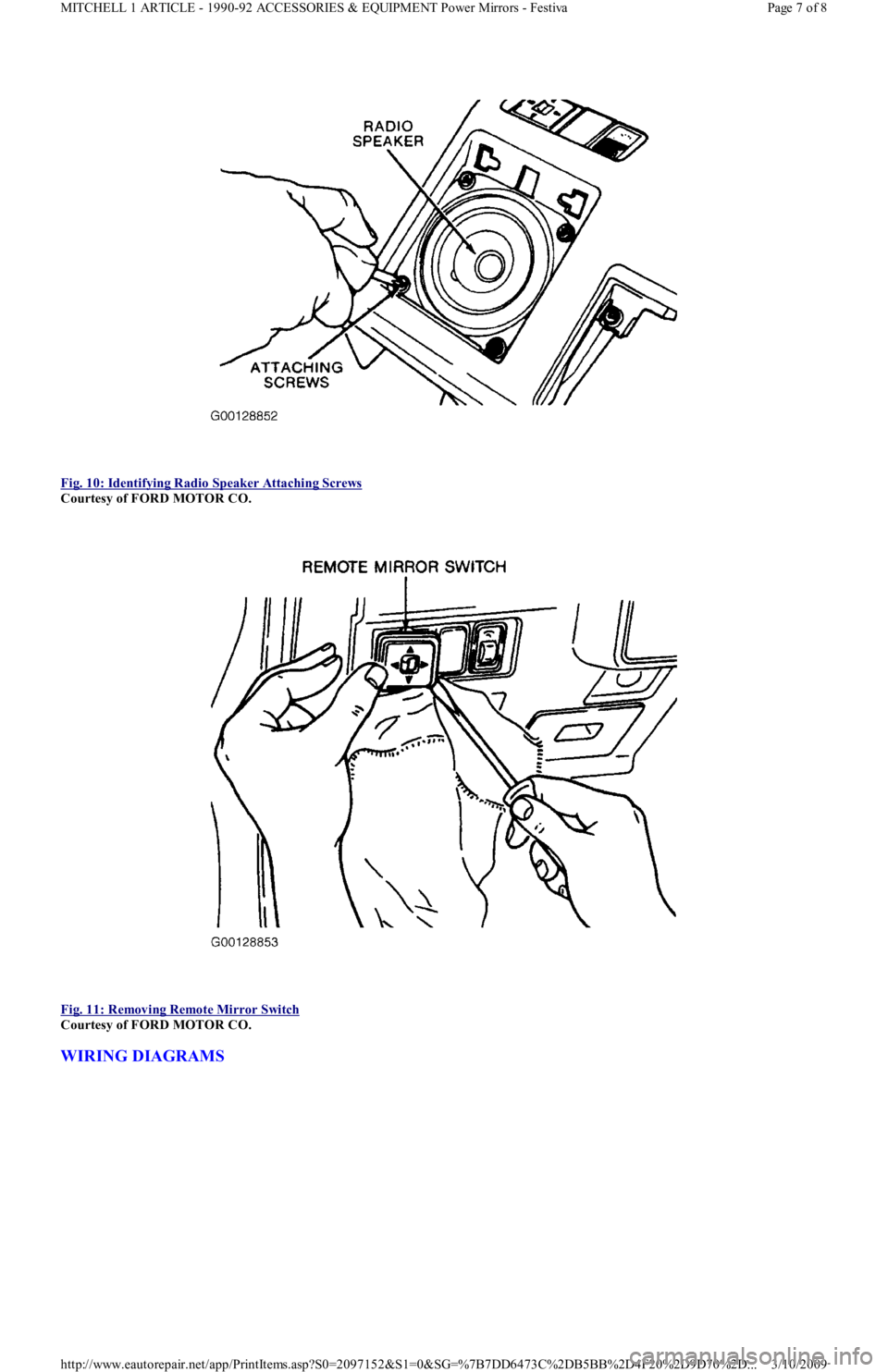

Fig. 10: Identifying Radio Speaker Attaching Screws

Courtesy of FORD MOTOR CO.

Fig. 11: Removing Remote Mirror Switch

Courtesy of FORD MOTOR CO.
WIRING DIAGRAMS
