Page 465 of 906
ELECTRICAL COMPONENT LOCATOR
Article Text (p. 6)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC

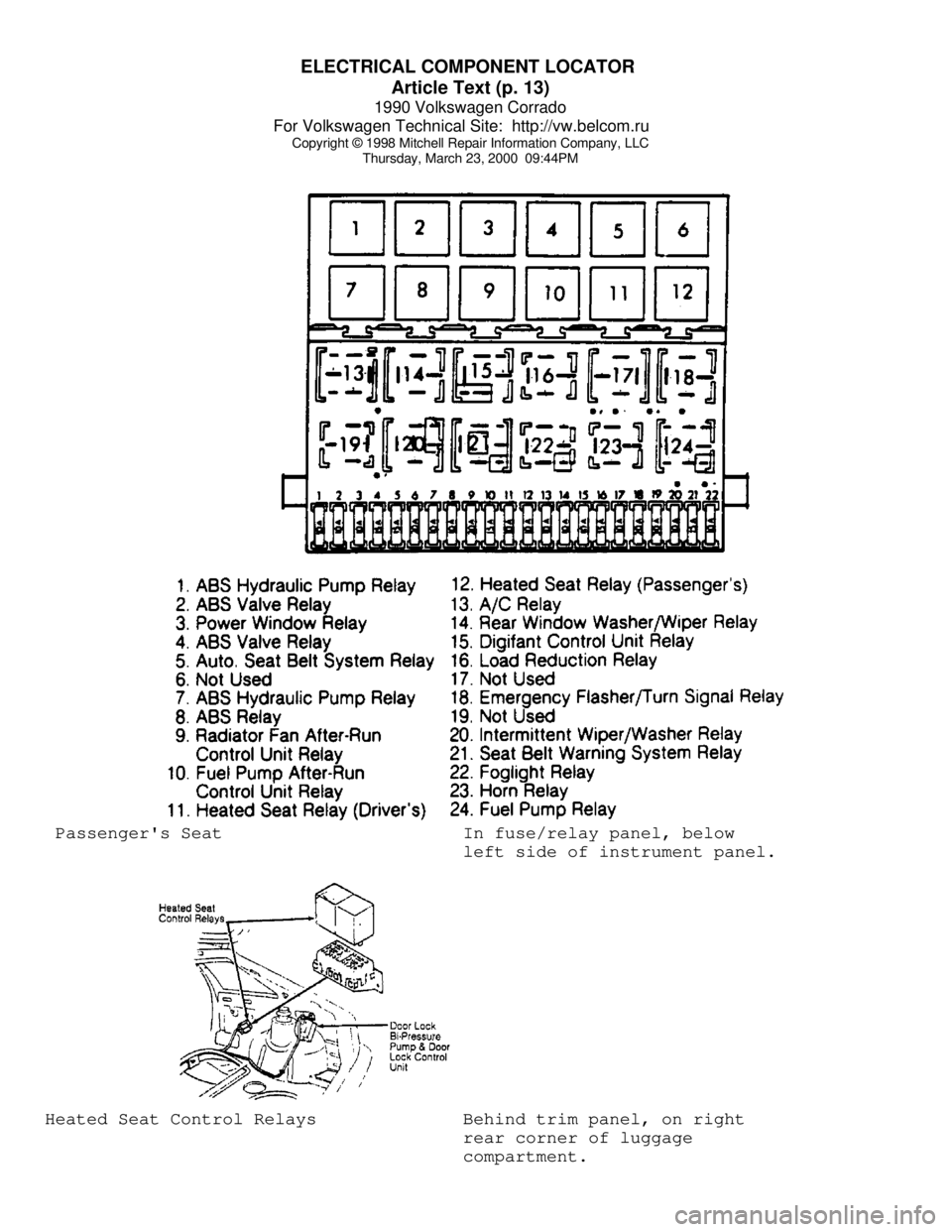

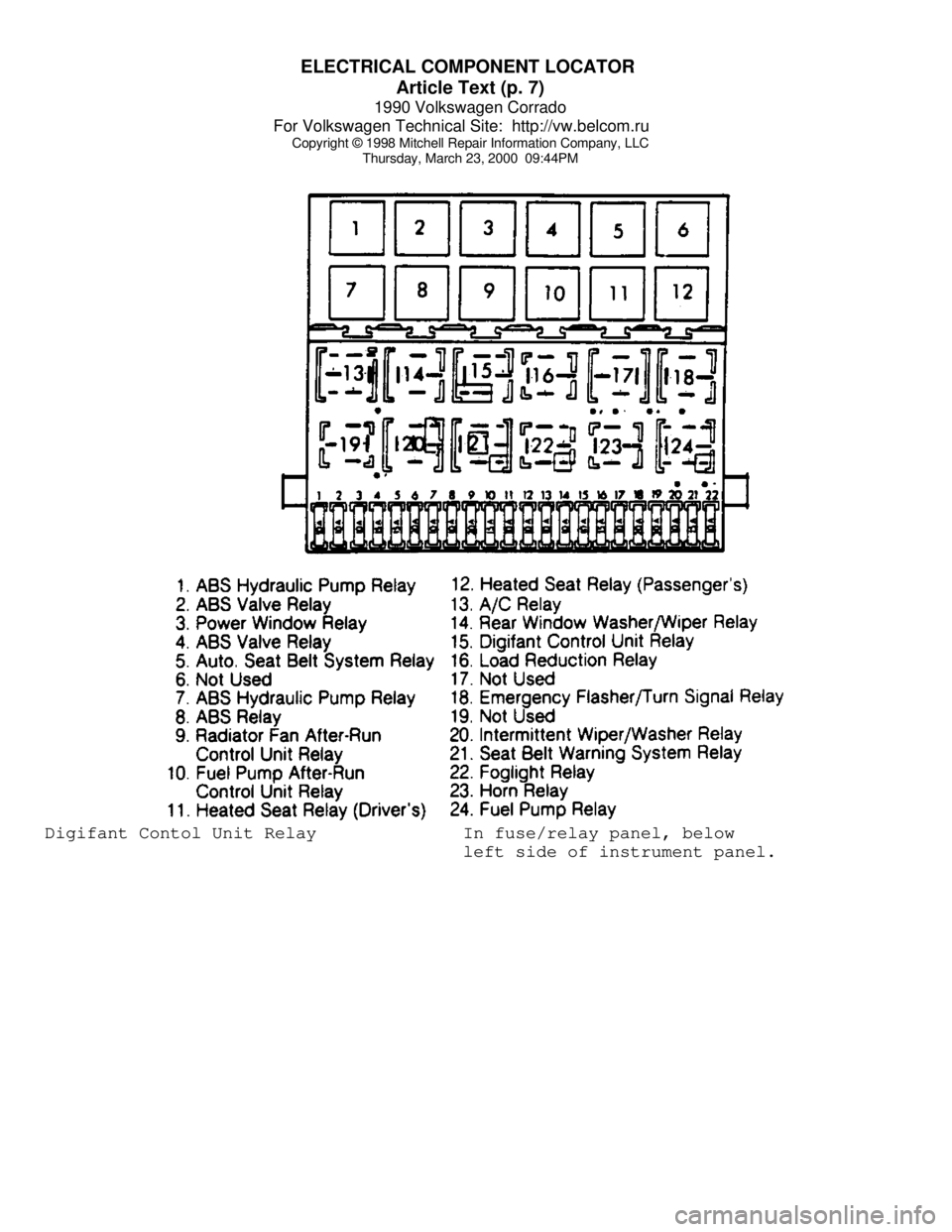

Thursday, March 23, 2000 09:44PMAuto. Seat Belt System Relay In fuse/relay panel, below
left side of instrument panel.
Page 466 of 906
ELECTRICAL COMPONENT LOCATOR
Article Text (p. 7)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 23, 2000 09:44PMDigifant Contol Unit Relay In fuse/relay panel, below
left side of instrument panel.
Page 467 of 906
ELECTRICAL COMPONENT LOCATOR
Article Text (p. 8)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 23, 2000 09:44PMEmergency Flasher Relay/
Turn Signal Relay In fuse/relay panel, below
left side of instrument panel.
Page 468 of 906
ELECTRICAL COMPONENT LOCATOR
Article Text (p. 9)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 23, 2000 09:44PMFog Light Relay In fuse/relay panel, below
left side of instrument panel.
Page 469 of 906
ELECTRICAL COMPONENT LOCATOR
Article Text (p. 10)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 23, 2000 09:44PMFuel Pump After-Run Control
Unit Relay In fuse/relay panel, below
left side of instrument panel.
Page 470 of 906
ELECTRICAL COMPONENT LOCATOR
Article Text (p. 11)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 23, 2000 09:44PMFuel Pump Relay In fuse/relay panel, below
left side of instrument panel.
Heated Seat Relay
Page 471 of 906
ELECTRICAL COMPONENT LOCATOR
Article Text (p. 12)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 23, 2000 09:44PM Driver's Seat In fuse/relay panel, below
left side of instrument panel.
Page 472 of 906
ELECTRICAL COMPONENT LOCATOR
Article Text (p. 13)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 23, 2000 09:44PM Passenger's Seat In fuse/relay panel, below
left side of instrument panel.Heated Seat Control Relays Behind trim panel, on right
rear corner of luggage
compartment.
