1988 FORD BRONCO Owners Manual

348 [SV53950(B )04/95]
thirty-six pica chart:0020508-H
File:ltsvb.ex
Update:Tue Jun 20 16:56:22 1995
ProCarManuals.com

349 [SV54000(B )05/95]
thirty-six pica chart:0020438-M
File:ltsvb.ex
Update:Tue Jun 20 16:56:22 1995
ProCarManuals.com

350 [SV54100(B )04/95]
thirty-six pica chart:0020439-L
File:ltsvb.ex
Update:Tue Jun 20 16:56:22 1995
ProCarManuals.com

351
%*
[SV56000( ALL)01/95]
Vehicle Storage
*
[SV56100( ALL)01/95]
Maintenance Tips
*
[SV56150( ALL)01/95]
If you plan on storing your vehicle for an
extended period of time (60 days or more), refer
to the following maintenance recommendations
to ensure your vehicle stays in good operating
condition.
*
[SV56200( ALL)01/95]
General
*
[SV56300( ALL)01/95]
q
Store all vehicles in a dry, ventilated place.
*
[SV56400( ALL)01/95]
q
Protect from sunlight, if possible.
*
[SV56500( ALL)01/95]
q
If vehicles are stored outside, they require
regular maintenance to protect against rust
and damage.
*
[SV56600( ALL)01/95]
Body
*
[SV56700( ALL)01/95]
q
Wash vehicle thoroughly to remove dirt,
grease, oil, tar or mud from exterior surfaces,
rear wheel housing and underside of front
fenders.
*
[SV56800( ALL)01/95]
q
Periodically wash vehicles stored in exposed
locations.
*
[SV56900( ALL)01/95]
q
Touch-up raw or primed metal to prevent
rust.
*
[SV57000( ALL)01/95]
q
Cover chrome and stainless steel parts with a
thick coat of auto wax to prevent
discoloration. Re-wax as necessary when the
vehicle is washed.
*
[SV57100( ALL)04/95]
q
Lubricate all hood, door and trunk lid hinges
and latches with a light grade oil.
*
[SV57200( ALL)01/95]
q
Cover interior soft trim to prevent fading.
*
[SV57300( ALL)01/95]
q
Keep all rubber parts free from oil and
solvents.
File:ltsvb.ex
Update:Tue Jun 20 16:56:22 1995
ProCarManuals.com

352 %
*
[SV57350( ALL)01/95]
Engine
*
[SV57400( ALL)01/95]
q
Start engine every 15 days. Run at fast idle
until it reaches normal operating temperature.
*
[SV57500( ALL)01/95]
q
With your foot on the brake, shift through all
the gears while the engine is running.
%*
[SV57600( ALL)01/95]
Fuel system
*
[SV57700( ALL)07/94]
q
Fill fuel tank with high-quality unleaded fuel
until the first automatic shutoff of the fuel
pump nozzle.
*
[SV57900( ALL)03/95]
NOTE: During extended periods of vehicle
storage (60 days or more), fuel may
deteriorate due to oxidation. This can
damage rubber and other polymers in
the fuel system and may also clog
small orifices.
*
[SV58000( ALL)01/95]
Ford Gas Stabilizer should be added whenever
actual or expected storage periods exceed 60
days. Follow the instructions on the label. The
vehicle should then be operated at idle speed to
circulate the additive throughout the fuel system.
*
[SV58100( ALL)01/95]
A volatile corrosion inhibitor added to the fuel
system will protect the fuel system's inner
surfaces from corrosion. Follow the instructions
packaged with the product.
%*
[SV58200( ALL)01/95]
Cooling system
*
[SV58300( ALL)01/95]
q
Protect against freezing temperatures.
%*
[SV58400( ALL)01/95]
Battery
*
[SV58500( ALL)01/95]
q
Check and recharge as necessary.
*
[SV58600( ALL)01/95]
q
Keep connections clean and covered with a
light coat of grease.
%*
[SV58700( ALL)01/95]
Brakes
*
[SV58800( ALL)01/95]
q
Make sure brakes and parking brake are fully
released.
File:ltsvb.ex
Update:Tue Jun 20 16:56:22 1995
ProCarManuals.com

353 %
*
[SV58900( ALL)01/95]
Tires
*
[SV59000(B FM)05/95]
q
Maintain recommended air pressures.
*
[SV59100( ALL)01/95]
Miscellaneous
*
[SV59200( ALL)01/95]
q
Make sure all linkages, cables, levers and
clevis pins under vehicle are covered with
grease to prevent rust.
*
[SV59300( ALL)03/95]
q
Move vehicles at least 25 feet (8 m) every 15
days to lubricate working parts to prevent
corrosion.
File:ltsvb.ex
Update:Tue Jun 20 16:56:22 1995
ProCarManuals.com

354 thirty-six pica chart:FORDADPLN
File:ltsvb.ex
Update:Tue Jun 20 16:56:22 1995
ProCarManuals.com

355 [QI02400(B )05/95]
full page art:0021504-B

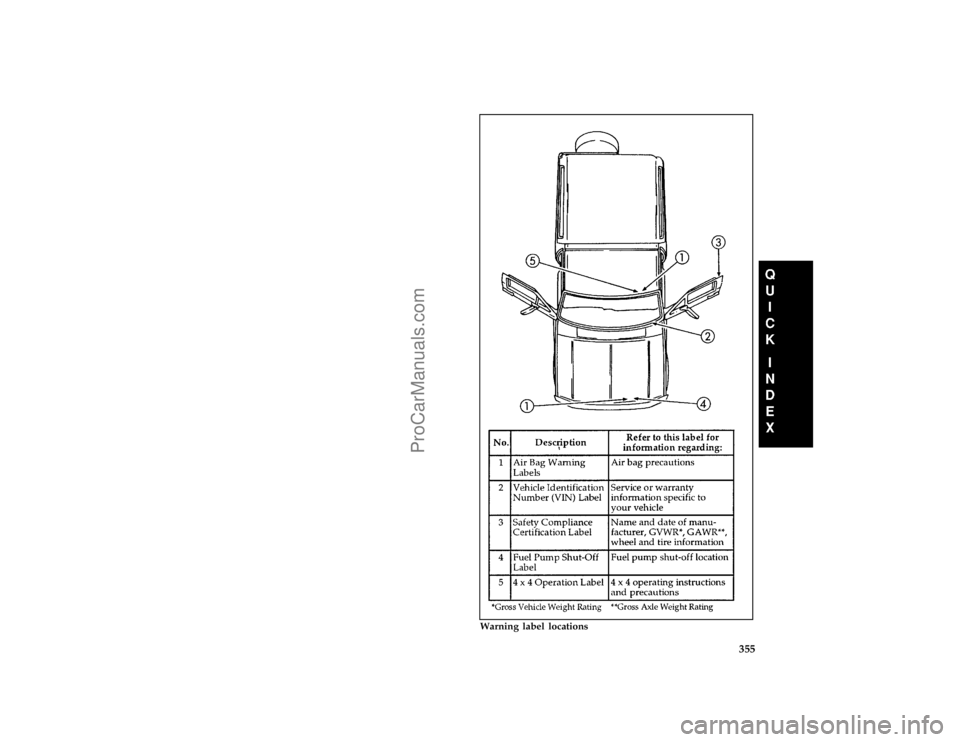

Warning label locations
File:ltqib.ex
Update:Fri Jun 9 15:21:47 1995
ProCarManuals.com
