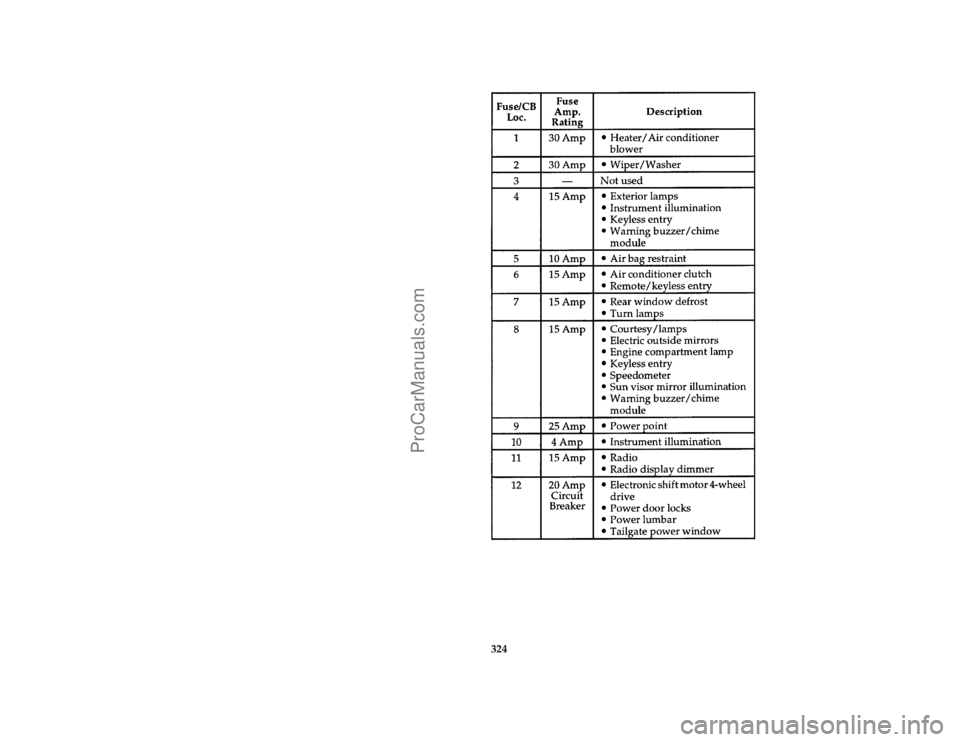

1988 FORD BRONCO Owners Manual

324 [SV40120(B )05/95]
thirty-six pica chart:0020993-E
File:ltsvb.ex
Update:Tue Jun 20 16:56:22 1995
ProCarManuals.com

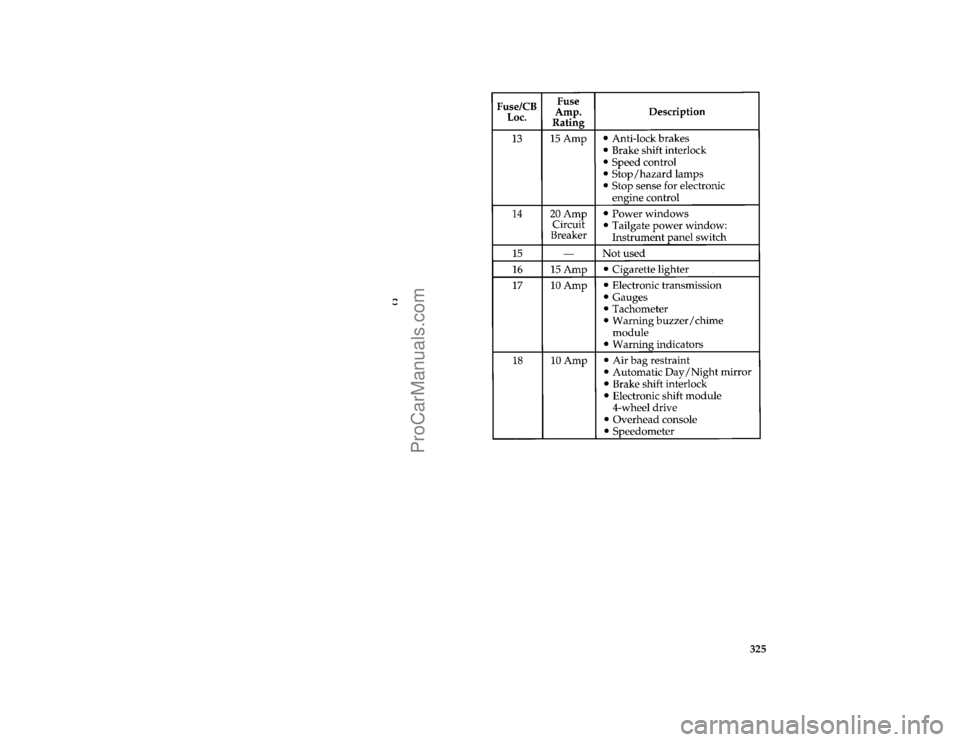

325 [SV40140(B )05/94]
twenty-eight pica chart:0020994-C
File:ltsvb.ex
Update:Tue Jun 20 16:56:22 1995
ProCarManuals.com

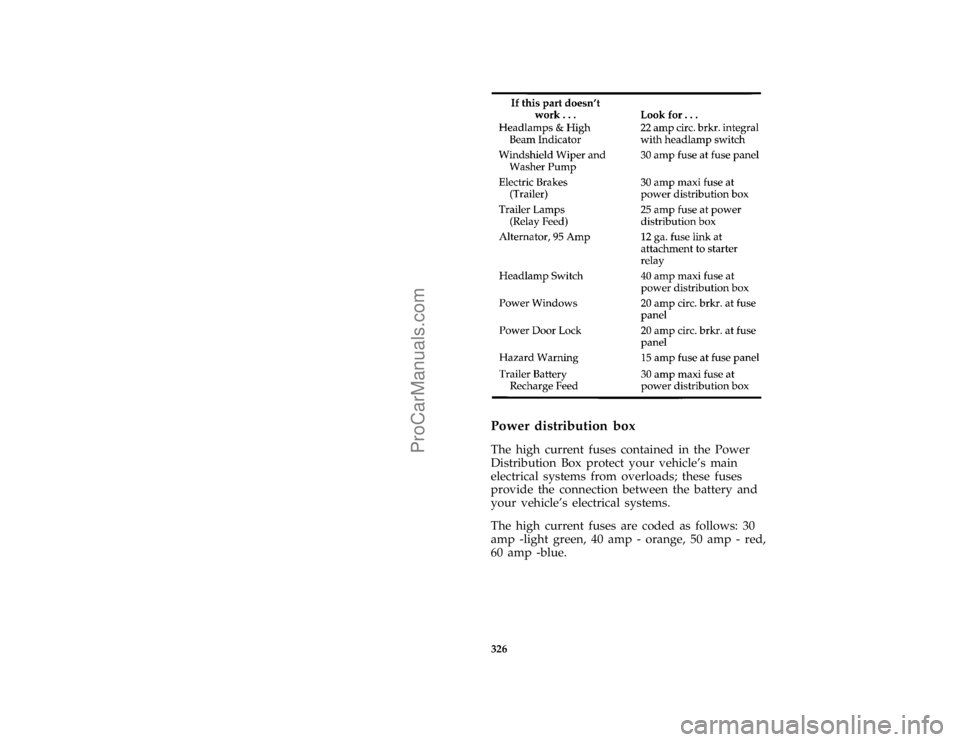

326 [SV40700(B )05/94]
twenty-two pica chart:0020396-F
*
[SV41300( ALL)10/92]
Power distribution box
*
[SV41400( ALL)10/92]
The high current fuses contained in the Power
Distribution Box protect your vehicle's main
electrical systems from overloads; these fuses
provide the connection between the battery and
your vehicle's electrical systems.
*
[SV41500( ALL)10/92]
The high current fuses are coded as follows: 30
amp -light green, 40 amp - orange, 50 amp - red,
60 amp -blue.
File:ltsvb.ex
Update:Tue Jun 20 16:56:22 1995
ProCarManuals.com

327
*
[SV41600( ALL)05/95]
RWARNING
Always disconnect the battery before
servicing high current fuses.
*
[SV41620( ALL)05/95]
Ford recommends that high current fuses be
replaced by a qualified technician.
*
[SV41700( ALL)03/93]
RWARNING
Always replace the cover to the Power
Distribution Box before reconnecting the
battery or refilling fluid reservoirs.
*
[SV41800( ALL)04/95]
A blown high current fuse may be replaced but
will continue to blow until the cause of the
overload condition is corrected.
*
[SV41900( ALL)05/95]
RWARNING
Always replace a fuse with one that has
the specified amperage rating. Using a
fuse with a higher amperage rating can
cause severe wire damage and could start
a fire.
File:ltsvb.ex
Update:Tue Jun 20 16:56:22 1995
ProCarManuals.com

328
*
[SV42150(B F )07/94]

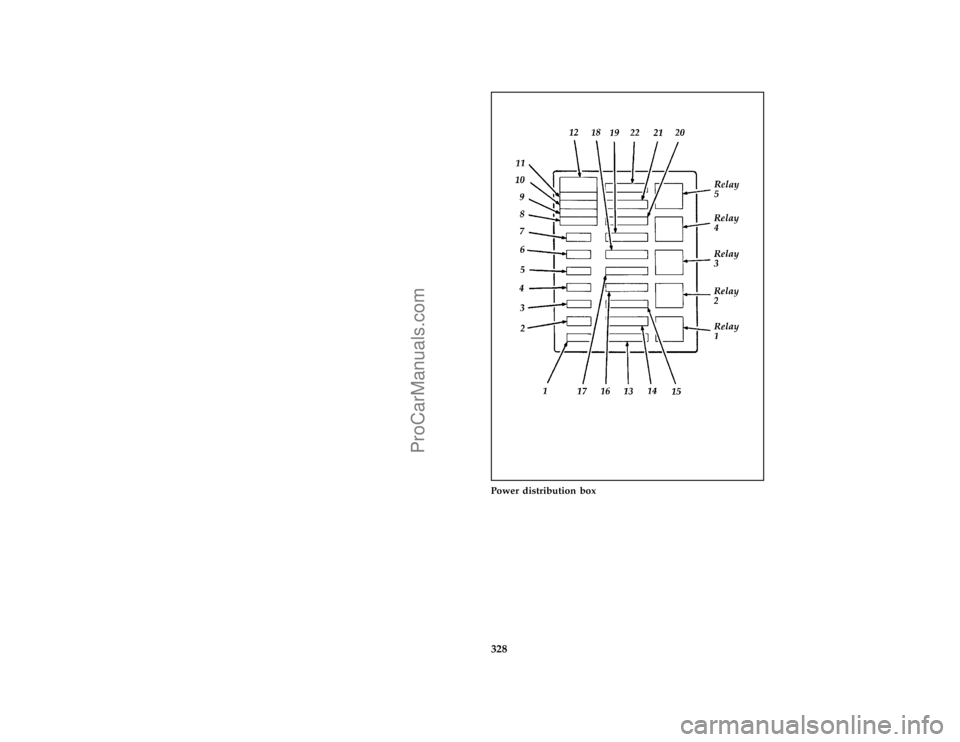

three fourths page art:0020840-F
Power distribution box
File:ltsvb.ex
Update:Tue Jun 20 16:56:22 1995
ProCarManuals.com

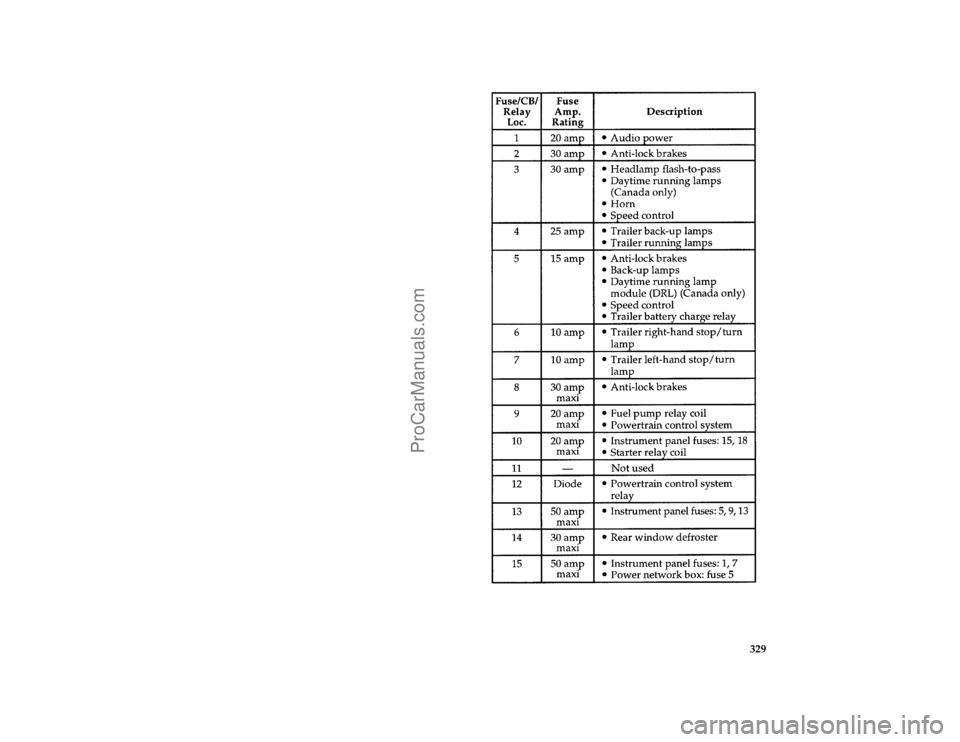

329 [SV42153(B )04/95]
thirty-six pica chart:0021004-C
File:ltsvb.ex
Update:Tue Jun 20 16:56:22 1995
ProCarManuals.com

330 [SV42154(B )04/95]
twenty-eight pica chart:0021009-C
%*
[SV42200( ALL)05/95]
Checking and Replacing Fuses
*
[SV42300( ALL)02/95]
If you need to check a fuse, follow these steps:
*
[SV42800(B F )03/91]
1. In order to find the fuse panel, you must
first remove the cover from the lower edge
of the instrument panel. You can do this by
pulling on handle to disengage the fasteners.
File:ltsvb.ex
Update:Tue Jun 20 16:56:22 1995
ProCarManuals.com

331
*
[SV42900(B F )03/91]

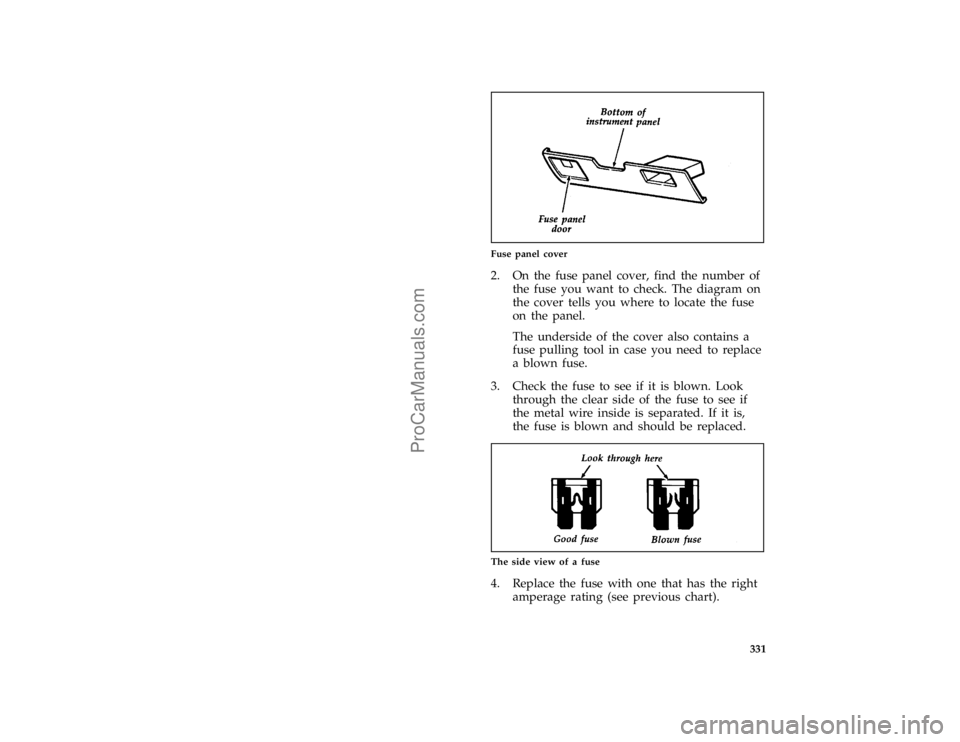

one third page art:0020475-B
Fuse panel cover
*
[SV43300( ALL)10/94]
2. On the fuse panel cover, find the number of
the fuse you want to check. The diagram on
the cover tells you where to locate the fuse
on the panel.
*
[SV43350(B FM)10/92]
The underside of the cover also contains a
fuse pulling tool in case you need to replace
a blown fuse.
*
[SV43400( ALL)10/92]
3. Check the fuse to see if it is blown. Look
through the clear side of the fuse to see if
the metal wire inside is separated. If it is,
the fuse is blown and should be replaced.
*
[SV43500( ALL)10/92]
quarter page art:0020405-A
The side view of a fuse
*
[SV43600( ALL)10/92]
4. Replace the fuse with one that has the right
amperage rating (see previous chart).
