Calibration adjustment
*
[FV62900(B )03/93]
1. Find an open area that is free from steel
structures and high voltage lines. An open
parking lot is a good example.
*
[FV63000(B )03/93]
2. Press and hold the ªMODEº button until the
ªCALº indicator appears in the display
(approximately 8 seconds).
*
[FV63050(B )05/95]
NOTE: You cannot perform calibration unless
the display reads ªCAL.º
*
[FV63100(B )03/93]
3. Release the ªMODEº button.
*
[FV63300(B )03/93]
4. Once the ªCALº indicator has appeared,
drive the vehicle slowly (less than 3 mph /
5 km/h) in360Êcircles until the ªCALº
indicator turns off. This will happen within 2
to 3 complete circles.
*
[FV63800(B )03/93]
Map lamps
*
[FV63900(B )03/93]
The map lamps are located in the overhead
console. The driver and passenger side each has
its own switch.
[FV64050(B )05/94]
one third page art:0021077-B
Map lamps Ð Eddie Bauer only
File:ltfvb.ex
Update:Fri Jun 9 15:28:41 1995
ProCarManuals.com

146
*
[FV64100(B )03/93]
Storage Compartment
*
[FV64200(B )03/93]
The storage compartment can be accessed by
pushing the ªOPENº button. The door will open
approximately one inch then it can be manually
moved to the full open position.
*
[FV64300(B )03/93]
The compartment can be used to store a variety
of items such as: tissues, parking pass, cigarettes
or sunglasses.
*
[FV64400(B )03/93]
Use as Garage Door Opener
*
[FV64500(B )03/93]
The door can be converted from ªUtilityº
storage to a housing and means of actuating a
variety of ªaftermarketº garage door opener
transmitters.
*
[FV64600(B )03/93]
Removal of storage clip
*
[FV64700(B )03/93]
In order to convert the door, simply remove the
utility storage clip from the back side of the
door as shown in the following illustration.
[FV64850(B )05/93]
one third page art:0021079-AFile:ltfvb.ex
Update:Fri Jun 9 15:28:41 1995
ProCarManuals.com

147
*
[FV64900(B )03/93]
Installing ªaftermarketº transmitter
*
[FV65000(B )03/93]
Place the piece of Velcro hook onto your
aftermarket transmitter, opposite side as that of
the actuator button.
*
[FV65100(B )03/93]
Place the transmitter into the console housing,
button down, as shown. Place the height
adapters provided into the back side of the
ªGARAGEº button as needed. Some larger
transmitters will not need the adapters, and
some smaller ones may need two adapters.
*
[FV65200(B )03/93]
The transmitter can now be activated without
opening the door. Simply depress the
ªGARAGEº button.
[FV65350(B )05/93]
one third page art:0021080-AFile:ltfvb.ex
Update:Fri Jun 9 15:28:41 1995
ProCarManuals.com

148
*
[FV69900(BEF )03/95]
Power Point Electrical Outlet
*
[FV70000(B F )05/94]
The power point outlet is located on the
instrument panel to the right of the shift lever.
This outlet should be used in place of the
cigarette lighter for optional electrical accessories.
*
[FV70200(BEF )06/92]
NOTE: Do not use the cigarette lighter in
place of the power point.
*
[FV70300(B F )06/92]

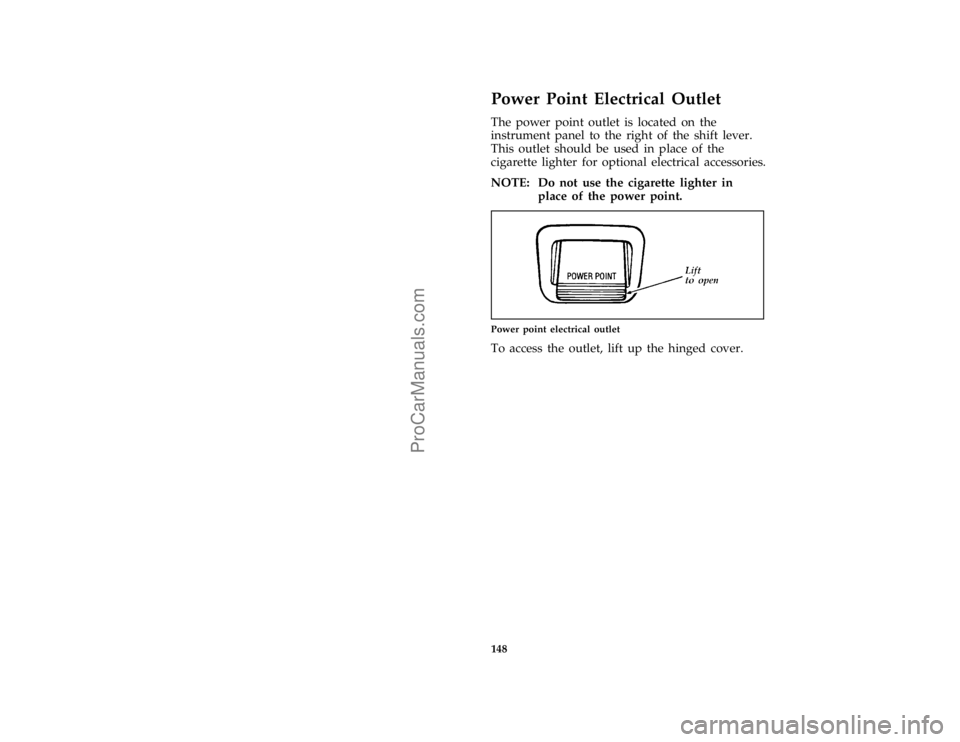

quarter page art:0020929-A
Power point electrical outlet
*
[FV70500(B F )07/92]
To access the outlet, lift up the hinged cover.
File:ltfvb.ex
Update:Fri Jun 9 15:28:41 1995
ProCarManuals.com

149
Electronic Sound Systems
*
[AS01100(BEF )04/95]

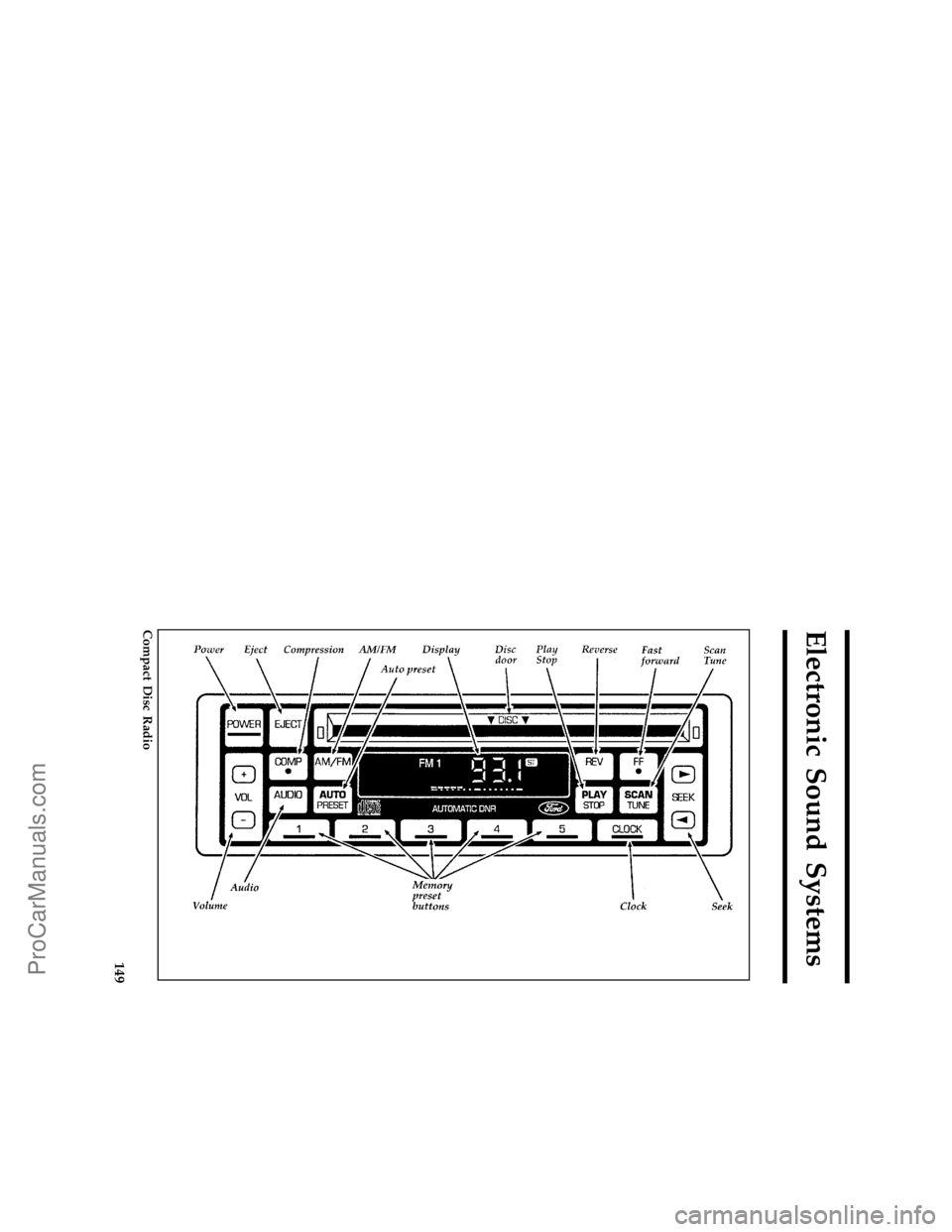

full page art:0060648-B
Compact Disc Radio
File:ltasb.ex
Update:Fri Jun 9 15:27:22 1995
ProCarManuals.com

150
*
[AS01200(BEF )04/95]
Compact Disc Radio
*
[AS01250(BEF )05/95]
The Compact Disc Radio combines the Electronic
Stereo Radio with the Ford Compact Disc Player.
*
[AS01300(BEF )04/95]
Using the Controls on Your New Radio/CD
Player
*
[AS01400(BEF )04/95]
Most of the features of this unit work for both
radio and CD operation. Also, some of the knobs
and buttons control several different functions,
so be sure to read all of the operating
instructions carefully.
*
[AS01500(BEF )04/95]
How to turn the radio on and off
*
[AS01600(BEF )04/95]
Press the ªPOWERº button to turn the radio on.
Press it again to turn it off.
*
[AS01625(BEF )04/95]
How to adjust the volume
*
[AS01650(BEF )05/95]
Press the (+/±) side of the ªVOLº button to
increase/decrease the volume. Bars illuminate in
the display to show the relative volume level.
*
[AS01675(BEF )04/95]
NOTE: If the volume level is set above a
certain listening level when the
ignition switch is turned off, when the
ignition switch is turned back on, the
volume will come back to a ªnominalº
listening level. However, if the radio
power is turned off (with the
ªPOWERº button), the volume will
remain in the position it was set at
when radio power is switched back on.
*
[AS01700(BEF )04/95]
Selecting the AM or FM frequency band
*
[AS01800(BEF )04/95]
Push the ªAM/FMº button to select the desired
frequency band. When in the radio mode,
pushing the button more than once will alternate
between AM, FM1 and FM2. These functions are
used with the station memory buttons described
underHow to tune radio stations.
File:ltasb.ex
Update:Fri Jun 9 15:27:22 1995
ProCarManuals.com

151 %
*
[AS01900(BEF )05/95]
How to tune radio stations
*
[AS02000(BEF )07/94]
There are four ways for you to tune in a
particular station. You can manually locate the
station using the ªSCAN/TUNEº button,
ªSEEKº the station, ªSCANº to the station or
select the station by using the memory buttons,
which you can set to any desired frequency.
These four methods are described below.
*
[AS02100(BEF )04/95]
q
Using the ªSCAN/TUNEº button to manually
tune
*
[AS02200(BEF )04/95]
You can change the frequency up or down
one increment at a time (FM changes in
increments of 200kHz; AM changes in
increments of 10kHz) by first pressing the
ªSCAN/TUNEº button twice (display shows
ªTUNEº), then Ðwithin approximately five
secondsÐpressing and releasing either the
top
aor bottom
bhalf of the ªSEEKº
button. To change frequencies quickly, press
andhold downeither the top or bottom half
of the ªSEEKº button. While you are
manually tuning, the display will show a
blinking ªMº.
*
[AS02300(BEF )04/95]
Manual tuning adjusts your radio to any
allowable broadcast frequency, whether or
not a station is present on that frequency.
(SeeAll About Radio Frequenciesin this
section.)
File:ltasb.ex
Update:Fri Jun 9 15:27:22 1995
ProCarManuals.com

152
*
[AS02400(BEF )04/95]
q
Using the ªSEEKº function
*
[AS02500(BEF )04/95]
This feature on your radio allows you to
automatically select listenable stations up or
down the frequency band. Press the top
a
half of the ªSEEKº button to select the next
listenable station up the frequency band.
Press the bottom
bhalf of the button to
select the next listenable station down the
frequency band. By pressing and holding the
button, listenable stations can be passed over
to reach the desired station.
*
[AS02600(BEF )04/95]
q
Using the ªSCAN/TUNEº button to scan
radio stations
*
[AS02700(BEF )04/95]
Pressing the ªSCAN/TUNEº button once
enters the scan mode (display will indicate
ªSCNº). Pushing the top
ahalf of the
ªSEEKº button will begin the scan mode up
the frequency band, stopping on each
listenable station for approximately five
seconds. Pushing the bottom
bhalf of the
ªSEEKº button will begin the scan mode
down the frequency band, again stopping on
each listenable station for approximately five
seconds.
*
[AS02800(BEF )04/95]
To stop the scan mode on the presently
sampled station press the ªSCAN/TUNEº
button again.
*
[AS03000(BEF )04/95]
q
Setting the Station Memory Preset buttons
*
[AS03100(BEF )04/95]
Your radio is equipped with 5 station memory
buttons. These buttons can be used to select up
to 5 preset AM stations and 10 FM stations (5 in
FM1 and 5 in FM2). Follow the easy steps below
to set these buttons to the desired frequencies.
*
[AS03200(BEF )04/95]
1. Select a band, then select a frequency.
