1988 FORD BRONCO Owners Manual

308
*
[SV27851( ALL)01/95]
RWARNING
When replacing full size tires, never mix
radial, bias-belted, or bias-type tires. Use
only the tire sizes that are listed on the
tire pressure decal. Make sure that all tires
are the same size, speed rating, and
load-carrying capacity. Use only the tire
combinations recommended on the decal.
If you do not follow these precautions,
your vehicle may not drive properly and
safely.
*
[SV27860( ALL)03/90]
RWARNING
Make sure that all replacement tires are of
the same size, type, load-carrying capacity,
and tread design (e.g. ªAll Terrainº, etc.),
as originally offered by Ford.
*
[SV27885( ALL)04/95]
RWARNING
Do not replace your tires with ªhigh
performanceº tires or larger size tires.
*
[SV27895( ALL)05/95]
RWARNING
Failure to follow these precautions may
adversely affect the handling of the
vehicle and make it easier to lose control
and roll over.
*
[SV27900( ALL)01/95]
Tires that are larger or smaller than your
vehicle's original tires may also affect the
accuracy of your speedometer.
File:ltsvb.ex
Update:Tue Jun 20 16:56:22 1995
ProCarManuals.com

309 [SV28200(B )06/93]
full page art:0020367-E

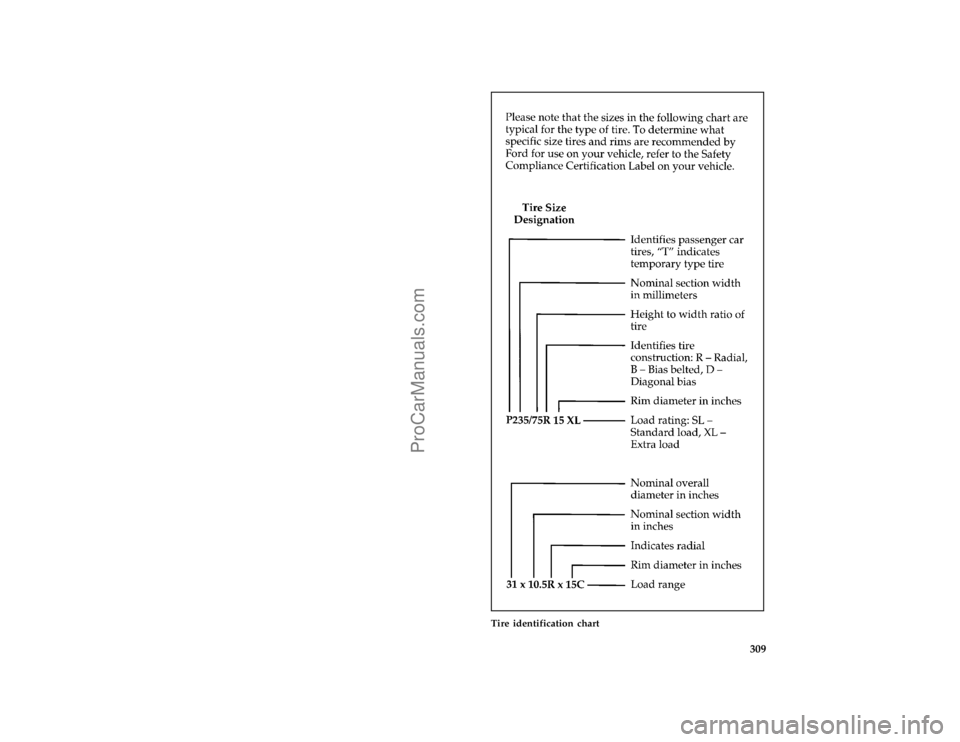

Tire identification chart
File:ltsvb.ex
Update:Tue Jun 20 16:56:22 1995
ProCarManuals.com

310
*
[SV28700(B )05/95]
RWARNING
Use of aftermarket wheel assemblies may
damage your vehicle or cause accidents
resulting in serious injuries.
*
[SV28800( ALL)04/95]
Wheel and Tire Matching
*
[SV28900( ALL)03/95]
See an authorized tire dealer for proper
servicing procedures. Wheels and tires must be
properly removed, matched and remounted to
maintain the best possible ride.
%*
[SV31100(BEF )04/95]
Snow Tires and Chains
*
[SV31200(BEF )01/95]
The tires on your vehicle have all-weather treads
that provide traction in rain or snow. However,
during the winter months in some climates, you
may need to use snow tires and occasionally
chains for your tires.
*
[SV31300(BEF )05/95]
RWARNING
Snow tires must be the same size and
grade as the tires you currently have on
your vehicle.
*
[SV31400(BEF )02/95]
Use chains on the tires only in an emergency or
if the law requires them where you live. If you
choose to use chains on your vehicle's tires, be
aware of the following:
*
[SV31500(BEF )01/95]
q
Make sure the chains are the right size for
your tires. Use only SAE Class ªSº chains.
Other types may damage your vehicle.
*
[SV31600(BEF )01/95]
q
Put the chains on tightly with the ends held
down securely. Verify that no chain touches
any wiring, brake lines, or fuel lines. Follow
the chain manufacturer's instructions.
File:ltsvb.ex
Update:Tue Jun 20 16:56:22 1995
ProCarManuals.com

311
*
[SV31700(BEF )01/95]
q
Drive slowly. If you can hear the chains rub
or bang against your vehicle, stop the vehicle
and tighten the chains. If you continue to
hear the chains rub or bang against your
vehicle, remove the chains to prevent damage
to your vehicle.
*
[SV31800(BEF )10/94]
q
Avoid fully loading your vehicle if possible.
*
[SV31900(BEF )05/94]
q
Remove tire chains at the first opportunity
after using them on snow and ice. Do not use
the chains on dry roads.
*
[SV31950(BEF )05/91]
q
Make sure your suspension insulation and
bumpers are not missing or worn to avoid
damage to your vehicle.
%*
[SV31975(BEF )04/95]
Cleaning the Wheels
*
[SV31980(BEF )05/95]
Wash the wheels with the same detergent you
use to wash your vehicle's body. Do not use
acid-based wheel cleaners, steel wool, abrasives,
fuel, or strong detergents. These substances will
damage protective coatings. Use tar and road oil
remover to remove grease and tar.
*
[SV31985(BEF )04/95]
NOTE: Before going to a car wash, find out if
the brushes are abrasive.
*
[SV32100( ALL)03/95]
Battery
*
[SV32200( ALL)02/95]
Your vehicle may have a Motorcraft
maintenance-free battery. When the original
equipment battery is replaced under warranty, it
may be replaced by a Motorcraft
Low-Maintenance Battery.
*
[SV32500( ALL)02/95]
The Low-Maintenance Battery has removable vent
caps for checking the electrolyte level and for
adding water, if necessary. The electrolyte level
should be checked at least every 24 months or
24,000 miles (40,000 km) in temperatures up to
90Ê F (32Ê C) and more often in temperatures above
90Ê F (32Ê C). Keep the electrolyte level in each cell
up to the level indicator. Do not overfill.
File:ltsvb.ex
Update:Tue Jun 20 16:56:22 1995
ProCarManuals.com

312
*
[SV32700( ALL)02/95]
If the level gets low, you can add tap water to
the battery, provided the water isn't hard or
doesn't have a high mineral or alkali content.
However, if possible you should refill the battery
with distilled water. If the battery needs water
quite often, have the charging system checked
for a possible malfunction.
%*
[SV32725( ALL)03/95]
Help Us Protect Our Environment
*
[SV32750( ALL)04/95]
Ford Motor Company strongly recommends that
used lead-acid batteries be returned to an
authorized recycling facility for disposal.
*
[SV32775( ALL)03/95]
one inch art:0000983-A
Battery recycling symbol
*
[SV33200( ALL)01/95]
RWARNING
Batteries normally produce explosive gases
which can cause personal injury.
Therefore, do not allow flames, sparks or
lit tobacco to come near the battery. When
charging or working near a battery, always
cover your face and protect your eyes, and
also provide ventilation.
%*
[SV33300( ALL)05/95]
RWARNING
Batteries contain sulfuric acid which burns
skin, eyes, and clothing.
File:ltsvb.ex
Update:Tue Jun 20 16:56:22 1995
ProCarManuals.com

313
*
[SV33305( ALL)05/95]
If the acid touches someone's skin, eyes, or
clothing, immediately flush the area with water
for at least 15 minutes. If someone swallows the
acid, have him or her drink lots of milk or water
first, then Milk of Magnesia, a beaten egg, or
vegetable oil. Call a doctor immediately.
%*
[SV33400( ALL)05/95]
RWARNING
Applying too much pressure on the ends
when lifting a battery could cause acid to
spill. Lift the battery with a carrier or
with your hands on the opposite corners.
*
[SV33500( ALL)01/95]
Automatic Transmission Fluid
*
[SV33601( ALL)04/95]
Under normal driving conditions automatic
transmission fluid should be changed every
30,000 miles (48,000 km) or 21,000 miles
(34,000 km) if under severe duty conditions.
However, if the transmission is not working
properly, for instance, the transmission may slip
or shift slowly, or you may notice some sign of
fluid leakage, the fluid level should be checked.
[SV33605( ALL)04/95]
NOTE: Except E4OD transmission, there is no
30,000 mile (48,000 km) sheduled
transmission fluid change requirement.
[SV33615( ALL)05/95]
Transmission fluid, filter and seal assembly
should be changed every 21,000 miles
(34,000 km) only under any of the following
conditions.
[SV33620( ALL)04/95]
q
Extended periods of high speed driving
during hot weather at/or above+90ÊF
(+30ÊC).
[SV33625( ALL)04/95]
q
Towing a trailer for distances over 1,000 miles
(1,600 km) per trip.
[SV33630( ALL)04/95]
q
Accumulating 5,000 miles (8,000 km) or more
per month.
File:ltsvb.ex
Update:Tue Jun 20 16:56:22 1995
ProCarManuals.com

314 [SV33635( ALL)04/95]q
Continuous operation and/or extensive idling
(a delivery service as an example).
[SV33640( ALL)04/95]
q
Operating in severe dust conditions.
[SV33645( ALL)04/95]
NOTE: Use of a transmission fluid other than
specified could result in transmission
malfunction and/or failure. Refer to
ªAdding automatic transmission fluidº,
ªRefill capacitiesº and ªlubricant
specificationsº for further information.
%*
[SV33651( ALL)02/95]
Checking the Automatic Transmission
Fluid
*
[SV33701( ALL)02/95]
It is preferable to check the transmission fluid
level at normal operating temperature
150ÊF-170ÊF (66ÊC-77ÊC),after approximately 20
miles (32 km) of driving. However, if necessary,
you can check the fluid level without having to
drive 20 miles (32 km) to obtain a normal
operating temperature if outside temperatures
are above50ÊF (10ÊC).
*
[SV33801( ALL)01/95]
NOTE: If the vehicle has been operated for an
extended period at high speeds or in
city traffic during hot weather, or
pulling a trailer, the vehicle should be
turned off for about 30 minutes to
allow the fluid to cool before checking.
*
[SV33910( ALL)12/91]
With the vehicle on a level surface, start the
engine and move the transmission shift selector
through all of the gear ranges allowing sufficient
time for each position to engage. Securely latch
the transmission shift selector in the Park (P)
position, fully set the parking brake and leave
the engine running.
*
[SV33920(B F )06/94]
NOTE: Vehicles equipped with the 4x4 option
must have the 4x4 shift selector in any
position other than neutral.
File:ltsvb.ex
Update:Tue Jun 20 16:56:22 1995
ProCarManuals.com

315
*
[SV33930( ALL)10/89]
RWARNING
Your vehicle should not be driven if the
fluid level is below the bottom hole on
the dipstick and outside temperatures are
above50ÊF (10ÊC).
*
[SV33940( ALL)02/95]
Wipe off the dipstick cap, pull the dipstick out
and wipe the indicator end clean. Put the
dipstick back into the filler tube and make sure
it is fully seated. Pull the dipstick out and read
the fluid level.
*
[SV33950( ALL)03/90]
When checking fluid at normal operating
temperature, the fluid level should be within the
crosshatched area on the dipstick. When the
vehicle has not been driven, and outside
temperature is above50ÊF (10ÊC), thefluid level
should be between the holes on the dipstick.
%*
[SV33960( ALL)05/95]
Adding Automatic Transmission Fluid
*
[SV33970( ALL)03/94]
The fluid type is stamped on the dipstick. Before
adding any fluid, be sure that the correct type
will be used.
*
[SV33980( ALL)10/89]
Add fluid in 1/2 pint (.25L) increments through
the filler tube to bring the level to the correct
area on the dipstick. If an overfill occurs, excess
fluid should be removed by a qualified
technician.
%*
[SV33990( ALL)04/95]
NOTE: Always dispose of used automotive
fluids in a responsible manner. Follow
your community's standards for
disposing of these types of fluids. Call
your local recycling center to find out
about recycling automotive fluids.
