1988 FORD BRONCO Owners Manual

137
push the On/Off switch again and the button
will unlatch shutting off the light and the mirror
will be off.
*
[FV51100(B F )03/93]
DemonstrationÐ The mirror's operation may
be demonstrated by simulating glare as follows:
*
[FV51200(B F )03/94]
1. Cover the forward facing sensor, located on
the right side of the mirror back, with a
dark (preferably black) cloth. Hold the dark
cloth over the sensor until you notice the
mirror glass start to darken to the non-glare
state. If the surrounding lighting conditions
are too dark it may be necessary to shine
additional lighting, such as from a flashlight,
on the rearward sensor located on the glass
face.
*
[FV51400(B F )03/93]
2. Remove the cloth (and shut off the flashlight
if applicable) and the glass will return to the
clear reflective stage.
*
[FV51500(B F )01/95]
One important safety feature is that the mirror
automatically returns to the normal position
whenever the vehicle is placed in R (Reverse)
(when the mirror is in the ON position). This
feature ensures a bright clear view in the mirror
when backing up.
*
[FV52900(BEF )12/89]
Outside Mirrors (Manual Control)
*
[FV53000(BEF )10/89]
Adjust outside mirrors with the door closed and
the seat adjusted for comfort and proper vehicle
control. Move the mirrors for best view by
tilting up or down, left or right.
*
[FV53100(BEF )03/95]
On vehicles equipped with fold-away mirrors,
the mirrors should be folded rearward into the
body position before entering automatic car
wash systems.
File:ltfvb.ex
Update:Fri Jun 9 15:28:41 1995
ProCarManuals.com

138
*
[FV53300(B F )12/91]
quarter page art:0020900-B
Standard fold-away mirror
[FV53800(B )05/90]
quarter page art:0020324-B
Low-mount swingaway mirror
*
[FV54000(B )12/91]
The right-hand side view mirror is convex. This
mirror has a curved surface and will show a
wider view of the lane next to and behind your
vehicle.
*
[FV54400(BEF )05/95]
RWARNING
The side view mirror on the right makes
objects appear smaller and farther away
than they actually are.
File:ltfvb.ex
Update:Fri Jun 9 15:28:41 1995
ProCarManuals.com

139
*
[FV54500(BEF )08/91]
Dual Electric Remote Control Mirrors
(If equipped)
*
[FV54600(BEF )08/91]
To adjust the remote controlled side mirrors:
*
[FV54800(BEF )06/94]
1. Find the control switch in the driver's door
panel.
*
[FV55000(BEF )06/94]
2. Select the right or left mirror by moving the
selector switch to R or L.
*
[FV55200(BEF )06/94]
3. Move the control knob in the direction you
want to move the mirror.
*
[FV55400(BEF )06/94]
4. Return the selector switch to the middle
position to keep the mirror in place.
*
[FV55700(B F )12/91]
quarter page art:0020886-A
Power mirror control
*
[FV55900(BEF )12/91]
Do not clean the plastic housing of any electric
mirror with gasoline or other petroleum-based
cleaning products.
File:ltfvb.ex
Update:Fri Jun 9 15:28:41 1995
ProCarManuals.com

140
*
[FV59400(BEF )01/95]
Console
*
[FV59500(BEF )12/91]
Your vehicle may have a full console. The full
console has the features shown in the illustration
below.
*
[FV60100(B F )12/91]
half page art:0020683-C
The features on the console
File:ltfvb.ex
Update:Fri Jun 9 15:28:41 1995
ProCarManuals.com

141
*
[FV60200(B F )12/91]

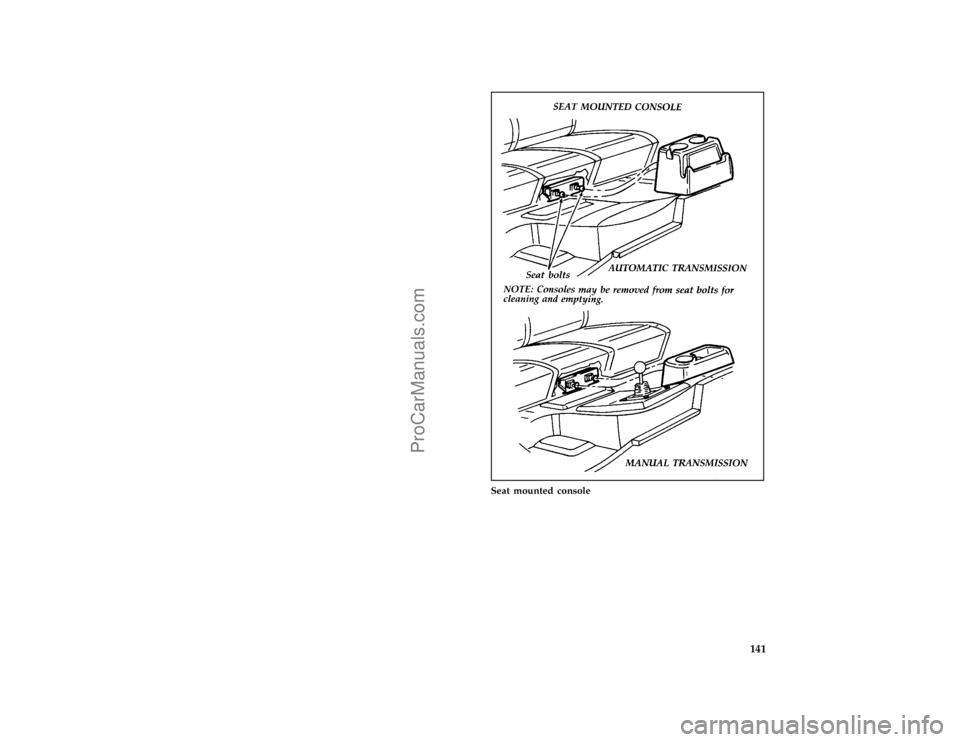

three fourths page art:0020909-A
Seat mounted console
File:ltfvb.ex
Update:Fri Jun 9 15:28:41 1995
ProCarManuals.com

142
[FV60350(B )03/93]
Overhead Console (Eddie Bauer
only)
[FV60450(B )05/95]
Your Eddie Bauer Bronco comes with an
overhead console located between the sun visors.
The console includes:
*
[FV60500(B )03/93]
q
Compass/temperature display
*
[FV60600(B )03/93]
q
Map lamps
*
[FV60700(B )03/93]
q
Storage compartment
*
[FV60800(B )03/93]
Compass/Temperature display
*
[FV60900(B )05/95]
This display provides the outside temperature
and the compass direction of the vehicle.
*
[FV60920(B )03/93]
The MODE button is used to select one of the
following features:
*
[FV60940(B )03/93]
q
Display Off
*
[FV60960(B )03/93]
q
Temp in ÊF and Compass
*
[FV60980(B )03/93]
q
Temp in ÊC and Compass
[FV61001(B )05/95]

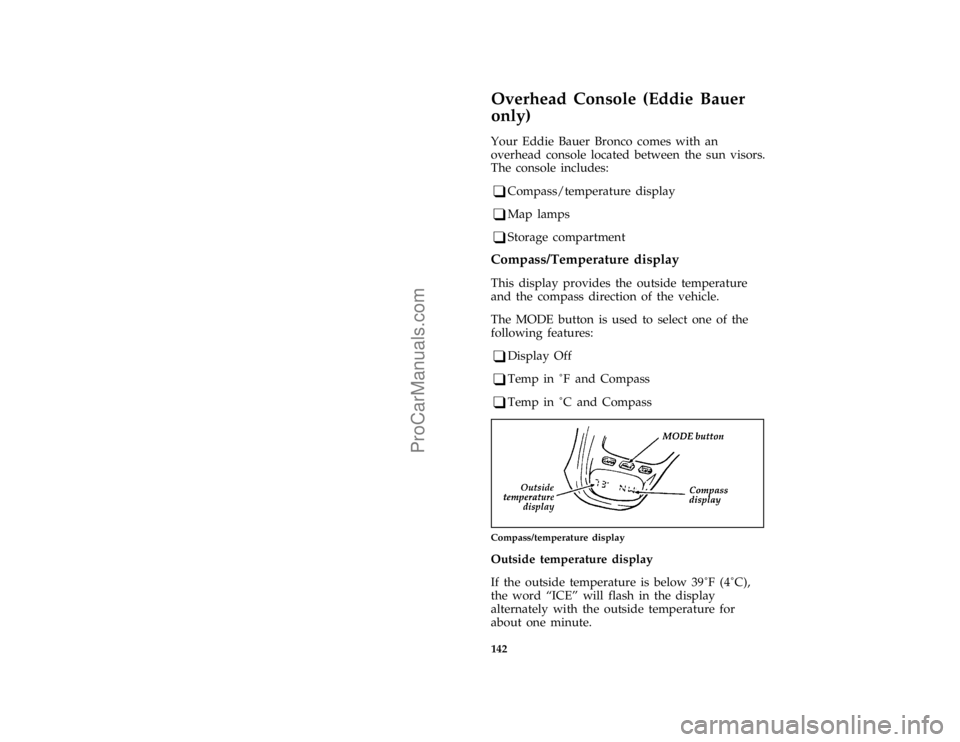

quarter page art:0020980-B
Compass/temperature display
[FV61100(B )03/93]
Outside temperature display
*
[FV61150(B )05/95]
If the outside temperature is below39ÊF (4ÊC),
the word ªICEº will flash in the display
alternately with the outside temperature for
about one minute.
File:ltfvb.ex
Update:Fri Jun 9 15:28:41 1995
ProCarManuals.com

143 [FV61400(B )05/95]
Electronic Compass
[FV61500(B )03/93]
Factors affecting compass accuracy
*
[FV61600(B )01/95]
The compass reading can be affected when you
drive near a number of things Ð such as large
buildings, bridges, power lines, and powerful
antennas.
*
[FV61700(B )05/95]
Your compass can also be affected by magnetic
or metallic objects placed in or on the vehicle. If
the compass is giving inaccurate readings,
perform the following compass adjustments.
[FV61800(B )03/93]
Compass adjustments
*
[FV61900(B )05/95]
There are two possible adjustments to the
compass: Zone and Calibration.
[FV62050(B )05/95]
Zone adjustment
*
[FV62100(B )03/93]
1. Determine which zone of the country you
are in by referring to the following zone
map.
File:ltfvb.ex
Update:Fri Jun 9 15:28:41 1995
ProCarManuals.com

144 [FV62200(B )03/93]

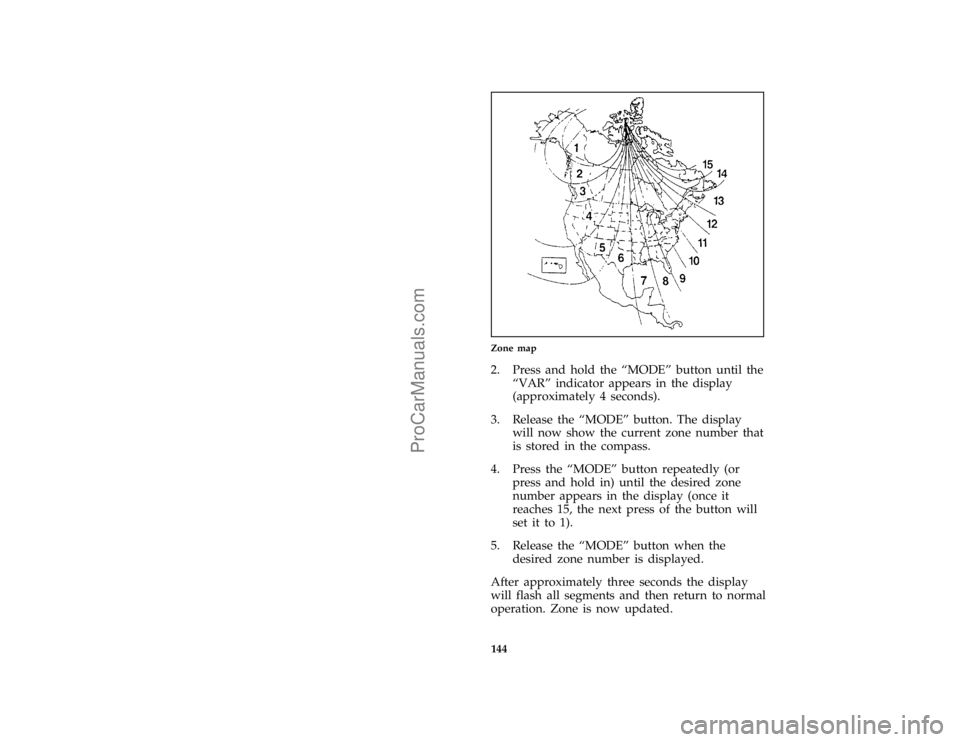

half page art:0080142-CZone map
*
[FV62300(B )03/93]
2. Press and hold the ªMODEº button until the
ªVARº indicator appears in the display
(approximately 4 seconds).
*
[FV62400(B )03/93]
3. Release the ªMODEº button. The display
will now show the current zone number that
is stored in the compass.
*
[FV62500(B )03/93]
4. Press the ªMODEº button repeatedly (or
press and hold in) until the desired zone
number appears in the display (once it
reaches 15, the next press of the button will
set it to 1).
*
[FV62600(B )03/93]
5. Release the ªMODEº button when the
desired zone number is displayed.
*
[FV62700(B )05/95]
After approximately three seconds the display
will flash all segments and then return to normal
operation. Zone is now updated.
