1988 FORD BRONCO Owners Manual

340
*
[SV49250( ALL)03/95]
In general, maintenance, replacement, or service
of the emissions control devices or systems in
your new Ford Motor Company vehicle or
engine may be performed at your expense by
any automotive repair establishment or
individual using automotive parts equivalent to
those which your vehicle or engine was
originally equipped.
*
[SV49300( ALL)05/95]
RWARNING
Do not park, idle, or drive your vehicle in
dry grass or other dry ground cover. The
emission system heats up the engine
compartment and exhaust system, which
can start a fire.
*
[SV49400(BEF )05/95]
RWARNING
On vehicles without original equipment
floor covering or insulation, do not let
passengers ride in your truck in a manner
that allows contact between skin and the
metal floor.
*
[SV49450( ALL)05/95]
If other than Ford or Motorcraft or Ford
authorized remanufactured parts are used for
maintenance, replacement, or for the service of
components affecting emissions control, the
owner should be assured that such parts are
warranted by their manufacturer to be
equivalent to genuine Ford Motor Company
parts in performance and durability. Please
consult your warranty information booklet for
complete warranty information.
*
[SV49500(BEF )05/95]
Watch for fluid leaks, strange odors, smoke, loss
of oil pressure, the charge warning light, the
check engine light, or the temperature warning
light. These sometimes indicate that the emission
system is not working properly.
File:ltsvb.ex
Update:Tue Jun 20 16:56:22 1995
ProCarManuals.com

341
*
[SV49600( ALL)01/95]
Do not make any unauthorized changes to your
vehicle or engine. Changes that cause more
unburned fuel to reach the exhaust system can
increase the temperature of the engine or
exhaust system.
*
[SV49700( ALL)01/95]
By law, anyone who manufactures, repairs,
services, sells, leases, trades vehicles, or
supervises a fleet of vehicles is not permitted to
intentionally remove an emission control device
or prevent it from working. In some of the
United States and in Canada, vehicle owners
may be liable if their emission control device is
removed or is prevented from working.
*
[SV49900( ALL)01/95]
Do not drive your vehicle if it does not operate
properly. See your dealer if the engine runs on
for more than five seconds after you shut it off
or if it misfires, surges, stalls, or backfires.
%*
[SV50000( ALL)05/95]
Information about your vehicle's emission
control system is on the Vehicle Emission
Control Information decal located on or near the
engine. This decal identifies engine displacement
and gives some tune-up specifications.
%*
[SV51456( ALL)05/95]
Readiness for Inspection/Maintenance
Testing
*
[SV51457( ALL)05/95]
In some localities it may become a legal
requirement to pass an
Inspection/Maintenance (I/M) test of the
On-Board Diagnostic (OBD) II system. If the
vehicle's powertrain system or its battery has
just been serviced, the OBD II system is reset to
a not ready for I/M testing condition. To
prepare for I/M testing, the law specifies a
ªneed for additional mixed city and highway
driving to complete the checkº of the OBD II
system. As soon as all of the OBD II system
checks are successfully completed, the OBD II
system is set to the ready condition. The amount
File:ltsvb.ex
Update:Tue Jun 20 16:56:22 1995
ProCarManuals.com

342of driving required to reach the ready condition
varies with individual driving patterns. To
complete this requirement in the minimum
amount of time, refer to the OBD II Drive Cycle
defined below. If the vehicle owner cannot or
does not want to do the additional driving
required by law, a service center can perform
this drive cycle as it would any other type of
repair work.
[SV51458( ALL)05/95]
OBD II Drive Cycle
[SV51459( ALL)04/95]
The engine must be warmed up and at
operating temperature before proceeding with
the drive modes of the following OBD II Drive
Cycle.
[SV51461( ALL)04/95]
1. Start the engine. Drive or idle (in neutral)
the vehicle for 4 minutes.
[SV51463( ALL)04/95]
2. Idle the vehicle in drive (neutral for manual
transmission) for 40 seconds.
*
[SV51465( ALL)05/95]
3. Accelerate the vehicle to 45 mph (72 km/h)
at 1/4 to 1/2 throttle for 10 seconds.
*
[SV51467( ALL)05/95]
4. Drive the vehicle with a steady throttle at
45 mph (72 km/h) for 30 seconds.
[SV51469( ALL)04/95]
5. Idle the vehicle in drive (neutral for manual
transmissions) for 40 seconds.
*
[SV51471( ALL)05/95]
6. Continue to drive the vehicle in city traffic at
speeds between 25 and 40 mph
(40-64 km/h) for 15 minutes. During the 15
minute drive cycle the following modes must
be achieved:
*
[SV51473( ALL)05/95]
a. at least 5 stop and idle modes at 10
seconds each
*
[SV51475( ALL)05/95]
b. acceleration from idles at 1/4 to 1/2
throttle position, and
*
[SV51477( ALL)05/95]
c. choose 3 different speeds to do 1.5
minute steady state throttle drives.
File:ltsvb.ex
Update:Tue Jun 20 16:56:22 1995
ProCarManuals.com

343
*
[SV51479( ALL)05/95]
7. Accelerate the vehicle up to between 45 and
60 mph (72-97 km/h). This should take
approximately 5 minutes.
*
[SV51481( ALL)05/95]
8. Drive vehicle and hold the throttle steady at
the selected speed between 45 and 60 mph
(72-97 km/h) for approximately 5 minutes.
*
[SV51483( ALL)05/95]
9. Drive the vehicle for 5 minutes at varying
speeds between 45 and 60 mph
(72-97 km/h).
*
[SV51485( ALL)05/95]
10. Bring the vehicle back to idle. Idle in drive
for 40 seconds.
*
[SV51487( ALL)05/95]
11. OBD II drive cycle has been completed.
Vehicle can be turned off when convenient.
File:ltsvb.ex
Update:Tue Jun 20 16:56:22 1995
ProCarManuals.com

344
*
[SV51500( ALL)03/95]
Refill Capacities, Motorcraft Parts,
and Lubricant Specifications
*
[SV51600( ALL)03/95]

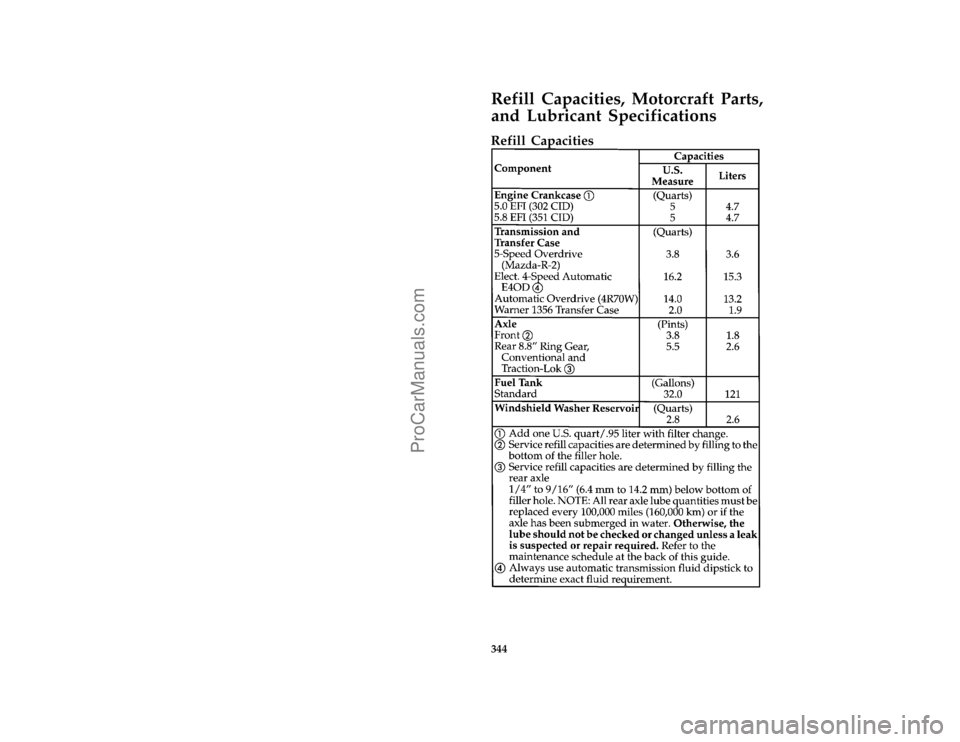

Refill Capacities
[SV51800(B )03/94]
thirty-four pica chart:0020418-KFile:ltsvb.ex
Update:Tue Jun 20 16:56:22 1995
ProCarManuals.com

345 [SV51900(B )03/94]
thirty-four pica chart:0020419-D
File:ltsvb.ex
Update:Tue Jun 20 16:56:22 1995
ProCarManuals.com

346
*
[SV52800( ALL)01/95]

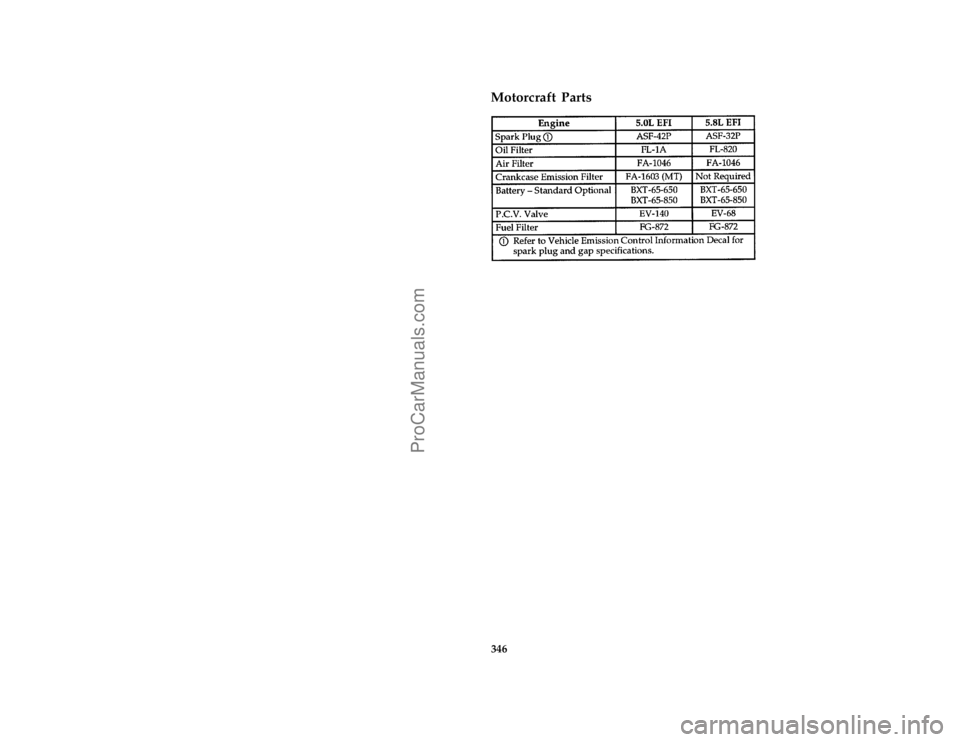

Motorcraft Parts
[SV53000(B )05/95]
sixteen pica chart:0020429-MFile:ltsvb.ex
Update:Tue Jun 20 16:56:22 1995
ProCarManuals.com

347
*
[SV53500( ALL)01/95]

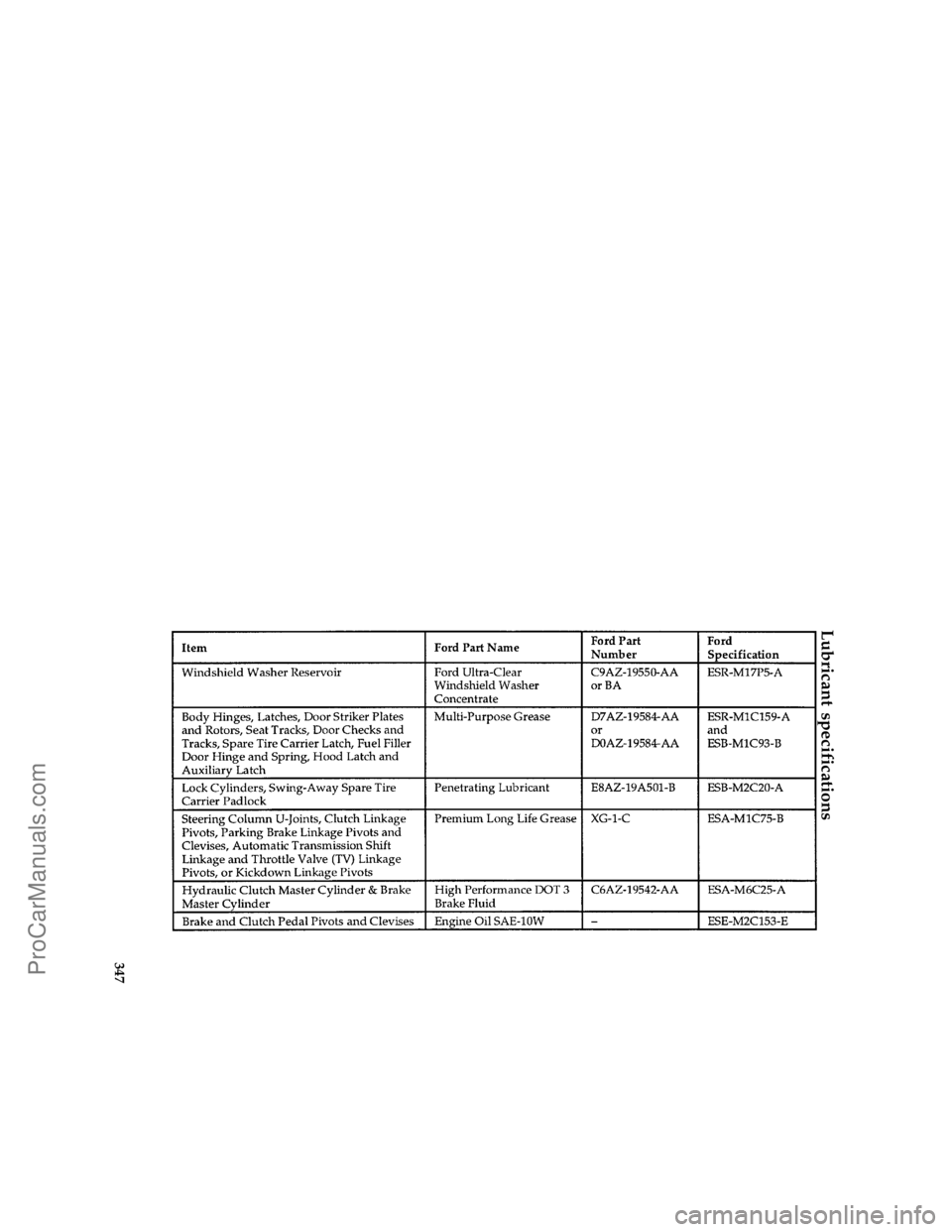

Lubricant specifications
[SV53900(B )05/95]
thirty-six pica chart:0020437-GFile:ltsvb.ex
