8 SYS

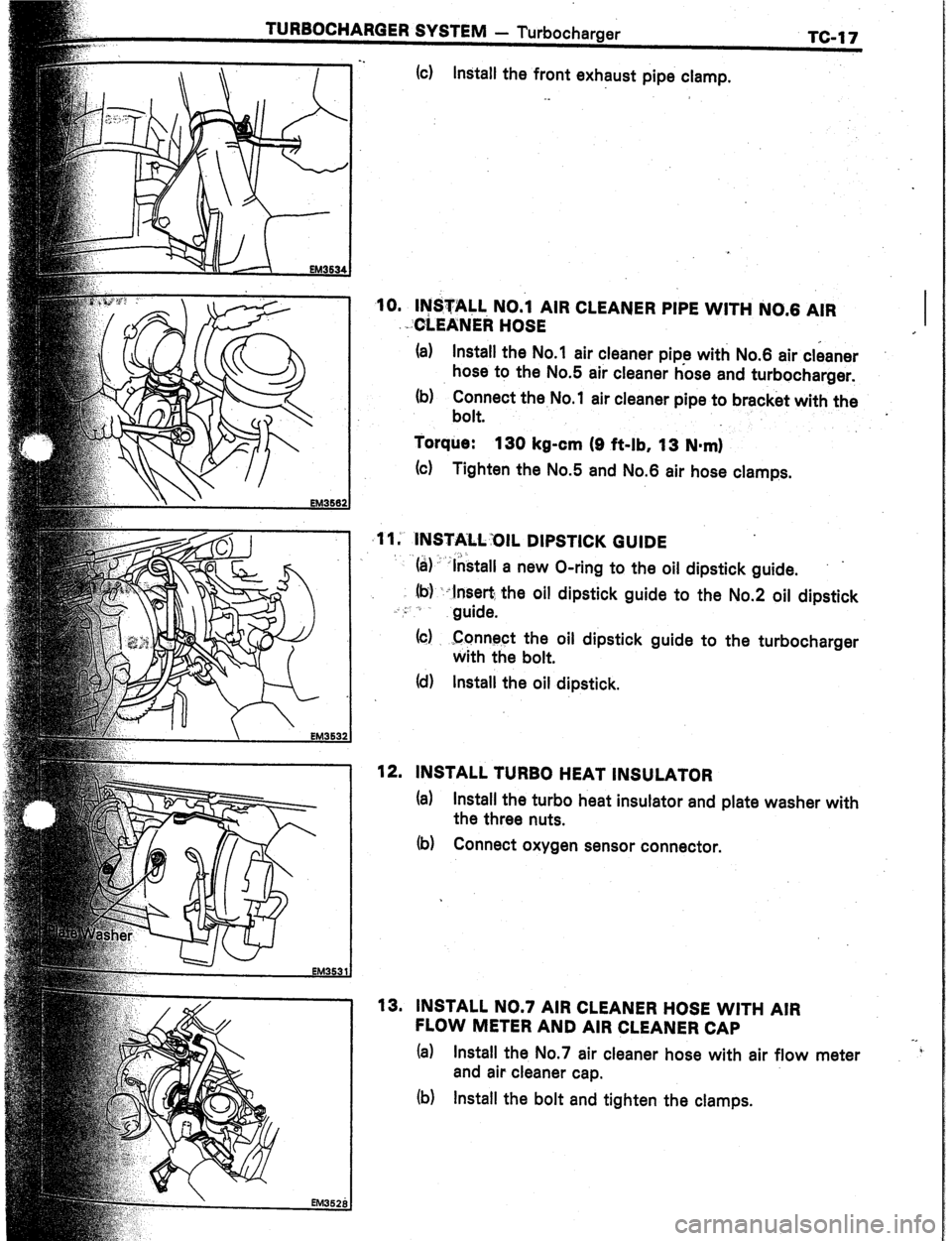

NTEM - - Turbocharger
(cl Install
the front exhaust pipe
clamp. TC-17
10. Ih$TA& NO.1 AIR CLEANER PIPE WITH NO.6 AIR
.-GLEANER HOSE I
.
(a)
Install the No.1 air cleaner pipe with No.6 air cleaner
hose to the No.5 air cleaner hose and turbocharger.
(b) Connect the No.1 air cleaner pipe to bracket with the
bolt.
Torque:
130 kg-cm (9 ft-lb, 13 N-m)
(c) Tighten the No.5 and No.6 air hose clamps.
11 i INSTALL “OIL DIPSTICK GUIDE
‘(a) ‘.‘lnstall a new O-ring to the oil dipstick guide.
lb) ,-insert the oil dipstick guide to the No.2 oil dipstick
: ‘/
guide.
(c) Connect the oil dipstick guide to the turbocharger
with the bolt.
(d) Install the oil dipstick.
12. INSTALL TURBO HEAT INSULATOR
(a) Install the turbo heat insulator and plate washer with
the three nuts.
(b) Connect oxygen sensor connector.
13. INSTALL NO.7 AIR CLEANER HOSE WITH AIR
FLOW METER AND AIR CLEANER CAP
(a) Install the No.7 air cleaner hose with air flow meter
and air cleaner cap.
(b) Install the bolt and tighten the clamps.

ms1’8

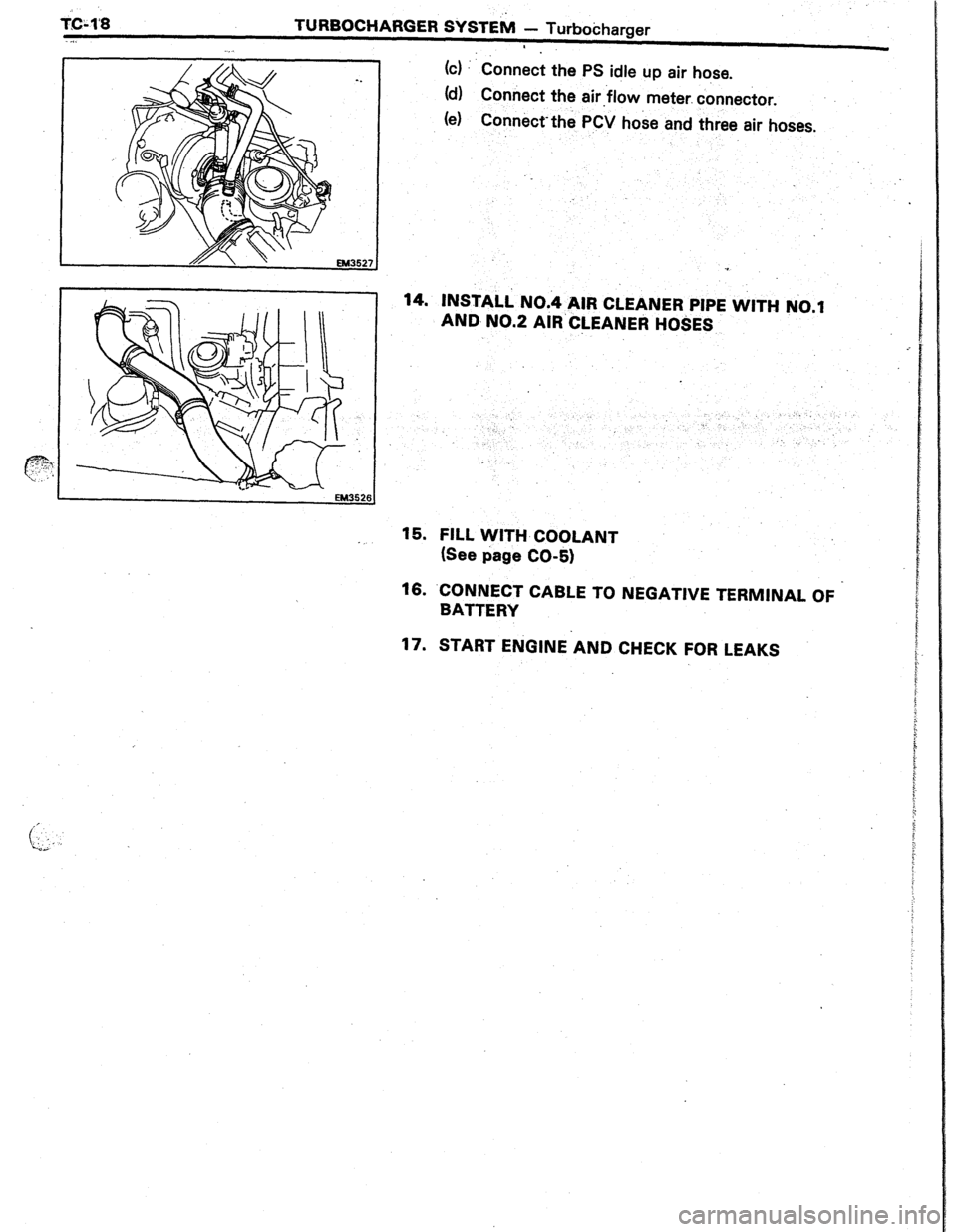

TURBOCHARGER SYSTElk - Turbokharger
(c) Connect the PS idle up air hose.
(d) Connect the air.flow meter. connector.
(e)
Conn&t.thk PCV hose and three air hoses.
14. INSTALL NO.4 AIR CLEANER PIPE WITH NO.1
AND NO.2 AIR’CLEANER HOSES
15. FILL WITH COOLANT
(See page CO-5)
16. CX;hXi CABLE TO NEGATIVE TERMINAL OF
17. START ENGINE AND CHECK FOR LEAKS
