1987 TOYOTA CELICA Service Repair Manual

-.
LUBRICATION SYSTEM
- Replacement.of Engine Oil and Oil Filter
L&7_
4.
5. (d) Lightly screw in the oil filter to where you feel resis-
tance.
(e) Then, using SST, tighten. the oil filter an extra 3/4 .
turn.
SST 09228-07500

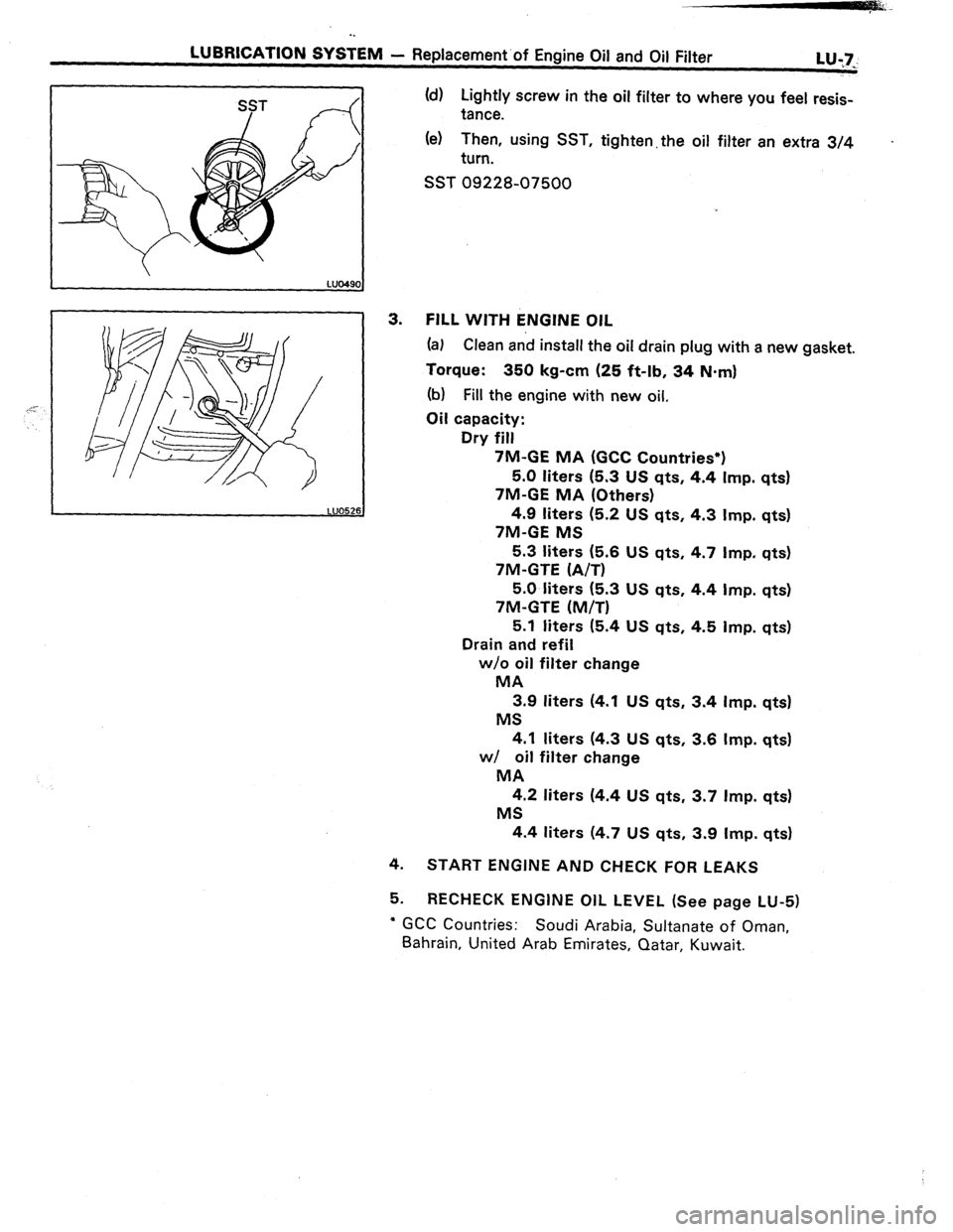

FILL WITH ENGINE OIL
(a) Clean and install the oil drain plug with a new gasket.
Torque: 350 kg-cm (25 ft-lb, 34 N-m)
(b) Fill the engine with new oil,
Oil capacity:
Dry fill
7M-GE MA (GCC Countries*)
5.0 liters (5.3 US qts, 4.4 Imp. qts)
7M-GE MA (Others)
4.9 liters (5.2 US qts, 4.3 Imp. qts)
7M-GE MS
5.3 liters (5.6 US qts, 4.7 Imp. qts)
7M-GTE (A/T)
5.0 liters (5.3 US qts, 4.4 Imp. qts)
7M-GTE (M/T)
5.1 liters (5.4 US qts, 4.5 Imp. qts)
Drain and refil
w/o oil filter change
MA
3.9 liters (4.1 US qts, 3.4 Imp. qts)
MS
4.1 liters (4.3 US qts, 3.6 Imp. qts)
w/ oil filter change
MA
4.2 liters (4.4 US qts, 3.7 Imp. qts)
MS
4.4 liters (4.7 US qts, 3.9 Imp. qtsl
START ENGINE AND CHECK FOR LEAKS
RECHECK ENGINE OIL LEVEL (See page LU-5)
l GCC Countries: Soudi Arabia, Sultanate of Oman,
Bahrain, United Arab Emirates, Qatar, Kuwait.

LU-8 LilBRIcATION SYSTEM - Oil Pump
OIL PUhiP

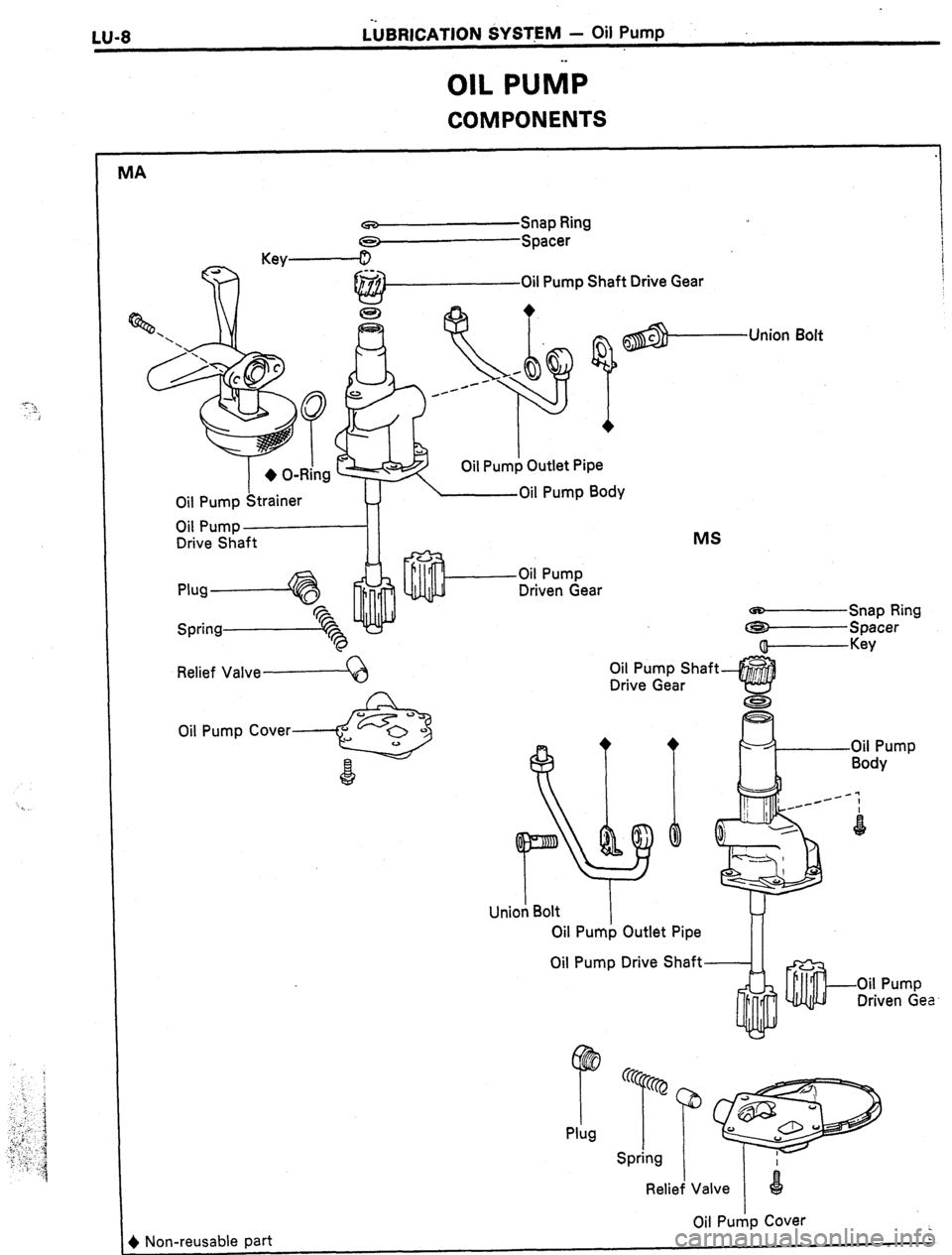

COMPONENTS
Snap Ring
Oil Pump Shaft Drive Gear
Union Bolt
MS
Relief Valve:Q Iriven Gear
-Snap Ring
cs Spacer
- @------Key
Oil Pump Cover-9
Oil Pump Outlet Pipe
Oil Pump Drive Shaft
Oil Pump Cover
+ Non-reusable part

LUbRlCATlON SYSTEM - Oil Pump
._ ul~9
LUO526

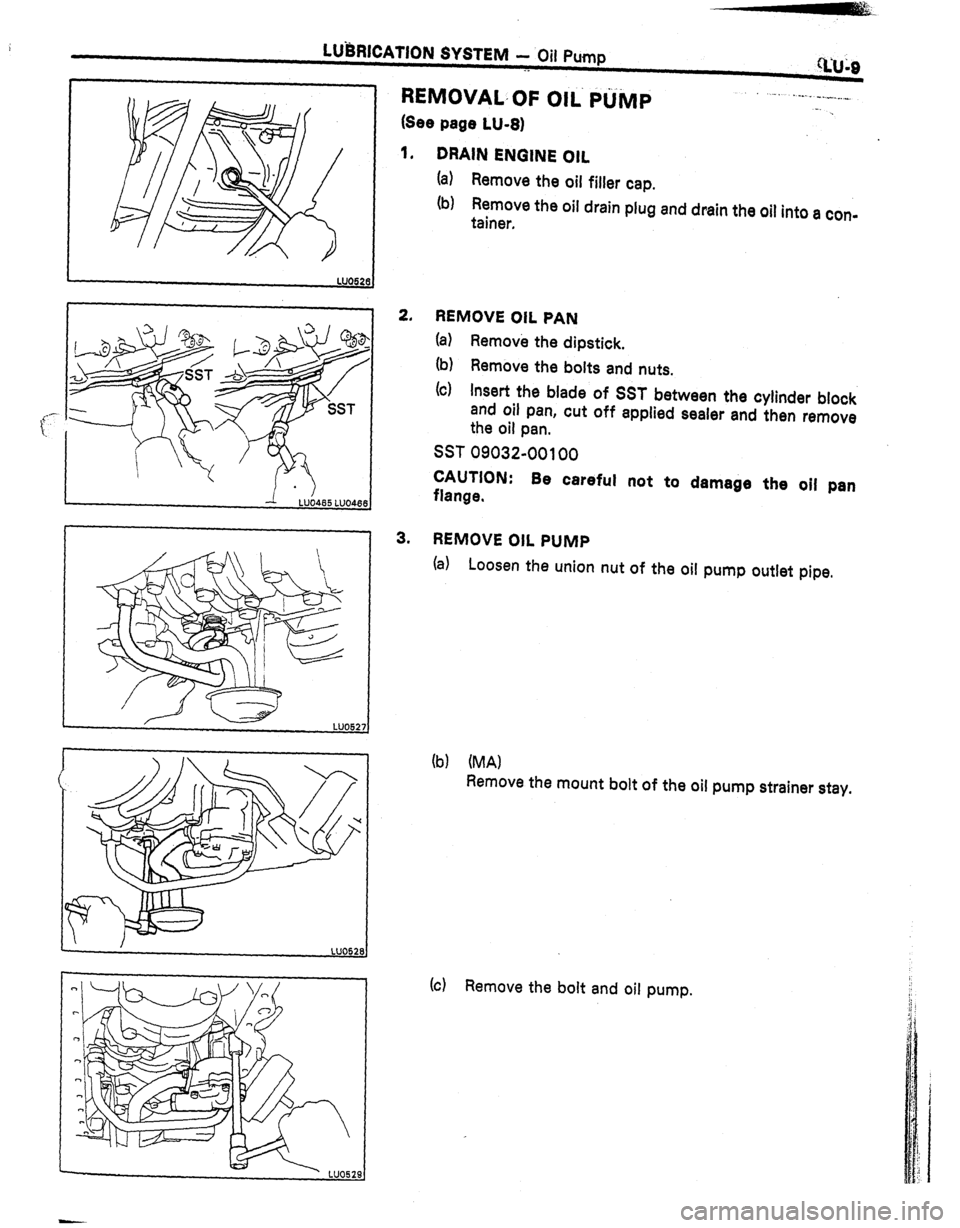

REMOVAL,OF OIli Prli&lP
(See page LU-8)
-, . .--- -._.____.
-.
1.
DRAIN ENGINE OIL
(a) Remove the oil filler cap.
(b) Remove the oil drain plug and drain the oil into a con-
tainer.
2. REMOVE OIL PAN
(a) Remove the dipstick.
(b) Remove the bolts and nuts.
(c) Insert the blade of SST between the cylinder block
and oil pan, cut off applied sealer and then remove
the oil pan.
SST 09032-00100
CAUTION: Be careful not to damage the oil pan
flange.
3. REMOVE OIL PUMP
(a) Loosen the union nut of the oil pump outlet pipe.
(b) (MA)
Remove the mount bolt of the oil pump strainer stay.
(c) Remove the bolt and oil pump.

LUBRlCATlON SYSTEM - Oil Pump
LUO531

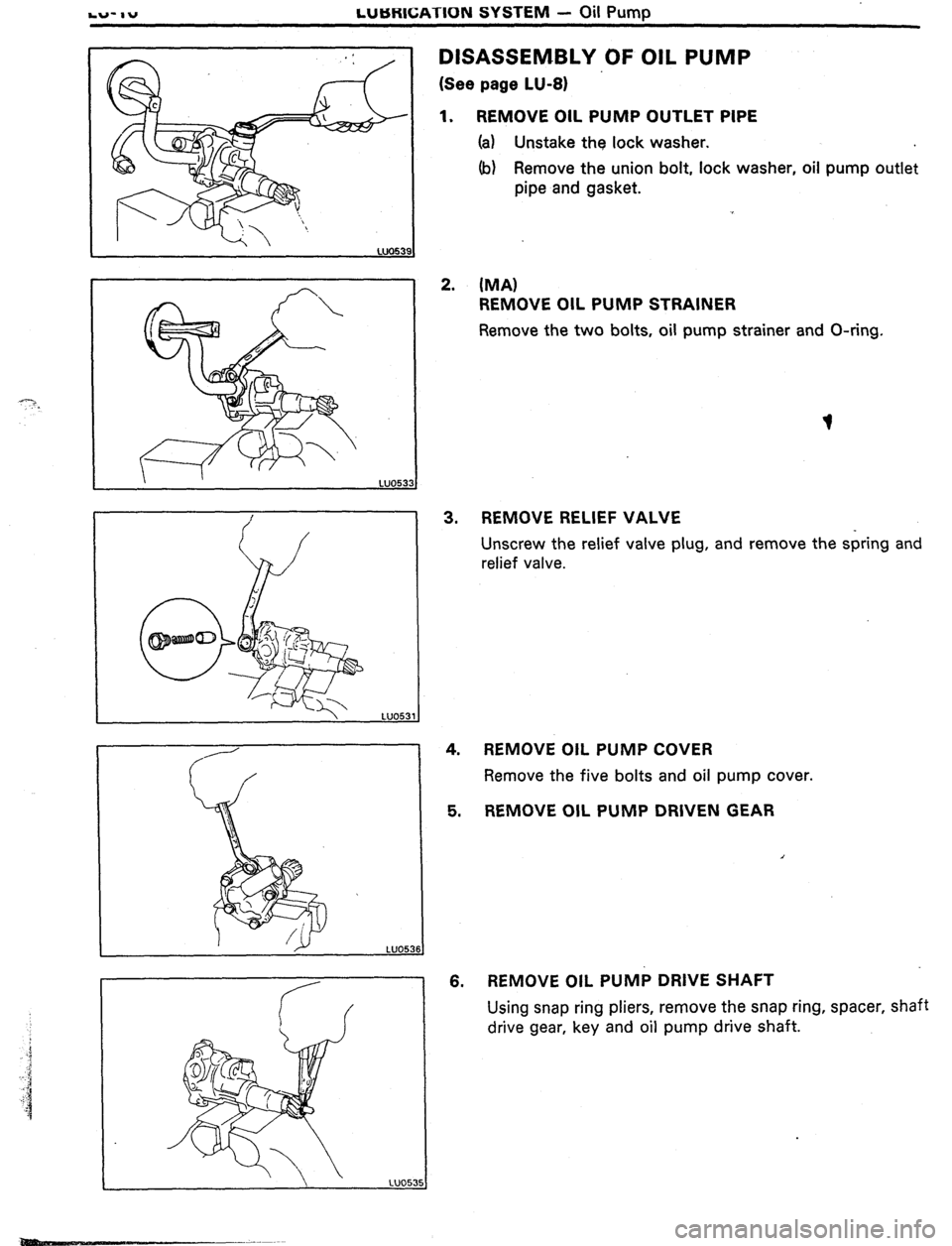

DISASSEMBLY OF OIL PUMP
(See page LU-8)
1. REMOVE OIL PUMP OUTLET PIPE
(a) Unstake the lock washer.
(b) Remove the union bolt, lock washer, oil pump outlet
pipe and gasket.
2. (MA)
REMOVE OIL PUMP STRAINER
Remove the two bolts, oil pump strainer and O-ring.
3. REMOVE RELIEF VALVE
Unscrew the relief valve plug, and remove the spring and
relief valve.
4.
REMOVE
OIL PUMP COVER
Remove the five bolts and oil pump cover.
5. REMOVE OIL PUMP DRIVEN GEAR
6. REMOVE OIL PUMP DRIVE SHAFT
Using snap ring pliers, remove the snap ring, spacer, shaft
drive gear, key and oil pump drive shaft.
?

LG&RICATION SYSTEM - Oil Pump
L.!J:ll
.... ..- .._.~.“.“._ _ ,.. _,-

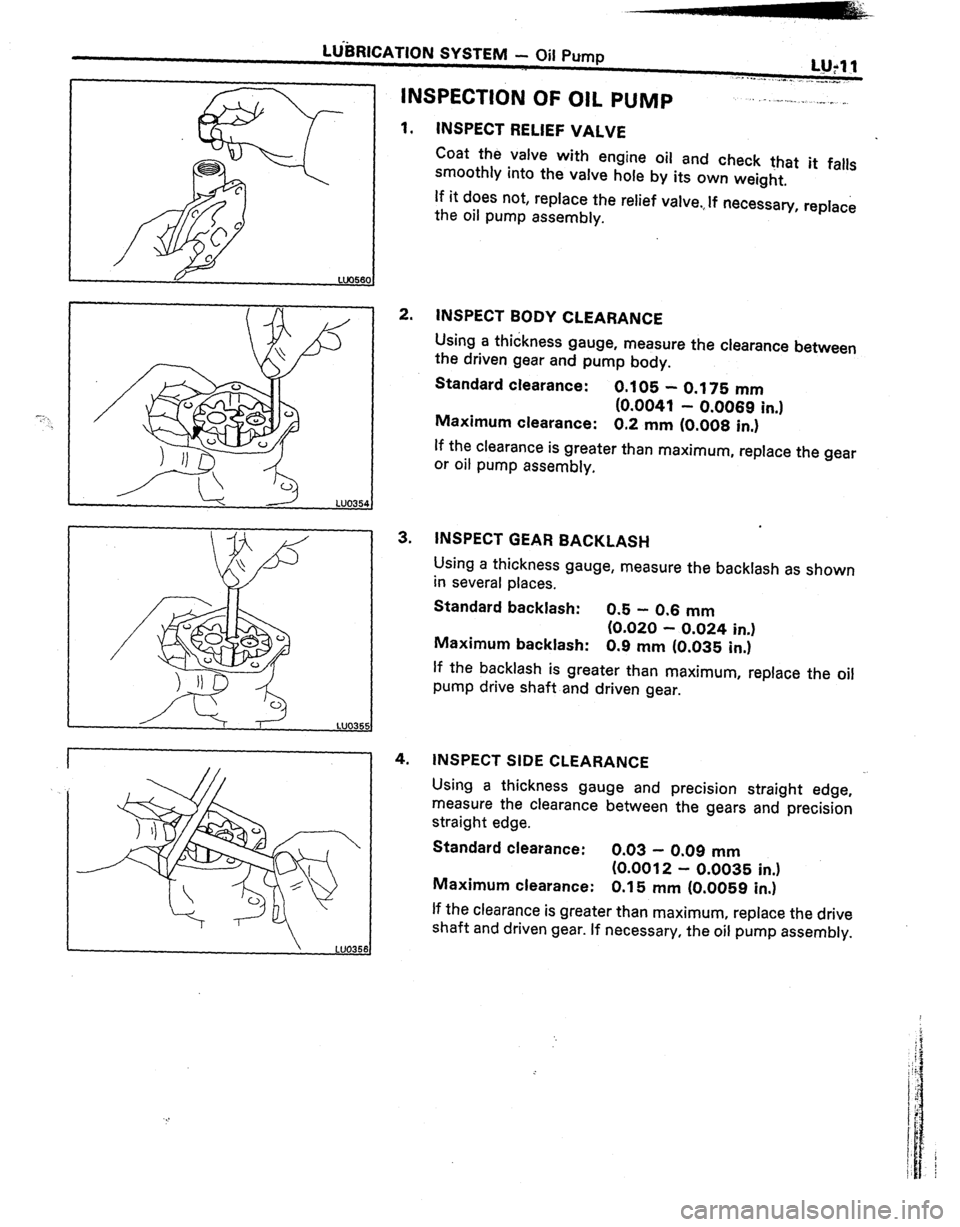

INSPECTION OF OIL PUMP
1.
2.
3.
4.
~. -.--. . ._. I ”
INSPECT RELIEF VALVE
Coat the valve with engine oil and check that it falls
smoothly into the valve hole by its own weight,
If it does not, replace the relief valve.,If necessary, replace
the oil pump assembly.
INSPECT BODY CLEARANCE
Using a thickness gauge, measure the clearance between
the driven gear and pump body.
Standard clearance:
0.105 - 0.175 mm
(0.0041 - 0.0069 in.1
Maximum clearance: 0.2 mm (0.008 in.)
If the clearance is greater than maximum, replace the gear
or oil pump assembly.
INSPECT GEAR BACKLASH
Using a thickness gauge, measure the backlash as shown
in several places.
Standard backlash: 0.5 - 0.6 mm
(0.020 - 0.024 in.)
Maximum backlash: 0.9 mm (0.035 in.)
If the backlash is greater than maximum, replace the oil
pump drive shaft and driven gear.
INSPECT SIDE CLEARANCE
Using a thickness gauge and precision straight edge,
measure the clearance between the gears and precision
straight edge.
Standard clearance:
0.03 - 0.09 mm
(0.0012 - 0.0035 in.)
Maximum clearance: 0.15 mm (0.0059 in.)
If the clearance is greater than maximum, replace the drive
shaft and driven gear. If necessary, the oil pump assembly.

LU-12
-.
LUBRICATION SYSTEM - Oij Pump
LUOJS

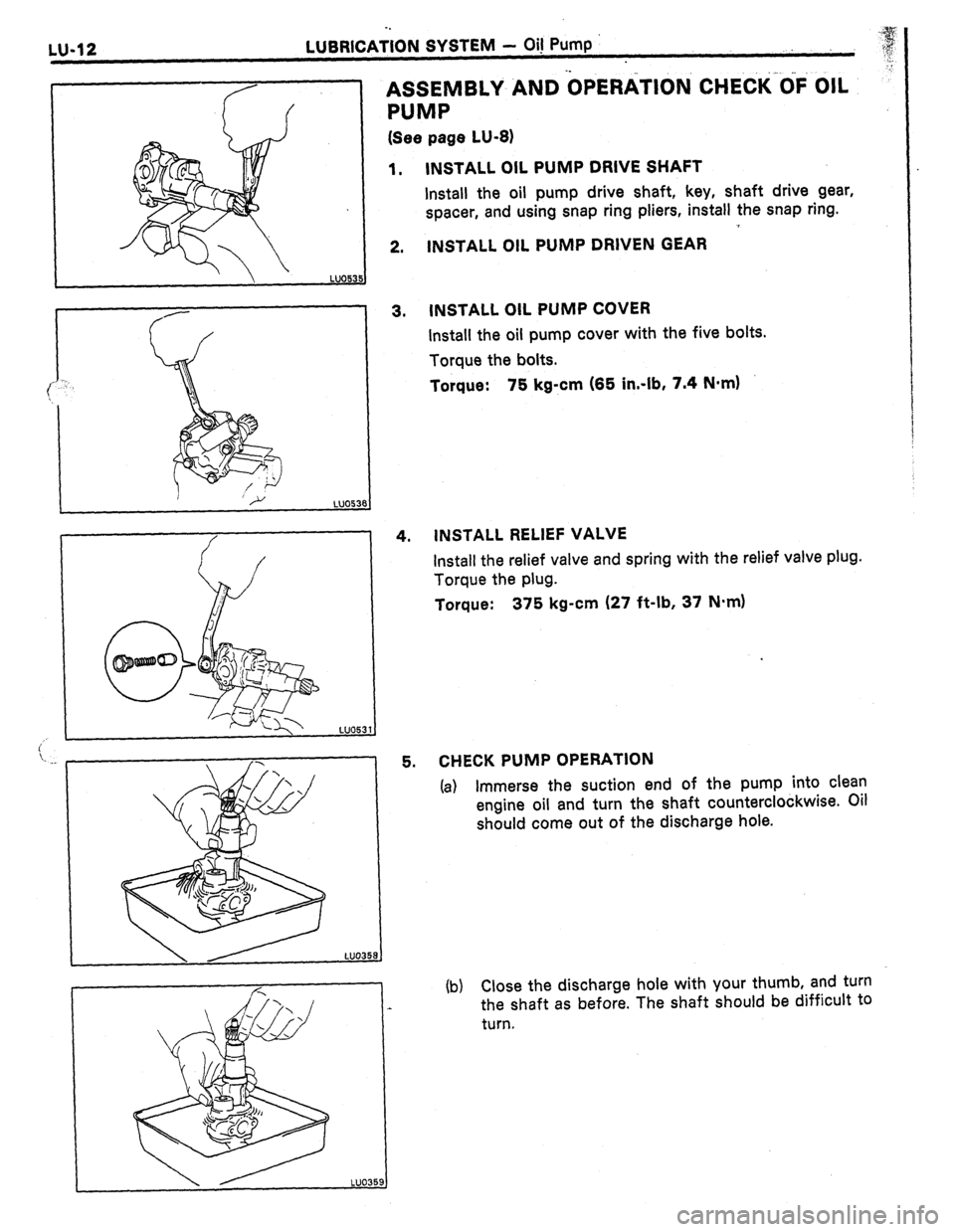

ASSEMBLY AND OPERATION CHECK OF OIL
”
PUMP
(See page LU-8)
5. INSTALL OIL PUMP DRIVE SHAFT
Install the oil pump drive shaft, key, shaft drive gear,
spacer, and using snap ring pliers, install the snap ring.
INSTALL OIL PUMP DRIVEN GEAR
INSTALL OIL PUMP COVER
Install the oil pump cover with the five bolts.
Torque the bolts.
Torque: 75 kg-cm (65 in.-lb, 7.4 N-m)
INSTALL RELIEF VALVE
Install the relief valve and spring with the relief valve plug.
Torque the plug.
Torque:
375 kg-cm (27 ft-lb, 37 N.m)
CHECK PUMP OPERATION
(a) Immerse the suction end of the pump into clean
engine oil and turn the shaft counterclockwise. Oil
should come out of the discharge hole.
(b) Close the discharge hole with your thumb, and turn
the shaft as before. The shaft should be difficult to
turn.

-.
LUBRICATION SYSTEM.-- Oil Pump
LU-13
. .
6.
(MAI

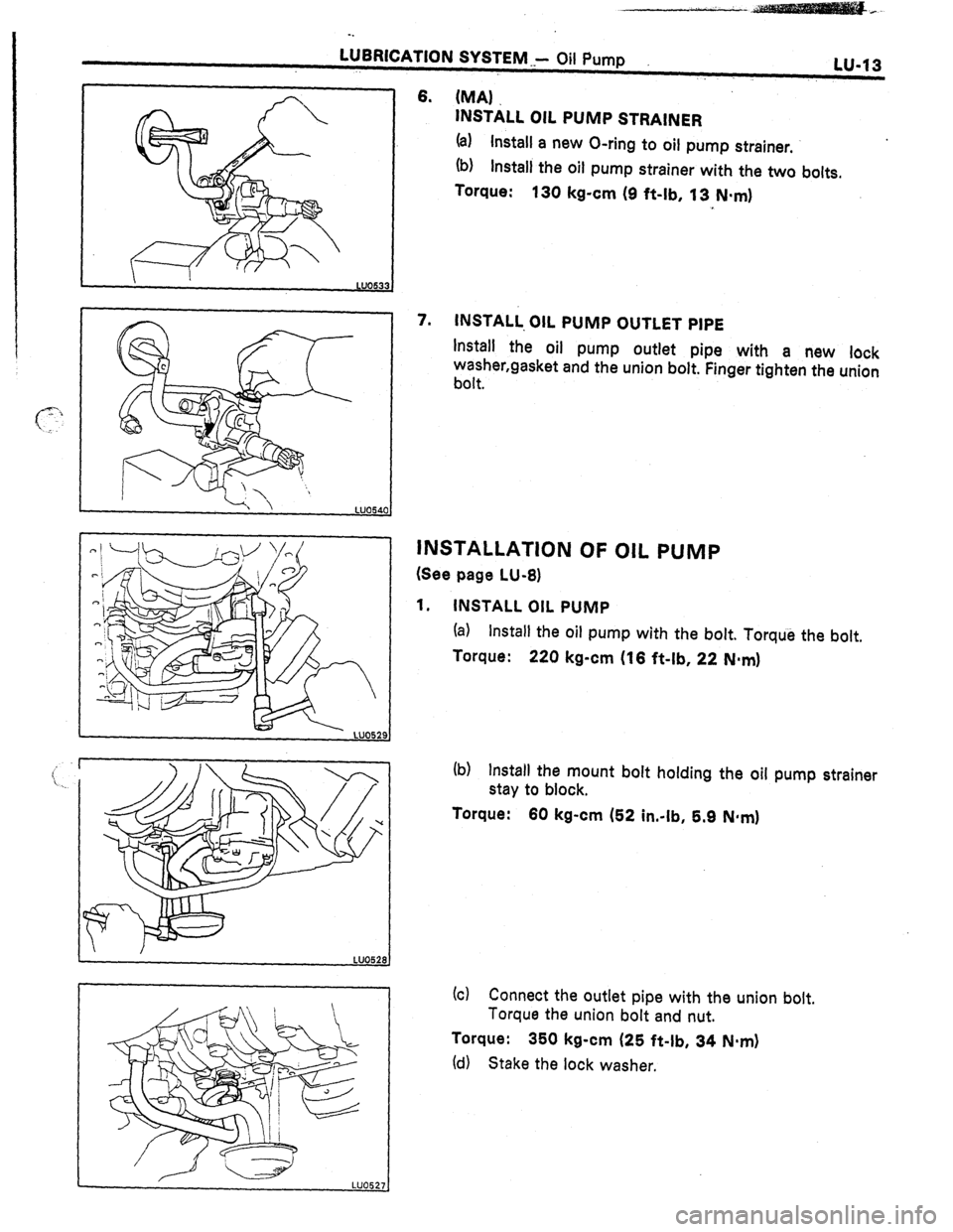

INSTALL OIL PUMP STRAINER
(a1 Install a new O-ring to oil pump strainer.
(b) Install the oil pump strainer with the two bolts.
Torque: 130 kg-cm (9 ft-lb, 13 N-m)
’ /--J Ld LU0527
7. INSTALL. OIL PUMP OUTLET PIPE
Install the oil pump outlet pipe with a new lock
washer,gasket and the union bolt. Finger tighten the union
bolt.
INSTALLATION OF OIL PUMP
(See page LU-8)
1. INSTALL OIL PUMP
(a) install the oil pump with the bolt. Torque the bolt.
Torque: 220 kg-cm (16 ft-lb, 22 Nam)
(b) Install the mount bolt holding the oil pump strainer
stay to block.
Torque: 60 kg-cm (52 in.-lb, 5.9 Nsm)
(c) Connect the outlet pipe with the union bolt,
Torque the union bolt and nut.
Torque: 350 kg-cm (25 ft-lb, 34 N-m)
Id) Stake the lock washer.

bf3lCA~l0N SYSTEM - Oil Pump

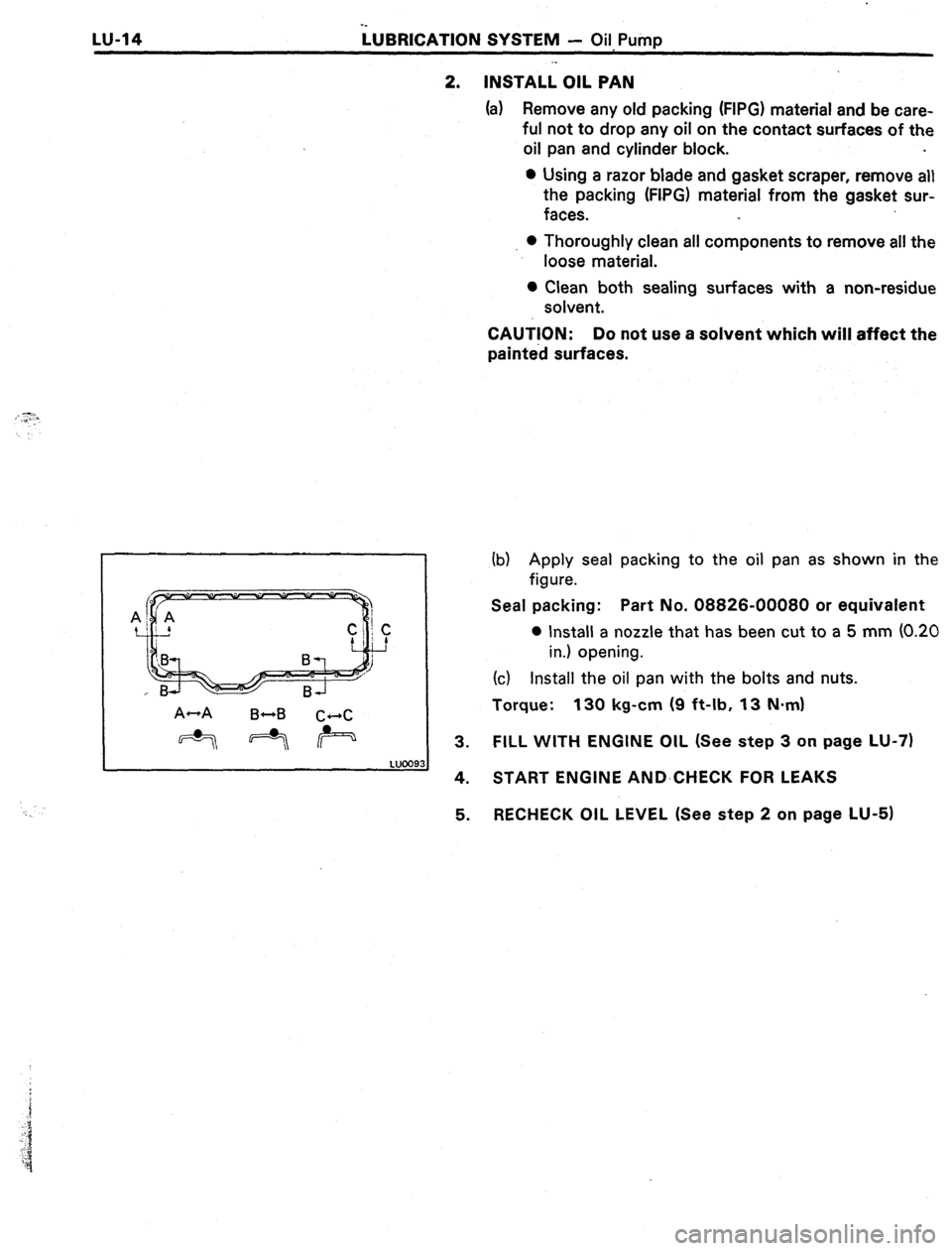

2. INSTALL OIL PAN
(a) Remove any old packing (FIPG) material and be care-
ful not to drop any oil on the contact surfaces of the
oil pan and cylinder block.
l Using a razor blade and gasket scraper, remove all
the packing (FIPG) material from the gasket sur-
faces.
0 Thoroughly clean all components to remove all the
loose material.
l Clean both sealing surfaces with a non-residue
solvent.
CAUTION: Do not use a solvent which will affect the
painted surfaces.
ib) Apply seal packing to the oil pan as shown in the
figure.
Seal packing: Part No. 08826-00080 or equivalent
0 Install a nozzle that has been cut to a 5 mm (0.20
in.) opening.
(c) Install the oil pan with the bolts and nuts.
Torque : 130 kg-cm (9 ft-lb, ‘I3 N-m)
3. FILL WITH ENGINE OIL (See step 3 on page LU-7)
4. START ENGINE AND.CHECK FOR LEAKS
‘. 5. RECHECK OIL LEVEL (See step 2 on page LU-5)
