Page 297 of 346

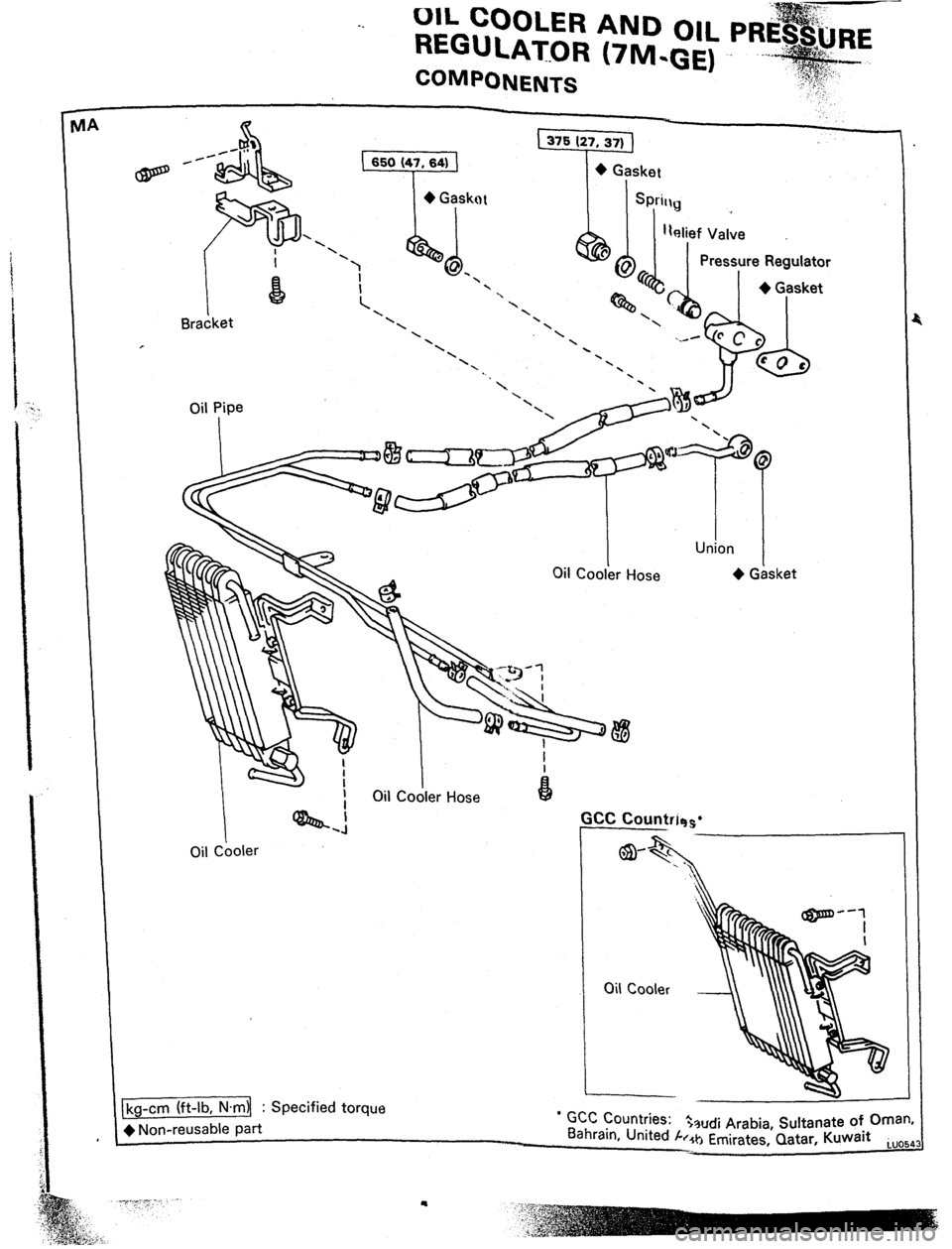

-. cm COOLER AND 01~ PR
REGULATeOR (TM-GE)
COMPONENTS
;‘ ,‘ -.
‘,
Bracket
*
Oil Pipe
I Pressure Regulator
.
‘.
.
.
I Oil Cooler Hose
I Oil Cooler
G
r
Union
I
+ Gasket
CC Countricis*
a-
Oil
Cooler
(kg-cm
(ft-lb, N.rnl : Specified torque
+ Non-reusable part
1
l GCC Countries:
%udi Arabia, Sultanate Of Oman*
Bahrain, United /-r3b E
rnirates, Qatar, Kuwait iuosr
ir
Page 298 of 346
. .

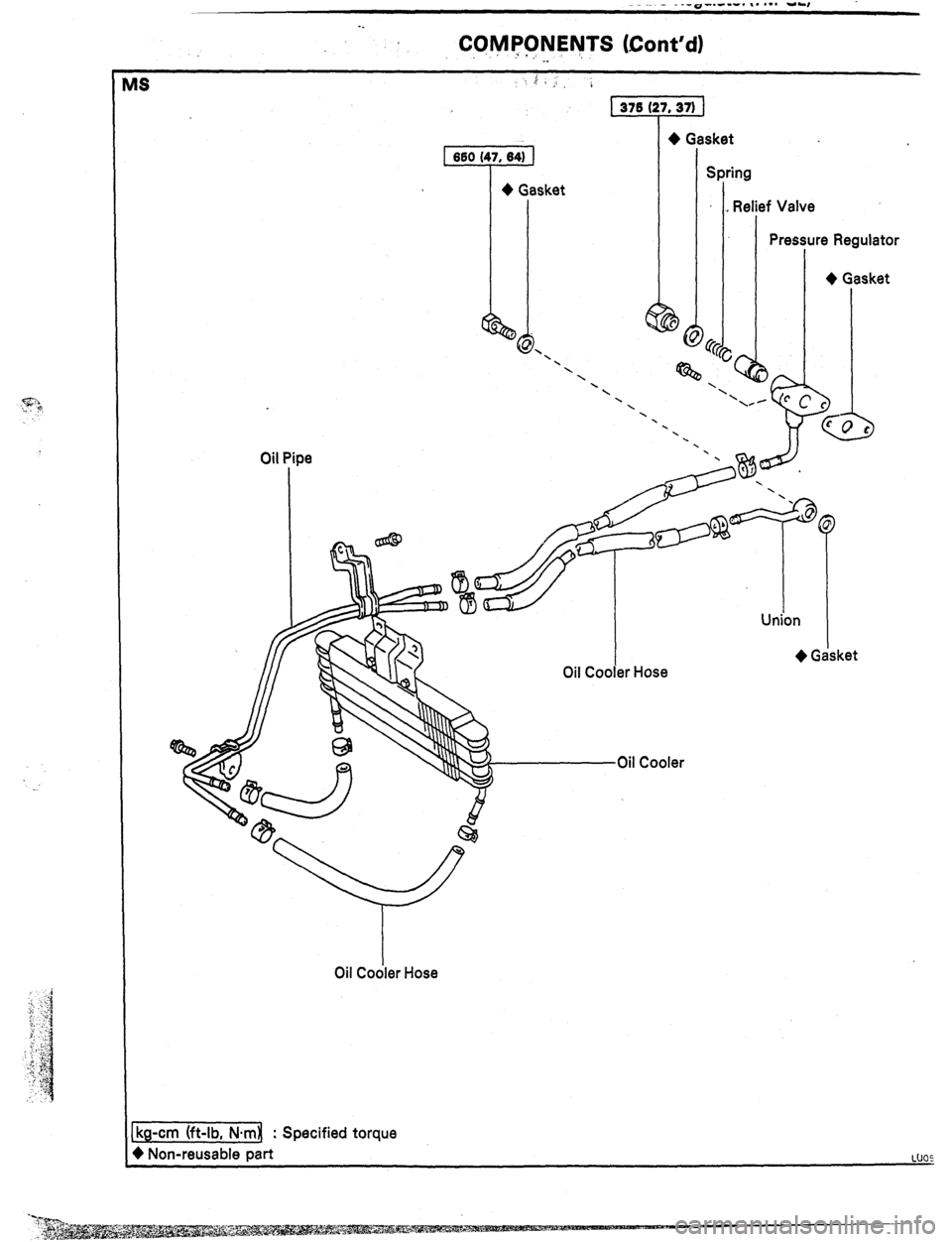

COMPONEljTS (Cont’d)
;‘ 1’.-.
,,;
1.:. .
Oil qipe
I Oil Cooler Hose lsket
Spr ing
+ Gasket
Re lie f Valve
Pres Ire Regulator
+ Gasket
[kg-cm (ft-lb, N.rnl : Specified torque
+ Non-reusable part
Page 299 of 346

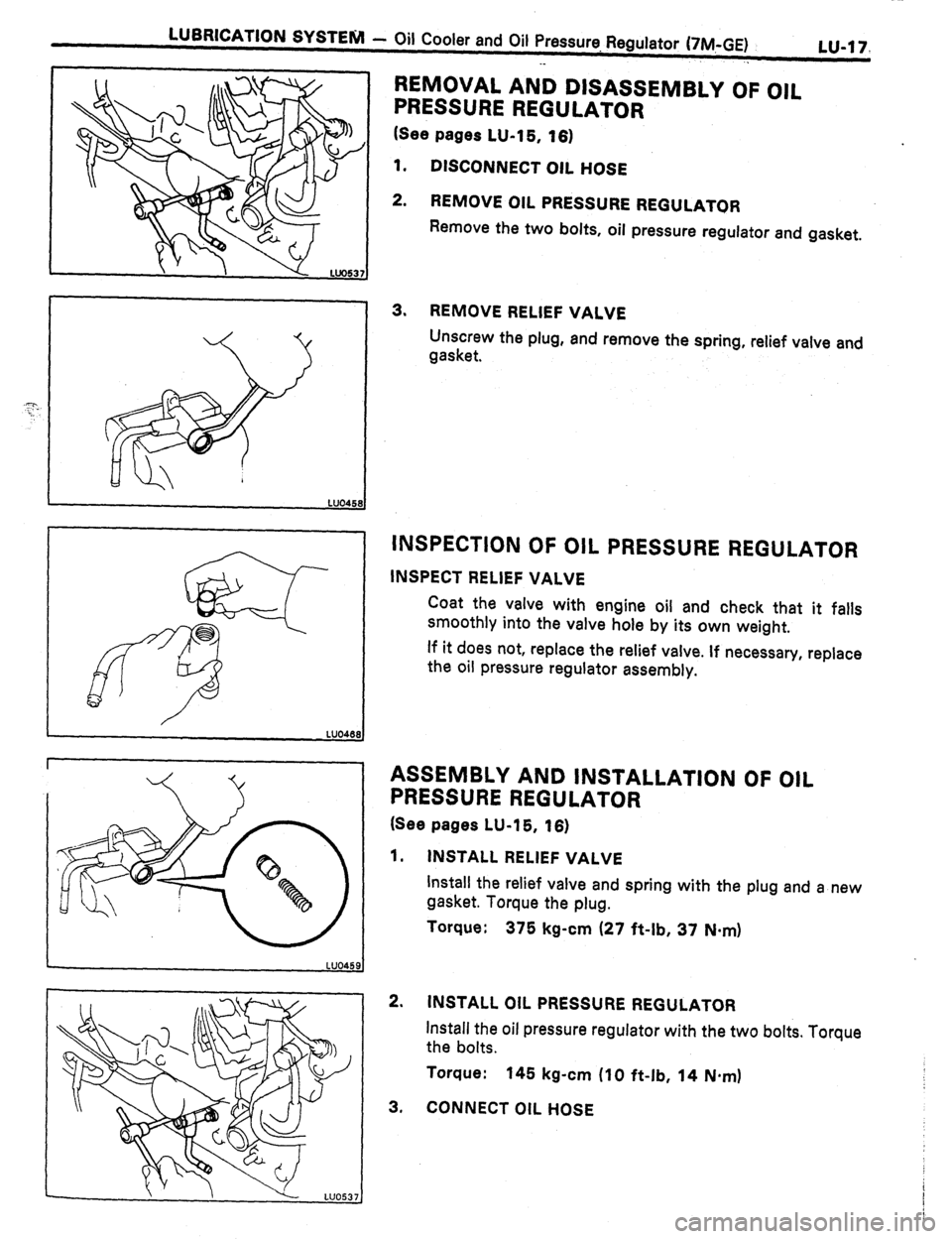

LUBRICATION SYSTENl
- Qii Cooler and oil Pressure. Regulator (-/M-GE)
LU-17.
._ .
w
e
0
LUO48f
REMOVAL AND DISASSEMBLY OF OIL
PRESSURE REGULATOR
(See pages LU-15, 16)
1. DISCONNECT OIL HOSE
2. REMOVE OIL PRESSURE REGULATOR
Remove the two bolts, oil pressure regulator and gasket.
3. REMOVE RELIEF VALVE
Unscrew the plug, and remove the spring, relief valve and
gasket.
INSPECTION OF OIL PRESSURE REGULATOR
INSPECT RELIEF VALVE
Coat the valve with engine oil and check that it falls
smoothly into the valve hole by its own weight.
If it does not, replace the relief valve. If necessary, replace
the oil pressure regulator assembly.
ASSEMBLY AND INSTALLATION OF OIL
PRESSURE REGULATOR
(See pages LU-15, 16)
1. INSTALL RELIEF VALVE
Install the relief valve and spring with the plug and a new
gasket. Torque the plug.
Torque:
375 kg-cm (27 ft-lb, 37 N-m)
2. INSTALL OIL PRESSURE REGULATOR
Install the oil pressure regulator with the two bolts. Torque
the bolts.
Torque:
145 kg-cm (10 ft-lb, 14 N.m)
3, CONNECT OIL HOSE
Page 300 of 346

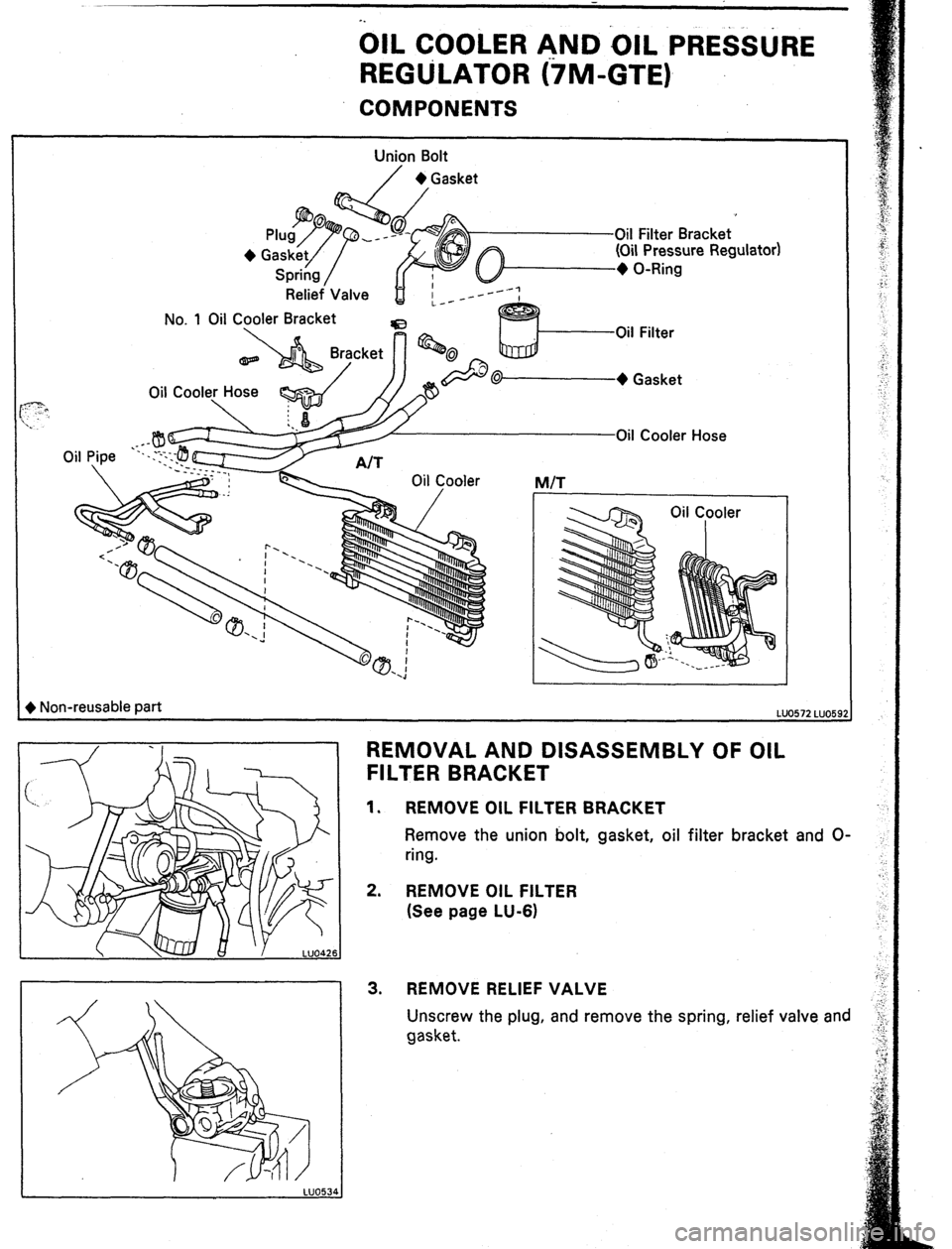

OIL COOLER AND OIL PRE&ljRE
REGULATOR ijM-GTE)
COMPONENTS
Union Bolt
/ + Gasket
Oil Filter Bracket
(Oil Pressure Regulator)
+ O-Ring
Relief Valve
No. 1 Oil Cyler Bracket
./-Oil Filter
& Non-reusable part
LU0572 LUO5!
MIT
-+ Gasket
-Oil Cooler Hose
REMOVAL AND DISASSEMBLY OF OIL
FILTER BRACKET
1. REMOVE OIL FILTER BRACKET
Remove the union bolt, gasket, oil filter bracket and O-
ring.
2. REMOVE OIL FILTER
(See page LU-6)
3. REMOVE RELIEF VALVE
Unscrew the plug, and remove the spring, relief valve and
gasket.
Page 301 of 346

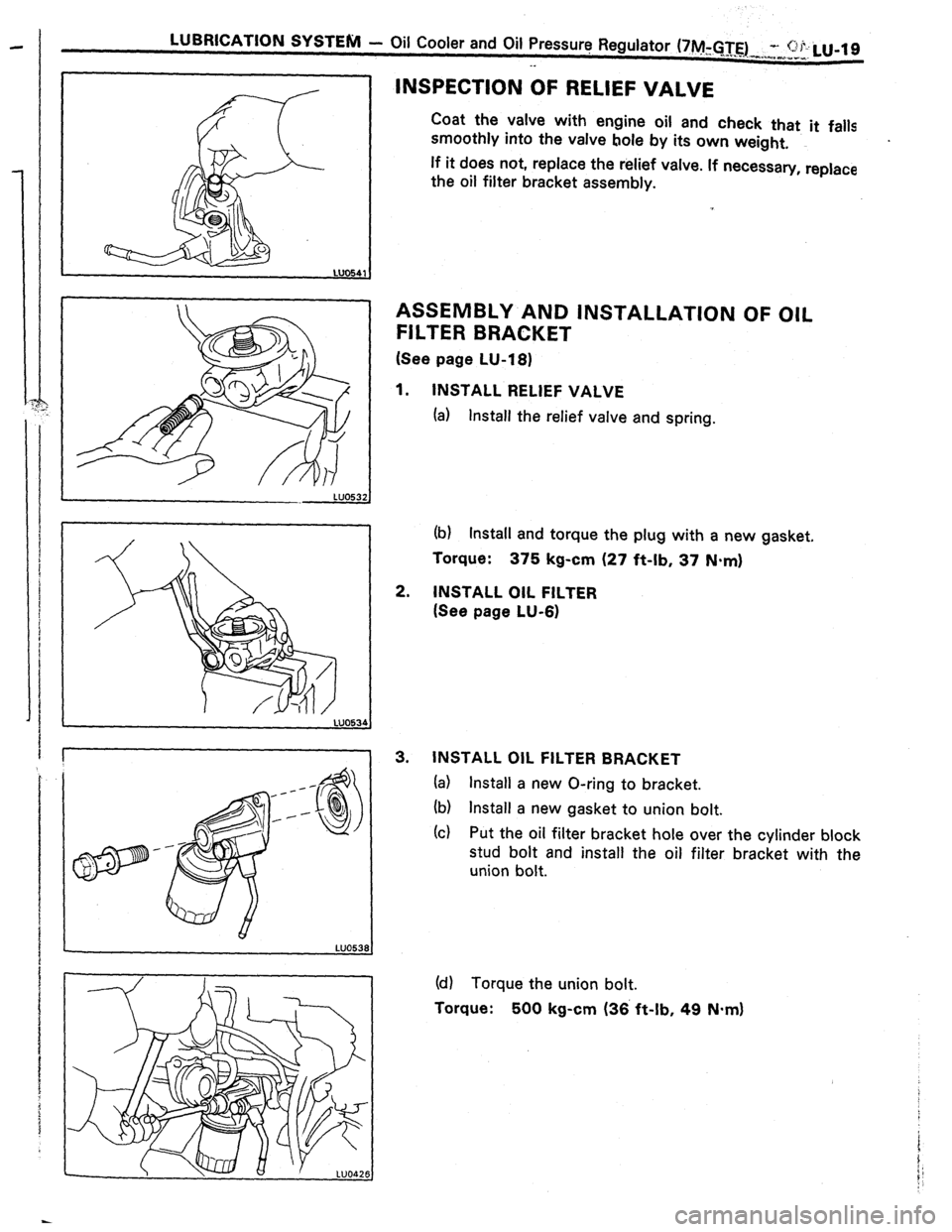

LUBRICATION SYSTENI - Oil Cooler and Oil Pressurr+ Regulator (7M-GTE)
’ 1” - 06Lu-19
---. “, -“-~~yII.
. .
INSPECTION OF RELIEF VALVE
Coat the valve with engine oil and check that it falls
smoothly into the valve hole by its own weight.
If it does not, replace the relief valve. If necessary,
replace
the oil filter bracket assembly.
INSTALLATION OF OIL ASSEMBLY AND
FILTER BRACKET
(See page LU-18)
1. INSTALL RELIEF VALVE
(a) Install the relief valve and spring.
(b) Install and torque the plug with a new gasket.
Torque: 375 kg-cm (27 ft-lb, 37 Nsm)
2.
INSTALL OIL FILTER
(See page LU-8)
3. INSTALL OIL FILTER BRACKET
(a) Install a new O-ring to bracket.
(b) Install a new gasket to union bolt.
(c) Put the oil filter bracket hole over the cylinder block
stud bolt and install the oil filter bracket with the
union bolt.
(d) Torque the union bolt.
Torque: 500 kg-cm (36’ ft-lb, 49 N*mI
Page 302 of 346
..............................

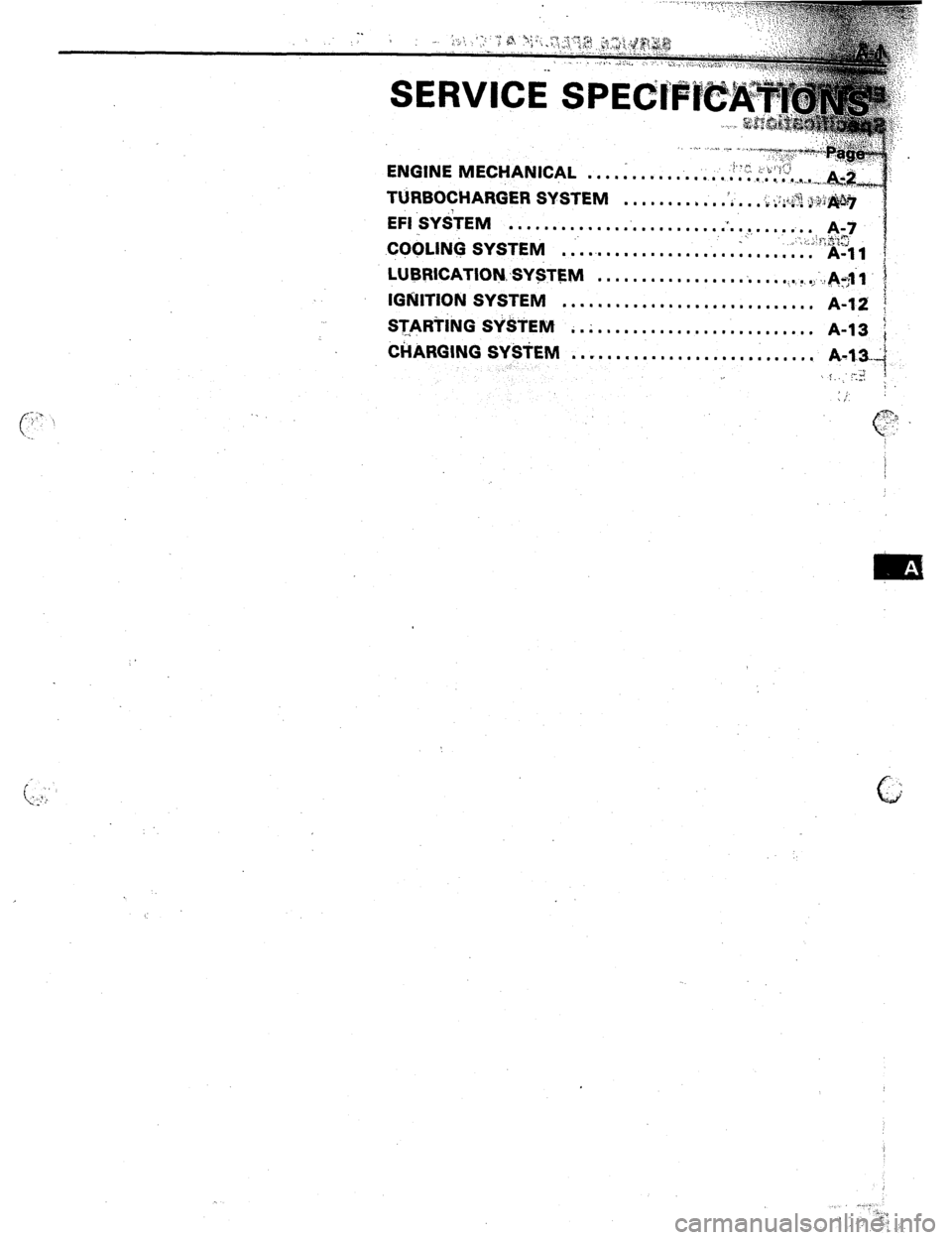

LUSRlCATlOIjl.SY$T~M
......................... ~.J4~~1
IGAITION SYSTEM 1
............................. A-12 ;
STIJRiiNG S$&EM .............................
A-13 1
CilARGING SY$?EM . . ..*.....................,,
A,434 ,,
I !. .. Y” 1
(
I :
Page 303 of 346

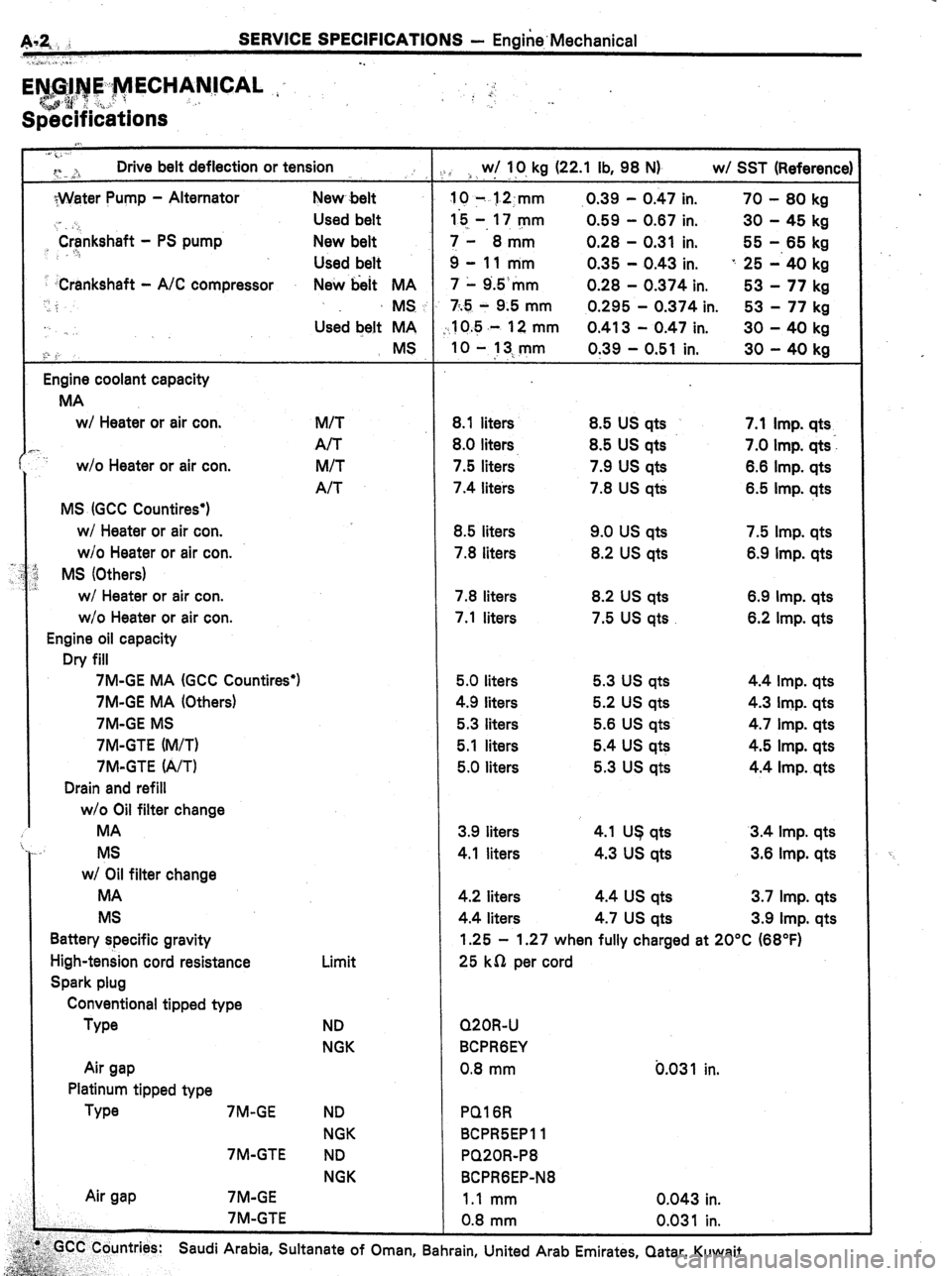

A12 : SERVICE SPECIFICATIONS - Enaine.Mechanical
EN$W4~~~WlECHAN~CAL (
‘t&.gy,.::*,. : .,
Speclfrcations
r
: r’
: . .
‘-’ b- ~.
” Drive belt deflection or tension
. . . .,:
;Water Pump - Alternator New belt
,, ‘Crankshaft Used belt
- PS pump New belt
..!
Used belt
-Crankshaft - A/C compressor
New hit MA
,.
‘; MS
Used belt MA
<” : MS
Engine coolant capacity
MA
WI Heater or air con.
,.
w/o Heater or air con.
MS (GCC Countires’)
WI Heater or air con.
w/o Heater or air con.
MS (Others)
w/ Heater or air con.
w/o Heater or air con.
Engine oil capacity
Dry fill
7M-GE MA (GCC Countires’)
7M-GE MA (Others)
7M-GE MS
7M-GTE (M/T)
7M-GTE (A/T)
Drain and refill
w/o Oil filter change
MA
MS
w/ Oil filter change
MA
MS
Battery specific gravity
High-tension cord resistance
Spark plug
Conventional tipped type
We
Air gap
Platinum tipped type
Type 7M-GE
7M-GTE
Air gap 7M-GE
7M-GTE M/T
A/T
M/T
A/T
Limit
ND
NGK
ND
NGK
ND
NGK / w/ IO, kg (22.1 lb, 98 N) w/ SST (Reference)
,. .
IO 7 1.2:mm .0.39 - 0.47 in. 70 - 80 kg
I5 -, 17 mm 0.59 - 0.87 in. 30 - 45 kg
I- 8mm 0.28 - 0.31 in. 55 - 65 kg
3-llmm 0.35 - 0.43 in. ” 25 -‘40 kg
7 1 9.5‘mm 0.28 - 0.374 in. 53 - 77 kg
7;.5 - 9.5 mm 0.295 - 0.374 in. 53 - 77 kg
10.5 .- 12 mm 0.413 - 0.47 in. 30 - 40 kg
IO - 13.,mm
0.39 - 0.51 in. 30 - 40 kg
8.1 liters
8.0 liters.
7.5 liters
7.4 liters
8.5 liters
7.8 liters
7.8 liters
7.1 liters 8.5 US qts
8.5 US qts
7.9 us qts
7.8 US qts
9.0 us qts
8.2 US qts
8.2 US qts
7.5 us qts 7.1 Imp. qts
7.0 Imp. qts:
6.8 Imp. qts
6.5 Imp. qts
7.5 Imp. qts
6.9 Imp. qts
6.9 Imp. qts
6.2 Imp. qts
5.0 liters
4.9 liters
5.3 liters
5.1 liters
5.0 liters 5.3 us qts
5.2 US qts
5.6 US qts
5.4 us qts
5.3 us qts 4.4 Imp. qts
4.3 Imp. qts
4.7 Imp. qts
4.5 Imp. qts
4.4 Imp. qts
3.9 liters 4.1 US qts 3.4 Imp. qts
4.1 liters 4.3 us qts 3.6 Imp. qts
4.2 liters 4.4 us qts 3.7 Imp. qts
4.4 liters 4.7 us qts 3.9 Imp. qts
1.25 - 1.27 when fully charged at 20°C (68°F)
25 kn per cord
Q20R-U
BCPRGEY
0.8 mm b.03 1
PQ16R
8CPR5EPll
PQ20R-P8
BCPRGEP-N8 in.
1.1 mm 0.043 in.
0.8 mm 0.031 in.
,:‘GCC Countries:
~~ s; Saudi Arabia, Sultanate of Oman, Bahrain, United Arab Emirates, Qatar, Kuwait.
p;
.5&.,..‘ .,
gg&-&;,., ;.
Page 304 of 346
