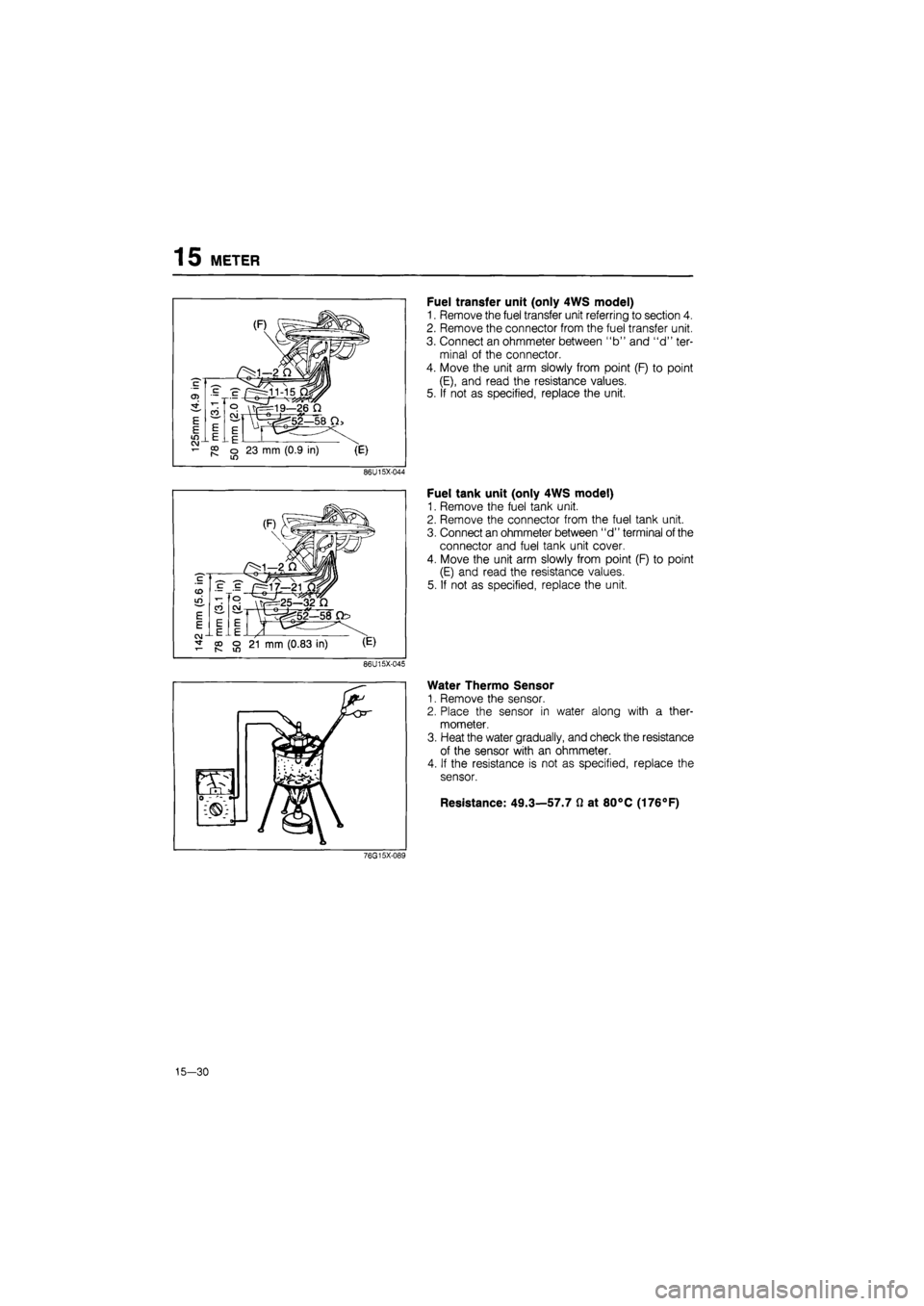

15 METER
Fuel transfer unit (only 4WS model)
1. Remove the fuel transfer unit referring to section 4.
2. Remove the connector from the fuel transfer unit.
3. Connect an ohmmeter between "b" and "d" ter-
minal of the connector.
4. Move the unit arm slowly from point (F) to point
(E), and read the resistance values.
5. If not as specified, replace the unit.
86U15X-044
iel tank unit (only 4WS model)
Remove the fuel tank unit.
Remove the connector from the fuel tank unit.
Connect an ohmmeter between "d" terminal of the
connector and fuel tank unit cover.
Move the unit arm slowly from point (F) to point
(E) and read the resistance values.
If not as specified, replace the unit.
86U15X-045
Water Thermo Sensor
1. Remove the sensor.
2. Place the sensor in water along with a ther-
mometer.
3. Heat the water gradually, and check the resistance
of the sensor with an ohmmeter.
4. If the resistance is not as specified, replace the
sensor.
Resistance: 49.3—57.7 Q at 80°C (176°F)
76G15X-089
15-30
Page 1694 of 1865
WARNING AND SENDER 15

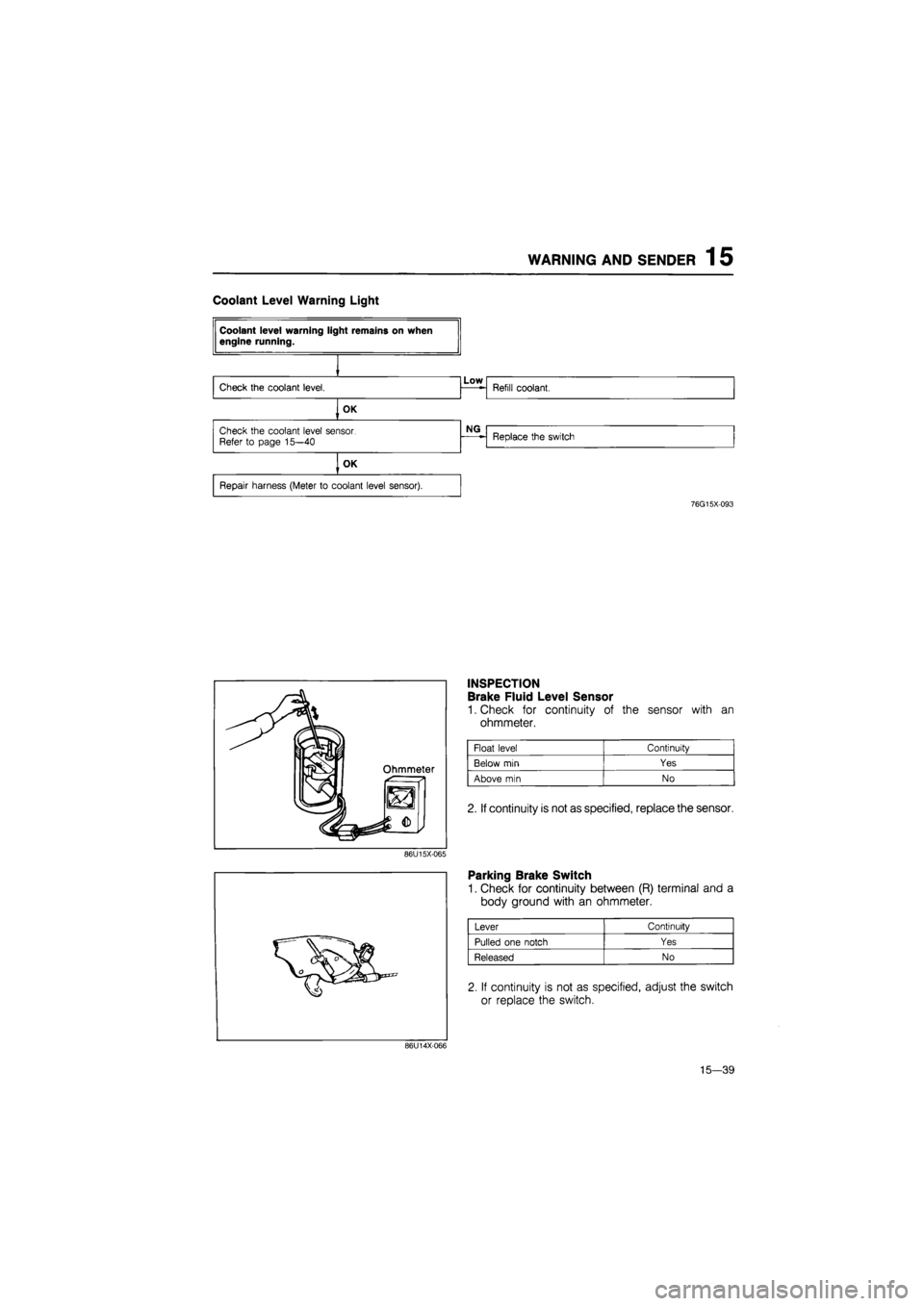

Coolant Level Warning Light
