Page 49 of 86
MISCELLANEOUS INFORMATION
Running-in, servicing, guarantee, running costs, towing a trailer, vehicle identification, replacement parts
RUNNING-IN
During the first 1,200 miles (2,000 kilometres), avoid over-revving,
and do not let the needle reach the coloured marks of the
corresponding speed ranges, before changing gear. Also avoid
during this period:
-harsh acceleration,
-fierce braking (the brake linings must be run in),
-long journeys at constant speed,
-labouring the engine at too low a speed.
SERVICING AND GUARANTEE
At the time of delivery, you will be given a "Maintenance Guide",
with a "Guarantee Card" and a 600 miles (1,000 km) "Servicing
Certificate".
On completion of the first 600 miles (1,000 km), any Citroën dealer\
,
whether he supplied the vehicle or not, will service the car, free-of-
charge, on presentation of this "Maintenance Guide".
It is particularly important that the oil filter cartridge, which has to\
comply to the standard regulations, should be of the type
recommended by Citroën.
Only the cost of the materials used will be charged for.
The dealer will keep the Servicing Certificate and sign the
Guarantee Card.
Page 50 of 86
This card must be signed for you to benefit from the guarantee.
INFLUENCE OF DRIVING TECHNIQUES ON RUNNING
COSTS
The manner in which a car is driven affects its running costs,
particularly as far as fuel, oil, and tyre expenses are concerned.
Running costs increase notably with:
-speed,
-frequent and prolonged use of low gears,
-accelerating and braking too often or too fiercely,
unnecessary use of the accelerator pedal,
-leaving the choke out,
-taking bends at high speeds,
-tyre inflated to incorrect pressures.
Oil consumption, which varies a great deal with the use of the car,
is also influenced when running in the engine, and you are advised
to pay particular attention to this point as well as to the oil change
section in the Maintenance Guide.
TOWING A TRAILER
If you intend to tow a caravan or trailer, consult your Citroën deale\
r
first, who will give you all the necessary advice, especially in so far \
as the legal requirements are concerned.
The maximum towing weights are, in France:
- Trailer without brake: 270 kg (595 lbs)
- Trailer with overrun brake: 400 kg (881 lbs)
IDENTIFICATION
Positions
Manufacturer's plate:Under the bonnet on the scuttle panel, RH
side.
Page 51 of 86
Stamped identification:On the front part (RH side) or the inner
platform.
Engine plate: On the engine housing, RH side.
Fig. 49
Manufacturer's plate
Information
On manufacturer's plate: Type of vehicle
Series
Number in series of the type
Gross Vehicle Weight: (PTC) (in kg)
Gross Train Weight: (with trailer)
(PTR) (in kg)
Stamped on body: Type of vehicle
Series
Number in series of the type
Engine plate: Make
Engine type
Production numberFig. 50
Engine plate
In France, the type of car and the number in the series of the type
are also indicated on the registration card (grey card) for the French\
market.
[
Contents] [Notices] [Important Points] [Driving] [Maintenance] [Minor Repairs] [Miscellaneous Information]
Page 52 of 86
TRAVELLING ABROAD
For English, click HERE
MERKBLATT FUR PFLEGE - UND WARTUNGS-DIENSTMÉMENTO POUR LA STATION-SERVICE
Reifen: MICHELIN 125-15 X
Druck = 1,4 vorn, 1,8 hinten, 2 Ersatzrad
Kraftstoff: Super
Fassungsvermögen = 20 L
Motoröl: ÖI TOTAL Altigrade GT 20 W 40
oder GTS 20 W 50
In sehr kalten Ländern: ÖI TOTAL
Altigrade GT oder GTS 10 W 30
Fassungsvermögen des Motors:
"2 CV 4" = 2,2 L. "2 CV 6" = 2,3 L
Bremsflüssigkeit: "TOTAL 70 R 3"
Fassungsvermögen: 0,5 L
Scheibenwascher: Wasser, dem man:
- zu jeder Jahreszeit ein Produkt wie z.B.
"Stop-Clair"
-im Winter ein Produkt wie z.B. "Stop-
Gel"
zusetzen kann
Batterie: 12 V 125/25 Ah.
Destilliertes Wasser (keine Saüre) zufüllen
Zünkerzen: AC 42 F - Bosch W 255 T1 - Champion L
85 - Eyquem 755 - Marchal 35 - Marelli
CW 7 N BT
Elektrodenabstand = 0,65-0,75 mm
Pneumatiques: MICHELIN 125-15 X
Pression = 1,4 bar à l'avant, 1,8 bar à
l'arrière
2 bars à la roue de secours
Autre montes: voir
ici.
Carburant: Capacité du réservoir = 20 litres
(Super)
Huile moteur: Huile TOTAL GT 20 W 40 ou GTS
20 W 50
Dans pays très froids: TOTAL GT 10
W 30 ou GTS 10 W 30
Capacité carter moteur:
Sur "2 CV 4" = 2,2 litres
Sur "2 CV 6" = 2,3 litres (après
échange cartouche filtre à huile: 2,4
litres)
Huile hoite de vitesses: Huile TOTAL Extrême pression SAE
80
Capacité: 0,9 litre
Graissage général: TOTAL Multis
Freinage hydraulique: "TOTAL 70 R 3"
Capacité: 0,5 litres
Page 53 of 86
Glühbirnen:Siehe Tabelle.
Lave-glace:Eau à laquelle il peut être ajouté:
-en toute saison: un produit genre
"Stop-Clair"
-en hiver: un produit genre "Stop-
Gel"
Batterie 12 V 125/25 Ah.
Eau distillée (ne pas ajouter d'acide)
Bougies: AC 42 F - Bosch W 255 T1 -
Champion L 85 - Eyquem 755 -
Marchal 35 - Marelli CW 7 N BT
Écartement des électrodes: = 0,65 à
0,75 mm
Lampes:
Voir tableau.

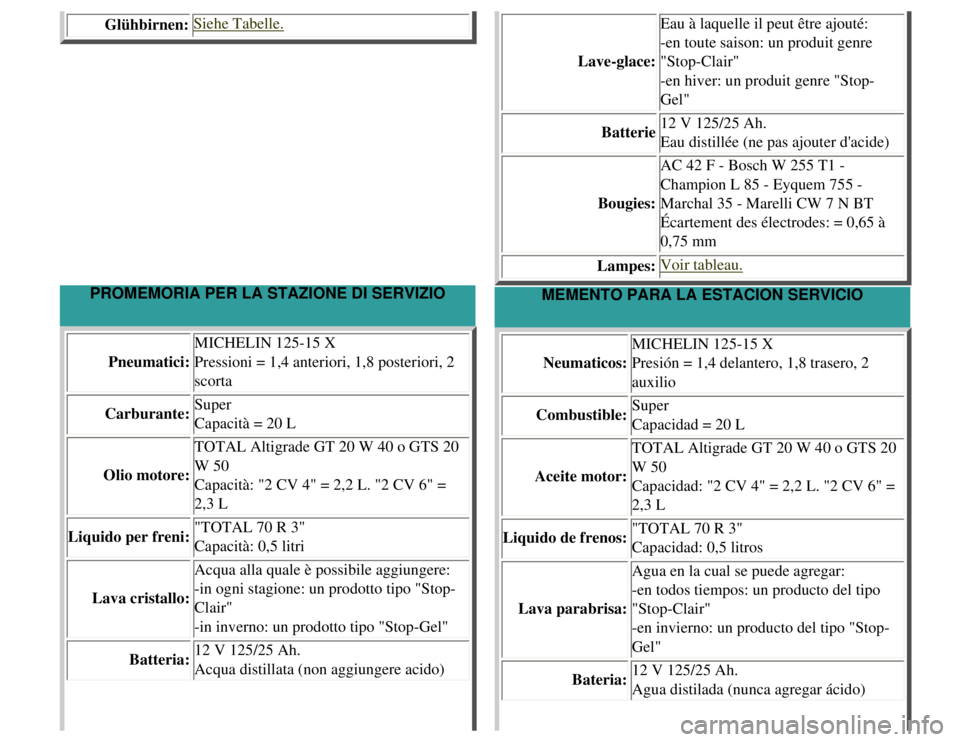

PROMEMORIA PER LA STAZIONE DI SERVIZIO MEMENTO PARA LA ESTACION SERVICIO
Pneumatici: MICHELIN 125-15 X
Pressioni = 1,4 anteriori, 1,8 posteriori, 2
scorta
Carburante: Super
Capacità = 20 L
Olio motore: TOTAL Altigrade GT 20 W 40 o GTS 20
W 50
Capacità: "2 CV 4" = 2,2 L. "2 CV 6" =
2,3 L
Liquido per freni: "TOTAL 70 R 3"
Capacità: 0,5 litri
Lava cristallo: Acqua alla quale è possibile aggiungere:
-in ogni stagione: un prodotto tipo "Stop-
Clair"
-in inverno: un prodotto tipo "Stop-Gel"
Batteria: 12 V 125/25 Ah.
Acqua distillata (non aggiungere acido)
Neumaticos: MICHELIN 125-15 X
Presión = 1,4 delantero, 1,8 trasero, 2
auxilio
Combustible: Super
Capacidad = 20 L
Aceite motor: TOTAL Altigrade GT 20 W 40 o GTS 20
W 50
Capacidad: "2 CV 4" = 2,2 L. "2 CV 6" =
2,3 L
Liquido de frenos: "TOTAL 70 R 3"
Capacidad: 0,5 litros
Lava parabrisa: Agua en la cual se puede agregar:
-en todos tiempos: un producto del tipo
"Stop-Clair"
-en invierno: un producto del tipo "Stop-
Gel"
Bateria: 12 V 125/25 Ah.
Agua distilada (nunca agregar ácido)
Page 54 of 86
Candele:AC 42 F - Bosch W 255 T1 - Champion L
85 - Eyquem 755 - Marchal 35 - Marelli
CW 7 N BT
Distanza degli elettrodi = 0,65-0,75 mm
Lampade:
Ved. tabella.
Bujias: AC 42 F - Bosch W 255 T1 - Champion
L 85 - Eyquem 755 - Marchal 35 -
Marelli CW 7 N BT
Apertura de los eléctrodos = 0,65-0,75
mm
Làmparas:
Ver tablero.
Do not forget to ask your insurance company for an International Green C\
ard. This will avoid extra expenses
when entering countries where insurance is compulsory and can avoid seri\
ous complications in the event of an accident in another country.
However, it is only valid in those countries which are covered by the In\
surance policy (look for the geographical limits in the "General Conditions" section of your policy)\
.
In certain countries, a large sum may be required as a deposit in case o\
f an accident causing personal bodily injury. There are insurance policies which cover this risk.
If you are going to a country where the opposite rule of the road applie\
s, first consult your Citroën dealer about dipped headlamps.
[Contents] [Notices] [Important Points] [Driving] [Maintenance] [Minor Repairs] [Miscellaneous Information]
Page 55 of 86
REMINDER FOR SERVICE-STATION
For German, French, Italian, or Spanish, click HERE.
REMINDER FOR SERVICE-STATIONTyres:MICHELIN 125-15 X
Pressure = 1.4 bar (20 psi) at the
front
1.8 bar (26 psi) at the rear
2 bars (29 psi) on spare wheel
Other fittings: See
HERE.
Fuel: Super (Premium 4-stars, 97-99
octane)
Capacity: 20 litres (4.5 imp. pints)
Engine oil: TOTAL "GT 20 W 40" or "GTS 20
W 50" oil
In very cold countries: TOTAL
"GT 10 W 30" or "GTS 10 W 30"
oil
Sump capacity: On "2 CV 4" = 2.2 Litres (3.9 imp.
pints)
On "2 CV 6" = 2.3 Litres (4 imp.
pints)
Gearbox oil: TOTAL extreme pressure "SAE
80" oil (capacity 0.9 litre (1 1/2
Imp. pints)
General lubricant: "TOTAL Multis"
Page 56 of 86
Hydraulic brake system:TOTAL FLUID "70 R3" - If this
product is not available, use
NFR12640 "S" or "V" or SAE J
1703a (capacity 0.5 Litres - 7/8
imp. pint)
Windscreen washer: Water, to which may be added:
- in any season: a product like
"Stop-Clair", "Clearalex", "Screen-
Clear". etc.
-in Winter: a product like "Stop-
Gel"
Battery: 12 V - 125/25 Ah. CEI (or 150/30
Ah. CEI)
Distilled water (do not add acid)
Sparking Plugs: AC 42 F - Bosch W 255 T1 -
Champion L 85 - Eyquem 755 -
Marchal 35 - Marelli CW 7 N BT
Electrode gap = 0.65-0.75 mm
Bulbs:
See table.
PRE-START CHECKLIST
Levels Petrol
Engine oil
Brake fluid Battery
Windscreen washer
Operation
Engine Oil warning Lamp (2 CV 6) Horn
Exterior lighting
Direction indicators Brake lamps
