TECHNICAL SPECIFICATIONS
Engine Specifications
Engine on "2 CV 4"Engine on "2 CV 6"
French official symbol: Citroën type AZ KB
Cylinders: flat twin opposed
Bore: 68.5 mm
Stroke: 59 mm
Cubic capacity: 435 cc
Compression ratio: 8.5 : 1
Effective HP (DIN): 24 HP at 6,750 rpm
Maximum torque (DIN): 2.95 mkg (21.3 ft.lbs.) at 4,000 rpm
Valve gear:
Exhaust valve stem clearance, when cold: 0,15 to 0,20 mm
Inlet valve stem clearance, when cold: 0,15 to 0,20 mm
Fuel system:
Fuel: Premium
Fuel tank capacity: 20 litres (4.4 imp. gal.)
Carburettor: Solex
Lubrication:
After draining: 2,2 litres (3.9 imp. pints)
Ignition:
Static advance setting: 12° engine
Sparking plugs: Series fitted: Marchal 35 - AC 42 F - Eyquem
755 - Bosch W 225 T1 - Champion L 85 - Marelli CW 7 N BT
Electrode gap: 0,65 to 0,75 mm (0.026" to 0.030") French official symbol: Citroën type AZ KA
Cylinders: flat twin opposed
Bore: 74 mm
Stroke: 70 mm
Cubic capacity: 602 cc
Compression ratio: 8.5 : 1
Effective HP (DIN): 26 HP at 5,500 rpm
Maximum torque (DIN): 3.8 mkg (27.5 ft.lbs.) at 3,500 rpm
Valve gear:
Exhaust valve stem clearance, when cold: 0,15 to 0,20 mm
Inlet valve stem clearance, when cold: 0,15 to 0,20 mm
Fuel system:
Fuel: Premium
Fuel tank capacity: 20 litres (4.4 imp. gal.)
Carburettor: Solex
Lubrication:
After draining: 2,3 litres (4.0 imp. pints)
Ignition:
Static advance setting: 8° engine
Sparking plugs: Series fitted: Marchal 35 - AC 42 F - Eyquem
755 - Bosch W 225 T1 - Champion L 85 - Marelli CW 7 N BT
Electrode gap: 0,65 to 0,75 mm (0.026" to 0.030")

Gear Ratio
ELECTRICAL SYSTEM
Voltage: 12 V
Alternator: Maximum power: 390 W; Minimum charging speed:
780 rpm
Battery: Capacity: 125/25 Ah. CEI or 150/30 Ah. CEI On:
"2 CV 4" "2 CV 6"
1st gear 0.034829:10.0465 21.5:1
2nd gear 0.068115:10.0912 10.96:1
3rd gear 0.11368.1:10.1357 7.37:1
4th gear 0.16446:10.1842 5.43:1
Reverse 0.034829:10.0465 21.5:1
Crownwheel and pinion 8/33
8/33
Bulb table
12 V 45/40 W type
"European Dip" Dip/Main beam headlamps
12 V 4 W - BA 9 S type T
8/4 Front sidelamps
12 V 5 W type R 19/5 Rear sidelamps and number plate
lighting
12 V 21 W type P 25/1 Front and rear direction
indicators - brake lamps
12 V 7 W type BA 15 S Interior lamp
12 V 2 W - BA 9 S type T
8/2 Speedometer lighting
Fig. 52
Exterior lighting and signals
1 - Dip/main beam headlmaps and front sidelamps 2 - Front direction indicators3 - Rear direction indicators 4 - Brake lamps
5 - Rear number plate lighting and tail lamps

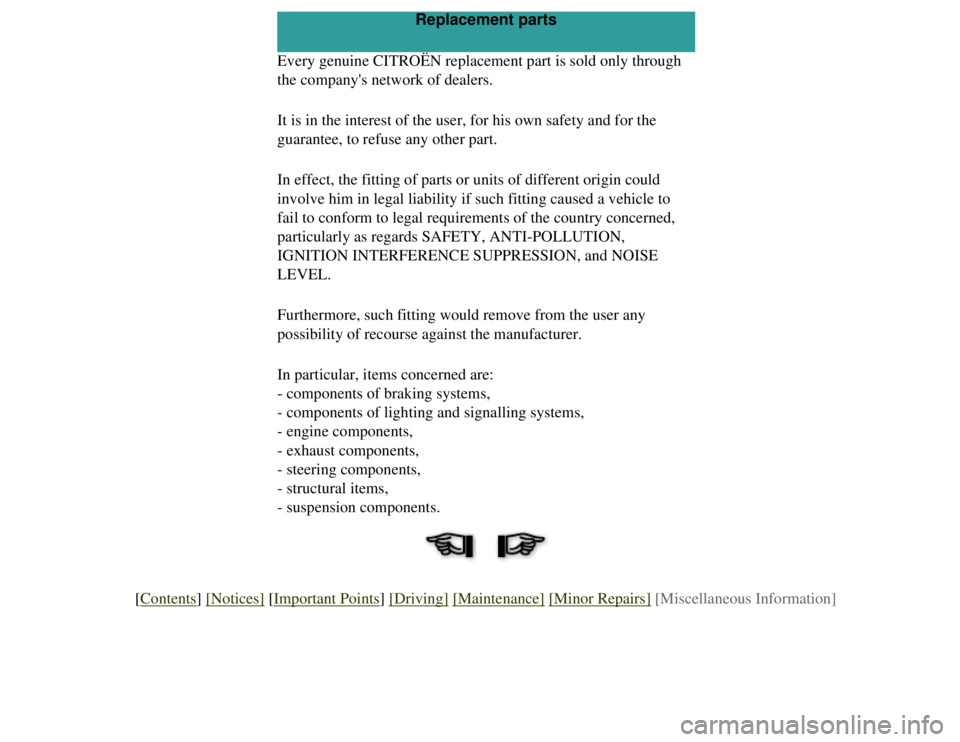

Replacement parts
Every genuine CITROËN replacement part is sold only through
the company's network of dealers.
It is in the interest of the user, for his own safety and for the
guarantee, to refuse any other part.
In effect, the fitting of parts or units of different origin could
involve him in legal liability if such fitting caused a vehicle to
fail to conform to legal requirements of the country concerned,
particularly as regards SAFETY, ANTI-POLLUTION,
IGNITION INTERFERENCE SUPPRESSION, and NOISE
LEVEL.
Furthermore, such fitting would remove from the user any
possibility of recourse against the manufacturer.
In particular, items concerned are:
- components of braking systems,
- components of lighting and signalling systems,
- engine components,
- exhaust components,
- steering components,
- structural items,
- suspension components.
