1975 CITROEN 2CV Owners Manual

DRIVING
Driving
Gears, clutch, brakes
GEAR SELECTION (Fig. 14)
The gear positions are indicated on a diagram appearing on the
glass of the speedometer, below the total mileage indicator.
To engage reverse gear, wait until the car has stopped.
Do not forget to place the lever in neutral when parking.
Change gear as soon as the speedometer needle reaches the
approriate red marks so as to avoid over-accelerating the engine.
CLUTCH (According to model)
Foot operated of the conventional type.
Foot operated, of the conventional type, with an auxiliary
centrifugal device, the purpose of which is: either to disengage
the clutch as soon as the engine speed falls below a certain limit,
or to progressively re-engage the clutch as the engine speed is
increased.
When the car is fitted with this automatice device, you can: stop
the car without depressing the cluch pedal, even when it is in
gear, and move off again by simply accelerating, provided either
1st or 2nd gear is engaged; drive in slow-moving traffic without
having to change gear, provided either 1st or 2nd gear is
engaged; move off on a hill without having to use the clutch
pedal, provided that the slope is less than 1 in 10 (10%) and that
the behicle is not fully-laden.
Fig. 14
Gear lever
PM = Neutral
AR = Reverse gear

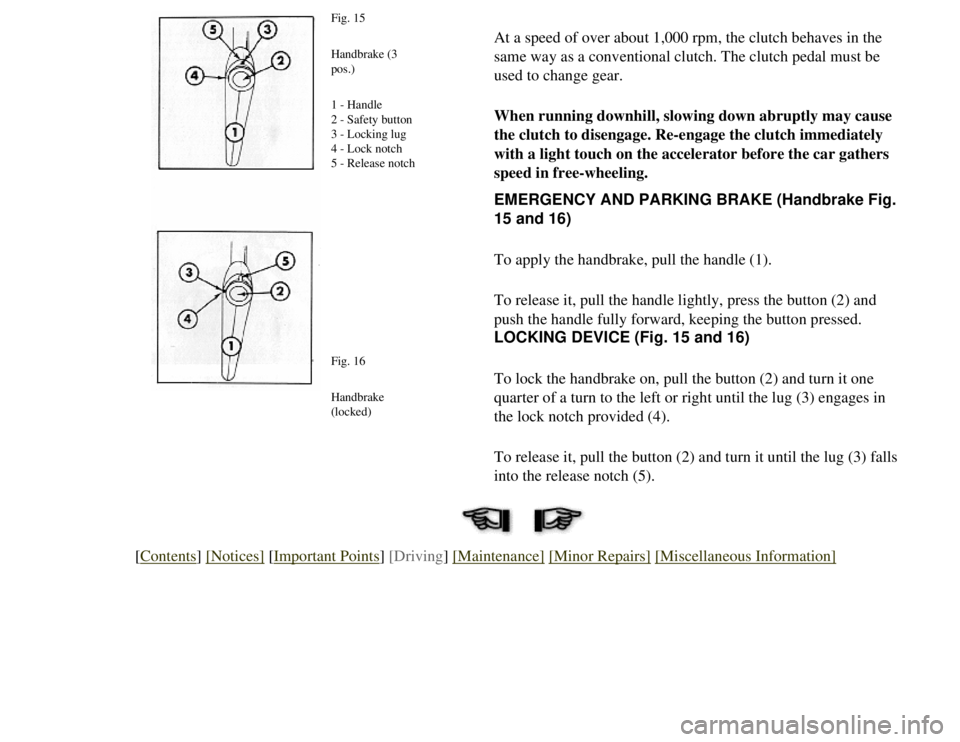

At a speed of over about 1,000 rpm, the clutch behaves in the
same way as a conventional clutch. The clutch pedal must be
used to change gear.
When running downhill, slowing down abruptly may cause
the clutch to disengage. Re-engage the clutch immediately
with a light touch on the accelerator before the car gathers
speed in free-wheeling.
Fig. 15
Handbrake (3
pos.)
1 - Handle
2 - Safety button
3 - Locking lug
4 - Lock notch
5 - Release notch




Fig. 16
Handbrake
(locked)
EMERGENCY AND PARKING BRAKE (Handbrake Fig.
15 and 16)
To apply the handbrake, pull the handle (1).
To release it, pull the handle lightly, press the button (2) and
push the handle fully forward, keeping the button pressed.
LOCKING DEVICE (Fig. 15 and 16)
To lock the handbrake on, pull the button (2) and turn it one
quarter of a turn to the left or right until the lug (3) engages in
the lock notch provided (4).
To release it, pull the button (2) and turn it until the lug (3) fal\
ls
into the release notch (5).
[Contents] [Notices] [Important Points] [Driving] [Maintenance] [Minor Repairs] [Miscellaneous Information]

DRIVING
Signals and Visibility
Lights, signals, windscreen wipers, windscreen washers
CONTROL FOR DIRECTION INDICATORS (Fig. 17)
Right hand and left hand indicators: move the lever in the
direction in which you are going to turn the steering wheel.
To cancel the signal, return the lever to its mid-way position.
An audible warning device is heard while the indicators are
flashing. If it does not work, check the indicators.
Fig. 17
Signalling control
1 - RH direction indicator 2 - LH direction indicator
ELECTRIC WINDSCREEN WIPERS (Fig. 18)
To operate: Push the button (1).
To stop: Push the button and the wipers will park automatically at
the end of their travel.
WINDSCREEN WASHERS (Fig. 18)
To operate: Press the button (2). The height of the jet depends on
the pressure exerted.

Fig. 18
1 - Electric windscreen wipers 2 - Windscreen washer
LIGHTING AND HORN SWITCH (Fig. 19)
Lights out: The lights are out when the side of the knob marked
"O" is facing the driver.
Side and tail lights: Turn the knob one notch ("V").
Main beam: Turn the knob to the second notch ("R").
Dipped: In "Side and tail" or "Main beam" position, push the lever
away from the steering wheel.
Horn: Depress the end of the knob (2).
Fig. 19
1 - Switch for hazard warning lamps
2 - Switch for headlamps, side and tail lamps and horn
SWITCH FOR HAZARD WARNING LAMPS (Fig. 19)
To operate: Press the switch (1) - the four winkers function.
To stop: Press the switch again.
This warning device operates even when the ignition is switched off.
[Contents] [Notices] [Important Points] [Driving] [Maintenance] [Minor Repairs] [Miscellaneous Information]

DRIVING
Air Conditioning
Ventilation, heating, de-misting

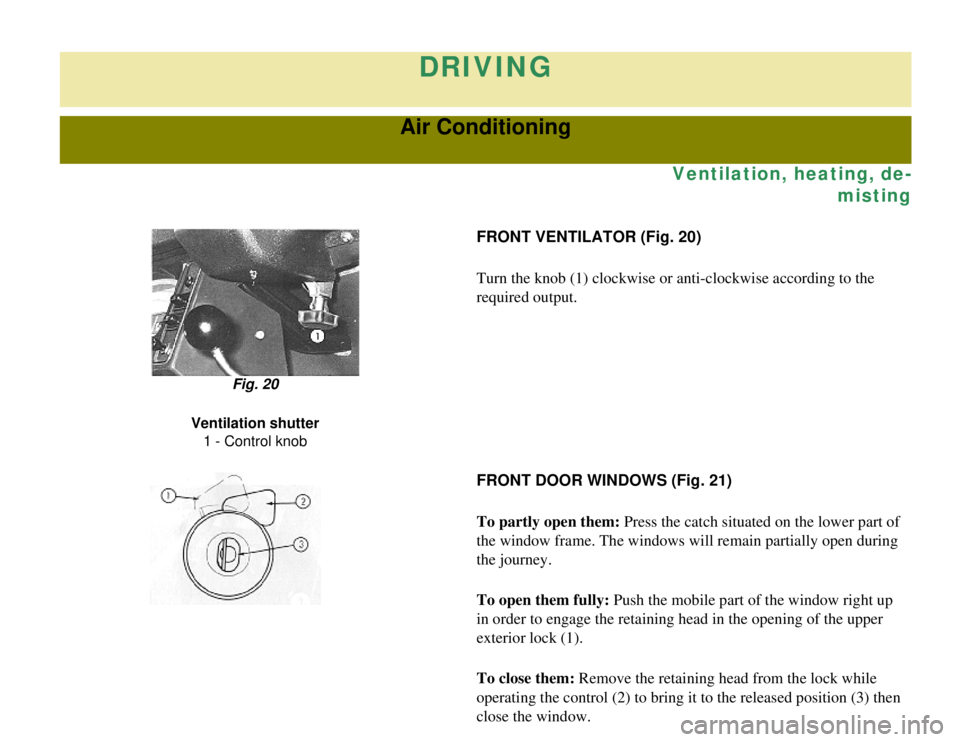

FRONT VENTILATOR (Fig. 20)
Turn the knob (1) clockwise or anti-clockwise according to the
required output.
Fig. 20
Ventilation shutter 1 - Control knob
FRONT DOOR WINDOWS (Fig. 21)
To partly open them: Press the catch situated on the lower part of
the window frame. The windows will remain partially open during
the journey.
To open them fully: Push the mobile part of the window right up
in order to engage the retaining head in the opening of the upper
exterior lock (1).
To close them: Remove the retaining head from the lock while
operating the control (2) to bring it to the released position (3) t\
hen
close the window.

Fig. 21
Front door windows 1 - Lock
2 - Lock control
3 - Released position

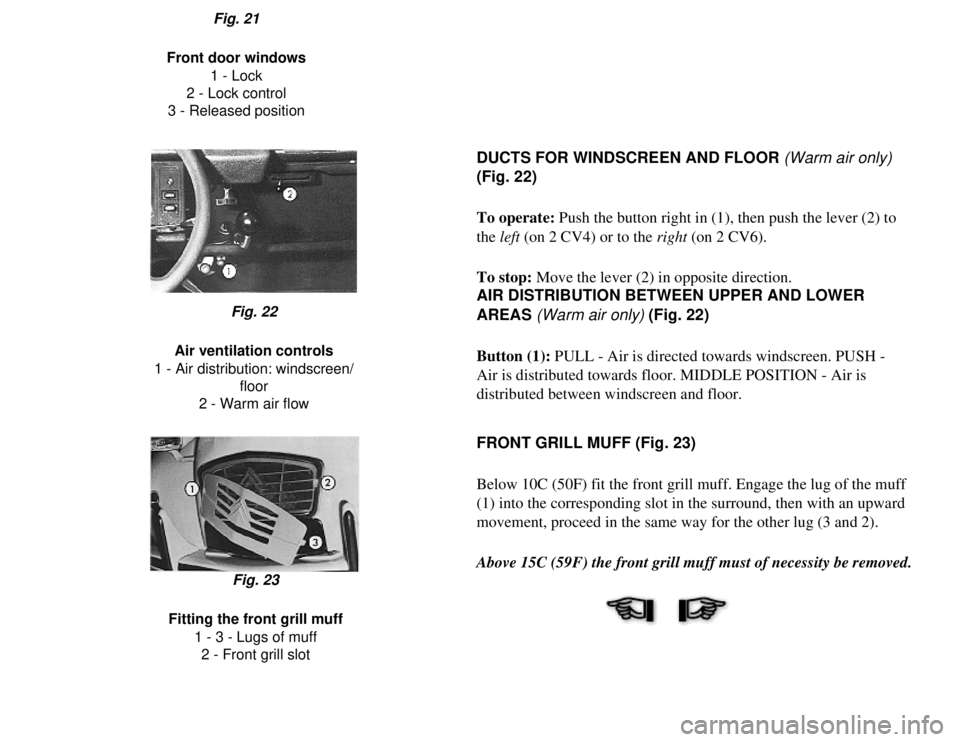

DUCTS FOR WINDSCREEN AND FLOOR (Warm air only)
(Fig. 22)
To operate: Push the button right in (1), then push the lever (2) to
the left (on 2 CV4) or to the right (on 2 CV6).
To stop: Move the lever (2) in opposite direction.
AIR DISTRIBUTION BETWEEN UPPER AND LOWER
AREAS (Warm air only) (Fig. 22)
Button (1): PULL - Air is directed towards windscreen. PUSH -
Air is distributed towards floor. MIDDLE POSITION - Air is
distributed between windscreen and floor.
Fig. 22
Air ventilation controls
1 - Air distribution: windscreen/ floor
2 - Warm air flow
FRONT GRILL MUFF (Fig. 23)
Below 10C (50F) fit the front grill muff. Engage the lug of the muff
(1) into the corresponding slot in the surround, then with an upward
movement, proceed in the same way for the other lug (3 and 2).
Above 15C (59F) the front grill muff must of necessity be removed.
Fig. 23
Fitting the front grill muff 1 - 3 - Lugs of muff2 - Front grill slot

[Contents] [Notices] [Important Points] [Driving] [Maintenance] [Minor Repairs] [Miscellaneous Information]

DRIVING
Comfort

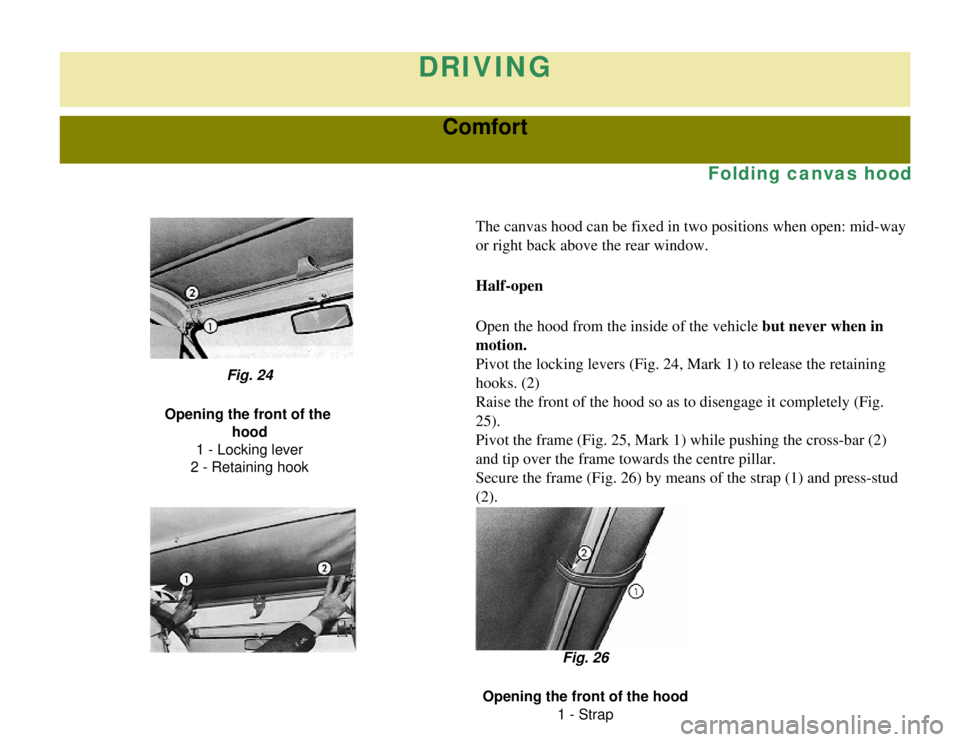

Folding canvas hood
The canvas hood can be fixed in two positions when open: mid-way
or right back above the rear window.
Half-open
Open the hood from the inside of the vehicle but never when in
motion.
Pivot the locking levers (Fig. 24, Mark 1) to release the retaining
hooks. (2)
Raise the front of the hood so as to disengage it completely (Fig.
25).
Pivot the frame (Fig. 25, Mark 1) while pushing the cross-bar (2)
and tip over the frame towards the centre pillar.
Secure the frame (Fig. 26) by means of the strap (1) and press-stud \
(2).
Fig. 24
Opening the front of the hood
1 - Locking lever
2 - Retaining hook
Fig. 26
Opening the front of the hood 1 - Strap
