2023 LEXUS NX250 350 Owners Manual

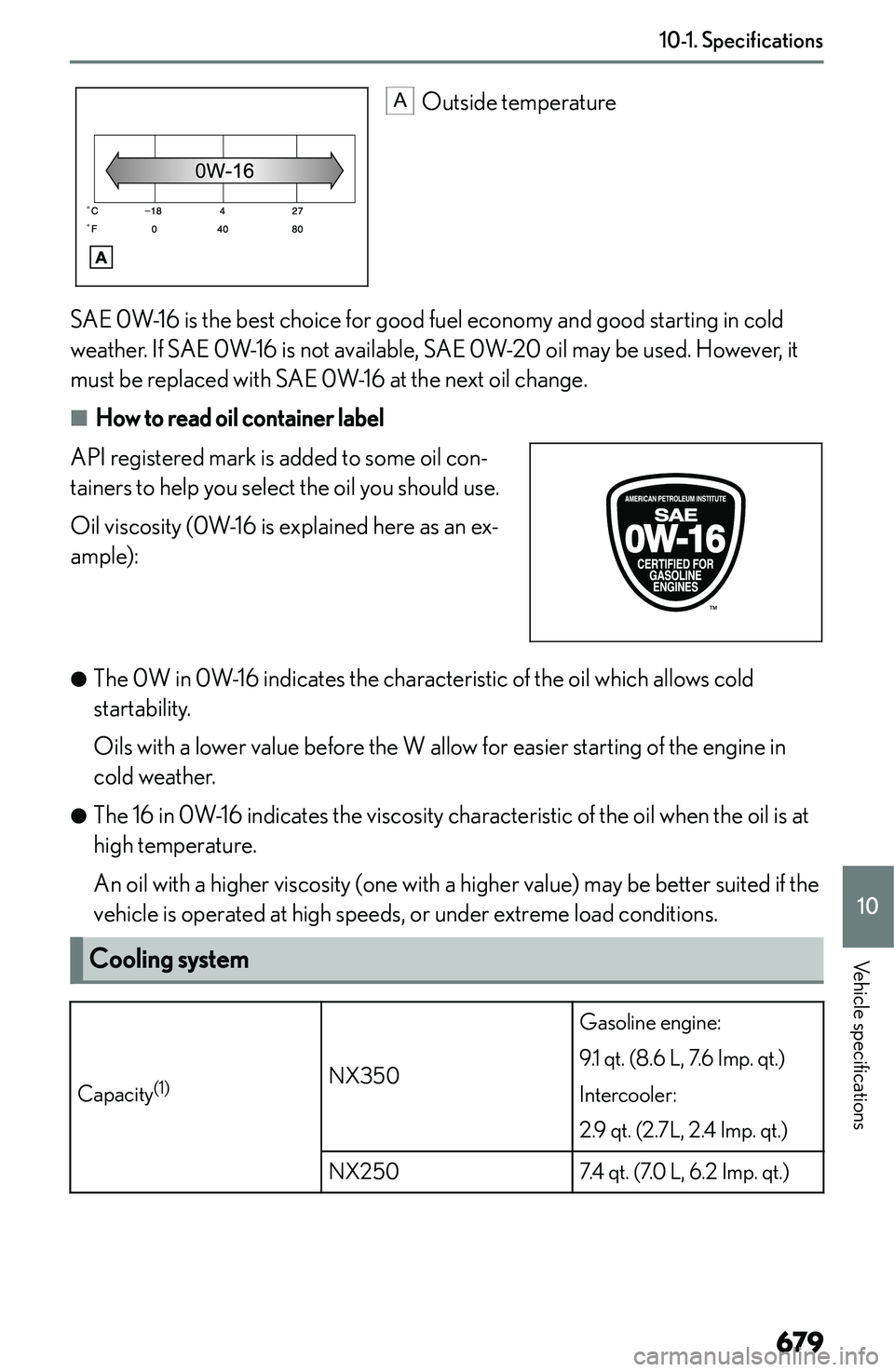

AOutside temperature
SAE 0W-16 is the best choice for good fuel economy and good starting in cold weather. If SAE 0W-16 is not available, SAE 0W-20 oil may be used. However, it
must be replaced with SAE 0W-16 at the next oil change.

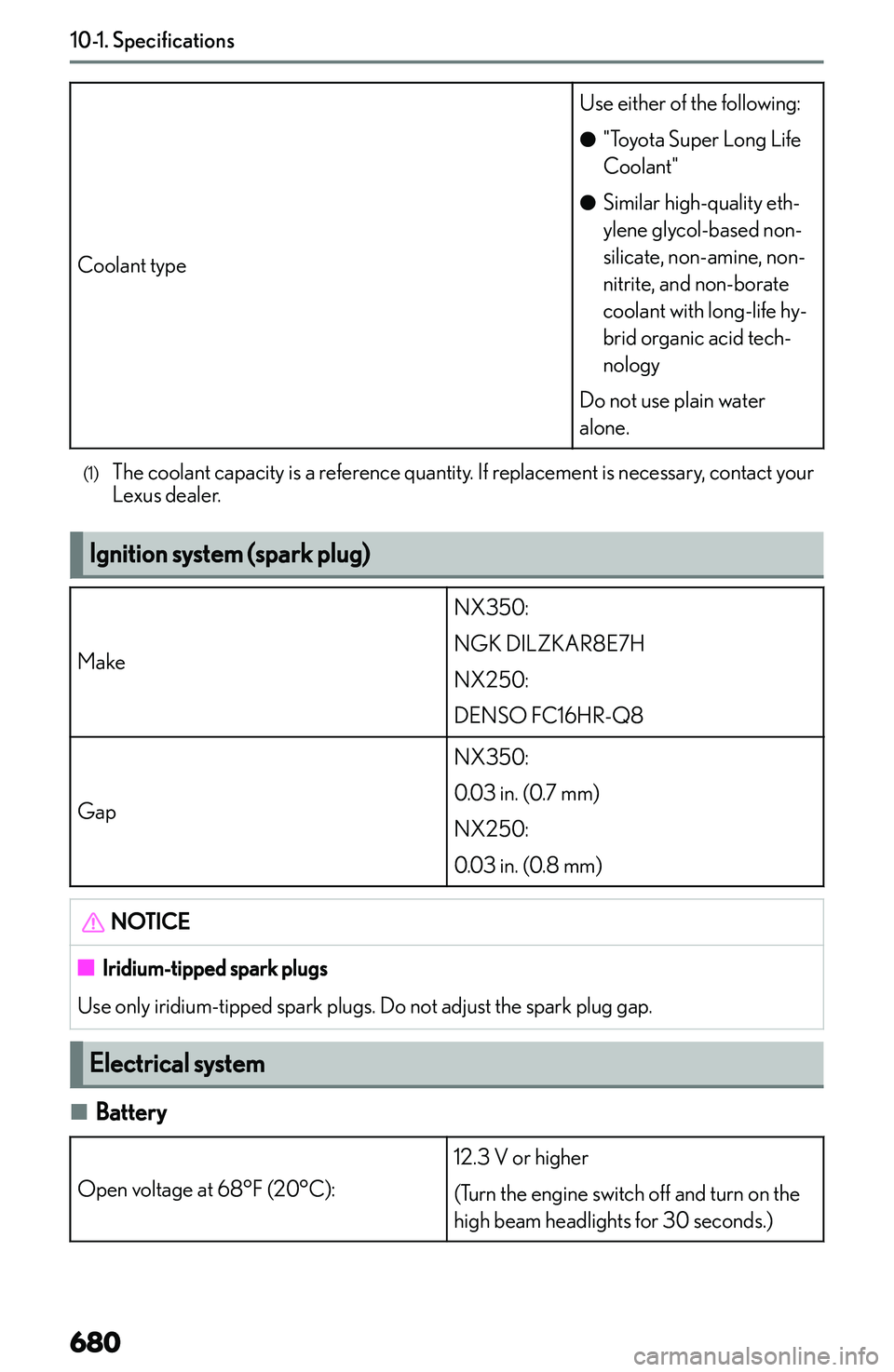

Coolant type
Use either of the following:

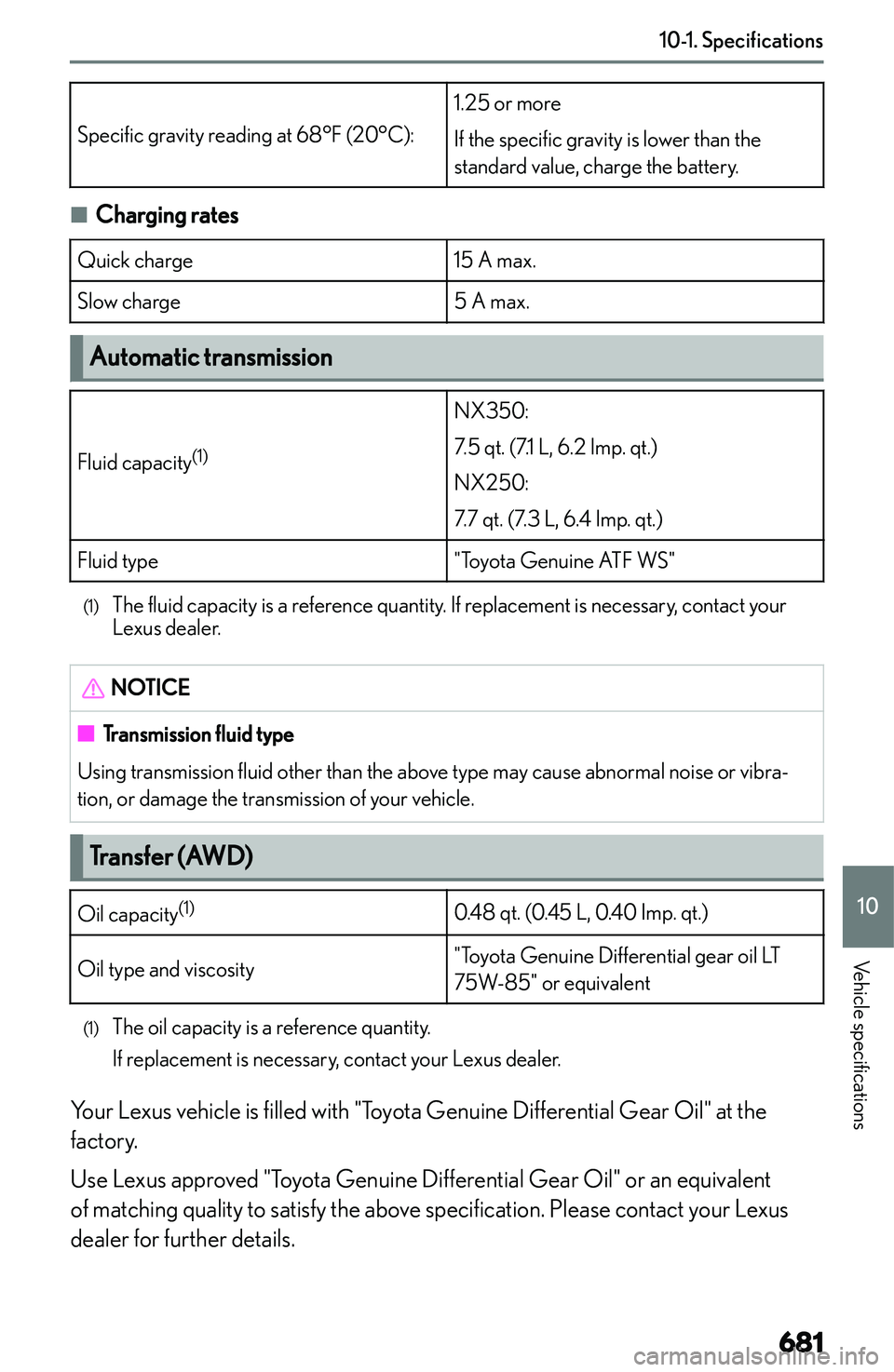

Specific gravity reading at 68

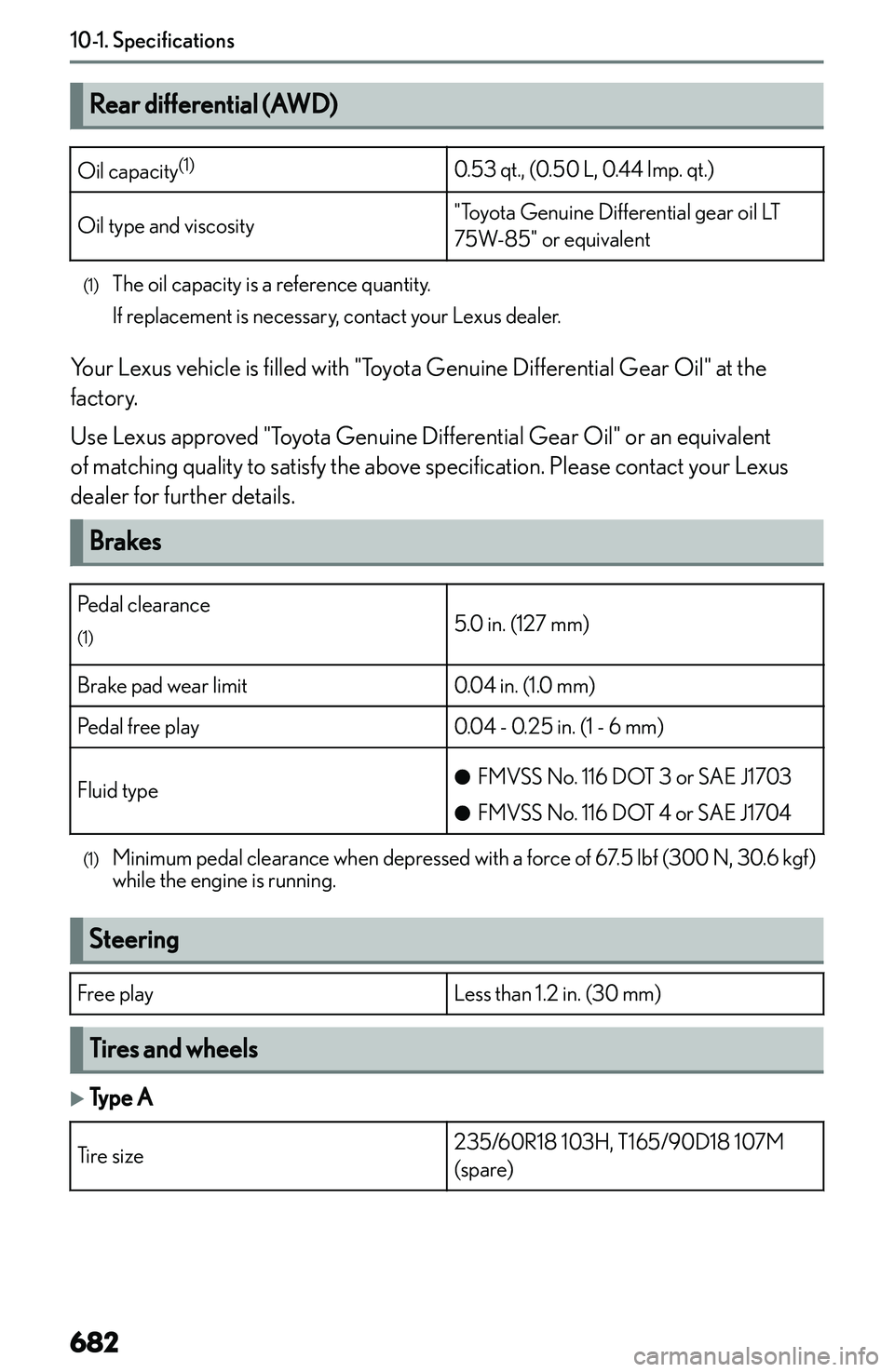

Reardifferential(AWD)Oil capacity(1)0.53 qt., (0.50 L, 0.44 Imp. qt.)Oil type and viscosity"Toyota Genuine Differential gear oil LT
75W-85" or equivalent
(1) The oil capacity is a reference quantity.
If replacement is necessary, contact your Lexus dealer.

Your Lexus vehicle is filled with "Toyota Genuine Differential Gear Oil" at the
factory.
Use Lexus approved "Toyota Genuine Differential Gear Oil" or an equivalent
of matching quality to satisfy the above specification. Please contact your Lexus
dealer for further details.
Brakes
Pedal clearance
(1)5.0 in. (127 mm)Brake pad wear limit0.04 in. (1.0 mm)Pedal free play0.04 - 0.25 in. (1 - 6 mm)
Fluid type

Tire inflation pressure (Recommended cold
tire inflation pressure)
Front: 33 psi (230 kPa, 2.3 kgf/cm 2
or bar)
Rear: 33 psi (230 kPa, 2.3 kgf/cm 2
or bar)
Spare: 60 psi (420 kPa, 4.2 kgf/cm 2
or
bar)
Driving at high speeds (above 100 mph
[160 km/h@) (in countries where such
speeds are permitted by law)
Add 3 psi (20 kPa, 0.2 kgf/cm 2
or bar)
to the front and rear tires. Never exceed
the maximum cold tire inflation pressure
indicated on the tire sidewall.Wheel size18

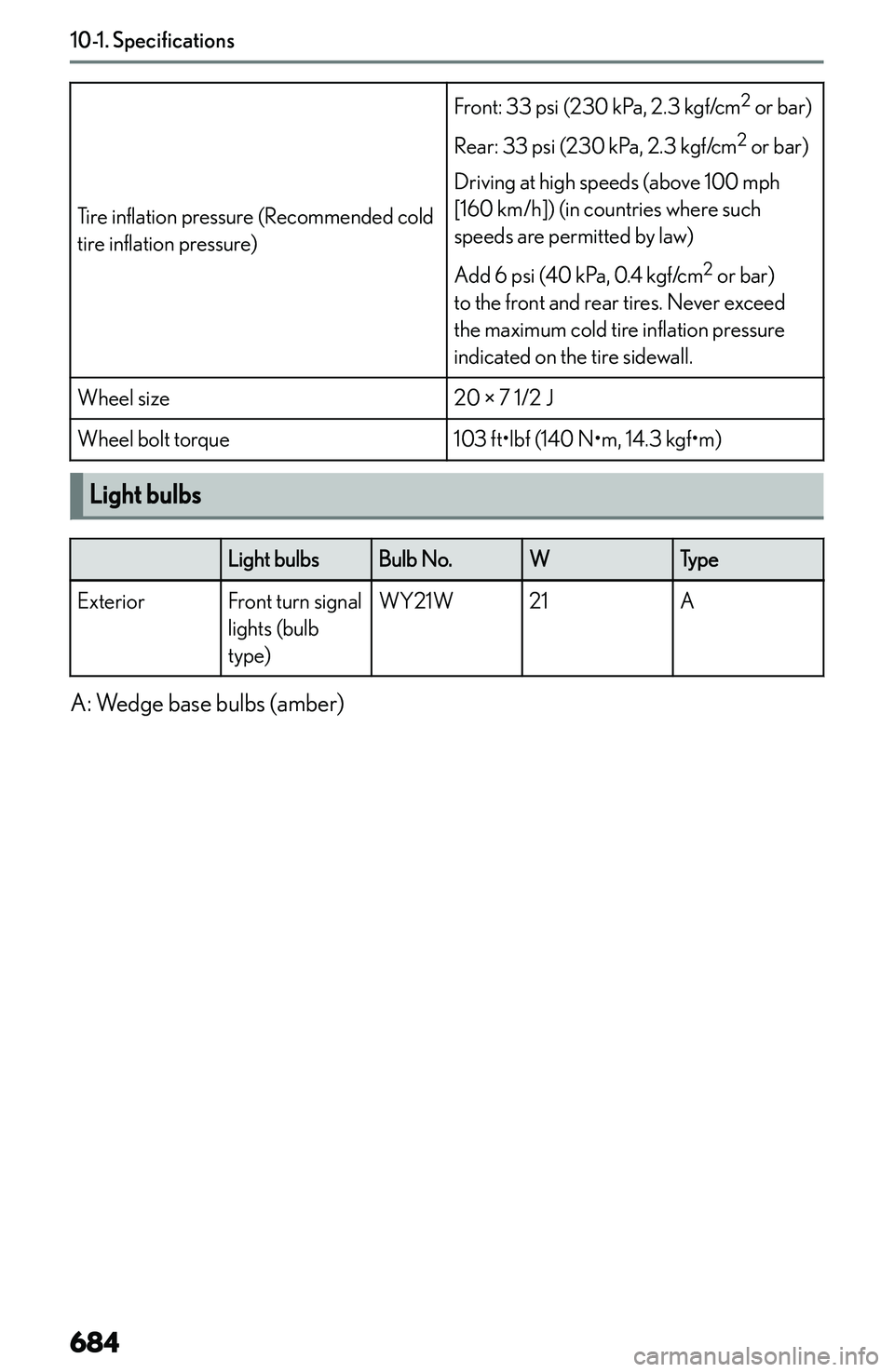

Tire inflation pressure (Recommended cold
tire inflation pressure)
Front: 33 psi (230 kPa, 2.3 kgf/cm 2
or bar)
Rear: 33 psi (230 kPa, 2.3 kgf/cm 2
or bar)
Driving at high speeds (above 100 mph
[160 km/h@) (in countries where such
speeds are permitted by law)
Add 6 psi (40 kPa, 0.4 kgf/cm 2
or bar)
to the front and rear tires. Never exceed
the maximum cold tire inflation pressure
indicated on the tire sidewall.Wheel size20

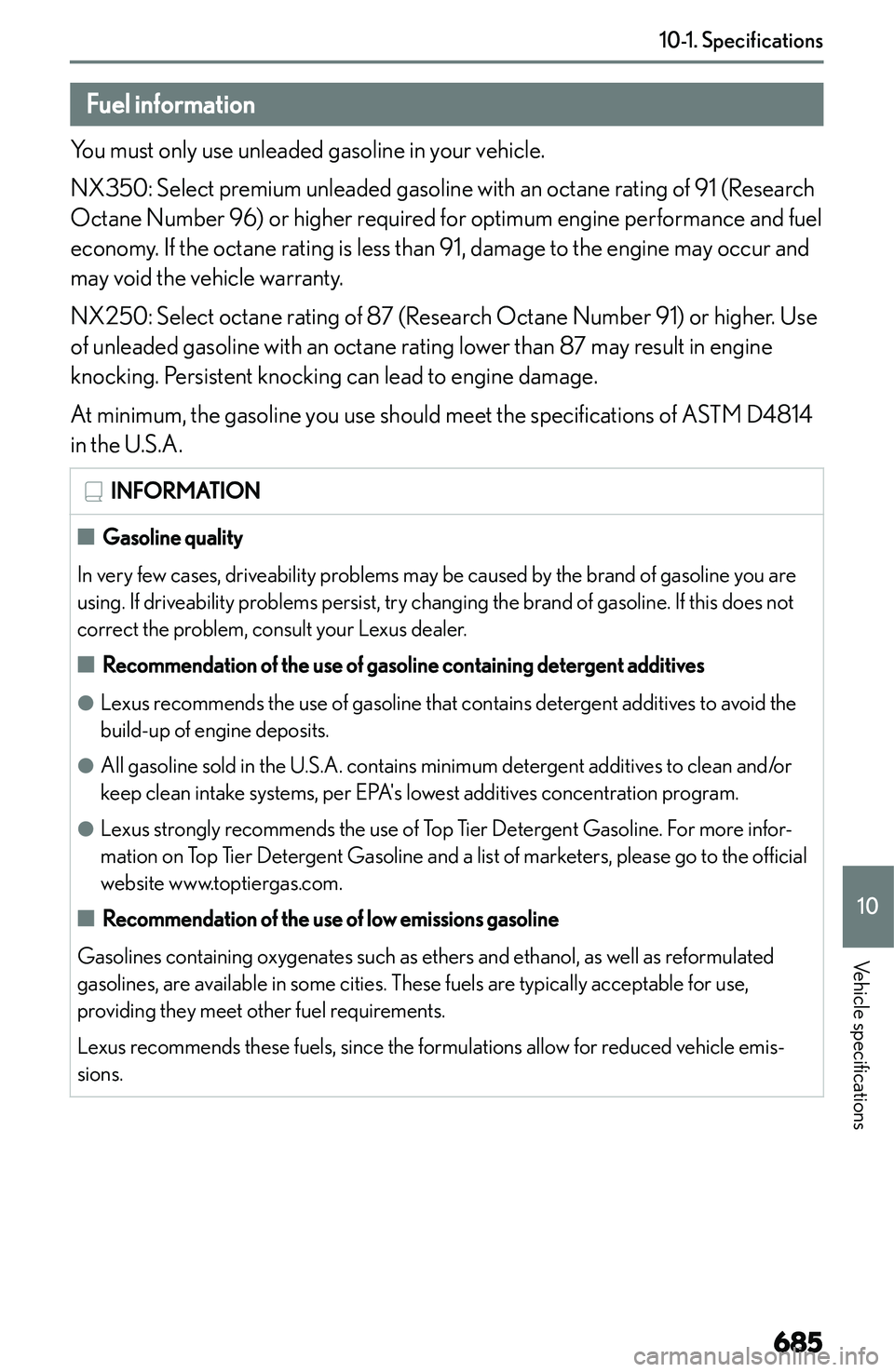

Fuelinformation
You must only use unleaded gasoline in your vehicle.
NX350: Select premium unleaded gasoline with an octane rating of 91 (Research
Octane Number 96) or higher required for optimum engine performance and fuel
economy. If the octane rating is less than 91, damage to the engine may occur and
may void the vehicle warranty.
NX250: Select octane rating of 87 (Research Octane Number 91) or higher. Use
of unleaded gasoline with an octane rating lower than 87 may result in engine
knocking. Persistent knocking can lead to engine damage.
At minimum, the gasoline you use should meet the specifications of ASTM D4814 in the U.S.A.INFORMATION
