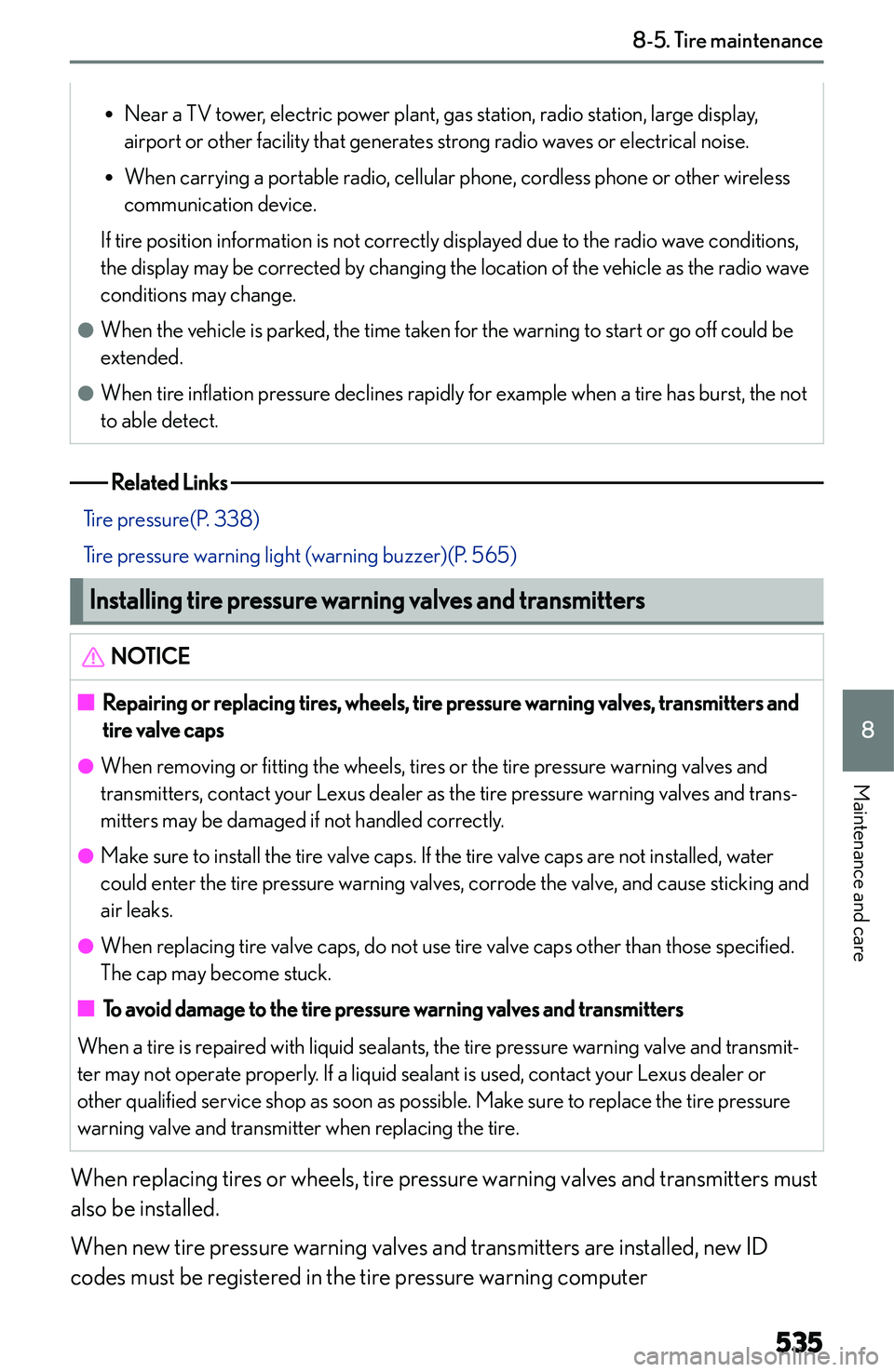

RNear a TV tower, electric power plant, gas station, radio station, large display,
airport or other facility that generates strong radio waves or electrical noise.
R When carrying a portable radio, cellular phone, cordless phone or other wireless
communication device.
If tire position information is not correctly displayed due to the radio wave conditions, the display may be corrected by changing the location of the vehicle as the radio wave
conditions may change.

INFORMATION

does not complete after driving for 1 hour or more, park the vehicle in a safe place and
leave it with the engine switch in ON for approximately 15 minutes or more, and then
perform the driving procedure again.INFORMATION

When the tire inflation pressure is to be other than specified, such as when tires
other than the specified size are used, etc., set the tire inflation pressure using
the current pressure. Make sure to adjust the tire inflation pressure of each tire
to the appropriate level before performing tire pressure setting. The tire pressure warning system operates based on this tire inflation pressure.
RelatedLinks
Setting by selecting a specified tire inflation pressure(P. 538)
Setting using the current tire inflation pressure(P. 539)
Settingbyselectingaspecifiedtireinflationpressure
1 Start the engine.
The tire inflation pressure cannot be set while the vehicle is moving.
2 Select
on the center display.
3 Select [Vehicle customize@.
4 Select [Tire pressure@.
5 Select [Set indicated air pressure@ and then select the desired front and rear
tire pressures.
6 Select [OK@.
The tire pressure warning light will slowly blink 3
times.
After setting the tire inflation pressure, a message
indicating that setting has been completed will be
displayed on the multi-information display.
INFORMATION

SettingusingthecurrenttireinflationpressureWARNINGMake sure to adjust the tire inflation pressure of each tire to the appropriate level before
performing tire pressure setting. Otherwise, the tire pressure warning light may not
illuminate even if the tire inflation pressure drops or may illuminate even though the tire inflation pressure is normal.INFORMATION

INFORMATION

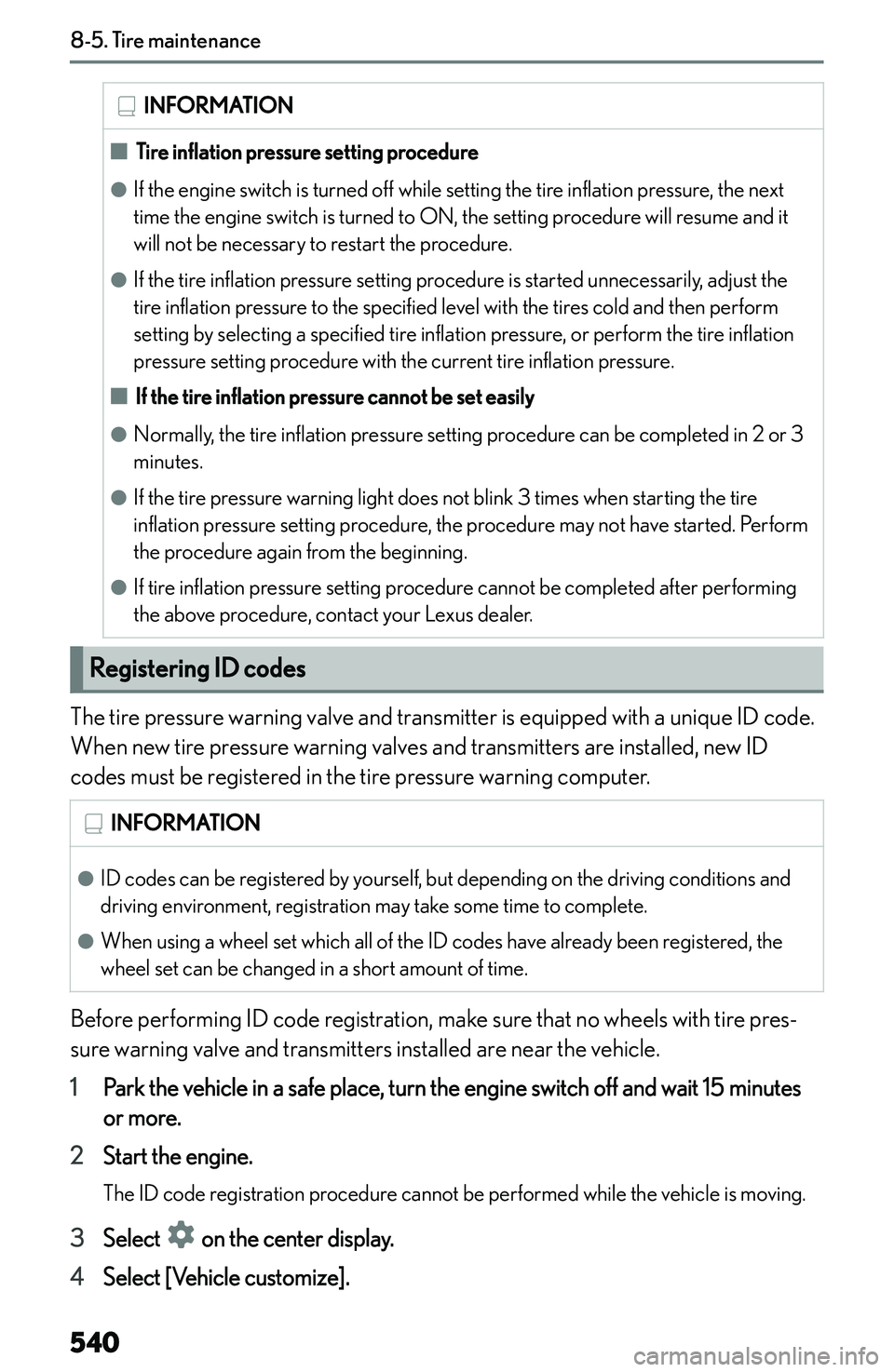

5Select [Tire pressure@.
6 Check if the desired wheel set ([Set 1@ or [Set
2@) is displayed.
ID codes will be registered to the displayed wheel
set.
To change the wheel set to be registered, select
the displayed set, and then select the wheel set
you wish to register.
If ID codes have already been registered for that wheel set, the tire pressure warning light will slowly blink 3 times, and a message
indicating that change is occurring will be displayed on the multi-information display.
7 Select [New tire registration@.
8 Select [Continue@.
The tire pressure warning light will slowly blink 3
times and a message indicating that ID code reg-
istration is being performed will be displayed on
the multi-information display. Wheel set changing
will be canceled and registration will begin.
When registration is being performed, the tire
pressure warning light will blink for approximately
1 minute then illuminate and "---" will be displayed for the inflation pressure of each tire
on the multi-information display.INFORMATIONIf the tire pressure warning light does not blink 3 times when starting ID code
registration procedure, the procedure may not have started. Perform the procedure
again from the beginning.
9 Drive straight (with occasional left and right turns) at approximately 25 mph
(40 km/h) or more for approximately 10 to 30 minutes.
When registration is complete, the tire pressure warning light will turn off and a
message indicating that registration has been completed will be displayed on the
multi-information display.
Registration may take longer than normal to complete if the vehicle speed cannot be
maintained at approximately 25 mph (40 km/h) or more. If registration cannot be
completed after driving for 1 hour or more, perform the registration procedure again from the beginning.
8-5.Tiremaintenance
5418
Maintenance and care

INFORMATION
