2023 LEXUS NX250 350 Owners Manual

WARNING

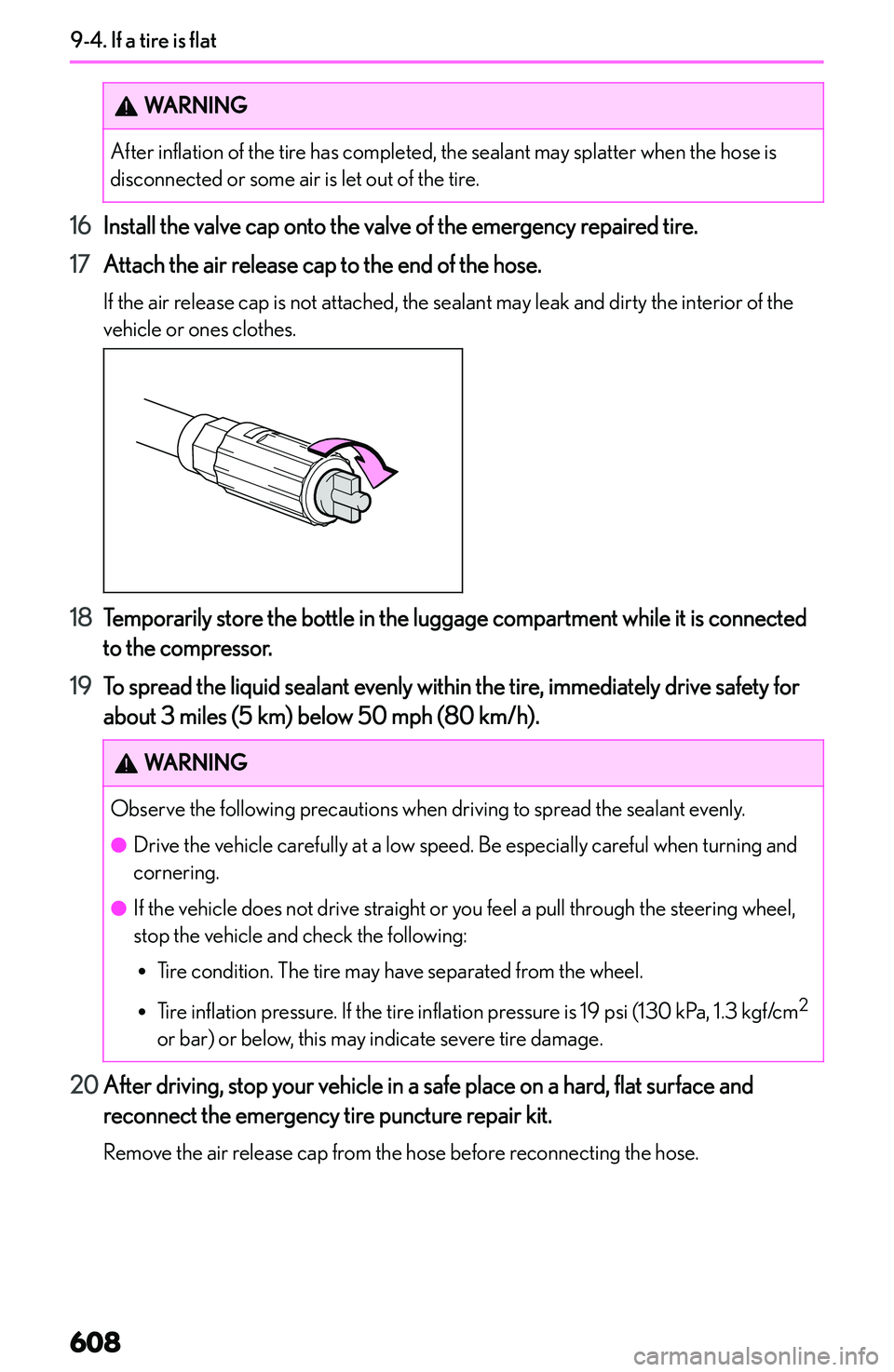

WARNINGAfter inflation of the tire has completed, the sealant may splatter when the hose isdisconnected or some air is let out of the tire.
16 Install the valve cap onto the valve of the emergency repaired tire.
17 Attach the air release cap to the end of the hose.
If the air release cap is not attached, the sealant may leak and dirty the interior of the
vehicle or ones clothes.
18 Temporarily store the bottle in the luggage compartment while it is connected
to the compressor.
19 To spread the liquid sealant evenly within the tire, immediately drive safety for
about 3 miles (5 km) below 50 mph (80 km/h).
WARNINGObserve the following precautions when driving to spread the sealant evenly.

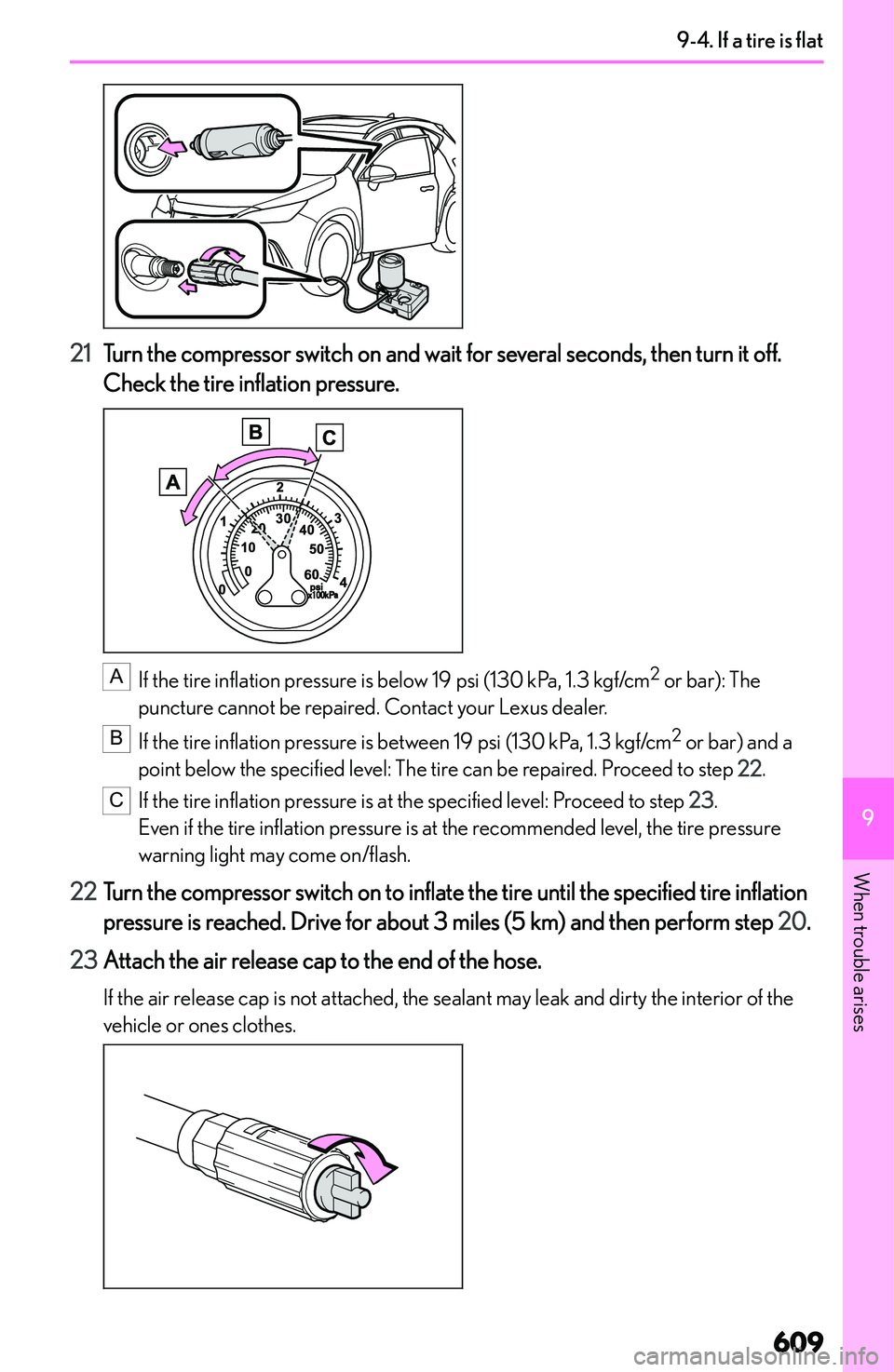

21Turn the compressor switch on and wait for several seconds, then turn it off.
Check the tire inflation pressure.
A
If the tire inflation pressure is below 19 psi (130 kPa, 1.3 kgf/cm 2
or bar): The
puncture cannot be repaired. Contact your Lexus dealer.
B
If the tire inflation pressure is between 19 psi (130 kPa, 1.3 kgf/cm 2
or bar) and a
point below the specified level: The tire can be repaired. Proceed to step 22.
C
If the tire inflation pressure is at the specified level: Proceed to step 23.
Even if the tire inflation pressure is at the recommended level, the tire pressure warning light may come on/flash.
22 Turn the compressor switch on to inflate the tire until the specified tire inflation
pressure is reached. Drive for about 3 miles (5 km) and then perform step 20.
23 Attach the air release cap to the end of the hose.
If the air release cap is not attached, the sealant may leak and dirty the interior of the
vehicle or ones clothes.
9-4.Ifatireisflat
6099
When trouble arises

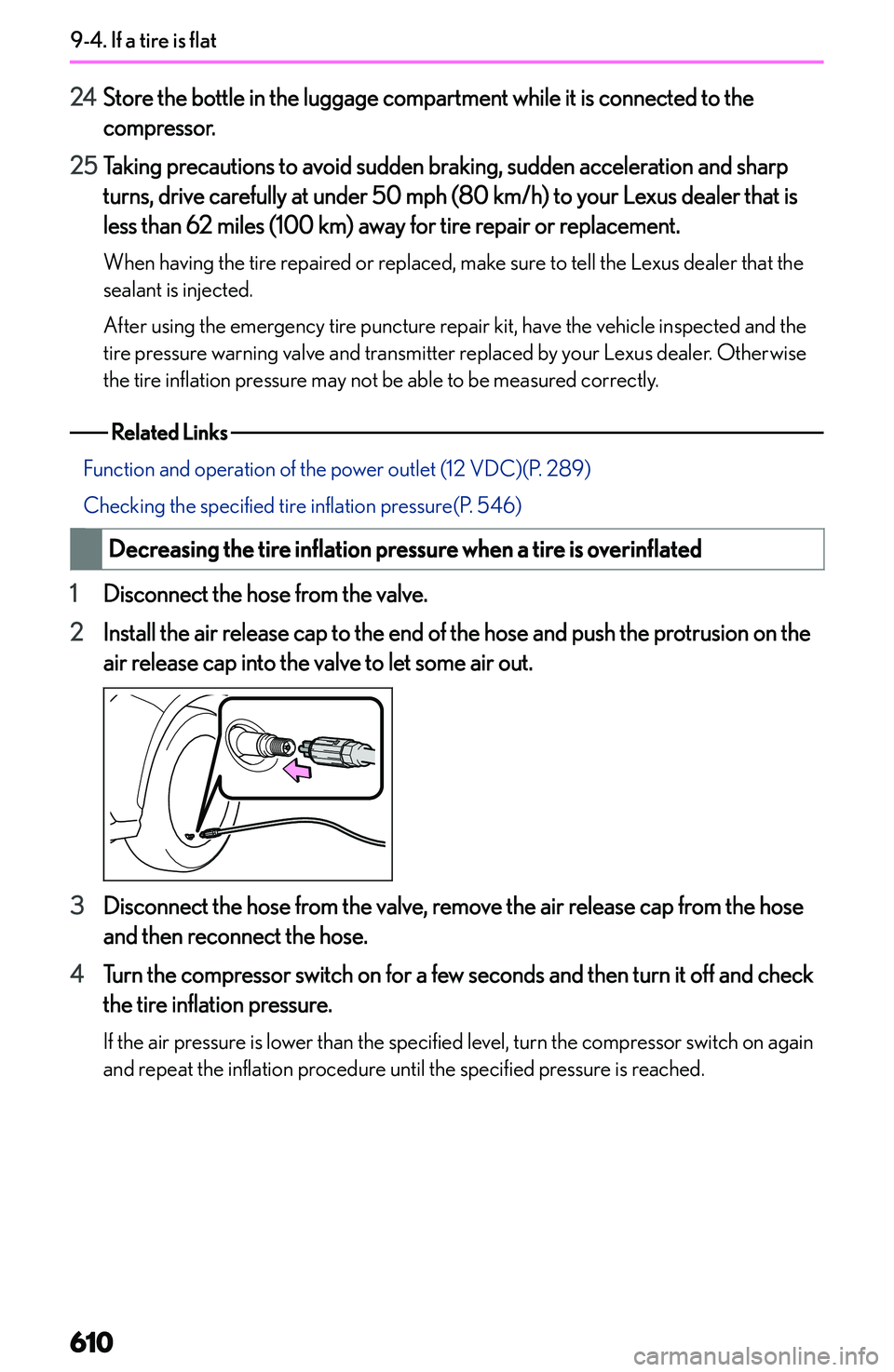

24Store the bottle in the luggage compartment while it is connected to the
compressor.
25 Taking precautions to avoid sudden braking, sudden acceleration and sharp
turns, drive carefully at under 50 mph (80 km/h) to your Lexus dealer that is less than 62 miles (100 km) away for tire repair or replacement.
When having the tire repaired or replaced, make sure to tell the Lexus dealer that the sealant is injected.
After using the emergency tire puncture repair kit, have the vehicle inspected and the
tire pressure warning valve and transmitter replaced by your Lexus dealer. Otherwise
the tire inflation pressure may not be able to be measured correctly.
RelatedLinks
Function and operation of the power outlet (12 VDC)(P. 289)
Checking the specified tire inflation pressure(P. 546)
Decreasingthetireinflationpressurewhenatireisoverinflated
1 Disconnect the hose from the valve.
2 Install the air release cap to the end of the hose and push the protrusion on the
air release cap into the valve to let some air out.
3 Disconnect the hose from the valve, remove the air release cap from the hose
and then reconnect the hose.
4 Turn the compressor switch on for a few seconds and then turn it off and check
the tire inflation pressure.
If the air pressure is lower than the specified level, turn the compressor switch on again and repeat the inflation procedure until the specified pressure is reached.
9-4.Ifatireisflat
610

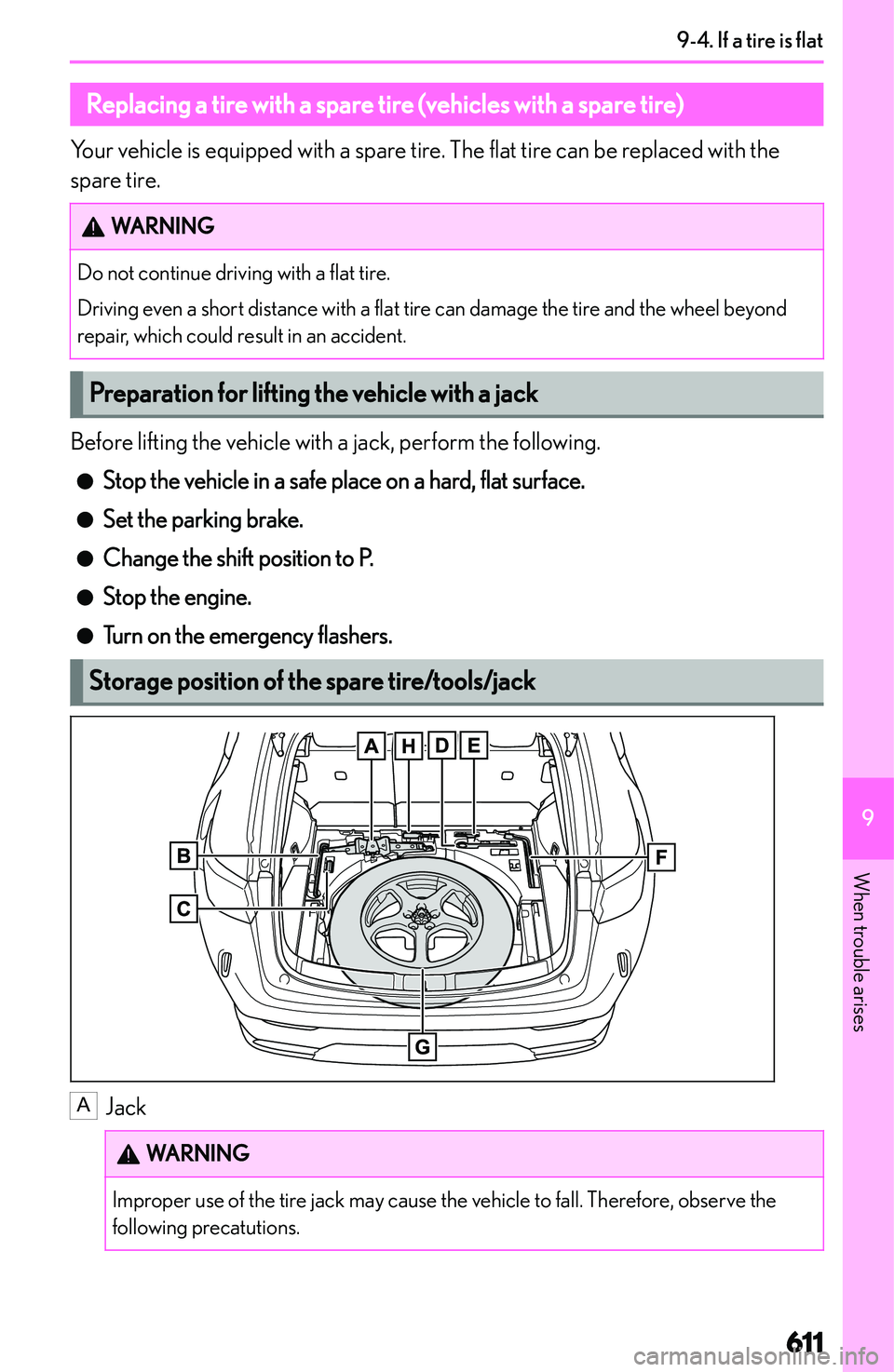

Replacingatirewithasparetire(vehicleswithasparetire)
Your vehicle is equipped with a spare tire. The flat tire can be replaced with the
spare tire.WARNINGDo not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the wheel beyond
repair, which could result in an accident.
Preparationforliftingthevehiclewithajack
Before lifting the vehicle with a jack, perform the following.

WARNING

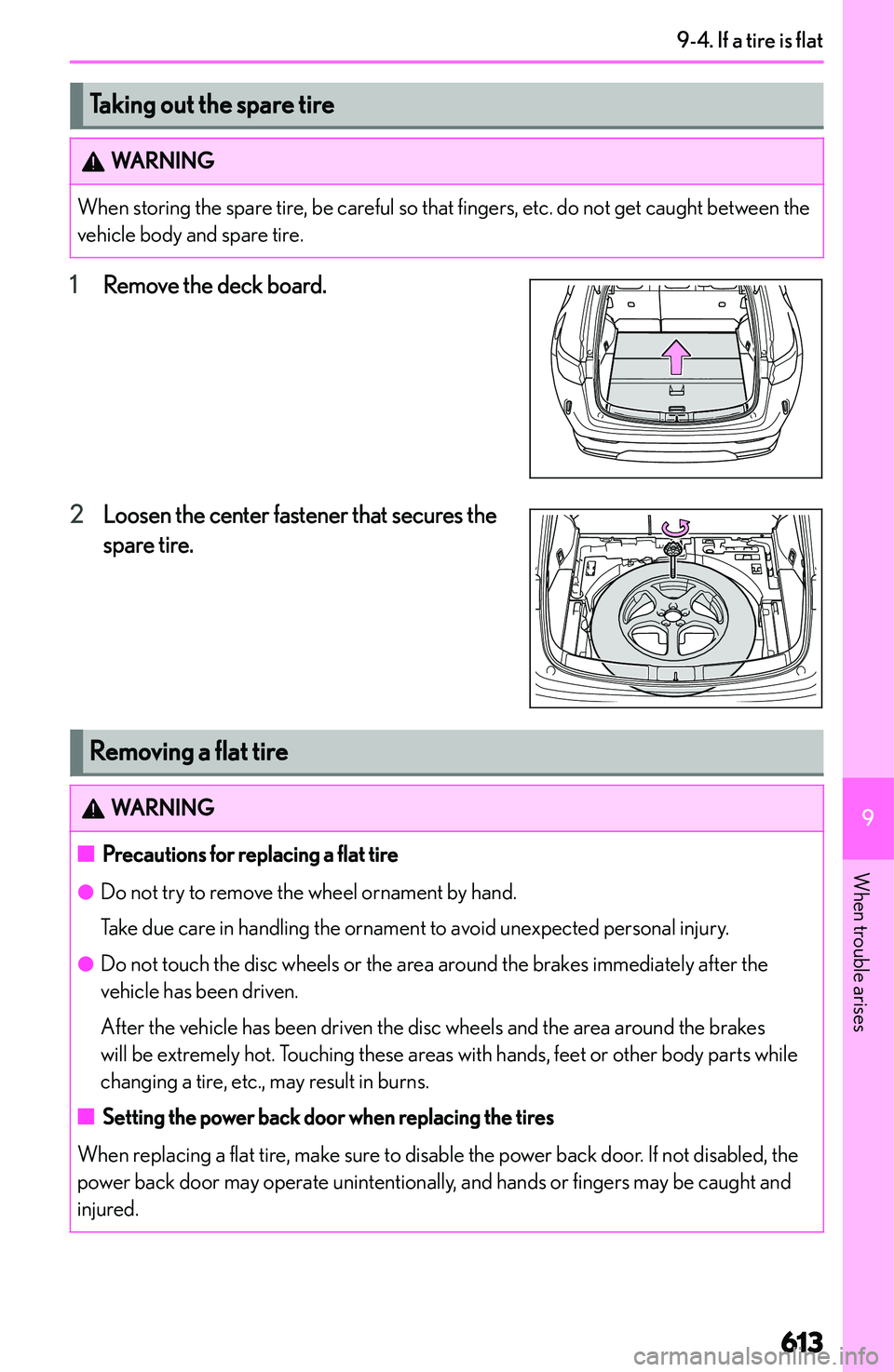

TakingoutthesparetireWARNINGWhen storing the spare tire, be careful so that fingers, etc. do not get caught between thevehicle body and spare tire.
1 Remove the deck board.
2 Loosen the center fastener that secures the
spare tire.
Removingaflattire
WARNING

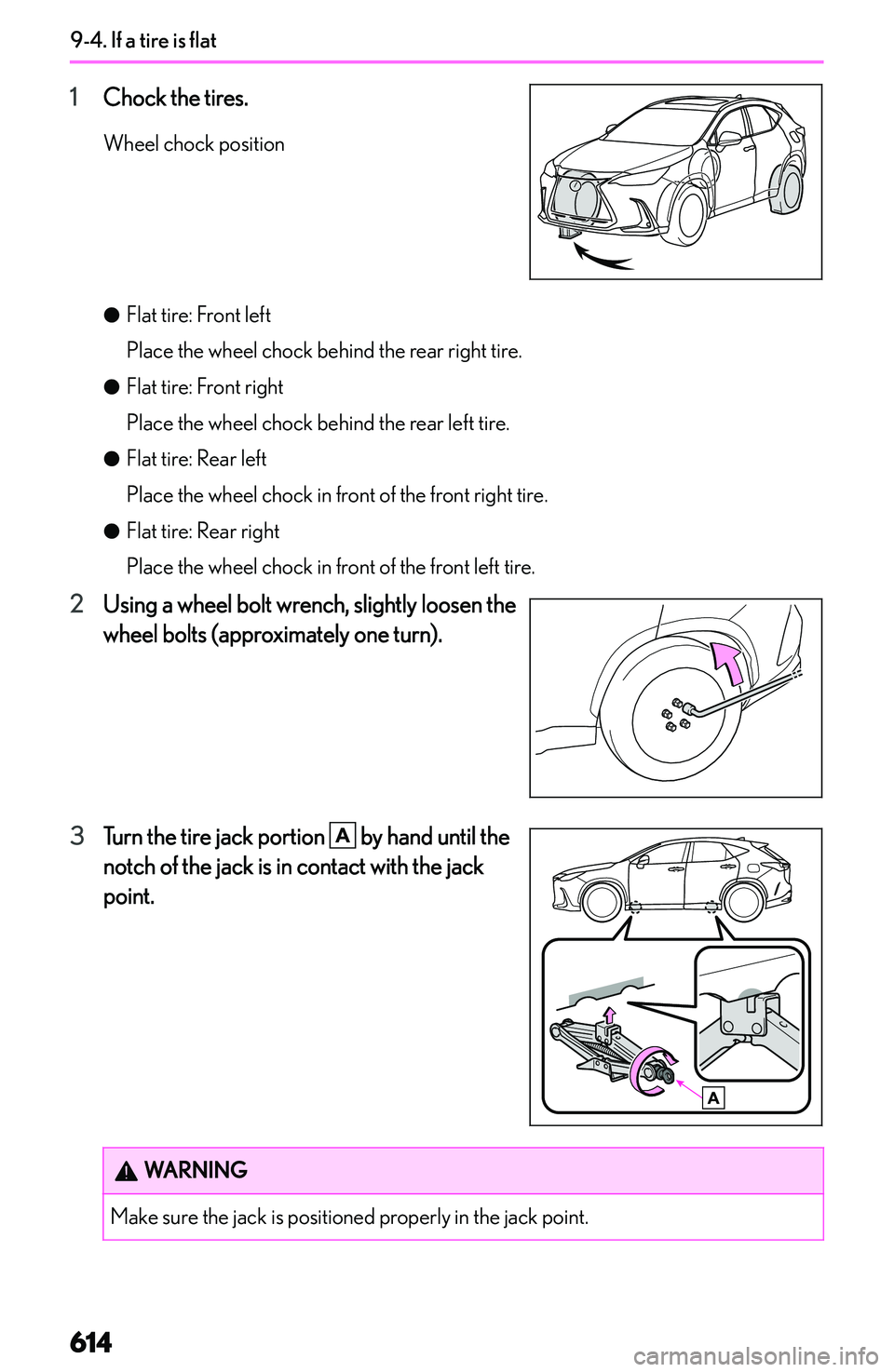

1Chock the tires.
Wheel chock position
