2023 LEXUS NX250 350 Owners Manual

This illustration is for explanation only and may differ depending on the specifica-
tions of the vehicle.
A
Eco Driving Indicator Light
During Eco-friendly acceleration (Eco driving),
the Eco Driving Indicator Light will turn on.
When the acceleration exceeds the Zone of Eco
driving, or when the vehicle is stopped, the light
turns off.
B
Eco Driving Indicator Zone Display
Suggests the Zone of Eco driving with currentEco driving ratio based on acceleration.
C
Eco driving ratio based on acceleration
If the acceleration exceeds the Zone of Eco
driving, the right side of the Eco Driving Indica-
tor Zone Display will illuminate.
At this time, the Eco Driving Indicator Light will turn off.
D
Zone of Eco driving
INFORMATIONEco Driving Indicator will not operate under the following conditions:

Displays the engine oil pressure. A buzzer will sound and warning message will be
displayed if the engine oil pressure becomes low.

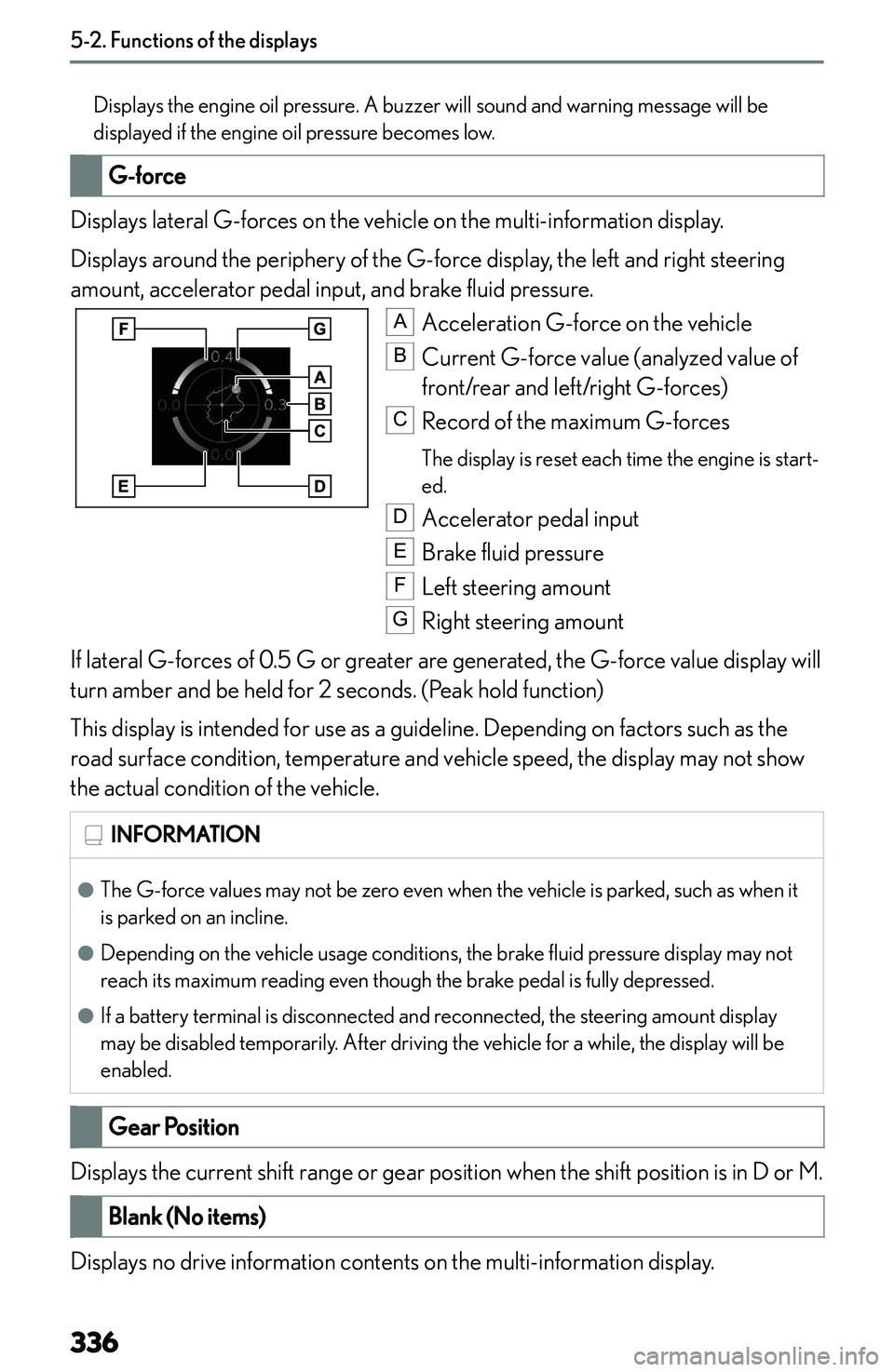

G-force
Displays lateral G-forces on the vehicle on the multi-information display.
Displays around the periphery of the G-force display, the left and right steering
amount, accelerator pedal input, and brake fluid pressure.

A
Acceleration G-force on the vehicle
B
Current G-force value (analyzed value of
front/rear and left/right G-forces)
C
Record of the maximum G-forces
The display is reset each time the engine is start- ed.
D
Accelerator pedal input
E
Brake fluid pressure
F
Left steering amount
G
Right steering amount
If lateral G-forces of 0.5 G or greater are generated, the G-force value display will turn amber and be held for 2 seconds. (Peak hold function)
This display is intended for use as a guideline. Depending on factors such as the
road surface condition, temperature and vehicle speed, the display may not show
the actual condition of the vehicle.
INFORMATION

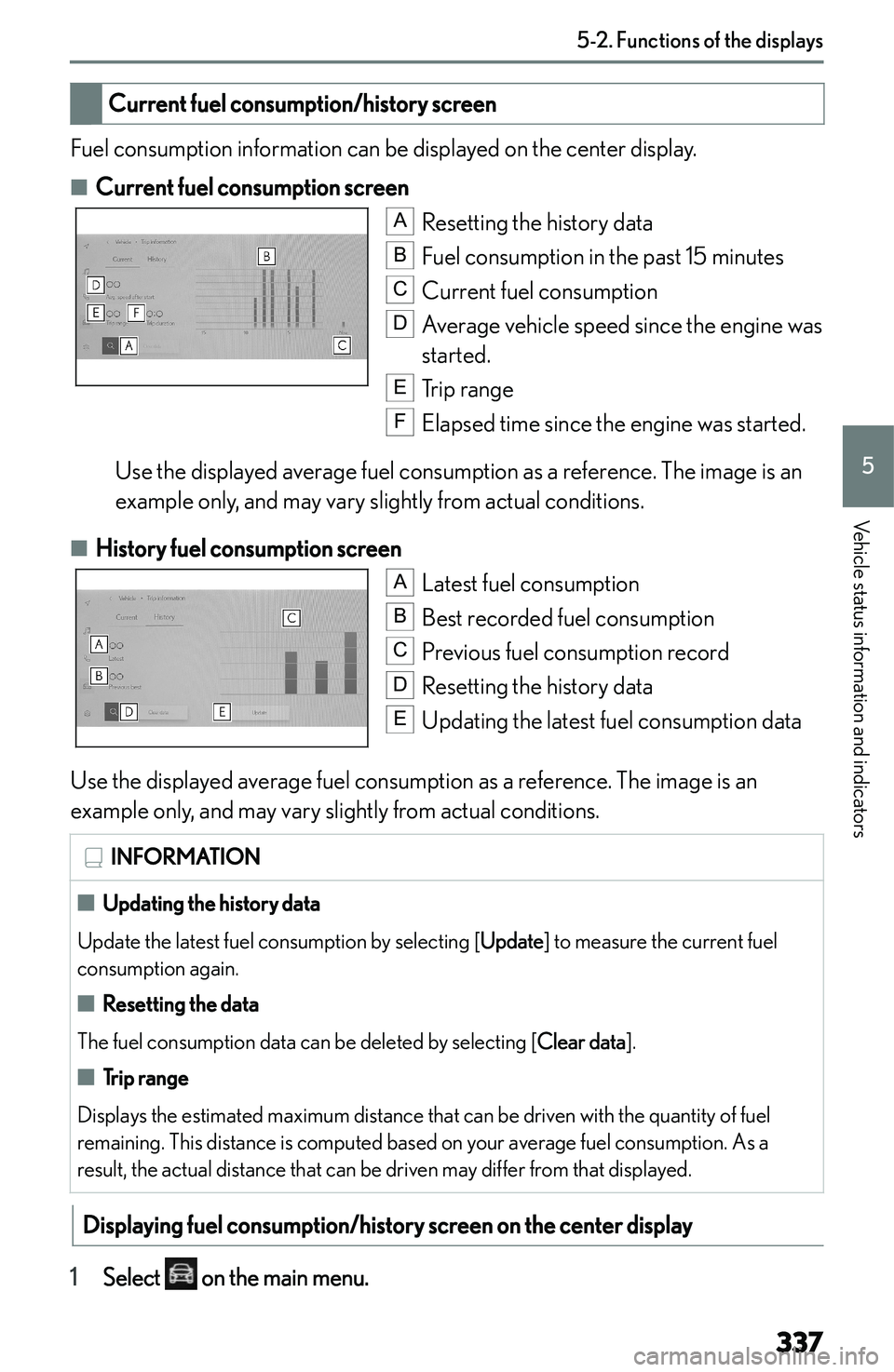

Currentfuelconsumption/historyscreen
Fuel consumption information can be displayed on the center display.

2Select [Trip information@.
3 Select [Current@ or [History@.

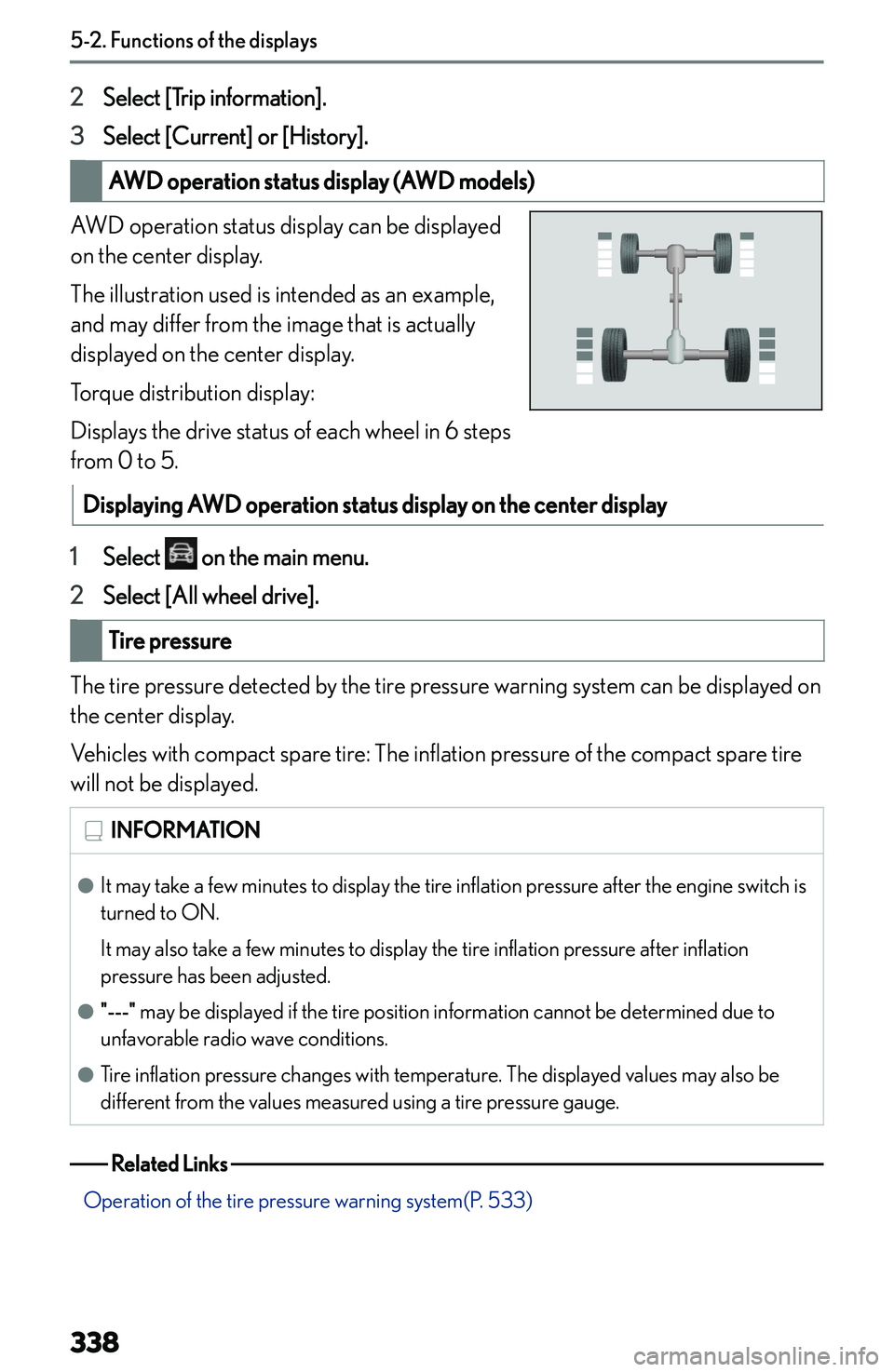

AWDoperationstatusdisplay(AWDmodels)
AWD operation status display can be displayed
on the center display.
The illustration used is intended as an example, and may differ from the image that is actuallydisplayed on the center display.
Torque distribution display:
Displays the drive status of each wheel in 6 steps
from 0 to 5.
DisplayingAWDoperationstatusdisplayonthecenterdisplay
1 Select on the main menu.
2 Select [All wheel drive@.
Tirepressure
The tire pressure detected by the tire pressure warning system can be displayed on
the center display.
Vehicles with compact spare tire: The inflation pressure of the compact spare tire
will not be displayed.
INFORMATION

Displayingthetirepressureonthecenterdisplay
1Select on the main menu.
2 Select [Tire pressure@.
Drivingsupportsysteminformationdisplay
The operating state of the following systems can be displayed on the multi-informa-
tion display or head-up display *
.

INFORMATION

Changingthesettingsofthedisplays

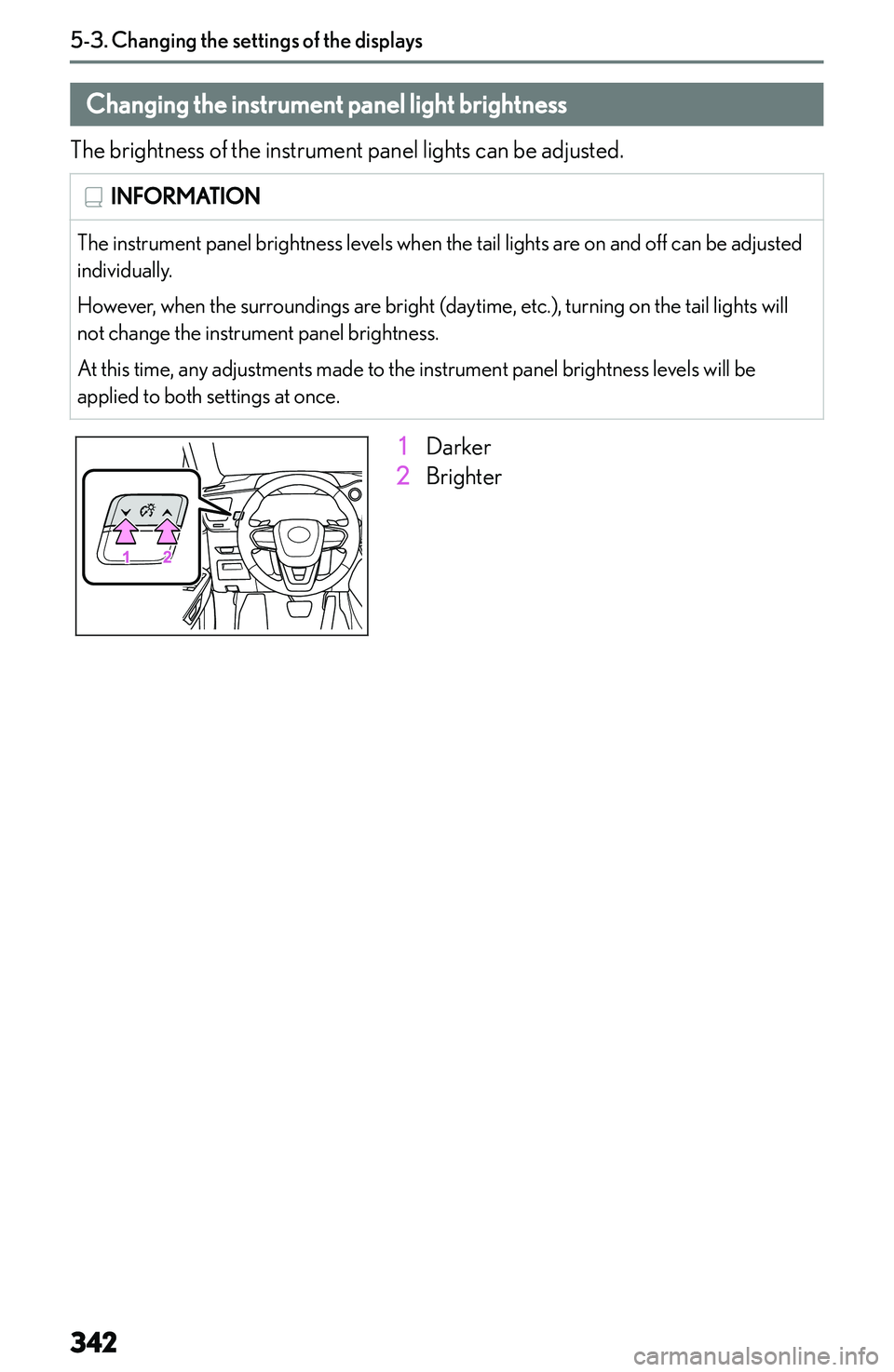

Changingtheinstrumentpanellightbrightness
The brightness of the instrument panel lights can be adjusted.INFORMATIONThe instrument panel brightness levels when the tail lights are on and off can be adjusted individually.
However, when the surroundings are bright (daytime, etc.), turning on the tail lights will
not change the instrument panel brightness.
At this time, any adjustments made to the instrument panel brightness levels will be
applied to both settings at once.
1Darker
2 Brighter
5-3.Changingthesettingsofthedisplays
342
