2023 LEXUS NX250 350 Owners Manual

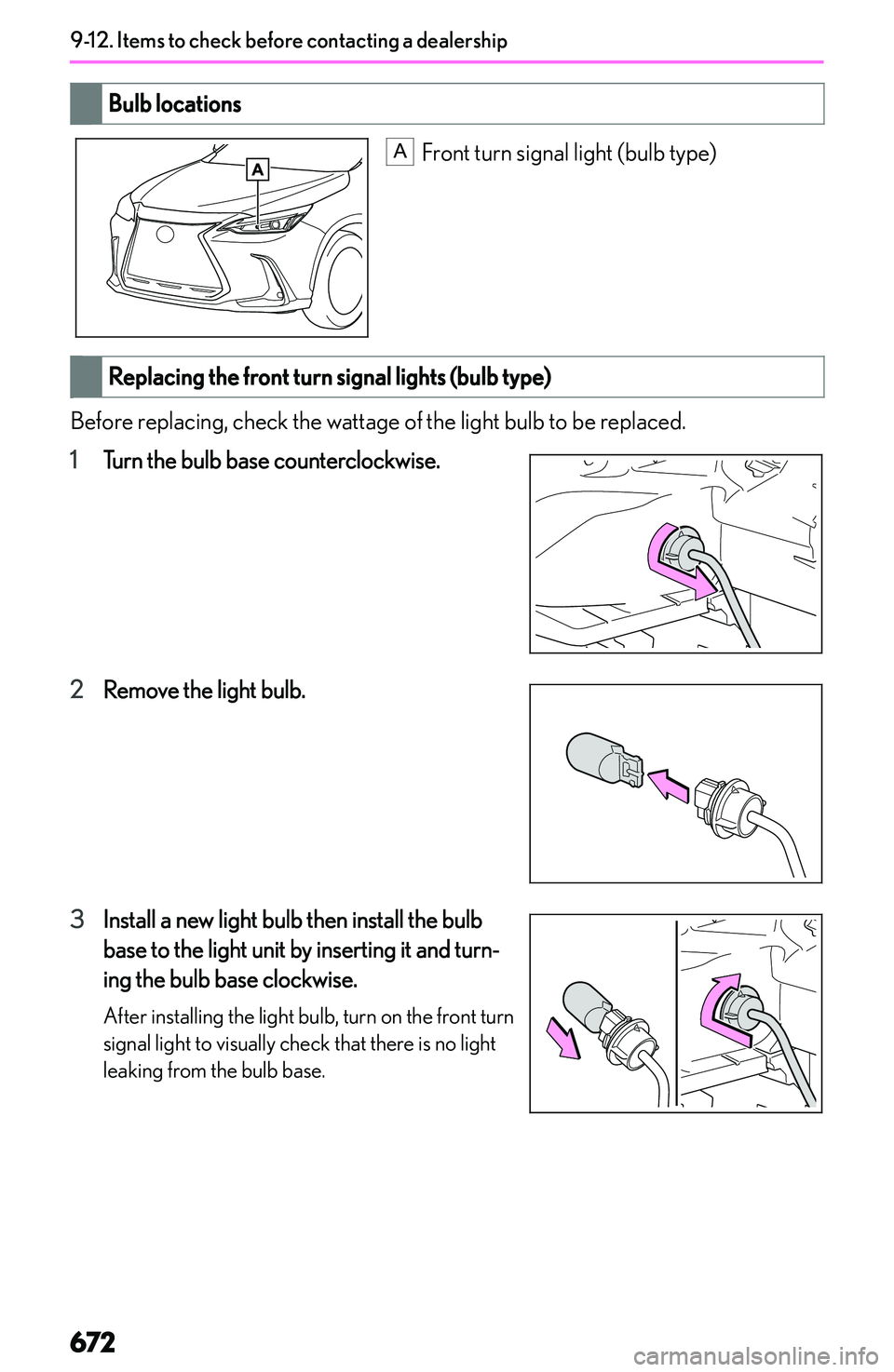

Bulblocations
A
Front turn signal light (bulb type)
Replacingthefrontturnsignallights(bulbtype)
Before replacing, check the wattage of the light bulb to be replaced.
1 Turn the bulb base counterclockwise.
2 Remove the light bulb.
3 Install a new light bulb then install the bulb
base to the light unit by inserting it and turn-
ing the bulb base clockwise.
After installing the light bulb, turn on the front turn signal light to visually check that there is no light
leaking from the bulb base.
9-12.Itemstocheckbeforecontactingadealership
672

10

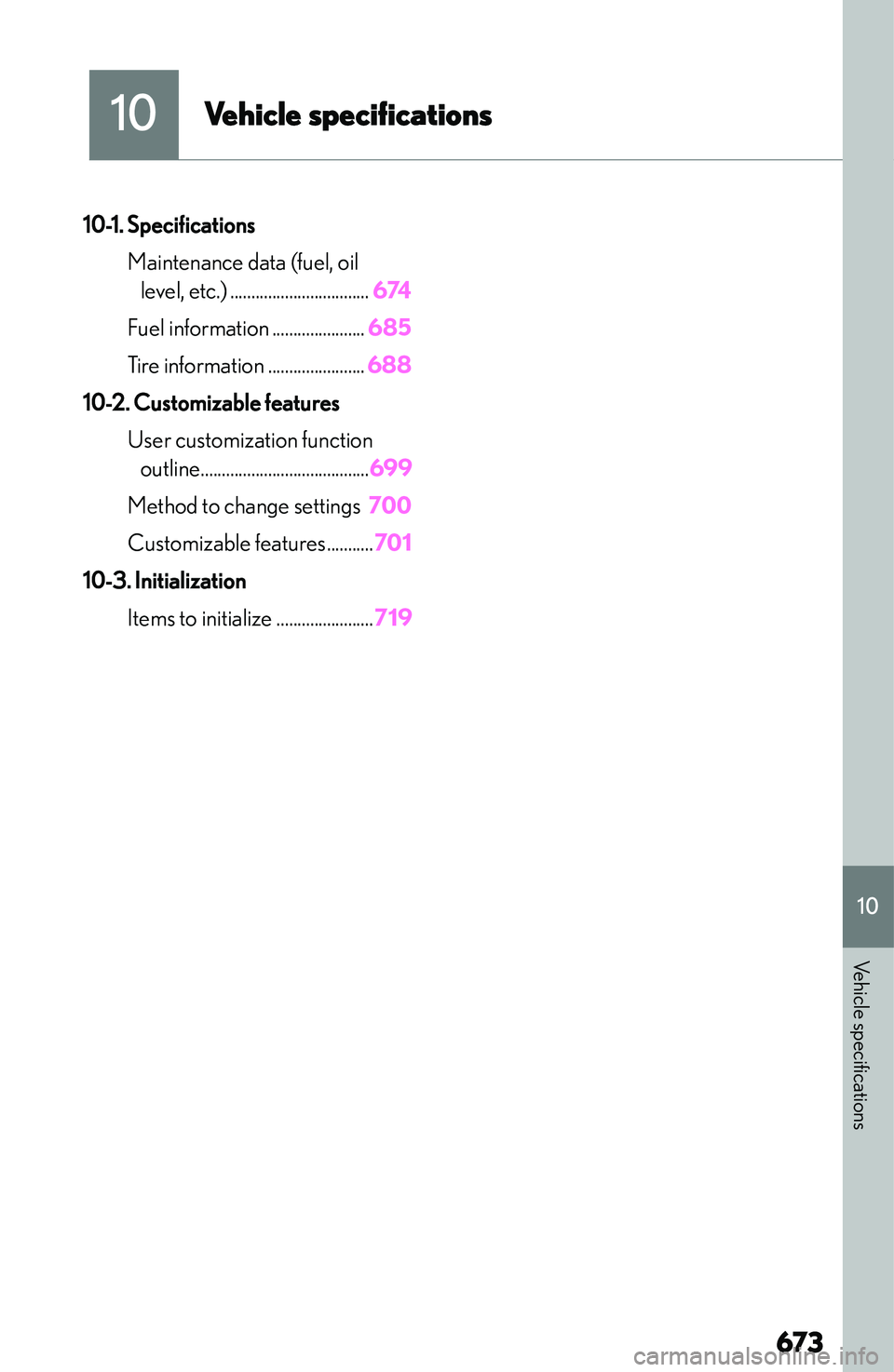

Vehiclespecifications
10-1.SpecificationsMaintenance data (fuel, oillevel, etc.) ................................. 674
Fuel information ...................... 685
Tire information ....................... 688
10-2.Customizablefeatures User customization functionoutline........................................ 699
Method to change settings 700
Customizable features ........... 701
10-3.Initialization Items to initialize ....................... 71967310
Vehicle specifications

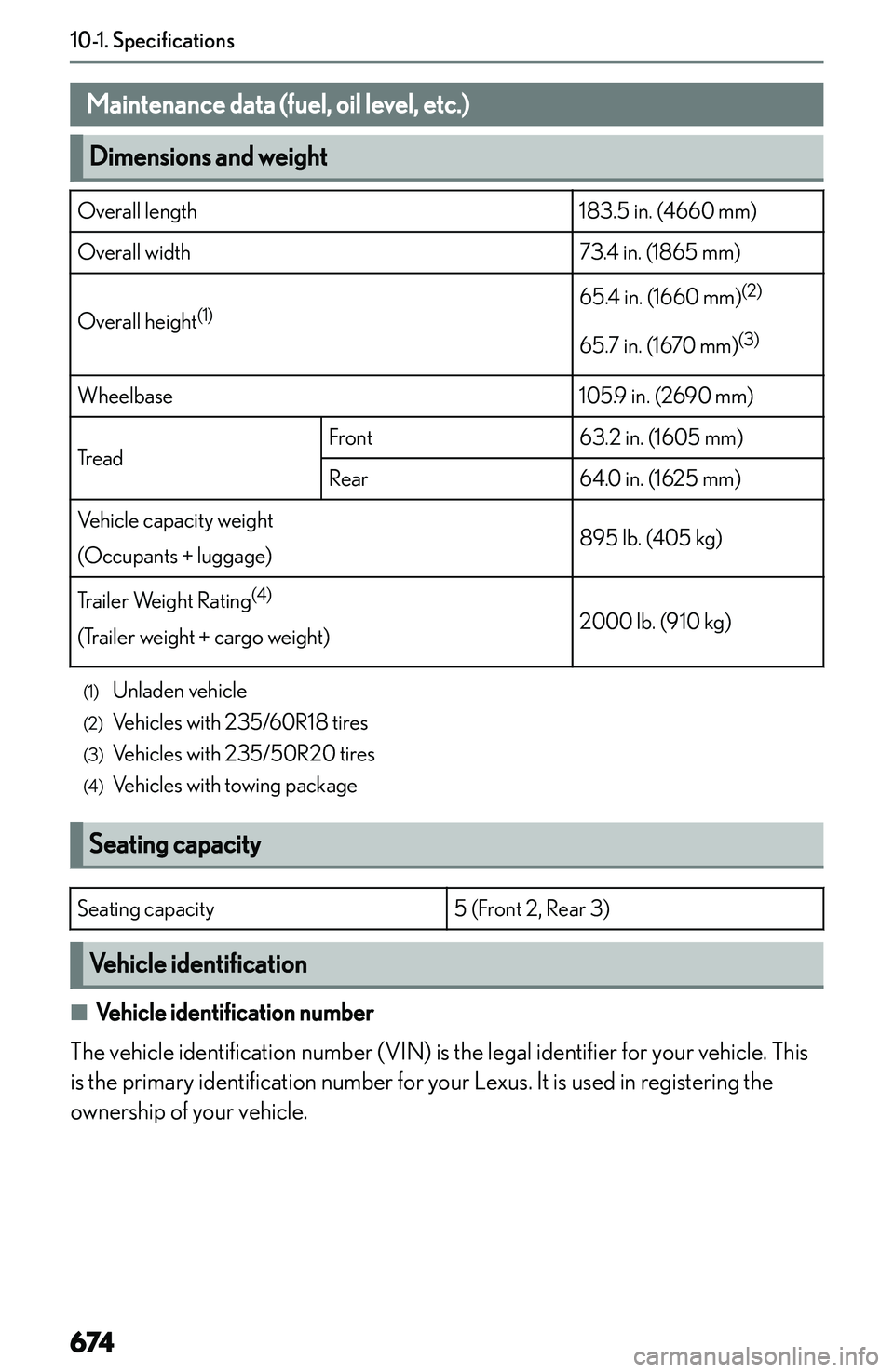

Specifications
Maintenancedata(fuel,oillevel,etc.)
Dimensionsandweight
Overall length183.5 in. (4660 mm)Overall width73.4 in. (1865 mm)
Overall height(1)
65.4 in. (1660 mm) (2)
65.7 in. (1670 mm) (3)Wheelbase105.9 in. (2690 mm)TreadFront63.2 in. (1605 mm)Rear64.0 in. (1625 mm)Vehicle capacity weight
(Occupants + luggage)895 lb. (405 kg)Trailer Weight Rating (4)
(Trailer weight + cargo weight)2000 lb. (910 kg)
(1) Unladen vehicle
(2) Vehicles with 235/60R18 tires
(3) Vehicles with 235/50R20 tires
(4) Vehicles with towing package

Seatingcapacity
Seating capacity5 (Front 2, Rear 3)
Vehicleidentification

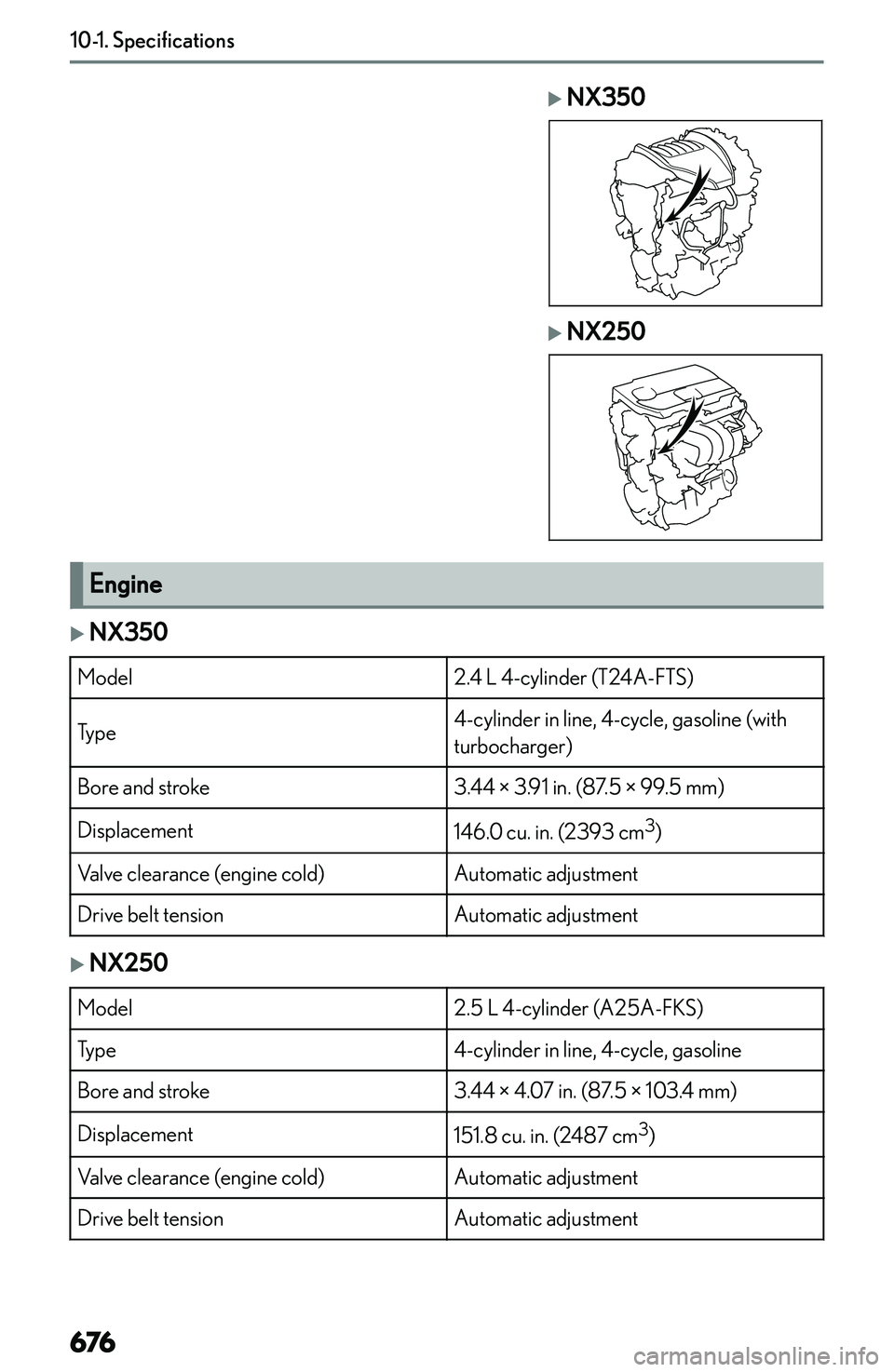

Engine

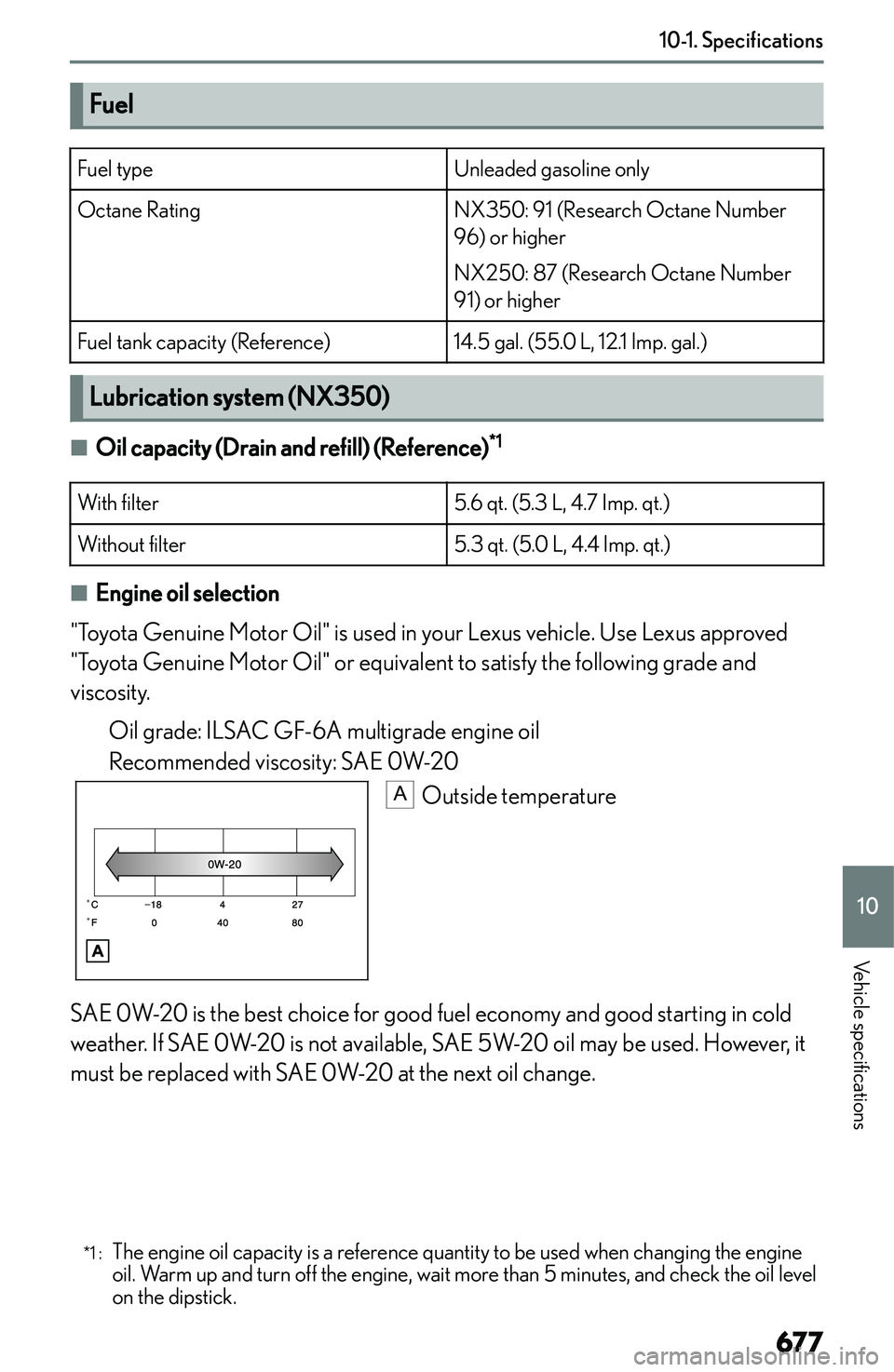

FuelFuel typeUnleaded gasoline onlyOctane RatingNX350: 91 (Research Octane Number
96) or higher
NX250: 87 (Research Octane Number
91) or higherFuel tank capacity (Reference)14.5 gal. (55.0 L, 12.1 Imp. gal.)
Lubricationsystem(NX350)
