2023 KIA SORENTO PHEV Features and Functions Guide

'FBUVSFT

'VODUJPOT
(VJEF
)ZCSJE

1MVH*O
)ZCSJE

WELCOME TO THE KIA FAMILY!
Your new Kia vehicle has been designed, engineered and manufactured to provide you with years of comfortable and dependable driving. Kia is committed to quality, innovation, safety and — above all — your satisfaction.
USING THIS FEATURES & FUNCTIONS GUIDE
The information contained in this guide is a brief overview of the operation and features of your new Kia vehicle.
This Features & Functions Guide and the specific operational and safety information it provides are not a substitute for your Owner’s Manual. In the interest of your safety and that of the vehicle’s occupants, and to help you avoid risks that may result in death or serious injury, Kia reminds you to carefully read the Owner’s Manual in order to fully familiarize yourself with the important information and safety warnings it contains.
While Kia endeavors to ensure that the information contained in this guide is accurate at the time of printing, Kia may change vehicle specifications without notice in advance of or after the fact and assumes no liability in connection with such changes.
VIDEOS AND QR CODES
Kia provides a number of video resources to assist you with becoming familiar with the features and functions found in your Kia vehicle. You can access these resources by snapping the QR Codes with your mobile device using the built-in QR Code Reader or a downloaded QR Code Reader App.
After opening the QR Code Reader App on your mobile device, the app will utilize your device’s camera. Center the code in the camera viewing area — with some apps, as soon as the app recognizes the code, it will launch the corresponding video.
With other apps, you will have to snap or “take a picture” of the code. The app will then launch the corresponding video.
For operation specifics, refer to the instructions that come with your QR Code Reader App. You can also view the videos by visiting the following website: www.youtube.com/KiaFeatureVideos

If you’re having trouble scanning codes, check the following:
•
The code should be centered and focused in your mobile device’s camera screen
•
Consider moving your device closer to or far ther away from the code
•
The code should be well lit, without significant shadow
•Avoid scanning from a significant angle
•
Confirm that the device’s app suppor ts 2D QR Code scanning
•
Tr y another QR Code Reader App; not all apps are created equal

After scanning, you may experience a “connection error ” message or a “connecting” message with no subsequent response. These messages t ypically indicate that your device is having trouble connecting to the Internet
QUICK TIPS
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Getting Started With Your New Kia Video
QR CODES

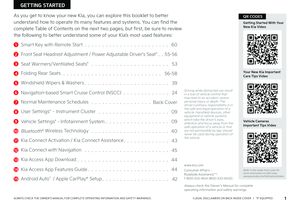

As you get to know your new Kia, you can explore this booklet to better
understand how to operate its many features and systems. You can find the
complete Table of Contents on the next two pages, but first, be sure to review
the following to better understand some of your Kia’s most used features:
1 Smart Key with Remote Start 60
2 Front Seat Headrest Adjustment / Power Adjustable Driver’s Seat* 55-56
3 Seat Warmers/Ventilated Seats* 53
4 Folding Rear Seats 56-58
5 Windshield Wipers & Washers 39
6 Navigation-based Smart Cruise Control (NSCC) 24
7 Normal Maintenance Schedules Back Cover
8 User Settings* – Instrument Cluster 09
9 Vehicle Settings* - Infotainment System 09
10 Bluetooth® Wireless Technology 40
11 Kia Connect Activation / Kia Connect Assistance 43
12 Kia Connect with Navigation 45
13 Kia Access App Download 44
14 Kia Access App Features Guide 44
15 Android Auto™ / Apple CarPlay® Setup 42
ALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS †LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED
GETTING STARTED
1
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injur y or death The driver ’s primar y responsibilit y is in the safe and legal operation of a vehicle Handheld devices, other equipment or vehicle systems which take the driver ’s eyes, at tention and focus away from the safe operation of a vehicle or that are not permissible by law, should never be used during operation of the vehicle
www kia com
Consumer Affairs – Roadside Assistance†1 1: 1-800-333-4KIA (800-333-4542)
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Getting Started With Your New Kia Video
Your New Kia Important Care Tips Video
Vehicle Cameras Important Tips Video
Always check the Owner ’s Manual for complete operating information and safet y warnings
QR CODES

2 *IF EQUIPPEDSORENTO HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
TABLE OF CONTENTS
VIDEOS & QR CODES Inside Front Cover
INSTRUMENT CLUSTERInstrument Cluster Overview 03Hybrid / Plug-In Hybrid Indicators at Star tup 04Indicators & Warning Lights 05Tire Pressure Monitoring System (TPMS) 06Fuel Economy / Tips for Economical Driving 06Drive Mode Integrated Control System* 07
VEHICLE SETTINGSTrip Modes / Trip Computer 08Instrument Cluster LCD Modes 08User Set tings – Instrument Cluster 09Vehicle Set tings* – Infotainment System 09Vehicle Auto Shut-off System* 10Service Interval Mode 10
H Y B R I D / P LU G - I N H Y B R I D S YS T E MCharging Connector Auto/Lock/Unlock Mode 11Scheduled Charging* (Plug-In Hybrid only) 11Charging the Plug-In Hybrid Vehicle 12Energy Flow - Instrument Cluster LCD 14Plug-In Hybrid Display - Infotainment System* 16Plug-In Hybrid Modes (Plug-In Hybrid only) 17
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)Forward Collision-Avoidance Assist (FCA) 18Lane Keeping Assist (LK A) 19Blind-spot Collision-Avoidance Assist (BCA) 20Intelligent Speed Limit Assist (ISL A) 21Driver At tention Warning (DAW) 22Leading Vehicle Depar ture Aler t (LVDA) 23Safe Exit Assist (SEA)* 23Navigation-based Smar t Cruise Control (NSCC) 24Lane Following Assist (LFA) 26Highway Driving Assist (HDA) 27Rear View Monitor (RVM) 28Blind-spot View Monitor (BVM)* 28Surround View Monitor (SVM)* 29Rear Cross-traffic Collision-Avoidance Assist (RCCA)* 30
ADAS CONTINUEDReverse Parking Collision-Avoidance Assist (PCA)* 31Forward/Reverse Parking Distance Warning (PDW) 32
DRIVER’S PANELInstrument Cluster Illumination Control 33Electronic Stability Control (ESC) 33Hill-star t Assist Control (HAC) 33Reverse Parking Aid Function* 34Engine Star t/Stop But ton* 34Power Windows, Window Lock & Central Door Lock / Auto Door Lock/Unlock 35Electronic Child Safety Lock System 35Power/Heated Outside Mirrors* 36Manual Folding Mirrors* 36Power Folding Outside Mirrors* 36
STEERING WHEEL CONTROLSTilt/Telescoping Steering Wheel 37Headlights & High Beams 38Daytime Running Lights* 38High Beam Assist (HBA) 38Turn Signals & Fog Lights* 39Windshield Wipers & Washers 39Rear Wiper & Washer* 39Lifting Wipers (Wiper Service Mode) 39
INFOTAINMENT SYSTEMBluetooth® Wireless Technology 40 Audio Controls 41 Android Auto™ / Apple CarPlay® Setup 42Kia Connect Activation 43Kia Connect Assistance 43Kia Access App Download 44Kia Access App Features Guide 44Kia Connect with Navigation 45
CENTER PANELMultimedia USB Por ts, Power Outlets & USB Charger Por ts 46AC Inver ter 46
CENTER PANEL CONTINUEDDigital Clock - Infotainment System 46Wireless Smar tphone Charging System 47Automatic Climate Control 48Rotary Dial Shifter Knob – Shift-by-Wire 50Paddle Shifters 50AWD (All-Wheel Drive) Lock* 51Electronic Parking Brake (EPB) / Auto Hold 52Heated Steering Wheel 53Seat Warmers/ Ventilated Seats* 53
SEATINGRear Occupant Aler t with Ultrasonic Sensors 54Front Seat Headrest Adjustment 55Driver Position Memory System* 55Power Adjustable Driver ’s Seat / Power Lumbar 562nd-Row Folding Seat 562nd-Row Auto-Folding Seat 57Unfastening Center Seatbelt 57One-Touch Slide & Fold 2nd-Row Seats 583rd-Row Folding Seat 58
OTHER KEY FEATURESSun Visor 59Double-Turn Lock/Unlock All 59Smar t Key with Remote Star t 60Smart Power Liftgate 61Map/Room Lamps 63Panoramic Sunroof with Power Sunshade 63HomeLink® with Auto-Dimming Rearview Mirror 64Hood Release Lever and Latch 65Fuel Cap / Malfunction Indicator 65Fuel Filler Lid Release 65
SAFETY FEATURESOccupant Detection System (ODS) / Passenger Airbag Off Indicator 66Child-Protector Rear Door Locks* 66Seat Belts 67
LEGAL DISCLAIMERS Inside Back Cover
MAINTENANCE CHART Back Cover

3 *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
A Speedometer
B Power Gauge
C Hybrid Battery SOC (State of Charge) gauge
D Indicators & Warning Lights
E LCD Display (including Trip Computer)
F
Fuel Gauge
Arrow direction indicates the side of the vehicle the fuel door is located
Instrument Cluster Overview
This illustration is for demonstration purposes only Some indicators and warning lights may not appear in the illustration On the vehicle, they may appear in the LCD
Yo u r vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations Refer to Section 5 in the Owner ’s Manual for more information
Full LCD cluster (Type B)
EPB
AUTO
06
CH
１ 5
2
D
4
3x１
000 rpm
E F
MPH
km/h0 １60
20
１40
40
１20
60
１00
80
20
40 60
200
2 40
2 80
300
80
１80
１
00 １60
１
20 １40
0
E F LH
１60
20
１40
40
１20
60
１00
80
MPH
526mi15000mi50F°25 .7MPG
CHARGEPOWER
ECO
AB
C
D
EFRefer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Plug-In Hybrid Instrument Cluster Overview Video
QR CODE
INSTRUMENT CLUSTERINSTRUMENTCLUSTER

4 *IF EQUIPPEDSORENTO HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
Conventional Cluster (Type A)
EPB
EVOFF
AUTO
CH
D
EF
06
１
5
2
MPH
km/h0
１60
20
１40
40
１20
60
１00
80
20
40 60
200
2 40
2 80
300
80
１80
１
00 １60
１
20 １40
0
E F
１60
20
１40
40
１20
60
１00
80
MPH
526mi50F°
CHARGE
ECO
POWER
Hybrid / Plug-In Hybrid Indicators at Startup
REMINDER: Avoid star ting or driving the vehicle when the fuel tank is empt y As the engine will be incapable of charging the high-voltage Hybrid bat ter y, the bat ter y will lose its charge and may be damaged
Yo u r vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations For more information on the instrument cluster, please refer to section 5 in the Owner ’s Manual
These illustrations are for demonstration purposes only Some indicators and warning lights may not appear in illustration On the vehicle, they may appear in the LCD
A Power Gauge - Indicates how economically the vehicle is being driven
• CHARGE B – Indicates that the energy made by the vehicle is being converted to electrical energy (regenerated energy)
• ECO C – Indicates that the vehicle is being driven in an ECO-friendly manner
• POWER D – Indicates that the vehicle is exceeding the ECO-friendly range
E EV Mode - Illuminates when only the electric motor is powering the vehicle
F
Ready - Illuminates when the Hybrid system is operational Even if the engine is off, the vehicle can be driven (Plug-In Hybrid indicator location may vary from image shown)
G Service Indicator – Illuminates when a malfunction occurs in the vehicle’s Hybrid system Have an authorized Kia dealer address the concern as soon as possible
AB
C
D
EF
G
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Plug-In Hybrid Instrument Cluster Overview Video
QR CODE
INSTRUMENT CLUSTER
INSTRUMENTCLUSTER

Indicators & Warning Lights
Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations Refer to Section 5 in the Owner ’s Manual for more information
READY Indicator
EVEV Mode Indicator
Hybrid System Warning Light*
Engine Oil Pressure Warning Light
Malfunction Indicator Light
EPBElectric Parking Brake (EPB) Warning Light*
Seat Belt Warning Light
Light ON Indicator Light
High Beam Indicator Light
Low Beam Indicator Light
Front Fog Light Indicator Light*
High Beam Assist Indicator Light
Parking Brake & Brake Fluid Warning Light
For ward Safet y Warning Light*
All-Wheel Drive (AWD) Warning Light*
All-Wheel Drive (AWD) Lock Indicator Light*
Electronic Power Steering (EPS) Warning Light
Charging System Warning Light*
Airbag Warning Light
Low Fuel Level Warning Light
Immobilizer Indicator Light*
Engine Coolant Temperature Warning Light*
Icy Road Warning Indicator Light*

Low Tire Pressure Light / Tire Pressure Monitoring System (TPMS) Malfunction Indicator Light
Anti-Lock Braking System (ABS) Warning Light
Electronic Stabilit y Control (ESC) OFF Indicator Light
Electronic Stabilit y Control (ESC) Indicator Light
AUTO HOLD Indicator*
Cruise Control Indicator Light*
/Cruise Control ON/SET Indicator Light*
EPB
EVOFF
AUTO
L H
D
EAUTO
HEVF
MPH
km/h0 １60
20
１40
40
１20
60
１00
80
20
40 60
200
2 40
2 80
300
80
１80
１
00 １60
１
20 １40
0
E F
１60
20
１40
40
１20
60
１00
80
MPH
526mi50F°
CHARGE
ECO
POWER
Washer Fluid Warning Light*
Master Warning Light
Electronic Brake Force Distribution (EBD) System Warning Light (t wo separate indicators on Instrument Cluster lit at same time)
Lane Safet y Indicator Light
LED Headlamp Warning Indicator*
Downhill Brake Assist (DBC) Indicator*
SPORT Mode Indicator Light
ECO Mode Indicator Light
SMART Mode Indicator Light
Charging Cable Connection Indicator (Plug-In Hybrid)*
Regenerative Brake Warning Indicator (Two separate indicators on Instrument Cluster lit at same time)
Conventional cluster (Type A)
This illustration is for demonstration purposes only Some indicators and warning lights may not appear in the illustration On the vehicle, they may appear in the LCD
5 *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
INSTRUMENT CLUSTERINSTRUMENTCLUSTER

Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Tire Pressure Monitoring System Video
Tips for Economical Driving Video
QR CODE
6†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDSORENTO HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
REMINDERS:
•
Check the recommended tire pressure label located on the left side of the driver ’s door jamb, visible when the door is opened
•
Consult your dealer for ser vice if the Low Tire Pressure Light remains illuminated after inflating your tire(s)
•
Personal electronic devices (such as laptops, wireless chargers, remote star t systems, etc ) may inter fere with the TPMS system, which may cause the Malfunction Warning Indicator (Check Engine Light) to illuminate For more information on Fuel Economy, you can snap the QR Code above to view a video or refer to section 5 in the Owner ’s Manual
25
35 35
35
psi
Low Tire Pressure
The TPMS indicator functions as both the Low Tire Pressure Light and the TPMS Malfunction Indicator
The TPMS indicator is designed to illuminate if it detects one or more tires is significantly underinflated, the vehicle has a spare tire installed without TPMS or the outside temperature becomes significantly lower
The Low Tire Pressure Position Indicator A is displayed on the LCD screen in the Instrument Cluster when the tire(s) is underinflated Inflate the tire(s) to specifications using an accurate tire pressure gauge to turn
off the Low Tire Pressure Indicator See the front driver ’s door jamb for PSI specifications
When there is a problem with the TPMS, the TPMS Malfunction Indicator will blink for approximately one minute and then illuminate See the dealer for service
Tire Pressure Monitoring System (TPMS)†1 8
Fuel Economy / Tips for Economical Driving
Several factors contribute to your vehicle’s fuel economy, such as maintenance of your vehicle, driving style, environmental conditions, vehicle weight and vehicle aerodynamics Below are some tips on how to help improve fuel economy:
For illustrative purposes only Your actual display, but tons and/or features may var y
Refer to Section 7 in the Owner ’s Manual for more information
•Use the climate control system less often Use the Driver Only* setting as much as possible
•Keep your vehicle in good condition with regular maintenance
•Drive at a moderate speed, accelerating smoothly and at a moderate rate
•Keep tires inflated to the recommended pressure
•Travel lightly, without carrying unnecessary weight in your vehicles
•Avoid placing large or heavy items on roof racks
•Avoid hilly, winding or poorly maintained roads
A
•Even with TPMS, tire pressure should be checked manually at least once a month Only adjust tire pressure on “cold tires” that have been sit ting for 3 hours or more, and tires that are not hot in temperature from direct sunlight or heat
•For proper maintenance and optimal fuel economy, maintain the recommended tire inflation pressures and stay within the load limits and weight distribution recommended for your vehicle
•A significant drop in temperature can cause tire inflation pressures to drop, which may activate the TMPS light Manually confirm tire pressures after significant changes in temperature or altitude
