48 *IF EQUIPPEDSORENTO HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
AUTOOFF
DRIVER
ONLYA/CREAR
SYNC
REAR FRONT
A/C
68.568.5

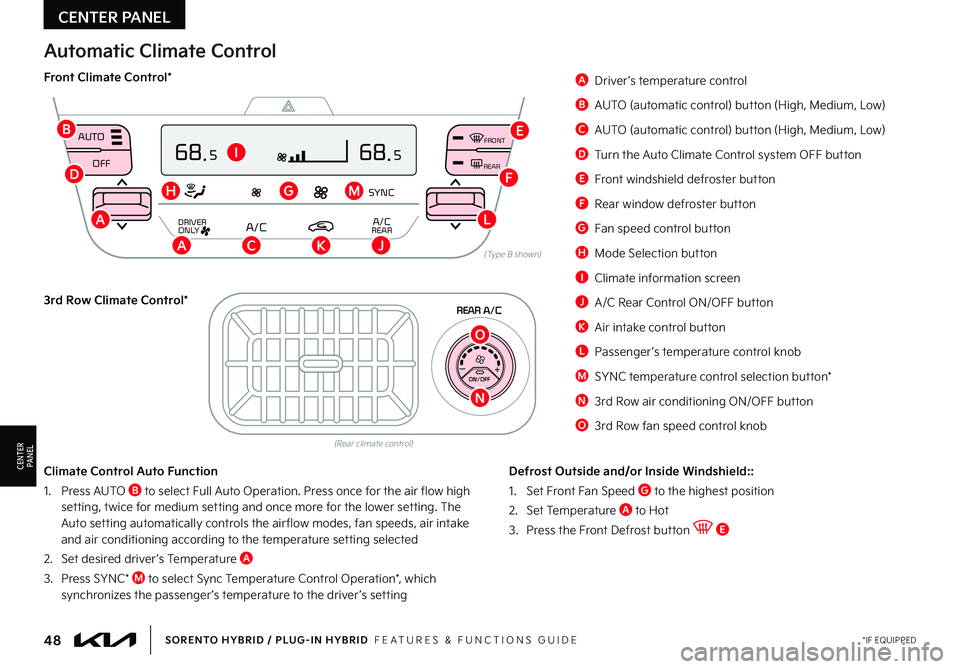

Automatic Climate Control
3rd Row Climate Control*
Front Climate Control*A Driver ’s temperature control
B AUTO (automatic control) button (High, Medium, Low)
C AUTO (automatic control) button (High, Medium, Low)
D Turn the Auto Climate Control system OFF button
E Front windshield defroster button
F Rear window defroster button
G Fan speed control button
H Mode Selection button
I Climate information screen
J A/C Rear Control ON/OFF button
K Air intake control button
L Passenger ’s temperature control knob
M SYNC temperature control selection button*
N 3rd Row air conditioning ON/OFF button
O 3rd Row fan speed control knob
(Type B shown)
Climate Control Auto Function
1
Press AUTO B to select Full Auto Operation Press once for the air flow high setting, twice for medium setting and once more for the lower setting The Auto setting automatically controls the air flow modes, fan speeds, air intake and air conditioning according to the temperature setting selected
2 Set desired driver ’s Temperature A
3 Press SYNC* M to select Sync Temperature Control Operation*, which synchronizes the passenger ’s temperature to the driver ’s setting
Defrost Outside and/or Inside Windshield::
1
Set Front Fan Speed G to the highest position
2 Set Temperature A to Hot
3
Press the Front Defrost button E
REAR A/C
ON/OFF
(Rear climate control)
A
A
B
C
D
E
FGH
I
J
O
N
K
L
M
CENTER PANEL
CENTERPA N EL
49 *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
Automatic Climate Control (continued)
REMINDERS:
•
Pressing any but ton during AUTO operation will deactivate the AUTO function and switch to manual mode, except for Temperature Control
•When in AUTO mode, Air Flow Mode and Fan Speed do not display on the Climate Control Display
•Warm air may flow in through the vents if the Recirculated Air but ton is not pressed ON (LED lit)
•
Continuous use of the climate control system in the recirculated air position may allow humidit y to increase inside the vehicle which may fog the glass and obscure visibilit y and/or cause smell/odor
•
Your Automatic Climate Control system may differ from those in the illustrations Refer to section 5 in the Owner ’s Manual for more information
•For illustrative purposes only Your actual display, but tons and/or features may var y
Air Flow Modes
To select Air Flow Modes, press the mode button H to cycle through to the desired mode:
Auto Defogging System (ADS)
Auto defogging is designed to reduce the fogging up of the inside of the windshield by automatically sensing the moisture of the inside of the windshield The system will automatically change to defrost mode when needed
Auto Defogging is set ON by default To cancel Auto Defogging, press the Front Defrost button for three seconds, when the ignition is in on (ADS OFF icon will illuminate) To turn Auto Defogging on
again, press the Front Defrost button for three seconds
Face-Level
Bi-Level
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Automatic Climate Control Operation Video
Auto Defogging System (ADS) Video
QR CODE
•Defrost Mode activates A /C and opens Fresh Air Vent to help dehumidify the air and improve Defroster per formance
•During Auto Operation, the A /C indicator will NOT illuminate The fan speed, air intake, air flow and air conditioning may automatically be engaged at any time to reach desired temperature and reduce humidit y
•Keep inside glass as clean as possible to reduce window fogging
QUICK TIPS
Floor-Level
Floor/Defrost-Level
