2023 HYUNDAI PALISADE engine

05
5-49
Automatic-Dimming Night Vision Safety™
(NVS®) Mirror (if equipped)
The NVS® Mirror automatically helps
r
educe glare by monitoring light levels in
the front and the rear of the vehicle. Any
object that obstructs either light sensor
will degrade the automatic dimming
control feature.
)RUPRUHLQIRUPDWLRQUHJDUGLQJ196p
mirrors and other applications, please
refer to the Gentex website:
www.gentex.com
Your mirror will automatically dim
upon detecting glare from the vehicles
traveling behind you.
The mirror defaults to the ON position
each time the vehicle is started.
Integrated HomeLink
® Wireless Control
System
The HomeLink® Wireless Control System
pr
ovides a convenient way to replace
up to three hand held radio-frequency
transmitters used to activate compatible
devices such as gate operators, garage
door openers, entry door locks, security
systems, and home lighting.
NOTICE
+RPH/LQNpRSHUDWHVZKLOHWKHLJQLWLRQ
switch or Engine Start/Stop button is
in the ACC or ON position for safety
reasons. It is to prevent unintentional
security problems from happening
when the vehicle is parked outside the
garage.
WARNING
%HIRUHSURJUDPPLQJ+RPH/LQNpWRD
garage door opener or gate operator,
make sure people and objects are out
of the way of the device to prevent
potential harm or damage. Do not
XVHWKH+RPH/LQNpZLWKDQ\JDUDJH
door opener that lacks the safety
stop and reverse features required
by U.S. federal safety standards (this
includes any garage door opener model
manufactured before April 1, 1982).
A garage door that cannot detect an
object - signaling the door to stop and
reverse - does not meet current U.S.
federal safety standards. Using a garage
door opener without these features
increases the risk of serious injury or
death.
)RUPRUHLQIRUPDWLRQFRQWDFW
+RPH/LQNpDWZZZKRPHOLQNFRPRU
call Home-Link customer support at
1-800-355-3515.
It is also recommended that a new
battery be replaced in the handheld
transmitter of the device being trained
WR+RPH/LQNpIRUTXLFNHUWUDLQLQJDQG
accurate transmission of the radio
frequency.
1. Programming HomeLink
®
The following steps show how to
program HomeLink. If you have any
questions or are having difficulty
programming your HomeLink buttons,
refer to the HomeLink website or call the
HomeLink customer support toll-free
number. Do this, before going back to
the dealer who sold you the car.

Convenience Features5-64

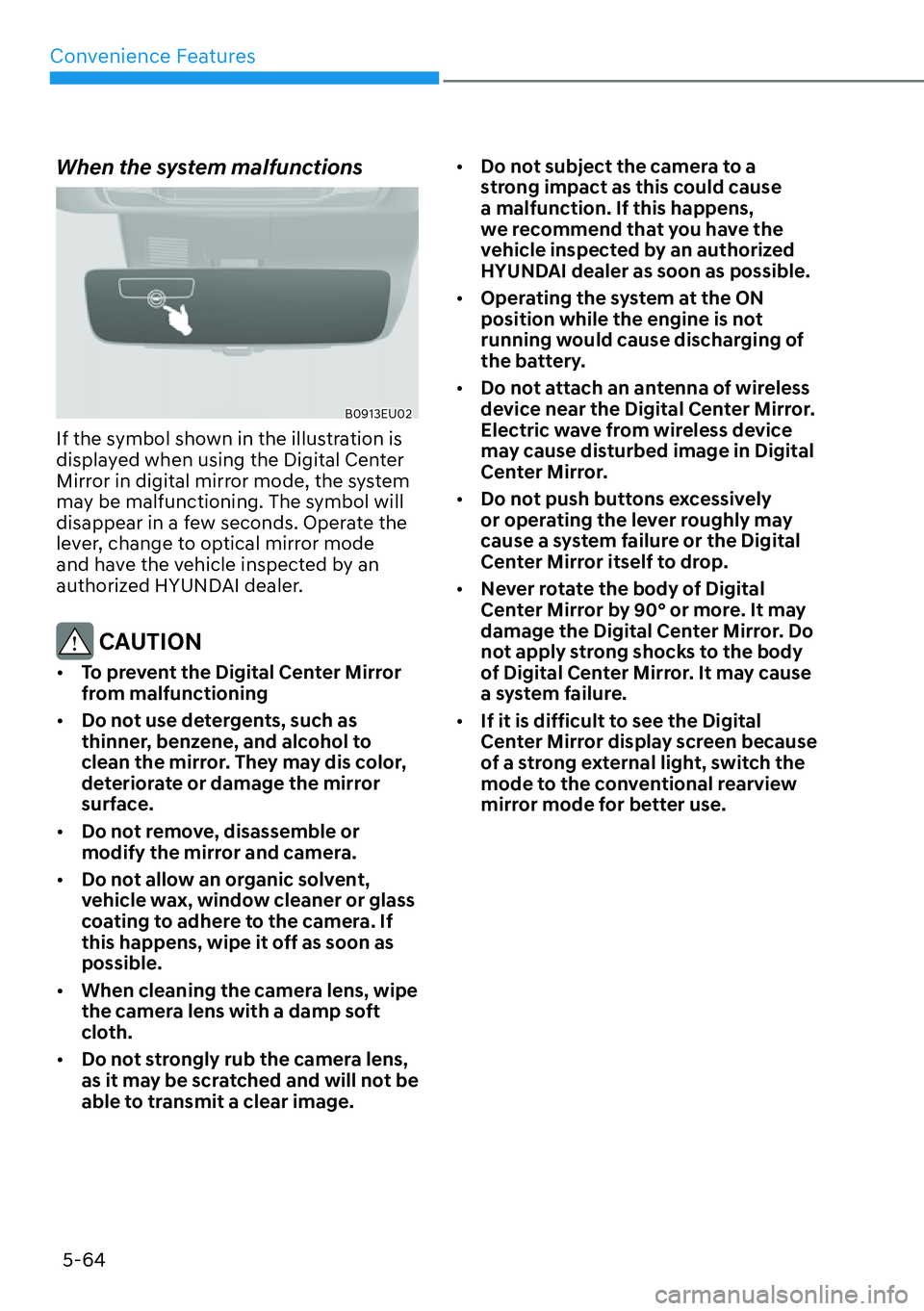

When the system malfunctions
B0913EU02
If the symbol shown in the illustration is
displayed when using the Digital Center
Mirror in digital mirror mode, the system
may be malfunctioning. The symbol will
disappear in a few seconds. Operate the
lever, change to optical mirror mode
and have the vehicle inspected by an
authorized HYUNDAI dealer.
CAUTION

[ To prevent the Digital Center Mirror
from malfunctioning

[ Do not use detergents, such as
thinner, benzene, and alcohol to
clean the mirror. They may dis color,
deteriorate or damage the mirror
surface.

[ Do not remove, disassemble or
modify the mirror and camera.

[ Do not allow an organic solvent,
vehicle wax, window cleaner or glass
coating to adhere to the camera. If
this happens, wipe it off as soon as
possible.

[ When cleaning the camera lens, wipe
the camera lens with a damp soft
cloth.

[ Do not strongly rub the camera lens,
as it may be scratched and will not be
able to transmit a clear image.
[
Do not subject the camera to a
strong impact as this could cause
a malfunction. If this happens,
we recommend that you have the
vehicle inspected by an authorized
HYUNDAI dealer as soon as possible.

[ Operating the system at the ON
position while the engine is not
running would cause discharging of
the battery.

[ Do not attach an antenna of wireless
device near the Digital Center Mirror.
Electric wave from wireless device
may cause disturbed image in Digital
Center Mirror.

[ Do not push buttons excessively
or operating the lever roughly may
cause a system failure or the Digital
Center Mirror itself to drop.

[ Never rotate the body of Digital
Center Mirror by 90° or more. It may
damage the Digital Center Mirror. Do
not apply strong shocks to the body
of Digital Center Mirror. It may cause
a system failure.

[ If it is difficult to see the Digital
Center Mirror display screen because
of a strong external light, switch the
mode to the conventional rearview
mirror mode for better use.

05
5-67

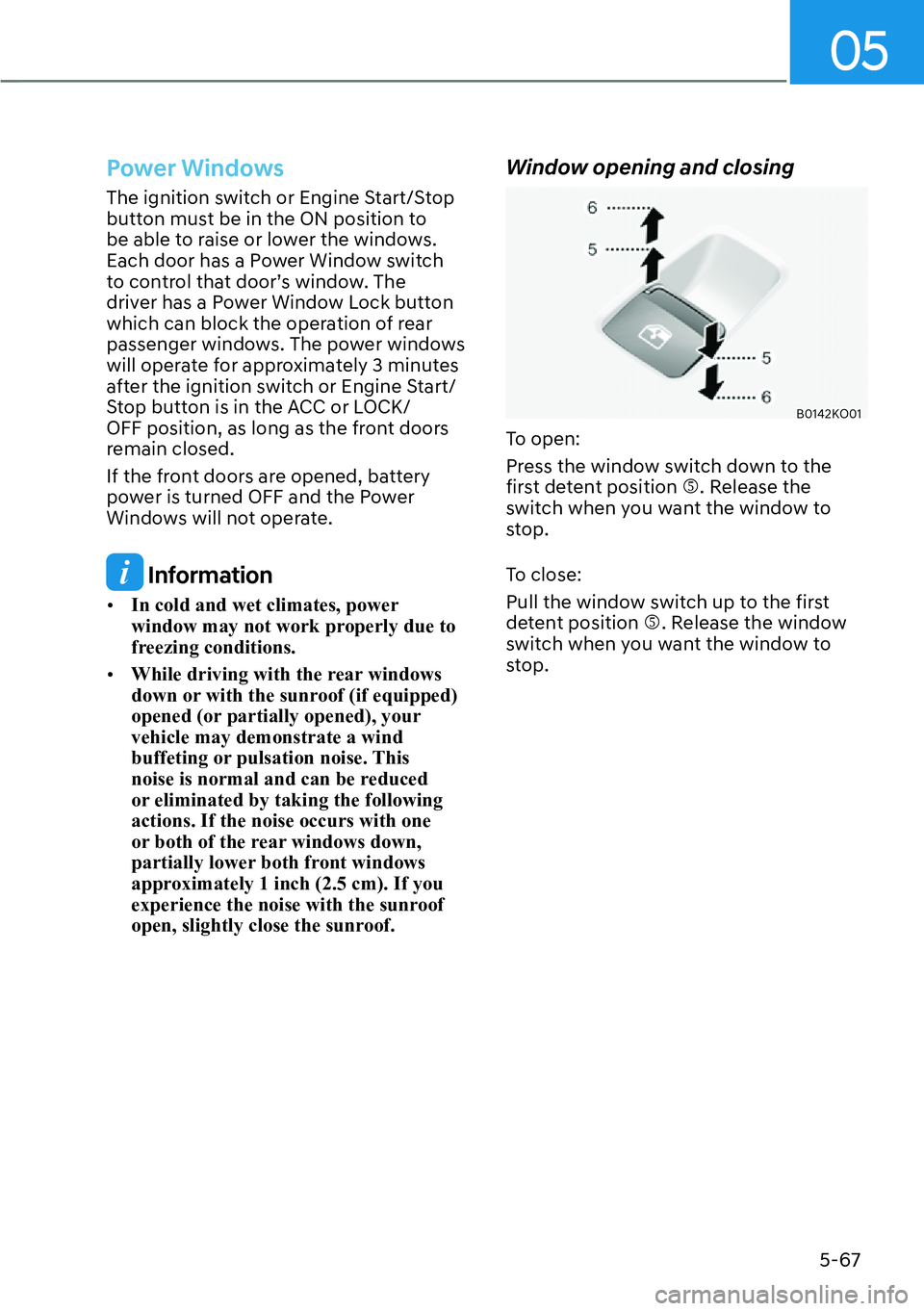

Power Windows
The ignition switch or Engine Start/Stop
button must be in the ON position to
be able to raise or lower the windows.
Each door has a Power Window switch
to control that door’s window. The
driver has a Power Window Lock button
which can block the operation of rear
passenger windows. The power windows
will operate for approximately 3 minutes
after the ignition switch or Engine Start/
Stop button is in the ACC or LOCK/
OFF position, as long as the front doors
remain closed.
If the front doors are opened, battery
power is turned OFF and the Power
Windows will not operate.
Information

[In cold and wet climates, power
window may not work properly due to
freezing conditions.

[ While driving with the rear windows
down or with the sunroof (if equipped)
opened (or partially opened), your
vehicle may demonstrate a wind
buffeting or pulsation noise. This
noise is normal and can be reduced
or eliminated by taking the following
actions. If the noise occurs with one
or both of the rear windows down,
partially lower both front windows
approximately 1 inch (2.5 cm). If you
experience the noise with the sunroof
open, slightly close the sunroof.
Window opening and closing
B0142KO01
To open:
Press the window switch down to the
first detent position Q. Release the
switch when you want the window to
stop.
To close:
Pull the window switch up to the first
detent position Q. Release the window
switch when you want the window to
stop.

Convenience Features5-68
Auto up/down window
Pressing or pulling up the power window
switch momentarily to the second
detent position R completely lowers or
lifts the window even when the switch
is released. To stop the window at the
desired position while the window is in
operation, pull up or press down and
release the switch.
WARNING

[ Do not leave the engine running
and the key in your vehicle with
unsupervised children. Unattended
children could operate the window,
which could result in serious injury.

[ Do not extend your head, arms or any
other body parts or objects outside
the window while driving to avoid
serious injury.
Resetting the power windows
If the power windows do not operate
normally, the automatic power window
system must be reset as follows:
1. Place the ignition switch or Engine
Start/Stop button to the ON position.
2. Close the window and continue pulling up on the power window
switch for at least one second.
If the power windows do not operate
properly after resetting, have the system
be inspected by an authorized HYUNDAI
dealer.
WARNING
The automatic reverse feature doesn’t
activate while resetting the power
window system.
Make sure body parts or other objects
are safely out of the way before closing
the windows to avoid injuries or vehicle
damage.
Automatic reverse
B0142KO02
If a window senses any obstacle while it
is closing automatically, it will stop and
lower approximately 12 in. (30 cm) to
allow the object to be cleared.
If the window detects the resistance
while the power window switch is
pulled up continuously, the window
will stop upward movement then lower
approximately 1 in. (2.5 cm).
If the power window switch is pulled
up continuously again within 5 seconds
after the window is lowered by the
automatic window reverse feature,
the automatic window reverse will not
operate.

Convenience Features5-70

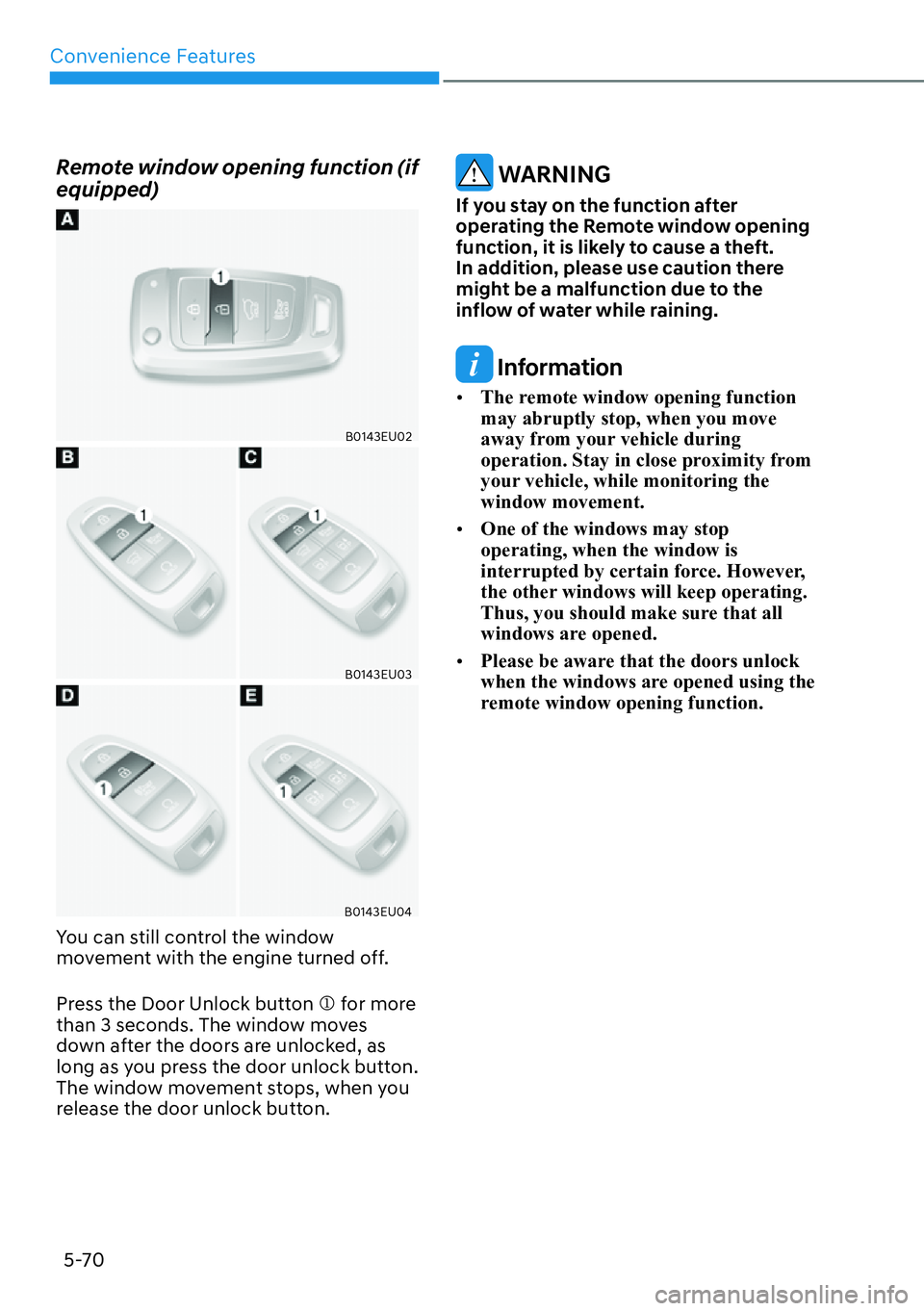

Remote window opening function (if
equipped)
B0143EU02
B0143EU03
B0143EU04
You can still control the window
movement with the engine turned off.
Press the Door Unlock button M for more
than 3 seconds. The window moves
down after the doors are unlocked, as
long as you press the door unlock button.
The window movement stops, when you
release the door unlock button.
WARNING
If you stay on the function after
operating the Remote window opening
function, it is likely to cause a theft.
In addition, please use caution there
might be a malfunction due to the
inflow of water while raining.
Information

[ The remote window opening function
may abruptly stop, when you move
away from your vehicle during
operation. Stay in close proximity from
your vehicle, while monitoring the
window movement.

[ One of the windows may stop
operating, when the window is
interrupted by certain force. However,
the other windows will keep operating.
Thus, you should make sure that all
windows are opened.

[ Please be aware that the doors unlock
when the windows are opened using the
remote window opening function.

Convenience Features5-74
Resetting the Sunroof
B9022EU04
In some circumstances resetting the
sunroof operation may need to be
performed. Some instances where
resetting the sunroof may be required
include:

[ When the 12-volt battery is either
disconnected or discharged

[ When the sunroof fuse is replaced

[ If the sunroof one-touch AUTO OPEN/
CLOSE operation is not functioning
properly
Sunroof resetting procedure:
1. It is recommended to perform the reset procedure with the vehicle
engine running. Start the vehicle in P
(Park).
2. Make sure the power sunshade and sunroof glass are in the fully closed
position. If the power sunshade and
sunroof glass is open, push the switch
forward until the power sunshade and
sunroof glass are fully closed.
3. Release the switch when the power sunshade and sunroof glass are fully
closed.
4. Push the switch forward until the power sunshade and sunroof glass
move slightly. Then release the switch. 5. Once again push and hold the sunroof
switch forward until the power
sunshade and sunroof glass slide open
and close. Do not release the switch
until the operation is completed.
If you release the switch during
operation, start the procedure again
from step 2.
Information
If the sunroof does not reset when
the vehicle battery is disconnected or
discharged, or the sunroof fuse is blown,
the sunroof may not operate normally.

05
5-75

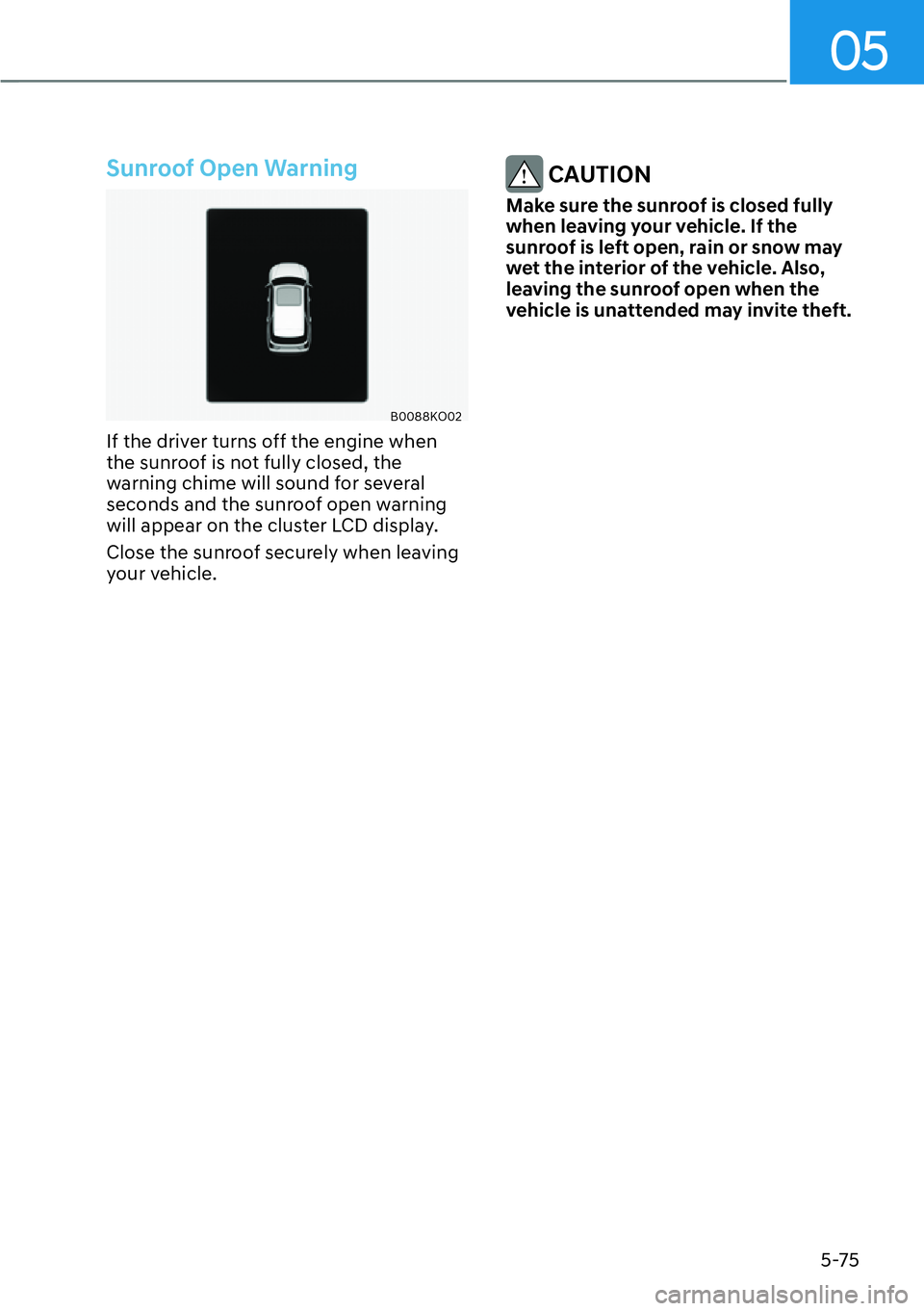

Sunroof Open Warning
B0088KO02
If the driver turns off the engine when
the sunroof is not fully closed, the
warning chime will sound for several
seconds and the sunroof open warning
will appear on the cluster LCD display.
Close the sunroof securely when leaving
your vehicle.
CAUTION
Make sure the sunroof is closed fully
when leaving your vehicle. If the
sunroof is left open, rain or snow may
wet the interior of the vehicle. Also,
leaving the sunroof open when the
vehicle is unattended may invite theft.

Convenience Features5-76

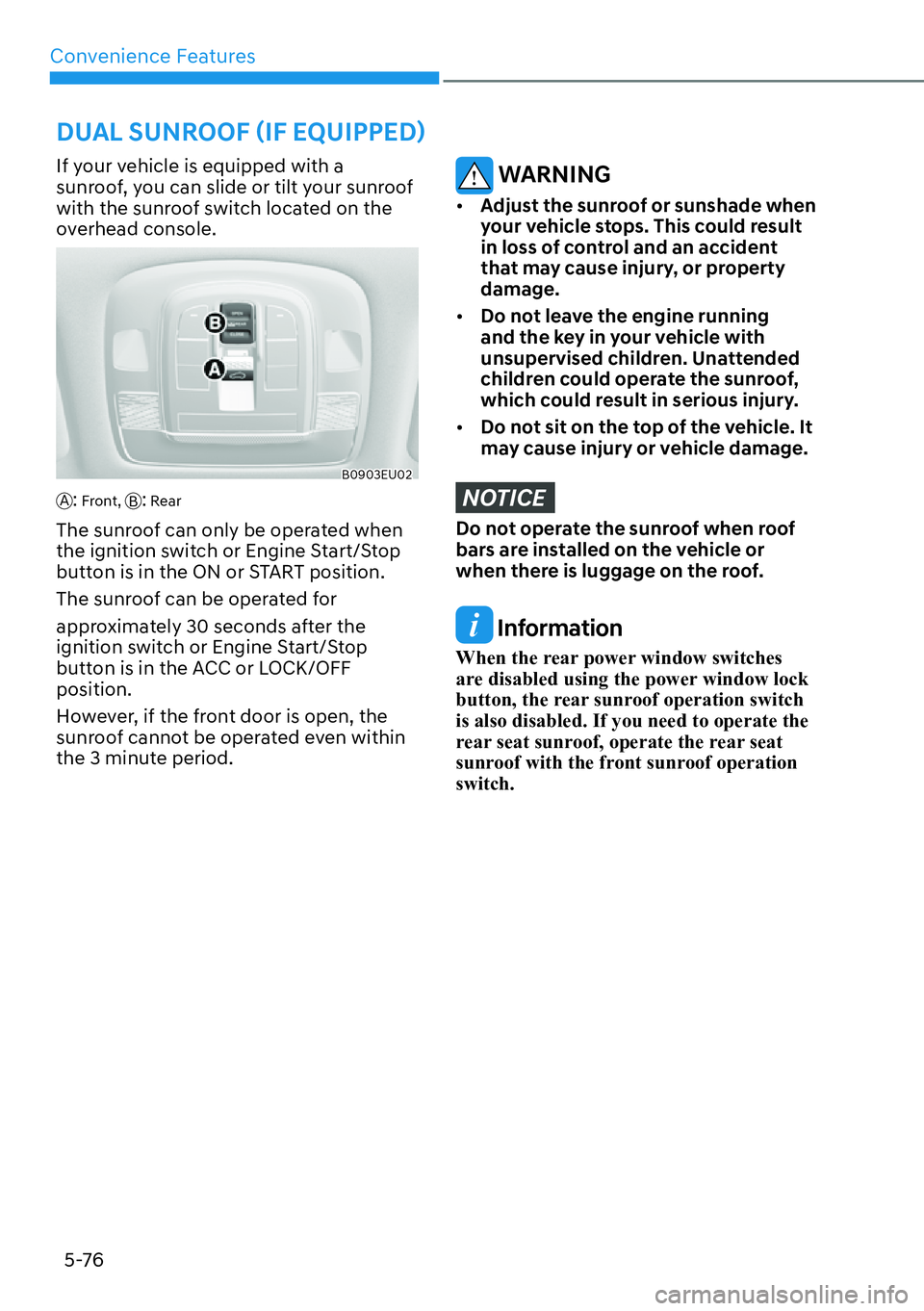

If your vehicle is equipped with a
sunroof, you can slide or tilt your sunroof
with the sunroof switch located on the
overhead console.
B0903EU02
A: Front, B: Rear
The sunroof can only be operated when
the ignition switch or Engine Start/Stop
button is in the ON or START position.
The sunroof can be operated for
approximately 30 seconds after the
ignition switch or Engine Start/Stop
button is in the ACC or LOCK/OFF
position.
However, if the front door is open, the
sunroof cannot be operated even within
the 3 minute period.
WARNING

[Adjust the sunroof or sunshade when
your vehicle stops. This could result
in loss of control and an accident
that may cause injury, or property
damage.

[ Do not leave the engine running
and the key in your vehicle with
unsupervised children. Unattended
children could operate the sunroof,
which could result in serious injury.

[ Do not sit on the top of the vehicle. It
may cause injury or vehicle damage.
NOTICE
Do not operate the sunroof when roof
bars are installed on the vehicle or
when there is luggage on the roof.
Information
When the rear power window switches
are disabled using the power window lock
button, the rear sunroof operation switch
is also disabled. If you need to operate the
rear seat sunroof, operate the rear seat
sunroof with the front sunroof operation
switch.
'8$/681522)
