Convenience Features5-80
Resetting the sunroof
B0908EU01
B0908EU02
A: Front, B: Rear
In some circumstances resetting the
sunroof operation may need to be
performed. Some instances where
resetting the sunroof may be required
include:
[ When the 12-volt battery is either
disconnected or discharged
[ When the sunroof fuse is replaced
[ If the sunroof one-touch AUTO OPEN/
CLOSE operation is not functioning
properly Sunroof resetting procedure:
1. It is recommended to perform the
reset procedure with the vehicle
engine running. Start the vehicle in P
(Park).
2. Make sure the sunroof glass is in the fully closed position. If the sunroof
glass is open, push the switch forward
until the sunroof glass is fully closed.
3. Release the switch when the sunroof glass is fully closed.
4. Push the switch forward until the sunroof glass moves slightly. Then
release the switch.
5. Once again push and hold the sunroof switch forward until the sunroof glass
slides open and close. Do not release
the switch until the operation is
completed.
If you release the switch during
operation, start the procedure again
from step 2. Information
If the sunroof does not reset when
the vehicle battery is disconnected or
discharged, or the sunroof fuse is blown,
the sunroof may not operate normally.
Page 230 of 661
05
5-81

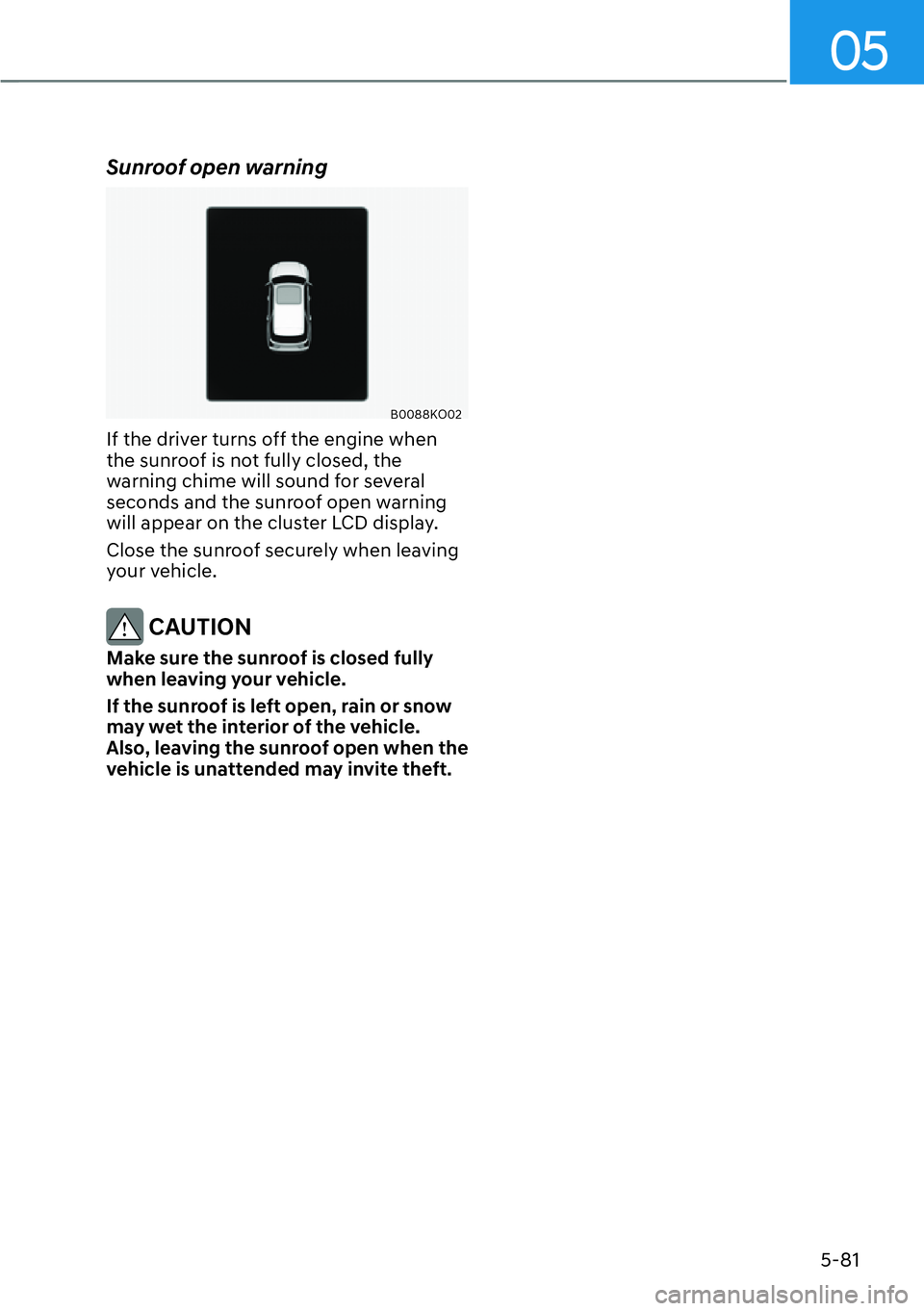

Sunroof open warning
B0088KO02
If the driver turns off the engine when
the sunroof is not fully closed, the
warning chime will sound for several
seconds and the sunroof open warning
will appear on the cluster LCD display.
Close the sunroof securely when leaving
your vehicle.
CAUTION
Make sure the sunroof is closed fully
when leaving your vehicle.
If the sunroof is left open, rain or snow
may wet the interior of the vehicle.
Also, leaving the sunroof open when the
vehicle is unattended may invite theft.
Page 231 of 661
Convenience Features5-82

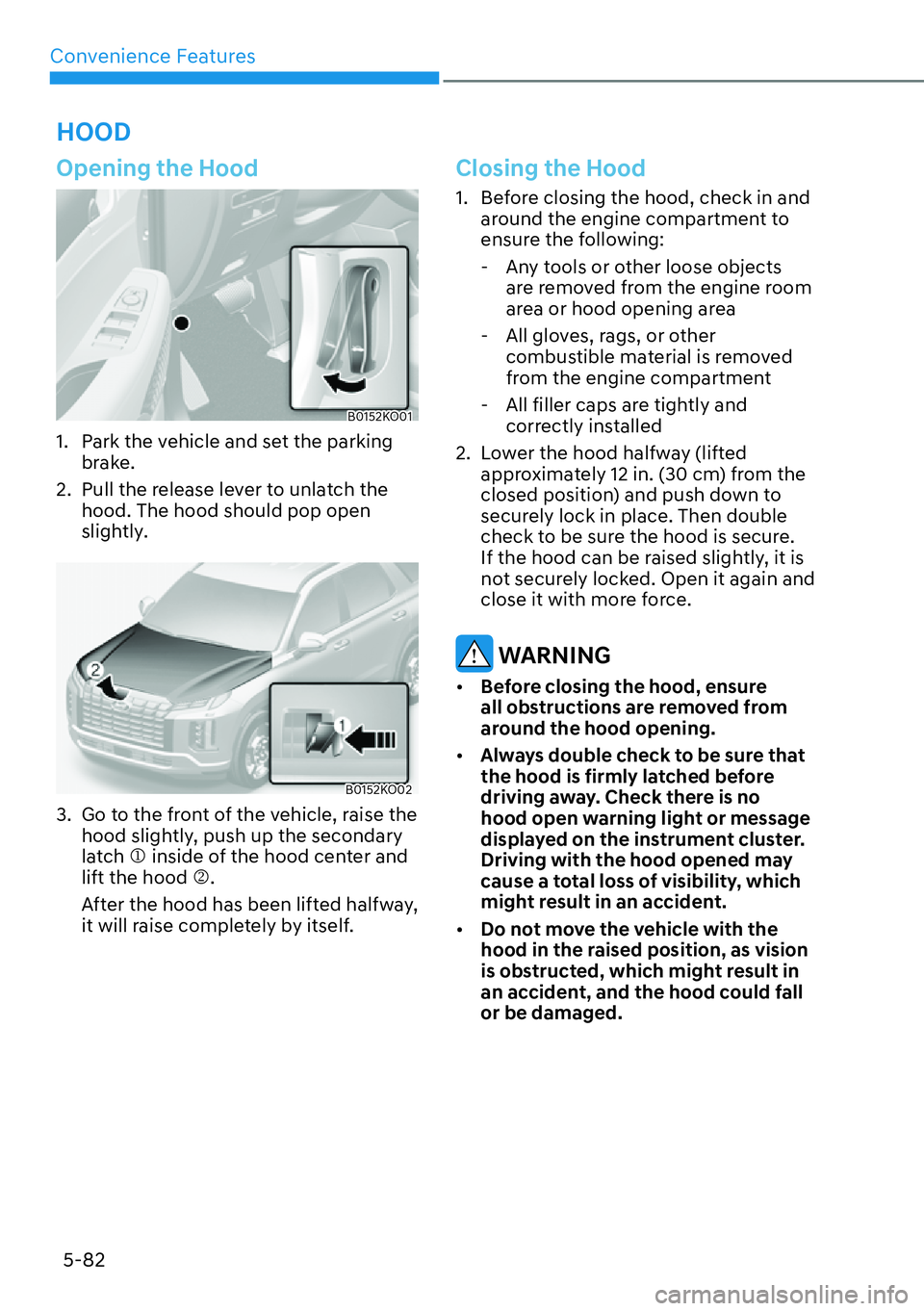

Opening the Hood
B0152KO01
1. Park the vehicle and set the parking brake.
2. Pull the release lever to unlatch the hood. The hood should pop open
slightly.
B0152KO02
3. Go to the front of the vehicle, raise the hood slightly, push up the secondary
latch M inside of the hood center and
lift the hood N.
After the hood has been lifted halfway,
it will raise completely by itself.
Closing the Hood
1. Before closing the hood, check in and around the engine compartment to
ensure the following:
- Any tools or other loose objects
are removed from the engine room
area or hood opening area
- All gloves, rags, or other
combustible material is removed
from the engine compartment
- All filler caps are tightly and
correctly installed
2. Lower the hood halfway (lifted approximately 12 in. (30 cm) from the
closed position) and push down to
securely lock in place. Then double
check to be sure the hood is secure.
If the hood can be raised slightly, it is
not securely locked. Open it again and
close it with more force.
WARNING
[ Before closing the hood, ensure
all obstructions are removed from
around the hood opening.
[ Always double check to be sure that
the hood is firmly latched before
driving away. Check there is no
hood open warning light or message
displayed on the instrument cluster.
Driving with the hood opened may
cause a total loss of visibility, which
might result in an accident.
[ Do not move the vehicle with the
hood in the raised position, as vision
is obstructed, which might result in
an accident, and the hood could fall
or be damaged.
HOOD
Page 238 of 661
05
5-89
User height setting
1. Position the liftgate manually to the height you prefer.
2. Press the power liftgate open/close button located inside the liftgate for
more than 3 seconds.
If ‘User Height Setting’ is selected for
the power liftgate opening height, the
power liftgate will automatically open
to the height manually set by you.
Information
[ If the power liftgate opening height
has not been manually set, the power
liftgate will fully open when ‘User
Height Setting’ from the infotainment
system is selected.
[ If one of the height setting (Full Open/
Level 3/Level 2/Level 1) is selected from
the settings menu in the infotainment
system, and then ‘User Height Setting’
is selected, the liftgate will open to the
height manually set by you.
[ The power liftgate opening speed
and opening height settings change
according to the linked User Profile.
If the User Profile is changed, power
liftgate opening speed and opening
height settings will change accordingly.
[ The infotainment system may change
after software updates. For more
information, refer to the user's manual
provided in the infotainment system
and the quick reference guide.
Resetting the Power Liftgate
In some circumstances resetting the
power liftgate operation may need to
be performed. Some instances where
resetting the power liftgate may be
required include:
[ When the 12-volt battery is recharged
[ When the 12-volt battery is reinstalled
after removal or replacement
[ When the related fuse is reinstalled
after removal or replacement
B0909EU02
1. With the engine off or running, put the
gear in P (Park).
2. Press the power liftgate open/close inner button
B and outer button A
simultaneously until a chime sounds.
3. Slowly close the liftgate manually.
4. Press the power liftgate open/close outer button. The power liftgate will
open with a chime sound.
Wait until the liftgate fully opens to
complete resetting. If the liftgate
stops before it is fully open, resetting
cannot be completed.
Information
If the power liftgate does not operate
properly after the above procedure, have
the system inspected by an authorized
HYUNDAI dealer.
Page 242 of 661
05
5-93

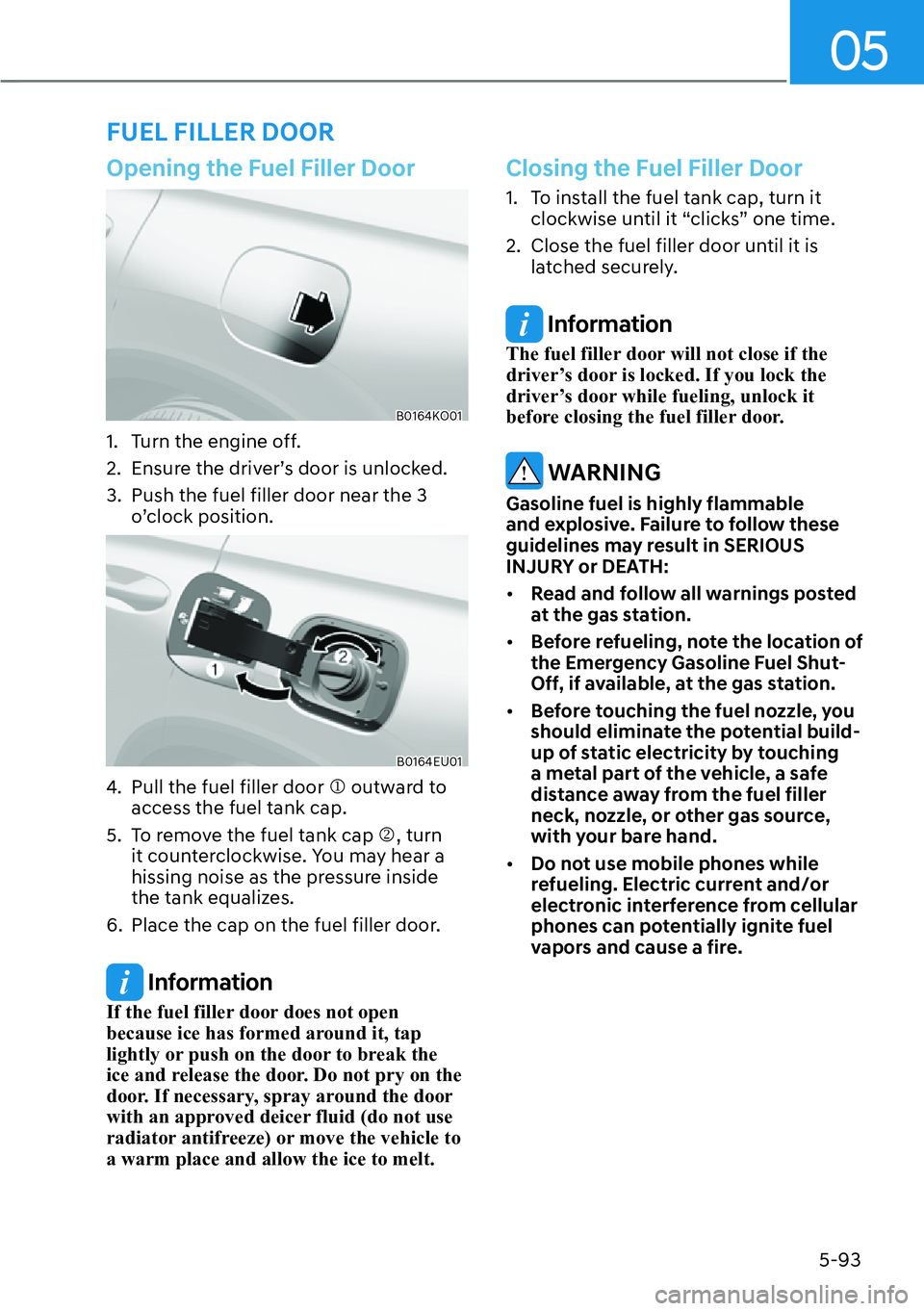

) 8 ( / ) , / / ( 5 ' 2 2 5
2 S H Q L Q J W K H ) X H O ) L O O H U ' R R U
B0164KO01
1. Turn the engine off.
2. Ensure the driver’s door is unlocked.
3. Push the fuel filler door near the 3 o’clock position.
B0164EU01
4. Pull the fuel filler door M outward to access the fuel tank cap.
5. To remove the fuel tank cap N, turn it counterclockwise. You may hear a
hissing noise as the pressure inside
the tank equalizes.
6. Place the cap on the fuel filler door.
Information
If the fuel filler door does not open
because ice has formed around it, tap
lightly or push on the door to break the
ice and release the door. Do not pry on the
door. If necessary, spray around the door
with an approved deicer fluid (do not use
radiator antifreeze) or move the vehicle to
a warm place and allow the ice to melt.
& O R V L Q J W K H ) X H O ) L O O H U ' R R U
1. To install the fuel tank cap, turn it clockwise until it “clicks” one time.
2. Close the fuel filler door until it is latched securely.
Information
The fuel filler door will not close if the
driver’s door is locked. If you lock the
driver’s door while fueling, unlock it
before closing the fuel filler door.
WARNING
Gasoline fuel is highly flammable
D Q G H [ S O R V L Y H ) D L O X U H W R I R O O R Z W K H V H
guidelines may result in SERIOUS
INJURY or DEATH:
[ Read and follow all warnings posted
at the gas station.
[ Before refueling, note the location of
W K H ( P H U J H Q F \ * D V R O L Q H ) X H O 6 K X W
Off, if available, at the gas station.
[ Before touching the fuel nozzle, you
should eliminate the potential build-
up of static electricity by touching
a metal part of the vehicle, a safe
distance away from the fuel filler
neck, nozzle, or other gas source,
with your bare hand.
[ Do not use mobile phones while
refueling. Electric current and/or
electronic interference from cellular
phones can potentially ignite fuel
vapors and cause a fire.
Page 243 of 661
Convenience Features5-94
[ Do not get back into a vehicle
once you have begun refueling.
You can generate a buildup of
static electricity by touching,
rubbing or sliding against any item
or fabric capable of producing
static electricity. Static electricity
discharge can ignite fuel vapors
causing a fire. If you must re-enter
the vehicle, you should once again
eliminate potentially dangerous
static electricity discharge by
touching a metal part of the vehicle,
away from the fuel filler neck, nozzle
or other gasoline source, with your
bare hand.
[ When using an approved portable
fuel container, be sure to place the
container on the ground prior to
refueling. Static electricity discharge
from the container can ignite fuel
vapors causing a fire.
Once refueling has begun, contact
between your bare hand and the
vehicle should be maintained until
the filling is complete.
[ Use only approved portable plastic
fuel containers designed to carry and
store gasoline.
[ When refueling, always shift the
gear to the P (Park) position, set the
parking brake, and place the ignition
V Z L W F K W R W K H / 2 & . 2 ) ) S R V L W L R Q
Sparks produced by electrical
components related to the engine
can ignite fuel vapors causing a fire.
[ Do not use matches or a lighter and
do not smoke or leave a lit cigarette
in your vehicle while at a gas station,
especially during refueling.
[ Do not over-fill or top-off your
vehicle tank, which can cause
gasoline spillage.[ If a fire breaks out during refueling,
leave the vicinity of the vehicle, and
immediately contact the manager
of the gas station and then contact
W K H O R F D O I L U H G H S D U W P H Q W ) R O O R Z D Q \
safety instructions they provide.
[ If pressurized fuel sprays out, it can
cover your clothes or skin and thus
subject you to the risk of fire and
burns. Always remove the fuel cap
carefully and slowly. If the cap is
venting fuel or if you hear a hissing
sound, wait until the condition stops
before completely removing the cap.
[ Always check that the fuel cap is
installed securely to prevent fuel
spillage in the event of an accident.
Information
Make sure to refuel your vehicle according
to the “Fuel Requirements” section in
suggested in chapter 1.
NOTICE
[ Do not spill fuel on the exterior
surfaces of the vehicle. Any type of
fuel spilled on painted surfaces may
damage the paint.
[ If the fuel filler cap requires
replacement, use only a genuine
HYUNDAI cap or the equivalent
specified for your vehicle. An
incorrect fuel filler cap can result
in a serious malfunction of the fuel
system or emission control system.
Page 250 of 661
05
5-101

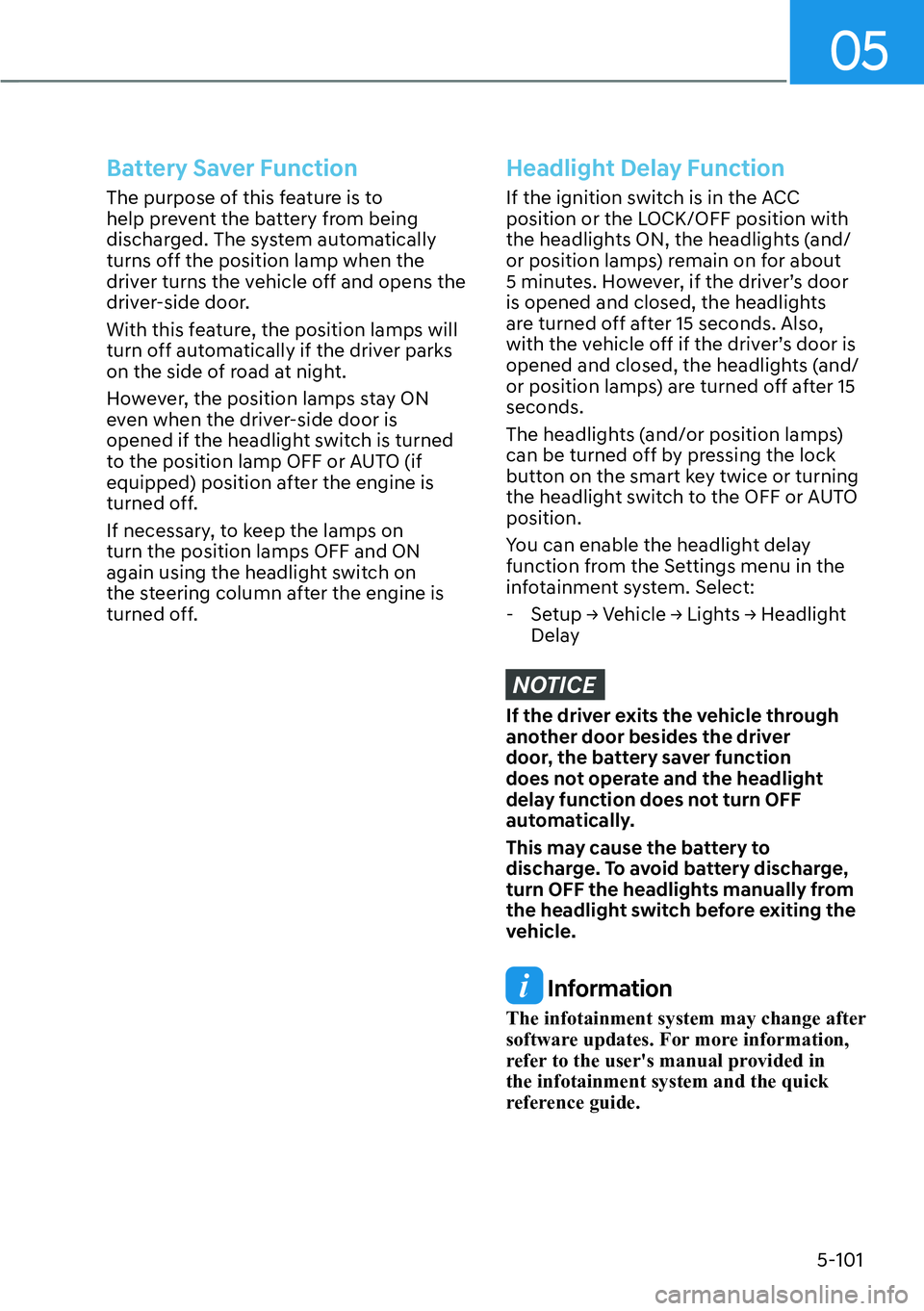

% D W W H U \ 6 D Y H U ) X Q F W L R Q
The purpose of this feature is to
help prevent the battery from being
discharged. The system automatically
turns off the position lamp when the
driver turns the vehicle off and opens the
driver-side door.
With this feature, the position lamps will
turn off automatically if the driver parks
on the side of road at night.
However, the position lamps stay ON
even when the driver-side door is
opened if the headlight switch is turned
to the position lamp OFF or AUTO (if
equipped) position after the engine is
turned off.
If necessary, to keep the lamps on
turn the position lamps OFF and ON
again using the headlight switch on
the steering column after the engine is
turned off.
+ H D G O L J K W ' H O D \ ) X Q F W L R Q
If the ignition switch is in the ACC
position or the LOCK/OFF position with
the headlights ON, the headlights (and/
or position lamps) remain on for about
5 minutes. However, if the driver’s door
is opened and closed, the headlights
are turned off after 15 seconds. Also,
with the vehicle off if the driver’s door is
opened and closed, the headlights (and/
or position lamps) are turned off after 15
seconds.
The headlights (and/or position lamps)
can be turned off by pressing the lock
button on the smart key twice or turning
the headlight switch to the OFF or AUTO
position.
You can enable the headlight delay
function from the Settings menu in the
infotainment system. Select:
- 6 H W X S
Page 251 of 661
Convenience Features5-102
B0179KO01
Hight Beam Assist will automatically
switch between high beam and low
beam depending on the detected
brightness from the lamps of oncoming
vehicles or vehicles in front.
Detecting sensor
B0179KO02
M: front view camera
The front view camera is used as a
detecting sensor to detect ambient light
and brightness while driving.
Refer to the picture above for the
detailed location of the detecting sensor.
NOTICE
[ Always keep the front view camera in
good condition to maintain optimal
performance of High Beam Assist.
[ ) R U P R U H G H W D L O V R Q W K H S U H F D X W L R Q V
of the front view camera, refer to
U ) R U Z D U G & R O O L V L R Q $ Y R L G D Q F H $ V V L V W
) & $ V V H F W L R Q L Q F K D S W H U
High Beam Assist Settings
B0179EU03
With the ignition switch or the Engine
Start/Stop button in the ON position,
V H O H F W S / L J K W V
