2023 HYUNDAI PALISADE engine

Convenience Features5-14
Start-up (if equipped)
Some models are equipped with a push
button start instead of a key cylinder.
You can leave your Smart Key in your
pocket or purse when you start your
vehicle.
For more details, refer to the “Engine
Start/Stop Button” section in chapter 6.
Information
Preventing the doors/liftgate from locking/
unlocking

[ Activating the feature
With the engine off, press the
lock button on the smart key and
immediately press the unlock button
along with the lock button for more
than 4 seconds. When the feature is
activated, the hazard warning lights
will blink four times.

[ How the feature works
When the feature is activated, the
doors or liftgate will not lock or unlock
even though the outside door handle
button or liftgate handle release switch
is pressed with the smart key in your
possession. Also, Welcome System
(if equipped) and Smart Liftgate (if
equipped) will not operate even though
you approach the vehicle with the
smart key.

[ Deactivating the feature
Press the door lock or unlock button
on the smart key, the feature will
deactivate.
Information
If the smart key is not moved for some
time, the detection function for smart key
operation will pause. Lift the smart key to
activate the detection again.
NOTICE
To prevent damaging the smart key:

[Keep the smart key in a cool,
dry place to avoid damage or
malfunction. Exposure to moisture
or high temperature may cause
the internal circuit of the smart key
to malfunction which may not be
covered under warranty.

[ Avoid dropping or throwing the
smart key.

[ Protect the smart key from extreme
temperatures.

05
5-17

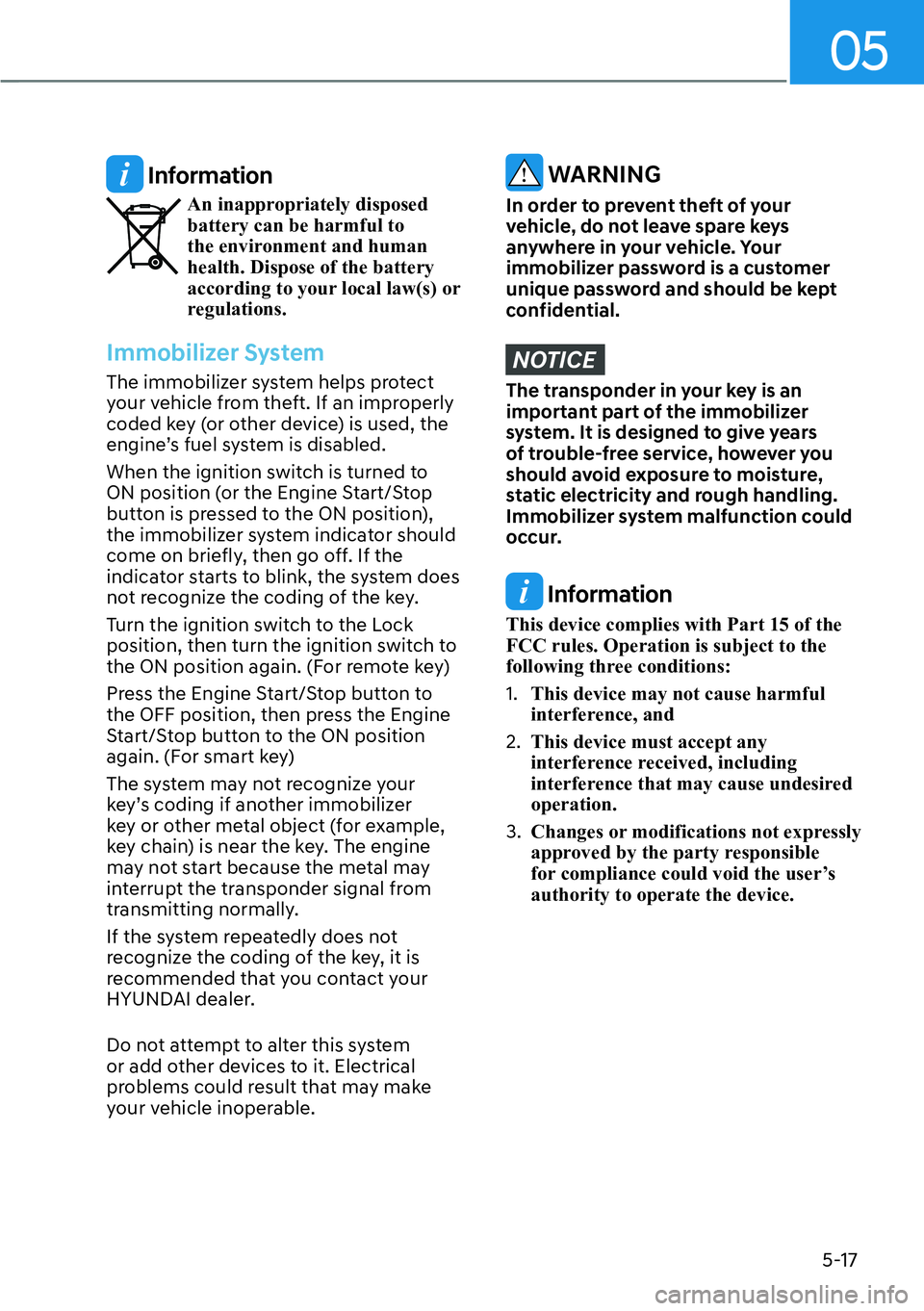

Information
An inappropriately disposed
battery can be harmful to
the environment and human
health. Dispose of the battery
according to your local law(s) or
regulations.
Immobilizer System
The immobilizer system helps protect
your vehicle from theft. If an improperly
coded key (or other device) is used, the
engine’s fuel system is disabled.
When the ignition switch is turned to
ON position (or the Engine Start/Stop
button is pressed to the ON position),
the immobilizer system indicator should
come on briefly, then go off. If the
indicator starts to blink, the system does
not recognize the coding of the key.
Turn the ignition switch to the Lock
position, then turn the ignition switch to
the ON position again. (For remote key)
Press the Engine Start/Stop button to
the OFF position, then press the Engine
Start/Stop button to the ON position
again. (For smart key)
The system may not recognize your
key’s coding if another immobilizer
key or other metal object (for example,
key chain) is near the key. The engine
may not start because the metal may
interrupt the transponder signal from
transmitting normally.
If the system repeatedly does not
recognize the coding of the key, it is
recommended that you contact your
HYUNDAI dealer.
Do not attempt to alter this system
or add other devices to it. Electrical
problems could result that may make
your vehicle inoperable.
WARNING
In order to prevent theft of your
vehicle, do not leave spare keys
anywhere in your vehicle. Your
immobilizer password is a customer
unique password and should be kept
confidential.
NOTICE
The transponder in your key is an
important part of the immobilizer
system. It is designed to give years
of trouble-free service, however you
should avoid exposure to moisture,
static electricity and rough handling.
Immobilizer system malfunction could
occur.
Information
This device complies with Part 15 of the
FCC rules. Operation is subject to the
following three conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user’s
authority to operate the device.

Convenience Features5-24
Using the digital key (card key)
The driver can lock or unlock the door by
placing the card key on the outside door
handle, and the vehicle can be started
by placing the card key on the vehicle
authentication pad (wireless charging
pad).
B0902KO02
A: Door handle authentication pad,
B: Card key NFC Antenna

[ Locking/Unlocking the doors

- If the driver places the digital
key (Card key) to the driver’s
or passenger’s door handle
authentication pad
A for more than
2 seconds, the door will lock or
unlock.

- If the Two Press Unlock feature is
set, only the driver’s door unlock
when the digital key (Card key) is
placed on the driver’s door handle
authentication pad. Hold the digital
key (Card key) near the driver’s door
handle authentication pad once
more within 4 seconds to unlock all
doors.

- After unlocking the doors, the doors
will automatically re-lock after 30
seconds unless a door is opened.
Information
You cannot lock your vehicle using
the digital key (Card key) if any of the
following occurs:

- The smart key is in the vehicle.

- The Start/Stop button is in the ACC or
ON position.

- Any of the doors, hood, or liftgate are
open.

[ Starting the vehicle
After placing your registered
digital key (card key) on the vehicle
authentication pad (wireless charging
pad), depress the brake pedal and
press the Engine Start/ Stop button.
For more details on the basic way
to start the vehicle, refer to “Ignition
Switch” or “Engine Start/Stop Button”
section in chapter 6.
WARNING
The vehicle can be started when the
registered card key is placed on the
vehicle authentication pad (wireless
charging pad). Therefore, do not leave
unsupervised children or people who
are not aware of the system since it
can result in serious injury or death. In
addition, always have the registered
card key with you to prevent vehicle
theft when leaving the vehicle.

Convenience Features5-34

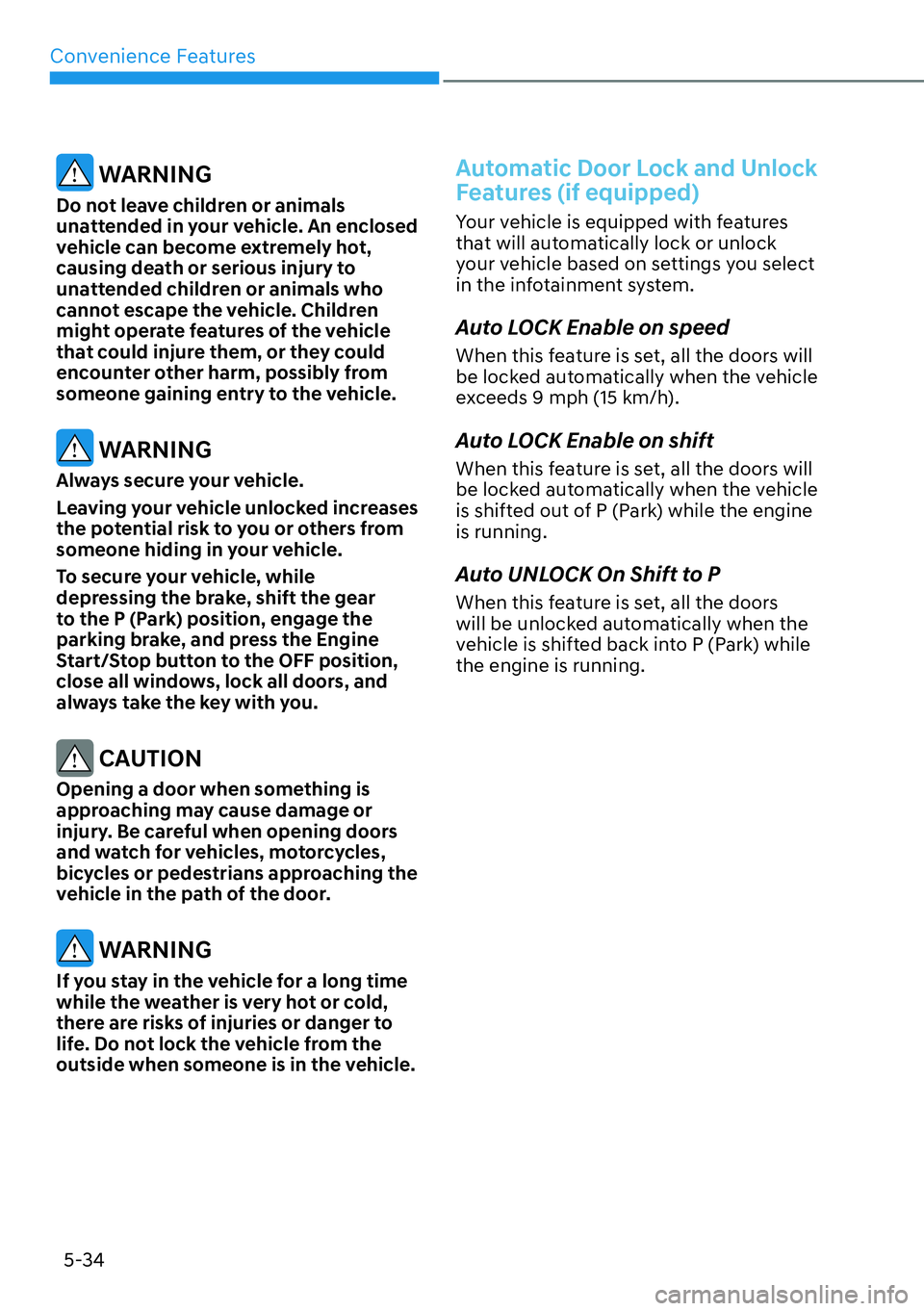

WARNING
Do not leave children or animals
unattended in your vehicle. An enclosed
vehicle can become extremely hot,
causing death or serious injury to
unattended children or animals who
cannot escape the vehicle. Children
might operate features of the vehicle
that could injure them, or they could
encounter other harm, possibly from
someone gaining entry to the vehicle.
WARNING
Always secure your vehicle.
Leaving your vehicle unlocked increases
the potential risk to you or others from
someone hiding in your vehicle.
To secure your vehicle, while
depressing the brake, shift the gear
to the P (Park) position, engage the
parking brake, and press the Engine
6WDUW6WRSEXWWRQWRWKH2))SRVLWLRQ
close all windows, lock all doors, and
always take the key with you.
CAUTION
Opening a door when something is
approaching may cause damage or
injury. Be careful when opening doors
and watch for vehicles, motorcycles,
bicycles or pedestrians approaching the
vehicle in the path of the door.
WARNING
If you stay in the vehicle for a long time
while the weather is very hot or cold,
there are risks of injuries or danger to
life. Do not lock the vehicle from the
outside when someone is in the vehicle.
Automatic Door Lock and Unlock
)HDWXUHVLIHTXLSSHG
Your vehicle is equipped with features
that will automatically lock or unlock
your vehicle based on settings you select
in the infotainment system.
Auto LOCK Enable on speed
When this feature is set, all the doors will
be locked automatically when the vehicle
exceeds 9 mph (15 km/h).
Auto LOCK Enable on shift
When this feature is set, all the doors will
be locked automatically when the vehicle
is shifted out of P (Park) while the engine
is running.
Auto UNLOCK On Shift to P
When this feature is set, all the doors
will be unlocked automatically when the
vehicle is shifted back into P (Park) while
the engine is running.

Convenience Features5-36

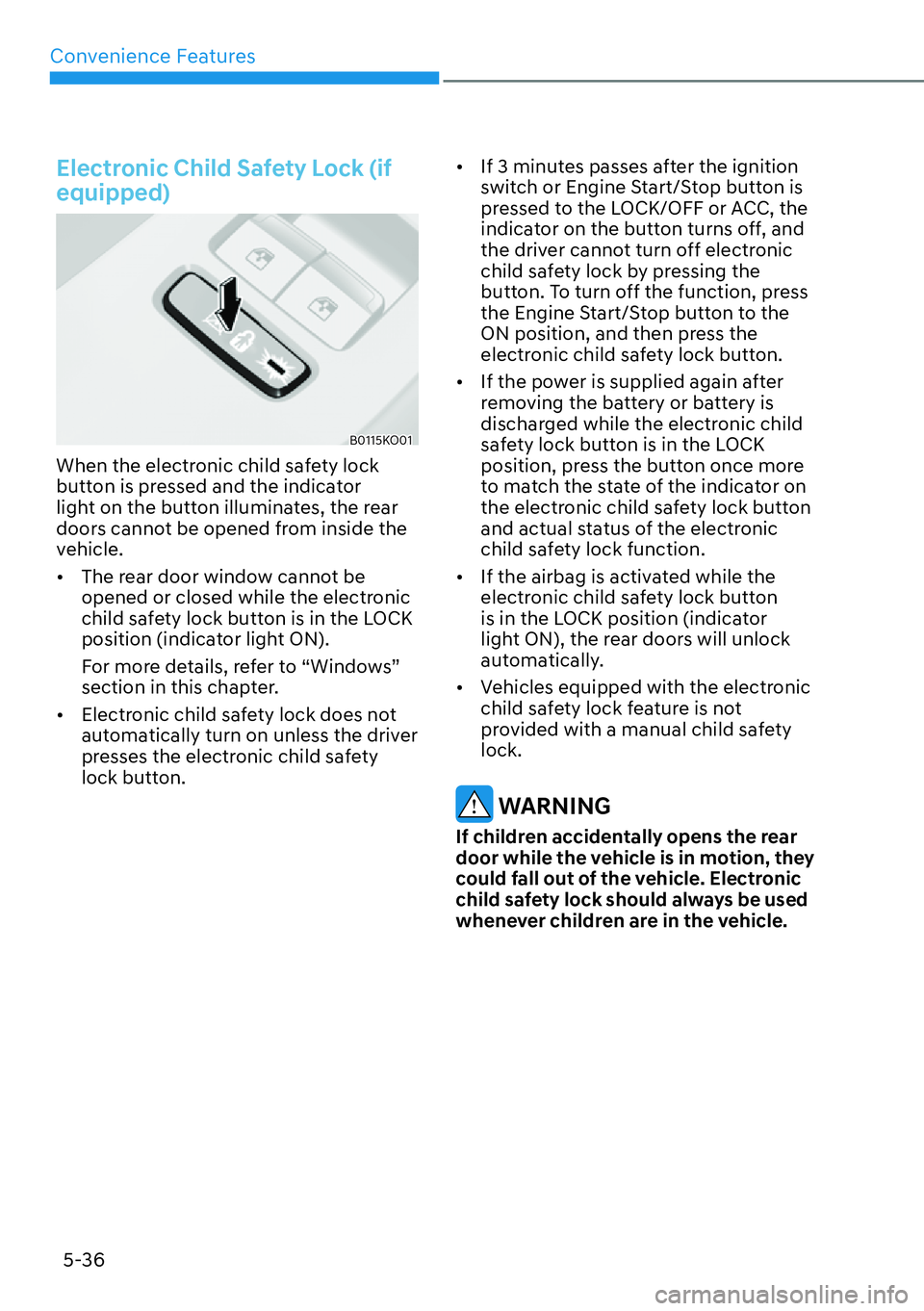

Electronic Child Safety Lock (if
equipped)
B0115KO01
When the electronic child safety lock
button is pressed and the indicator
light on the button illuminates, the rear
doors cannot be opened from inside the
vehicle.

[ The rear door window cannot be
opened or closed while the electronic
child safety lock button is in the LOCK
position (indicator light ON).
For more details, refer to “Windows”
section in this chapter.

[ Electronic child safety lock does not
automatically turn on unless the driver
presses the electronic child safety
lock button.
[
If 3 minutes passes after the ignition
switch or Engine Start/Stop button is
pressed to the LOCK/OFF or ACC, the
indicator on the button turns off, and
the driver cannot turn off electronic
child safety lock by pressing the
button. To turn off the function, press
the Engine Start/Stop button to the
ON position, and then press the
electronic child safety lock button.

[ If the power is supplied again after
removing the battery or battery is
discharged while the electronic child
safety lock button is in the LOCK
position, press the button once more
to match the state of the indicator on
the electronic child safety lock button
and actual status of the electronic
child safety lock function.

[ If the airbag is activated while the
electronic child safety lock button
is in the LOCK position (indicator
light ON), the rear doors will unlock
automatically.

[ Vehicles equipped with the electronic
child safety lock feature is not
provided with a manual child safety
lock.
WARNING
If children accidentally opens the rear
door while the vehicle is in motion, they
could fall out of the vehicle. Electronic
child safety lock should always be used
whenever children are in the vehicle.

Convenience Features5-44
STEERING WHEEL
MDPS (Motor Driven Power
Steering)
The system assists you with steering the
vehicle. If the vehicle is turned off or
if the power steering system becomes
inoperative, you may still steer the
vehicle, but it will require increased
steering effort.
Should you notice any change in the
effort required to steer during normal
vehicle operation, have the system
checked by an authorized HYUNDAI
dealer.
CAUTION
If MDPS (Motor Driven Power Steering)
does not operate normally, the
warning light and the message ‘Check
motor driven power steering’ will
illuminate on the instrument cluster.
You may steer the vehicle, but it will
require increased steering efforts. Take
your vehicle to an authorized HYUNDAI
dealer or to a service station and have
the system checked as soon as possible.
Information
The following symptoms may occur during
normal vehicle operation:

[ The steering effort may be high
immediately after pressing the ignition
switch or Engine Start/Stop button to
the ON position.
This happens as the system performs
the MDPS system diagnostics. When
the diagnostics are completed, the
steering wheel effort will return to its
normal condition.

[ When the battery voltage is low, you
might have to put more steering effort.
However, it is a temporary condition so
that it will return to normal condition
after charging the battery.

[ A click noise may be heard from the
MDPS relay after the ignition switch or
Engine Start/Stop button is in the ON
or LOCK/OFF position.

[ Motor noise may be heard when the
vehicle is at a stop or at a low driving
speed.

[ When you operate the steering wheel
in low temperatures, abnormal noise
may occur. If the temperature rises, the
noise will disappear. This is a normal
condition.

[ When an error is detected from MDPS,
the steering effort assist function will
not be activated in order to prevent
fatal accidents. Instrument cluster
warning lights may be on or the
steering effort may be high. If these
symptoms occur, drive the vehicle to
a safe area as soon as it is safe to do
so. Have the system checked by an
authorized HYUNDAI dealer as soon
as possible.

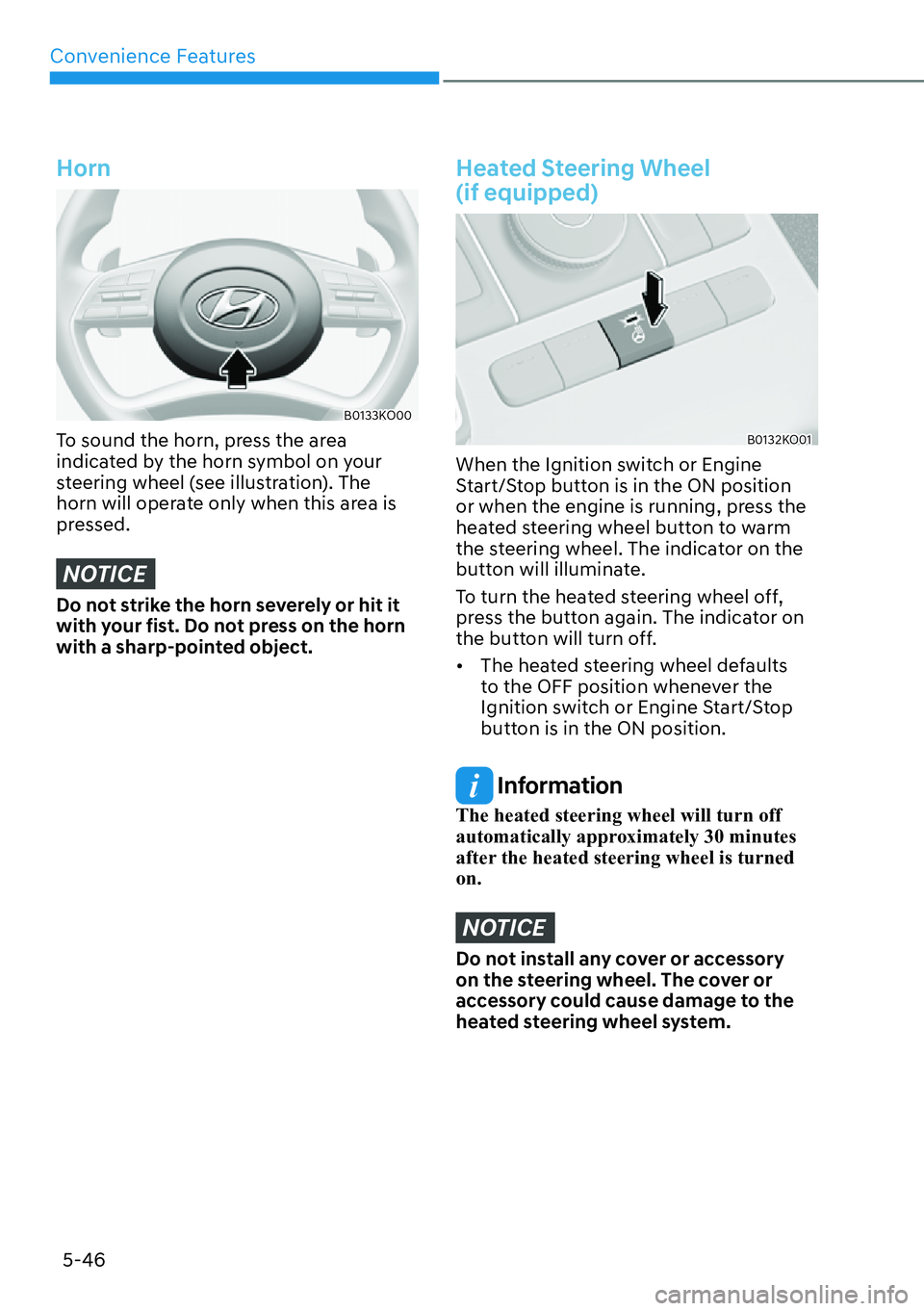

Convenience Features5-46
Horn
B0133KO00
To sound the horn, press the area
indicated by the horn symbol on your
steering wheel (see illustration). The
horn will operate only when this area is
pressed.
NOTICE
Do not strike the horn severely or hit it
with your fist. Do not press on the horn
with a sharp-pointed object.
Heated Steering Wheel
(if equipped)
B0132KO01
When the Ignition switch or Engine
Start/Stop button is in the ON position
or when the engine is running, press the
heated steering wheel button to warm
the steering wheel. The indicator on the
button will illuminate.
To turn the heated steering wheel off,
press the button again. The indicator on
the button will turn off.

[ The heated steering wheel defaults
to the OFF position whenever the
Ignition switch or Engine Start/Stop
button is in the ON position.
Information
The heated steering wheel will turn off
automatically approximately 30 minutes
after the heated steering wheel is turned
on.
NOTICE
Do not install any cover or accessory
on the steering wheel. The cover or
accessory could cause damage to the
heated steering wheel system.

Convenience Features5-48
Electrochromic Mirror
(if equipped)
B0135KO01
A: indicator
The electric rearview mirror
automatically controls the glare from the
headlight of the vehicle behind you in
nighttime or low light driving conditions.
When the engine is running, the glare is
automatically controlled by the sensor
mounted in the rearview mirror. The
sensor detects the light level around the
vehicle, and automatically adjusts to
control the headlight glare from vehicles
behind you.
Whenever the the transmission is
shifted to R (Reverse), the mirror will
automatically go to the brightest setting
in order to improve the driver’s view
behind the vehicle.
Electrochromic mirror (ECM) with
HomeLink® system (if equipped)
Your vehicle may be equipped with
a Gentex Automatic-Dimming Mirror
with an Integrated HomeLink® Wireless
Control System.
During nighttime driving, this feature
will automatically detect and reduce
rearview mirror glare. The HomeLink®
Universal Transceiver allows you to
activate your garage door(s), electric
gate, home lighting, etc.
B0135EU03
M HomeLink Channel 1
N HomeLink Channel 2
O HomeLink Channel 3
P Garage Door Opener Status Indicator: Closing or Closed
Q HomeLink Operation Indicator
R Garage Door Opener Status Indicator: Opening or Opened
S HomeLink User Interface Indicator
