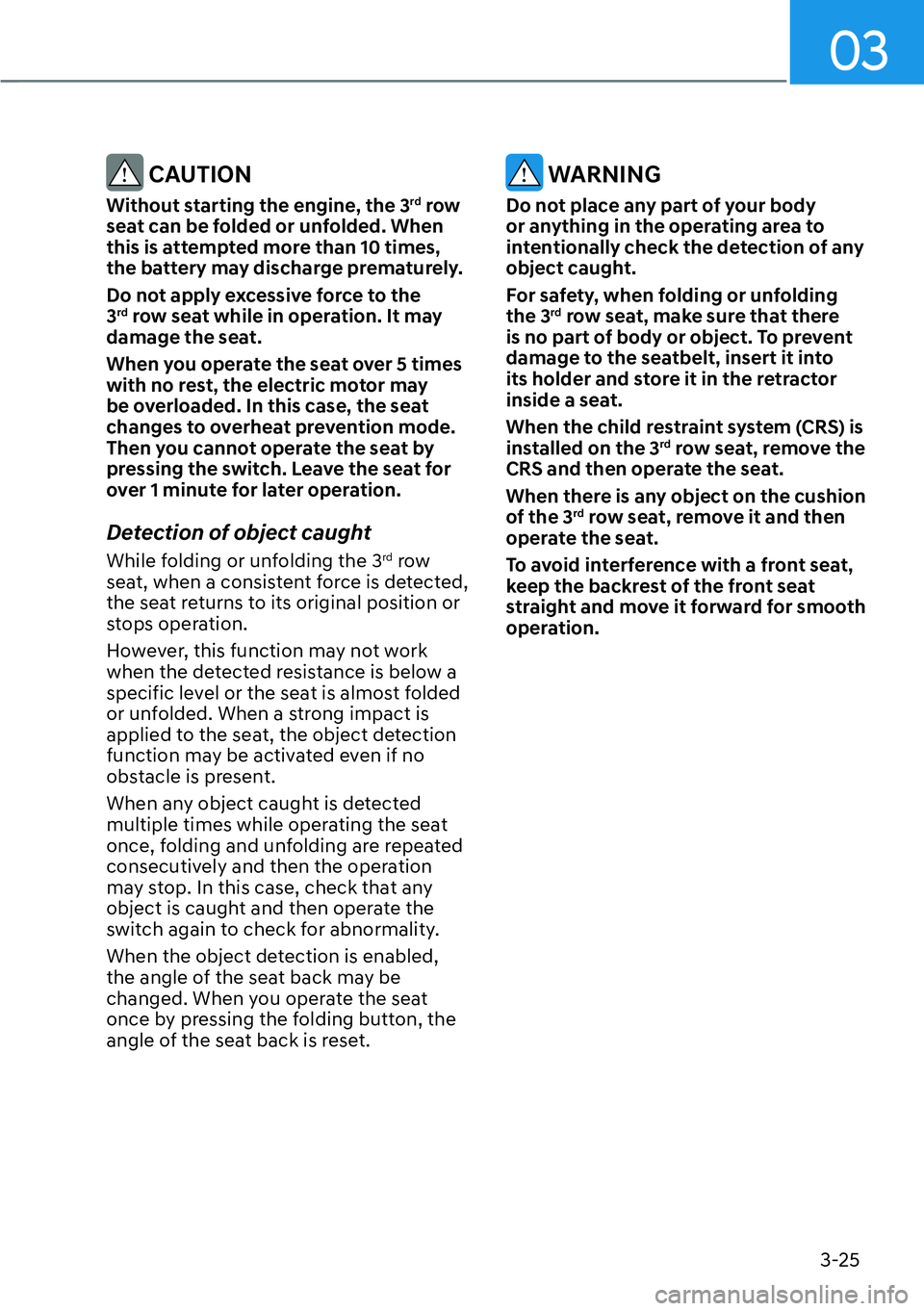

CAUTION
Without starting the engine, the 3rd row
seat can be folded or unfolded. When
this is attempted more than 10 times,
the battery may discharge prematurely.
Do not apply excessive force to the
3
rd row seat while in operation. It may
damage the seat.
When you operate the seat over 5 times
with no rest, the electric motor may
be overloaded. In this case, the seat
changes to overheat prevention mode.
Then you cannot operate the seat by
pressing the switch. Leave the seat for
over 1 minute for later operation.
Detection of object caught
While folding or unfolding the 3rd row
seat, when a consistent force is detected,
the seat returns to its original position or
stops operation.
However, this function may not work
when the detected resistance is below a
specific level or the seat is almost folded
or unfolded. When a strong impact is
applied to the seat, the object detection
function may be activated even if no
obstacle is present.
When any object caught is detected
multiple times while operating the seat
once, folding and unfolding are repeated
consecutively and then the operation
may stop. In this case, check that any
object is caught and then operate the
switch again to check for abnormality.
When the object detection is enabled,
the angle of the seat back may be
changed. When you operate the seat
once by pressing the folding button, the
angle of the seat back is reset.
WARNING
Do not place any part of your body
or anything in the operating area to
intentionally check the detection of any
object caught.
For safety, when folding or unfolding
the 3
rd row seat, make sure that there
is no part of body or object. To prevent
damage to the seatbelt, insert it into
its holder and store it in the retractor
inside a seat.
When the child restraint system (CRS) is
installed on the 3
rd row seat, remove the
CRS and then operate the seat.
When there is any object on the cushion
of the 3
rd row seat, remove it and then
operate the seat.
To avoid interference with a front seat,
keep the backrest of the front seat
straight and move it forward for smooth
operation.

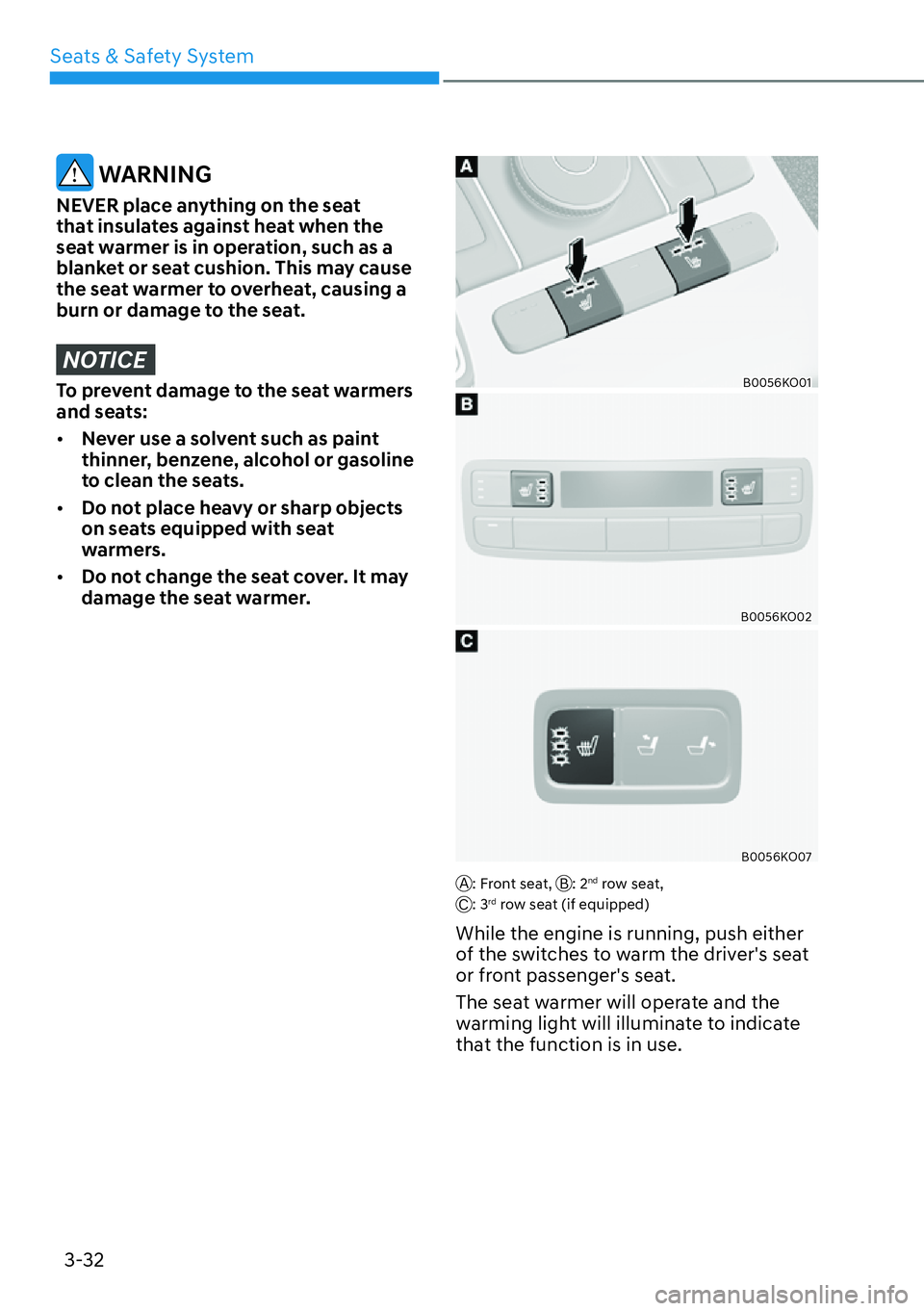

Seats & Safety System3-32
WARNING
NEVER place anything on the seat
that insulates against heat when the
seat warmer is in operation, such as a
blanket or seat cushion. This may cause
the seat warmer to overheat, causing a
burn or damage to the seat.
NOTICE
To prevent damage to the seat warmers
and seats:

[ Never use a solvent such as paint
thinner, benzene, alcohol or gasoline
to clean the seats.

[ Do not place heavy or sharp objects
on seats equipped with seat
warmers.

[ Do not change the seat cover. It may
damage the seat warmer.B0056KO01
B0056KO02
B0056KO07
A: Front seat,
B: 2nd row seat,
C: 3rd row seat (if equipped)
While the engine is running, push either
of the switches to warm the driver's seat
or front passenger's seat.
The seat warmer will operate and the
warming light will illuminate to indicate
that the function is in use.

Seats & Safety System3-46
CAUTION
Body work on the front area of the
vehicle may damage the pre-tensioner
seat belt system. Therefore, have the
system be serviced by an authorized
HYUNDAI dealer.
The Pre-Tensioner Seat Belt System
consists mainly of the following
components. Their locations are shown
in the illustration:
B0702EU01
M SRS air bag warning light
N Retractor pre-tensioner
O SRS control module
NOTICE
The sensor that activates the SRS
control module is connected with the
pre–tensioner seat belts. The SRS air
bag warning light on the instrument
cluster will illuminate for approximately
3~6 seconds after the ignition switch is
in the ON position, and then it should
turn off.
If the pre-tensioner is not working
properly, the warning light will
illuminate even if the SRS air bag is not
malfunctioning. If the warning light
does not illuminate, stays illuminated
or illuminates when the vehicle is
being driven, have the pre-tensioner
seat belts and/or SRS control module
inspected by an authorized HYUNDAI
dealer as soon as possible.
Information

[ Both the driver's and front passenger's
pre-tensioner seat belts may be
activated in certain frontal or side
collisions or rollovers.

[ When the pre-tensioner seat belts are
activated, a loud noise may be heard
and fine dust, which may appear to be
smoke, may be visible in the passenger
compartment. These are normal
operating conditions and are not
hazardous.

[ Although it is non-toxic, the fine dust
may cause skin irritation and should
not be inhaled for prolonged periods.
Wash all exposed skin areas thoroughly
after an accident in which the pre-
tensioner seat belts were activated.

[ The pre-tensioner seat belt system may
get adversely affected by installing an
audio system to the center console or
welding/painting the frontal vehicle
body.
In this case, consult an authorized
HYUNDAI dealer. The air bag
warning light illuminates, if there is a
malfunction with the pre-tensioner seat
belt system.

[ In following situations, immediately
have the air bag system and the pre-
tensioner seat belt system checked by
an authorized HYUNDAI dealer.

- The air bag warning light does not
illuminate at all after turning ON the
engine

- The air bag warning light remains
ON over 3~6 seconds after turning
ON the engine

03
3-67
WARNING
If your SRS malfunctions, the air bag
may not inflate properly during an
accident increasing the risk of serious
injury or death.
If any of the following conditions occur,
your SRS is malfunctioning:

[The light does not turn on for
approximately three to six seconds
when the ignition switch is in the ON
position.

[ The light stays on after illuminating
for approximately three to six
seconds.

[ The light comes on while the vehicle
is in motion.

[ The light blinks when the engine is
running.
Have an authorized HYUNDAI dealer
inspect the SRS as soon as possible if
any of these conditions occur. During a moderate to severe frontal
collision, sensors will detect the
vehicle’s rapid deceleration. If the rate of
deceleration is high enough, the control
unit will inflate the front air bags, at the
time and with the force needed.
The front air bags help protect the driver
and front passenger by responding to
frontal impacts in which seat belts alone
cannot provide adequate restraint. When
needed, the side air bags help provide
protection in the event of a side impact
or rollover by supporting the side upper
body area.

[
Air bags are activated (able to inflate
if necessary) only when the ignition
switch is in the ON or START position,
and it can be activated within about 3
minutes after the engine is turned off.

[ Air bags inflate in the event of certain
frontal or side collisions to help
protect the occupants from serious
physical injury.

[ Generally, air bags are designed to
inflate based upon the severity of a
collision, its direction, or etc. These
two factors determine whether
the sensors produce an electronic
deployment/inflation signal.

[ The front air bags will completely
inflate and deflate in an instant. It is
virtually impossible for you to see the
air bags inflate during an accident. It is
much more likely that you will simply
see the deflated air bags hanging out
of their storage compartments after
the collision.

3-75
03
B0073KO03

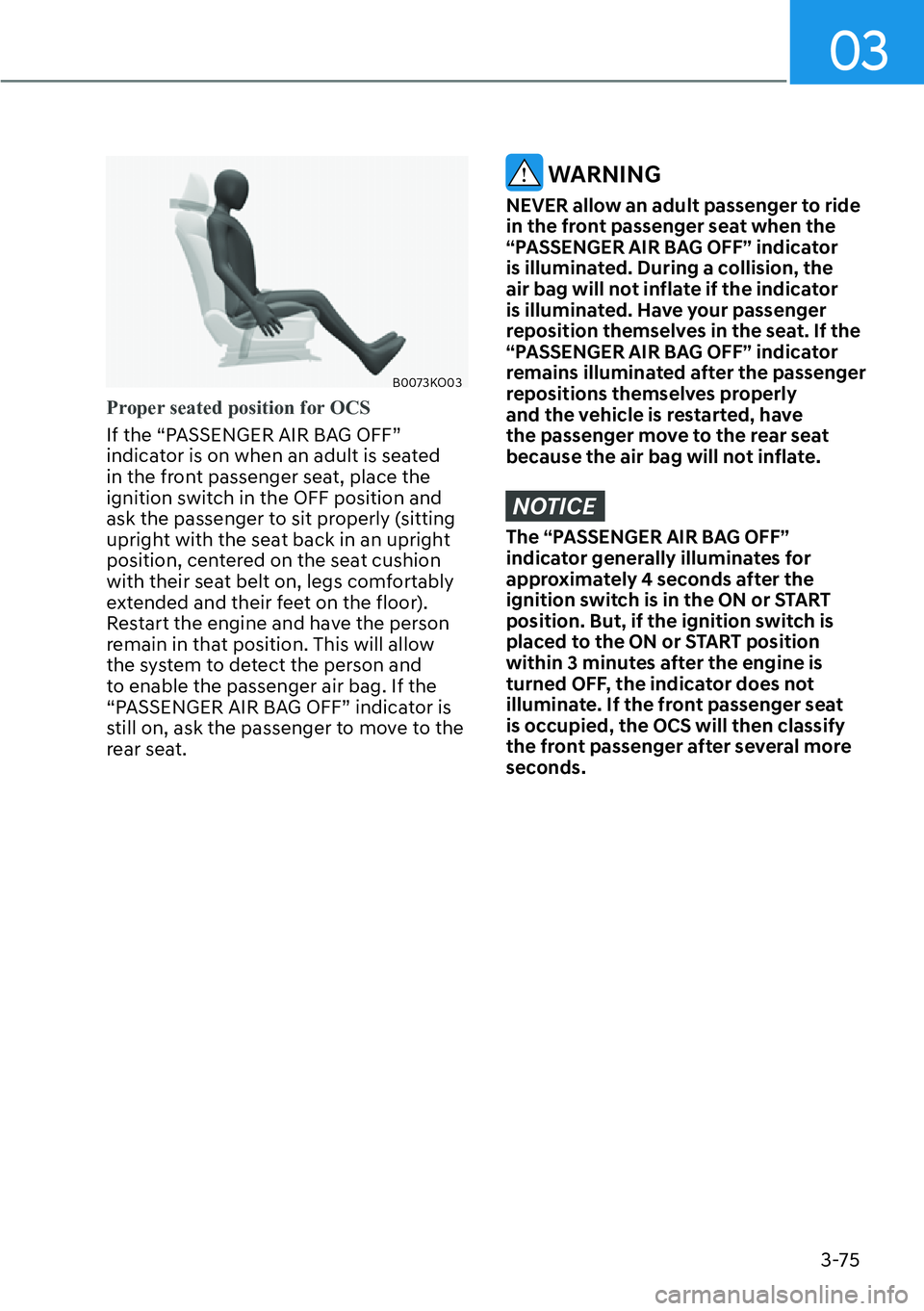

Proper seated position for OCS
If the “PASSENGER AIR BAG OFF”
indica
tor is on when an adult is seated
in the front passenger seat, place the
ignition switch in the OFF position and
ask the passenger to sit properly (sitting
upright with the seat back in an upright
position, centered on the seat cushion
with their seat belt on, legs comfortably
extended and their feet on the floor).
Restart the engine and have the person
remain in that position. This will allow
the system to detect the person and
to enable the passenger air bag. If the
“PASSENGER AIR BAG OFF” indicator is
still on, ask the passenger to move to the
rear seat.
WARNING
NEVER allow an adult passenger to ride
in the front passenger seat when the
“PASSENGER AIR BAG OFF” indicator
is illuminated. During a collision, the
air bag will not inflate if the indicator
is illuminated. Have your passenger
reposition themselves in the seat. If the
“PASSENGER AIR BAG OFF” indicator
remains illuminated after the passenger
repositions themselves properly
and the vehicle is restarted, have
the passenger move to the rear seat
because the air bag will not inflate.
NOTICE
The “PASSENGER AIR BAG OFF”
indicator generally illuminates for
approximately 4 seconds after the
ignition switch is in the ON or START
position. But, if the ignition switch is
placed to the ON or START position
within 3 minutes after the engine is
turned OFF, the indicator does not
illuminate. If the front passenger seat
is occupied, the OCS will then classify
the front passenger after several more
seconds.

4
Instrument cluster .....................................................................\
....................... 4-4Instrument Cluster Control ........................................................................\
..................4-5Instrument panel illumination ........................................................................\
...........4-5
Gauges and Meters ........................................................................\
............................. 4-6 Speedometer .....................................................................\
....................................... 4-6
Tachometer .....................................................................\
.......................................... 4-6
Engine coolant temperature gauge ........................................................................\
.. 4-7
Fuel gauge ........................................................................\
.......................................... 4-7
Outside temperature gauge ........................................................................\
............. 4-8
Odometer .....................................................................\
............................................. 4-9
Distance to empty ........................................................................\
............................ 4-9
Fuel economy (for 12.3-inch cluster) ..................................................................... 4-10
Transmission Shift Indicator ........................................................................\
.............. 4-10 Automatic transmission shift indicator .................................................................. 4-10
Warning and Indicator Lights ........................................................................\
............. 4-11 Seat belt warning light ........................................................................\
..................... 4-11
Air bag warning light ........................................................................\
........................ 4-11
Parking brake & Brake fluid warning light ............................................................... 4-11
Anti-lock Brake System (ABS) warning light .......................................................... 4-12
Electronic Brake Force Distribution (EBD) System Warning Light ....................... 4-12
Motor Sriven Power Steering (MDPS) warning light ............................................. 4-13
Charging system warning light ........................................................................\
....... 4-13
Engine Oil Pressure Warning Light ........................................................................\
. 4-14
Engine coolant temperature warning light ............................................................ 4-14
Low fuel level warning light ........................................................................\
............ 4-14
Malfunction Indicator Lamp (MIL) ........................................................................\
.. 4-15
Master warning light ........................................................................\
........................ 4-15
Electronic Parking Brake (EPB) warning light ........................................................ 4-16
Low tire pressure warning light ......................................................................\
........ 4-16
Forward Safety warning light ........................................................................\
..........4-17
Emergency Steering warning light ........................................................................\
..4-17
Lane Safety indicator light .....................................................................\
................ 4-18
All Wheel Drive (AWD) warning light ...................................................................... 4-18
LED headlight warning light ........................................................................\
............ 4-18
Icy road warning light ........................................................................\
...................... 4-19
Electronic Stability Control (ESC) indicator light ................................................... 4-19
Electronic Stability Control (ESC) OFF indicator light ........................................... 4-19
Immobilizer indicator light ........................................................................\
..............4-20
4. Instrument Cluster

4
Downhill Brake Control (DBC) indicator light ........................................................4-20
AUTO STOP indicator light ........................................................................\
...............4-21
Turn signal indicator light ........................................................................\
.................4-21
High beam indicator light ........................................................................\
................4-21
Low beam indicator light ........................................................................\
.................4-21
Light ON indicator light ........................................................................\
....................4-21
High Beam Assist indicator light ........................................................................\
..... 4-22
AUTO HOLD indicator light ........................................................................\
............. 4-22
LCD Display Messages ........................................................................\
....................... 4-22 Vehicle is on ........................................................................\
..................................... 4-22
Shift to P ........................................................................\
........................................... 4-22
Vehicle is in N. Press START button and shift to P ................................................. 4-22
Low key battery (for smart key system) ................................................................. 4-22
Press brake pedal to start engine ........................................................................\
.. 4-23
Key not in vehicle (for smart key system) .............................................................. 4-23
Key not detected (for smart key system) ............................................................... 4-23
Press START button again (for smart key system) ................................................. 4-23
Press START button with digital key ...................................................................... 4-23
Check BRAKE SWITCH fuse ........................................................................\
........... 4-23
Shift to P or N to start engine ........................................................................\
.......... 4-23
Battery discharging due to external electrical devices ......................................... 4-24
Press START button with key (for smart key system) ............................................ 4-24
Place digital key on the wireless charger to keep the vehicle running ................ 4-24
Vehicle is On (started by digital key)....................................................................... 4-24
Place saved digital key on wireless charger, then press the START button ......... 4-24
Scan an authorized fingerprint, then press the START button ............................. 4-24
Digital key(s) active ........................................................................\
.......................... 4-24
Door, Hood, Liftgate open indicator ....................................................................... 4-25
Sunroof open indicator ........................................................................\
.................... 4-25
Low tire pressure ........................................................................\
............................. 4-25
Lights .................................................................\
....................................................... 4-26
Wiper ..................................................................\
......................................................4 -26
Low washer fluid ........................................................................\
.............................. 4-27
Low fuel ........................................................................\
............................................ 4-27
Low engine oil ........................................................................\
.................................. 4-27
Engine overheated ........................................................................\
........................... 4-27
Check haptic steering wheel system ..................................................................... 4-27
Check headlight ........................................................................\
............................... 4-27
Check turn signal ........................................................................\
............................. 4-27
Check headlight LED ........................................................................\
....................... 4-27

4-4
Instrument Cluster
1. Tachometer
2. Speedometer
3. Engine coolant temperature gauge
4. Fuel gauge
5. Warning and indicator lights
6. LCD display
INSTRUMENT CLUSTER
The actual cluster in the vehicle may differ from the illustration.
For more information, refer to “Gauges and meters” section in this chapter.
A0084EU01/ A0084EU03
