2023 HYUNDAI PALISADE engine

Vehicle Information, Consumer Information and Reporting Safety Defects2-12
To help achieve proper engine and powertrain performance and durability, use only
lubricants of the proper quality. The correct lubricants also help promote engine
efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant Volume Classification
Engine oil *1 *2 Recommends
86TW
bACEA A5 or above* 3 / 5W-30 / (SAE
Viscosity Number)
Automatic transmission fluid 86TW
bMICHANG ATF SP-IV, SK ATF SP-IV,
NOCA ATF SP-IV, HYUNDAI genuine
ATF SP-IV or other brands meeting
the above specification approved
by HYUNDAI Motor Co.
Engine coolant Without trailer
86TW
b
Mixture of antifreeze and water
(Phosphate-based Ethylene glycol
coolant for aluminum radiator)
With trailer 86TW
b
Brake fluid
*4As required SAE J1704 DOT0-4LV, FMVSS116
DOT-4, ISO4925 CLASS-6
Rear differential oil
*586TW
b HYPIO GEAR OIL API GL-5, SAE
75W/85 (SK HCT-5 GEAR OIL
75W/85 or EQUIVALENT)
Transfer case oil (AWD)
*586TW
b
Fuel 86JDO
bRefer to “Fuel requirements” in
chapter 1.
*1 : Refer to the recommended SAE viscosity numbers on the next page.
*2 : Engine oils labeled Energy Conserving Oil are now available. Along with other additional
benefits, they contribute to fuel economy by reducing the amount of fuel necessary
to overcome engine friction. Often, these improvements are difficult to measure in
everyday driving, but in a year’s time, they can offer significant cost and energy savings.
*3 : Requires grade engine oil. If a
lower grade engine oil (mineral oil including Semi-synthetic) is used, then the engine oil
and engine oil filter must be replaced as indicated for severe maintenance conditions.
*4 : To maintain the best braking performance and ABS/ESC performance, we recommend
that you use genuine brake fluid that conform to specifications.
*5 : If the rear differential is submerged, have you visit an authorized retailer of HYUNDAI
genuine products to replace the differential oil.

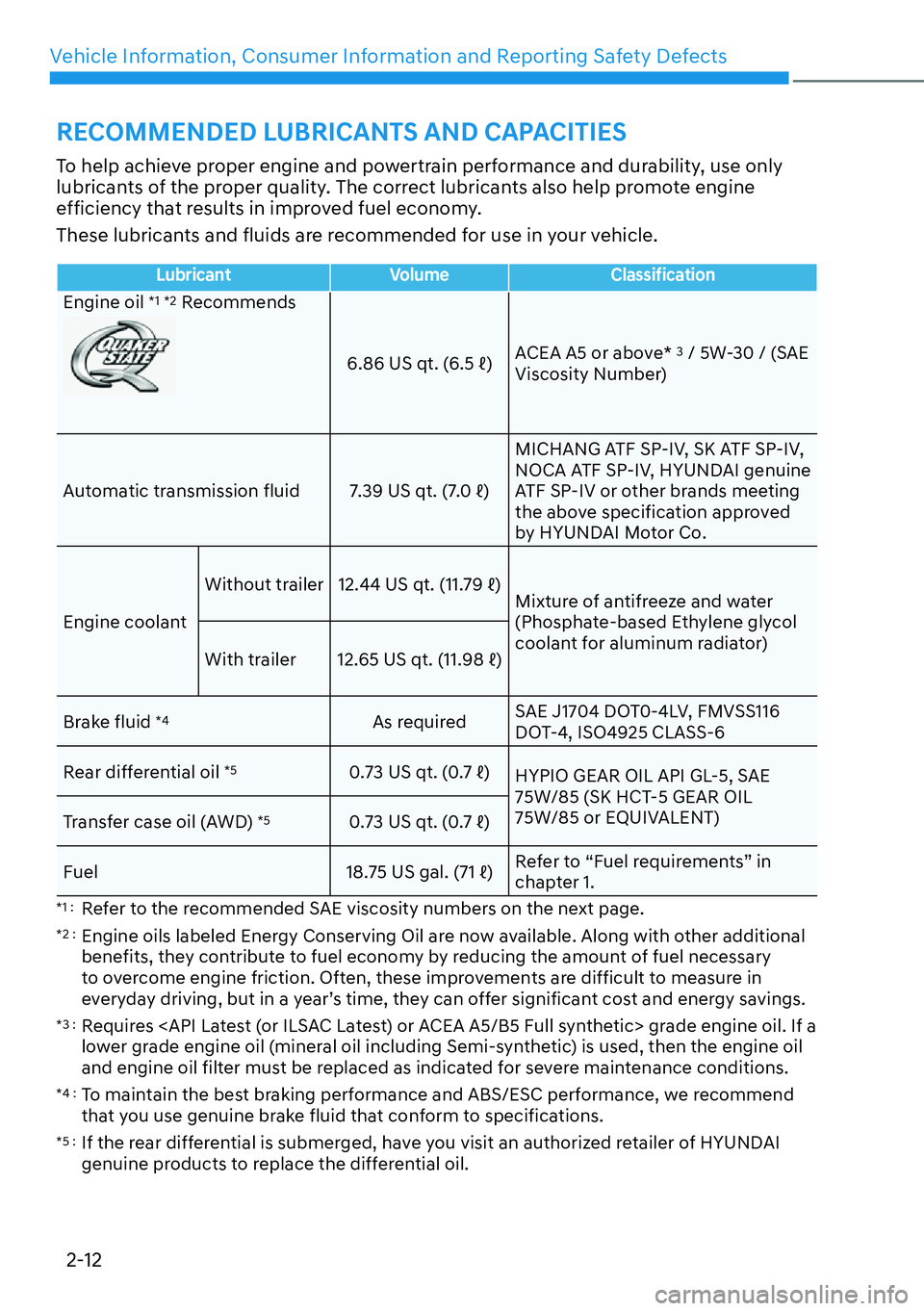

RECOMMENDED LUBRICANTS AND CAPACITIES

02
2-13
Recommended SAE Viscosity Number
CAUTION
Always be sure to clean the area around any filler plug, drain plug, or dipstick before
checking or draining any lubricant. This is especially important in dusty or sandy
areas and when the vehicle is used on unpaved roads. Cleaning the plug and dipstick
areas will prevent dirt and grit from entering the engine and other mechanisms that
could be damaged.
Engine oil viscosity (thickness) has an effect on fuel economy and cold weather
operating (engine start and engine oil flowability). Lower viscosity engine oils can
provide better fuel economy and cold weather performance, however, higher viscosity
engine oils are required for satisfactory lubrication in hot weather. Using oils of any
viscosity other than those recommended could result in engine damage.
When choosing an oil, consider the range of temperature your vehicle will be operated
in before the next oil change. Proceed to select the recommended oil viscosity from
the chart.
Temperature Range for SAE Viscosity Numbers
Temperature °C -30 -20 -10 0 10 20 30 40 50
(°F) -10 0 20 40 60 80 100 120
Gasoline Engine Oil
5W-30
An engine oil displaying this American Petroleum Institute (API)
Certification Mark conforms to the International Lubricant
Specification Advisory Committee (ILSAC). It is recommended
to only use engine oils that uphold this API Certification Mark.

Vehicle Information, Consumer Information and Reporting Safety Defects2-14
VEHICLE IDENTIFICATION
180%(5
í9,1
î
í,)(48,33('
î
„Frame number (if equipped)
B0015KO01
The vehicle identification number (VIN)
is the number used in registering your
vehicle and in all legal matters pertaining
to its ownership, etc.
The number is punched on the engine
compartment frame and backside of the
engine.
„VIN label (if equipped)
B0015EU01
The VIN is also on a plate attached to
the top of the left side dashboard. The
number on the plate can easily be seen
through the windshield from outside.
VEHICLE CERTIFICATION
LABEL
B0016KO01
The vehicle certification label attached
on the driver’s (or front passenger’s)
side center pillar gives the vehicle
identification number (VIN).
TIRE SPECIFICATION AND
PRESSURE LABEL
B0502EU01
The tires supplied on your new
vehicle are chosen to provide the best
performance for normal driving.
The tire label located on the driver’s
side center pillar gives the tire pressures
recommended for your vehicle.

02
2-15

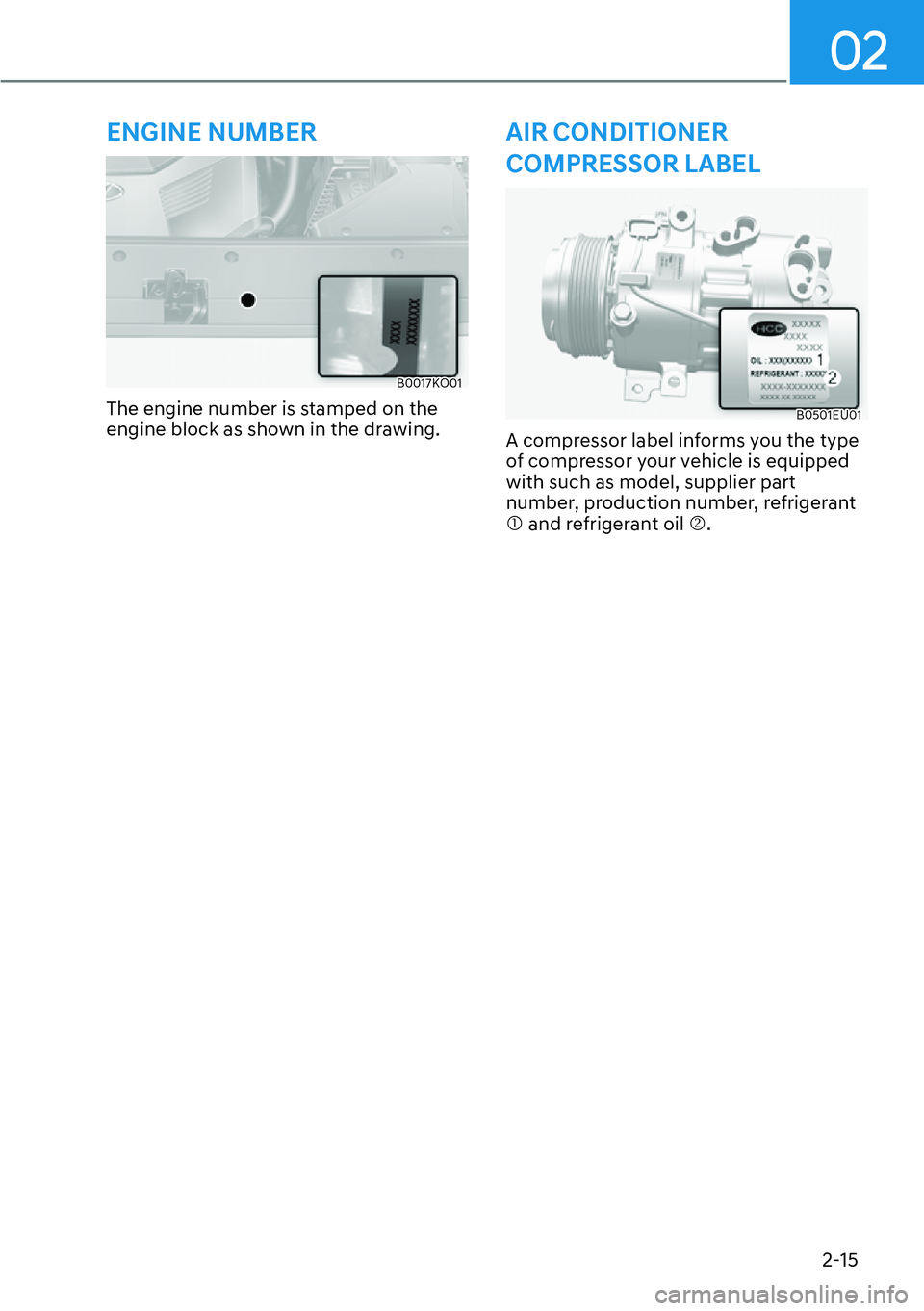

ENGINE NUMBER
B0017KO01
The engine number is stamped on the
engine block as shown in the drawing.
AIR CONDITIONER
COMPRESSOR LABEL
B0501EU01
A compressor label informs you the type
of compressor your vehicle is equipped
with such as model, supplier part
number, production number, refrigerant
M and refrigerant oil N.

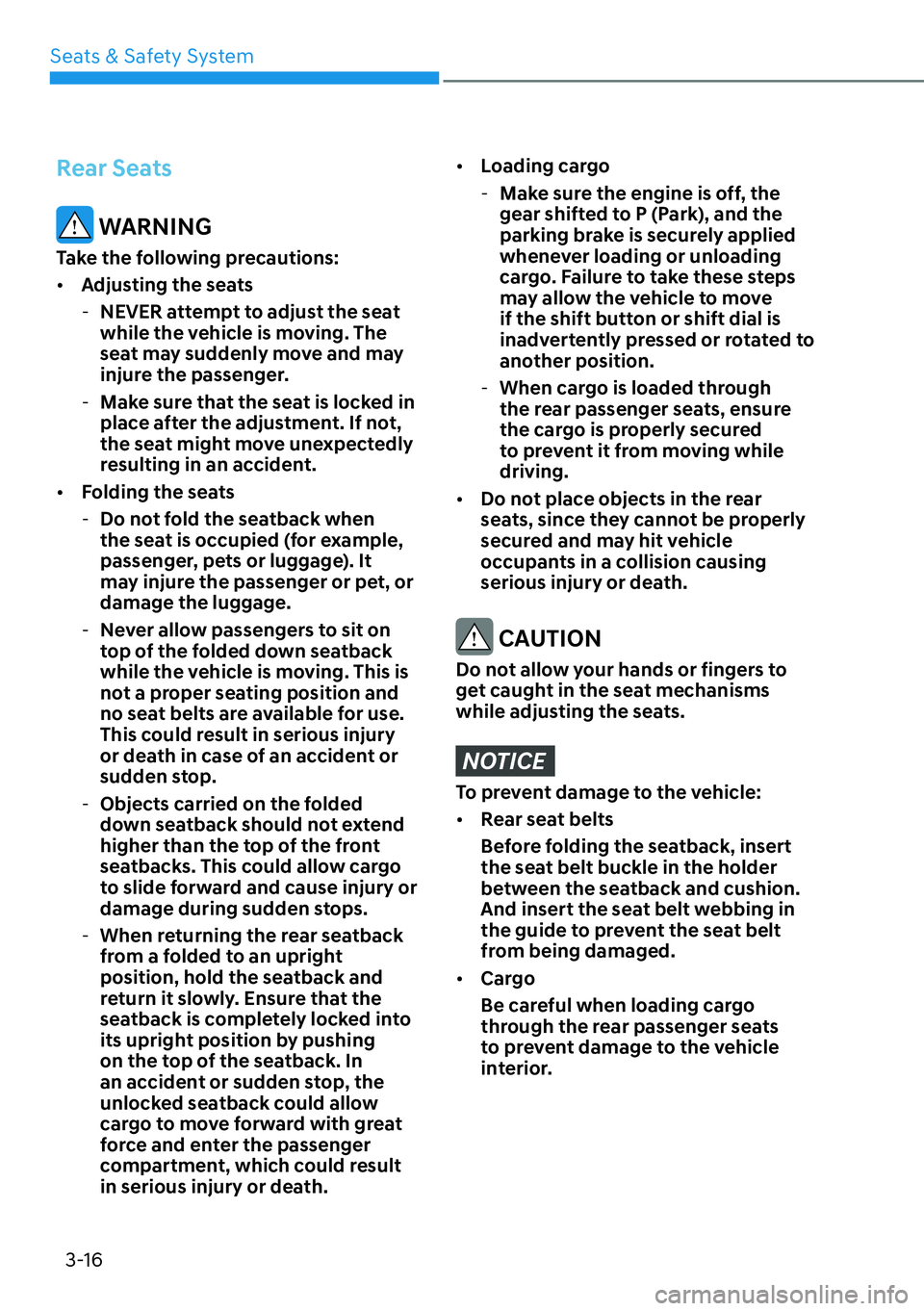

Seats & Safety System3-16
Rear Seats
WARNING
Take the following precautions:

[ Adjusting the seats

- NEVER attempt to adjust the seat
while the vehicle is moving. The
seat may suddenly move and may
injure the passenger.

- Make sure that the seat is locked in
place after the adjustment. If not,
the seat might move unexpectedly
resulting in an accident.

[ Folding the seats

- Do not fold the seatback when
the seat is occupied (for example,
passenger, pets or luggage). It
may injure the passenger or pet, or
damage the luggage.

- Never allow passengers to sit on
top of the folded down seatback
while the vehicle is moving. This is
not a proper seating position and
no seat belts are available for use.
This could result in serious injury
or death in case of an accident or
sudden stop.

- Objects carried on the folded
down seatback should not extend
higher than the top of the front
seatbacks. This could allow cargo
to slide forward and cause injury or
damage during sudden stops.

- When returning the rear seatback
from a folded to an upright
position, hold the seatback and
return it slowly. Ensure that the
seatback is completely locked into
its upright position by pushing
on the top of the seatback. In
an accident or sudden stop, the
unlocked seatback could allow
cargo to move forward with great
force and enter the passenger
compartment, which could result
in serious injury or death.

[ Loading cargo

- Make sure the engine is off, the
gear shifted to P (Park), and the
parking brake is securely applied
whenever loading or unloading
cargo. Failure to take these steps
may allow the vehicle to move
if the shift button or shift dial is
inadvertently pressed or rotated to
another position.

- When cargo is loaded through
the rear passenger seats, ensure
the cargo is properly secured
to prevent it from moving while
driving.

[ Do not place objects in the rear
seats, since they cannot be properly
secured and may hit vehicle
occupants in a collision causing
serious injury or death.
CAUTION
Do not allow your hands or fingers to
get caught in the seat mechanisms
while adjusting the seats.
NOTICE
To prevent damage to the vehicle:

[Rear seat belts
Before folding the seatback, insert
the seat belt buckle in the holder
between the seatback and cushion.
And insert the seat belt webbing in
the guide to prevent the seat belt
from being damaged.

[ Cargo
Be careful when loading cargo
through the rear passenger seats
to prevent damage to the vehicle
interior.

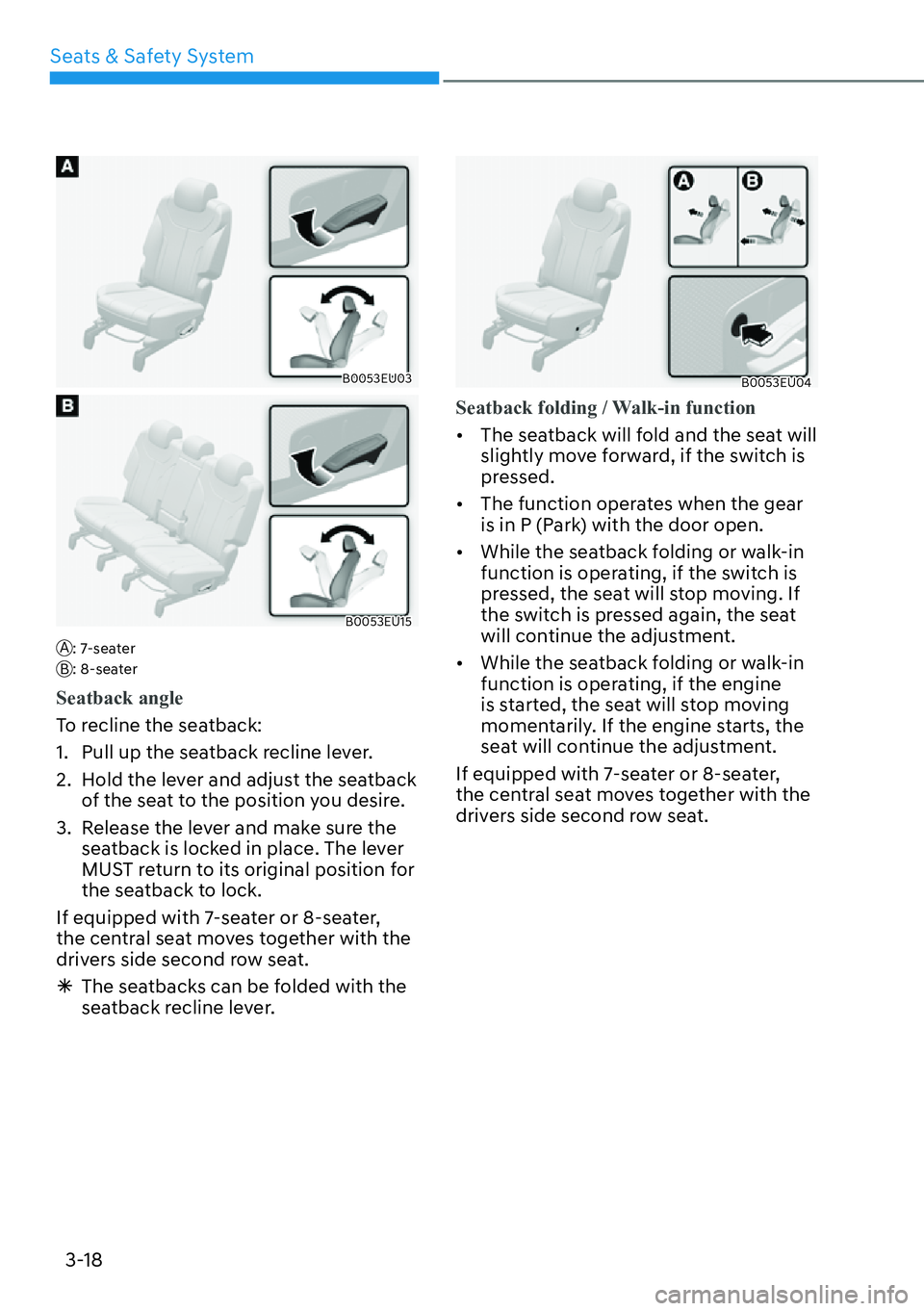

Seats & Safety System3-18
B0053EU03
B0053EU15
A: 7-seater
B: 8-seater
Seatback angle
To recline the seatback:
1.

Pull up the seatback recline lever.
2. Hold the lever and adjust the seatback of the seat to the position you desire.
3. Release the lever and make sure the seatback is locked in place. The lever
MUST return to its original position for
the seatback to lock.
If equipped with 7-seater or 8-seater,
the central seat moves together with the
drivers side second row seat.
à The seatbacks can be folded with the
seatback recline lever.
B0053EU04
Seatback folding / Walk-in function

[The sea
tback will fold and the seat will
slightly move forward, if the switch is
pressed.

[ The function operates when the gear
is in P (Park) with the door open.

[ While the seatback folding or walk-in
function is operating, if the switch is
pressed, the seat will stop moving. If
the switch is pressed again, the seat
will continue the adjustment.

[ While the seatback folding or walk-in
function is operating, if the engine
is started, the seat will stop moving
momentarily. If the engine starts, the
seat will continue the adjustment.
If equipped with 7-seater or 8-seater,
the central seat moves together with the
drivers side second row seat.

03
3-23

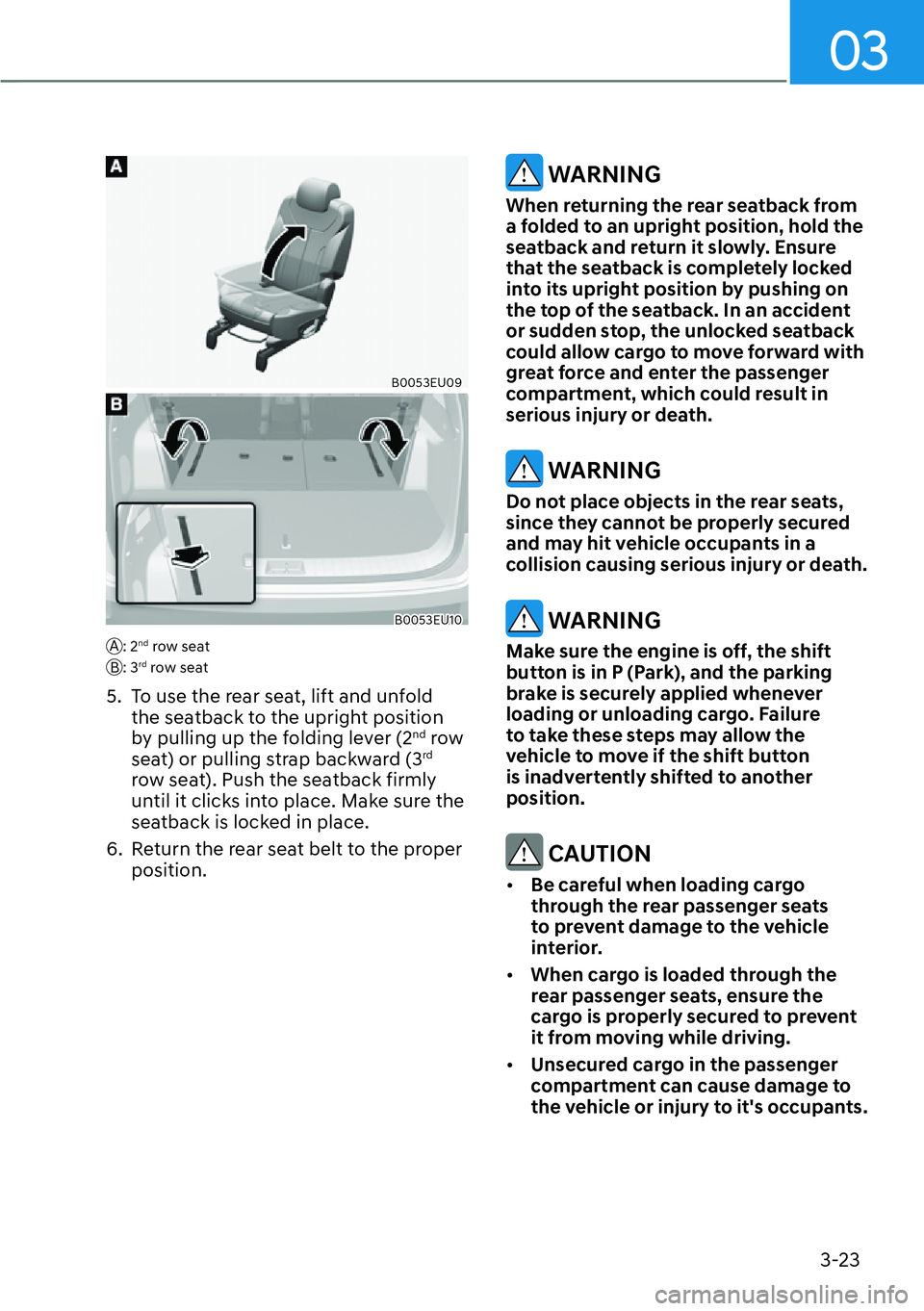

B0053EU09
B0053EU10
A: 2nd row seat
B: 3rd row seat
5. To use the rear seat, lift and unfold the seatback to the upright position
by pulling up the folding lever (2
nd row
seat) or pulling strap backward (3rd
row seat). Push the seatback firmly
until it clicks into place. Make sure the
seatback is locked in place.
6. Return the rear seat belt to the proper position.
WARNING
When returning the rear seatback from
a folded to an upright position, hold the
seatback and return it slowly. Ensure
that the seatback is completely locked
into its upright position by pushing on
the top of the seatback. In an accident
or sudden stop, the unlocked seatback
could allow cargo to move forward with
great force and enter the passenger
compartment, which could result in
serious injury or death.
WARNING
Do not place objects in the rear seats,
since they cannot be properly secured
and may hit vehicle occupants in a
collision causing serious injury or death.
WARNING
Make sure the engine is off, the shift
button is in P (Park), and the parking
brake is securely applied whenever
loading or unloading cargo. Failure
to take these steps may allow the
vehicle to move if the shift button
is inadvertently shifted to another
position.
CAUTION

[Be careful when loading cargo
through the rear passenger seats
to prevent damage to the vehicle
interior.

[ When cargo is loaded through the
rear passenger seats, ensure the
cargo is properly secured to prevent
it from moving while driving.

[ Unsecured cargo in the passenger
compartment can cause damage to
the vehicle or injury to it's occupants.

Seats & Safety System3-24

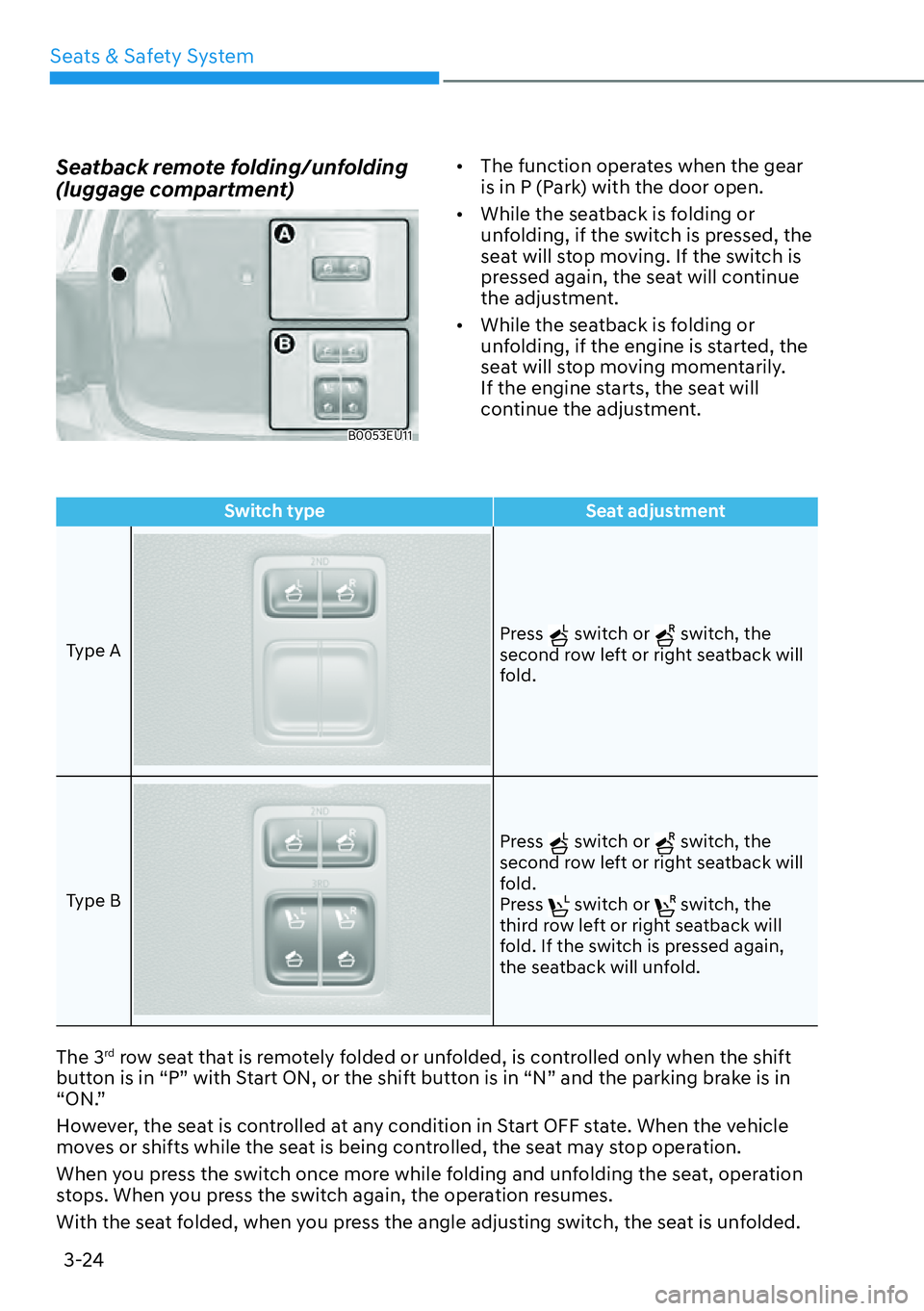

Switch type Seat adjustment
Type A
Press switch or switch, the
second row left or right seatback will
fold.
Type B
Press switch or switch, the
second row left or right seatback will
fold.
Press
switch or switch, the
third row left or right seatback will
fold. If the switch is pressed again,
the seatback will unfold.
The 3rd row seat that is remotely folded or unfolded, is controlled only when the shift
button is in “P” with Start ON, or the shift button is in “N” and the parking brake is in
“ON.”
However, the seat is controlled at any condition in Start OFF state. When the vehicle
moves or shifts while the seat is being controlled, the seat may stop operation.
When you press the switch once more while folding and unfolding the seat, operation
stops. When you press the switch again, the operation resumes.
With the seat folded, when you press the angle adjusting switch, the seat is unfolded.
Seatback remote folding/unfolding
(luggage compartment)
B0053EU11

[ The function operates when the gear
is in P (Park) with the door open.

[ While the seatback is folding or
unfolding, if the switch is pressed, the
seat will stop moving. If the switch is
pressed again, the seat will continue
the adjustment.

[ While the seatback is folding or
unfolding, if the engine is started, the
seat will stop moving momentarily.
If the engine starts, the seat will
continue the adjustment.
