2023 HYUNDAI PALISADE engine

05
5-105

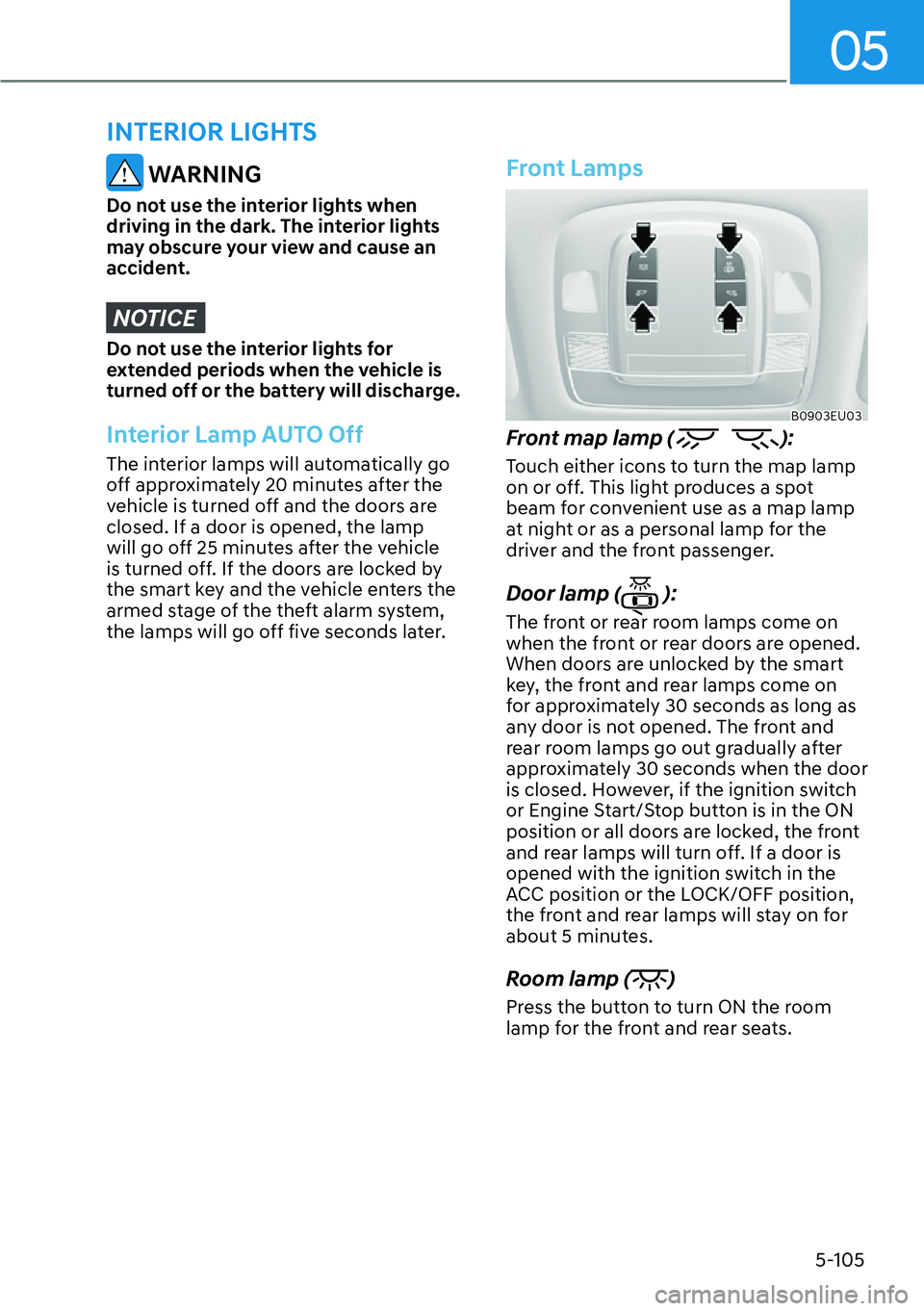

INTERIOR LIGHTS
WARNING
Do not use the interior lights when
driving in the dark. The interior lights
may obscure your view and cause an
accident.
NOTICE
Do not use the interior lights for
extended periods when the vehicle is
turned off or the battery will discharge.
Interior Lamp AUTO Off
The interior lamps will automatically go
off approximately 20 minutes after the
vehicle is turned off and the doors are
closed. If a door is opened, the lamp
will go off 25 minutes after the vehicle
is turned off. If the doors are locked by
the smart key and the vehicle enters the
armed stage of the theft alarm system,
the lamps will go off five seconds later.
)URQW/DPSV
B0903EU03
Front map lamp ():
Touch either icons to turn the map lamp
on or off. This light produces a spot
beam for convenient use as a map lamp
at night or as a personal lamp for the
driver and the front passenger.
Door lamp ( ):
The front or rear room lamps come on
when the front or rear doors are opened.
When doors are unlocked by the smart
key, the front and rear lamps come on
for approximately 30 seconds as long as
any door is not opened. The front and
rear room lamps go out gradually after
approximately 30 seconds when the door
is closed. However, if the ignition switch
or Engine Start/Stop button is in the ON
position or all doors are locked, the front
and rear lamps will turn off. If a door is
opened with the ignition switch in the
ACC position or the LOCK/OFF position,
the front and rear lamps will stay on for
about 5 minutes.
Room lamp (()
Press the button to turn ON the room
lamp for the front and rear seats.

05
5-107
Door Courtesy Lamp (if
equipped)
B0918KO01
The lamp turns on when a door is open
and turns off when the door is closed.
Luggage Compartment Lamp
B0197KO01

[ON () :
The luggage compartment lamp stays
on at all times.

[ DOOR (
) :
The luggage compartment lamp
comes on when the liftgate is opened.

[ OFF (
) :
The luggage compartment lamp is off.
Puddle Lamp
Welcome light
B0198KO01
When all doors (and liftgate) are closed
and locked, the puddle lamp will turn on
for 15 seconds if the door is unlocked by
the smart key or when you put your hand
in the outside door handle with the smart
key in possession.
For more details, refer to “Welcome
System” in this chapter.
Escort light
When the ignition switch is in the LOCK/
OFF position and the driver’s door is
opened, the puddle lamp will turn on for
30 seconds. If the driver’s door is closed
within the 30 second period, the puddle
lamp will turn off after 15 seconds. If the
driver’s door is closed and locked, the
puddle lamp will turn off immediately.
The Puddle Lamp Escort Light will turn
on only the first time the driver’s door is
opened after the engine is turned off.

Convenience Features5-110
B0200KO01
)URQW:LQGVKLHOG:LSHUV
Operates as follows when the ignition
switch or Engine Start/Stop button is in
the ON position.
MIST: For a single wiping cycle, push the lever upward and release. The
wipers will operate continuously
if the lever is held in this position.
OFF: Wiper is not in operation.
AUTO
(if equipped): The rain sensor located
on the upper end of the
windshield glass senses
the amount of rainfall and
controls the wiping cycle
for the proper interval. The
more it rains, the faster
the wiper operates. When
the rain stops, the wiper
stops. To vary the speed
setting, turn the speed
control knob.
LO: The wiper runs at a lower speed.
HI: The wiper runs at a higher speed.
Information
If there is heavy accumulation of snow
or ice on the windshield, defrost the
windshield for about 10 minutes, or until
the snow and/or ice is removed before
using the windshield wipers to ensure
proper operation.
If you do not remove the snow and/or ice
before using the wiper and washer, it may
damage the wiper and washer system.
AUTO wiper control (if equipped)
B0200KO02
The rain sensor located on the upper
end of the windshield glass senses
the amount of rainfall and controls the
wiping cycle for the proper interval.
The wiper operation time will be
automatically controlled depends on
rainfall.
When the rain stops, the wiper stops.
To vary the sensitivity setting, turn the
sensitivity control knob.
If the wiper switch is set in AUTO mode
when the ignition switch is in the ON
position, the wiper will operate once to
perform a self-check of the system. Set
the wiper to the OFF position when the
wiper is not in use.
WIPERS AND WASHERS

05
5-111
WARNING
To avoid personal injury from the
windshield wipers, when the engine
is running and the windshield wiper
switch is placed in the AUTO mode:

[Do not touch the upper end of the
windshield glass facing the rain
sensor.

[ Do not wipe the upper end of the
windshield glass with a damp or wet
cloth.

[ Do not put pressure on the
windshield glass.
NOTICE

[When washing the vehicle, set the
ZLSHUVZLWFKLQWKH2))SRVLWLRQWR
stop the auto wiper operation. The
wiper may operate and be damaged
if the switch is set in the AUTO mode
while washing the vehicle.

[ Do not remove the sensor cover
located on the upper end of the
passenger side windshield glass.
Damage to system components
could occur and may not be covered
by your vehicle warranty.

[ Because of using a photo sensor,
temporary malfunction could occur
according to sudden ambient light
change made by stone and dust
while driving.
)URQW:LQGVKLHOG:DVKHUV
B0201KO01
In the OFF position, pull the lever gently
toward you to spray washer fluid on the
windshield and to run the wipers 1-3
cycles. The spray and wiper operation
will continue until you release the lever. If
the washer does not work, you may need
to add washer fluid to the washer fluid
reservoir.

Convenience Features5-112

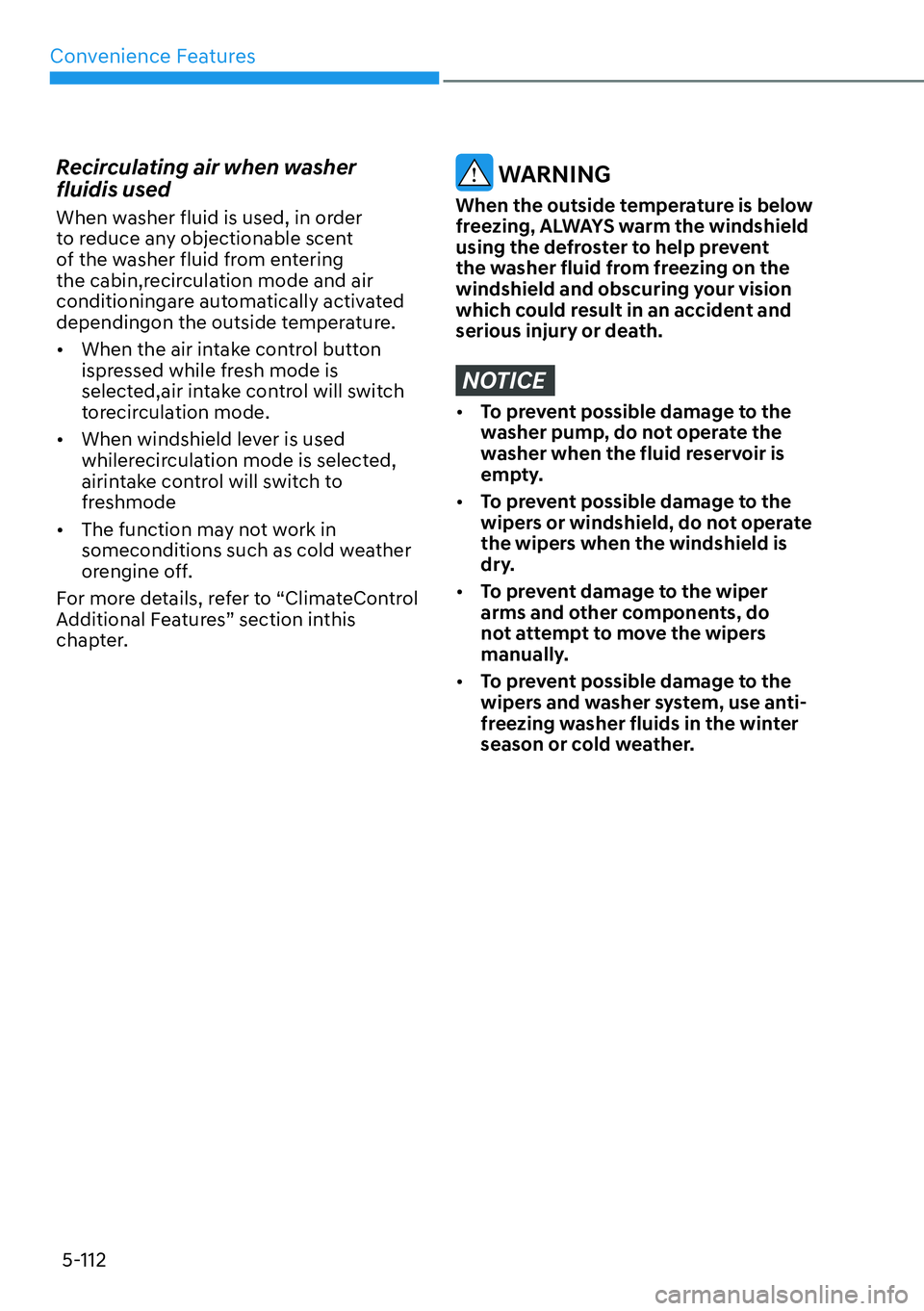

Recirculating air when washer
fluidis used
When washer fluid is used, in order
to reduce any objectionable scent
of the washer fluid from entering
the cabin,recirculation mode and air
conditioningare automatically activated
dependingon the outside temperature.

[ When the air intake control button
ispressed while fresh mode is
selected,air intake control will switch
torecirculation mode.

[ When windshield lever is used
whilerecirculation mode is selected,
airintake control will switch to
freshmode

[ The function may not work in
someconditions such as cold weather
orengine off.
For more details, refer to “ClimateControl
Additional Features” section inthis
chapter.
WARNING
When the outside temperature is below
freezing, ALWAYS warm the windshield
using the defroster to help prevent
the washer fluid from freezing on the
windshield and obscuring your vision
which could result in an accident and
serious injury or death.
NOTICE

[ To prevent possible damage to the
washer pump, do not operate the
washer when the fluid reservoir is
empty.

[ To prevent possible damage to the
wipers or windshield, do not operate
the wipers when the windshield is
dry.

[ To prevent damage to the wiper
arms and other components, do
not attempt to move the wipers
manually.

[ To prevent possible damage to the
wipers and washer system, use anti-
freezing washer fluids in the winter
season or cold weather.

05
5-115

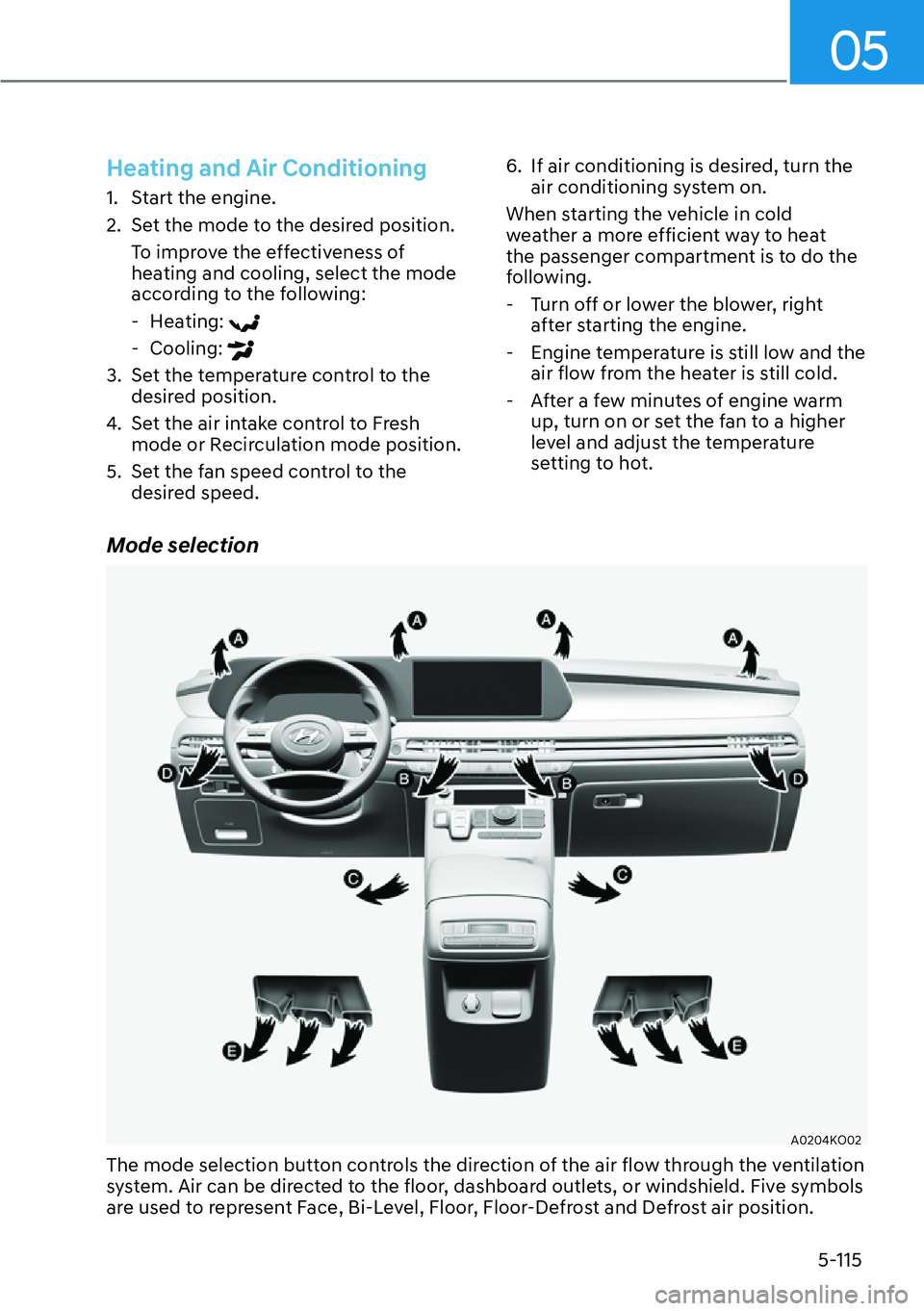

Heating and Air Conditioning
1. Start the engine.
2. Set the mode to the desired position.To improve the effectiveness of
heating and cooling, select the mode
according to the following:

- Heating:

- Cooling:
3. Set the temperature control to the
desired position.
4. Set the air intake control to Fresh mode or Recirculation mode position.
5. Set the fan speed control to the desired speed. 6. If air conditioning is desired, turn the
air conditioning system on.
When starting the vehicle in cold
weather a more efficient way to heat
the passenger compartment is to do the
following.

- Turn off or lower the blower, right
after starting the engine.

- Engine temperature is still low and the
air flow from the heater is still cold.

- After a few minutes of engine warm
up, turn on or set the fan to a higher
level and adjust the temperature
setting to hot.
Mode selection
A0204KO02
The mode selection button controls the direction of the air flow through the ventilation
system. Air can be directed to the floor, dashboard outlets, or windshield. Five symbols
are used to represent Face, Bi-Level, Floor, Floor-Defrost and Defrost air position.

05
5-119

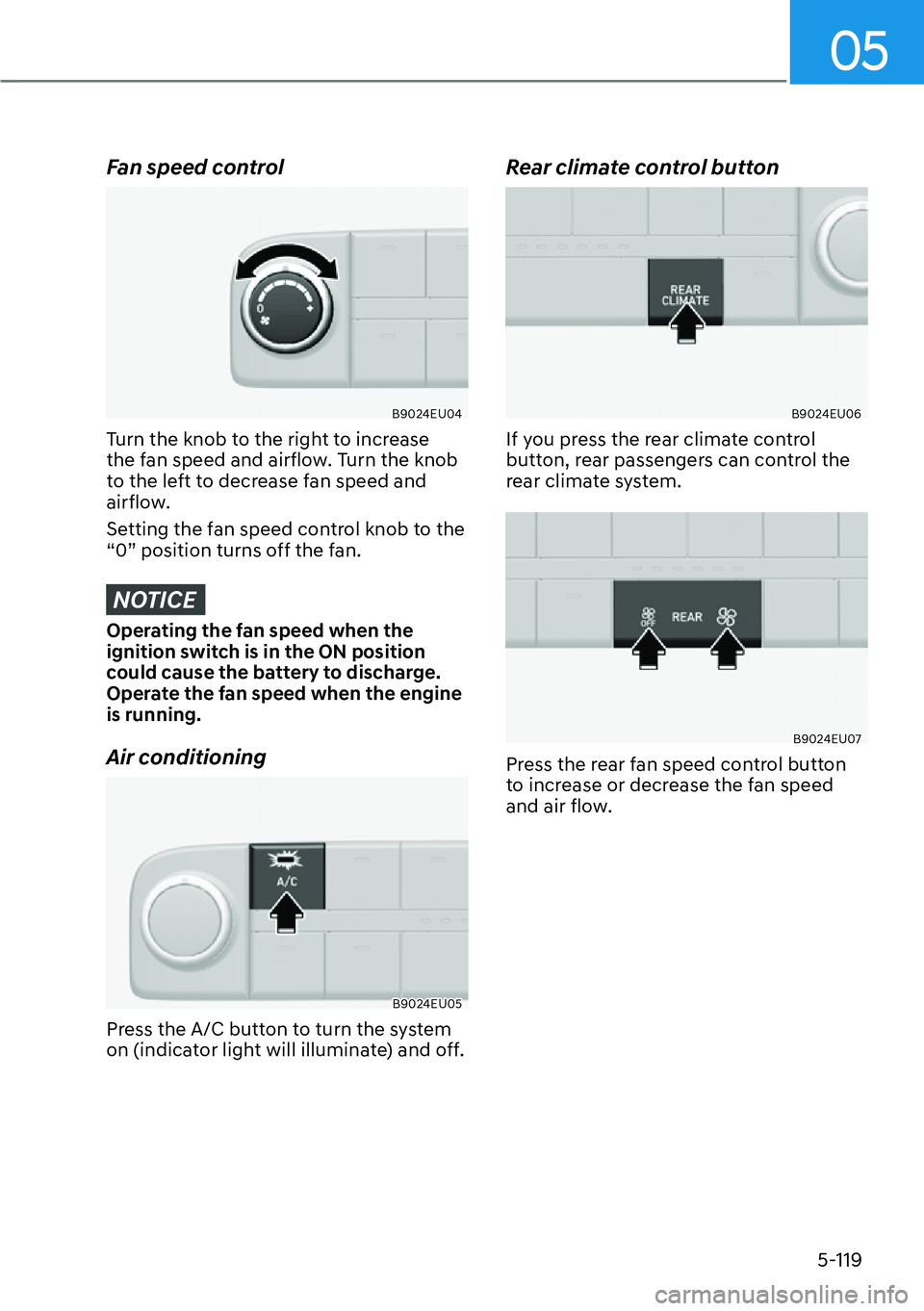

Fan speed control
B9024EU04
Turn the knob to the right to increase
the fan speed and airflow. Turn the knob
to the left to decrease fan speed and
airflow.
Setting the fan speed control knob to the
“0” position turns off the fan.
NOTICE
Operating the fan speed when the
ignition switch is in the ON position
could cause the battery to discharge.
Operate the fan speed when the engine
is running.
Air conditioning
B9024EU05
Press the A/C button to turn the system
on (indicator light will illuminate) and off.
Rear climate control button
B9024EU06
If you press the rear climate control
button, rear passengers can control the
rear climate system.
B9024EU07
Press the rear fan speed control button
to increase or decrease the fan speed
and air flow.

05
5-125

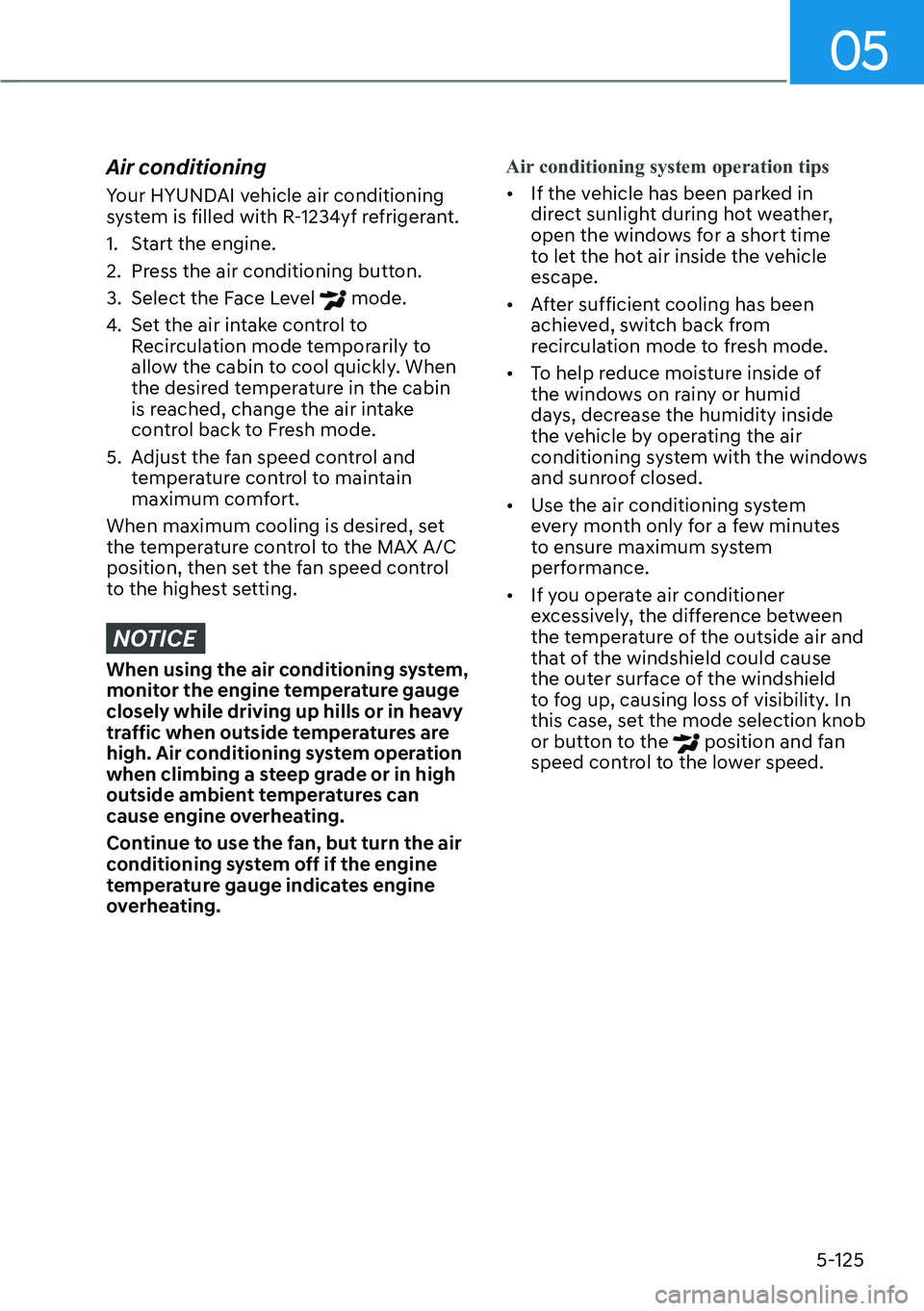

Air conditioning
Your HYUNDAI vehicle air conditioning
system is filled with R-1234yf refrigerant.
1. Start the engine.
2. Press the air conditioning button.
3. Select the Face Level
mode.
4. Set the air intake control to Recirculation mode temporarily to
allow the cabin to cool quickly. When
the desired temperature in the cabin
is reached, change the air intake
control back to Fresh mode.
5. Adjust the fan speed control and temperature control to maintain
maximum comfort.
When maximum cooling is desired, set
the temperature control to the MAX A/C
position, then set the fan speed control
to the highest setting.
NOTICE
When using the air conditioning system,
monitor the engine temperature gauge
closely while driving up hills or in heavy
traffic when outside temperatures are
high. Air conditioning system operation
when climbing a steep grade or in high
outside ambient temperatures can
cause engine overheating.
Continue to use the fan, but turn the air
conditioning system off if the engine
temperature gauge indicates engine
overheating. Air conditioning system operation tips

[
If the v
ehicle has been parked in
direct sunlight during hot weather,
open the windows for a short time
to let the hot air inside the vehicle
escape.

[ After sufficient cooling has been
achieved, switch back from
recirculation mode to fresh mode.

[ To help reduce moisture inside of
the windows on rainy or humid
days, decrease the humidity inside
the vehicle by operating the air
conditioning system with the windows
and sunroof closed.

[ Use the air conditioning system
every month only for a few minutes
to ensure maximum system
performance.

[ If you operate air conditioner
excessively, the difference between
the temperature of the outside air and
that of the windshield could cause
the outer surface of the windshield
to fog up, causing loss of visibility. In
this case, set the mode selection knob
or button to the
position and fan
speed control to the lower speed.
