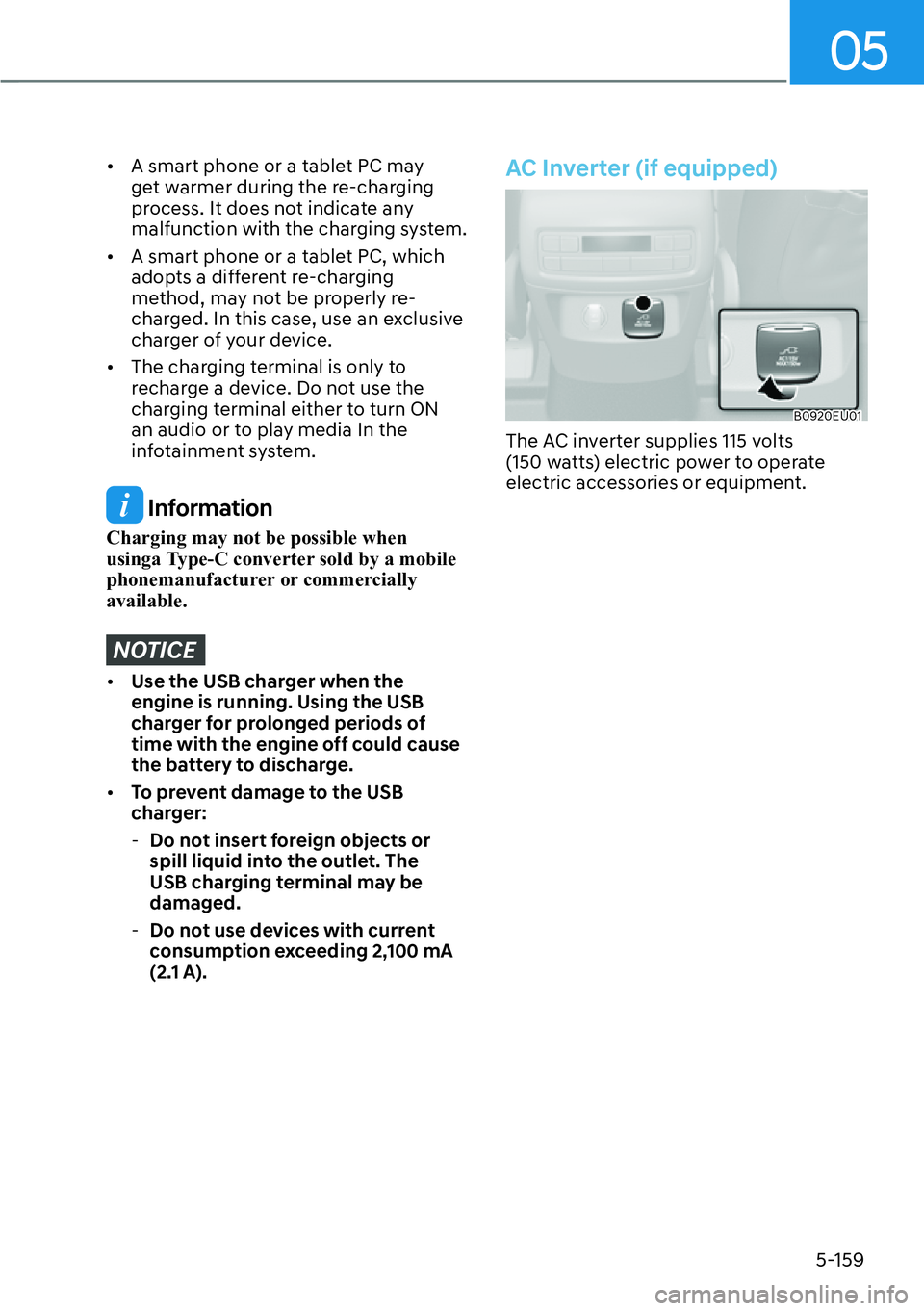

2023 HYUNDAI PALISADE engine

05
5-159

[A smart phone or a tablet PC may
get warmer during the re-charging
process. It does not indicate any
malfunction with the charging system.

[ A smart phone or a tablet PC, which
adopts a different re-charging
method, may not be properly re-
charged. In this case, use an exclusive
charger of your device.

[ The charging terminal is only to
recharge a device. Do not use the
charging terminal either to turn ON
an audio or to play media In the
infotainment system.
Information
Charging may not be possible when
usinga Type-C converter sold by a mobile
phonemanufacturer or commercially
available.
NOTICE

[Use the USB charger when the
engine is running. Using the USB
charger for prolonged periods of
time with the engine off could cause
the battery to discharge.

[ To prevent damage to the USB
charger:

- Do not insert foreign objects or
spill liquid into the outlet. The
USB charging terminal may be
damaged.

- Do not use devices with current
consumption exceeding 2,100 mA
(2.1 A).
AC Inverter (if equipped)
B0920EU01
The AC inverter supplies 115 volts
(150 watts) electric power to operate
electric accessories or equipment.

Convenience Features5-160

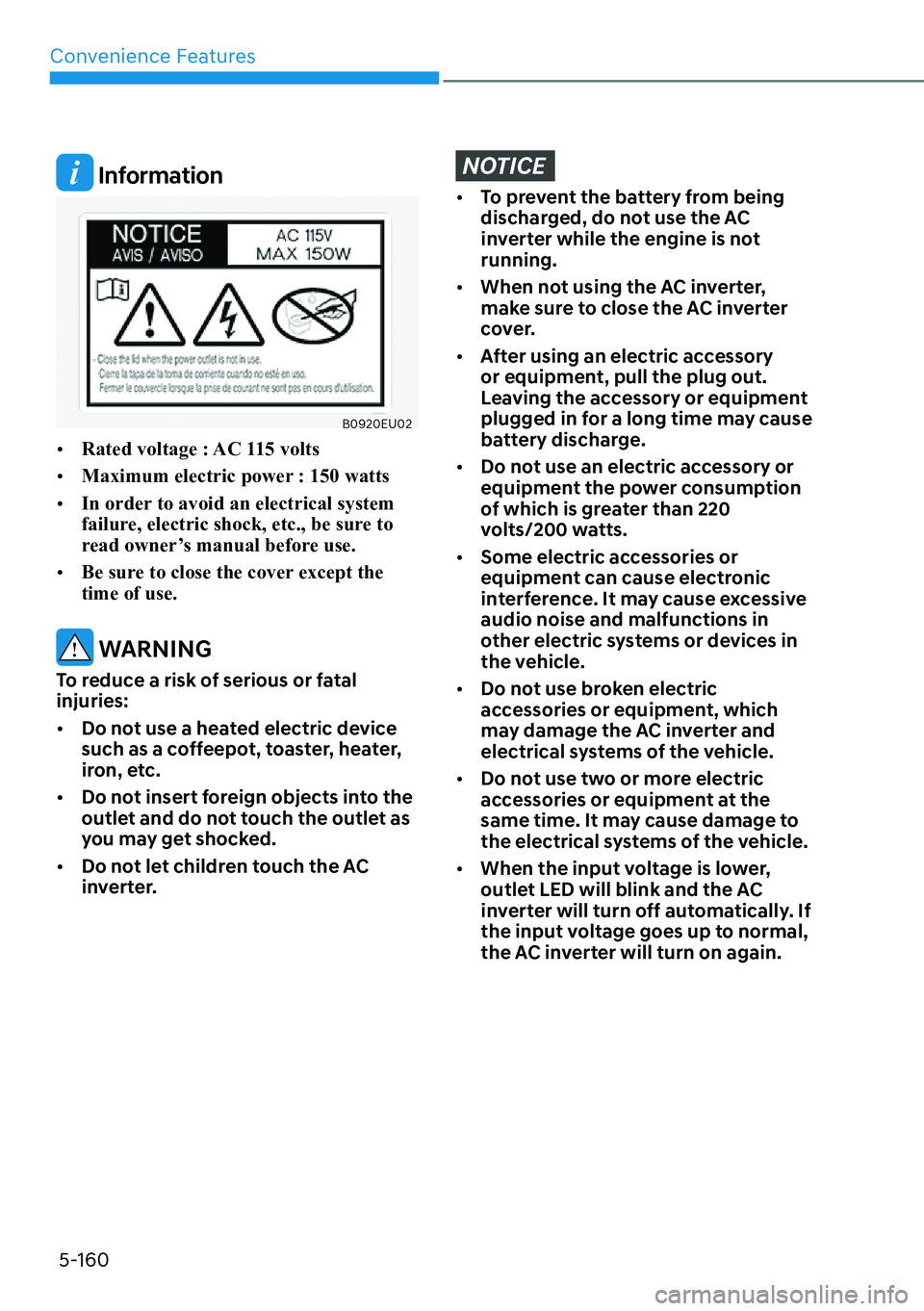

Information
B0920EU02

[ Rated voltage : AC 115 volts

[ Maximum electric power : 150 watts

[ In order to avoid an electrical system
failure, electric shock, etc., be sure to
read owner’s manual before use.

[ Be sure to close the cover except the
time of use.
WARNING
To reduce a risk of serious or fatal
injuries:

[Do not use a heated electric device
such as a coffeepot, toaster, heater,
iron, etc.

[ Do not insert foreign objects into the
outlet and do not touch the outlet as
you may get shocked.

[ Do not let children touch the AC
inverter.
NOTICE

[To prevent the battery from being
discharged, do not use the AC
inverter while the engine is not
running.

[ When not using the AC inverter,
make sure to close the AC inverter
cover.

[ After using an electric accessory
or equipment, pull the plug out.
Leaving the accessory or equipment
plugged in for a long time may cause
battery discharge.

[ Do not use an electric accessory or
equipment the power consumption
of which is greater than 220
volts/200 watts.

[ Some electric accessories or
equipment can cause electronic
interference. It may cause excessive
audio noise and malfunctions in
other electric systems or devices in
the vehicle.

[ Do not use broken electric
accessories or equipment, which
may damage the AC inverter and
electrical systems of the vehicle.

[ Do not use two or more electric
accessories or equipment at the
same time. It may cause damage to
the electrical systems of the vehicle.

[ When the input voltage is lower,
outlet LED will blink and the AC
inverter will turn off automatically. If
the input voltage goes up to normal,
the AC inverter will turn on again.

05
5-161

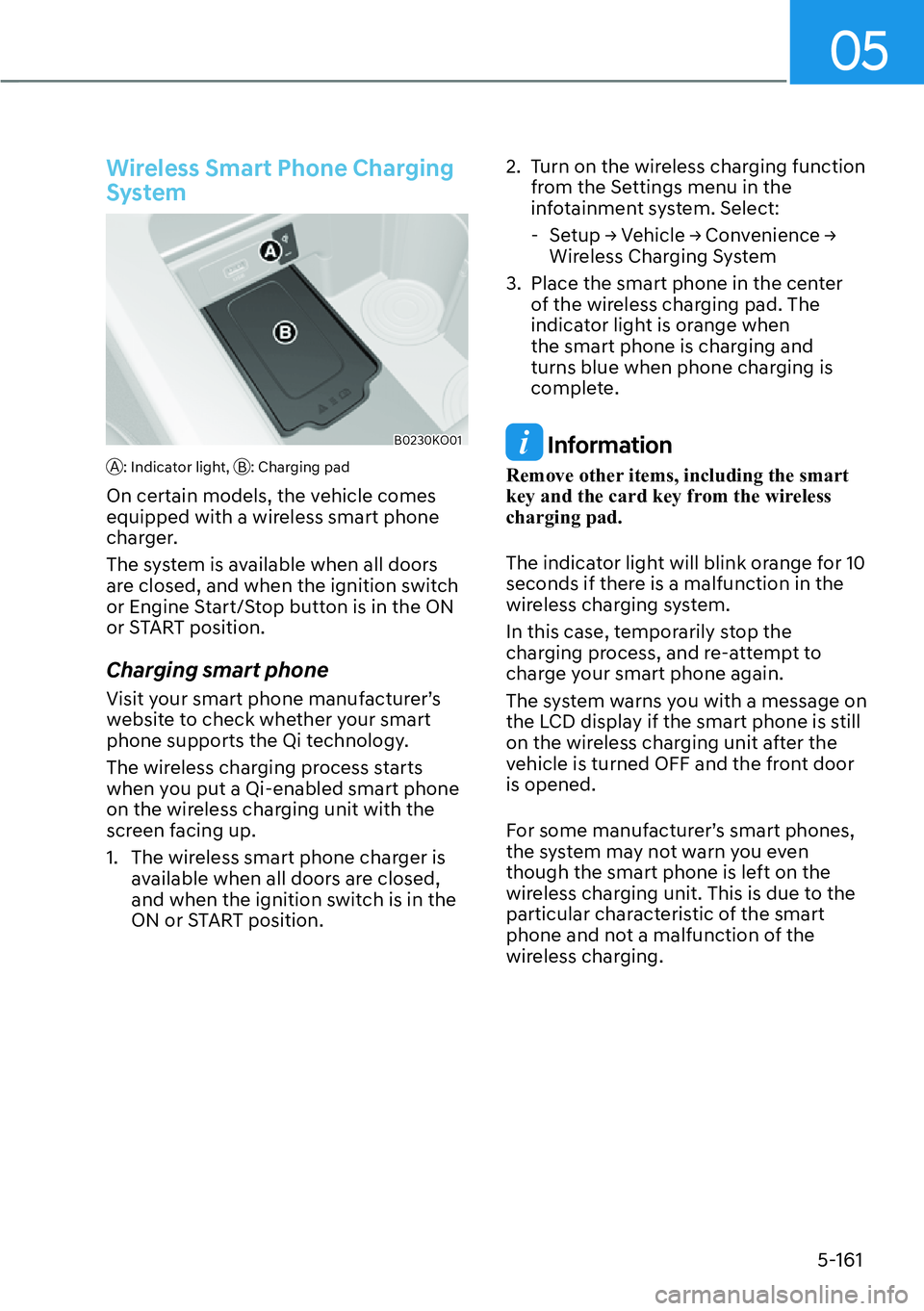

Wireless Smart Phone Charging
System
B0230KO01
A: Indicator light, B: Charging pad
On certain models, the vehicle comes
equipped with a wireless smart phone
charger.
The system is available when all doors
are closed, and when the ignition switch
or Engine Start/Stop button is in the ON
or START position.
Charging smart phone
Visit your smart phone manufacturer’s
website to check whether your smart
phone supports the Qi technology.
The wireless charging process starts
when you put a Qi-enabled smart phone
on the wireless charging unit with the
screen facing up.
1. The wireless smart phone charger is
available when all doors are closed,
and when the ignition switch is in the
ON or START position. 2. Turn on the wireless charging function
from the Settings menu in the
infotainment system. Select:

- 6HWXS

Convenience Features5-162
NOTICE

[ The wireless smart phone charging
system may not support certain
smart phones, which are not verified
IRUWKH4LVSHFLILFDWLRQ(
).

[ When placing your smart phone on
the charging pad, position the phone
in the middle of the mat for optimal
charging performance. If your smart
phone is off to the side, the charging
rate may be less and in some cases
the smart phone may experience
higher heat conduction.

[ In some cases, the wireless charging
may stop temporarily when the
smart key is used, either when
starting the vehicle or locking/
unlocking the doors, etc.

[ When charging certain smart
phones, the charging indicator may
not change to blue when the smart
phone is fully charged.

[ The wireless charging process may
temporarily stop, when temperature
abnormally increases inside the
wireless smart phone charging
system. The wireless charging
process restarts, when temperature
falls to a certain level.

[ The wireless charging process may
temporarily stop when there is
any metallic item, such as a coin,
between the wireless smart phone
charging system and smart phone.

[ When charging some smart phones
with a self-protection feature,
the wireless charging speed may
decrease and the wireless charging
may stop.
[
If the smart phone has a thick cover,
the wireless charging may not be
possible.

[ If the smart phone is not completely
contacting the charging pad,
wireless charging may not operate
properly.

[ If the ignition switch or Engine Start/
6WRSEXWWRQLVLQWKH2))SRVLWLRQ
the charging also stops.

[ When any smart phone without
a wireless charging function or a
metallic object is placed on the
charging pad, a small noise may
sound. This small sound is due to the
vehicle discerning compatibility of
the object placed on the charging
pad. It does not affect your vehicle or
the smart phone in any way.

[ Some smart phones may not be able
to charge depending on the internal
structure of the smart phone. If
this occurs, try charging the mobile
phone by moving it to the left or right
side of the wireless charging pad.
However, for some foldable smart
phones that have magnets inside the
smart phone, try charging the smart
phone while holding it close to the
left side of the wireless charging pad.

6
Before Driving ........................................................................\
........................... 6-4Before Entering the Vehicle ........................................................................\
................ 6-4
Before Starting ........................................................................\
.................................... 6-4
Ignition Switch ........................................................................\
.......................... 6-5Key Ignition Switch ........................................................................\
...............................6-5
Engine Start/Stop Button ........................................................................\
................... 6-8
Vehicle Auto-Shut Off ........................................................................\
.............. 6-13Operating Conditions ........................................................................\
........................ 6-13
Deactivating Conditions ........................................................................\
................... 6-13
System Operation ........................................................................\
............................... 6-13
Automatic Transmission ........................................................................\
..........6-14Automatic Transmission Operation ........................................................................\
... 6-14
LCD Display Messages (Cluster) ........................................................................\
....... 6-20
Paddle Shifter (Manual Shift Mode) ........................................................................\
.. 6-25
Good Driving Practices ........................................................................\
...................... 6-25
Braking System ........................................................................\
........................6-27
Power-Assist Brakes ........................................................................\
........................... 6-27
Disc Brakes Wear Indicator......................................................................\
.................. 6-27
Electronic Parking Brake (EPB) ........................................................................\
..........6-28
Auto Hold ........................................................................\
...........................................6-33
Anti-Lock Brake System (ABS) ........................................................................\
.......... 6-36
Electronic Stability Control (ESC) ........................................................................\
.... 6-38
Vehicle Stability Management (VSM) ...................................................................... 6-40
Hill-Start Assist Control (HAC) ........................................................................\
.......... 6-42
Trailer Stability Assist (TSA) ........................................................................\
.............. 6-42
Downhill Brake Control (DBC) ........................................................................\
.......... 6-43
Good Braking Practices ................................................................\
............................ 6-46
All Wheel Drive (AWD) ........................................................................\
............ 6-47All Wheel Drive (AWD) Operation ........................................................................\
......6-47
AWD Operation ........................................................................\
.................................. 6-48
Emergency Precautions ........................................................................\
.................... 6-50
Idle Stop and Go (ISG) ........................................................................\
........... 6-52ISG System Operation ........................................................................\
........................6-52
ISG System Off ........................................................................\
.................................. 6-54
Forced to Restart Engine ........................................................................\
...................6-55
ISG Malfunction ........................................................................\
..................................6-55
Calibrating the Battery Sensor ........................................................................\
..........6-55
6. Driving Your Vehicle

06
6-3

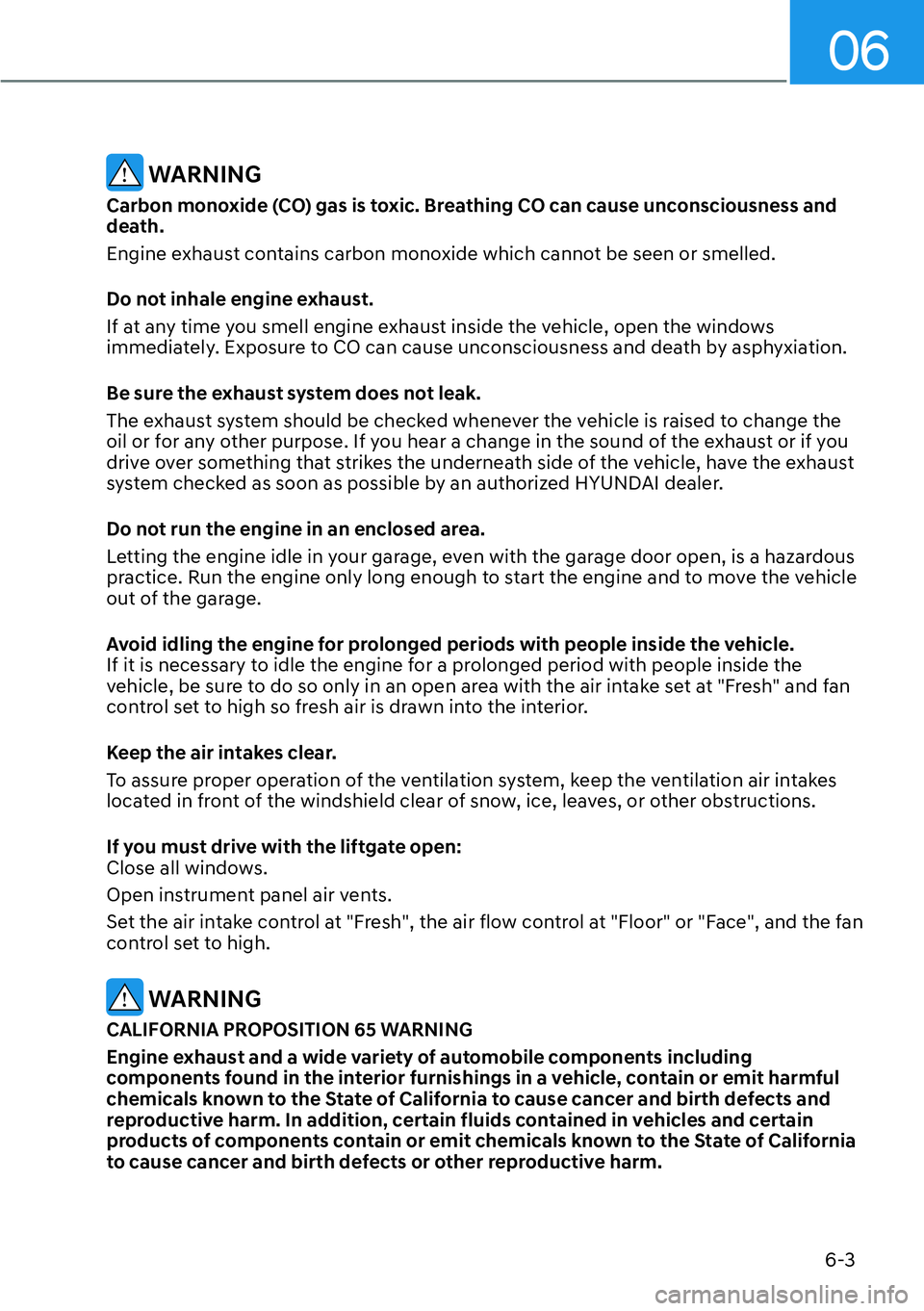

WARNING
Carbon monoxide (CO) gas is toxic. Breathing CO can cause unconsciousness and
death.
Engine exhaust contains carbon monoxide which cannot be seen or smelled.
Do not inhale engine exhaust.
If at any time you smell engine exhaust inside the vehicle, open the windows
immediately. Exposure to CO can cause unconsciousness and death by asphyxiation.
Be sure the exhaust system does not leak.
The exhaust system should be checked whenever the vehicle is raised to change the
oil or for any other purpose. If you hear a change in the sound of the exhaust or if you
drive over something that strikes the underneath side of the vehicle, have the exhaust
system checked as soon as possible by an authorized HYUNDAI dealer.
Do not run the engine in an enclosed area.
Letting the engine idle in your garage, even with the garage door open, is a hazardous
practice. Run the engine only long enough to start the engine and to move the vehicle
out of the garage.
Avoid idling the engine for prolonged periods with people inside the vehicle.
If it is necessary to idle the engine for a prolonged period with people inside the
vehicle, be sure to do so only in an open area with the air intake set at "Fresh" and fan
control set to high so fresh air is drawn into the interior.
Keep the air intakes clear.
To assure proper operation of the ventilation system, keep the ventilation air intakes
located in front of the windshield clear of snow, ice, leaves, or other obstructions.
If you must drive with the liftgate open:
Close all windows.
Open instrument panel air vents.
Set the air intake control at "Fresh", the air flow control at "Floor" or "Face", and the fan
control set to high.
WARNING
CALIFORNIA PROPOSITION 65 WARNING
Engine exhaust and a wide variety of automobile components including
components found in the interior furnishings in a vehicle, contain or emit harmful
chemicals known to the State of California to cause cancer and birth defects and
reproductive harm. In addition, certain fluids contained in vehicles and certain
products of components contain or emit chemicals known to the State of California
to cause cancer and birth defects or other reproductive harm.

Driving Your Vehicle6-4
Before Entering the Vehicle

[ Be sure all windows, side view
mirror(s), and outside lights are clean
and unobstructed.

[ Remove frost, snow, or ice.

[ Visually check the tires for uneven
wear and damage.

[ Check under the vehicle for any sign
of leaks.

[ Be sure there are no obstacles behind
you if you intend to back up.
Before Starting

[Make sure the hood, the liftgate, and
the doors are securely closed and
locked.

[ Adjust the position of the seat and
steering wheel.

[ Adjust the inside and outer side view
mirrors.

[ Verify all the lights work.

[ Fasten your seat belt. Check that all
passengers have fastened their seat
belts.

[ Check the gauges and indicators
in the instrument panel and the
messages on the instrument display
when ignition switch or Engine Start/
Stop button is in the ON position.

[ Check that any items you are carrying
are stored properly or fastened down
securely.
WARNING
To reduce the risk of SERIOUS INJURY or
DEATH, take the following precautions:

[ALWAYS wear your seat belt. All
passengers must be properly belted
whenever the vehicle is moving.
For more information, refer to “Seat
Belts” section in chapter 3.

[ Always drive defensively. Assume
other drivers or pedestrians may be
careless and make mistakes.

[ Stay focused on the task of driving.
Driver distraction can cause
accidents.

[ Leave plenty of space between you
and the vehicle in front of you.
WARNING
NEVER drink or take drugs and drive.
Drinking or taking drugs and driving
is dangerous and may result in an
accident and SERIOUS INJURY or
DEATH.
Drunk driving is the number one
contributor to the highway death
toll each year. Even a small amount
of alcohol will affect your reflexes,
perceptions and judgment. Just
one drink can reduce your ability to
respond to changing conditions and
emergencies and your reaction time
gets worse with each additional drink.
Driving while under the influence
of drugs is as dangerous or more
dangerous than driving under the
influence of alcohol.
You are much more likely to have a
serious accident if you drink or take
drugs and drive. If you are drinking or
taking drugs, don’t drive. Do not ride
with a driver who has been drinking
or taking drugs. Choose a designated
driver or call a taxi.
BEFORE DRIVING

06
6-5
WARNING
To reduce the risk of SERIOUS INJURY or
DEATH, take the following precautions:

[NEVER allow children or any person
who is unfamiliar with the vehicle to
touch the ignition switch or related
parts. Unexpected and sudden
vehicle movement can occur.

[ NEVER reach through the steering
wheel for the ignition switch, or any
other control, while the vehicle is in
motion. The presence of your hand
or arm in this area may cause a loss
of vehicle control resulting in an
accident.
Key Ignition Switch (if equipped)
B0246EU02A: LOCK,
B: ACC
C: ON, D: START
Whenever the front door is opened, the
ignition switch will illuminate, provided
the ignition switch is not in the ON
position. The light will go off immediately
when the ignition switch is turned on or
go off after about 30 seconds when the
door is closed. (if equipped)
WARNING

[NEVER turn the ignition switch to
the LOCK or ACC position while the
vehicle is in motion except in an
emergency.
This will result in the engine turning
off and loss of power assist for the
steering and brake systems. This may
lead to loss of directional control and
braking function, which could cause
an accident.

[ Before leaving the driver's seat,
always make sure the shift button is
in P (Park) position, apply the parking
brake, and turn the ignition switch to
the LOCK position.
Unexpected vehicle movement may
occur if these precautions are not
followed.
NOTICE
Never use aftermarket keyhole covers.
This may generate start-up failure due
to communication failure.
IGNITION SWITCH
