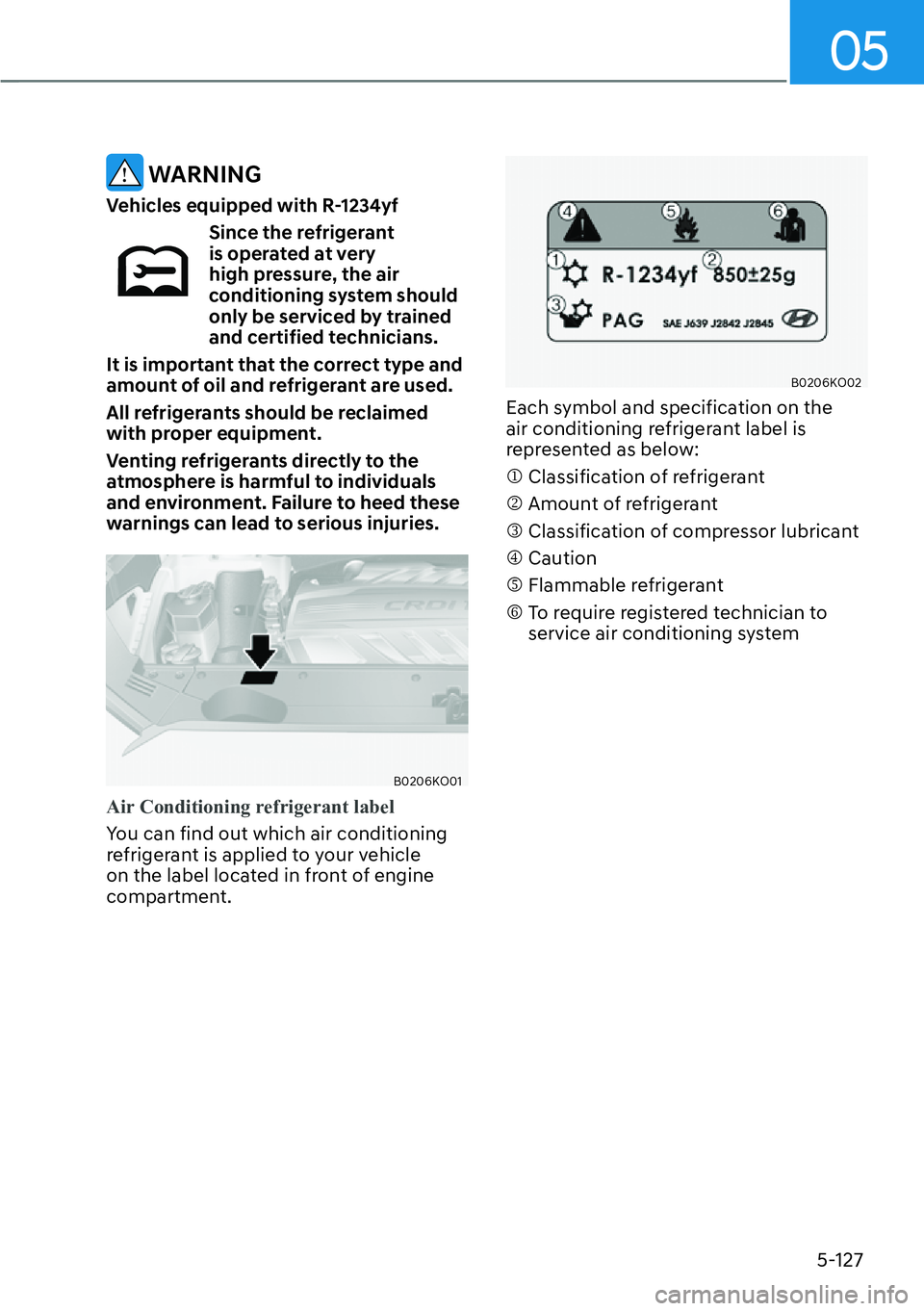

WARNING
Vehicles equipped with R-1234yf
Since the refrigerant
is operated at very
high pressure, the air
conditioning system should
only be serviced by trained
and certified technicians.
It is important that the correct type and
amount of oil and refrigerant are used.
All refrigerants should be reclaimed
with proper equipment.
Venting refrigerants directly to the
atmosphere is harmful to individuals
DQGHQYLURQPHQW)DLOXUHWRKHHGWKHVH
warnings can lead to serious injuries.
B0206KO01
Air Conditioning refrigerant label
You can find out which air conditioning
r
efrigerant is applied to your vehicle
on the label located in front of engine
compartment.
B0206KO02
Each symbol and specification on the
air conditioning refrigerant label is
represented as below:
M Classification of refrigerant
N Amount of refrigerant
O Classification of compressor lubricant
P Caution
Q Flammable refrigerant
R To require registered technician to service air conditioning system

Convenience Features5-130

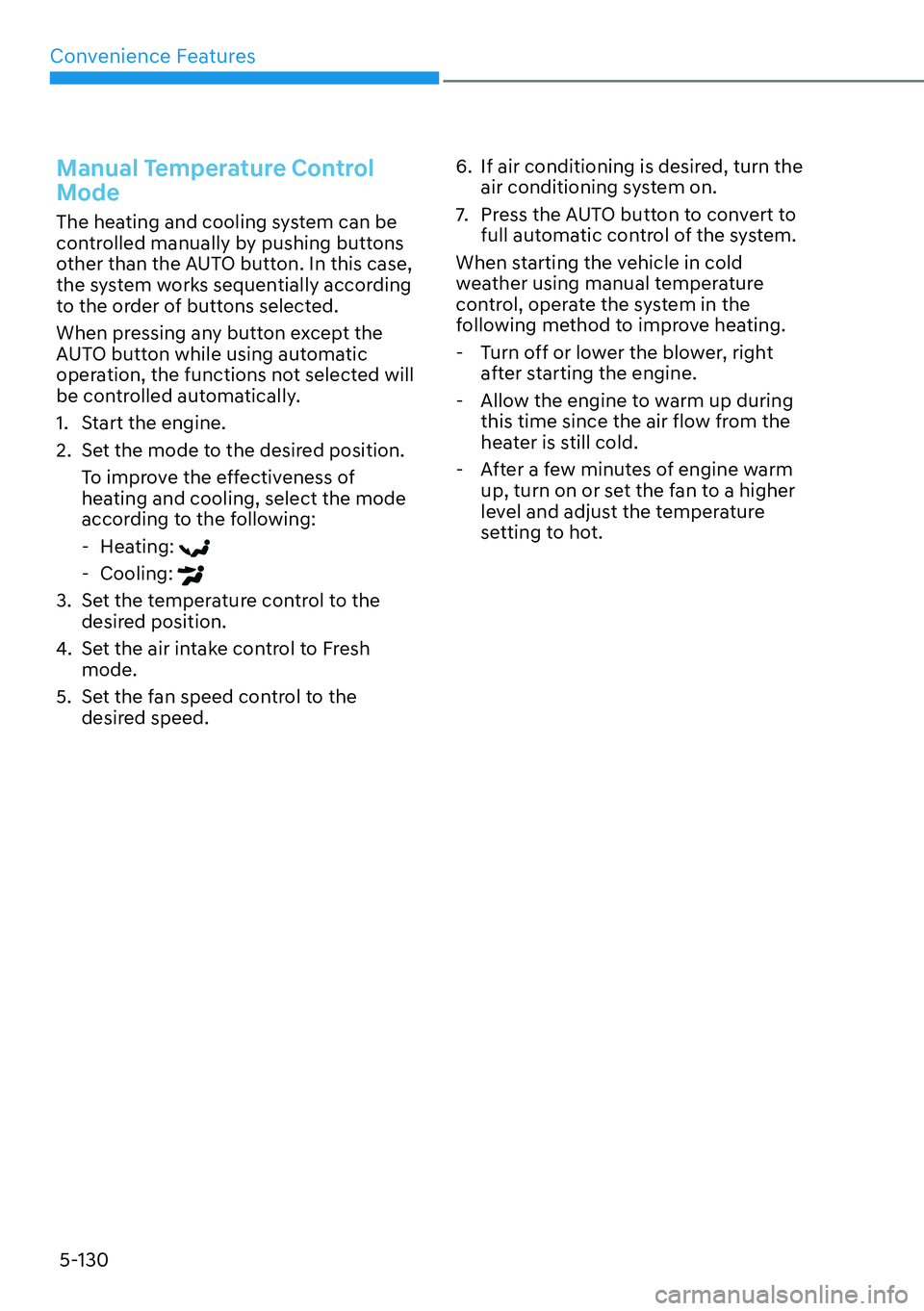

Manual Temperature Control
Mode
The heating and cooling system can be
controlled manually by pushing buttons
other than the AUTO button. In this case,
the system works sequentially according
to the order of buttons selected.
When pressing any button except the
AUTO button while using automatic
operation, the functions not selected will
be controlled automatically.
1. Start the engine.
2. Set the mode to the desired position. To improve the effectiveness of
heating and cooling, select the mode
according to the following:
- Heating:

- Cooling:
3. Set the temperature control to the
desired position.
4. Set the air intake control to Fresh mode.
5. Set the fan speed control to the desired speed. 6. If air conditioning is desired, turn the
air conditioning system on.
7. Press the AUTO button to convert to full automatic control of the system.
When starting the vehicle in cold
weather using manual temperature
control, operate the system in the
following method to improve heating.
- Turn off or lower the blower, right
after starting the engine.

- Allow the engine to warm up during
this time since the air flow from the
heater is still cold.

- After a few minutes of engine warm
up, turn on or set the fan to a higher
level and adjust the temperature
setting to hot.

05
5-135

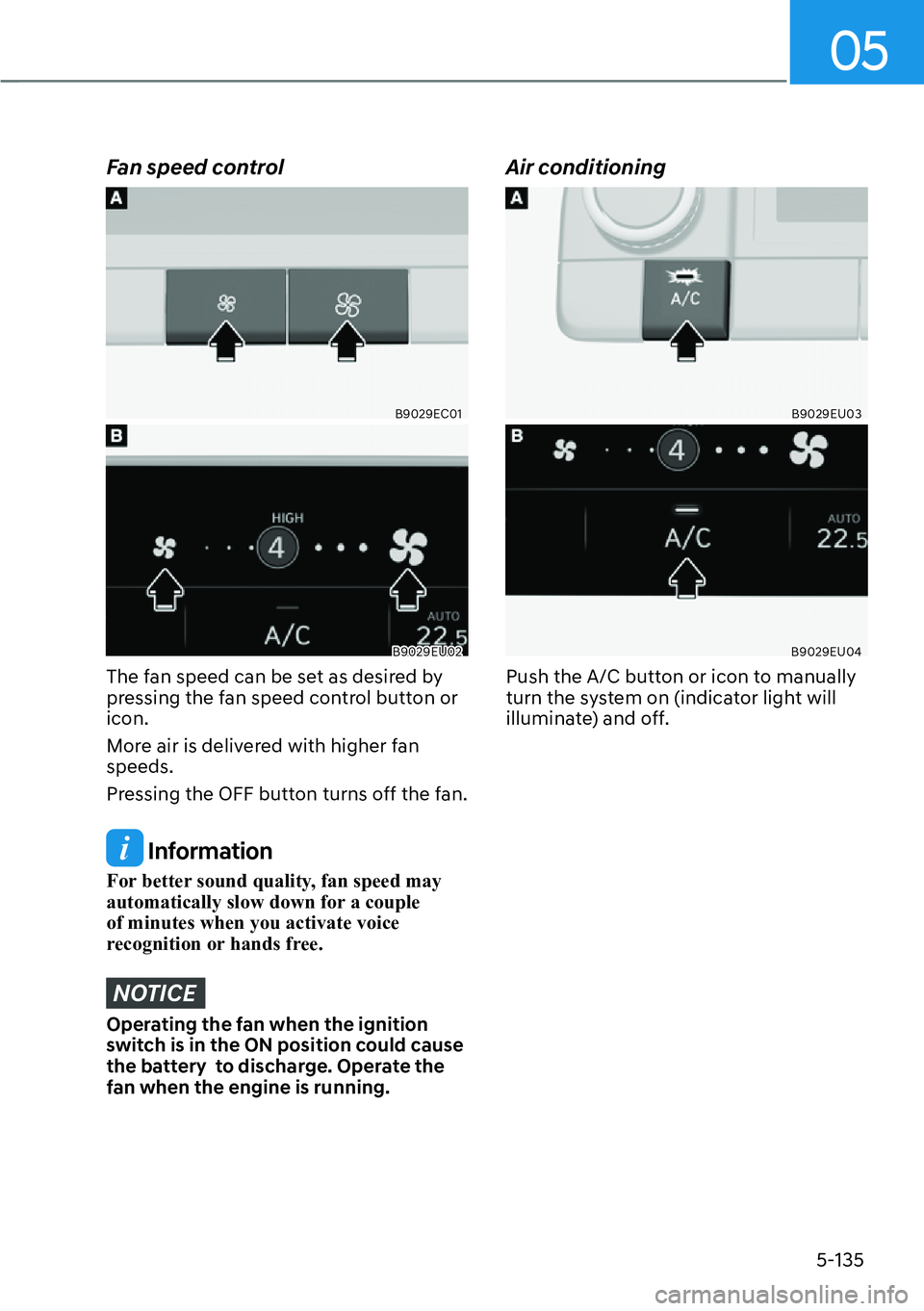

Fan speed control
B9029EC01
B9029EU02
The fan speed can be set as desired by
pressing the fan speed control button or
icon.
More air is delivered with higher fan
speeds.
Pressing the OFF button turns off the fan.
Information
For better sound quality, fan speed may
automatically slow down for a couple
of minutes when you activate voice
recognition or hands free.
NOTICE
Operating the fan when the ignition
switch is in the ON position could cause
the battery to discharge. Operate the
fan when the engine is running.
Air conditioning
B9029EU03
B9029EU04
Push the A/C button or icon to manually
turn the system on (indicator light will
illuminate) and off.

05
5-141

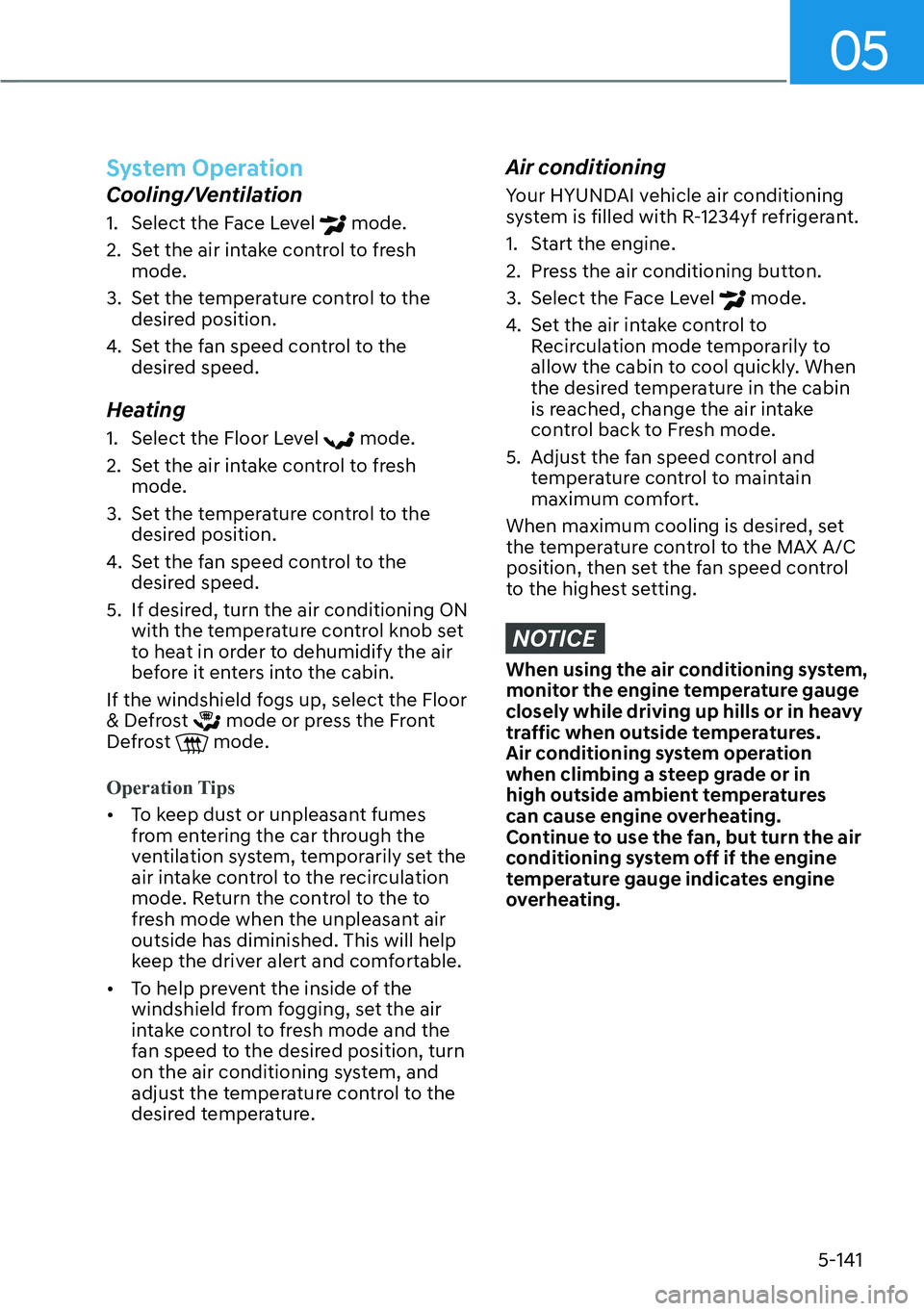

System Operation
Cooling/Ventilation
1. Select the Face Level mode.
2. Set the air intake control to fresh mode.
3. Set the temperature control to the desired position.
4. Set the fan speed control to the desired speed.
Heating
1. Select the Floor Level mode.
2. Set the air intake control to fresh mode.
3. Set the temperature control to the desired position.
4. Set the fan speed control to the desired speed.
5. If desired, turn the air conditioning ON with the temperature control knob set
to heat in order to dehumidify the air
before it enters into the cabin.
If the windshield fogs up, select the Floor
& Defrost
mode or press the Front
Defrost mode.
Operation Tips

[ T
o keep dust or unpleasant fumes
from entering the car through the
ventilation system, temporarily set the
air intake control to the recirculation
mode. Return the control to the to
fresh mode when the unpleasant air
outside has diminished. This will help
keep the driver alert and comfortable.

[ To help prevent the inside of the
windshield from fogging, set the air
intake control to fresh mode and the
fan speed to the desired position, turn
on the air conditioning system, and
adjust the temperature control to the
desired temperature.
Air conditioning
Your HYUNDAI vehicle air conditioning
system is filled with R-1234yf refrigerant.
1. Start the engine.
2. Press the air conditioning button.
3. Select the Face Level
mode.
4. Set the air intake control to Recirculation mode temporarily to
allow the cabin to cool quickly. When
the desired temperature in the cabin
is reached, change the air intake
control back to Fresh mode.
5. Adjust the fan speed control and temperature control to maintain
maximum comfort.
When maximum cooling is desired, set
the temperature control to the MAX A/C
position, then set the fan speed control
to the highest setting.
NOTICE
When using the air conditioning system,
monitor the engine temperature gauge
closely while driving up hills or in heavy
traffic when outside temperatures.
Air conditioning system operation
when climbing a steep grade or in
high outside ambient temperatures
can cause engine overheating.
Continue to use the fan, but turn the air
conditioning system off if the engine
temperature gauge indicates engine
overheating.

Convenience Features5-144
B0206KO01

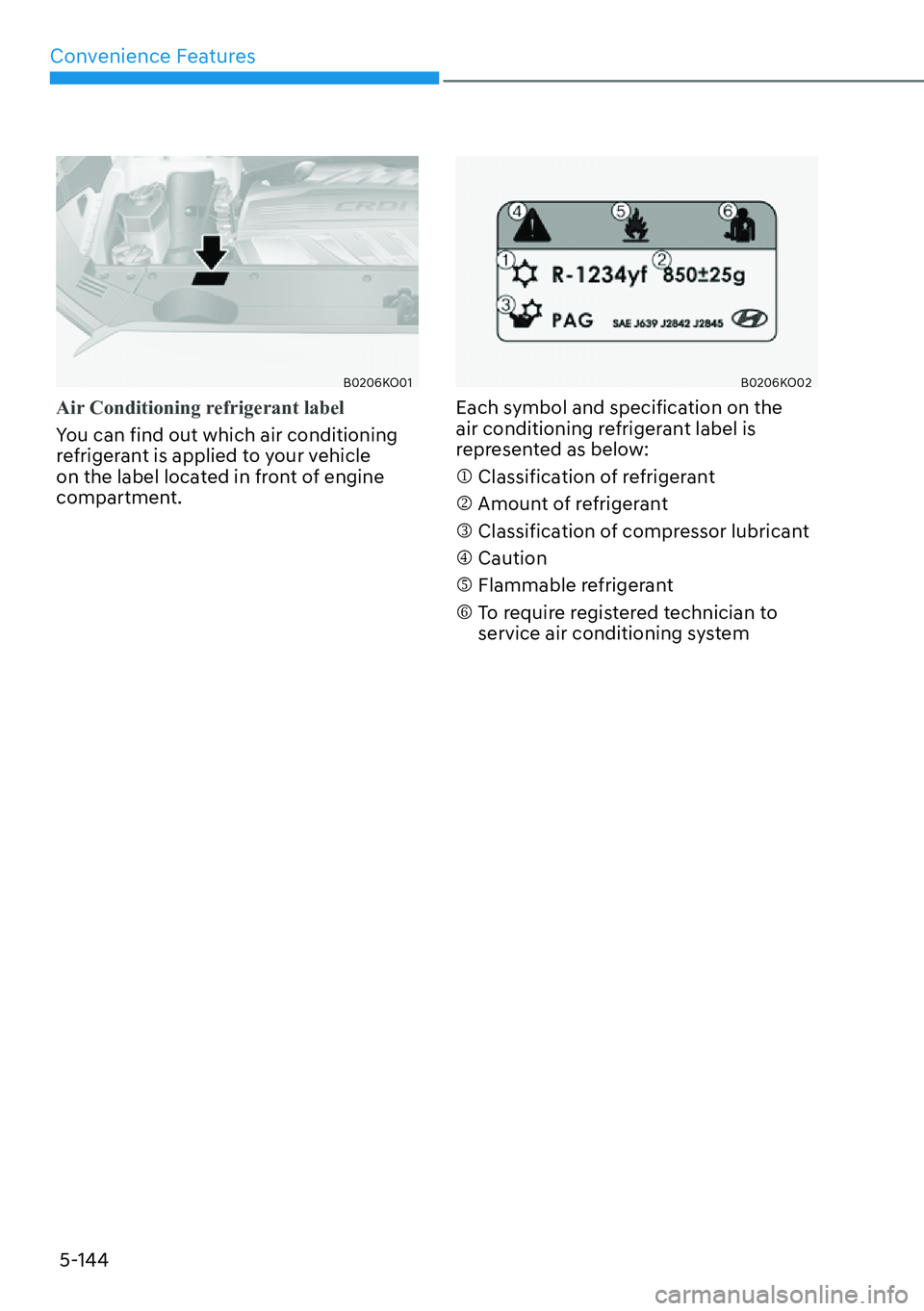

Air Conditioning refrigerant label
You can find out which air conditioning
r
efrigerant is applied to your vehicle
on the label located in front of engine
compartment.
B0206KO02
Each symbol and specification on the
air conditioning refrigerant label is
represented as below:
M Classification of refrigerant
N Amount of refrigerant
O Classification of compressor lubricant
P Caution
Q Flammable refrigerant
R To require registered technician to service air conditioning system

05
5-145

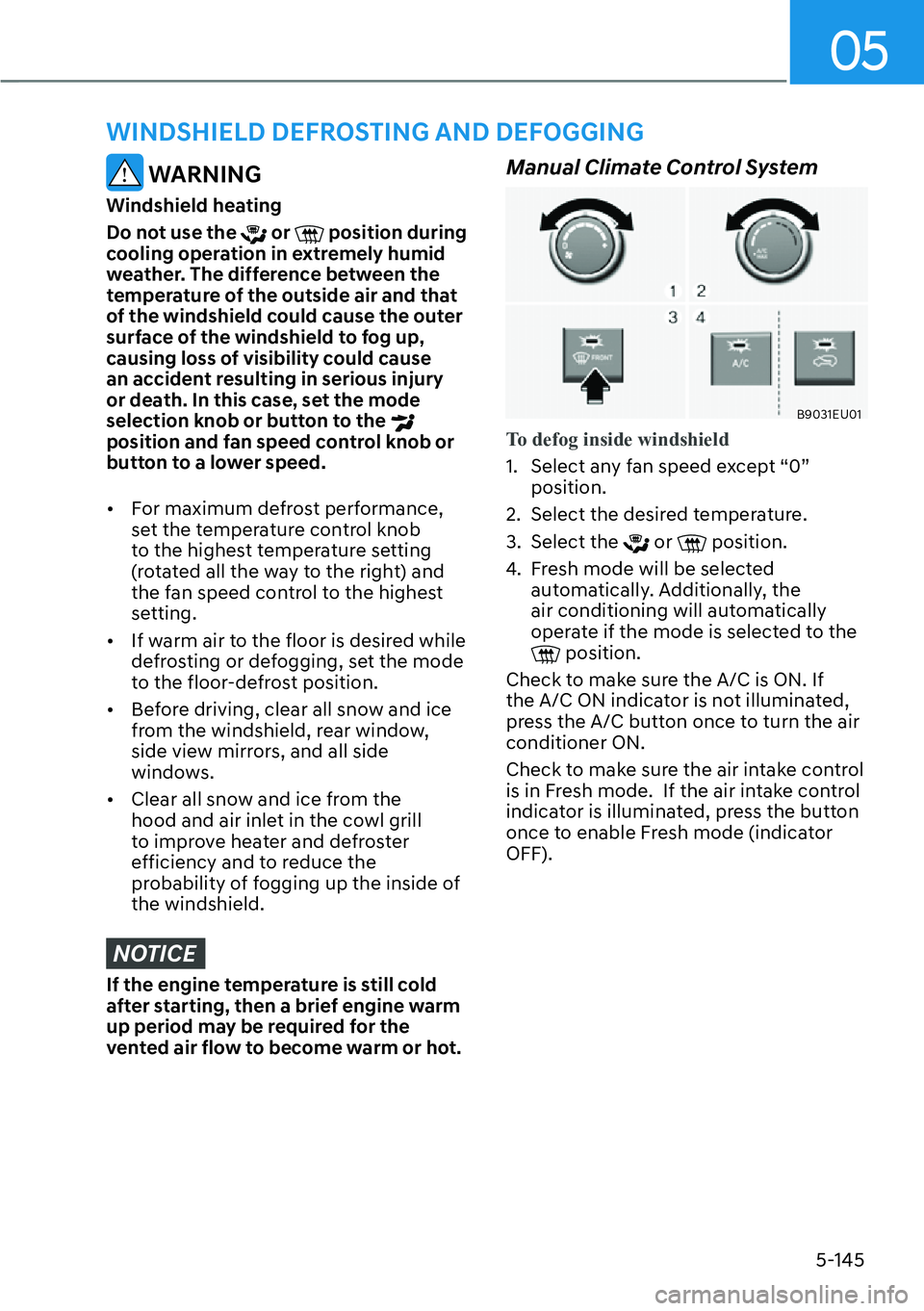

WARNING
Windshield heating
Do not use the
or position during
cooling operation in extremely humid
weather. The difference between the
temperature of the outside air and that
of the windshield could cause the outer
surface of the windshield to fog up,
causing loss of visibility could cause
an accident resulting in serious injury
or death. In this case, set the mode
selection knob or button to the

position and fan speed control knob or
button to a lower speed.

[ For maximum defrost performance,
set the temperature control knob
to the highest temperature setting
(rotated all the way to the right) and
the fan speed control to the highest
setting.

[ If warm air to the floor is desired while
defrosting or defogging, set the mode
to the floor-defrost position.

[ Before driving, clear all snow and ice
from the windshield, rear window,
side view mirrors, and all side
windows.

[ Clear all snow and ice from the
hood and air inlet in the cowl grill
to improve heater and defroster
efficiency and to reduce the
probability of fogging up the inside of
the windshield.
NOTICE
If the engine temperature is still cold
after starting, then a brief engine warm
up period may be required for the
vented air flow to become warm or hot.
Manual Climate Control System
B9031EU01
To defog inside windshield
1. Select any fan speed except “0”
position.
2.

Select the desired temperature.
3. Select the
or position.
4. Fresh mode will be selected automatically. Additionally, the
air conditioning will automatically
operate if the mode is selected to the
position.
Check to make sure the A/C is ON. If
the A/C ON indicator is not illuminated,
press the A/C button once to turn the air
conditioner ON.
Check to make sure the air intake control
is in Fresh mode. If the air intake control
indicator is illuminated, press the button
once to enable Fresh mode (indicator
OFF).
:,1'6+,(/''()5267,1*$1''()2**,1*

05
5-149
Rear Window DefrosterNOTICE
To prevent damage to the rear window
defroster conducting elements bonded
to the inside surface of the rear window,
never use sharp instruments or window
cleaners containing abrasives to clean
the window.
If you want to defrost and defog
the front windshield, refer to the

U:LQGVKLHOG'HIURVWLQJDQG'HIRJJLQJ
V
section in this chapter.
The defroster heats the
window to remove frost, fog
and thin ice from the interior
and exterior of the rear
window, while the engine is
running.

[ To activate the rear window defroster,
press the rear window defroster
button located in the center control
panel. The indicator on the rear
window defroster button illuminates
when the defroster is ON.

[ To turn off the defroster, press the rear
window defroster button again.
Information

[If there is heavy accumulation of snow
on the rear window, brush it off before
operating the rear defroster.

[ The rear window defroster
automatically turns off after
approximately 20 minutes or when the
ignition switch or Engine Start/Stop
button is in the LOCK/OFF position.
Side view mirror defroster
If your vehicle is equipped with the side
view mirror defrosters, they will operate
at the same time you turn on the rear
window defroster.

05
5-157

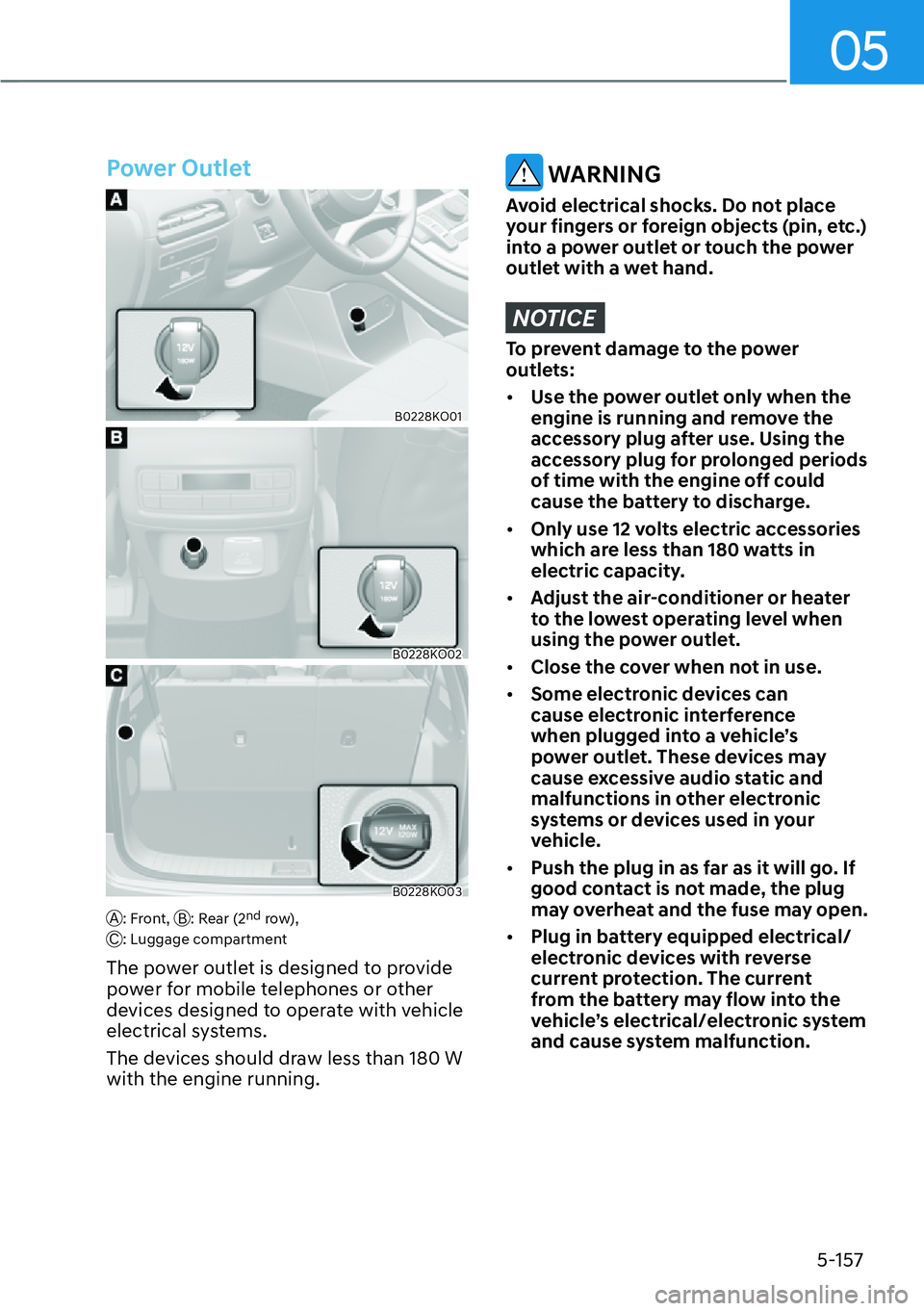

Power Outlet
B0228KO01
B0228KO02
B0228KO03
A: Front, B: Rear (2nd row),
C: Luggage compartment
The power outlet is designed to provide
power for mobile telephones or other
devices designed to operate with vehicle
electrical systems.
The devices should draw less than 180 W
with the engine running.
WARNING
Avoid electrical shocks. Do not place
your fingers or foreign objects (pin, etc.)
into a power outlet or touch the power
outlet with a wet hand.
NOTICE
To prevent damage to the power
outlets:

[ Use the power outlet only when the
engine is running and remove the
accessory plug after use. Using the
accessory plug for prolonged periods
of time with the engine off could
cause the battery to discharge.

[ Only use 12 volts electric accessories
which are less than 180 watts in
electric capacity.

[ Adjust the air-conditioner or heater
to the lowest operating level when
using the power outlet.

[ Close the cover when not in use.

[ Some electronic devices can
cause electronic interference
when plugged into a vehicle’s
power outlet. These devices may
cause excessive audio static and
malfunctions in other electronic
systems or devices used in your
vehicle.

[ Push the plug in as far as it will go. If
good contact is not made, the plug
may overheat and the fuse may open.

[ Plug in battery equipped electrical/
electronic devices with reverse
current protection. The current
from the battery may flow into the
vehicle’s electrical/electronic system
and cause system malfunction.
