2023 HYUNDAI KONA Owners Manual

07
7-47

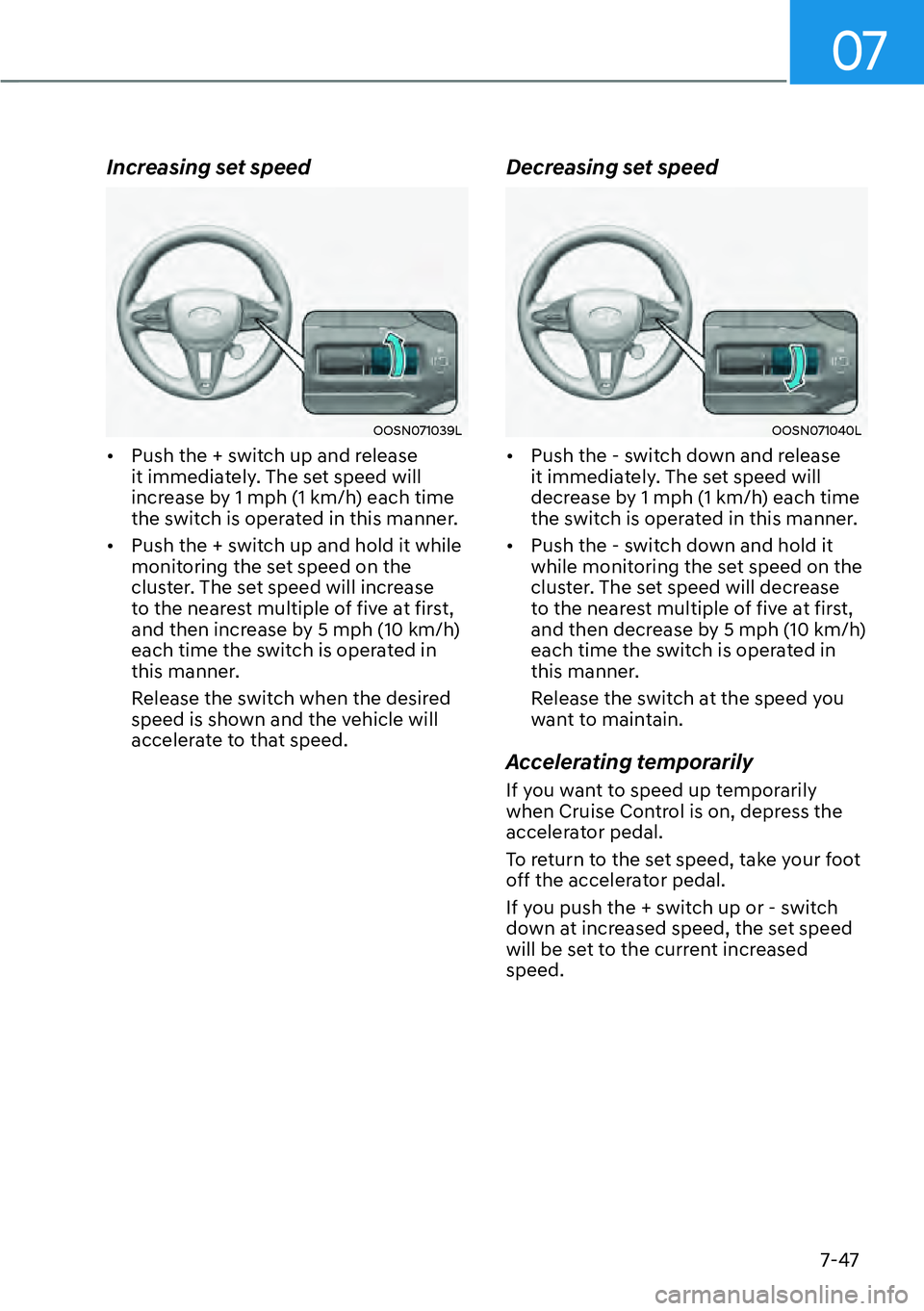

Increasing set speed
OOSN071039L

[Push the + switch up and release
it immediately. The set speed will
increase by 1 mph (1 km/h) each time
the switch is operated in this manner.

[ Push the + switch up and hold it while
monitoring the set speed on the
cluster. The set speed will increase
to the nearest multiple of five at first,
and then increase by 5 mph (10 km/h)
each time the switch is operated in
this manner.
Release the switch when the desired
speed is shown and the vehicle will
accelerate to that speed.
Decreasing set speed
OOSN071040L

[Push the - switch down and release
it immediately. The set speed will
decrease by 1 mph (1 km/h) each time
the switch is operated in this manner.

[ Push the - switch down and hold it
while monitoring the set speed on the
cluster. The set speed will decrease
to the nearest multiple of five at first,
and then decrease by 5 mph (10 km/h)
each time the switch is operated in
this manner.
Release the switch at the speed you
want to maintain.
Accelerating temporarily
If you want to speed up temporarily
when Cruise Control is on, depress the
accelerator pedal.
To return to the set speed, take your foot
off the accelerator pedal.
If you push the + switch up or - switch
down at increased speed, the set speed
will be set to the current increased
speed.

Driver Assistance System7-48
Temporarily pausing Cruise Control
OOSN071041L
Cruise Control will be paused when:

[ Depressing the brake pedal.

[ Pushing the
button.

[ Shifting the gear to N (Neutral).

[ Decreasing the vehicle speed to less
than approximately 20 mph (30 km/h).

[ ESC (Electronic Stability Control) is
operating.

[ Downshifting to the 2nd gear when in
Manual Shift mode.
The set speed will turn off but the Cruise
(
) indicator will stay on.
NOTICE
If Cruise Control pauses during a
situation that is not mentioned, have
the vehicle inspected by an authorized
HYUNDAI dealer.
Resuming Cruise Control
OOSN071042L
Push the +, - switch or button.
If you push the + switch up or - switch
down, vehicle speed will be set to the
current speed on the cluster.
If you push the
button, vehicle
speed will resume to the preset speed.
The vehicle speed must be above 20
mph (30 km/h) for Cruise Control to
resume.
WARNING
Check the driving condition before
using the button. Driving speed
may sharply increase or decrease when
you press the
button.

07
7-49
Turning off Cruise Control
OOSN071036N[A] : Type A, [B] : Type B
Press the Driving Assist button to turn
Cruise Control off. The Cruise ()
indicator will go off.
Always press the Driving Assist button to
turn Cruise Control off when not in use.
Information
If your vehicle is equipped with Manual
Speed Limit Assist, press and hold the
Driving Assist button to turn off Cruise
Control. However, Manual Speed Limit
Assist will turn on.
WARNING
Take the following precautions when
using Cruise Control:

[ Always set the vehicle speed under
the speed limit in your country.

[ Keep Cruise Control off when the
function is not in use, to avoid
inadvertently setting a speed. Check
that the Cruise (
) indicator is
off.

[ Cruise Control does not substitute
for proper and safe driving. It is the
responsibility of the driver to always
drive safely and should always be
aware of unexpected and sudden
situations from occurring.

[ Always drive cautiously to prevent
unexpected and sudden situations
from occurring. Pay attention to the
road conditions at all times.

[ Do not use Cruise Control when it
may be unsafe to keep the vehicle at
a constant speed:
- When driving in heavy traffic, or
when traffic conditions make it
difficult to drive at a constant
speed
- When driving on rainy, icy, or
snow-covered roads
- When driving on hilly or windy
roads
- When driving in windy areas
- When driving with limited view
(possibly due to bad weather, such
as fog, snow, rain and sandstorm)

[ Do not use Cruise Control when
towing a trailer.

Driver Assistance System7-50
/$1()2//2:,1*$66,67

07
7-51
OOSN071027N

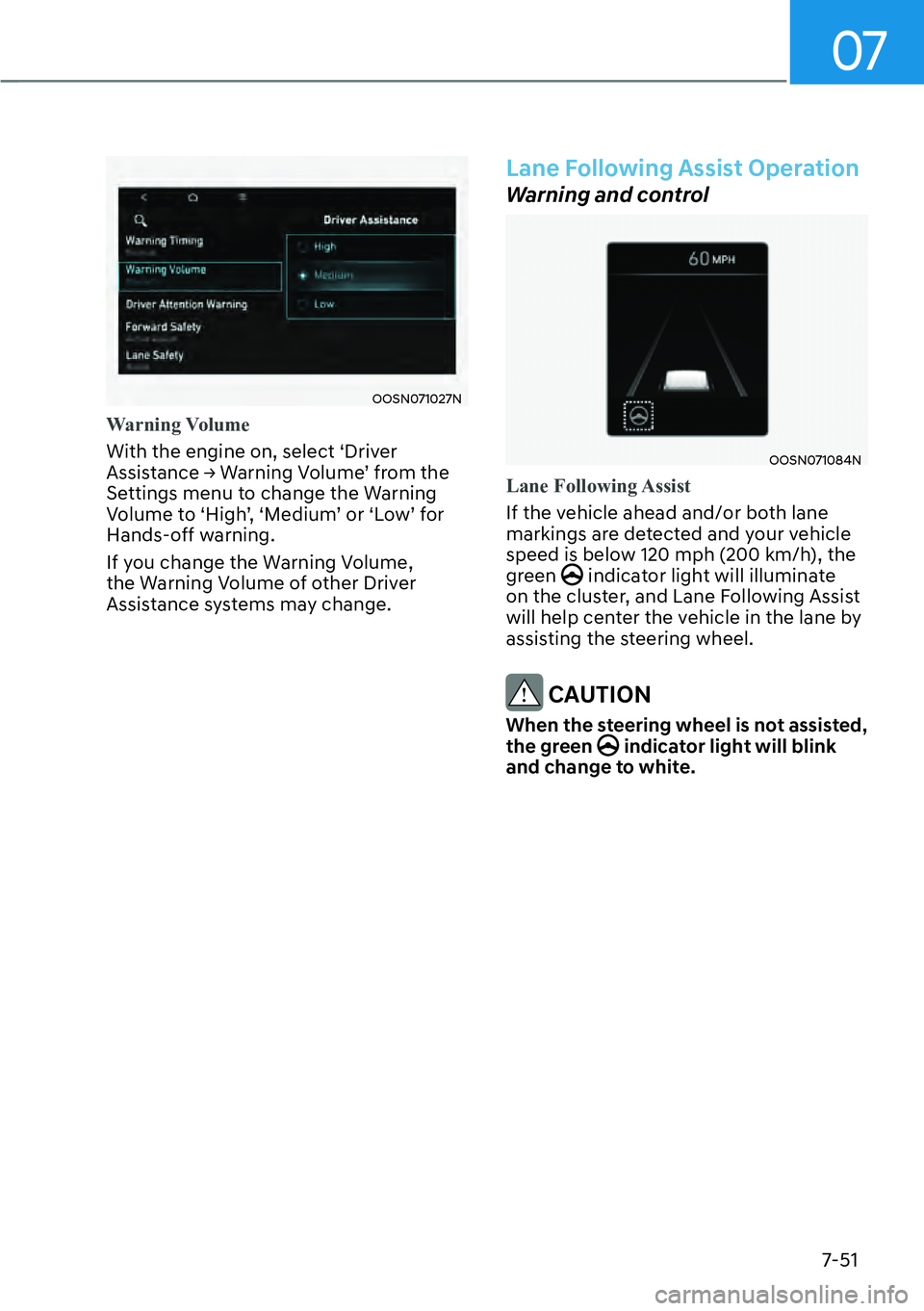

Warning Volume
With the engine on, select ‘Driver
$VVLV
WDQFH

Driver Assistance System7-52
OOSN071021L
Hands-off warning
If the driver takes their hands off the
s
teering wheel for several seconds,
WKH
S.HHSKDQGVRQWKHVWHHULQJZKHHO
T
warning message will appear and an
audible warning will sound in stages.
First stage : Warning message
Second stage : Warning message (red steering wheel) and
audible warning
OTM070117N
If the driver still does not have their
hands on the steering wheel after the
hands-off warning, the ‘Lane Following
$VVLVW/)$FDQFHOHG
TZDUQLQJPHVVDJH
will appear and Lane Following Assist will
be automatically canceled.
WARNING

[Lane Following Assist does not
operate at all times. It is the
responsibility of the driver to safely
steer the vehicle and to maintain the
vehicle in its lane.

[ The hands–off warning message
may appear late depending on road
conditions. Always have your hands
on the steering wheel while driving.

[ If the steering wheel is held very
lightly, the hands–off warning
message may appear because Lane
Following Assist may not recognize
that the driver has their hands on the
steering wheel.

[ If you attach objects to the steering
wheel, the hands-off warning may
not work properly.

07
7-53
Information

[You may change settings from the
infotainment system (Vehicle Settings),
whichever option that is provided with
your vehicle. For more details, see
"User Settings" section in chapter 4, or
"Vehicle Settings" section in supplied
Infotainment Manual.

[ When both lane markings are detected,
the lane lines on the cluster will change
from grey to white.

[ Images or colors may appear
differently depending on the instrument
panel specifications or theme.
„Lane undetected „Lane detected
OOSN081027NOOSN071019N

[If lane markings are not detected,
steering wheel control by Lane
Following Assist can be limited
depending on whether a vehicle is in
front or the driving conditions of the
vehicle.

[ Even though the steering is assisted
by Lane Following Assist, the driver
may control the steering wheel.

[ The steering wheel may feel heavier
or lighter when the steering wheel is
assisted by Lane Following Assist than
when it is not.
Lane Following Assist
Malfunction and Limitations
Lane Following Assist malfunction
OTM070118N
When Lane Following Assist is not
working properly, the ‘Check Lane
)ROORZLQJ$VVLVW/)$V\VWHP
TZDUQLQJ
message will appear on the cluster
for several seconds, and the master
(
) warning light will illuminate on the
cluster. If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer.
Limitations of Lane Following Assist
For more details on Lane Following Assist
limitations, refer to “Lane Keeping Assist
(LKA)” section in chapter 7.
Information
For more details on Lane Following Assist
precautions, refer to “Lane Keeping Assist
(LKA)” section in chapter 7.

Driver Assistance System7-54

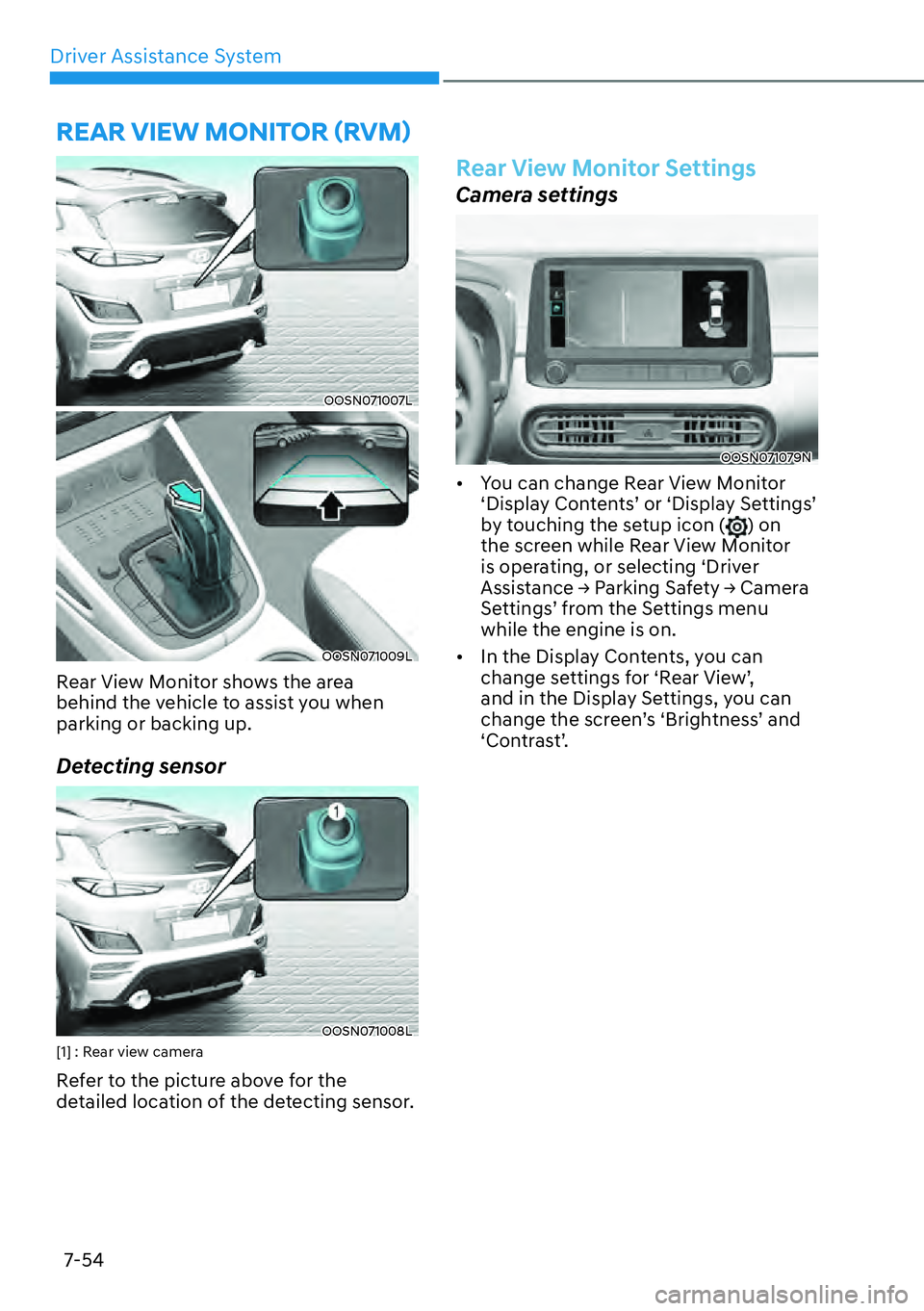

5($59,(:021,725
