2023 HYUNDAI KONA Owners Manual

Driving your vehicle6-64
Certification label
OBH059070
The certification label is located on the
driver's door sill at the center pillar and
shows the maximum allowable weight of
the fully loaded vehicle. This is called the
GVWR (Gross Vehicle Weight Rating). The
GVWR includes the weight of the vehicle,
all occupants, fuel and cargo.
This label also tells you the maximum
weight that can be supported by the
front and rear axles, called Gross Axle
Weight Rating (GAWR).
The total weight of the vehicle, including
all occupants, accessories, cargo, and
trailer tongue load must not exceed the
Gross Vehicle Weight Rating (GVWR) or
the Gross Axle Weight Rating (GAWR).
To find out the actual loads on your front
and rear axles, you need to go to a weigh
station and weigh your vehicle. Be sure
to spread out your load equally on both
sides of the centerline.
WARNING
Overloading

[ Never exceed the GVWR for your
vehicle, the GAWR for either the front
or rear axle and vehicle capacity
weight. Exceeding these ratings
can affect your vehicle's handling
and braking ability, and cause an
accident.

[ Do not overload your vehicle.
Overloading your vehicle can cause
heat buildup in your vehicle's tires
and possible tire failure, increased
stopping distances and poor vehicle
handling-all of which may result in a
crash.
NOTICE
Overloading your vehicle may cause
damage. Repairs would not be covered
by your warranty. Do not overload your
vehicle.
WARNING
If you carry items inside your vehicle
(e.g., suitcases, tools, packages, or
anything else), they are moving as fast
as the vehicle. If you have to stop or
turn quickly, or if there is a crash, the
items will keep going and can cause
an injury if they strike the driver or a
passenger.

[Put items in the cargo area of your
vehicle. Try to spread the weight
evenly.

[ Do not stack items, like suitcases,
inside the vehicle above the tops of
the seats.

[ Do not leave an unsecured child
restraint in your vehicle.

[ When you carry something inside the
vehicle, secure it.

06
6-65

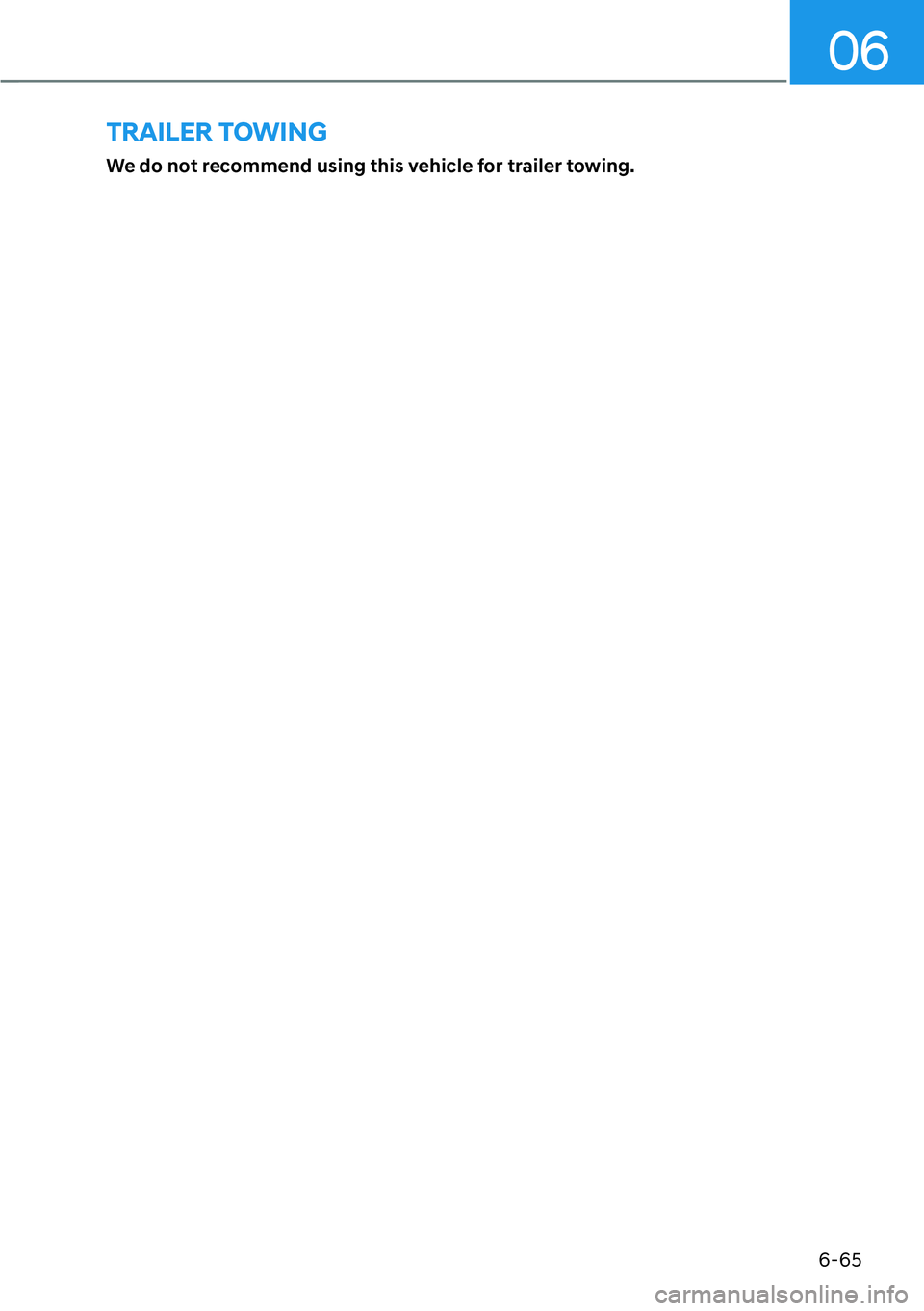

TRAILER TOWING
We do not recommend using this vehicle for trailer towing.

7

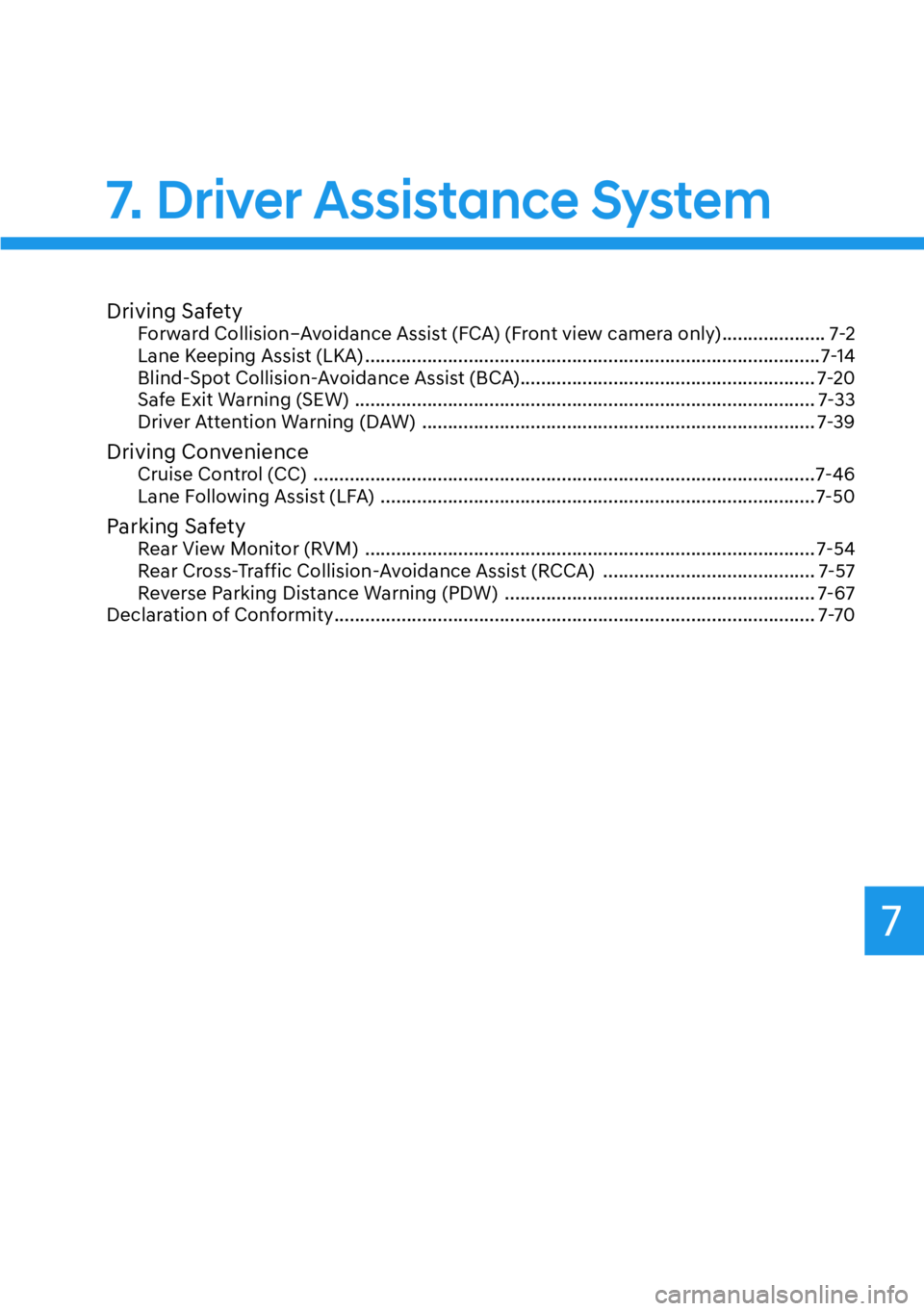

7. Driver Assistance System
Driving SafetyForward Collision–Avoidance Assist (FCA) (Front view camera only) .................... 7-2
Lane Keeping Assist (LKA) ........................................................................\
................ 7-14
Blind-Spot Collision-Avoidance Assist (BCA) ......................................................... 7-20
Safe Exit Warning (SEW) ........................................................................\
................. 7-33
Driver Attention Warning (DAW) ........................................................................\
.... 7-39
Driving ConvenienceCruise Control (CC) ........................................................................\
......................... 7-46
Lane Following Assist (LFA) ........................................................................\
............ 7-50
Parking SafetyRear View Monitor (RVM) ........................................................................\
............... 7-54
Rear Cross-Traffic Collision-Avoidance Assist (RCCA) ......................................... 7-57
Reverse Parking Distance Warning (PDW) ............................................................ 7-67
Declaration of Conformity ........................................................................\
..................... 7-70

Driver Assistance System7-2
OTM070237
Forward Collision-Avoidance Assist is
designed to help detect and monitor the
vehicle ahead or detect a pedestrian in
the roadway. It will warn the driver that
a collision is imminent with a warning
message, and an audible warning. It may
apply emergency braking as needed.
Detecting sensor
OOSN051017N[1] : Front view camera
Refer to the picture above for the
detailed location of the detecting sensor.
CAUTION
Take the following precautions to
maintain optimal performance of the
detecting sensor:

[ Never disassemble the detecting
sensor or sensor assembly, or cause
any damage to it.

[ If the detecting sensor has been
replaced or repaired, have your
vehicle inspected by an authorized
HYUNDAI dealer.

[ Never install any accessories or
stickers on the front windshield, or
tint the front windshield.

[ Pay extreme caution to keep the
front view camera dry.

[ Never place any reflective objects
(for example, white paper, mirror)
over the dashboard.
)25:$5'&2//,6,21

07
7-3

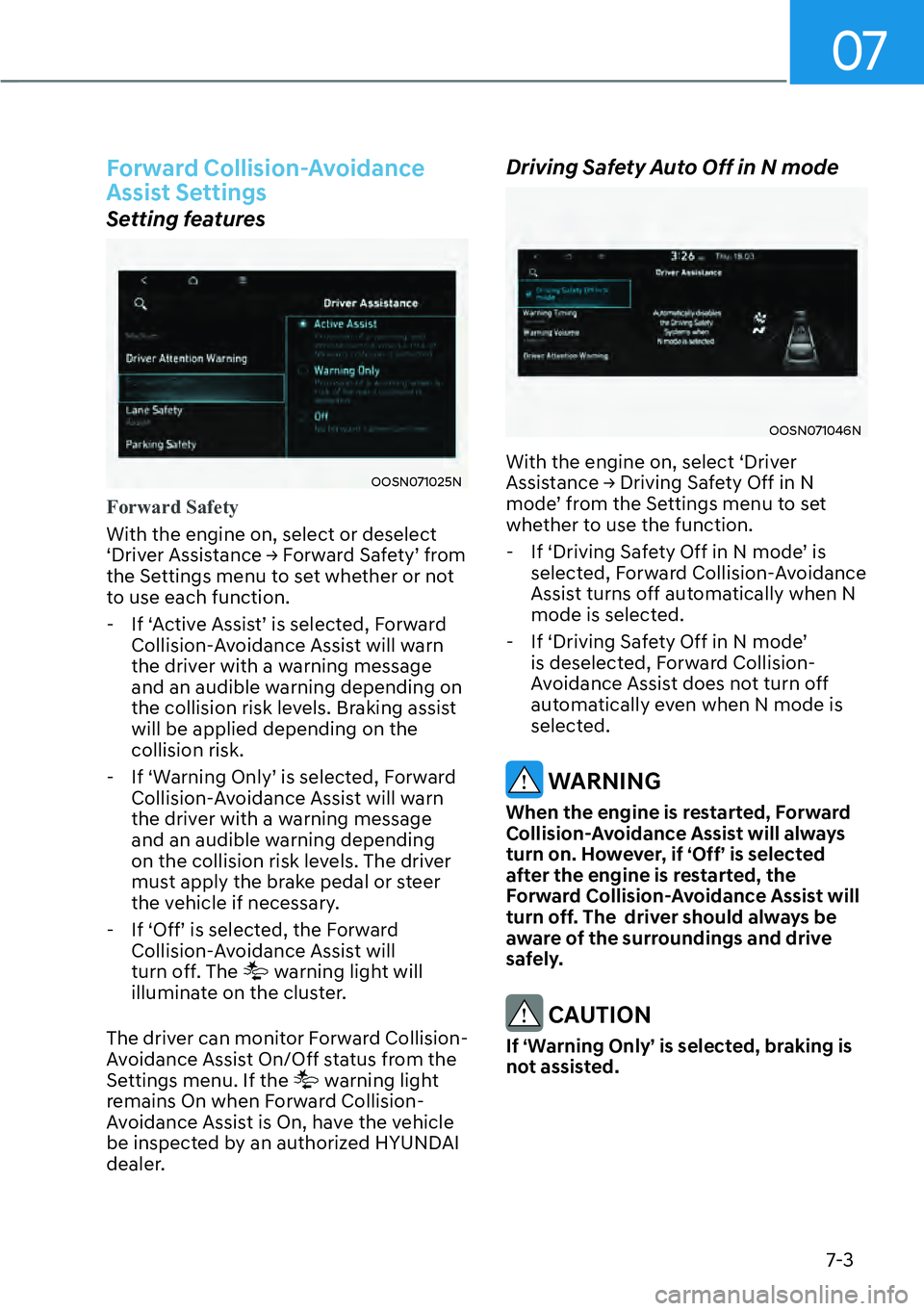

Forward Collision-Avoidance
Assist Settings
Setting features
OOSN071025N
Forward Safety
With the engine on, select or deselect

S'ULY
HU$VVLVWDQFH

Driver Assistance System7-4
Information

[ Forward Collision-Avoidance Assist
will turn off when ESC is turned off
by pressing and holding the ESC OFF
button. The
warning light will
illuminate on the cluster.

[ Driving Safety system includes
Forward Collision-Avoidance Assist,
Lane Keeping Assist, Blind-Spot
Collision-Avoidance Assist and Driver
Attention Warning.

[ You can turn on the Forward Collision
Avoidance Assist by selecting ‘Active
Assist’ or ‘Warning Only’ while
automatically turned off due to N mode
operation.

[ If N mode is turned off, Forward
Collision-Avoidance Assist returns to its
last setting.

[ For more details on N mode setup, refer
to “Drive Mode Integrated Control
System” section in chapter 6.
OOSN071026N
Warning Timing
With the engine on, select ‘Driver
$VVLV

WDQFH

07
7-5

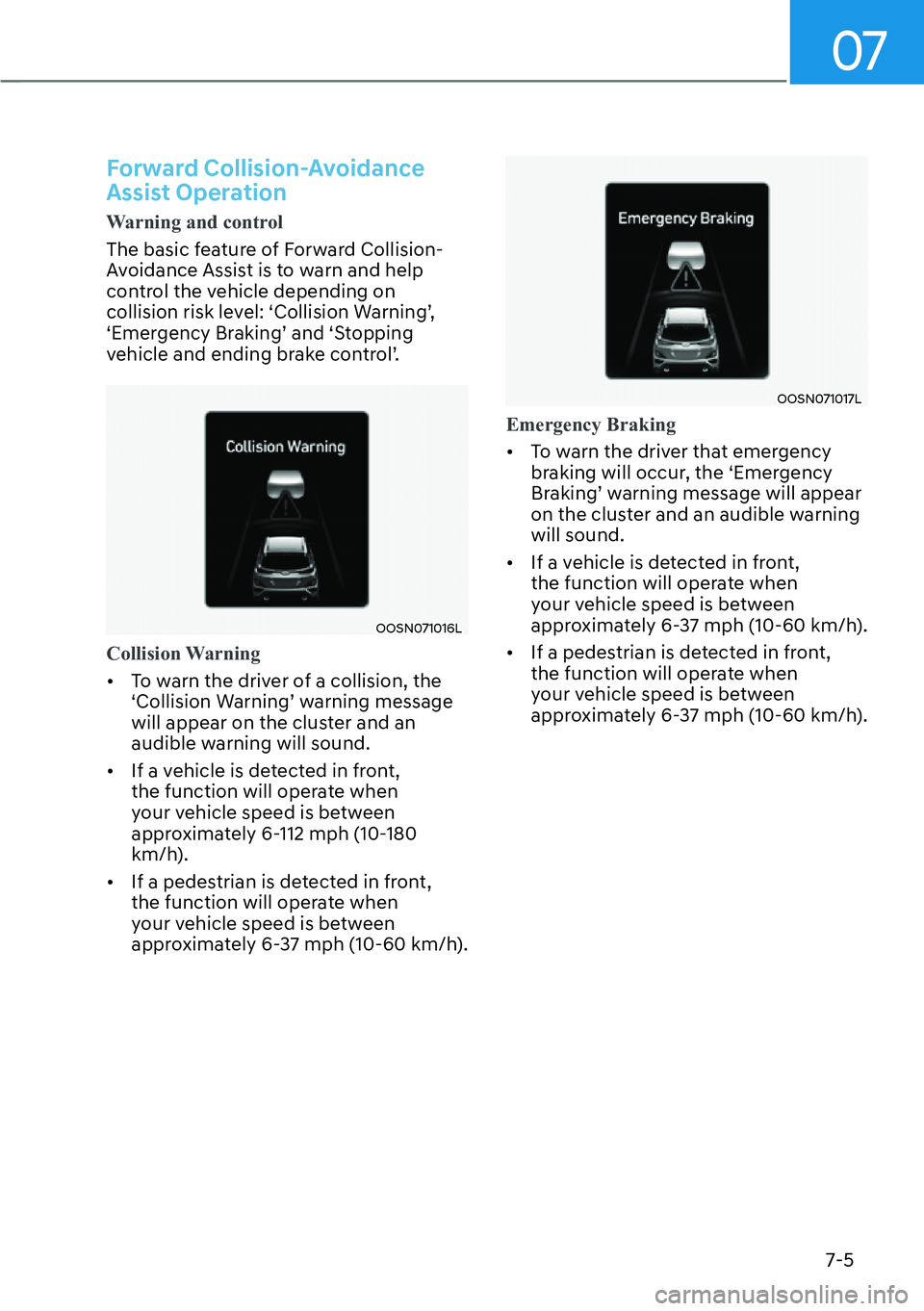

Forward Collision-Avoidance
Assist Operation
Warning and control
The basic feature of Forward Collision-
A
voidance Assist is to warn and help
control the vehicle depending on
FROOLVLRQULVNOHYHO
S&ROOLVLRQ:DUQLQJ
T

S(PHUJHQF\%UDNLQJ
TDQG
S6WRSSLQJ
YHKLFOHDQGHQGLQJEUDNHFRQWURO
T
OOSN071016L
Collision Warning

[ T
o warn the driver of a collision, the

S&ROOLVLRQ:DUQLQJ
TZDUQLQJPHVVDJH
will appear on the cluster and an
audible warning will sound.

[ If a vehicle is detected in front,
the function will operate when
your vehicle speed is between
approximately 6-112 mph (10-180
km/h).

[ If a pedestrian is detected in front,
the function will operate when
your vehicle speed is between
approximately 6-37 mph (10-60 km/h).
OOSN071017L
Emergency Braking

[T
o warn the driver that emergency
braking will occur, the ‘Emergency
%UDNLQJ
TZDUQLQJPHVVDJHZLOODSSHDU
on the cluster and an audible warning
will sound.

[ If a vehicle is detected in front,
the function will operate when
your vehicle speed is between
approximately 6-37 mph (10-60 km/h).

[ If a pedestrian is detected in front,
the function will operate when
your vehicle speed is between
approximately 6-37 mph (10-60 km/h).

Driver Assistance System7-6
OTM070059L
Stopping vehicle and ending brake control

[ When the v
ehicle is stopped due
to emergency braking, the ‘Drive
FDUHIXOO\
TZDUQLQJPHVVDJHZLOO
appear on the cluster.
For your safety, the driver should
depress the brake pedal immediately
and check the surroundings.

[ Brake control will end after the vehicle
is stopped by emergency braking for
approximately 2 seconds.
WARNING
Take the following precautions when
using Forward Collision-Avoidance
Assist:

[For your safety, change the Settings
after parking the vehicle at a safe
location.

[ With ‘Active Assist’ or ‘Warning Only’
selected, when ESC is turned off by
pressing and holding the ESC OFF
button, Forward Collision-Avoidance
Assist will turn off automatically.
In this case, Forward Collision-
Avoidance Assist cannot be set
from the Settings menu and the

warning light will illuminate on the
cluster which is normal. If ESC is
turned on by pressing the ESC OFF
button, Forward Collision-Avoidance
Assist will maintain the last setting.
[
Forward Collision-Avoidance Assist
does not operate in all situations or
cannot avoid all collisions.

[ The driver should hold the
responsibility to control the vehicle.
Do not solely depend on Forward
Collision-Avoidance Assist. Rather,
maintain a safe braking distance,
and, if necessary, depress the brake
pedal to reduce driving speed or to
stop the vehicle.

[ Never deliberately operate Forward
Collision-Avoidance Assist on people,
objects, etc. It may cause serious
injury or death.

[ Forward Collision-Avoidance
Assist may not operate if the driver
depresses the brake pedal to avoid
collision.

[ Depending on the road and driving
conditions, Forward Collision-
Avoidance Assist may warn the driver
late or may not warn the driver.

[ During Forward Collision-Avoidance
Assist operation the vehicle may
stop suddenly injuring passengers
and shifting loose objects. Always
have the seat belt on and keep loose
objects secured.

[ If any other function’s warning
message is displayed or audible
warning is generated, Forward
Collision-Avoidance Assist warning
message may not be displayed
and audible warning may not be
generated.

[ You may not hear the warning sound
of Forward Collision-Avoidance
Assist if the surrounding is noisy.

[ Forward Collision-Avoidance
Assist may turn off or may not
operate properly or may operate
unnecessarily depending on the road
conditions and the surroundings.
