2023 HYUNDAI KONA Owners Manual

07
7-31

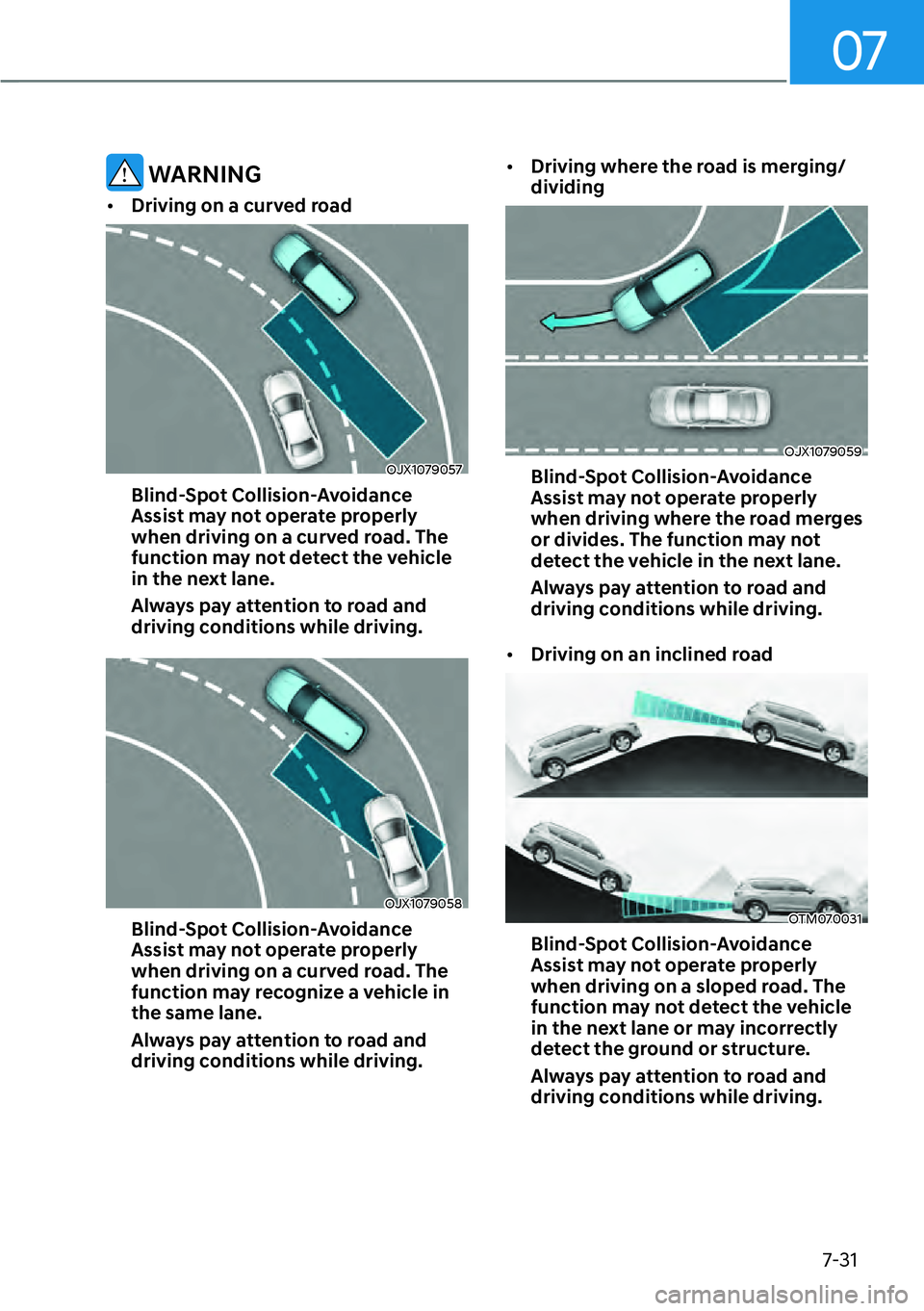

WARNING

[Driving on a curved road
OJX1079057
Blind-Spot Collision-Avoidance
Assist may not operate properly
when driving on a curved road. The
function may not detect the vehicle
in the next lane.
Always pay attention to road and
driving conditions while driving.
OJX1079058
Blind-Spot Collision-Avoidance
Assist may not operate properly
when driving on a curved road. The
function may recognize a vehicle in
the same lane.
Always pay attention to road and
driving conditions while driving.
[
Driving where the road is merging/
dividing
OJX1079059
Blind-Spot Collision-Avoidance
Assist may not operate properly
when driving where the road merges
or divides. The function may not
detect the vehicle in the next lane.
Always pay attention to road and
driving conditions while driving.

[ Driving on an inclined road
OTM070031
Blind-Spot Collision-Avoidance
Assist may not operate properly
when driving on a sloped road. The
function may not detect the vehicle
in the next lane or may incorrectly
detect the ground or structure.
Always pay attention to road and
driving conditions while driving.

Driver Assistance System7-32

[ Driving where the heights of the
lanes are different
OOSN071003L
Blind-Spot Collision-Avoidance
Assist may not operate properly
when driving where the heights of
the lanes are different. The function
may not detect the vehicle on a
road with different lane heights
(underpass joining section, grade
separated intersections, etc.).
Always pay attention to road and
driving conditions while driving.
WARNING

[When you are towing a trailer or
another vehicle, make sure that
you turn off Blind-Spot Collision-
Avoidance Assist.

[ Blind-Spot Collision-Avoidance
Assist may not operate properly if
interfered by strong electromagnetic
waves.

[ Blind-Spot Collision-Avoidance
Assist may not operate for 15 seconds
after the vehicle is started, or the
front view camera or rear corner
radars are initialized.
Information
This device complies with Part 15 of the
FCC rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user’s
authority to operate the device.

07
7-33

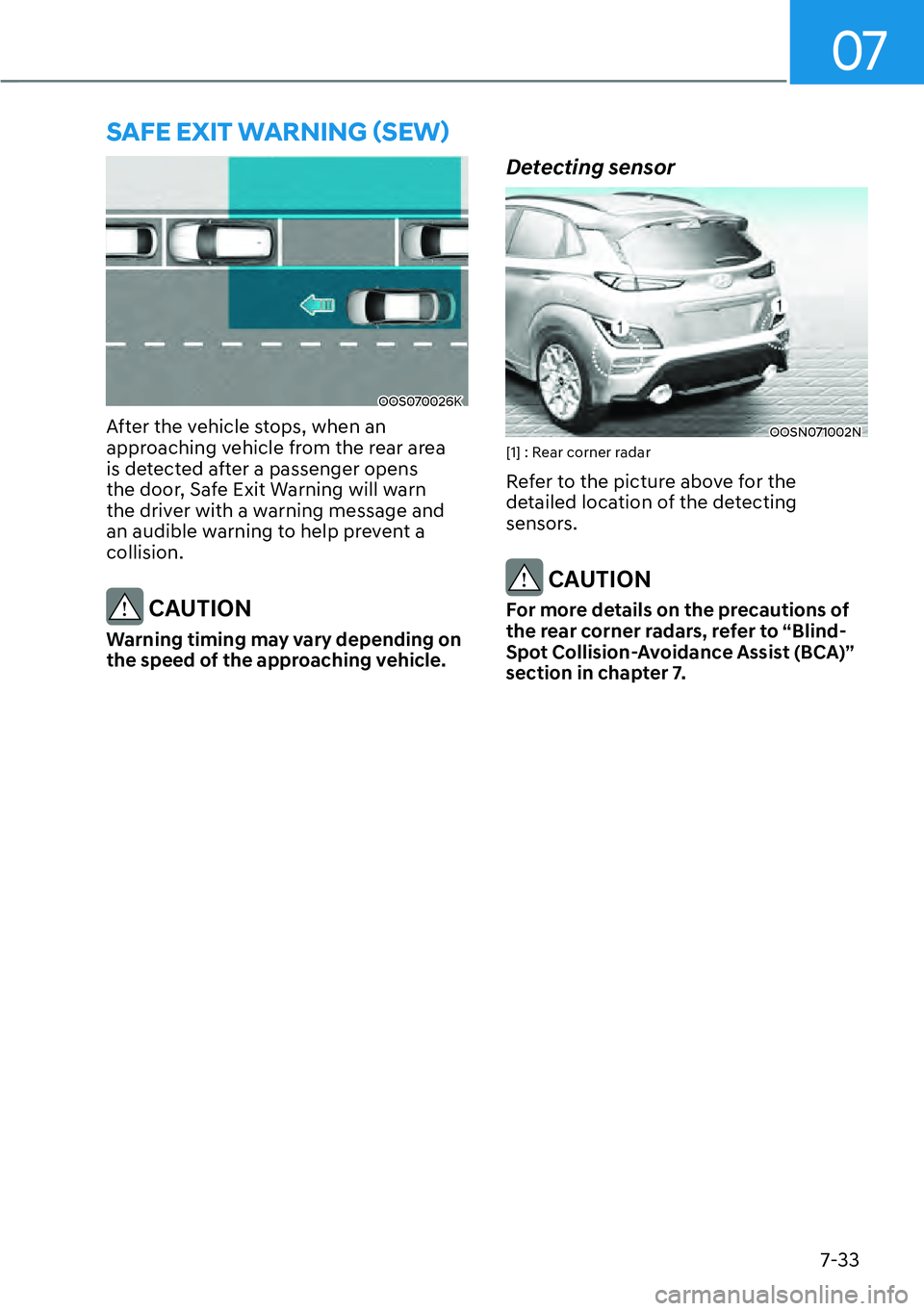

6$)((;,7:$51,1*

Driver Assistance System7-34

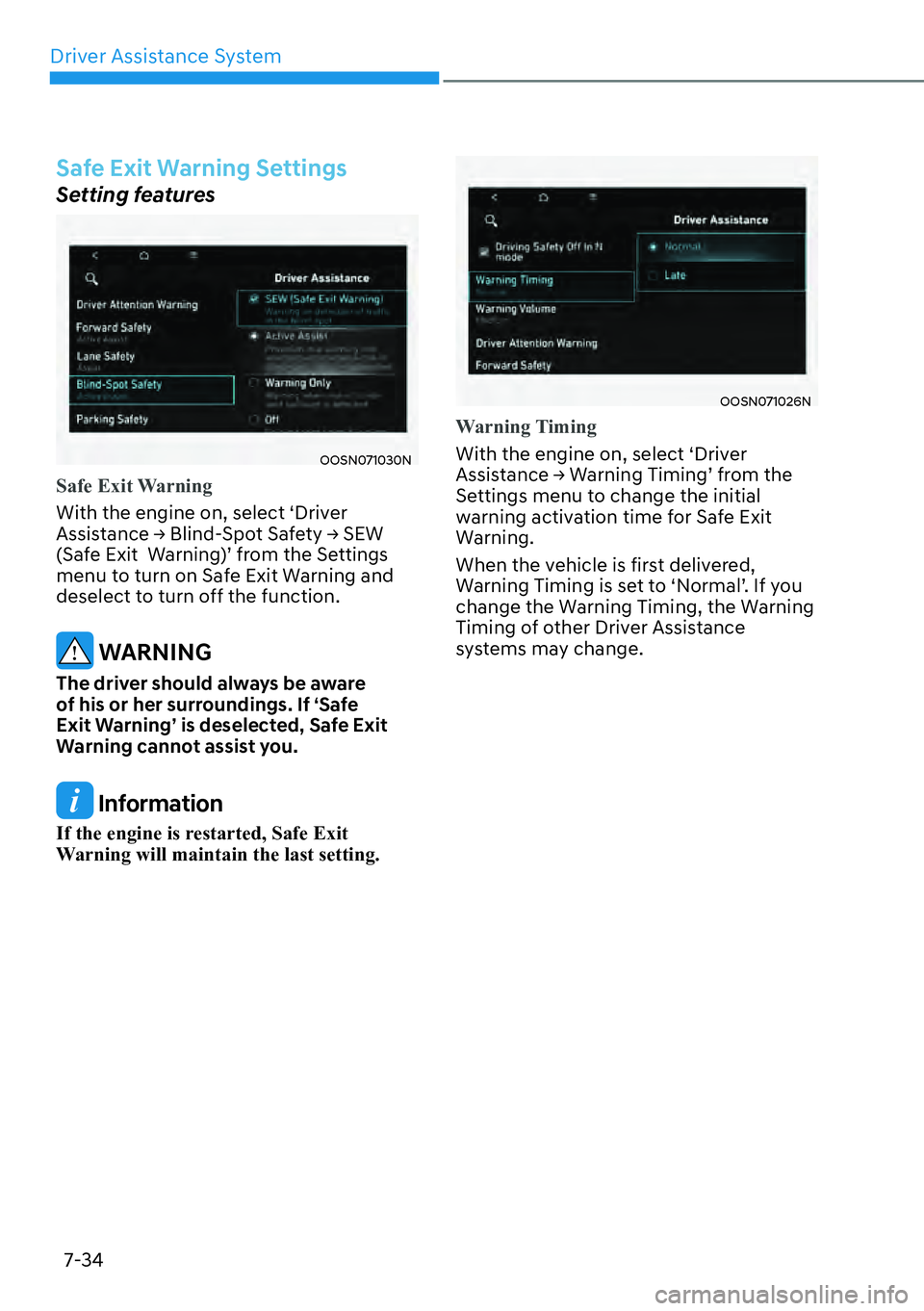

Safe Exit Warning Settings
Setting features
OOSN071030N
Safe Exit Warning
With the engine on, select ‘Driver
$VVLV
WDQFH

07
7-35
OOSN071027N

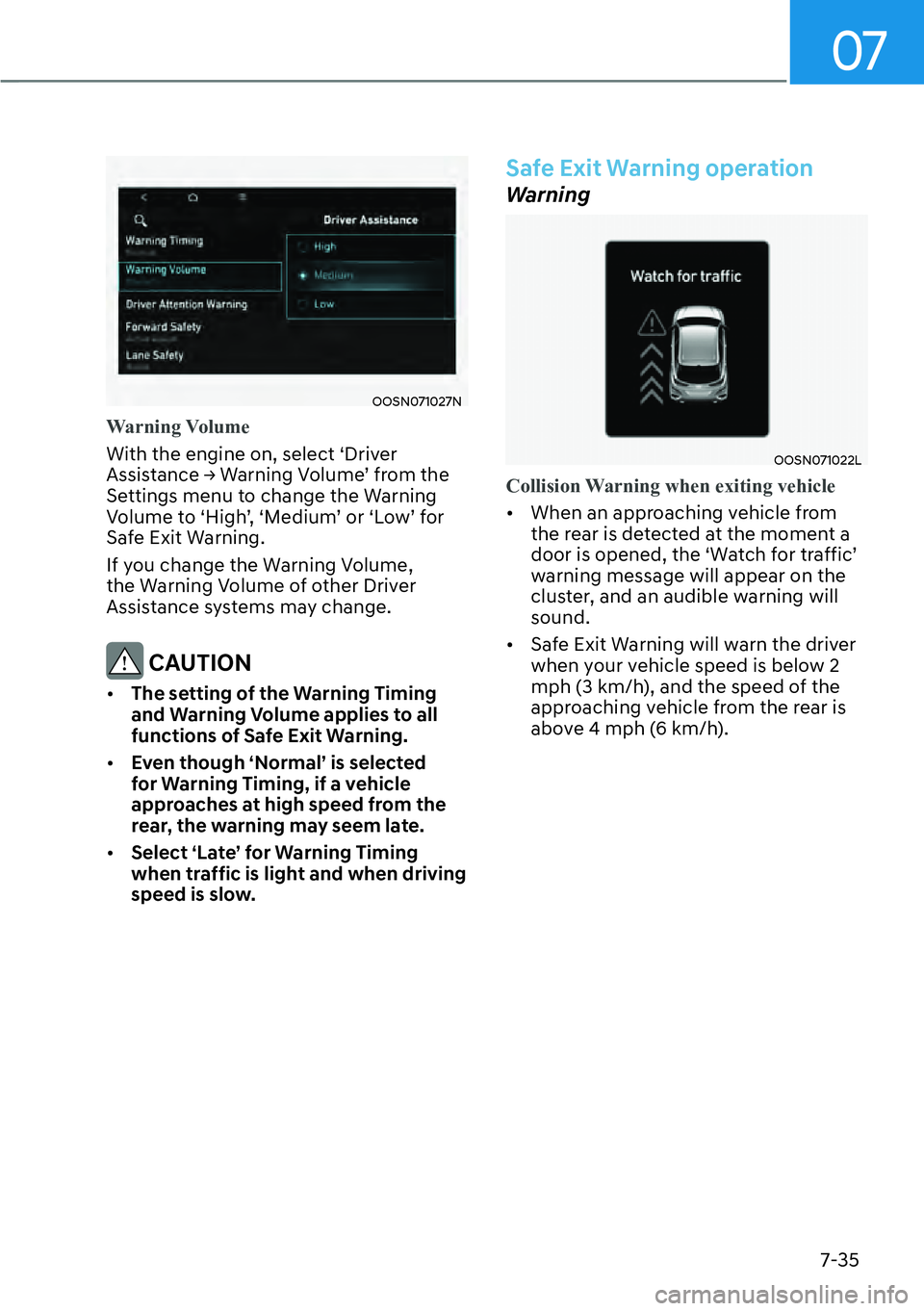

Warning Volume
With the engine on, select ‘Driver
$VVLV
WDQFH

Driver Assistance System7-36
WARNING
Take the following precautions when
using Safe Exit Warning:

[ For your safety, change the Settings
after parking the vehicle at a safe
location.

[ If any other system’s warning
message is displayed or audible
warning is generated, Safe Exit
Warning's warning message may not
be displayed and audible warning
may not be generated.

[ You may not hear the warning
sound of Safe Exit Warning if the
surrounding is noisy.

[ Safe Exit Warning does not operate
in all situations or cannot prevent all
collisions.

[ Safe Exit Warning may warn the
driver late or may not warn the driver
depending on the road and driving
conditions. Always check vehicle
surroundings.

[ The driver and passengers are
responsible for accidents that occurs
while exiting the vehicle. Always
check the surroundings before you
exit the vehicle.

[ Never deliberately operate Safe
Exit Warning. Doing so may lead to
serious injury or death.

[ Safe Exit Warning does not operate
if there is a problem with Blind- Spot
Collision-Avoidance Assist. The
warning message of Blind- Spot
Collision-Avoidance Assist will
appear when:
- Blind- Spot Collision-Avoidance
Assist sensor or the sensor
surrounding is polluted or covered
- Blind- Spot Collision-Avoidance
Assist fails to warn passengers or
falsely warn passengers
- Blind- Spot Collision-Avoidance
Assist warning light appears
Information

[ After the engine is turned off, Safe Exit
Warning operates approximately for 3
minutes, but turns off immediately if
the doors are locked.

[ Images or colors may appear
differently depending on the instrument
panel specifications or theme.
Safe Exit Warning Malfunction
and Limitations
Safe Exit Warning malfunction
OTM070099N
When Safe Exit Warning is not working
properly, the ‘Check Blind-Spot Safety
V\VWHP
TZDUQLQJPHVVDJHZLOODSSHDURQ
the cluster for several seconds, and the
master (
) warning light will illuminate
on the cluster. If the master warning light
illuminates, have the vehicle inspected
by an authorized HYUNDAI dealer.

07
7-37
OTM070100N
When the outside rearview mirror
warning light is not working properly,
the ‘Check side view mirror warning
OLJKW
TZDUQLQJPHVVDJHZLOODSSHDURQ
the cluster for several seconds, and the
master (
) warning light will illuminate
on the cluster. If the master warning light
illuminates, have the vehicle inspected
by an authorized HYUNDAI dealer.
Safe Exit Warning disabled
OOSN071076N
When the rear bumper around the rear
corner radar or sensor is covered with
foreign material, such as snow or rain,
or installing a trailer or carrier, it can
reduce the detecting performance and
temporarily limit or disable Safe Exit
Warning.
If this occurs, the ‘Blind-Spot Safety
V\VWHPGLVDEOHG5DGDUEORFNHG
TZDUQLQJ
message will appear on the cluster.
Safe Exit Warning will operate properly
when such foreign material or trailer,
etc., is removed, and then the engine is
restarted.
If Safe Exit Warning does not operate
properly after it is removed, have the
vehicle inspected by an authorized
HYUNDAI dealer.

Driver Assistance System7-38
WARNING

[ Even though the warning message
does not appear on the cluster,
Safe Exit Warning may not properly
operate.

[ Safe Exit Warning may not properly
operate in an area (for example,
open terrain) where any objects are
not detected right after the engine
is turned on, or when the detecting
sensor is blocked with foreign
material right after the engine is
turned on.
CAUTION
Turn off Safe Exit Warning to install
or remove a trailer, carrier, or
another attachment. Turn on Safe
Exit Warning when finished. Limitations of Safe Exit Warning
Safe Exit Warning may not operate
properly, or it may operate unexpectedly
under the following circumstances:

[
Getting out of the vehicle where trees
or grass are overgrown

[ Getting out of the vehicle where the
road is wet

[ The approaching vehicle is very fast or
very slow
Information
For more details on the limitations of the
rear corner radar, refer to “Blind- Spot
Collision-Avoidance Assist (BCA)” section
in chapter 7.
WARNING

[Safe Exit Warning may not operate
properly if interfered by strong
electromagnetic waves.

[ Safe Exit Warning may not operate
for 3 seconds after the vehicle is
started, or the rear corner radars are
initialized.
Information
This device complies with Part 15 of the
FCC rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user’s
authority to operate the device.
