2023 HYUNDAI KONA Owners Manual

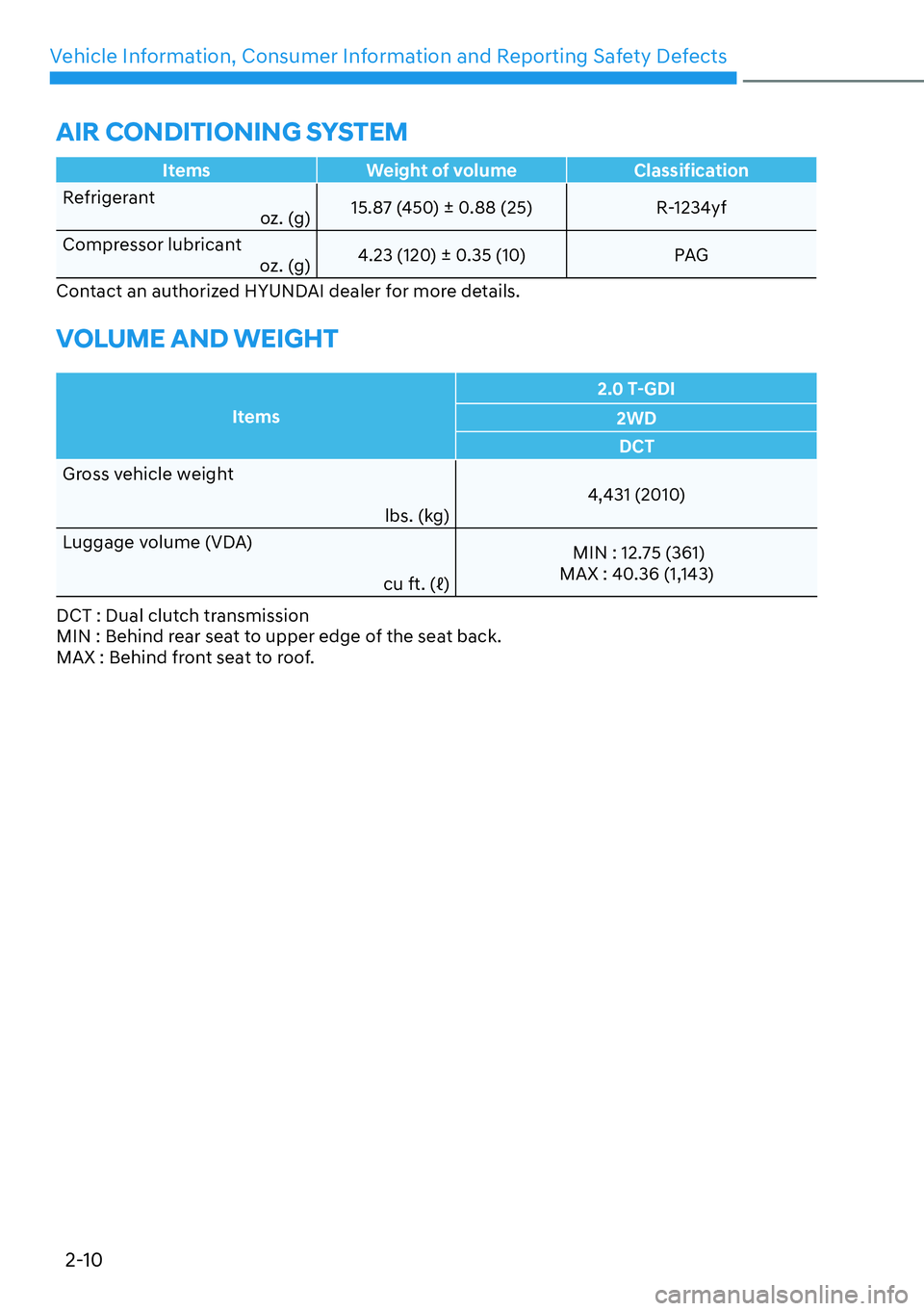

Vehicle Information, Consumer Information and Reporting Safety Defects2-10
Items Weight of volume Classification
Refrigerant o
z. (g)15.87 (450) ± 0.88 (25) R-1234yf
Compressor lubricant oz. (g)4.23 (120) ± 0.35 (10) PAG
Contact an authorized HYUNDAI dealer for more details.
VOLUME AND WEIGHT
Items 2.0 T-GDI
2WD DCT
Gross vehicle weight
lbs. (k
g) 4,431 (2010)
Luggage volume (VDA) FXIW
b MIN : 12.75 (361)
MAX : 40.36 (1,143)
DCT : Dual clutch transmission
MIN : Behind rear seat to upper edge of the seat back.
MAX : Behind front seat to roof.
AIR CONDITIONING SYSTEM

02
2-11
RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only
lubricants of the proper quality. The correct lubricants also help promote engine
efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
LubricantVolumeClassification
Engine oil
*1 *2 *3
(drain and refill)
Recommends
5.49 US qt.
b SAE 0W-30 API SN PLUS/SP or
ILSAC GF-6 *4
Dual clutch
transmission fluid Gear oil
3.4 US qt.

b GS WDCTF HD G (GS CALTEX)
Control oil 2.58 US qt.

b GS WDCTF HD H (GS CALTEX)
Coolant 7.3 US qt.

b Mixture of antifreeze and distilled
water (Ethylene-glycol with
phosphate based coolant for
aluminum radiator)
Brake fluid 0.74 ~ 0.85 US qt
a
b DOT4
Fuel 13.21 US gal.
(50
b) Refer to “Fuel Requirements” in the
Introduction chapter.
*1 : Refer to the recommended SAE viscosity numbers on the next page.
*2 : For the best performance of braking and ABS/ESC functions, you should use genuine
brake fluid that conform to standards. (Standards: SAE J1704 DOT-4 LV, ISO4925 CLASS-6
and FMVSS116 DOT-4)
*3 : An engine oil displaying this American Petroleum Institute(API) Certification
Mark conforms to the International Lubricant Specification Advisory
Committee (ILSAC). It is recommended to only use engine oils that uphold
this API Certification Mark.
*4 : Requires < API SN PLUS (or above) Full synthetic> grade engine oil. If a lower grade
engine oil (mineral oil including Semi-synthetic) is used, then the engine oil and engine
oil filter must be replaced as indicated severe maintenance condition.

Vehicle Information, Consumer Information and Reporting Safety Defects2-12
Recommended SAE Viscosity Number
CAUTION
Always be sure to clean the area around any filler plug, drain plug, or dipstick before
checking or draining any lubricant. This is especially important in dusty or sandy
areas and when the vehicle is used on unpaved roads. Cleaning the plug and dipstick
areas will prevent dirt and grit from entering the engine and other mechanisms that
could be damaged.
Engine oil viscosity (thickness) has an effect on fuel economy and cold weather
operating (engine start and engine oil flowability). Lower viscosity engine oils can
provide better fuel economy and cold weather performance, however, higher viscosity
engine oils are required for satisfactory lubrication in hot weather. Using oils of any
viscosity other than those recommended could result in engine damage.
When choosing an oil, consider the range of temperature your vehicle will be operated
in before the next oil change. Proceed to select the recommended oil viscosity from
the chart.
Temperature Range for SAE Viscosity Numbers
Temperature °C -30 -20 -10 0 10 20 30 40 50
(°F) -10 0 20 40 60 80 100 120
Engine Oil
0W-30

02
2-13
VEHICLE IDENTIFICATION
180%(5
ã9,1
ä
„Frame number
OOS087001
The vehicle identification number (VIN)
is the number used in registering your
vehicle and in all legal matters pertaining
to its ownership, etc.
The number is punched on the floor
under the passenger seat. To check the
number, open the cover.
„VIN label (if equipped)
OOS087006L
The VIN is also on a plate attached to
the top of the left side dashboard. The
number on the plate can easily be seen
through the windshield from outside.
VEHICLE CERTIFICATION
LABEL
OOSN011020N
The vehicle certification label attached
on the driver’s (or front passenger’s)
side center pillar gives the vehicle
identification number (VIN).
TIRE SPECIFICATION AND
PRESSURE LABEL
OOSN011021N
The tires supplied on your new
vehicle are chosen to provide the best
performance for normal driving.
The tire label located on the driver’s
side center pillar gives the tire pressures
recommended for your vehicle.

Vehicle Information, Consumer Information and Reporting Safety Defects2-14

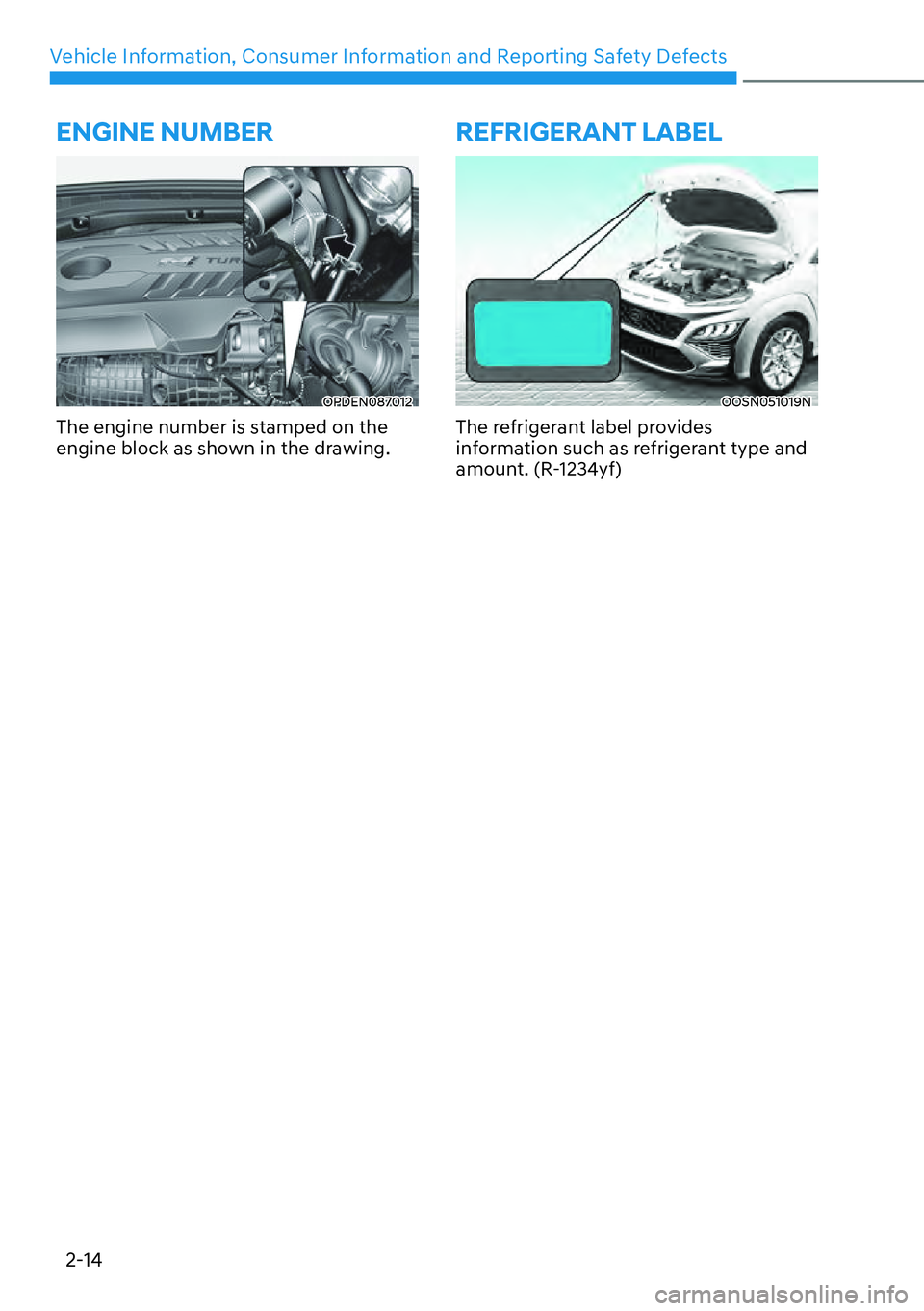

ENGINE NUMBER
OPDEN087012
The engine number is stamped on the
engine block as shown in the drawing.
REFRIGERANT LABEL
OOSN051019N
The refrigerant label provides
information such as refrigerant type and
amount. (R-1234yf)

02
2-15

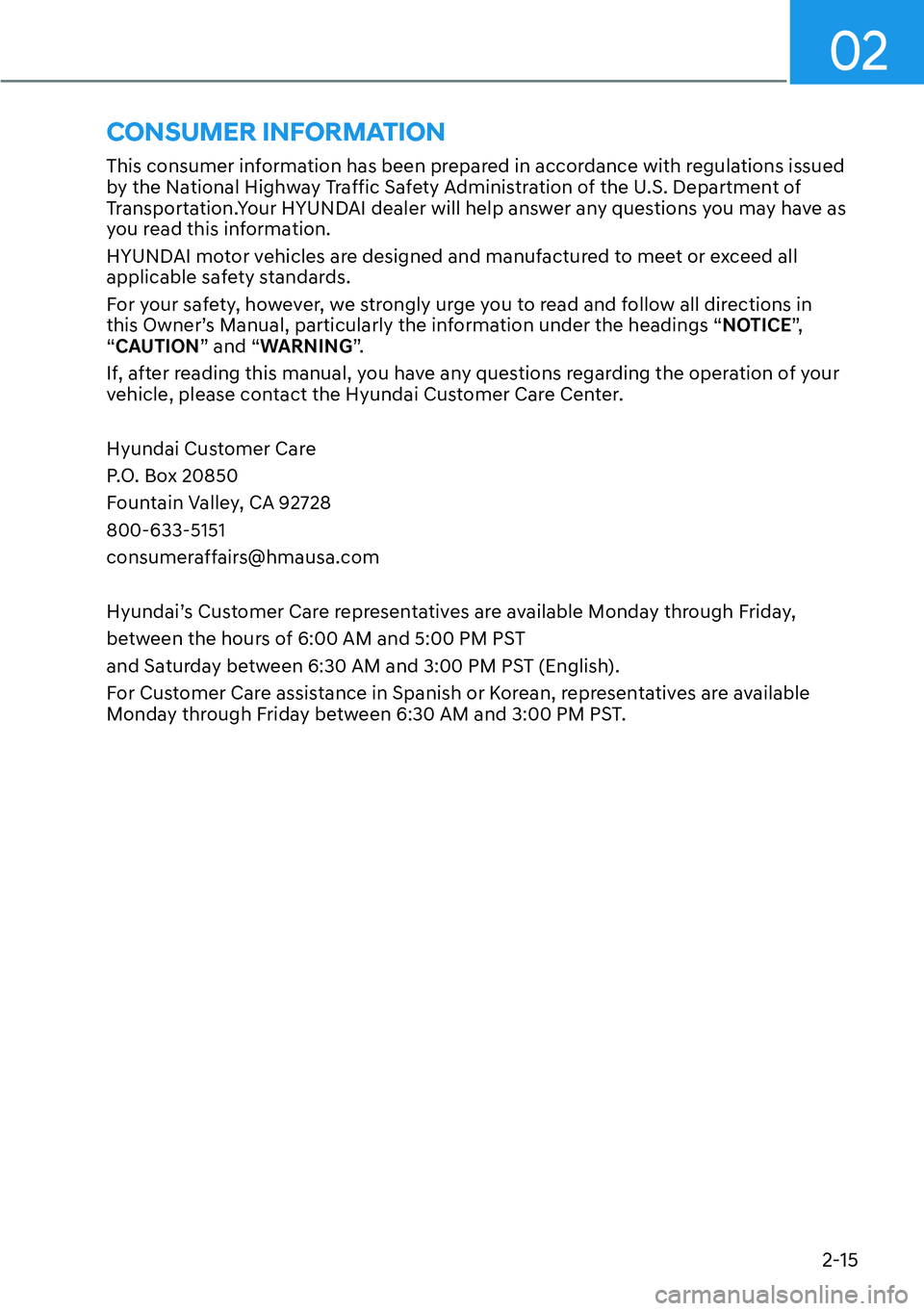

This consumer information has been prepared in accordance with regulations issued
by the National Highway Traffic Safety Administration of the U.S. Department of
Transportation.Your HYUNDAI dealer will help answer any questions you may have as
you read this information.
HYUNDAI motor vehicles are designed and manufactured to meet or exceed all
applicable safety standards.
For your safety, however, we strongly urge you to read and follow all directions in
this Owner’s Manual, particularly the information under the headings “NOTICE”,
“CAUTION” and “WARNING”.
If, after reading this manual, you have any questions regarding the operation of your
vehicle, please contact the Hyundai Customer Care Center.
Hyundai Customer Care
P.O. Box 20850
Fountain Valley, CA 92728
800-633-5151
[email protected]
Hyundai’s Customer Care representatives are available Monday through Friday,
between the hours of 6:00 AM and 5:00 PM PST
and Saturday between 6:30 AM and 3:00 PM PST (English).
For Customer Care assistance in Spanish or Korean, representatives are available
Monday through Friday between 6:30 AM and 3:00 PM PST.
CONSUMER INFORMATION

Vehicle Information, Consumer Information and Reporting Safety Defects2-16

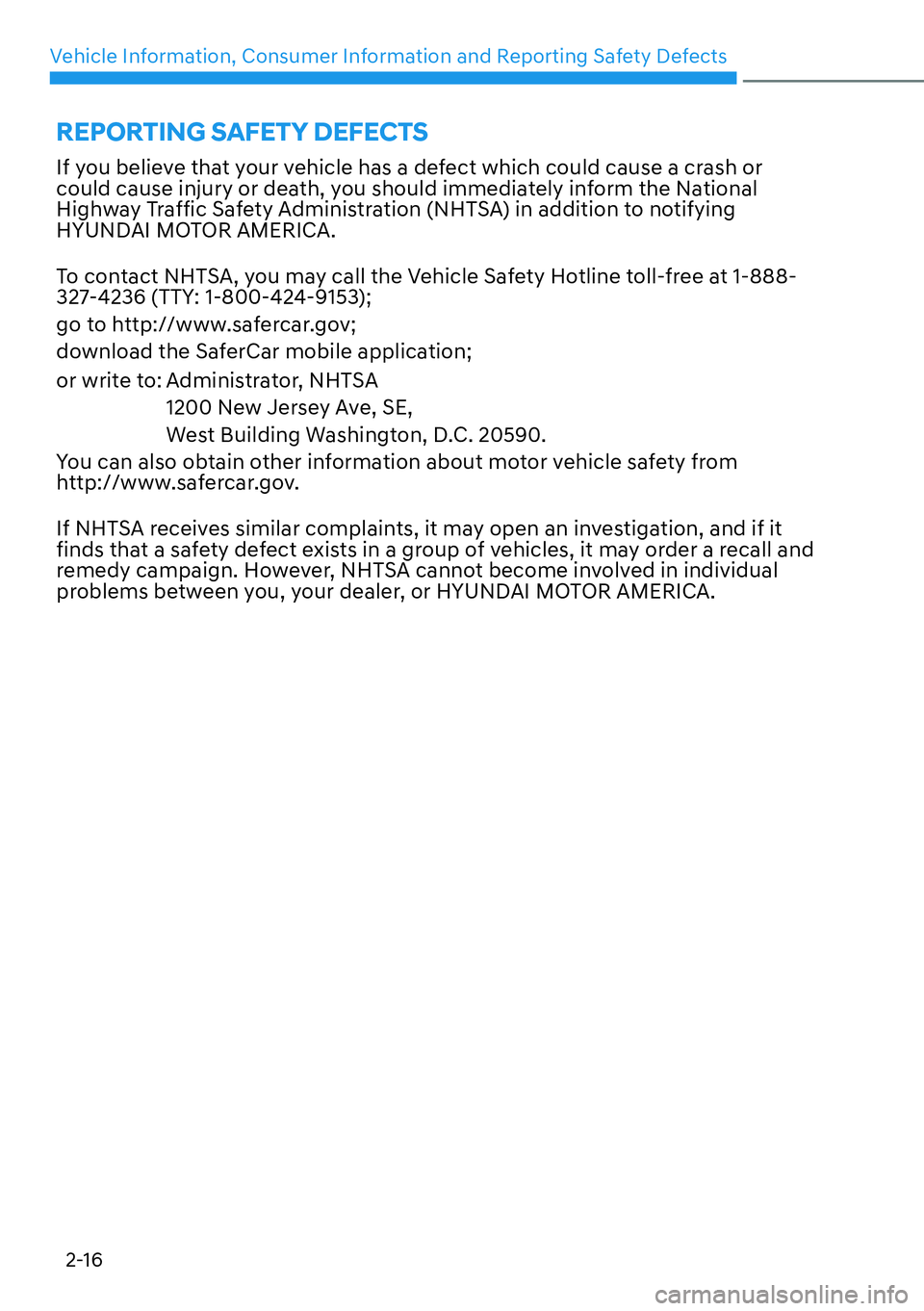

If you believe that your vehicle has a defect which could cause a crash or
could cause injury or death, you should immediately inform the National
Highway Traffic Safety Administration (NHTSA) in addition to notifying
HYUNDAI MOTOR AMERICA.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153);
go to http://www.safercar.gov;
download the SaferCar mobile application;
or write to: Administrator, NHTSA 1200 New Jersey Ave, SE,
West Building Washington, D.C. 20590.
You can also obtain other information about motor vehicle safety from
http://www.safercar.gov.
If NHTSA receives similar complaints, it may open an investigation, and if it
finds that a safety defect exists in a group of vehicles, it may order a recall and
remedy campaign. However, NHTSA cannot become involved in individual
problems between you, your dealer, or HYUNDAI MOTOR AMERICA.
REPORTING SAFETY DEFECTS

3
3. Seats & Safety System
Important Safety Precautions ........................................................................\
...3-2Always Wear Your Seat Belt ........................................................................\
................. 3-2
Restrain All Children ........................................................................\
............................. 3-2
Air Bag Hazards ........................................................................\
.................................... 3-2
Driver Distraction ........................................................................\
................................. 3-2
Control Your Speed ........................................................................\
.............................. 3-2
Keep Your Vehicle in Safe Condition ........................................................................\
... 3-2
Seats .....................................................................\
............................................. 3-3Safety Precautions ........................................................................\
...............................3-4
Front Seats ........................................................................\
............................................ 3-5
Rear Seats ........................................................................\
.............................................3-8
Head Restraints ........................................................................\
................................... 3-11
Seat Warmers ........................................................................\
.................................... 3-16
Seat Belts ........................................................................\
.................................. 3-18Seat Belt Safety Precautions ........................................................................\
............. 3-18
Seat Belt Warning Light ........................................................................\
..................... 3-19
Seat Belt Restraint System .....................................................................\
...................3-20
Additional Seat Belt Safety Precautions ................................................................... 3-25
Care of Seat Belts ........................................................................\
............................... 3-27
Child Restraint System (CRS) ........................................................................\
. 3-28Children Always in the Rear ........................................................................\
............... 3-28
Selecting a Child Restraint System (CRS) ................................................................. 3-29
Installing a Child Restraint System (CRS) .................................................................3-30
Air Bag - Supplemental Restraint System ..................................................... 3-39Where Are the Air Bags? ........................................................................\
.................... 3-41
How Does the Air Bags System Operate? ................................................................ 3-44
What to Expect After an Air Bag Inflates .................................................................. 3-47
Occupant Classification System (OCS) .................................................................... 3-48
Why Didn’t My Air Bag Go Off in a Collision? ...........................................................3-54
SRS Care ........................................................................\
.............................................3-59
Additional Safety Precautions ........................................................................\
.......... 3-60
Air Bag Warning Labels ........................................................................\
..................... 3-60
This chapter provides you with important information about how to protect yourself and your
passengers. It explains how to properly use your seats and seat belts, and how your air bags work.
Additionally, this chapter explains how to properly restrain infants and children in your vehicle.
