2023 HYUNDAI KONA Owners Manual

Emergency situations8-16
WARNING
Do not use the tire sealant after the
sealant has expired (for example, past
the expiration date on the sealant
container). This can increase the risk of
tire failure.
WARNING

[ Keep out of reach of children.

[ Avoid contact with eyes.

[ Do not swallow.
Using the Tire Mobility Kit
WARNING
OOSN081010L
Detach the speed restriction label (1)
from the sealant bottle (2), and place
it in a highly visible place inside the
vehicle such as on the steering wheel to
remind the driver not to drive too fast.

08
8-17
OOSN081025
1. Shake the sealant bottle (2).
2. Connect the filling hose (3) to the sealant bottle (2) in the direction of (A)
and connect the sealant bottle to the
compressor (6) in the direction of (B).
3. Ensure that the compressor is switched OFF.
OOSN081011N
4. Unscrew the valve cap from the valve of the defective wheel and screw the
filling hose (3) of the sealant bottle
onto the valve.
CAUTION
Securely install the sealant filling hose
to the valve. If not, sealant may flow
backward, possibly clogging the filling
hose.
OOSN081012L
5. Plug the compressor power cord (4) into the vehicle power outlet.
NOTICE
Only use the front passenger side
power outlet when connecting the
power cord.
6. Switch on the ignition switch.
7. Switch on the compressor and let it run for approximately 5~7 minutes to
fill the sealant up to proper pressure.
(refer to the Tire and Wheels, chapter
8). The inflation pressure of the tire
after filling is unimportant and will be
checked/corrected later.
Be careful not to overinflate the tire
and stay away from the tire when
filling it.

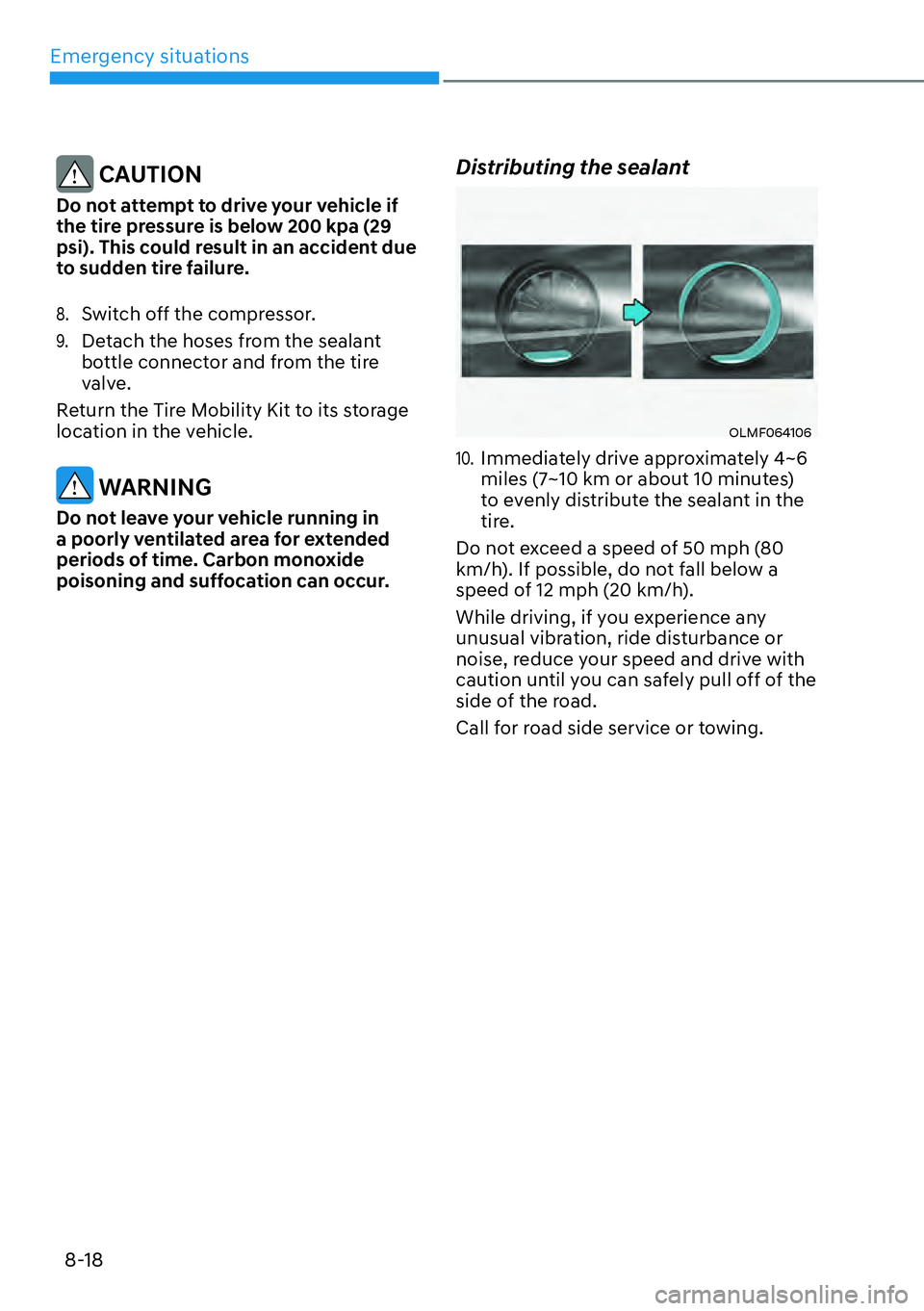

Emergency situations8-18
CAUTION
Do not attempt to drive your vehicle if
the tire pressure is below 200 kpa (29
psi). This could result in an accident due
to sudden tire failure.
8. Switch off the compressor.
9. Detach the hoses from the sealant
bottle connector and from the tire
valve.
Return the Tire Mobility Kit to its storage
location in the vehicle.
WARNING
Do not leave your vehicle running in
a poorly ventilated area for extended
periods of time. Carbon monoxide
poisoning and suffocation can occur.
Distributing the sealant
OLMF064106
10. Immediately drive approximately 4~6
miles (7~10 km or about 10 minutes)
to evenly distribute the sealant in the
tire.
Do not exceed a speed of 50 mph (80
km/h). If possible, do not fall below a
speed of 12 mph (20 km/h).
While driving, if you experience any
unusual vibration, ride disturbance or
noise, reduce your speed and drive with
caution until you can safely pull off of the
side of the road.
Call for road side service or towing.

08
8-19
OOSN081023
OOSN081011N
11. After driving approximately 4~6 miles
(7~10 km or about 10 minutes), stop at
a safe location.
12. Connect the filling hose (3) of the
compressor directly to the tire valve.
13. Plug the compressor power cord into
the vehicle power outlet.
14. Adjust the tire inflation pressure to the
recomended tire inflation.
With the ignition swithched on,
proceed as follows. - To increase the inflation pressure
: Switch on the compressor. To
check the current inflation pressure
setting, briefly switch off the
compressor.
- To reduce the inflation pressure:
Press the button (9) on the
compressor.
NOTICE
Do not let the compressor run for more
than 10 minutes, otherwise the device
will overheat and may be damaged.
CAUTION
If the inflation pressure is not
maintained, drive the vehicle a second
time, refer to Distributing the sealant.
Then repeat steps 1 to 14.
Use of the TMK may be ineffectual for
tire damage larger than approximately
0.16 inch (4 mm).
Contact an authorized HYUNDAI dealer
if the tire cannot be made roadworthy
with the Tire Mobility Kit.

Emergency situations8-20
How to Adjust Tire Pressure
OOSN081023
OOSN081011N
1. Park your vehicle in a safe location.
2. Connect the filling hose (3) of the compressor directly to the tire valve.
3. Plug the compressor power cord into the vehicle power outlet.
4. Adjust the tire inflation pressure to the recomended tire inflation.
With the ignition swithched on,
proceed as follows.
- To increase the inflation pressure
: Switch on the compressor. To
check the current inflation pressure
setting, briefly switch off the
compressor.
- To reduce the inflation pressure :
Press the button (9) on the
compressor.
NOTICE
Do not use the sealant when only
adjusting tire pressure.
Information
The pressure gauge may show higher than
actual reading when the compressor is
running. To get an accurate tire pressure,
the compressor needs to be turned off.
WARNING
The tire inflation pressure must be
inflated to the proper pressure (Refer to
“Tire and Wheels” section in chapter 2).
If it is not, do not continue driving.
Call for road side service or towing.
CAUTION
Tire pressure sensor
The sealant on the tire pressure sensor
and wheel should be removed when
you replace the tire with a new one and
inspect the tire pressure sensors. We
recommend that you get this done at an
authorized dealer.
Information
When reinstalling the repaired or replaced
tire and wheel on the vehicle, tighten the
wheel bolt to 79~94 lbf.ft (11~13 kgf.m).

08
8-21
Notes on the Safe Use of the Tire
Mobility Kit

[Park your car at the side of the road
so that you can work with the Tire
Mobility Kit away from moving traffic.

[ To be sure your vehicle will not move,
even when you’re on fairly level
ground, always set your parking brake.

[ Only use the Tire Mobility Kit for
sealing/inflation passenger car tires.
Only punctured areas located within
the tread region of the tire can be
sealed using the tire mobility kit.

[ Do not use on motorcycles, bicycles
or any other type of tires.

[ When the tire and wheel are
damaged, do not use Tire Mobility Kit
for your safety.

[ Use of the Tire Mobility Kit may not be
effective for tire damage larger than
approximately 0.16 inch (4 mm) or in
the sidewall.
Please contact the nearest HYUNDAI
dealer if the tire cannot be made
roadworthy with the Tire Mobility Kit.

[ Do not use the Tire Mobility Kit if a tire
is severely damaged by driving run flat
or with insufficient air pressure.

[ Do not remove any foreign objects
such as nails or screws that have
penetrated the tire.

[ Provided the car is outdoors, leave the
engine running. Otherwise operating
the compressor may eventually drain
the car battery.

[ Never leave the Tire Mobility Kit
unattended while it is being used.

[ Do not leave the compressor running
for more than 10 minutes at a time or
it may overheat.
[
Do not use the Tire Mobility Kit if the
ambient temperature is below -22°F
(30°C).

[ In case of skin contact with the
sealant, wash the area thoroughly
with plenty of water. If the irritation
persists, seek medical attention.

[ In case of eye contact with the
sealant, flush your eyes for at least 15
minutes. If the irritation persists, seek
medical attention.

[ In case of swallowing the sealant,
rinse the mouth and drink plenty of
water. However, never give anything
to an unconscious person and seek
medical attention immediately.

[ Long time exposure to the sealant
may cause damage to bodily tissue
such as kidney, etc.

Emergency situations8-22
TOWING
Towing Service
OOS067007L[A] : Dollies
If emergency towing is necessary,
we recommend having it done by
an authorized HYUNDAI dealer or a
commercial tow-truck service.
Proper lifting and towing procedures
are necessary to prevent damage to
the vehicle. The use of wheel dollies or
flatbed is recommended.
For 2WD vehicles, it is acceptable to tow
the vehicle with the rear wheels on the
ground (without dollies) and the front
wheels off the ground.
If any of the loaded wheels or suspension
components are damaged or the vehicle
is being towed with the rear wheels on
the ground, use a towing dolly under the
rear wheels.
When being towed by a commercial tow
truck and wheel dollies are not used,
the front of the vehicle should always be
lifted, not the rear.
NOTICE
Do not lift the vehicle by the tow fitting
or body and chassis parts. Otherwise
the vehicle may be damaged.
CAUTION

[ Do not tow the vehicle with the front
wheels on the ground as this may
cause damage to the vehicle.
OOS067022

[Do not tow with sling-type
equipment. Use wheel lift or flatbed
equipment.
OOS067021

08
8-23
WARNING
If your vehicle is equipped with a
rollover sensor, set the Engine Start/
Stop button in the OFF or ACC position
when the vehicle is being towed.
The side impact and curtain air bag
may deploy if the sensor detects the
situation as a rollover.
When towing your vehicle in an
emergency without wheel dollies:
1. Set the Engine Start/Stop button in the ACC position.
2. Place the shift lever in N (Neutral).
3. Release the parking brake.
CAUTION
Failure to place the shift lever in N
(Neutral) when being towed with the
front wheels on the ground can cause
internal damage to the transmission.
Removable Towing Hook
„Front
OOSN081008N
„Rear
OOSN081009L
1. Open the liftgate, and remove the towing hook from the tool case.
2. Remove the hole cover pressing the lower part of the cover on the front or
rear bumper.
3. Install the towing hook by turning it clockwise into the hole until it is fully
secured.
4. Remove the towing hook and install the cover after use.
