2023 HYUNDAI KONA Owners Manual

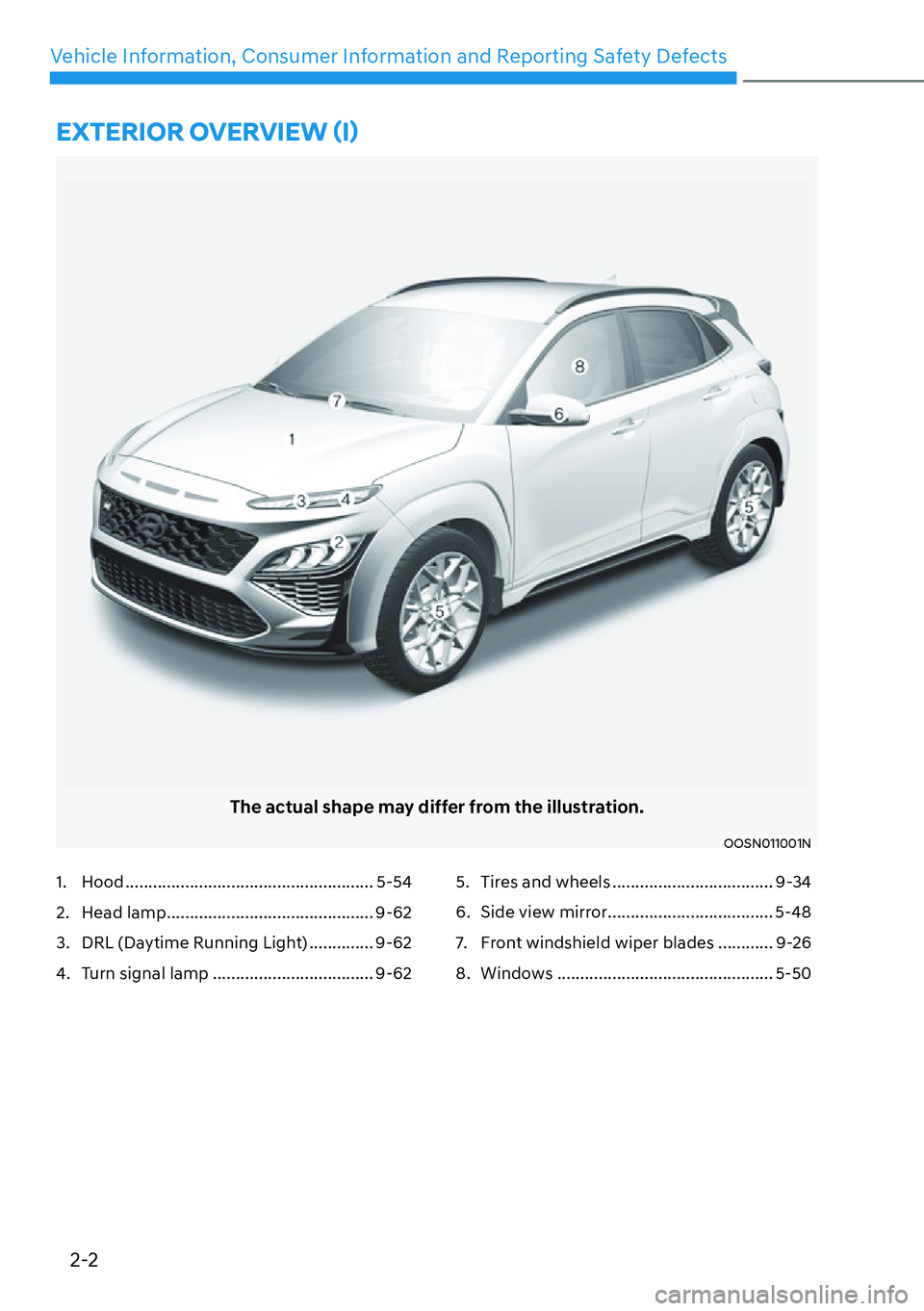

2-2
Vehicle Information, Consumer Information and Reporting Safety Defects
(;7(5,2529(59,(:

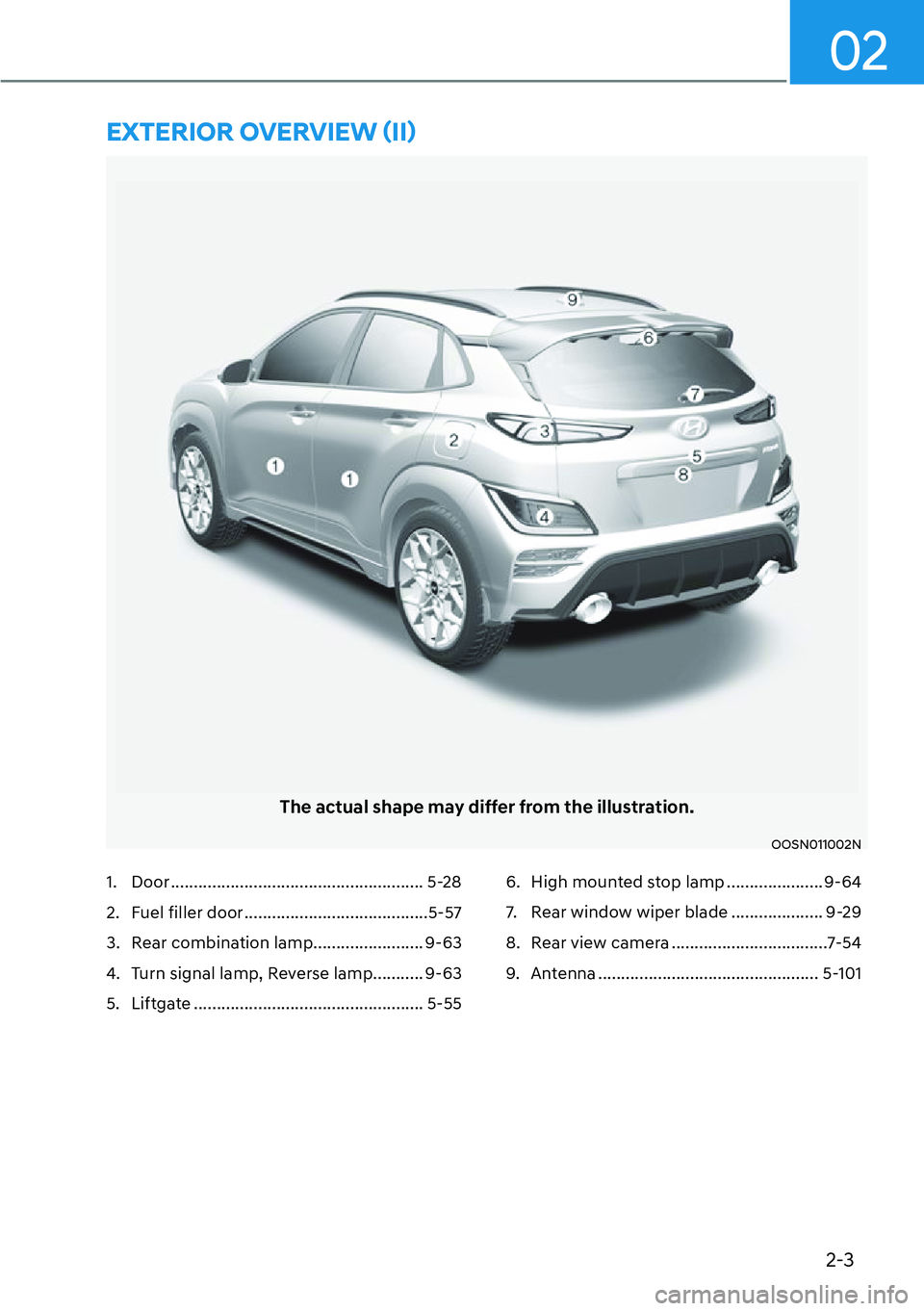

2-3
02
The actual shape may differ from the illustration.
OOSN011002N
(;7(5,2529(59,(:

2-4
Vehicle Information, Consumer Information and Reporting Safety Defects
1. Inside door handle ................................ 5-29
2. Side view mirror control ....................... 5-49
3. Central door lock switch ...................... 5-29
4. Power window lock switch .................. 5-33
5. Power window switches ....................... 5-51
6. Instrument panel illumination
control switch ......................................... 4-5 7. DBC button ........................................... 6-30
8. Hood release lever… ............................. 5-54
9. Steering wheel tilt/telescopic lever .... 5-34
10. Steering wheel ...................................... 5-33
11. Seat ......................................................... 3-3
,17(5,2529(59,(:

2-5
02
1. Instrument cluster .................................. 4-4
2. Horn ....................................................... 5-35
3. Driver’s front air bag .............................. 3-41
4. Engine Start/Stop button ....................... 6-5
5. Light control/Turn signals .................... 5-60
6. Wiper/Washer ....................................... 5-70
7. Infotainment system ........................... 5-101
8. Hazard warning flasher switch .............. 8-2
9. Automatic climate control system ....... 5-74
10. Passenger’s front air bag ...................... 3-41
11. Glove box .............................................. 5-88
12. USB Charger ......................................... 5-93
13. USB Port ............................................... 5-101
14. Power outlet .......................................... 5-92
15. Dual clutch transmission shift lever .....6-10 16. Drive mode knob .................................. 6-38
17. Seat warmer ........................................... 3-16
18. ESC off button ...................................... 6-23
19. Parking Safety button ........................... 7-68
20. Parking/ View button ............................7-55
21. Wireless Smart Phone Charging
System .................................................. 5-94
22. Cup holder ............................................. 5-91
23. Steering wheel audio controls/ Bluetooth® wireless technology
hands-free controls ......................5-102/103
24. Driving Assist button/ Lane Driving Assist button .................... 7-15
The actual shape may differ from the illustration.
OOSN011004N
,17(5,2529(59,(:

2-6
Vehicle Information, Consumer Information and Reporting Safety Defects
„Gasoline 2.0 T-GDI
The actual shape may differ from the illustration.
OOSN091011L
1. Engine coolant reservoir ....................... 9-19
Engine coolant cap ............................... 9-20
2. Fuse box ................................................ 9-48
3. Battery ................................................... 9-30
4. Brake fluid reservoir ............................. 9-22 5. Air cleaner ............................................. 9-24
6. Engine oil dipstick ................................. 9-16
7. Engine oil filler cap ................................ 9-17
8. Windshield washer fluid reservoir ....... 9-23
ENGINE COMPARTMENT

02
2-7
Itemsin. (mm)
Overall length 165.9 (4215)
O
verall width 70.86 (1800)
Overall height 61.02 (1550) / 61.61 (1565)*
1
Front tread235/40 R19 62.16 (1,579)
Rear tread 235/40 R19 62 (1,575)
Wheelbase 102.36 (2600)
*1 : with roof rack
ENGINE
Engine2.0 T-GDi
Displacement cu. in (
cc)121.9 cu.in (1998 cc)
Bore x Stroke in. (mm)3.39 X 3.39 in. (86.0 X 86.0 mm)
Firing order 1-3-4-2
No. of cylinders In-line 4 cylinder
DIMENSIONS

Vehicle Information, Consumer Information and Reporting Safety Defects2-8
Light Bulb Bulb TypeWattage
Front H
eadlamp
Low LED LED
High LED LED
Turn signal lamp LED LED Side marker LED LED
Turn signal lamp (side view mirror) LED LED Daytime running lamp (DRL) / position lamp LED LED
Rear Rear combination
lamp Stop/Tail LED LED
Turn signal LED LED
Reverse lamp P21W 21
High mounted stop lamp LED LED Side marker LED LED
License plate lamp W5W 5
Interior Map lamp
W10W10
Room lamp (without sunroof) FESTOON 10
Sunvisor lamp FESTOON5
Liftgate room lamp FESTOON10
Glove box lamp FESTOON5
BULB WATTAGE

02
2-9
Tire size Wheel sizeCold tire inflation
pressure kPa(psi) Track driving *
1
kPa(psi) Wheel Lug nut
Torque [kgf.m (lbf.ft,N.m)]
Front Rear Front Rear
235/40 R19 8.0J X 19255 (37) 240 (35) 240 (35) 240 (35) 11~13
(79~94, 107~127)
*1 : Refers to the recommended inflation pressure for the hot tire condition(state when the
tire temperature in increased). Limited number of passengers is 2 with no luggage. After
the track driving is complete, change to the appropriate tire inflation recommended for
the normal road and driving condition.
NOTICE

[ It is permissible to add 3 psi to the standard tire pressure specification if colder
temperatures are expected soon.
Tires typically lose 1psi (7kPa) for every 12°F temperature drop. If extreme
temperature variations are expected, recheck your tire pressure as necessary to
keep them properly inflated.

[ Tire inflation pressures will vary with changes in elevation. If driving in areas of
higher or lower elevation, be sure to check and adjust for proper tire inflation.
CAUTION

[When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.

[ When replacing tires, ALWAYS use the same size, type, construction and tread
pattern supplied with the vehicle for all tires.
TIRES AND WHEELS
